Description

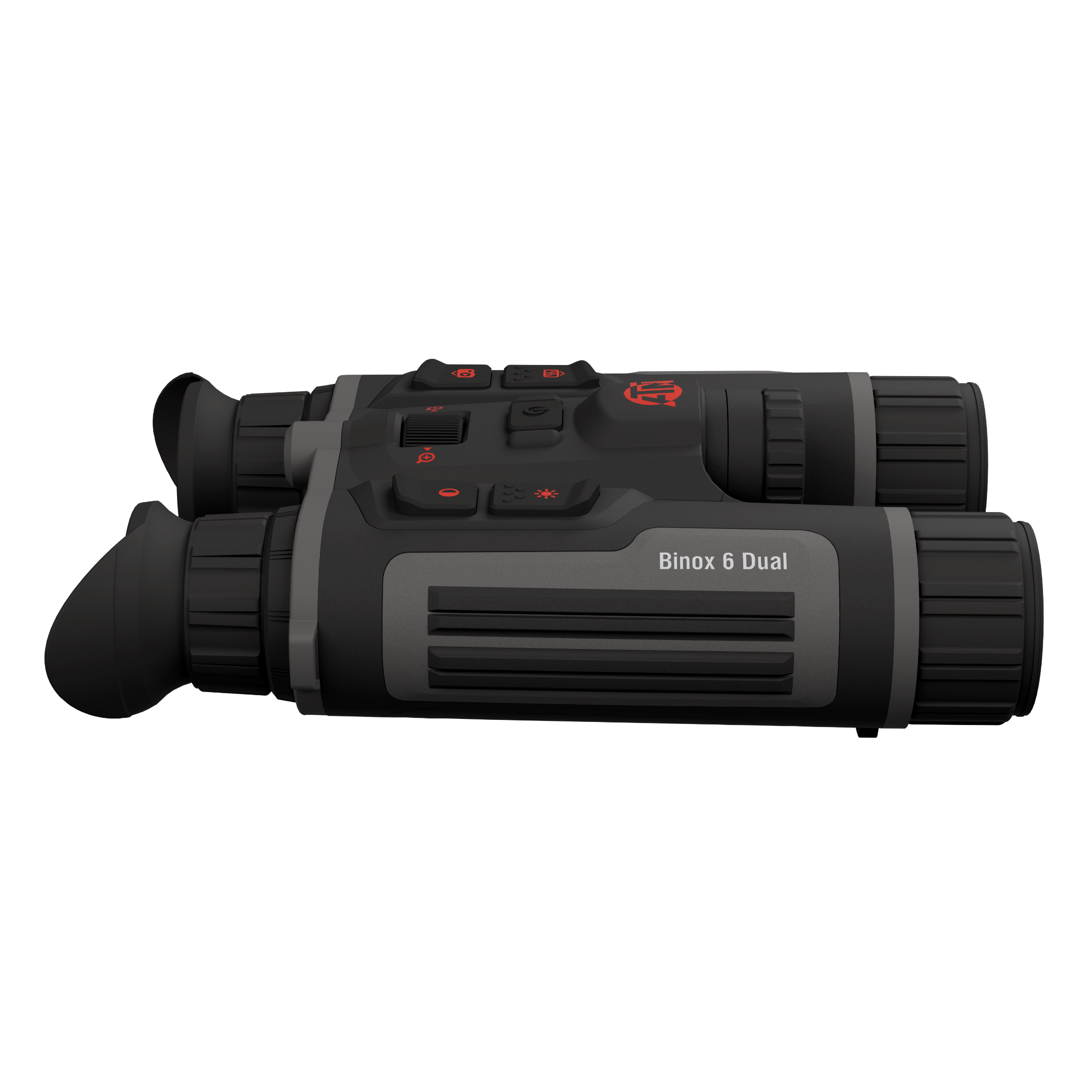

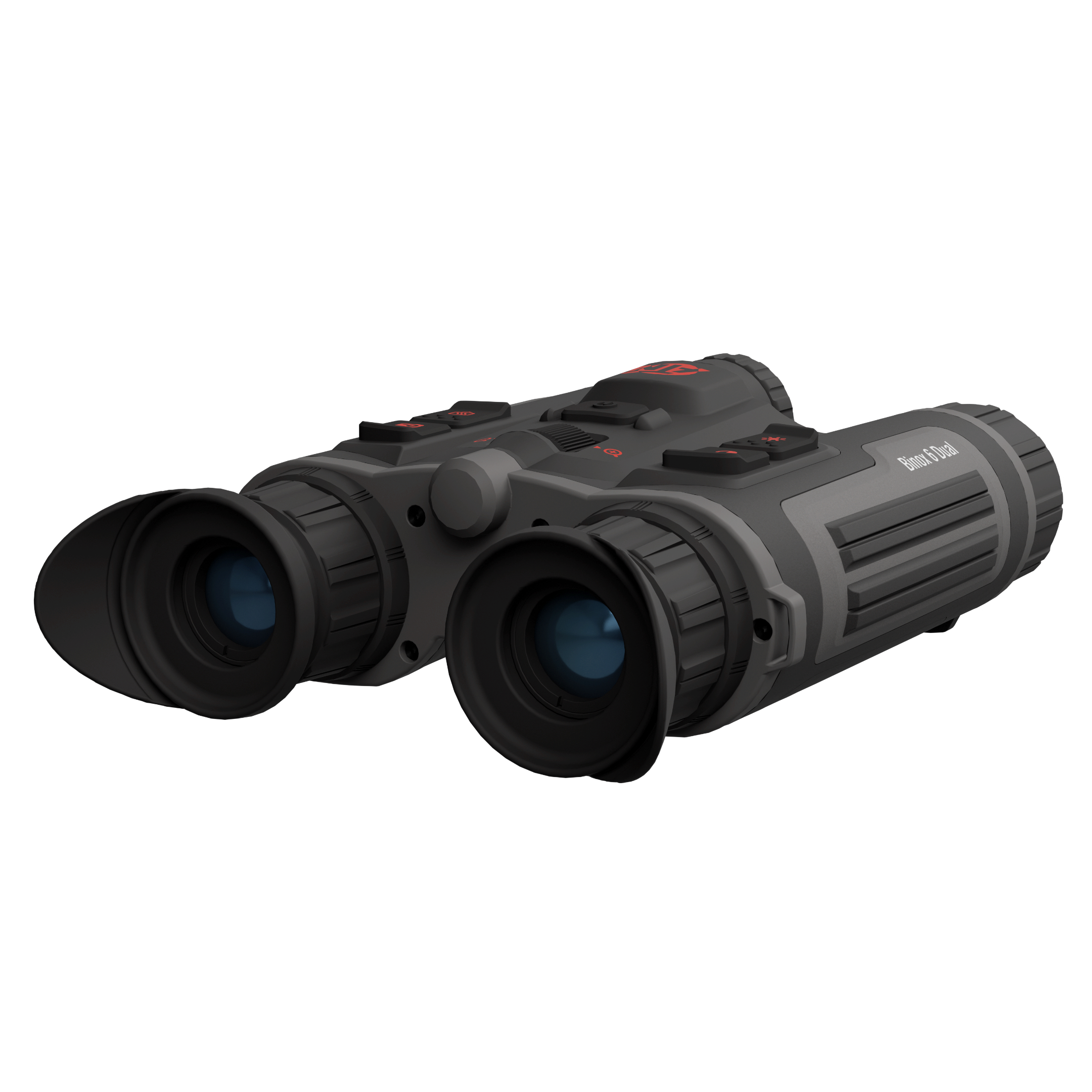

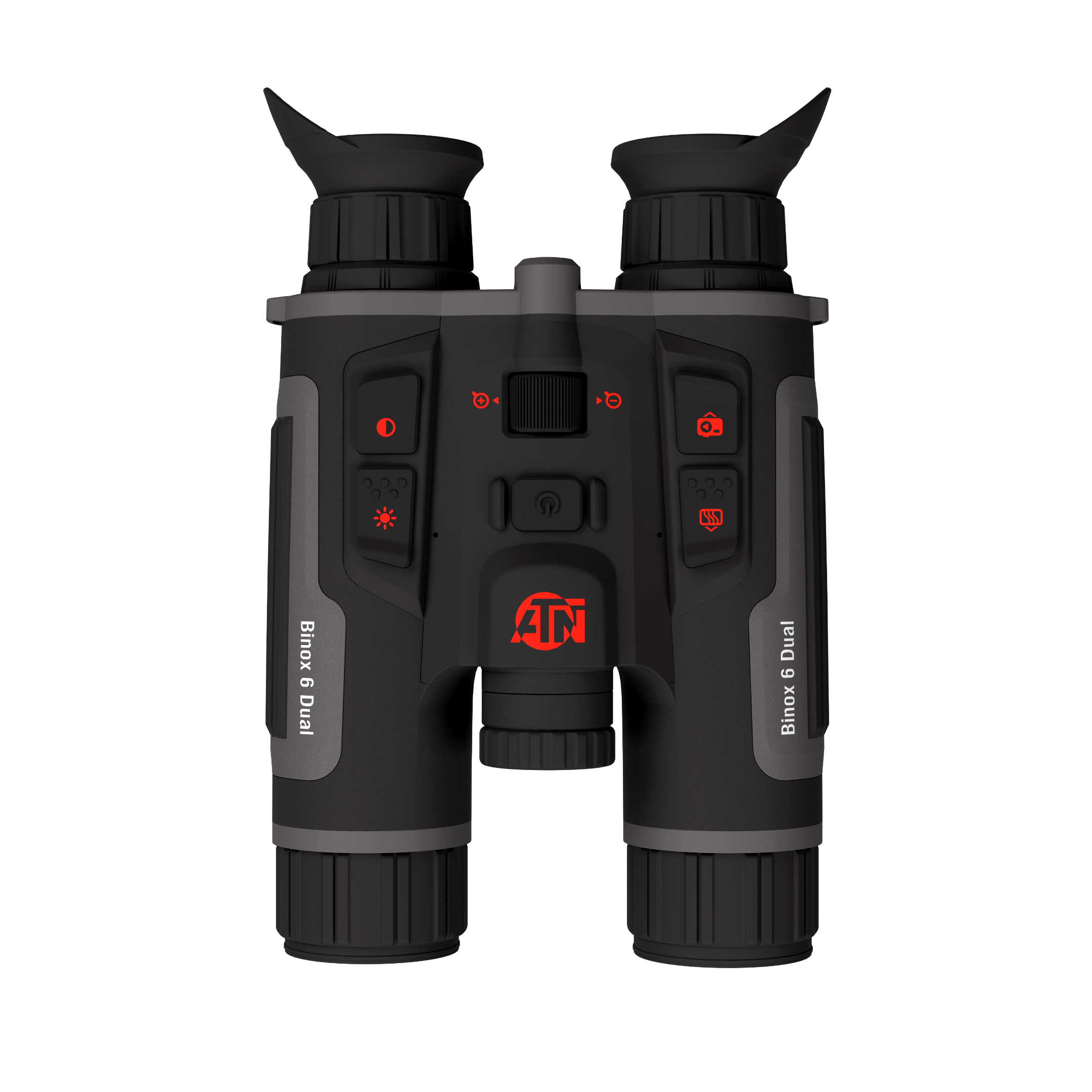

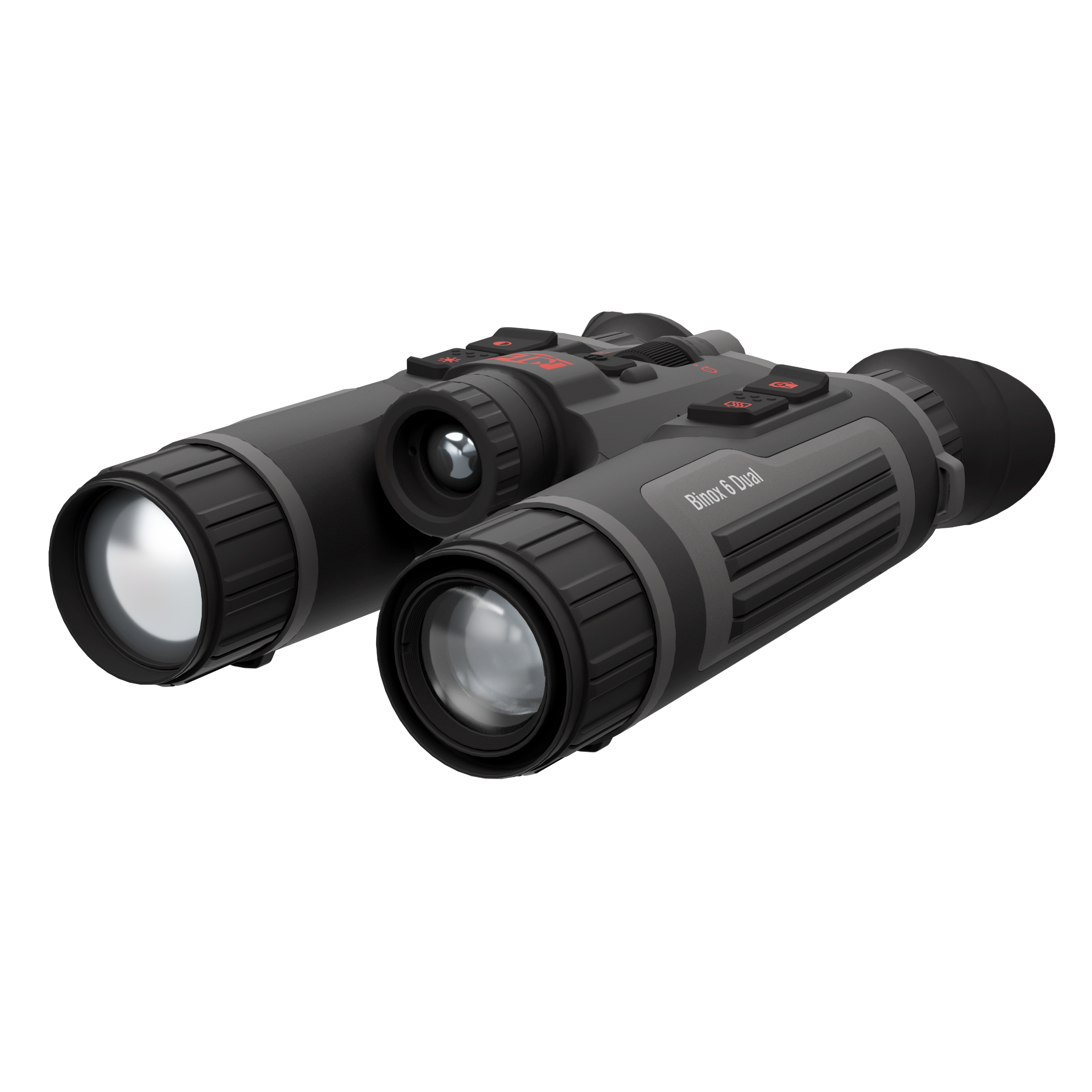

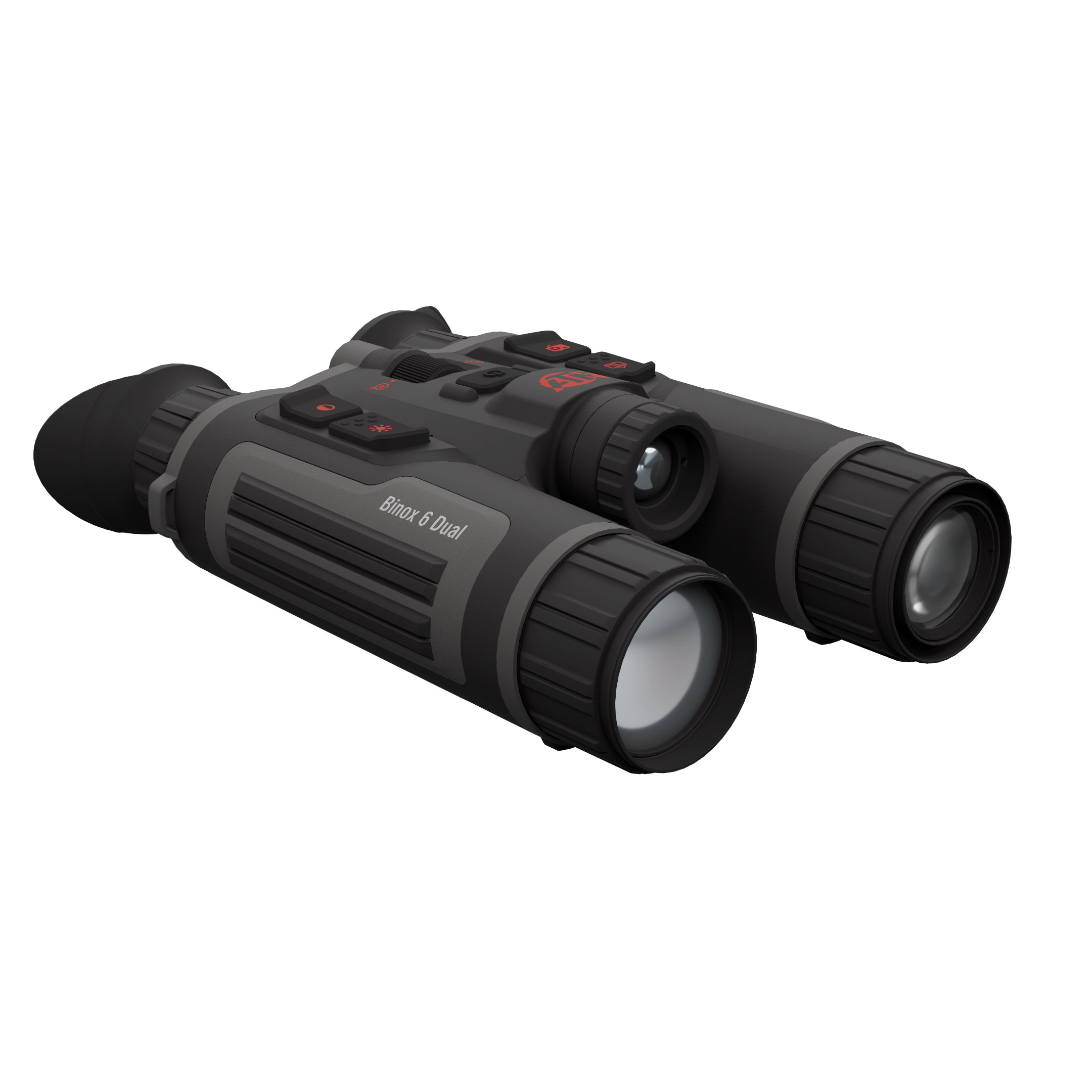

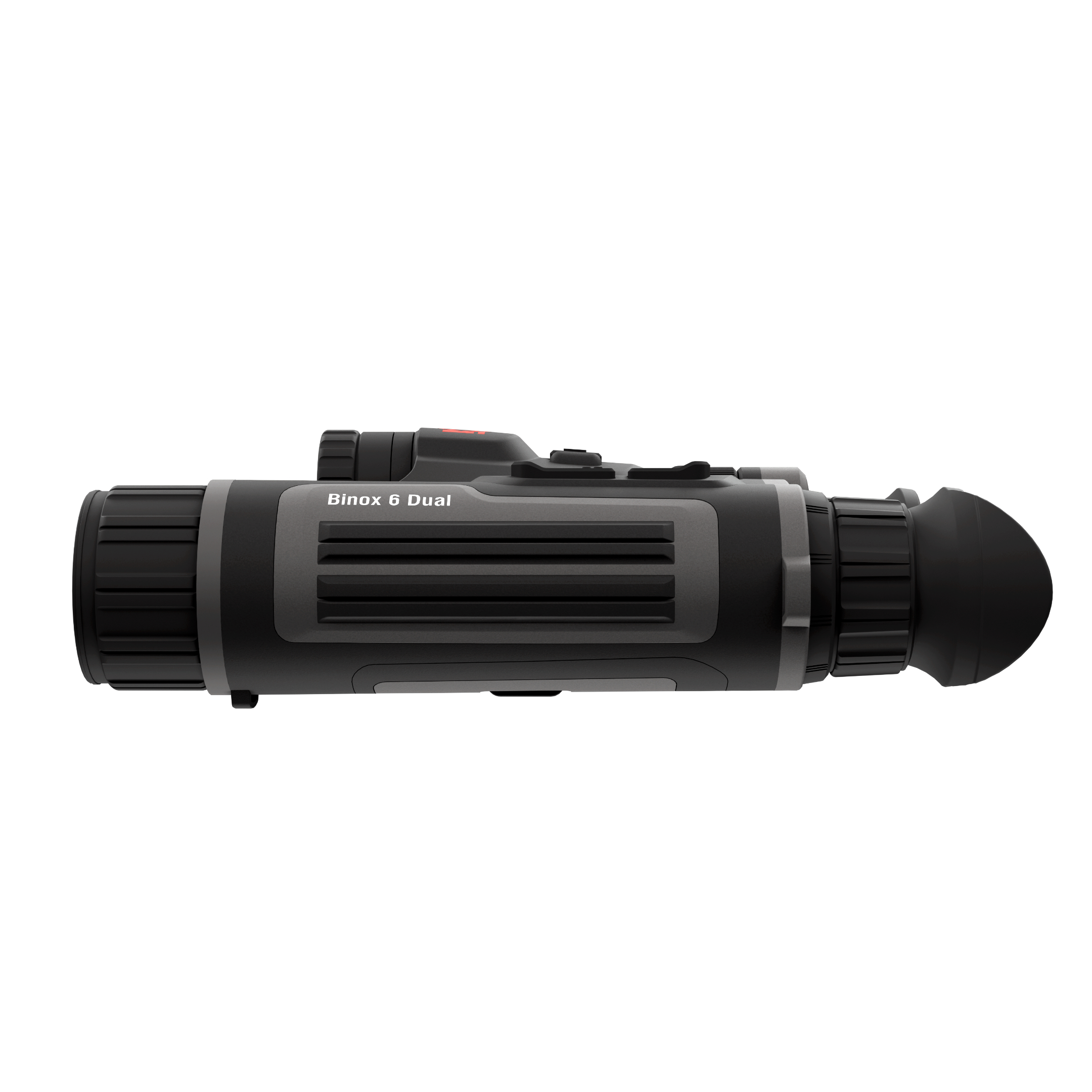

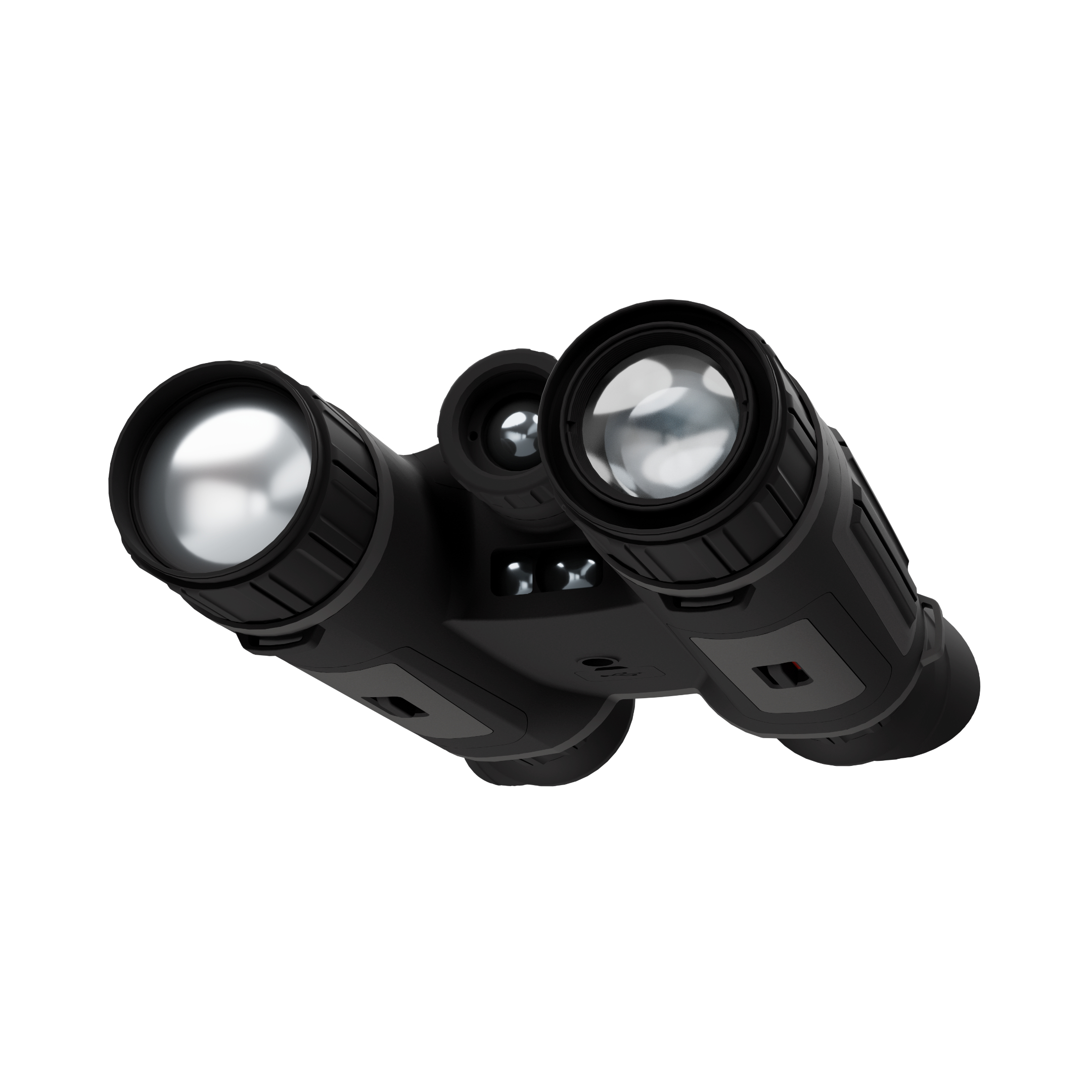

ATN Binox 6 Dual 384×288 Multispectral Thermal Binoculars with Laser Rangefinder
4-in-1 Multispectral Performance with Integrated LRF
The ATN Binox 6 Dual 384 LRF Thermal Binoculars combine thermal imaging, 4K Ultra HD day vision, digital night vision, and twilight capability into a single advanced multispectral platform. Designed for hunters and professionals who require complete visibility in any lighting condition, this system eliminates the need for multiple optics in the field.
Built on ATN’s 6th Generation thermal engine, the Binox 6 Dual 384 features a 384×288 thermal sensor with a 12µm pixel pitch and ≤15 mK NETD sensitivity, delivering improved contrast and sharper thermal detail in difficult environments such as fog, brush, and low-contrast terrain.
The integrated 4K CMOS sensor provides ultra HD daytime imaging and enhanced night vision performance with IR illumination, while Dual-View technology allows users to switch between thermal and optical modes or run both simultaneously for maximum situational awareness.
With a magnification range of 5.5–44× and a detection range of 2750 meters (3,007 yards), the Binox 6 Dual 384 is optimized for long-range scanning and identification.
A built-in laser rangefinder delivers accurate distance measurements up to 1000 meters with ±1 meter accuracy, providing critical data for hunting, navigation, and tactical applications.
The system features a 1920×1080 OLED display for smooth, high-contrast viewing, along with 64 GB of internal storage for recording 4K daytime and 1080p thermal video. Built-in Wi-Fi connectivity enables streaming and sharing through the ATN Connect 6 app.
Constructed with a rugged magnesium alloy housing and powered by dual 18650 rechargeable batteries, the Binox 6 Dual is built for real-world conditions with IP67 protection and up to 8 hours of runtime.

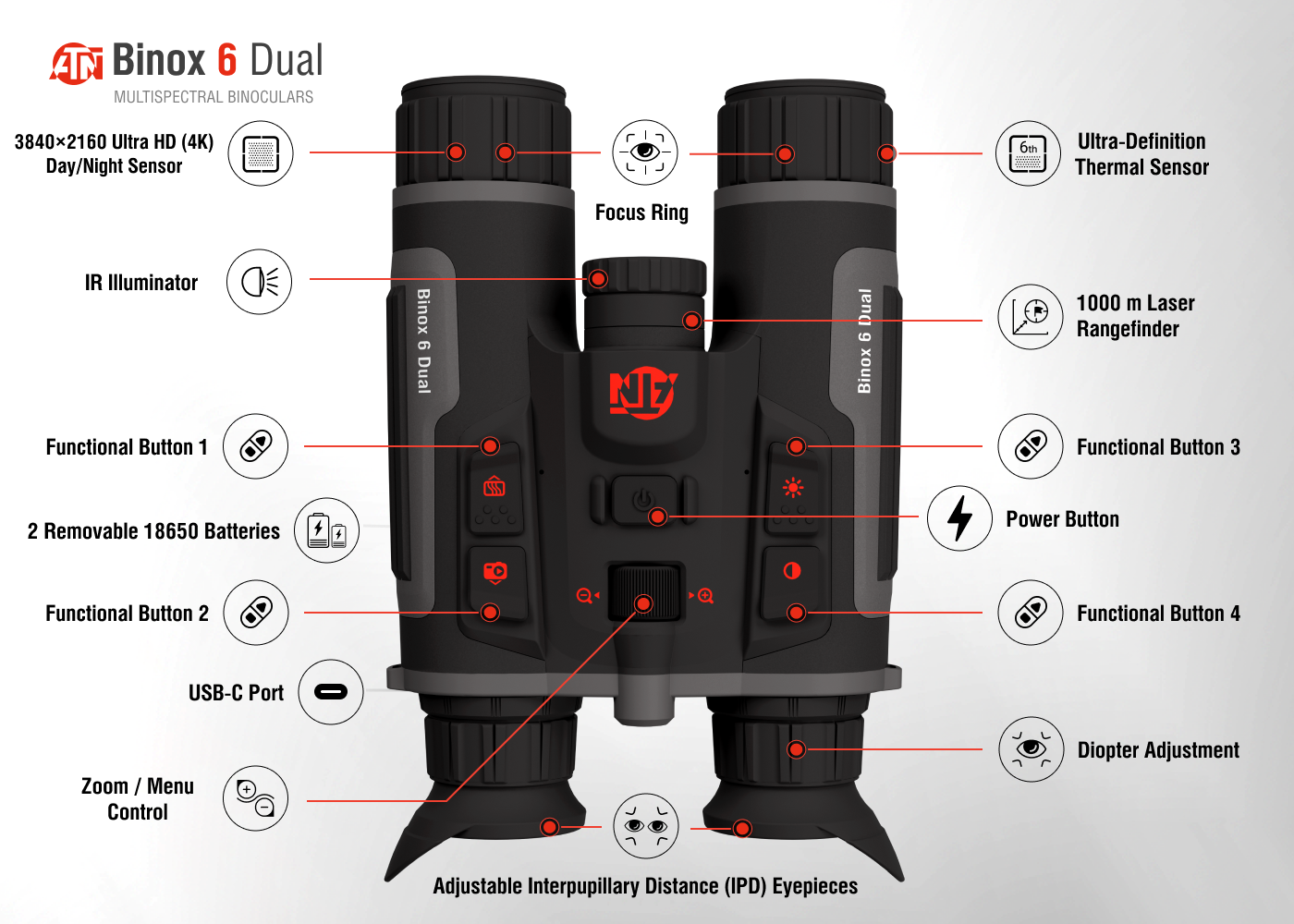

ATN Binox 6 Dual 384 LRF Features:
- 384×288 thermal sensor
- ≤15 mK NETD sensitivity
- 5.5–44× magnification
- Detection range 3,007 yds
- 4K Ultra HD day/night sensor
- 4-in-1 viewing modes (thermal, day, night, twilight)
- Built-in laser rangefinder (1093 yds)
- 1920×1080 OLED display
- 64 GB internal storage
- Video and image recording
- Built-in Wi-Fi hotspot
- Dual 18650 rechargeable batteries
- Magnesium alloy housing
BUILT FOR:
- Predator and hog hunting
- Long-range scanning and identification
- Search and rescue operations
- Property and perimeter monitoring
- Law enforcement and tactical observation
ATN Binox 6 Dual 384 LRF Specifications:
| Binox 6 Dual 384 — MSBNB6335A | Specifications |
|---|---|
| Quick Specs | Sensor: 384 × 288 • NETD: ≤15 mK • Display: 1920 × 1080 • Detection: 2750 m • Objective: 35 mm • Storage: 64 GB Internal • Weight: 1.59 lb |
| THERMAL IMAGING | |
| Detector Type | 12 μm VOx Uncooled Focal Plane Array |
| Thermal Sensor Resolution | 384 × 288 |
| Refresh Rate | 50 Hz |
| Thermal Sensitivity (NETD) | ≤15 mK |
| SharpIR© | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi Auto / Manual |
| Thermal Lens | 35 mm; F/0.9 |
| Thermal Field of View (H × V) | 7.53° × 5.65° |
| Focus Mechanism | Manual, Front Lens Adjustment |
| Thermal Magnification | 5.5–44× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Minimum Focus Distance | 5 m |
| Detection Range | 2750 m |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Wide Dynamic Range | Yes |
| DAY / NIGHT VISION | |
| Day/Night Sensor Type | 1.8″ CMOS Sensor |
| Sensor Resolution | 3840 × 2160 Ultra HD (4K) |
| Day Lens | 55 mm; F/2.0 |
| Day Lens Field of View (H × V) | 8.0° × 4.5° |
| Day/Night Magnification | 5.5–44× |
| Night Vision Mode | Yes |
| Twilight Mode | Yes |
| Smart IR | Yes |
| IR Illuminator | Yes |
| IR Settings | Low, Medium, High |
| IR Wavelength | 850 nm / 940 nm |
| Replaceable IR Illuminator | Yes |
| Effective Distance at Night | 400 m |
| RANGEFINDING & TARGETING | |
| LRF Range | 1000 m |
| LRF Accuracy | ±1 m |
| LRF Laser Specs | 905 nm, Class 1 (Eye Safe) |
| DISPLAY & VIEWING | |
| Display Type | 0.49″ OLED |
| Display Resolution | 1920 × 1080 |
| Exit Pupil | 20 mm |
| Eye Relief | 15 mm |
| Diopter Adjustment Range | -5 to +5 D |
| Interpupillary Adjustment Range | 60–74 mm |
| Picture-in-Picture (PIP) | Yes |
| RECORDING & CONNECTIVITY | |
| Internal Storage | 64 GB |
| Video / Audio Recording | Yes |
| Image Capture | Yes |
| Internal Gallery | Yes |
| Recoil Activated Video (RAV) | Yes |
| Built-in Wi-Fi (Hotspot) | Yes |
| Mobile App | ATN Connect 6 — iOS & Android |
| Media Output | USB Type-C |
| SMART FEATURES | |
| Geomagnetic Sensor + Gyroscope | Yes |
| GPS | Yes |
| Compass | Yes |
| DeFog | Yes |
| Hot Point Tracking | Yes |
| POWER | |
| Battery | 2 × 18650 Rechargeable Replaceable Batteries |
| Battery Life | Approximately 8 Hours |
| External Power Supply | Yes — USB Type-C (5 VDC / 2A) |
| Standby / Sleep Mode | Yes |
| Startup Time | ≤7 Seconds; Instant from Standby |
| DESIGN & DURABILITY | |
| Material | Magnesium Alloy |
| Weight | 720 g / 1.59 lb |
| Dimensions (L × W × H) | 210 × 184.5 × 55 mm (8.27 × 7.26 × 2.17 in) |
| Mounting | Standard Tripod Mount |
| Operating Temperature | -30°C to 55°C (-22°F to 131°F) |
| Waterproof / IP Rating | IP67 |
What’s Included:
- Binox 6 Dual 384
- Portable Bag
- 2 × 18650 Batteries
- Data Cable
- Neck Strap
- Lens Cloth
- Quick Reference Guide
- Lens Caps
- Battery Charger
