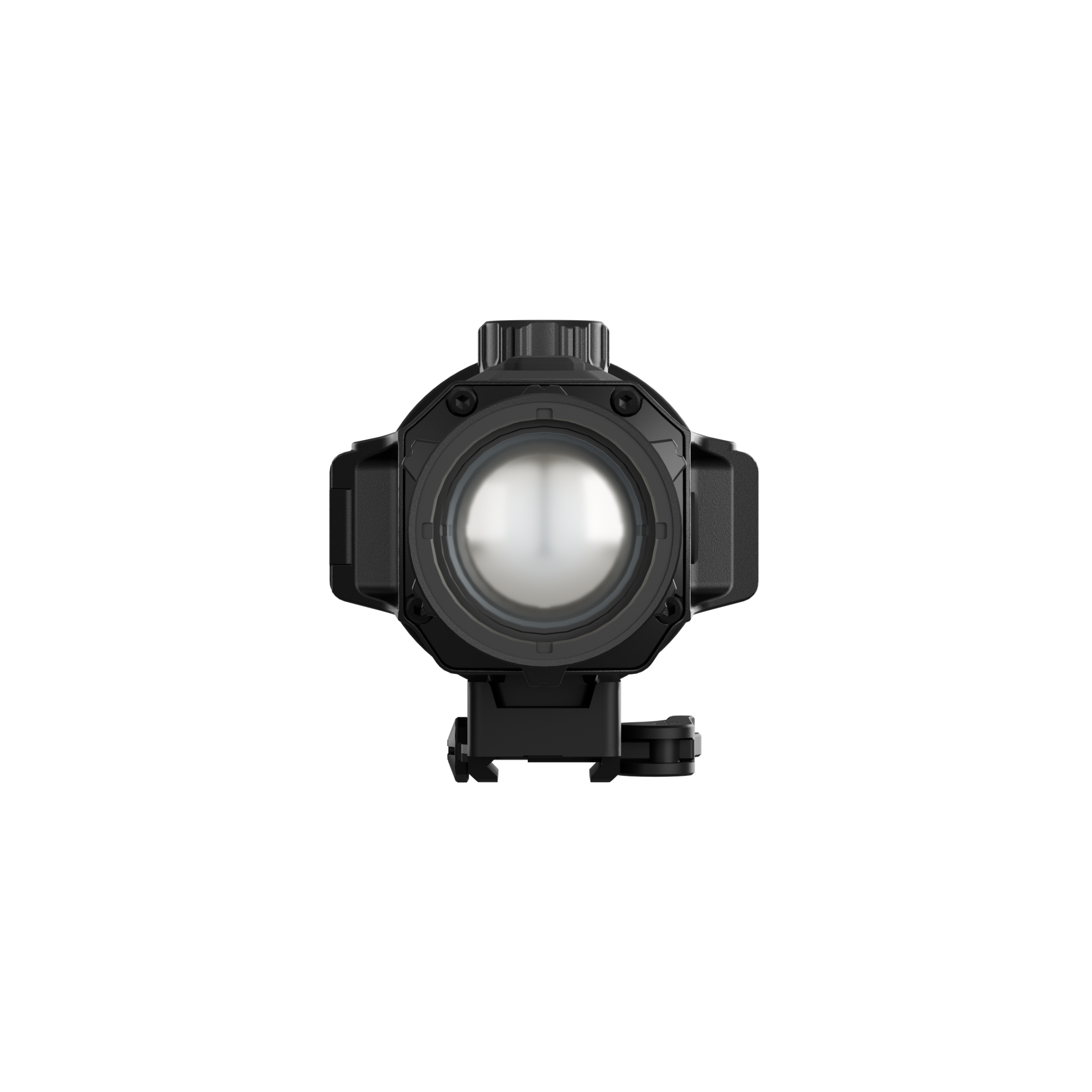

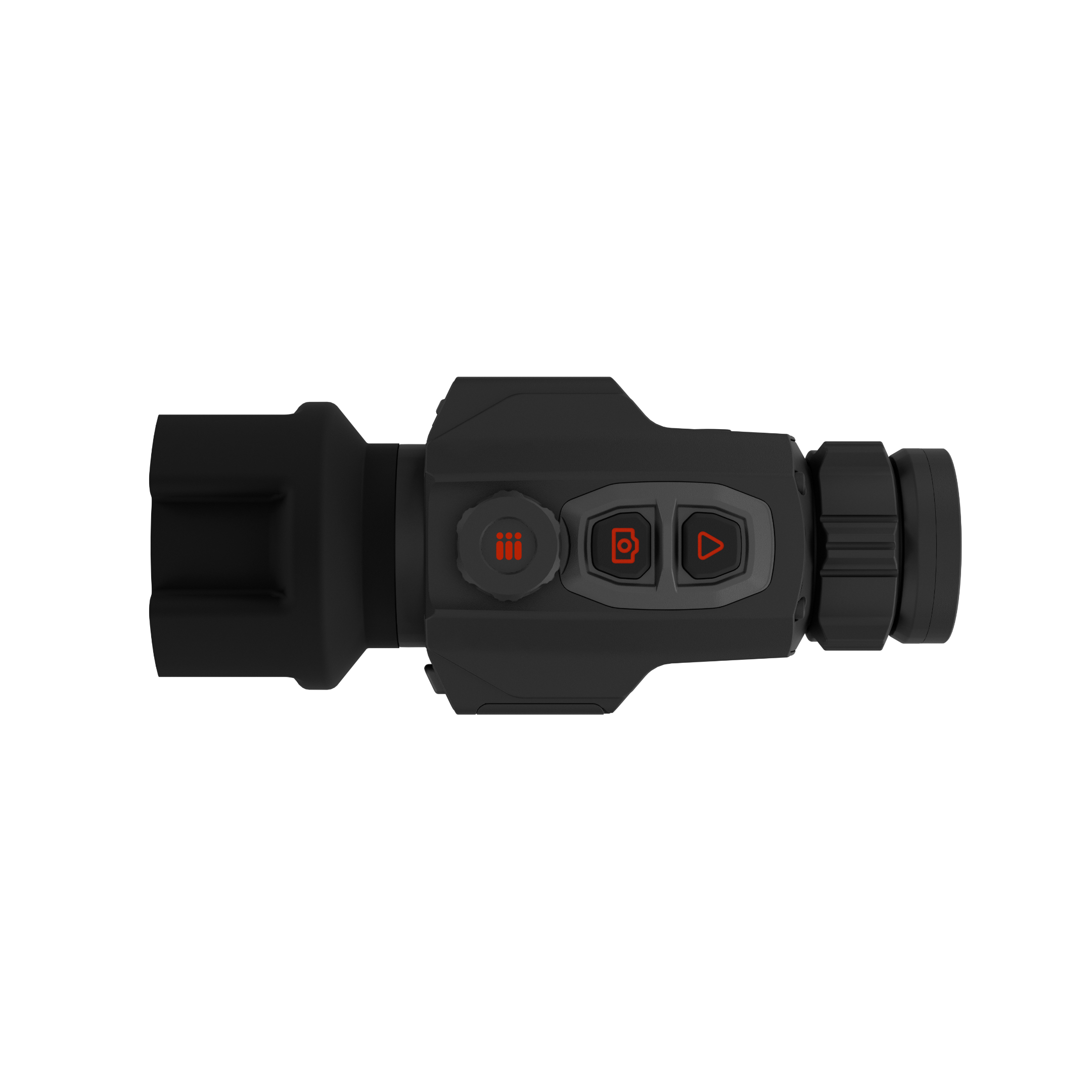

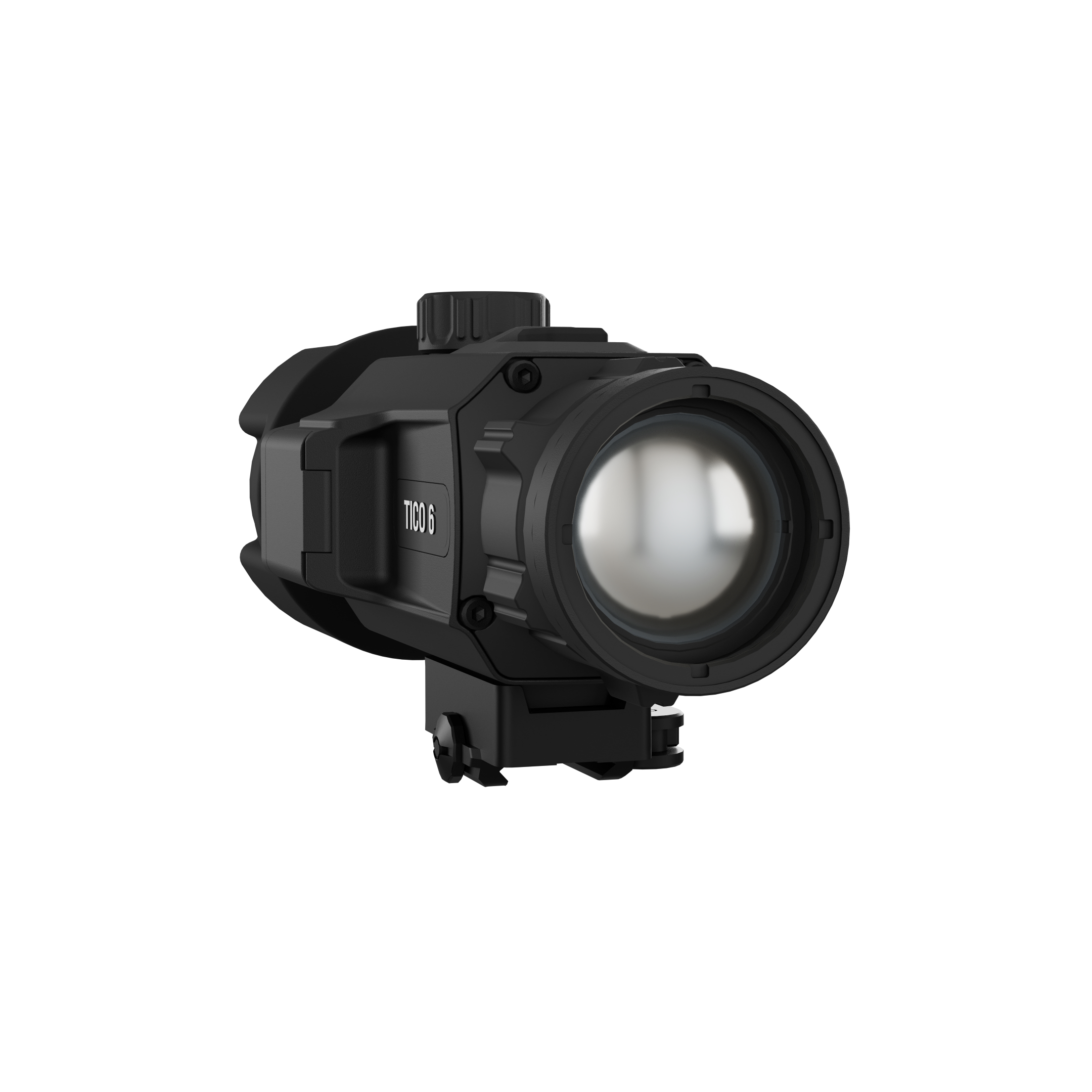

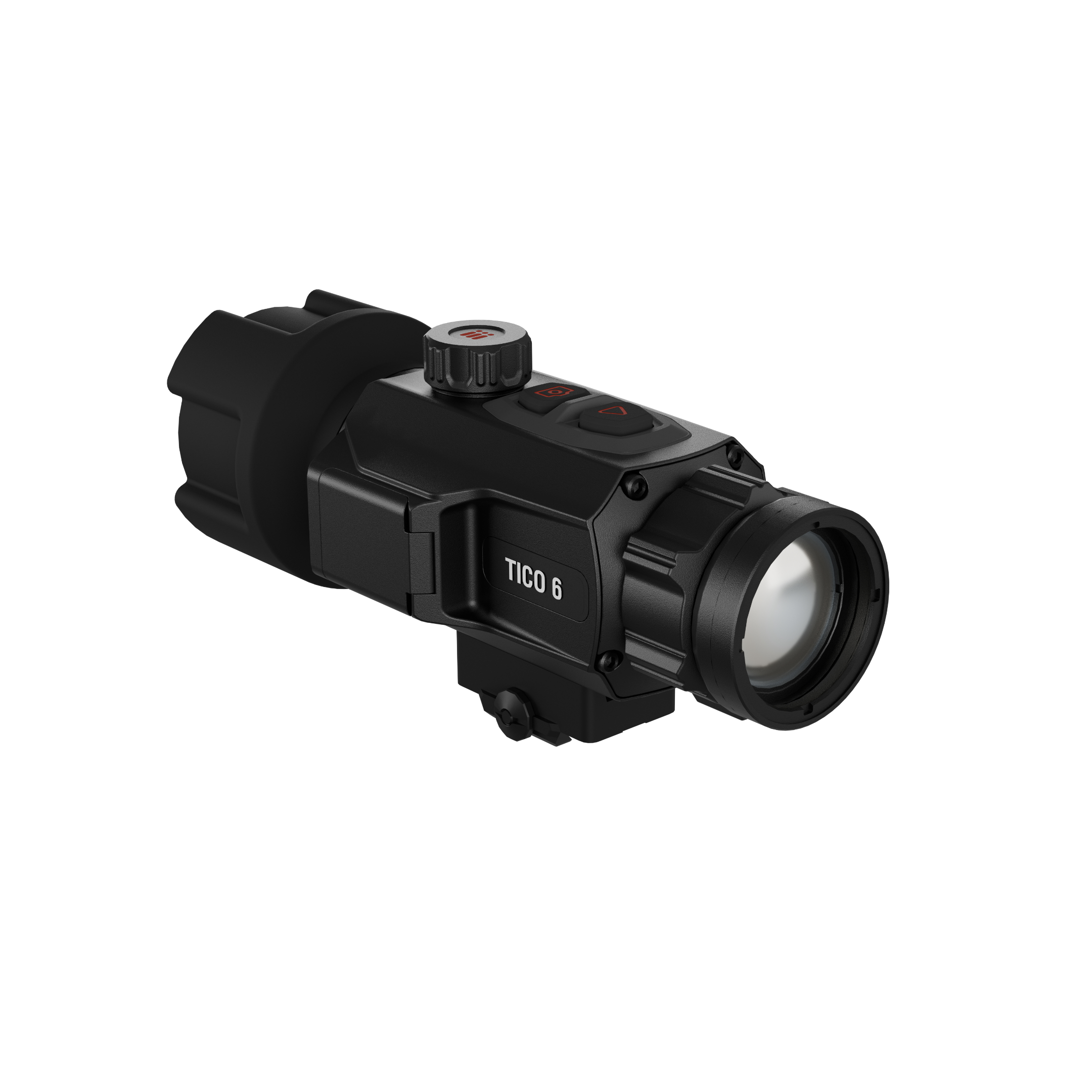

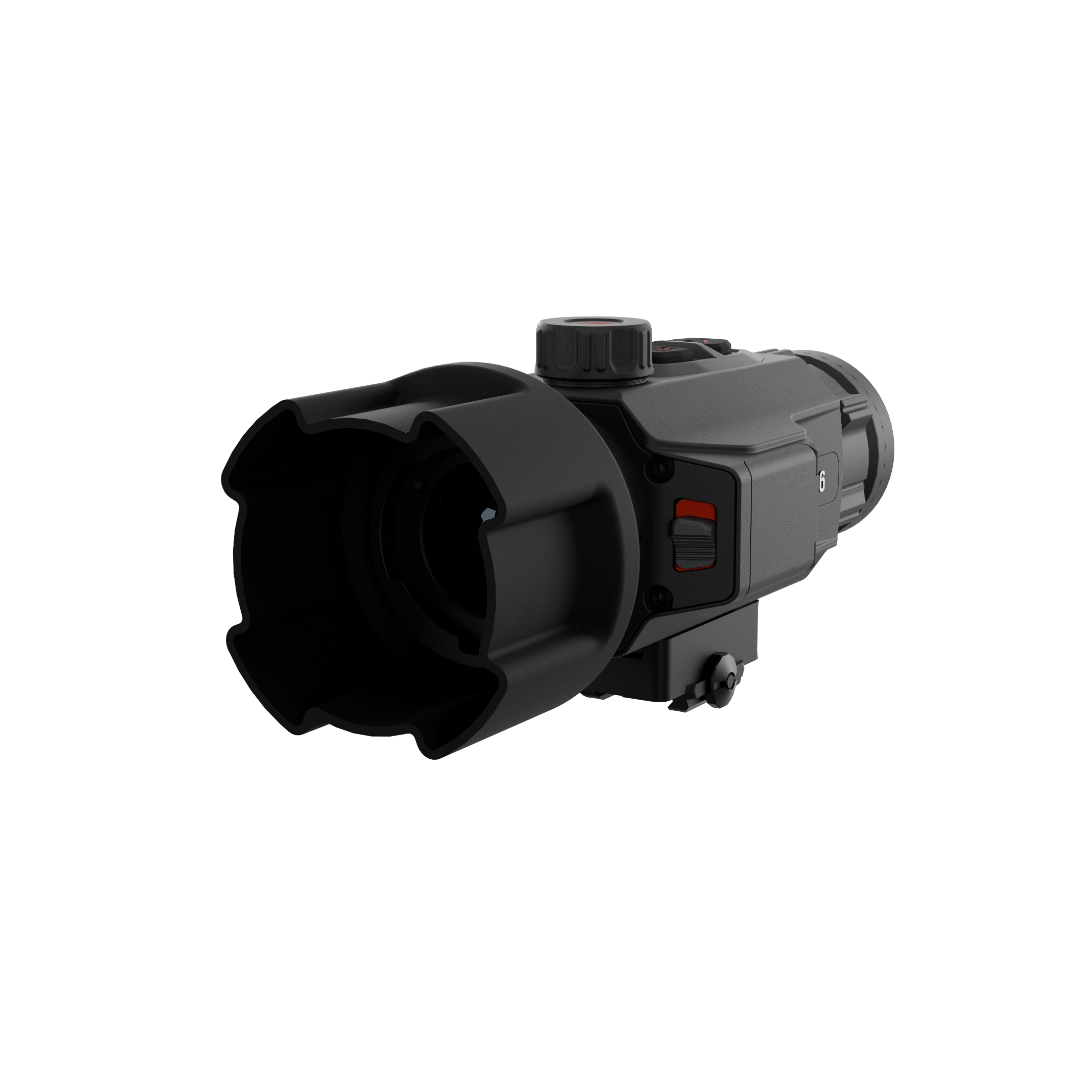

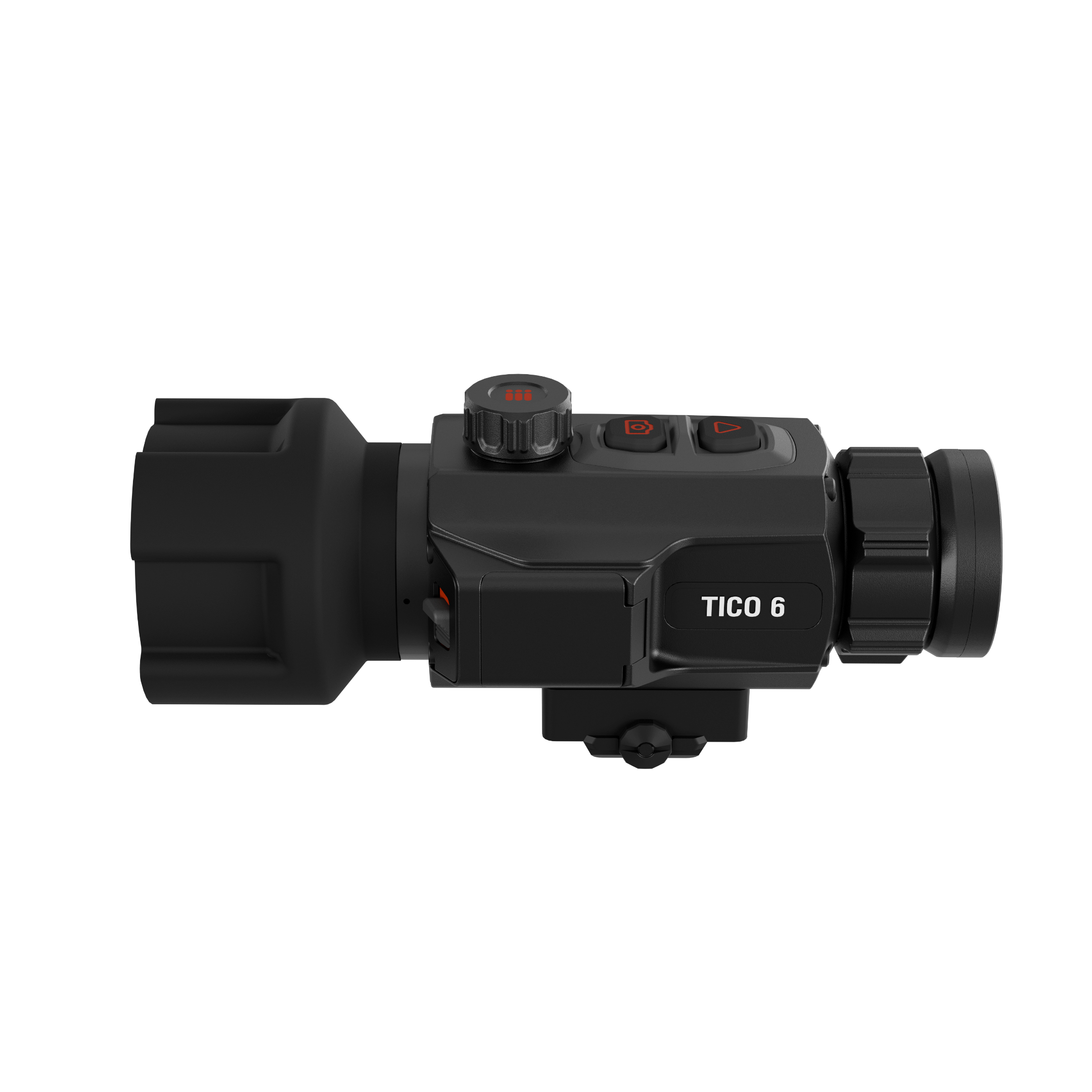

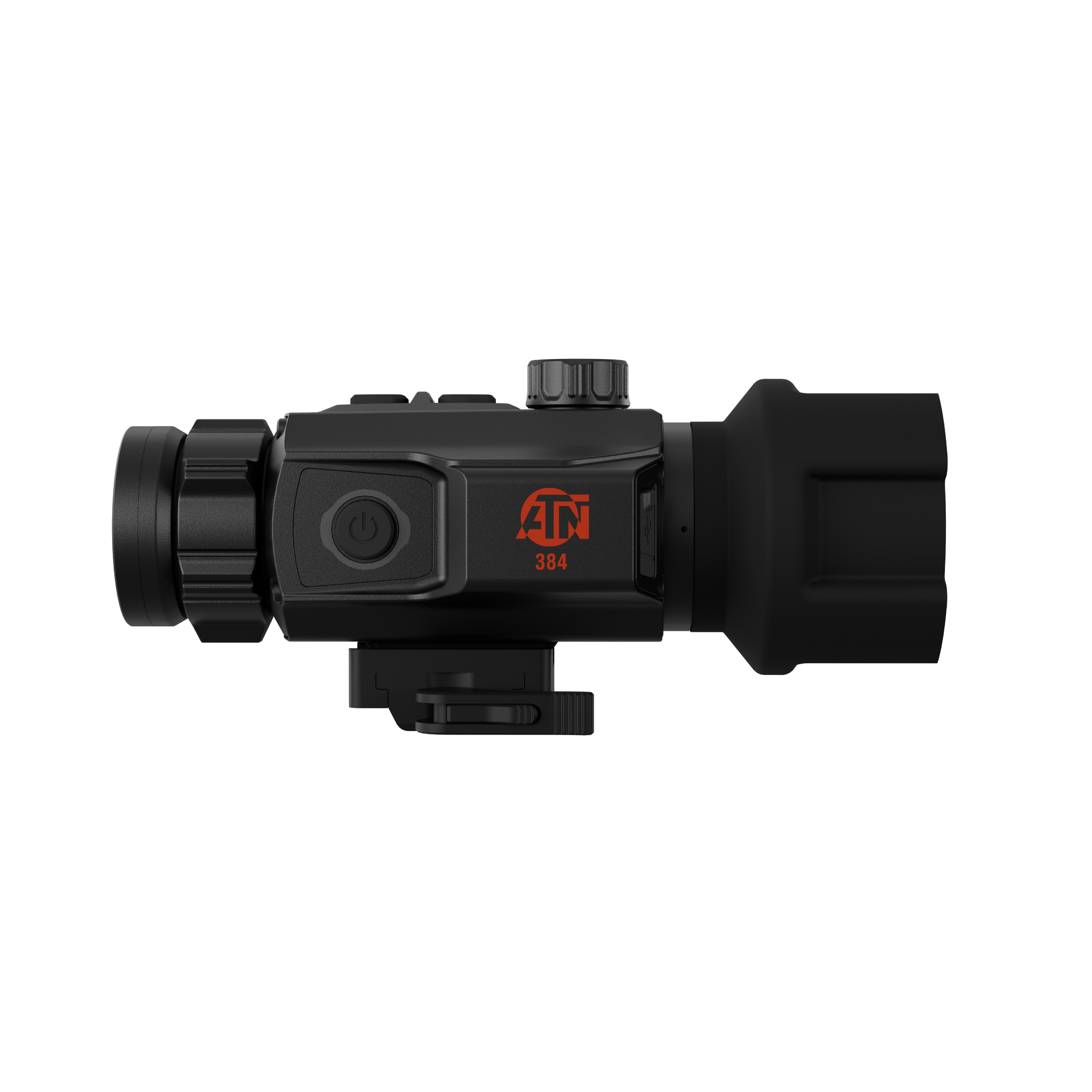

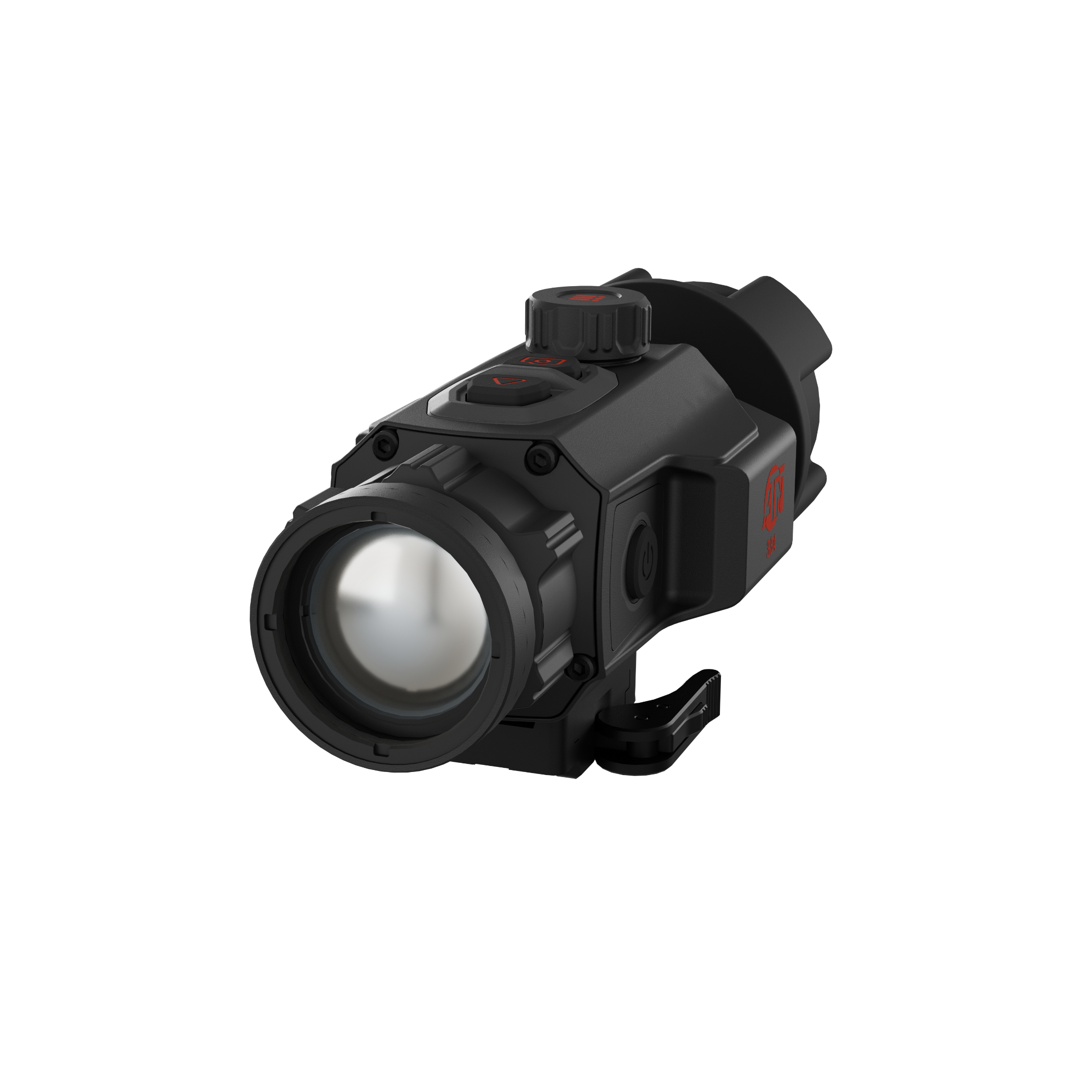

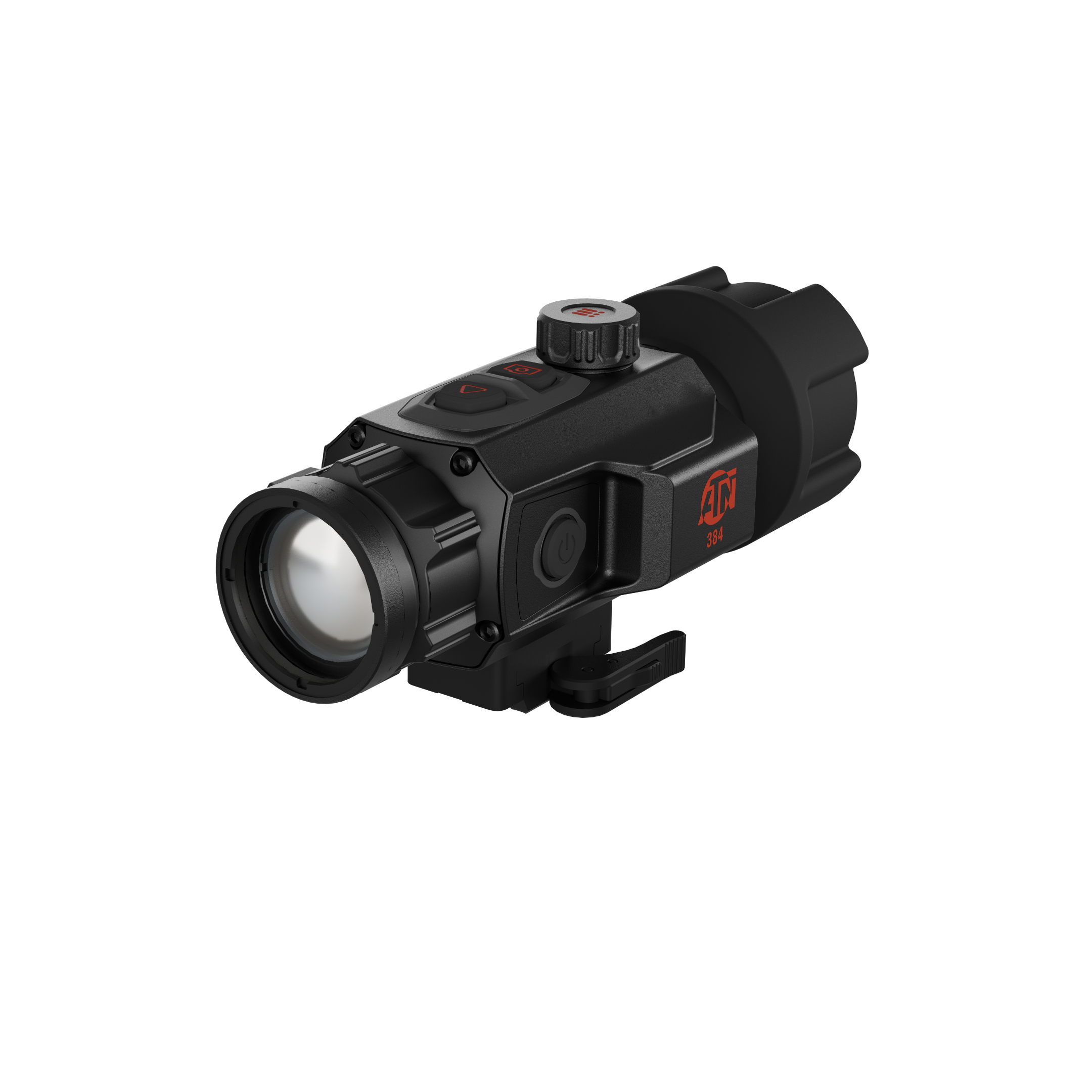

ATN TICO 6 384×288 Thermal Clip-On

Clip-On Precision with 6th Generation Thermal Performance

The ATN TICO 6 384 Thermal Clip-On is built for shooters who want to retain their trusted daytime optic while upgrading to higher-resolution thermal performance. Powered by ATN’s 6th Generation thermal engine, the TICO 6 delivers improved sensitivity, sharper imaging, and seamless integration without affecting your rifle’s zero or optic setup.

At the core is a 384×288 thermal sensor with a 12µm pixel pitch and ≤18 mK NETD sensitivity, providing improved image clarity and stronger target separation in challenging environments such as fog, brush, or low-contrast terrain.

The system features a 35 mm germanium lens paired with true 1× optical magnification, ensuring proper alignment when mounted in front of a daytime scope. With a detection range of 2710 meters (2,963 yards), the TICO 6 384 is designed for extended-range detection and target identification.

ATN SharpIR technology enhances image quality in real time by refining edges and improving contrast, helping users clearly identify targets in complex environments. The 1920×1080 OLED display delivers crisp, high-resolution imagery with smooth motion tracking.

Designed for flexibility, the TICO 6 can convert into a handheld thermal monocular with an optional eyepiece. A Quick-Detach Picatinny mount and Light Shield allow for rapid installation, while the included Tactical Remote Control enables quick adjustments without breaking shooting position.

With onboard video and audio recording, Recoil Activated Video (RAV), 64 GB internal storage, and built-in Wi-Fi connectivity, users can capture, store, and share footage directly from the device.

Constructed with a rugged magnesium alloy housing and powered by a replaceable 18650 battery, the TICO 6 384 is built for harsh environments with IP67 protection and up to 8 hours of runtime.

ATN TICO 6 384 Features:

• 384×288 thermal sensor
• ≤18 mK NETD sensitivity
• 1× optical magnification
• Detection range 2710 m / 2,963 yd
• 35 mm germanium lens
• 1920×1080 OLED display
• ATN SharpIR image enhancement
• Clip-on design (no re-zero required)
• 64 GB internal storage
• Video and audio recording
• Recoil Activated Video (RAV)
• Built-in Wi-Fi hotspot
• Quick-Detach Picatinny mount
• Tactical remote control included

Built For:

• Predator and hog hunting
• Night shooting with daytime optics
• Tactical and law enforcement use
• Search and rescue operations
• Thermal observation and scanning

ATN TICO 6 384 Specifications:

TICO 6 384 — TICO6335A	Specifications
Quick Specs	Sensor: 384 × 288 • NETD: ≤18 mK • Display: 1920 × 1080 • Detection: 2710 m • Objective: 35 mm • Storage: 64 GB Internal • Weight: 1.15 lb
OPTICS & SENSOR
Model	TICO6335A
Detector Type	12 μm VOx Uncooled Focal Plane Array
Sensor Resolution	384 × 288
Thermal Sensitivity (NETD)	≤18 mK
Refresh Rate	50 Hz
SharpIR©	Yes
Non-Uniformity Correction (NUC)	Auto / Semi Auto / Manual
Lens	35 mm Germanium; F/1.0
Field of View (H × V)	7.5° × 5.7°
Focus Mechanism	Manual, Front Lens Adjustment
Optical Magnification	1×
Detection Range	2710 m
Optimal Day Scope Magnification	1–12×
DISPLAY & VIEWING
Display Type	0.49″ OLED
Display Resolution	1920 × 1080
Color Palettes	White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
Monocular Mode	Yes
Hot Point Tracking	Yes
Geomagnetic Sensor + Gyroscope	Yes
RECORDING & CONNECTIVITY
Internal Storage Capacity	64 GB
Video / Audio Recording	Yes
Internal Gallery	Yes
Recoil Activated Video (RAV)	Yes
Built-in Wi-Fi (Hotspot)	Yes
Wireless Remote Control	Yes — Included
Mobile App	ATN Connect 6 — iOS & Android
Media Output	USB Type-C
POWER
Battery Type	1 × 18650 Rechargeable Replaceable Battery
Battery Life	Approximately 8 Hours
External Power Supply	Yes — USB Type-C (5 VDC / 2A)
Standby / Sleep Mode	Yes
Startup Time	≤7 Seconds; Instant from Standby
DESIGN & DURABILITY
Material	Magnesium Alloy
Mounting	Quick Detach — Included / Scope Mounting — Add-On
Weight	524 g / 1.15 lb
Dimensions (L × W × H)	163 × 85 × 74 mm (6.41 × 3.34 × 2.91 in)
Max Recoil Rating	6000 J / 1000g Over 0.4 ms
Operating Temperature	-30°C to 55°C (-22°F to 131°F)
Waterproof / IP Rating	IP67



IN THE BOX:

• Thermal Clip-On
• Spacer
• Rubber Shield
• Lens Cloth
• 1 × 18650 Battery
• USB Type-C Cable
• Quick Reference Guide
• Battery Charger
• Portable Bag
