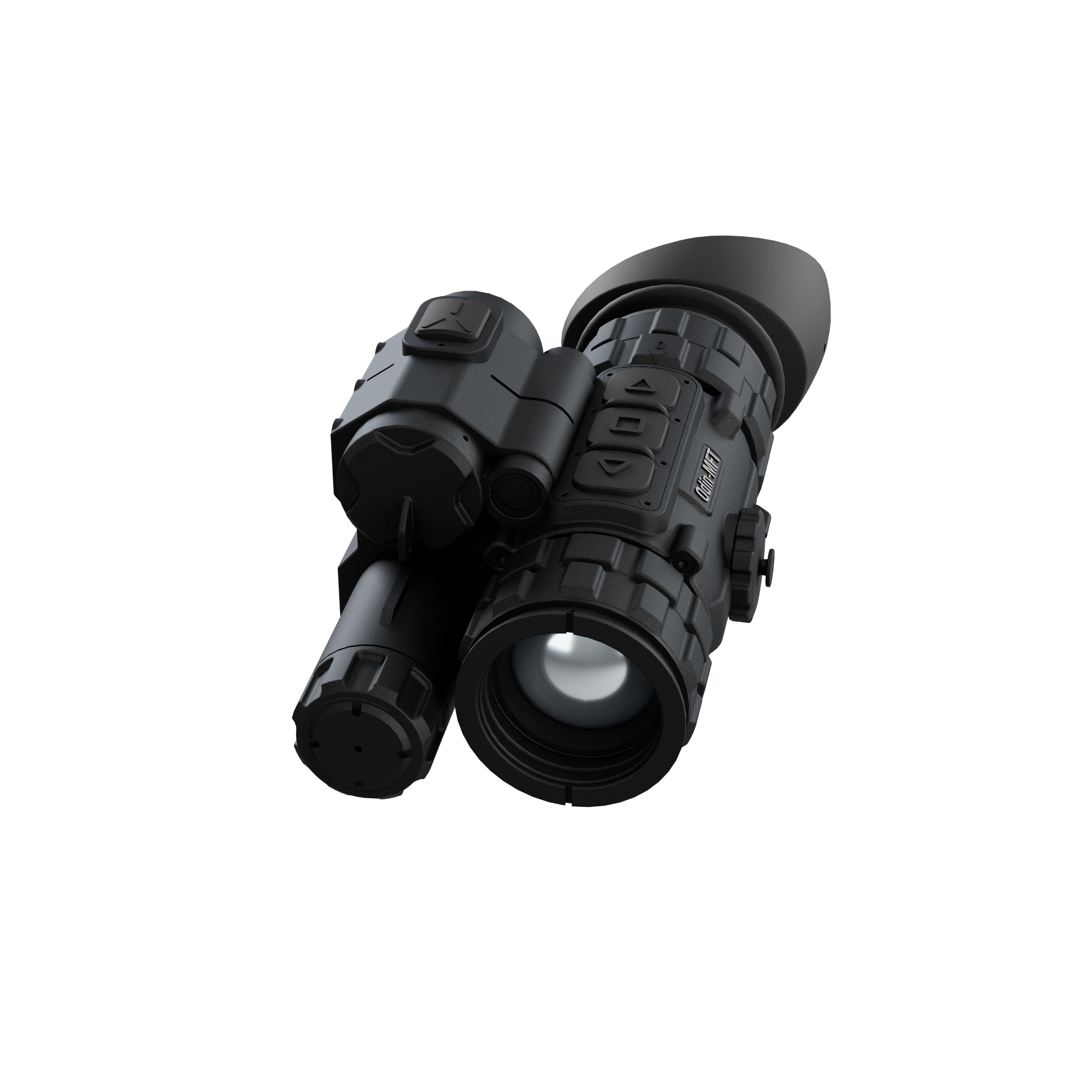

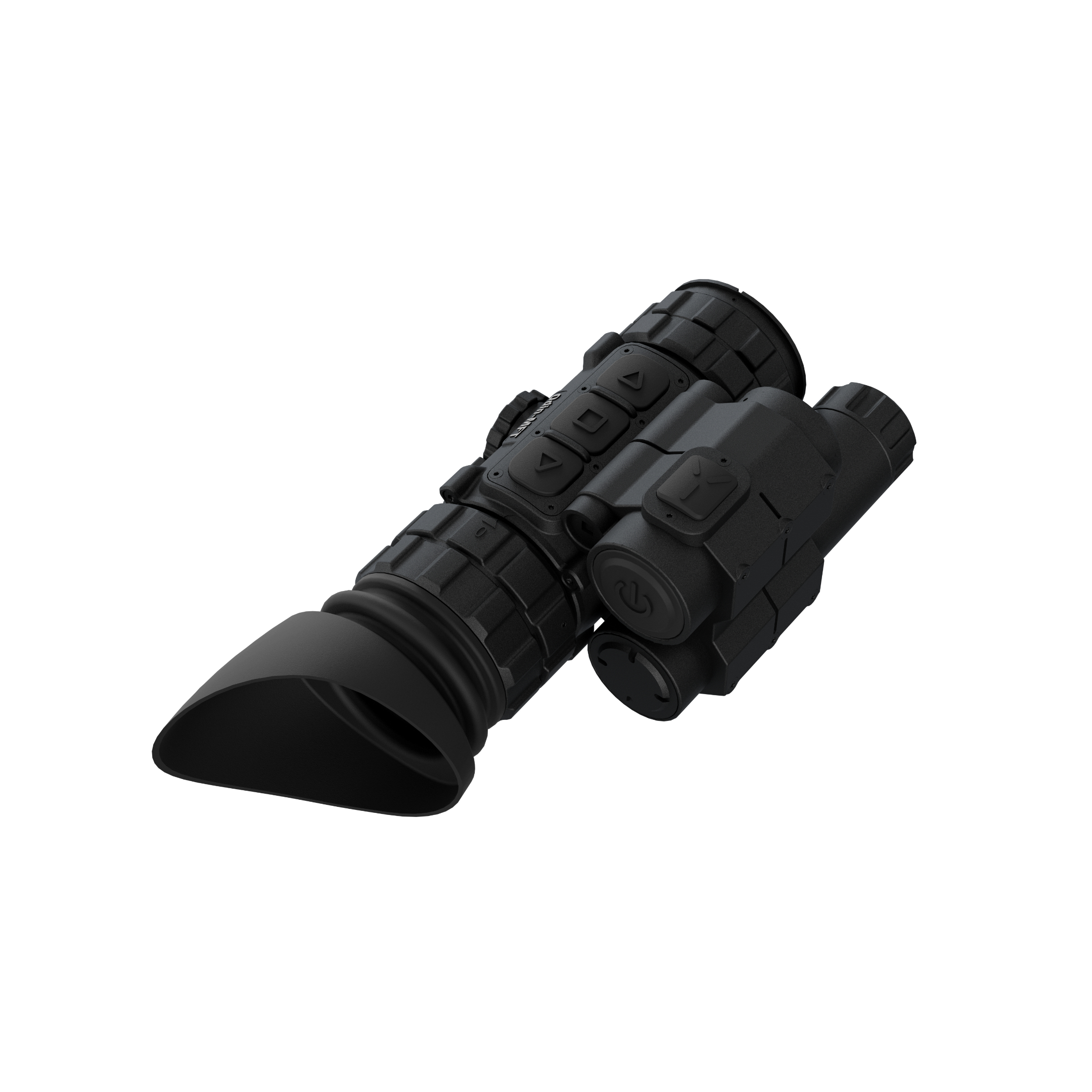

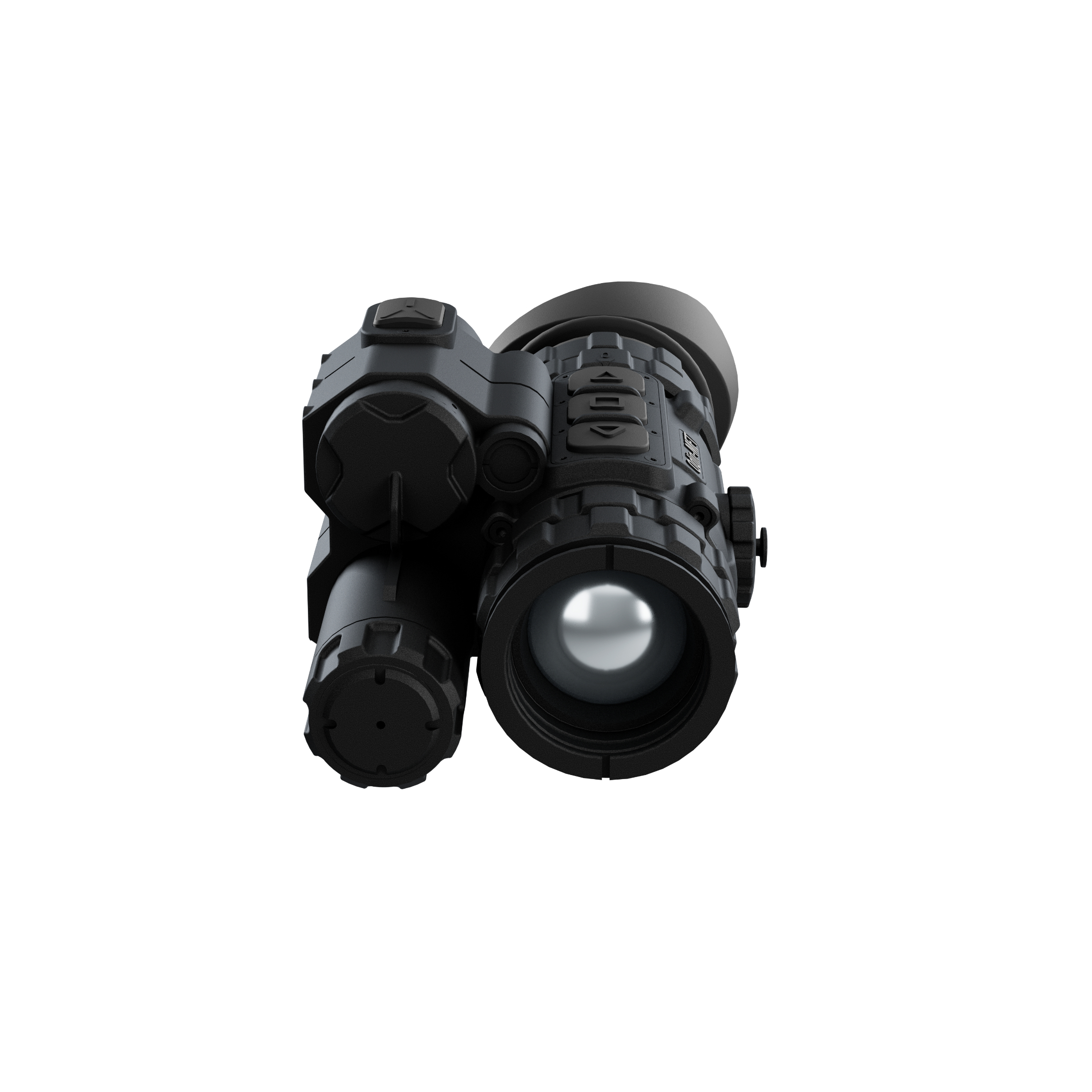

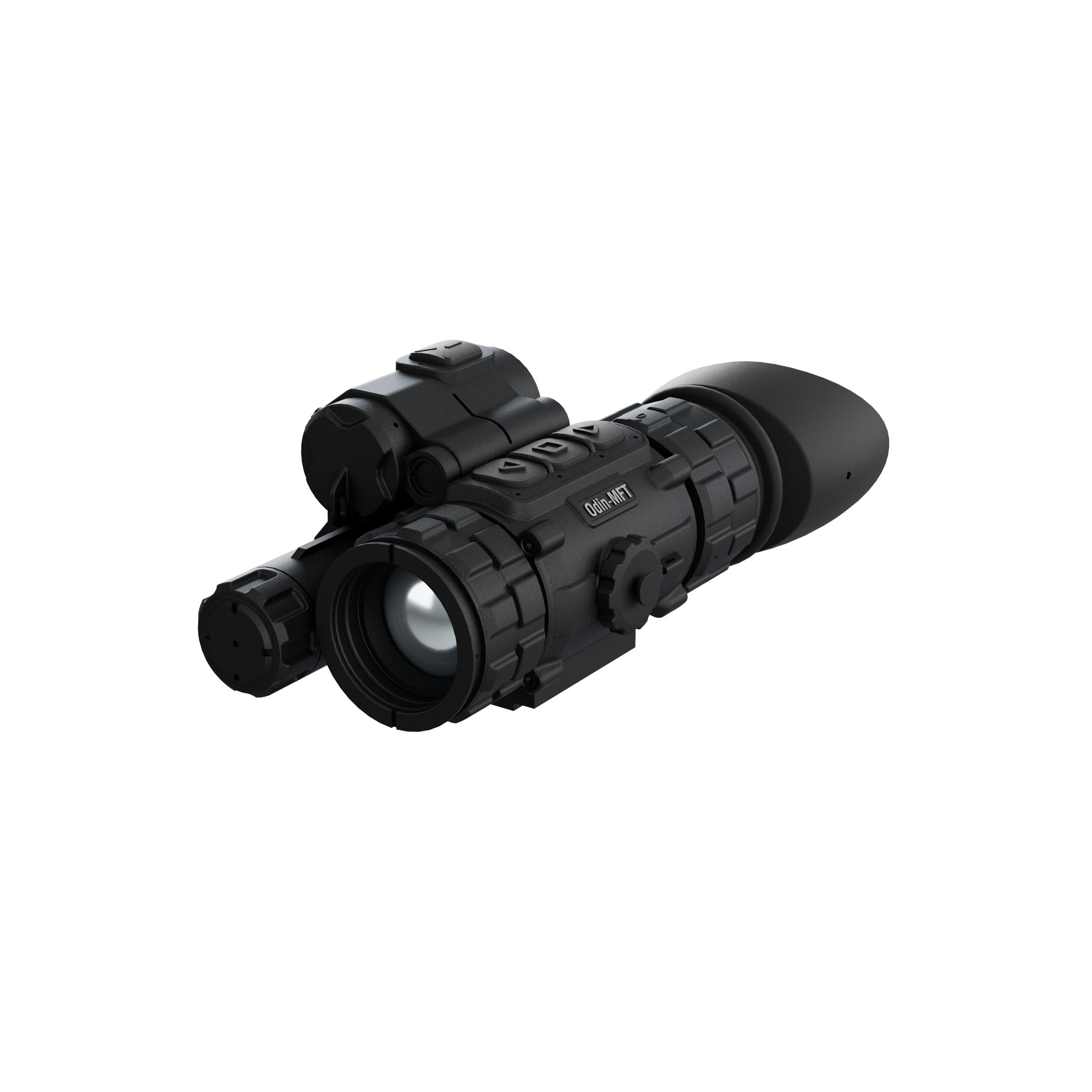

ATN Odin 6 640×480 Multi-Function Thermal Monocular

(1–8× Magnification & 1,859-yd Detection Range)

Multi-Function Thermal Performance in a Compact Platform

The ATN Odin 6 MFT 640 Thermal Monocular is a versatile, multi-role thermal optic designed for hunters, professionals, and tactical users who demand adaptability without compromising performance. Built on ATN’s 6th Generation thermal engine, the Odin 6 MFT delivers exceptional clarity, sensitivity, and reliability across a wide range of environments.

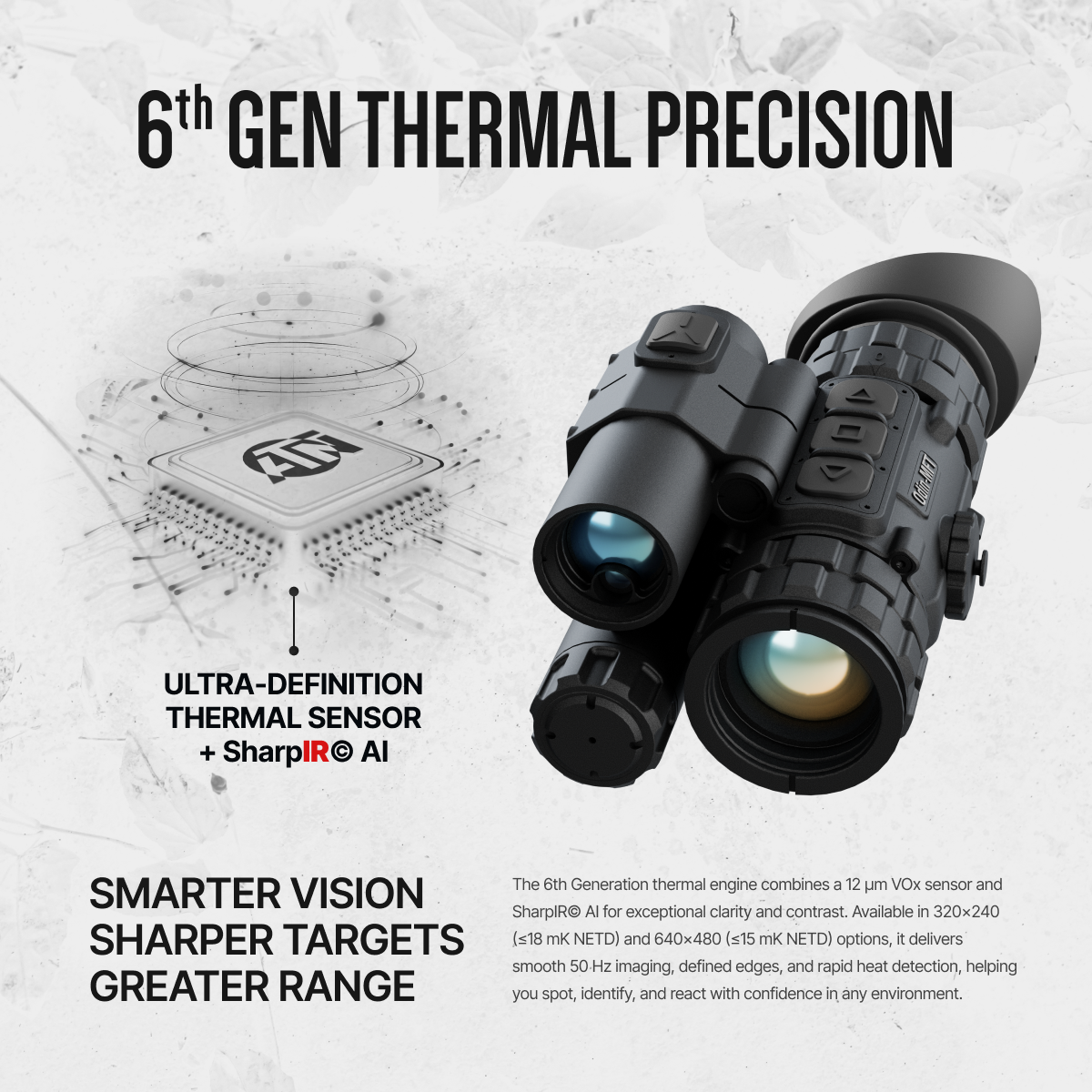

At its core is a 640×480 thermal sensor with a 12µm pixel pitch and ≤15 mK NETD sensitivity, providing high-contrast imaging and precise heat detection even in challenging conditions such as fog, brush, or low-visibility terrain.

The system features a 25 mm germanium lens paired with a 1–8× magnification range, allowing users to scan wide areas while maintaining strong target identification at distance. With a detection range of 1700 meters (1,859 yards), the Odin 6 MFT 640 delivers reliable performance for both mid- and long-range observation.

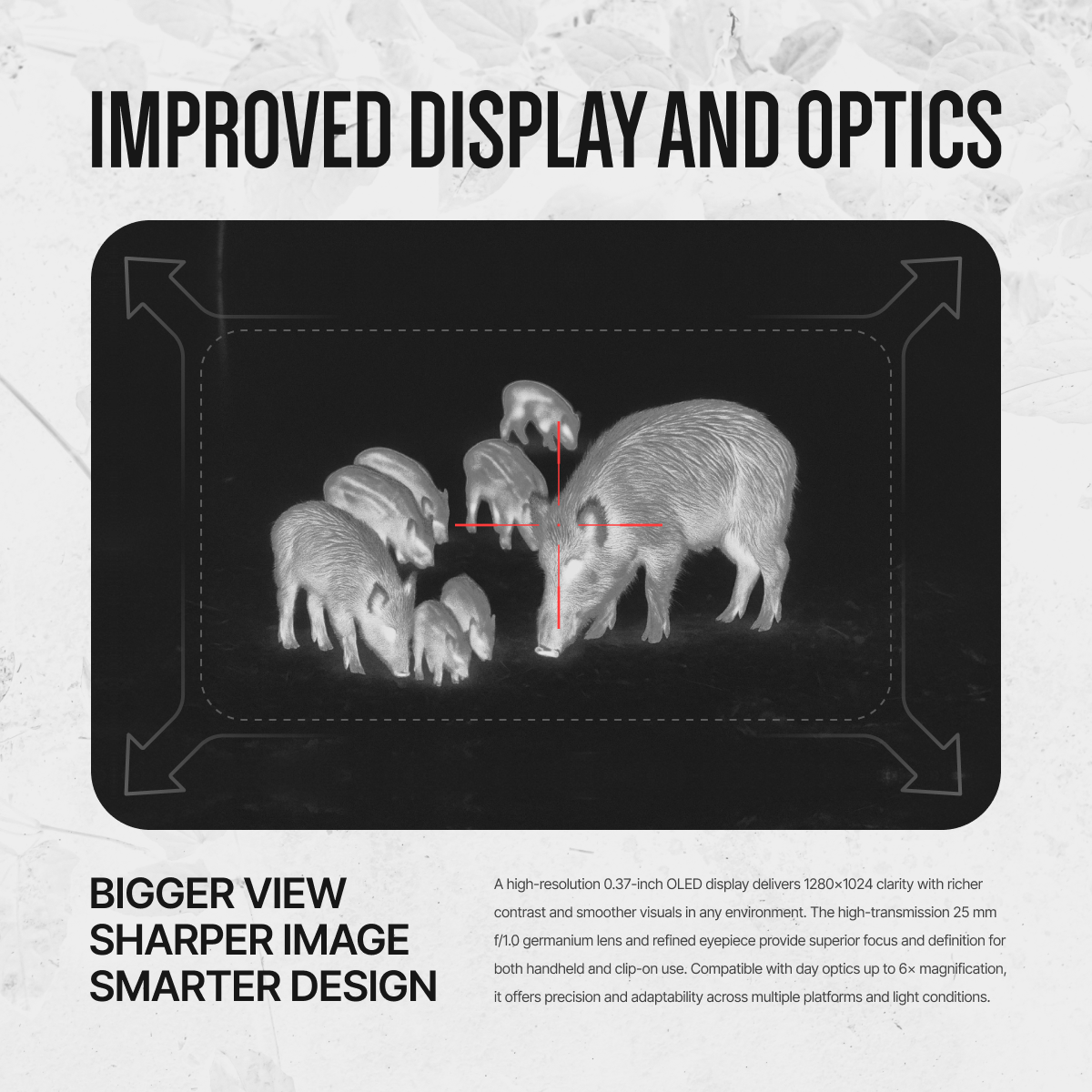

ATN SharpIR technology enhances image clarity in real time by improving edge definition, contrast, and target separation. The high-resolution 1280×1024 OLED display delivers crisp visuals and smooth motion tracking during extended use.

Designed as a true multi-functional platform, the Odin 6 MFT can be used as a handheld monocular, helmet-mounted viewer, clip-on device, or dedicated weapon sight. Its adaptable design makes it ideal for a wide range of applications from hunting to tactical operations.

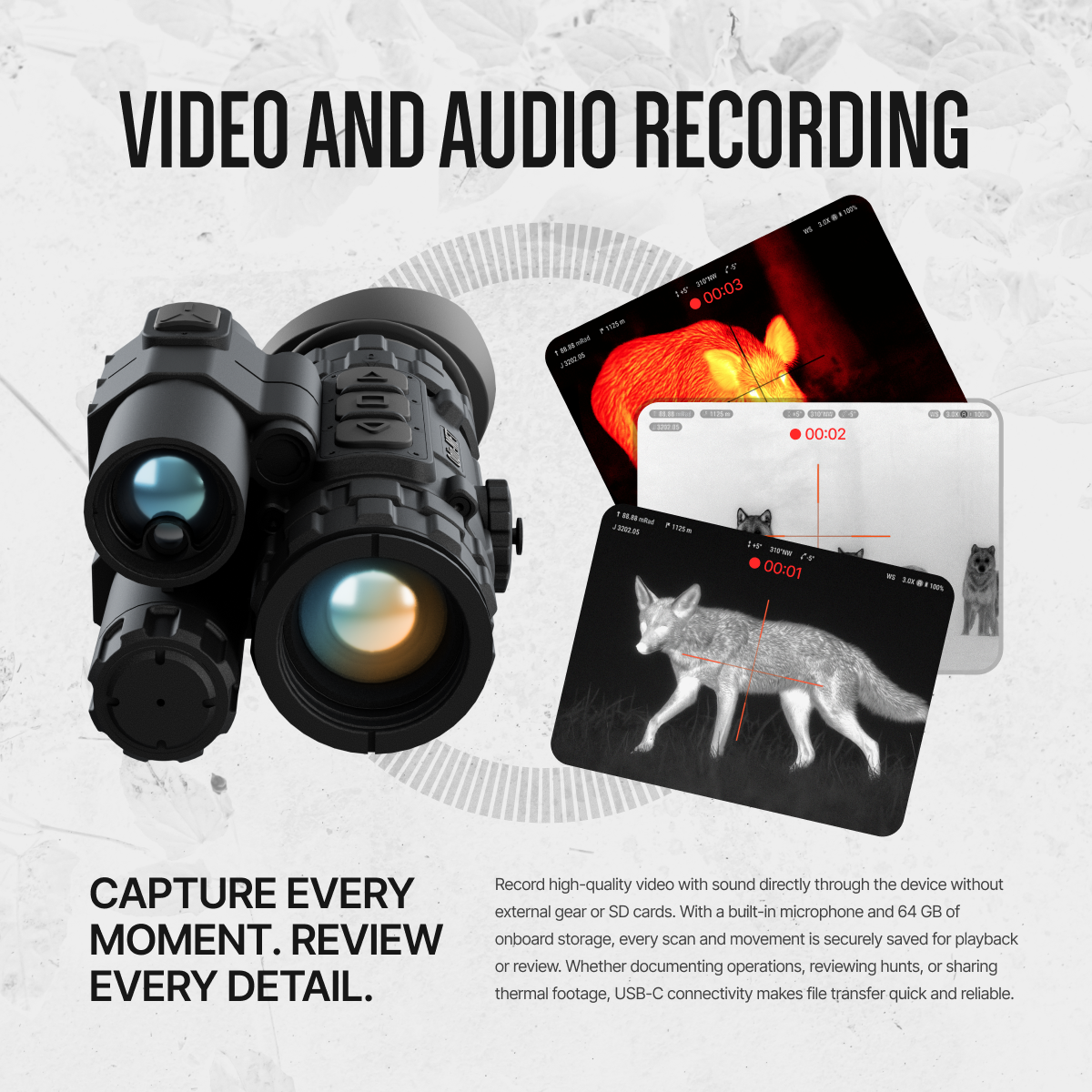

With onboard video and audio recording, Recoil Activated Video (RAV), and 64 GB internal storage, users can capture and review footage directly on the device. Built-in USB-C connectivity allows for fast data transfer and external power options.

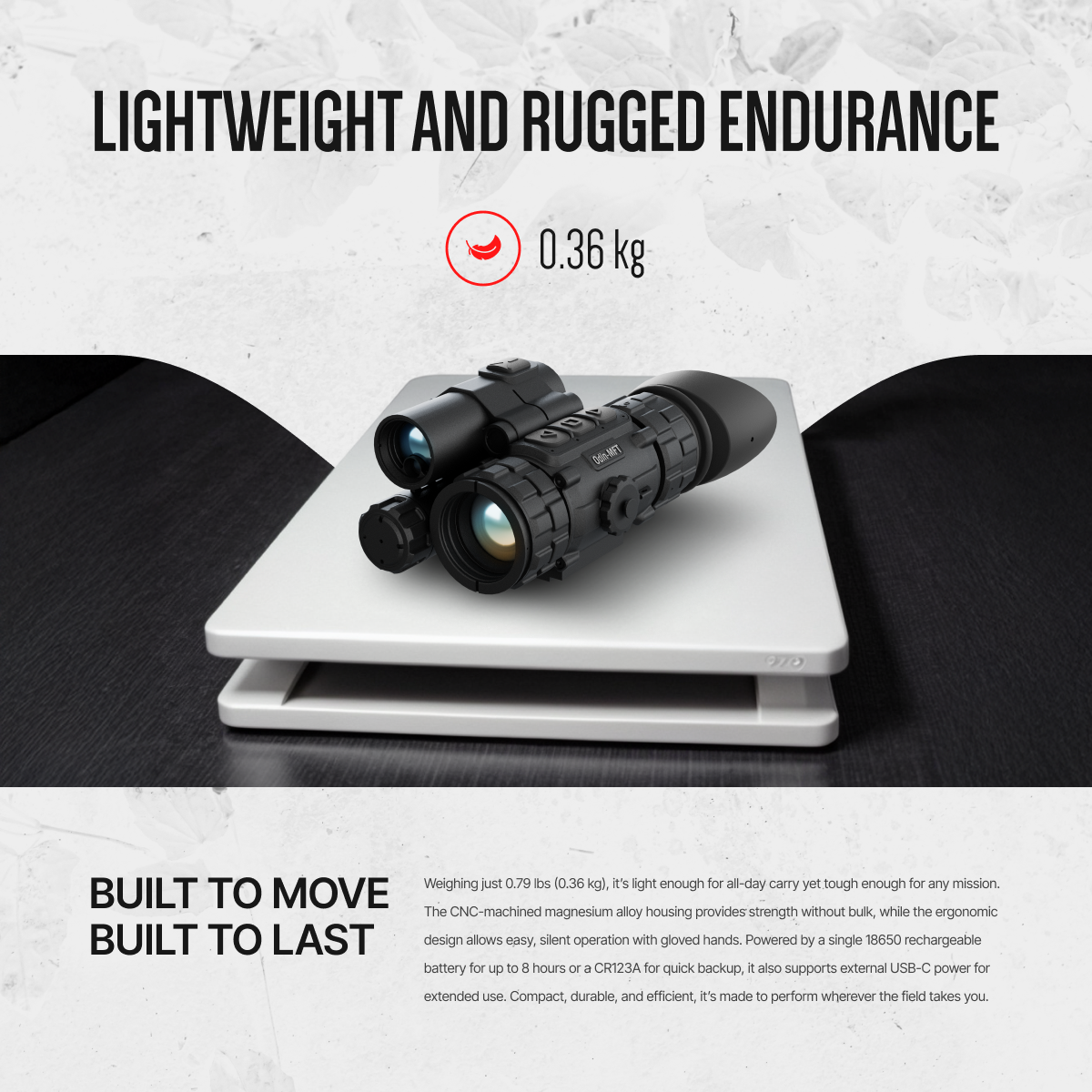

Constructed with a rugged magnesium alloy housing and powered by either a rechargeable 18650 battery or CR123A, the Odin 6 MFT is built for demanding environments with IP67 protection and up to 8 hours of runtime.

ATN Odin 6 MFT 640 Features:

• 640×480 thermal sensor
• ≤15 mK NETD sensitivity
• 1–8× magnification
• Detection range 1700 m / 1,859 yd
• 25 mm germanium lens
• 1280×1024 OLED display
• ATN SharpIR image enhancement
• Multi-function design (monocular, clip-on, helmet, weapon sight)
• 64 GB internal storage
• Video and audio recording
• Recoil Activated Video (RAV)
• USB Type-C connectivity
• Dual battery compatibility (18650 / CR123A)
• Magnesium alloy housing

Built For:

• Predator and hog hunting
• Helmet-mounted and handheld observation
• Clip-on or weapon-mounted use
• Law enforcement and tactical operations
• Search and rescue applications

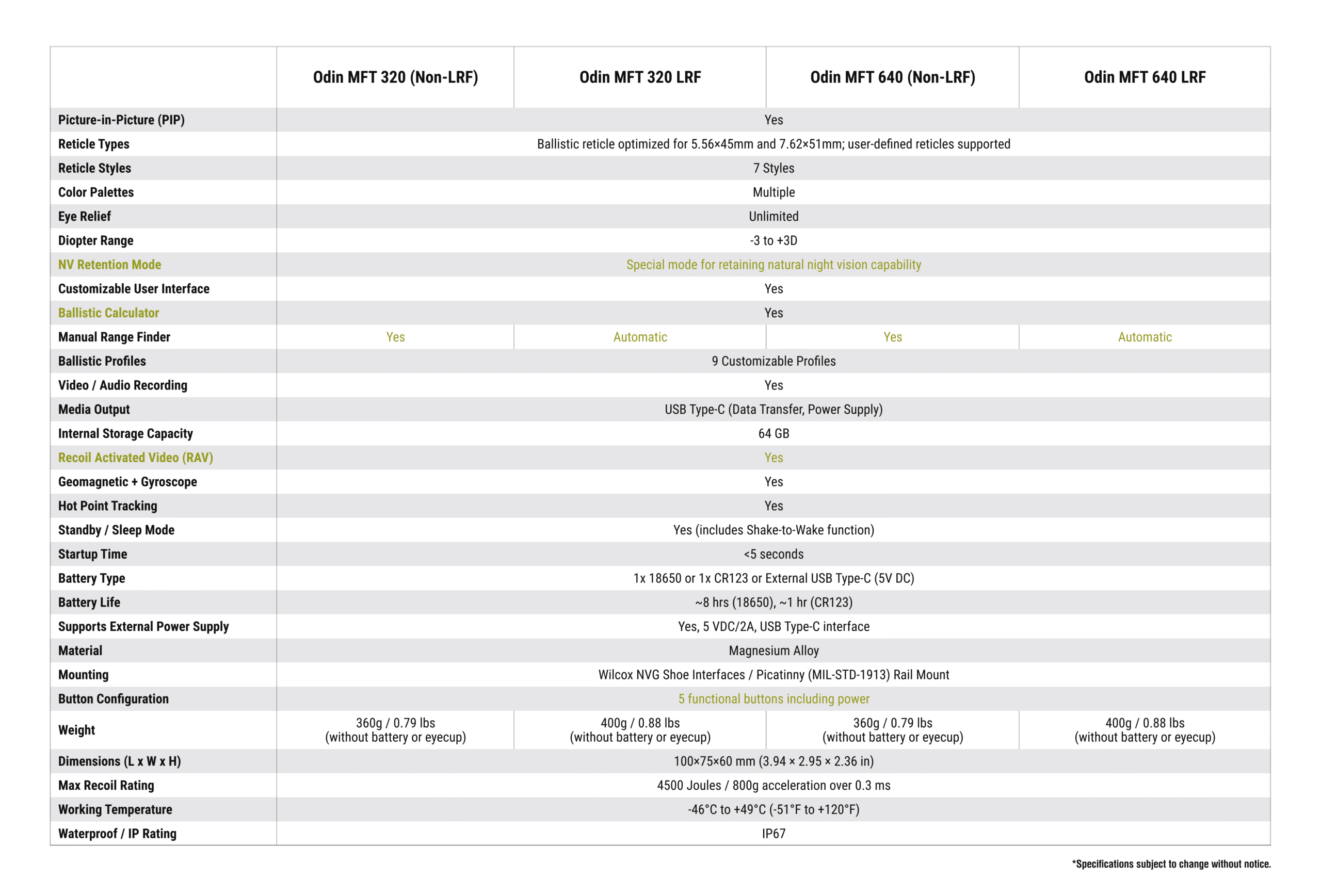

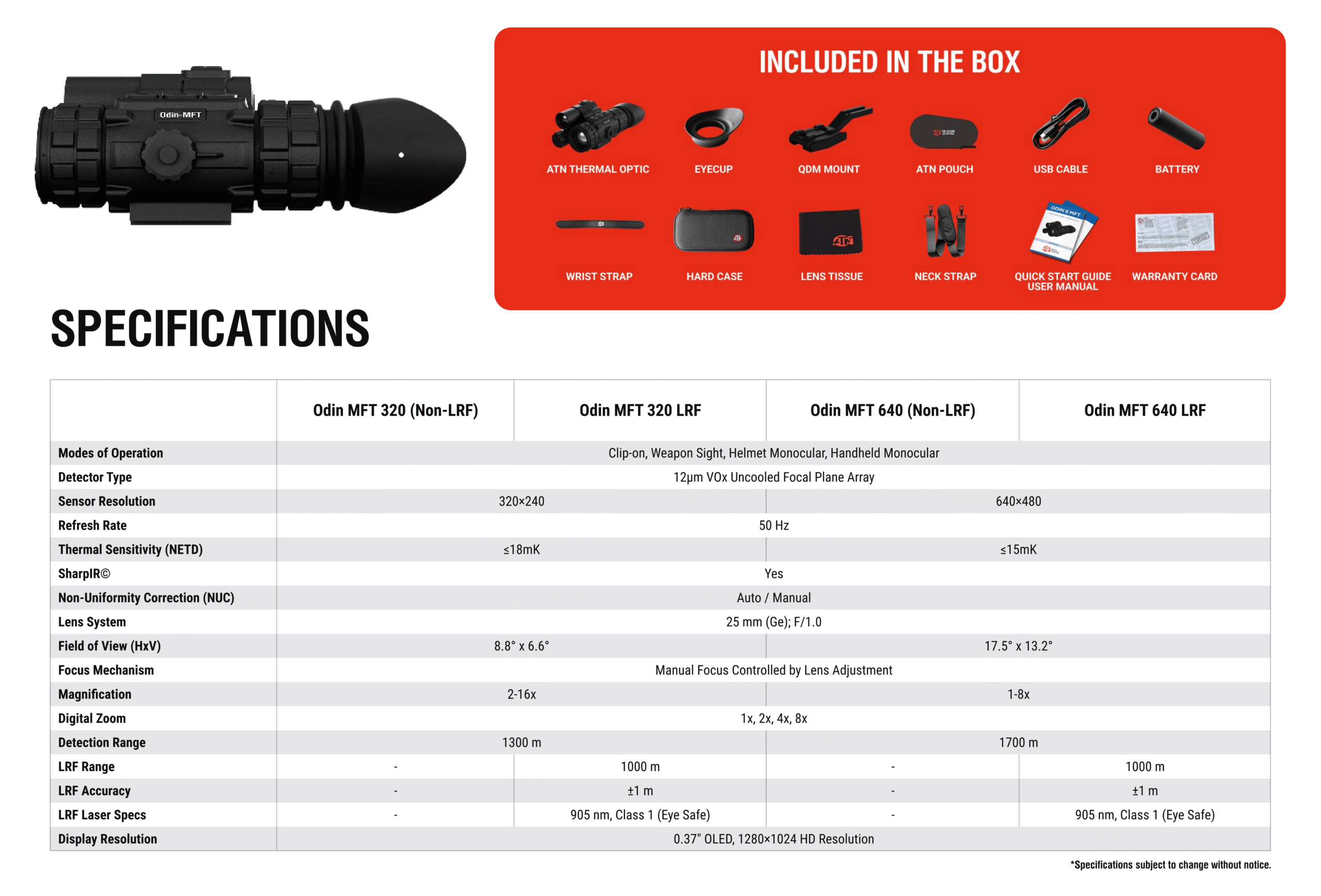

ATN Odin 6 MFT 640 Specifications:
