Description

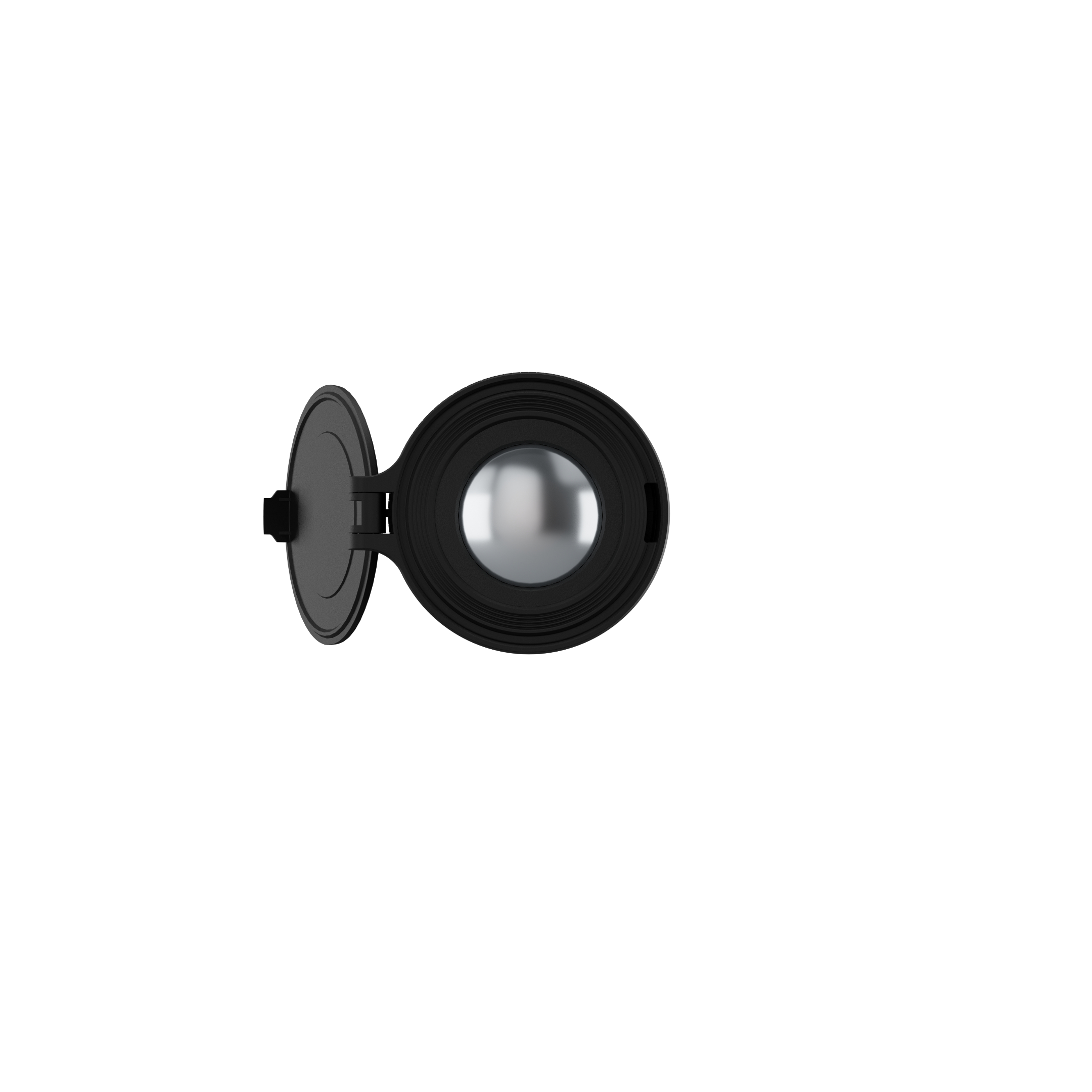

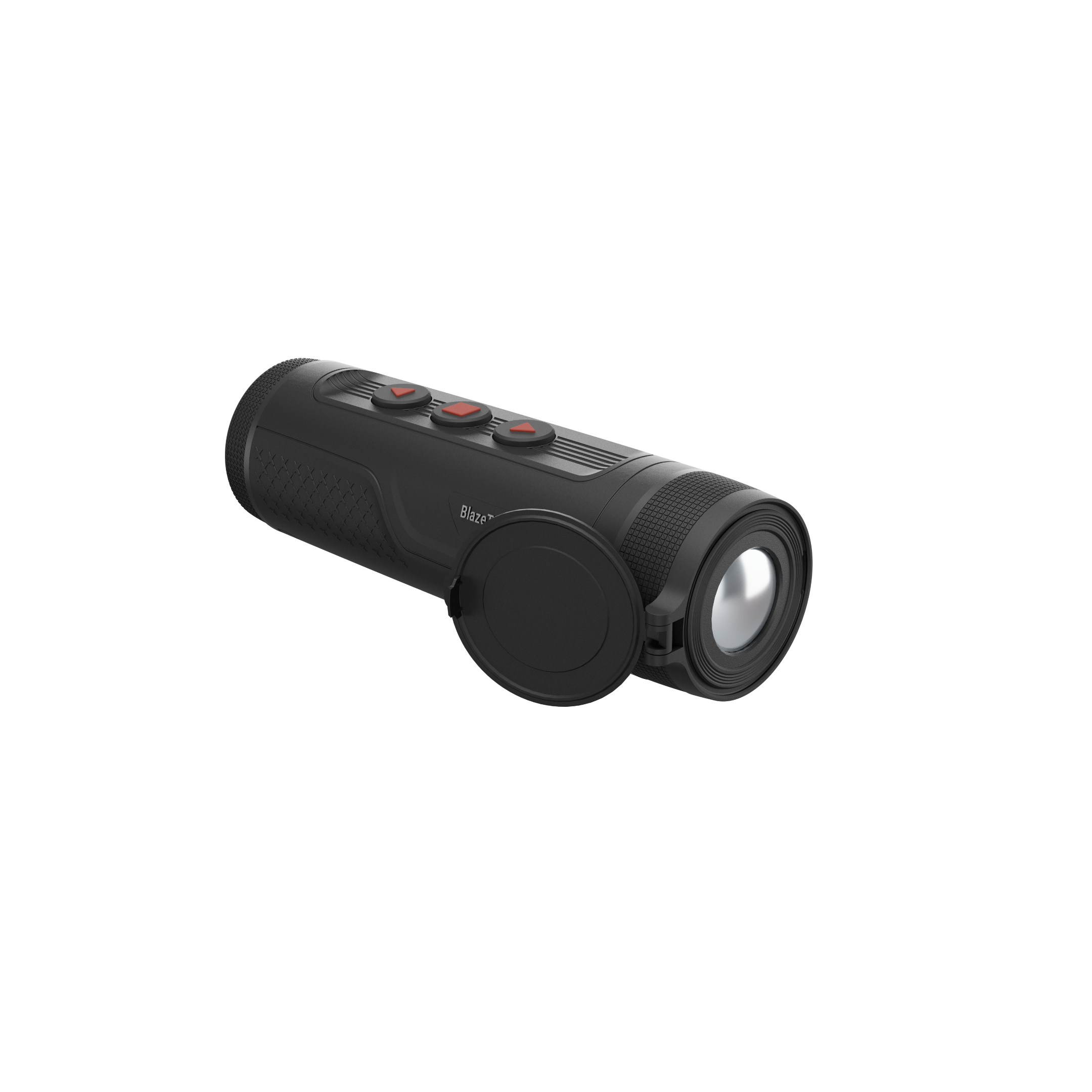

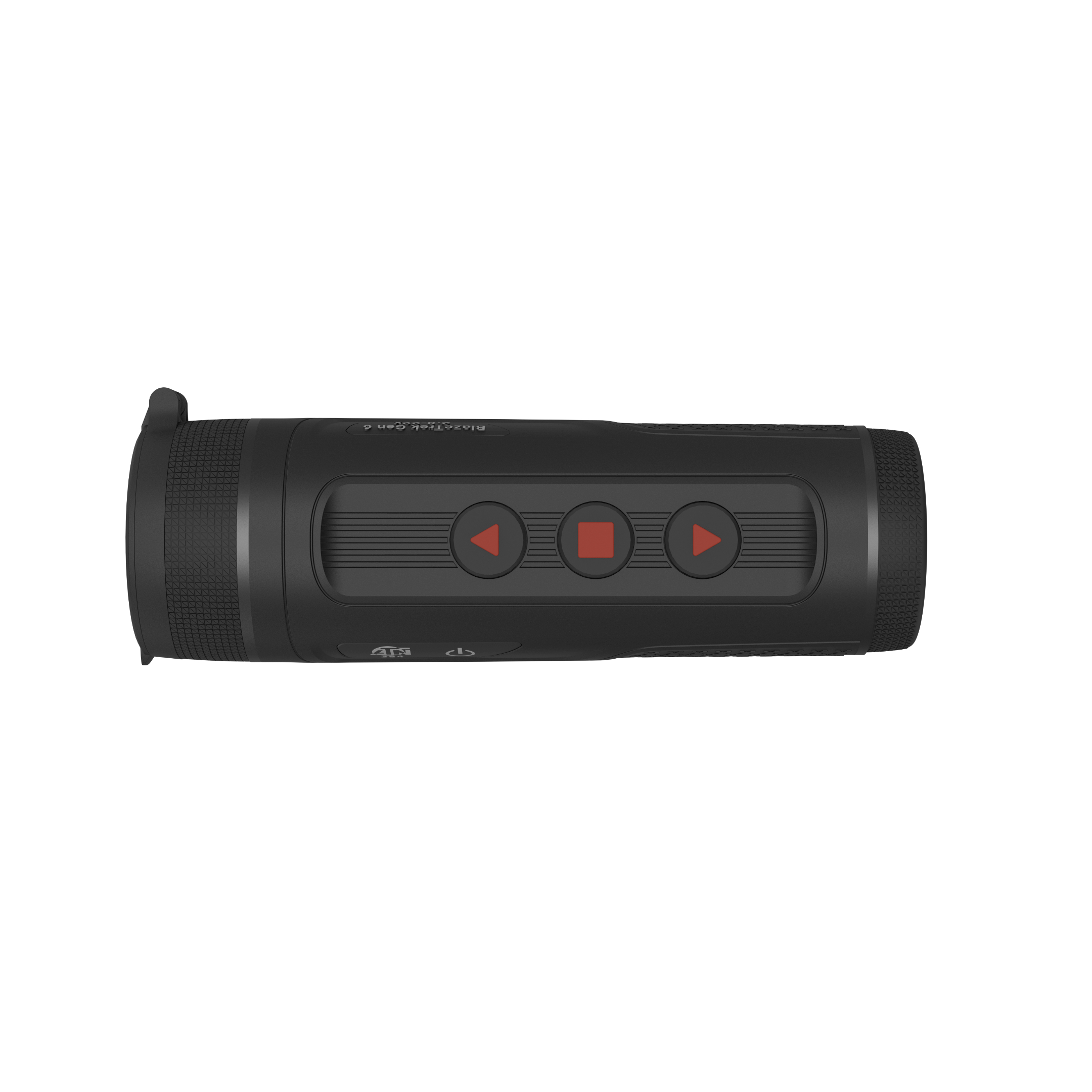

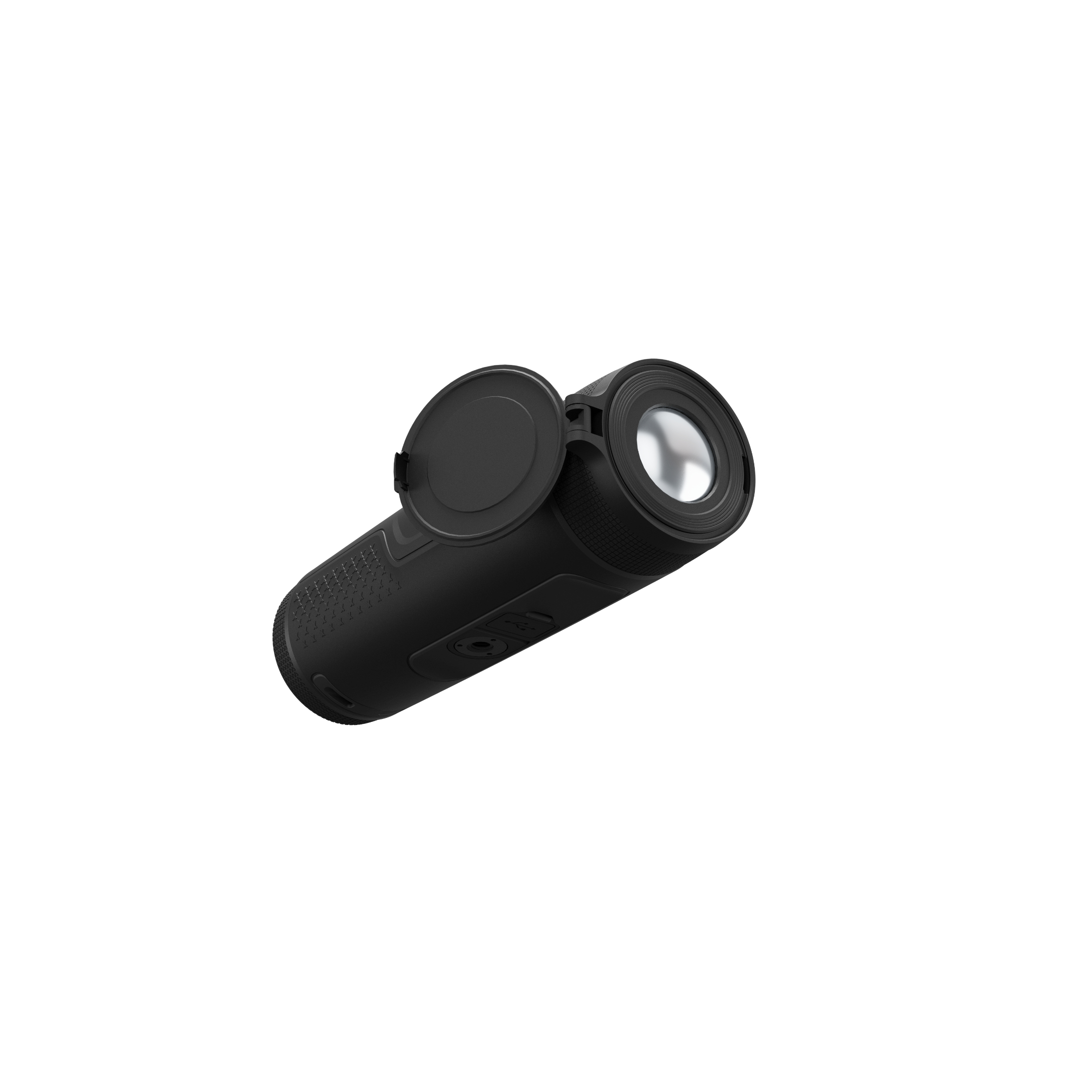

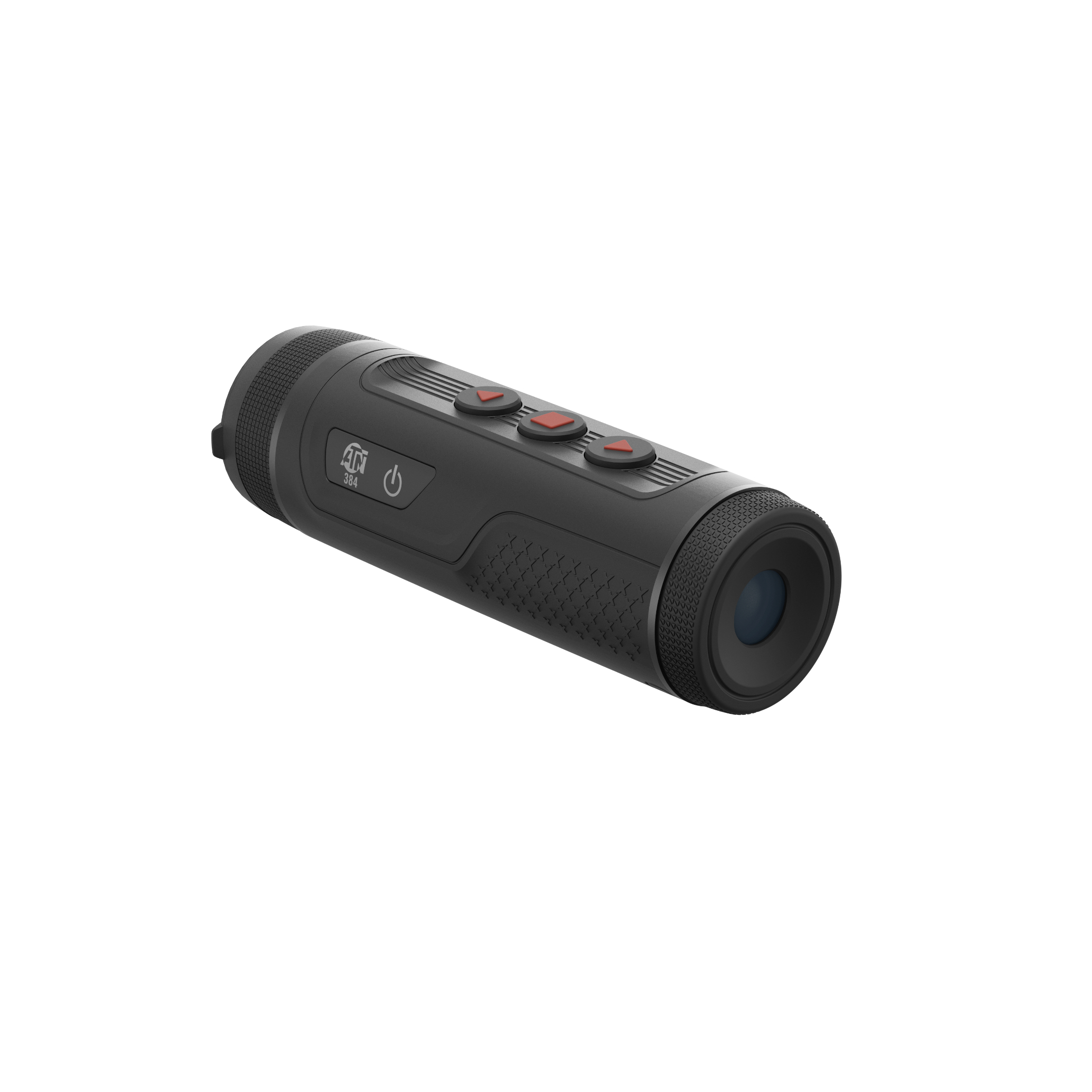

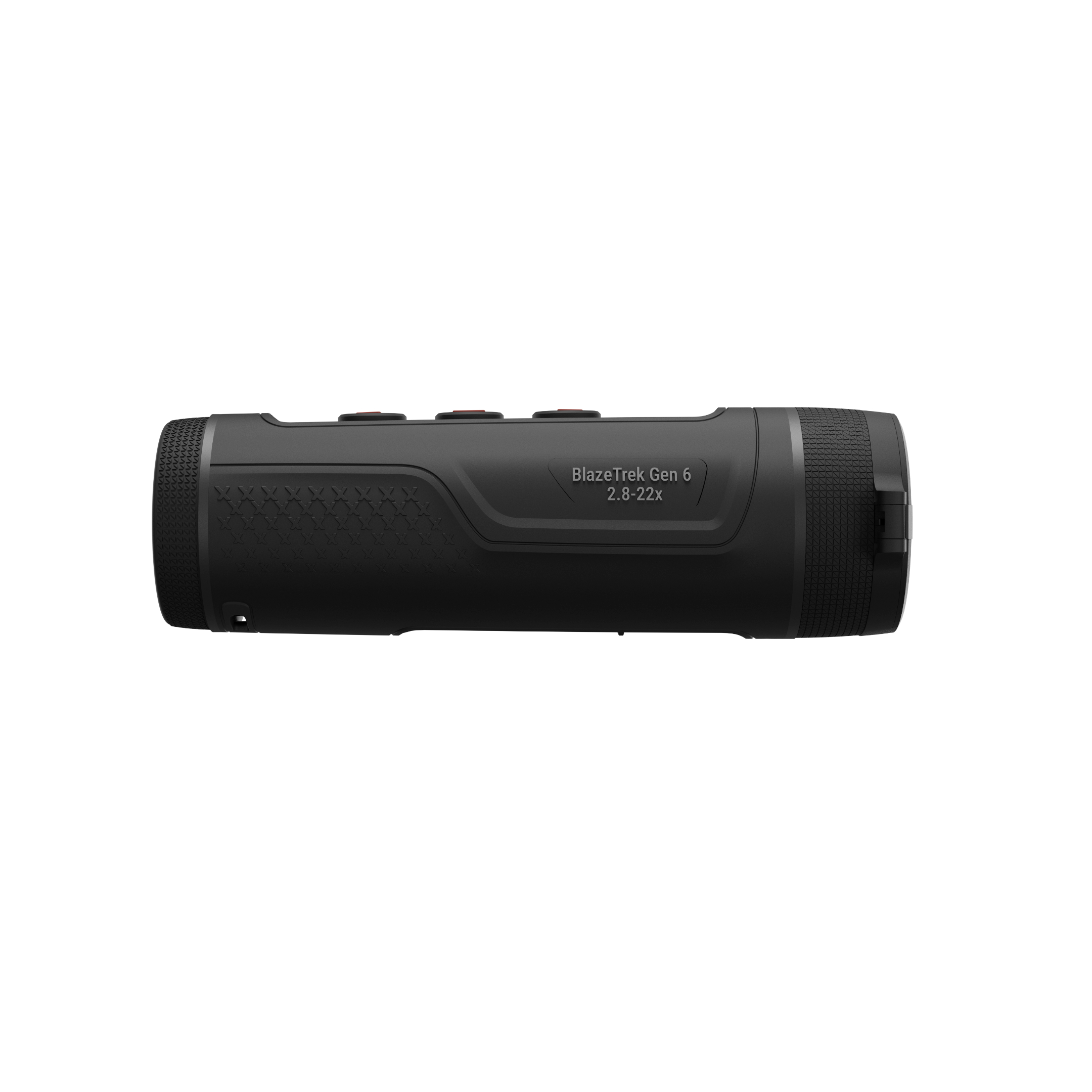

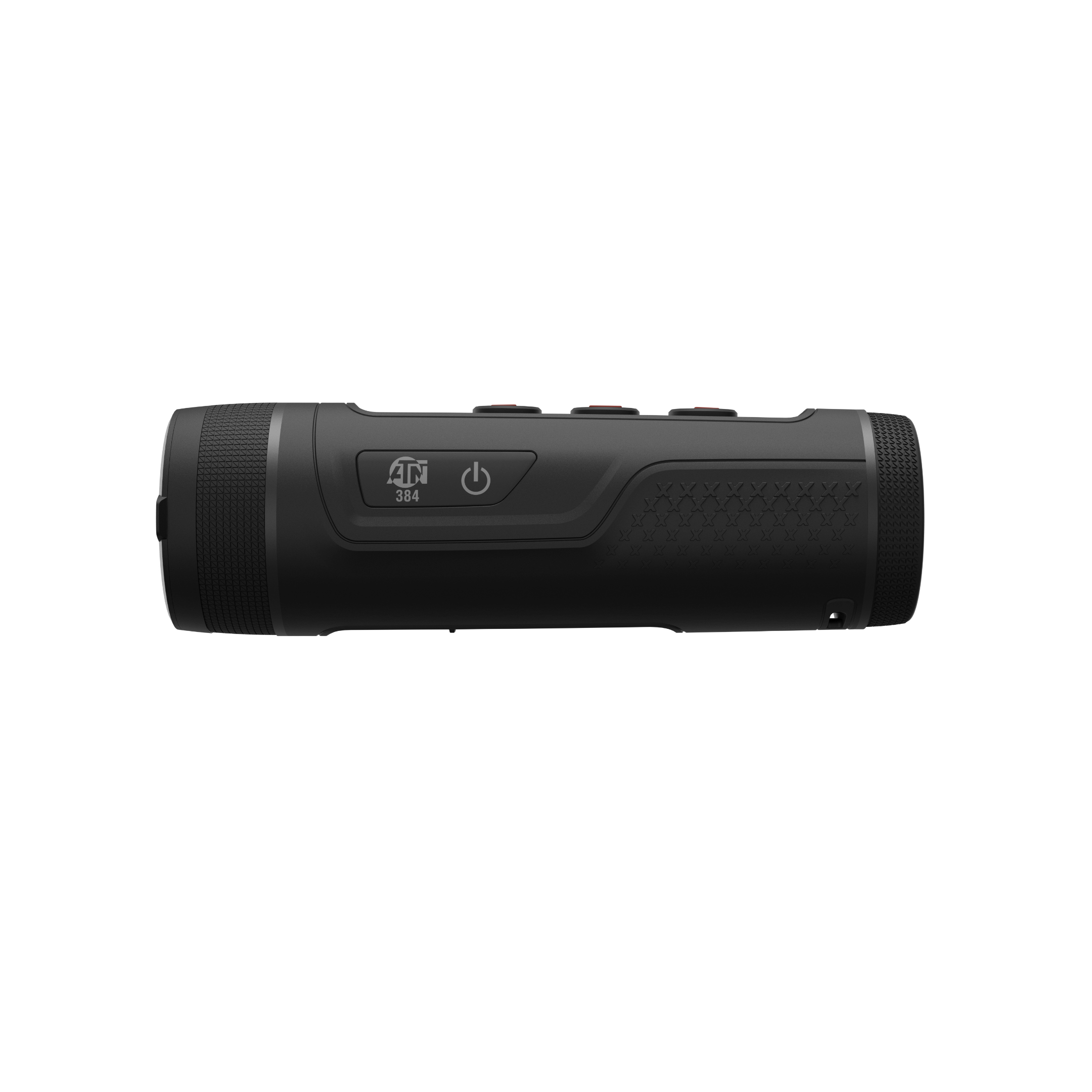

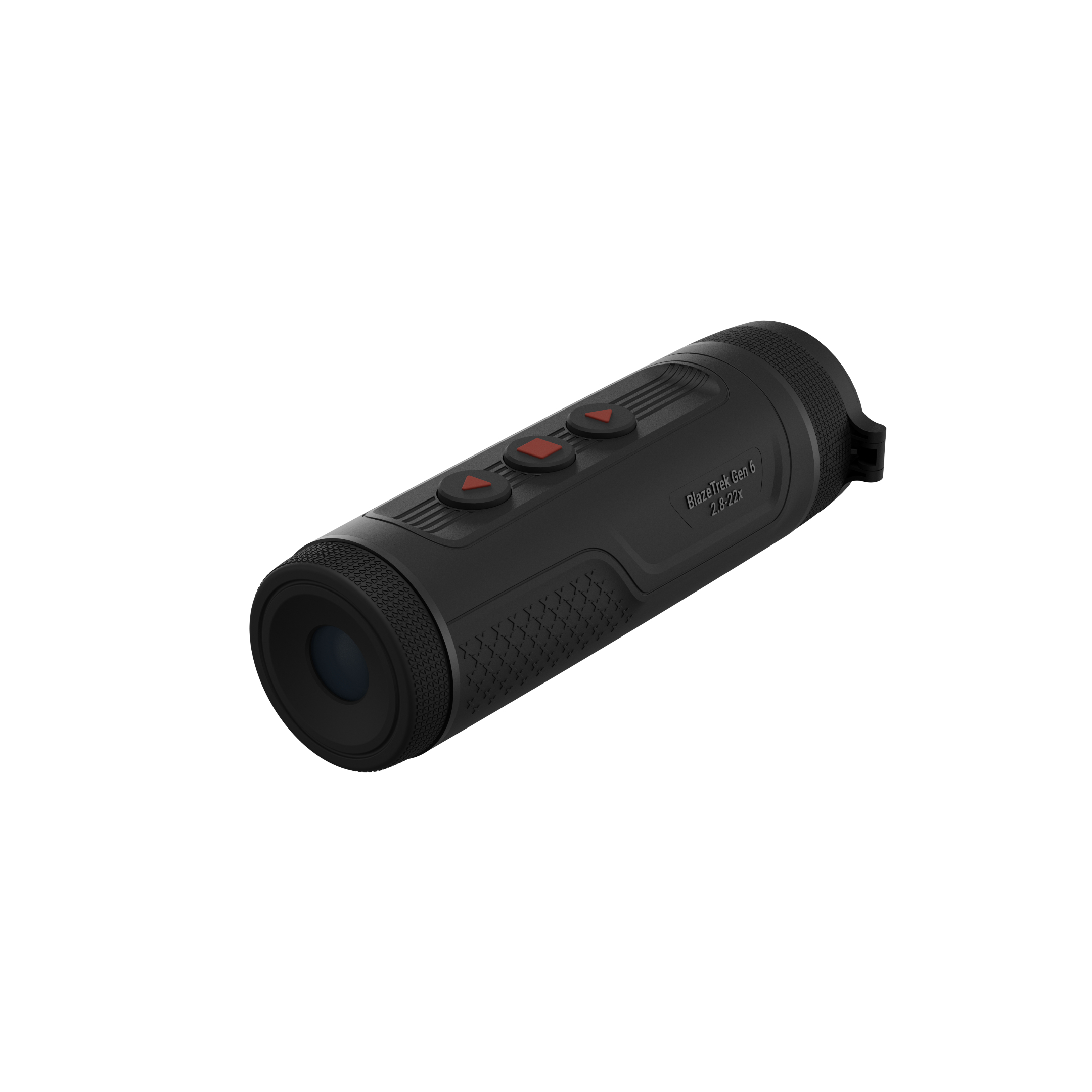

ATN BlazeTrek 6 325 384×288 Thermal Monocular
(2.8-22x Magnification & 1,300+ Yards of Detection)
The ATN BlazeTrek 6 325 Thermal Monocular delivers reliable handheld thermal detection in a compact design built for hunters, land managers, and nighttime observers. Powered by ATN’s 6th Generation thermal platform, the BlazeTrek series provides strong thermal sensitivity and dependable performance in challenging environments such as fog, brush, or total darkness.
At the core of the BlazeTrek 6 325 is a 384×288 thermal sensor with a 12 µm pixel pitch and ≤18 mK NETD sensitivity. This combination allows the monocular to detect subtle temperature differences and clearly separate heat signatures from surrounding terrain. With a magnification range of 2.8–22× and detection capability reaching approximately 1,421 yards, users can scan large areas efficiently while maintaining a compact handheld form factor.
The monocular features an 800×600 OLED display that provides smooth thermal imagery and strong contrast during extended observation sessions. Built-in video recording, image capture, and Wi-Fi connectivity allow users to store or share footage directly from the device. Internal storage and USB-C connectivity further enhance usability in the field.
With rugged construction, IP67 weather protection, and a rechargeable battery designed for extended operation, the BlazeTrek 6 325 is engineered for dependable thermal observation during hunting trips, property monitoring, or outdoor exploration.
ATN BlazeTrek 6 325 Features:
- 384×288 thermal sensor
- 12 µm pixel pitch
- ≤18 mK NETD sensitivity
- 2.8–22× magnification
- Detection range approximately 1,421 yards
- 800×600 OLED display
- Digital zoom up to 8×
- Video recording capability
- Image capture capability
- Built-in Wi-Fi hotspot
- Internal storage for media files
- Compact handheld monocular design
Built For:
- Predator and coyote hunters
- Hog and nuisance wildlife detection
- Scouting terrain before nighttime hunts
- Property and livestock monitoring
- Outdoor and nighttime observation
ATN BlazeTrek 6 325 Specifications:
| BlazeTrek 6 325 — TIMNBLT325G6 — 2.8–22× | Specifications |
|---|---|
| Quick Specs | Sensor: 384 × 288 • NETD: ≤18 mK • Display: 800 × 600 • Detection: 1300 m • Objective: 25 mm • Storage: 32 GB Internal • Weight: 0.7 lb |
| OPTICS & SENSOR | |
| Detector Type | 12 μm VOx Uncooled Focal Plane Array |
| Sensor Resolution | 384 × 288 |
| Thermal Sensitivity (NETD) | ≤18 mK |
| Refresh Rate | 50 Hz |
| SharpIR© | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi Auto / Manual |
| Lens | 25 mm Germanium; F/1.0 |
| Field of View (H × V) | 10.9° × 8.2° |
| Focus Mechanism | Manual Focus (1 m to Infinity) |
| Magnification | 2.8–22× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Detection Range | 1300 m |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| DISPLAY & VIEWING | |
| Display Type | OLED |
| Display Resolution | 800 × 600 |
| Diopter Range | -5 to +5 D |
| Scene Modes | Yes |
| Hot Point Tracking | Yes |
| RECORDING & CONNECTIVITY | |
| Video / Audio Recording | Yes |
| Image Capture | Yes |
| Internal Storage Capacity | 32 GB |
| Built-in Wi-Fi (Hotspot) | Yes |
| Media Output | USB Type-C |
| Mobile App | ATN Connect 6 — iOS & Android |
| POWER | |
| Battery Type | Internal Rechargeable Battery |
| Battery Life | Approximately 8 Hours |
| External Power Supply | Yes — USB Type-C (5 VDC / 2A) |
| Standby / Sleep Mode | Yes |
| DESIGN & DURABILITY | |
| Weight (with Battery) | 320 g / 0.7 lb |
| Dimensions (L × W × H) | 158 × 57 × 50 mm (6.20 × 2.23 × 1.98 in) |
| Operating Temperature | -30°C to 55°C (-22°F to 131°F) |
| Waterproof / IP Rating | IP67 |
What’s Included:
- ATN BlazeTrek 6 325 Thermal Monocular
- Case
- Cable
- Eyecup
- Lens tissue
- Lanyard
- Manual
