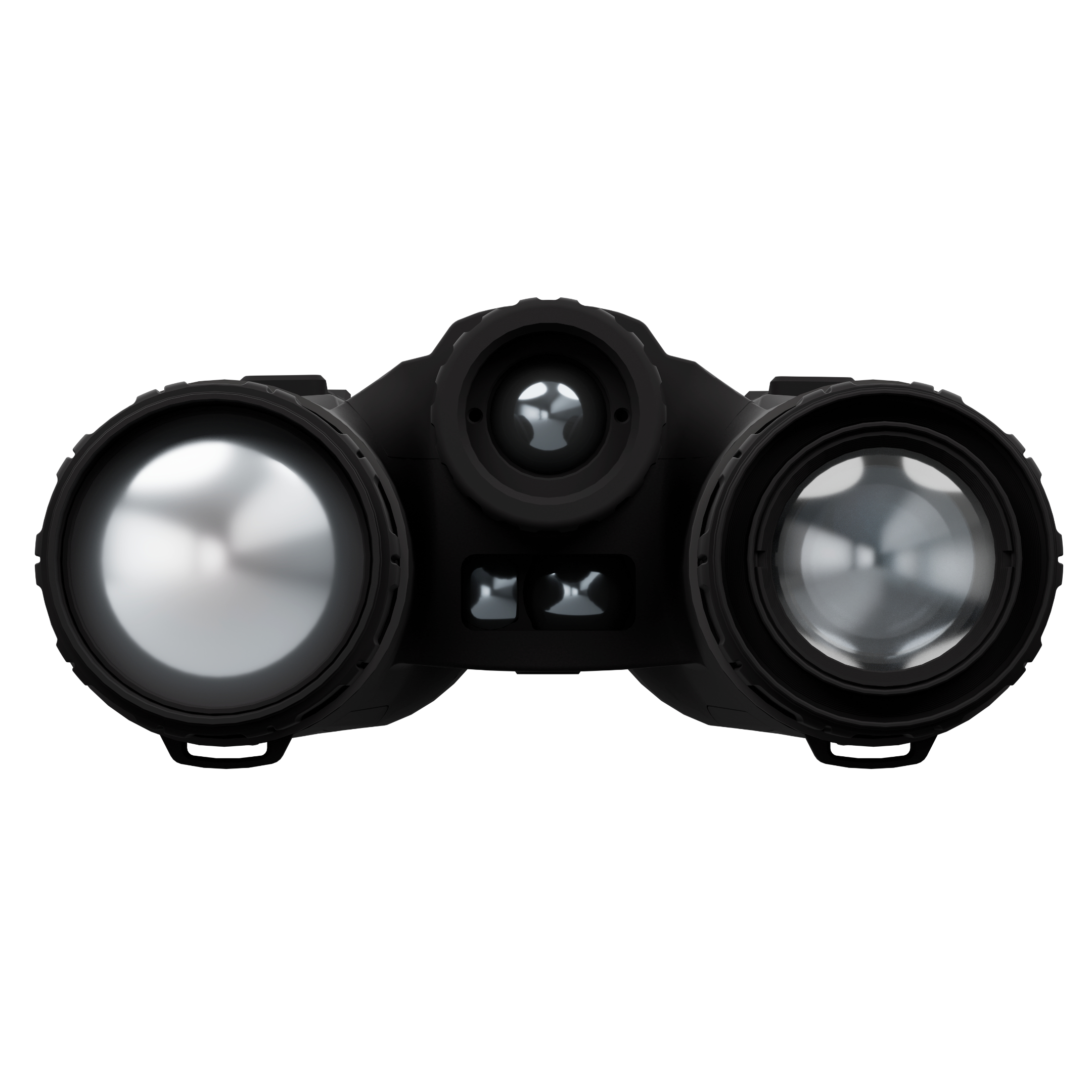

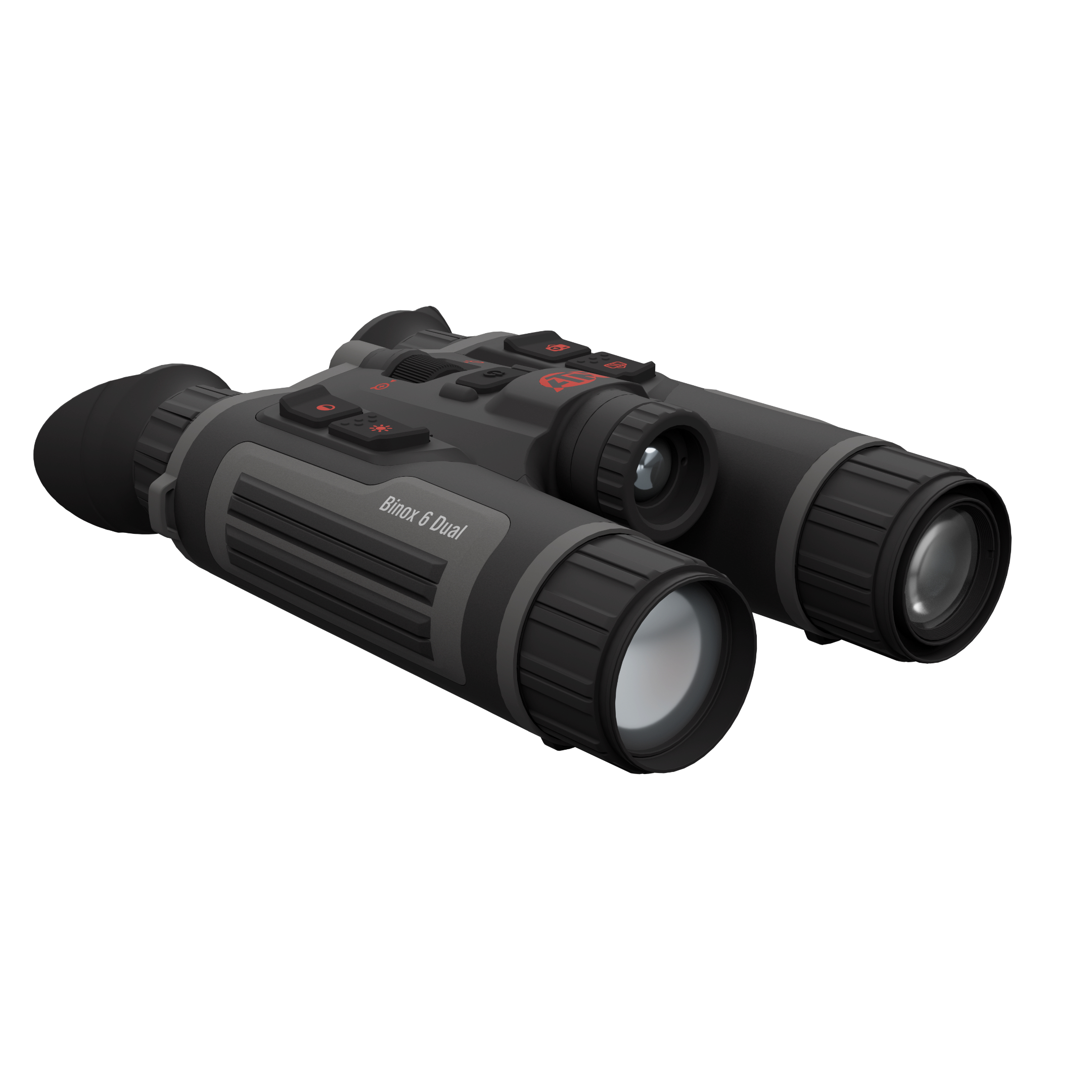

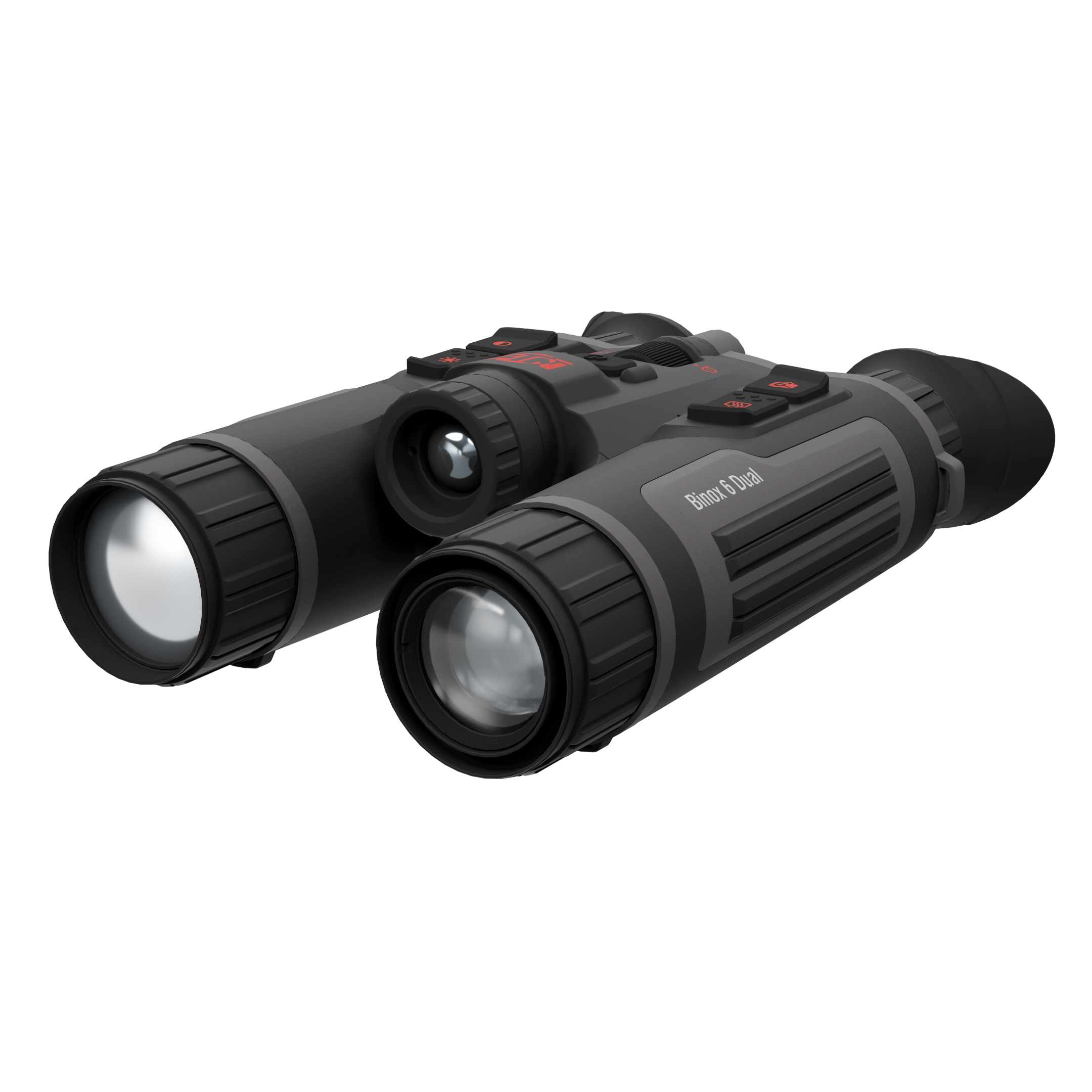

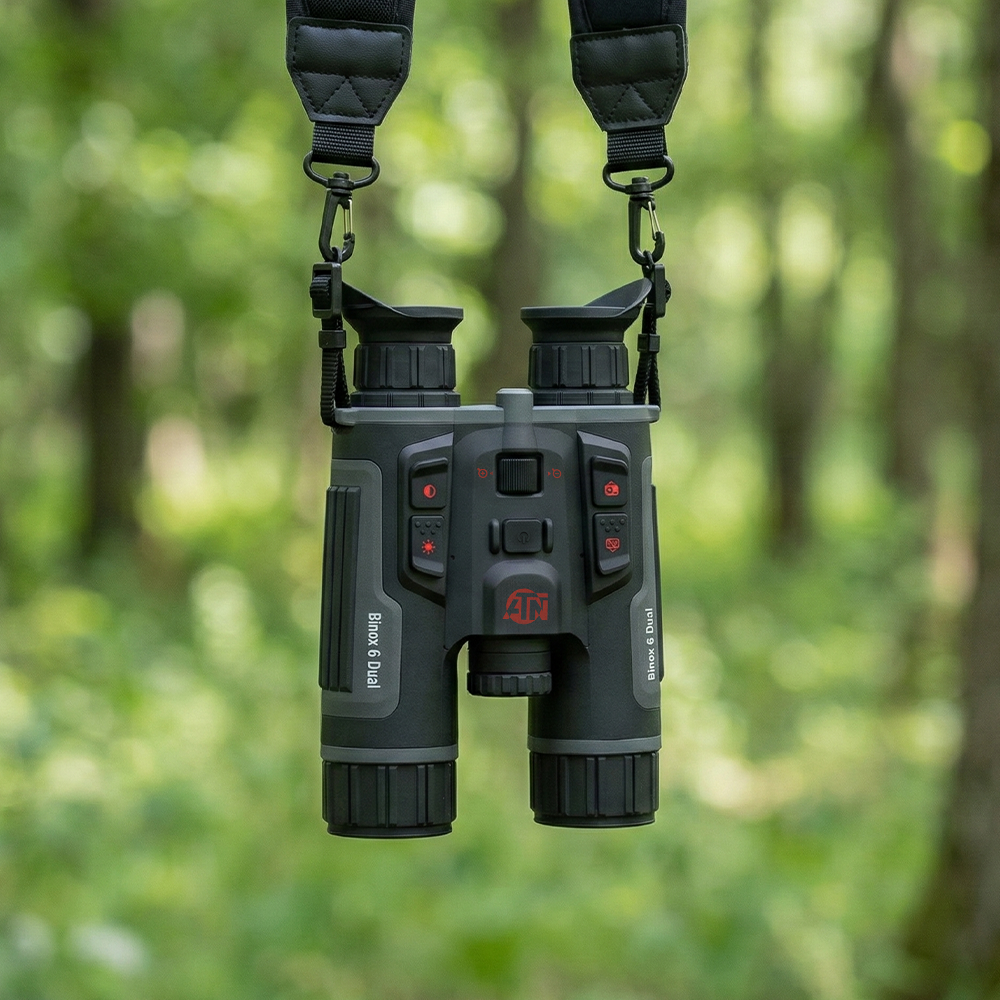

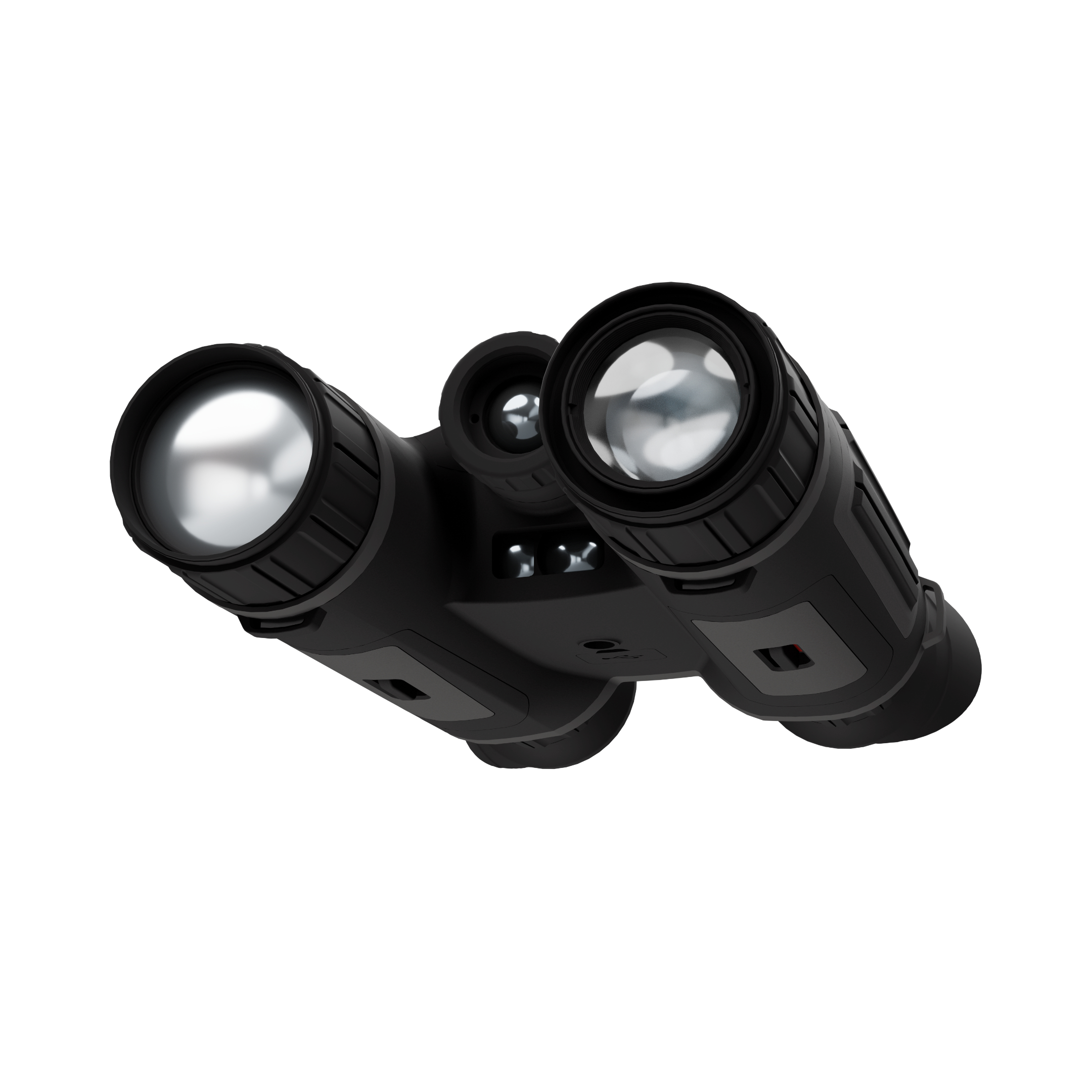

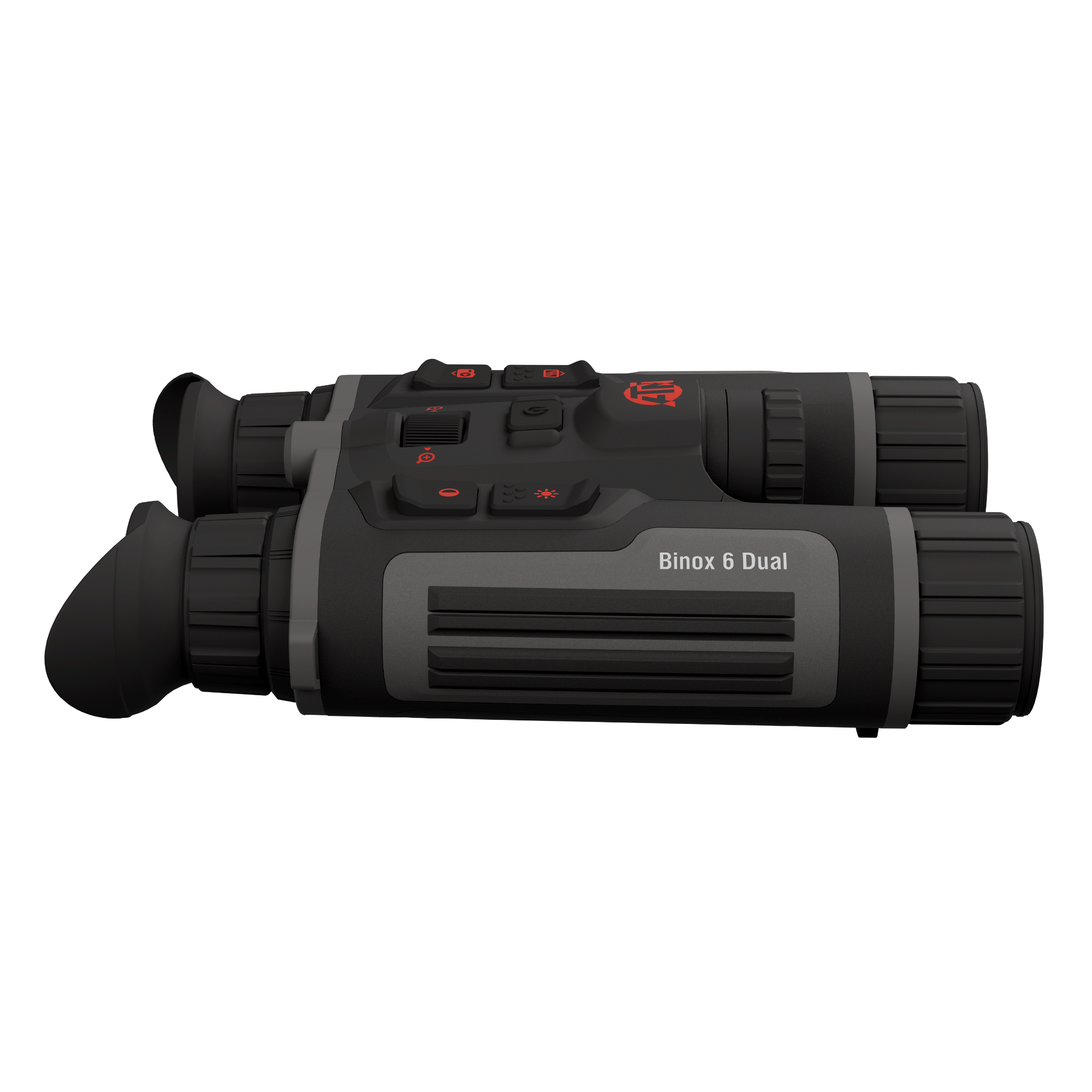

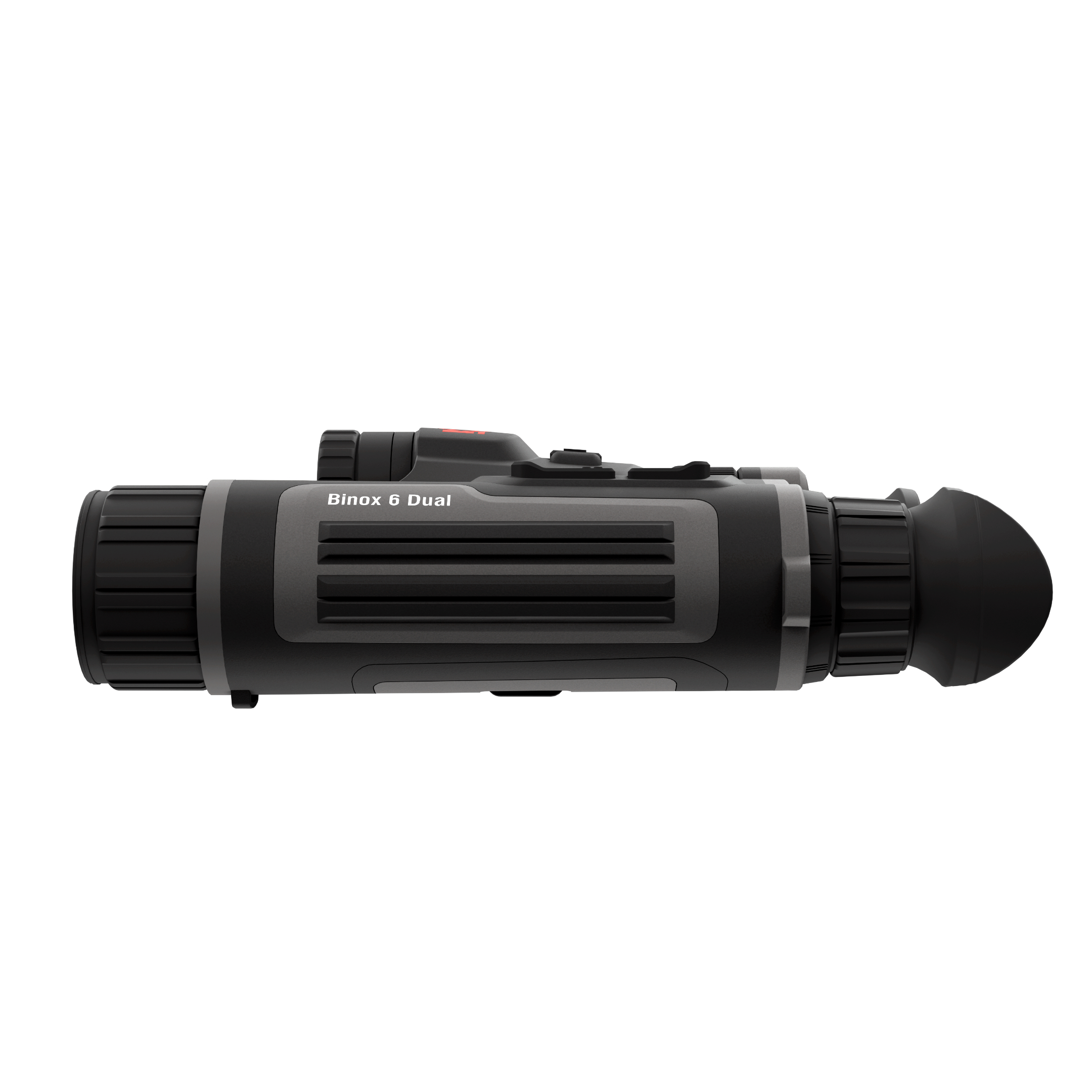

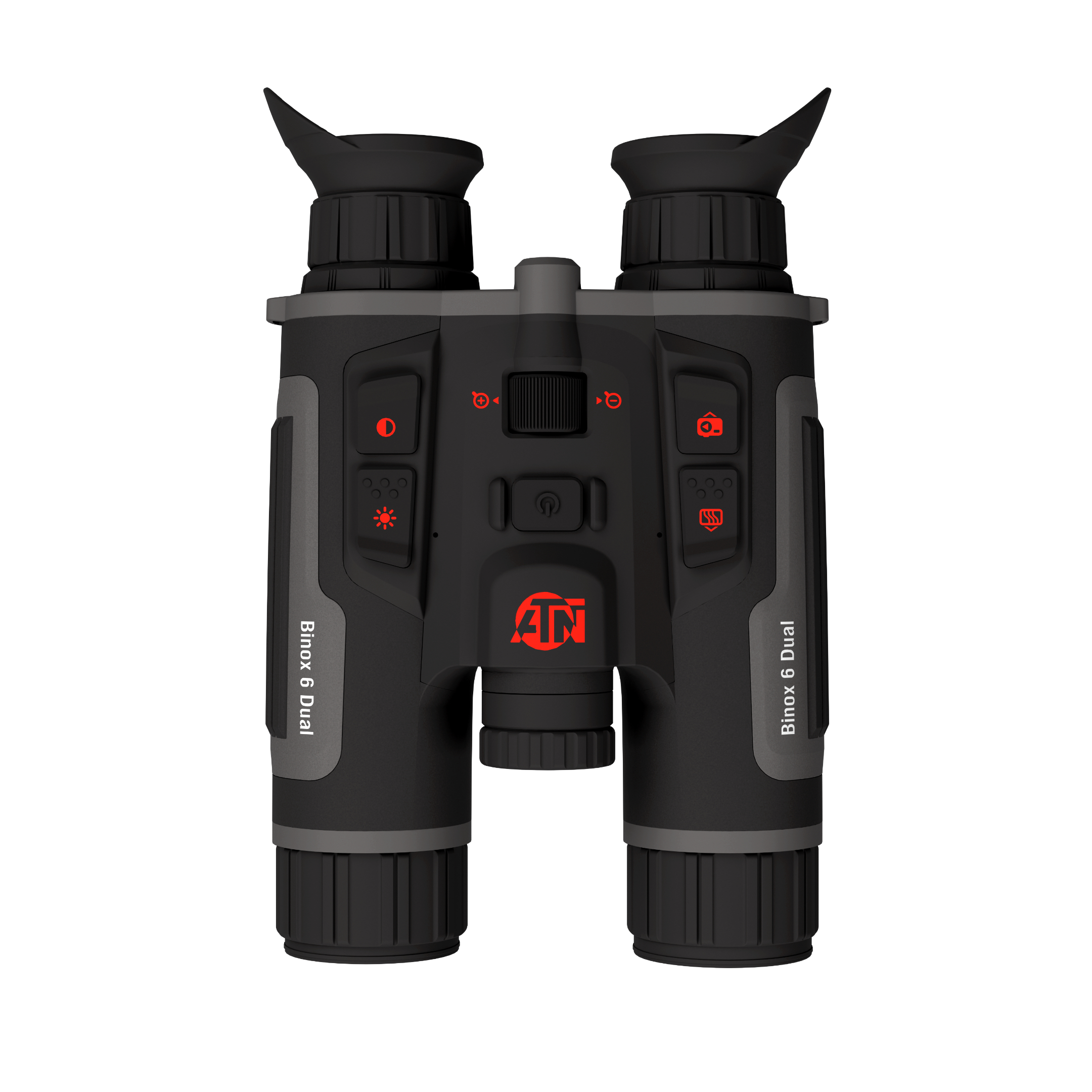

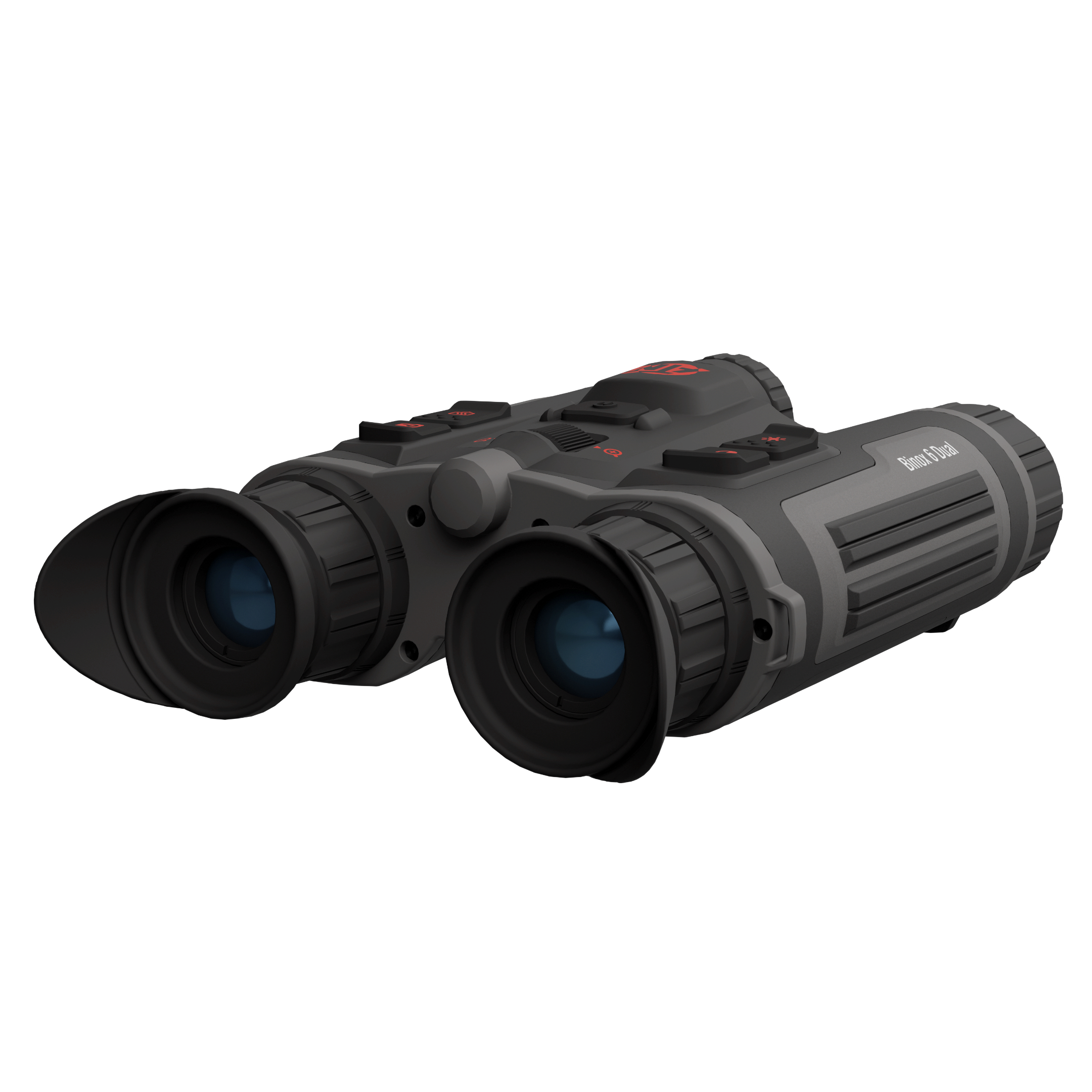

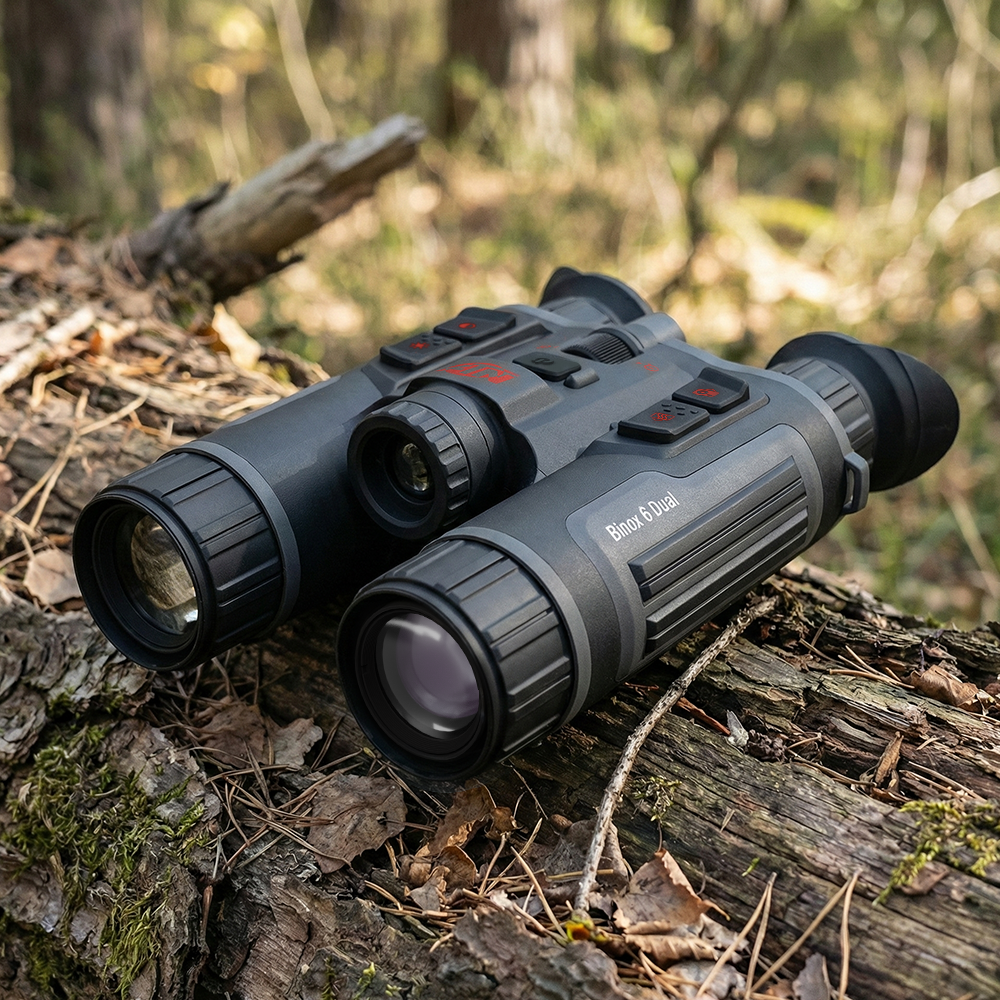

ATN Binox 6 Dual 256×192 Multispectral Thermal Binoculars with Laser Rangefinder
4-in-1 Multispectral Performance with Integrated LRF

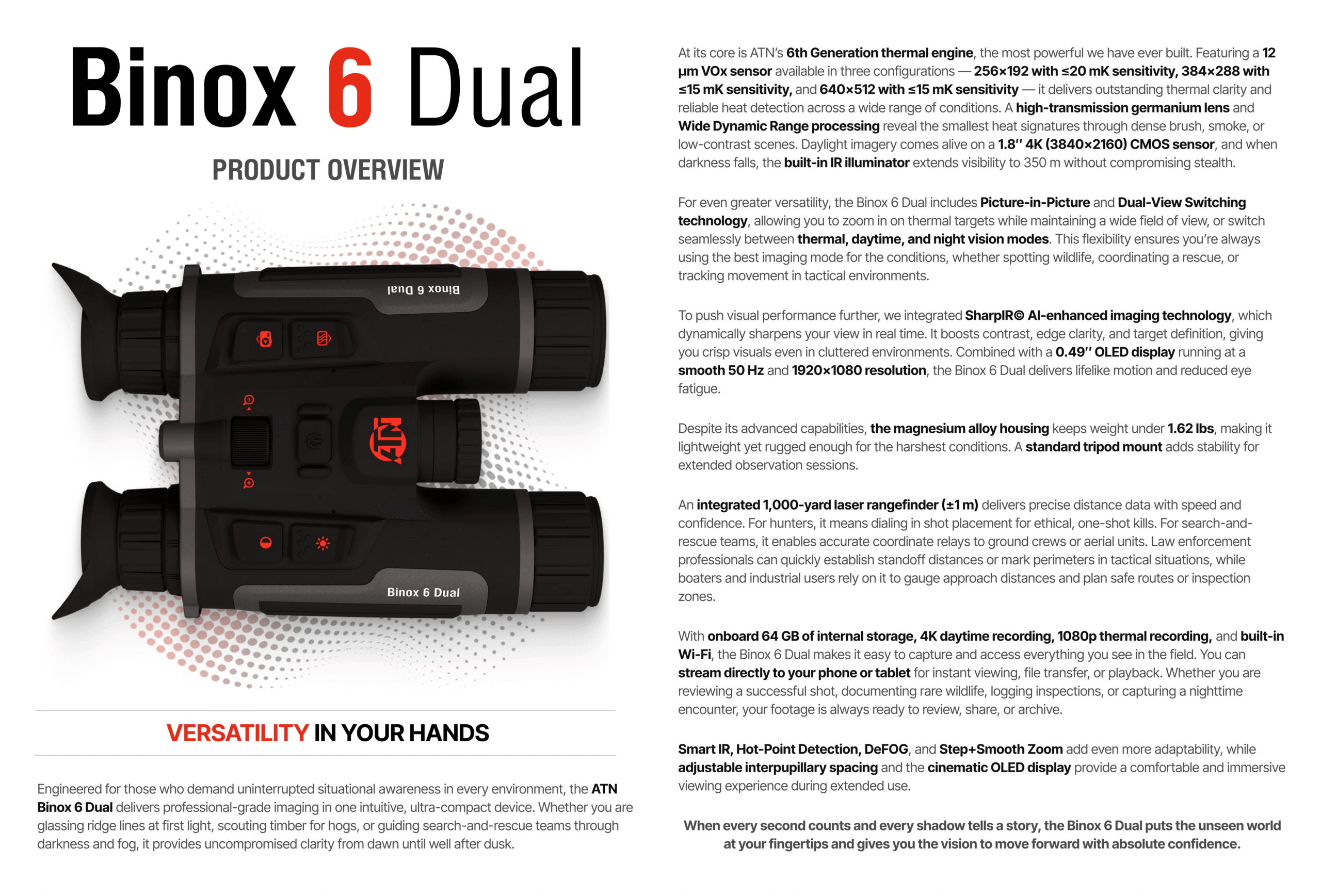

The ATN Binox 6 Dual 256 LRF combines thermal imaging, ultra HD 4K day vision, digital night vision, and twilight capability into a single advanced binocular platform. Built for hunters, professionals, and outdoor users who require full situational awareness in any lighting condition, the Binox 6 Dual delivers seamless performance from daylight to total darkness.

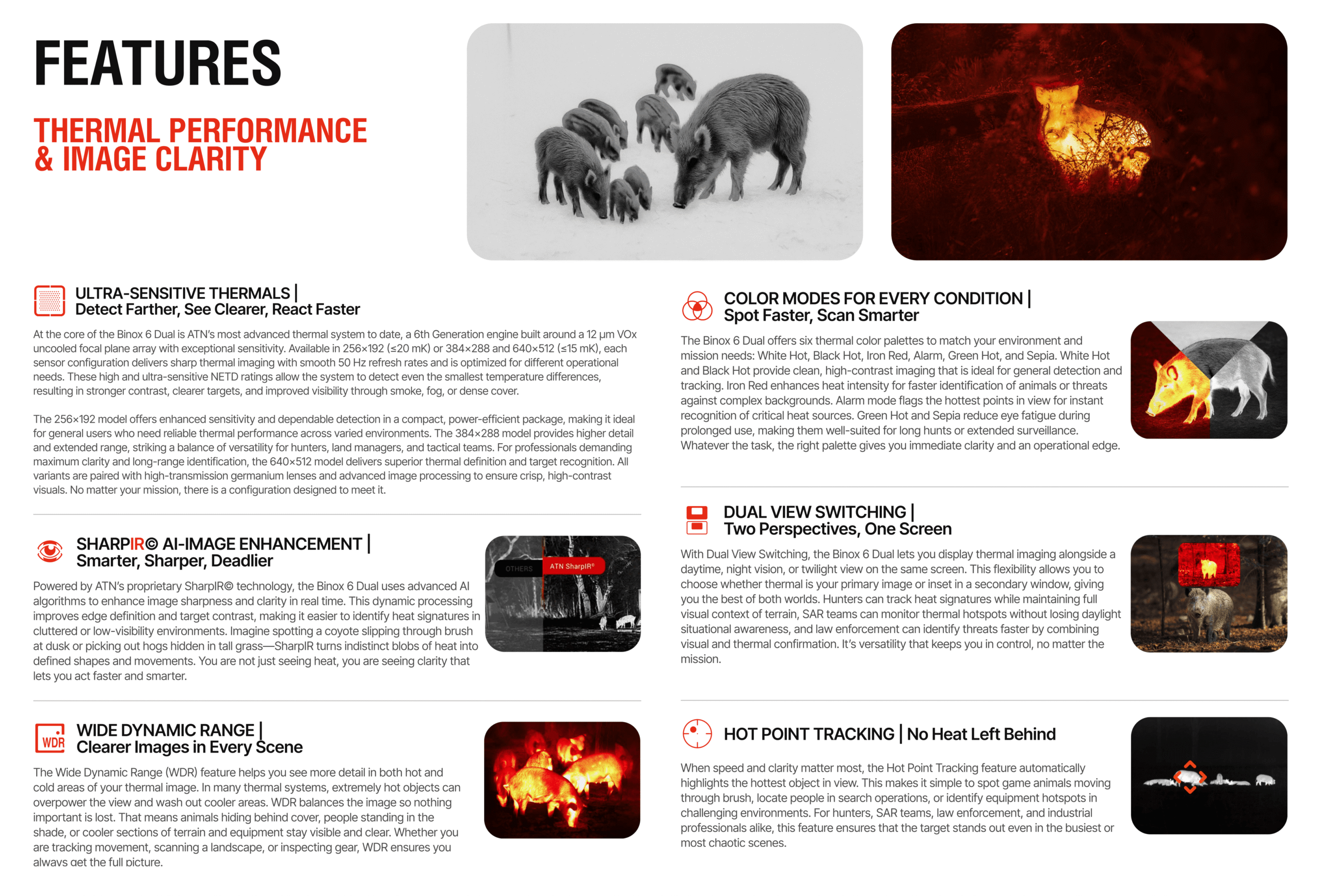

At its core is ATN’s 6th Generation thermal engine featuring a 256×192 sensor with a 12µm pixel pitch and ≤20 mK NETD sensitivity. This allows the system to detect subtle heat signatures and maintain clear thermal imaging even in fog, brush, or low-contrast environments.
Complementing the thermal system is a 4K Ultra HD CMOS sensor that delivers crisp, full-color daytime imaging and enhanced night vision performance with an integrated IR illuminator. Dual-View technology allows users to switch instantly between thermal and optical views or run both simultaneously for maximum awareness.
With a magnification range of 6–48× and a detection range of 1500 meters (1,640 yards), the Binox 6 Dual 256 is optimized for scanning large areas and identifying targets at distance.
A built-in laser rangefinder provides accurate distance measurements out to 1000 meters, enabling confident target assessment and improved decision-making in the field.
The binocular features a 1920×1080 OLED display for smooth, high-contrast viewing, along with 64 GB of internal storage for recording 4K daytime and 1080p thermal video. Wi-Fi connectivity allows seamless pairing with the ATN Connect 6 app for streaming and sharing.
Constructed from durable magnesium alloy and powered by dual 18650 rechargeable batteries, the Binox 6 Dual is designed for rugged field use with up to 8 hours of runtime and IP67 weather resistance.
ATN Binox 6 Dual 256 LRF Features:
- 256×192 thermal sensor
- ≤20 mK NETD sensitivity
- 6–48× magnification
- Detection range 1,640 yd
- 4K Ultra HD day/night sensor

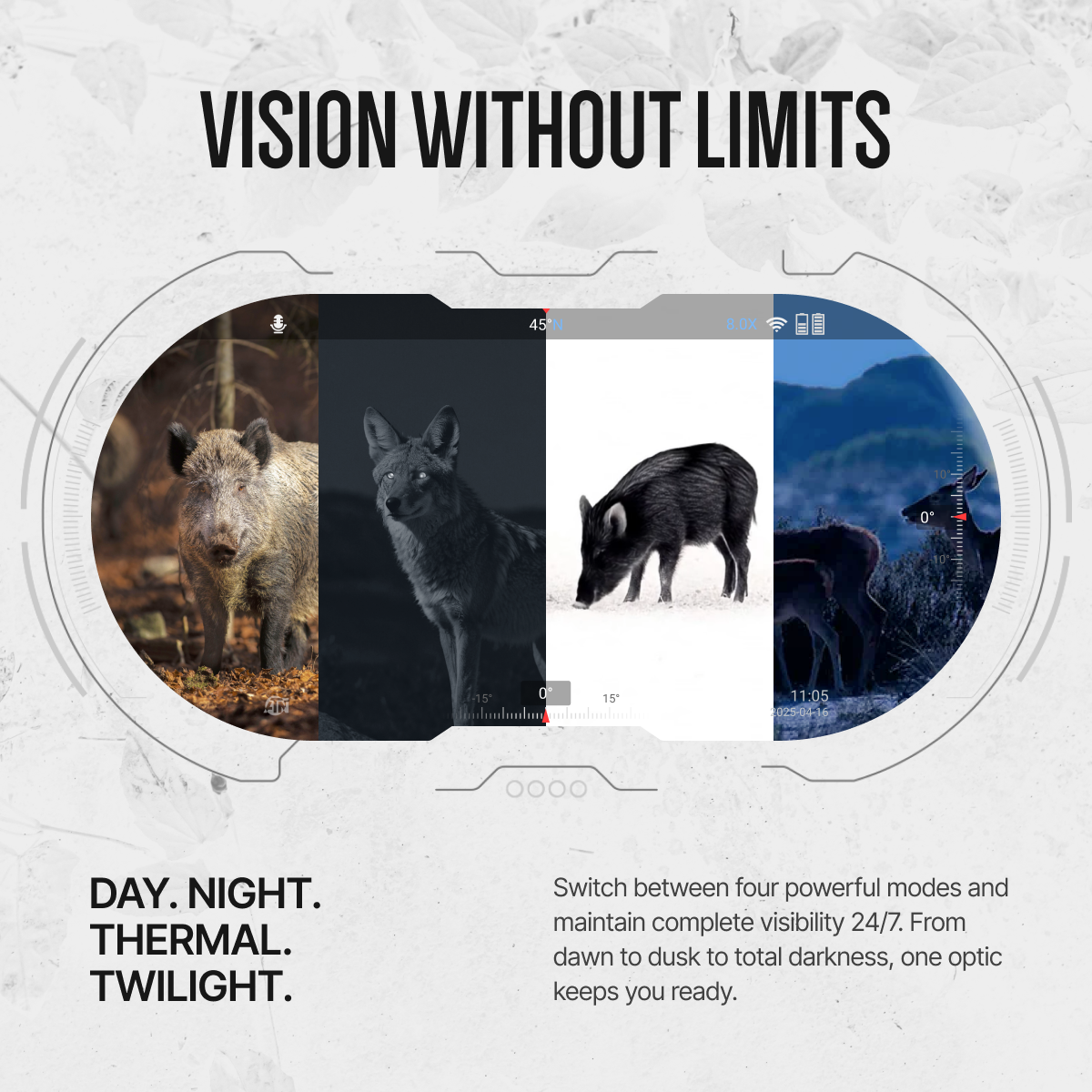

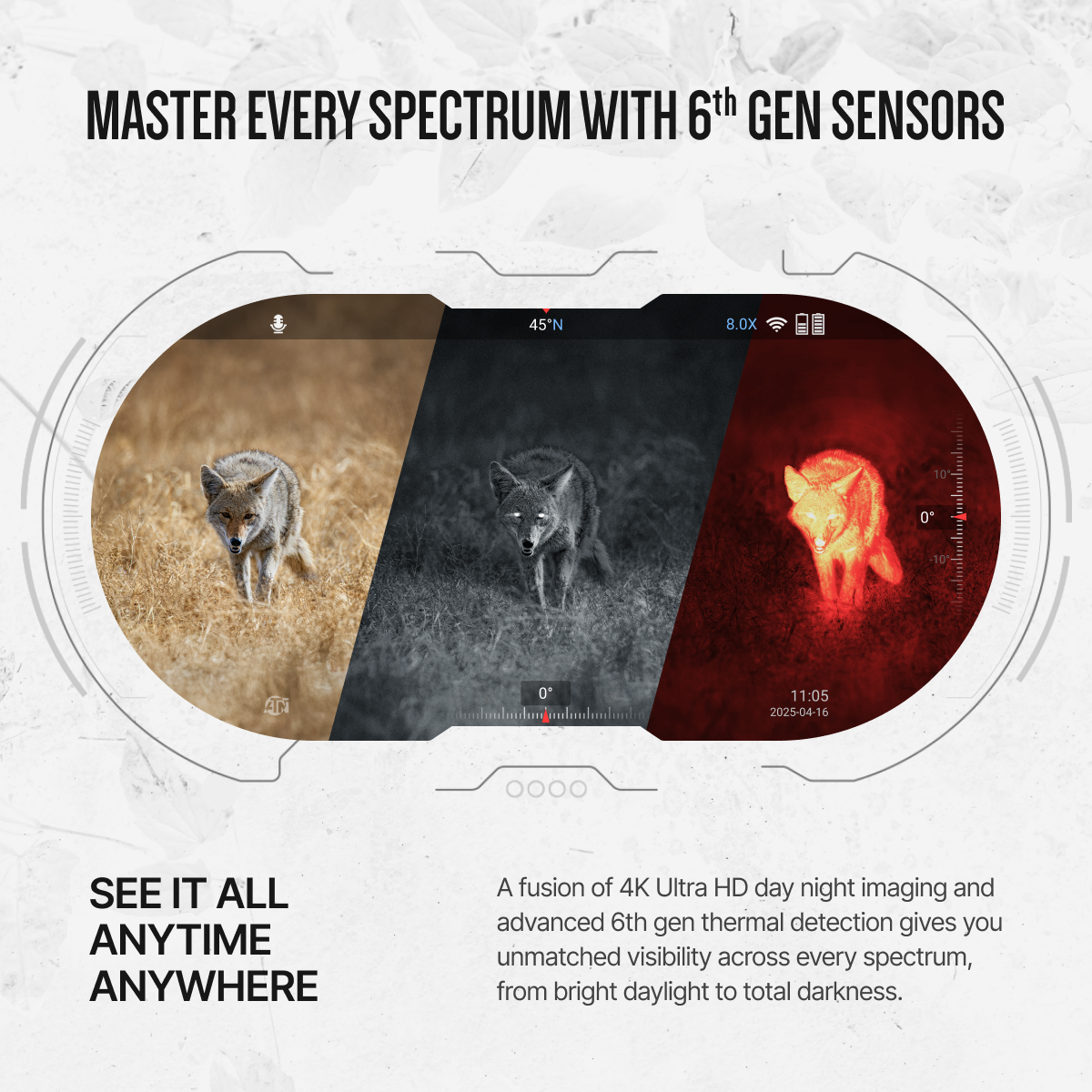

- 4-in-1 viewing modes (thermal, day, night, twilight)
- Built-in laser rangefinder (1000 m)
- 1920×1080 OLED display
- 64 GB internal storage
- Video and image recording
- Built-in Wi-Fi hotspot
- Dual 18650 rechargeable batteries
- Magnesium alloy housing
BUILT FOR:
- Predator and hog hunting
- Long-range scanning and identification
- Search and rescue operations
- Property and perimeter monitoring
- Law enforcement and tactical observation

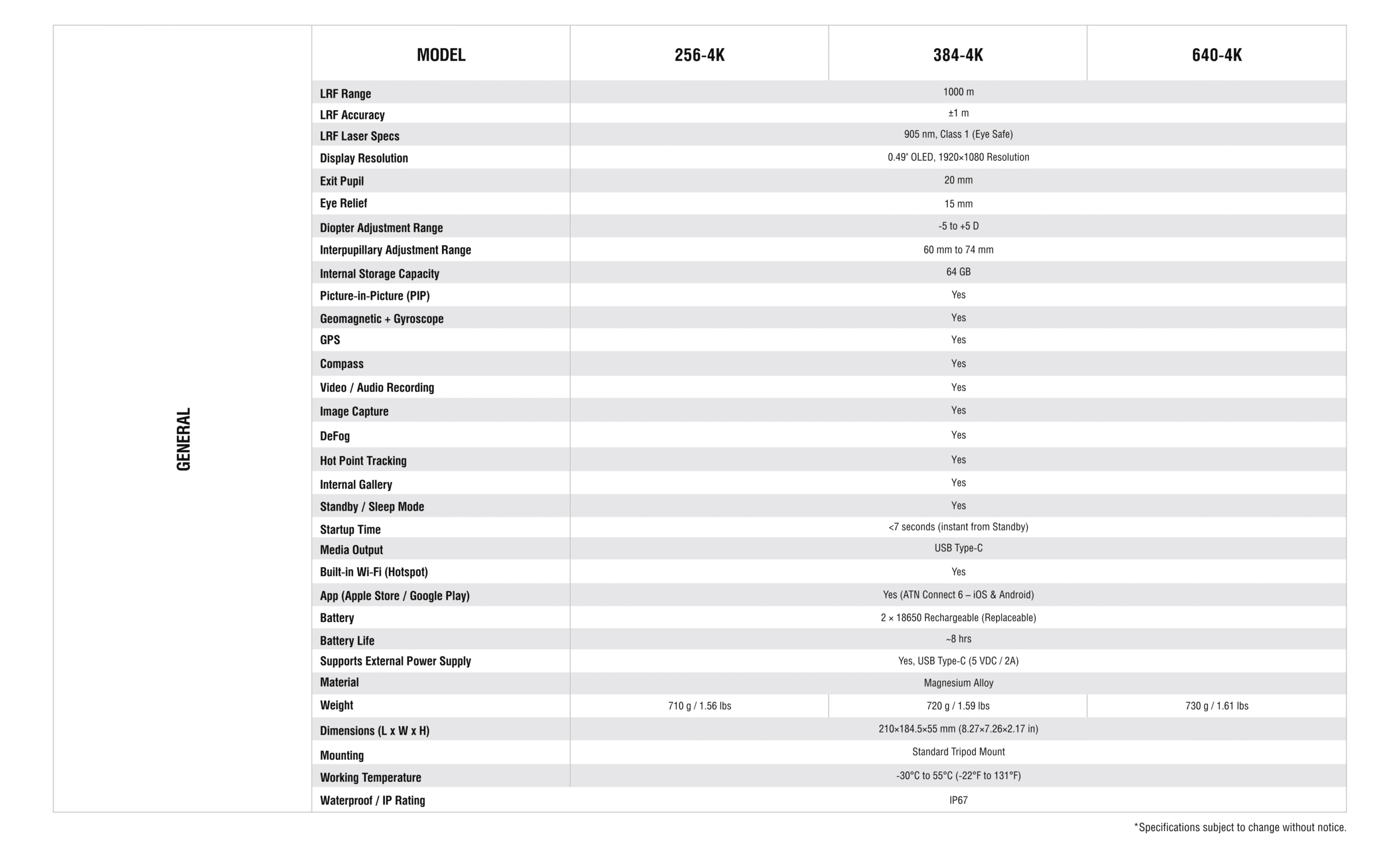

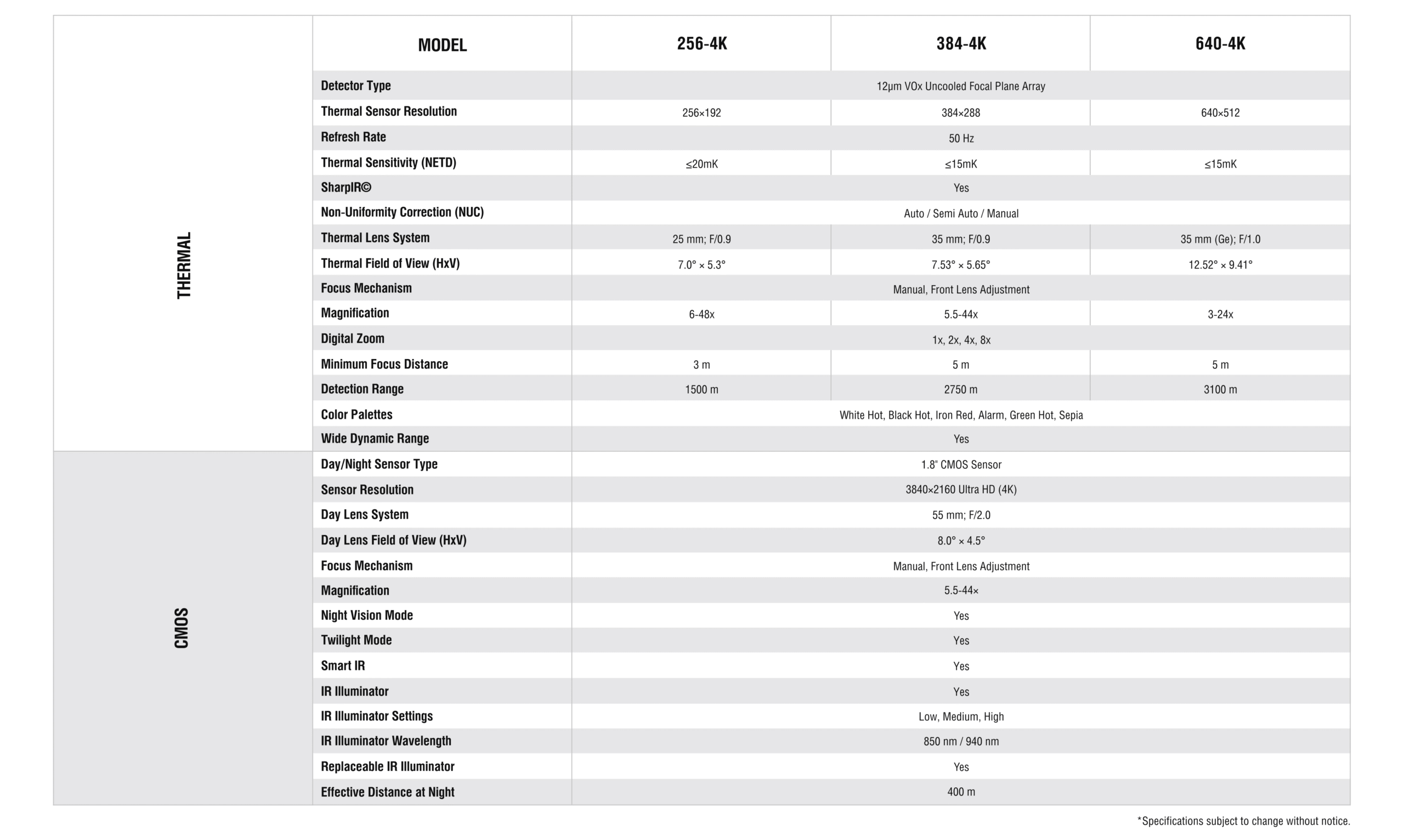

ATN Binox 6 Dual 256 LRF Specifications:
| Binox 6 Dual 256 — MSBNB6225A | Specifications |
|---|---|
| Quick Specs | Sensor: 256 × 192 • NETD: ≤20 mK • Display: 1920 × 1080 • Detection: 1500 m • Objective: 25 mm • Storage: 64 GB Internal • Weight: 1.56 lb |
| THERMAL IMAGING | |
| Detector Type | 12 μm VOx Uncooled Focal Plane Array |
| Thermal Sensor Resolution | 256 × 192 |
| Refresh Rate | 50 Hz |
| Thermal Sensitivity (NETD) | ≤20 mK |

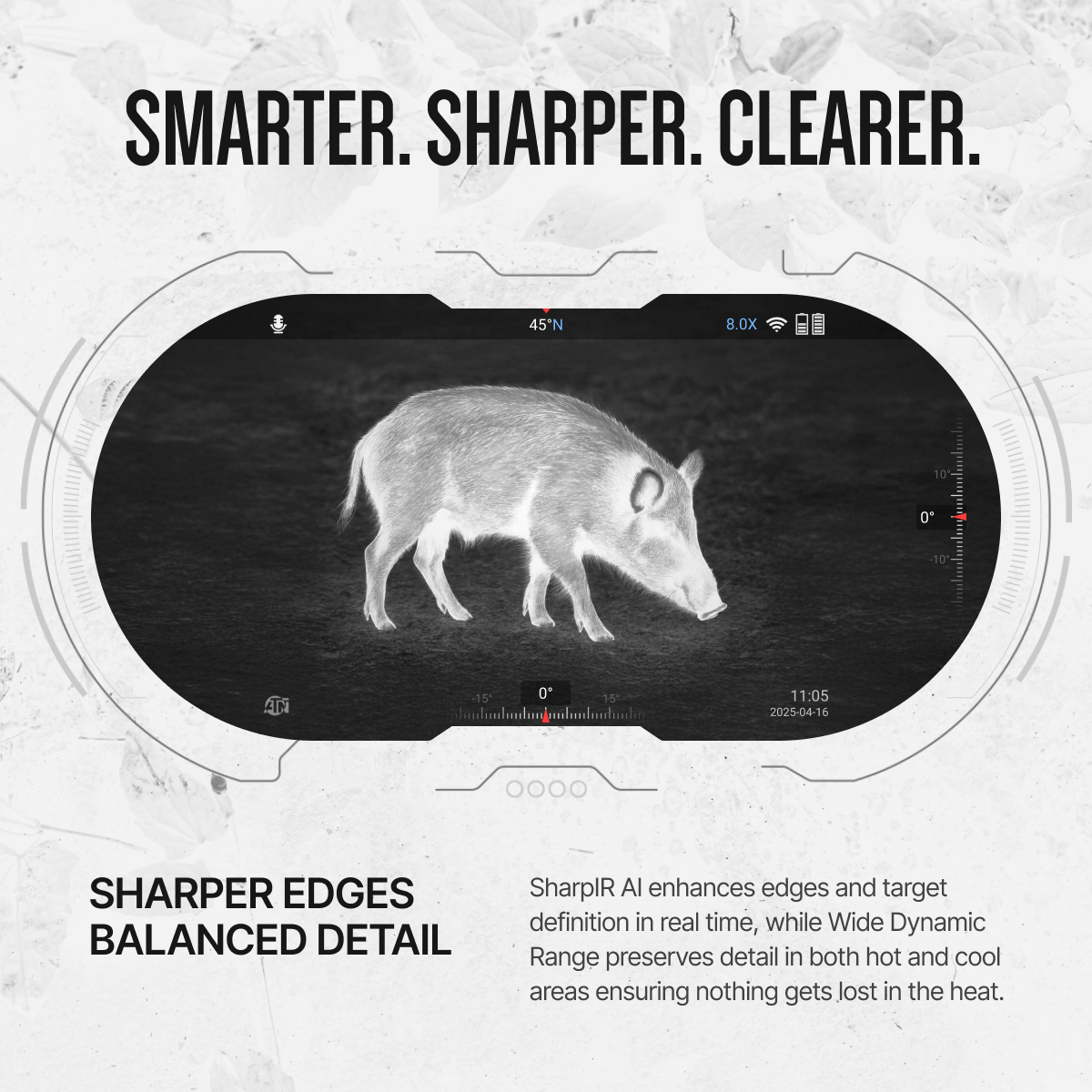

| SharpIR© | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi Auto / Manual |
| Thermal Lens | 25 mm; F/0.9 |
| Thermal Field of View (H × V) | 7.0° × 5.3° |
| Focus Mechanism | Manual, Front Lens Adjustment |
| Thermal Magnification | 6–48× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Minimum Focus Distance | 3 m |
| Detection Range | 1500 m |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Wide Dynamic Range | Yes |
| DAY / NIGHT VISION | |
| Day/Night Sensor Type | 1.8″ CMOS Sensor |
| Sensor Resolution | 3840 × 2160 Ultra HD (4K) |
| Day Lens | 55 mm; F/2.0 |
| Day Lens Field of View (H × V) | 8.0° × 4.5° |
| Day/Night Magnification | 5.5–44× |
| Night Vision Mode | Yes |
| Twilight Mode | Yes |
| Smart IR | Yes |
| IR Illuminator | Yes |
| IR Settings | Low, Medium, High |
| IR Wavelength | 850 nm / 940 nm |
| Replaceable IR Illuminator | Yes |
| Effective Distance at Night | 400 m |
| RANGEFINDING & TARGETING | |
| LRF Range | 1000 m |
| LRF Accuracy | ±1 m |
| LRF Laser Specs | 905 nm, Class 1 (Eye Safe) |
| DISPLAY & VIEWING | |
| Display Type | 0.49″ OLED |
| Display Resolution | 1920 × 1080 |
| Exit Pupil | 20 mm |
| Eye Relief | 15 mm |
| Diopter Adjustment Range | -5 to +5 D |
| Interpupillary Adjustment Range | 60–74 mm |
| Picture-in-Picture (PIP) | Yes |
| RECORDING & CONNECTIVITY | |
| Internal Storage | 64 GB |
| Video / Audio Recording | Yes |
| Image Capture | Yes |
| Internal Gallery | Yes |
| Recoil Activated Video (RAV) | Yes |
| Built-in Wi-Fi (Hotspot) | Yes |
| Mobile App | ATN Connect 6 — iOS & Android |
| Media Output | USB Type-C |
| SMART FEATURES | |
| Geomagnetic Sensor + Gyroscope | Yes |
| GPS | Yes |
| Compass | Yes |
| DeFog | Yes |

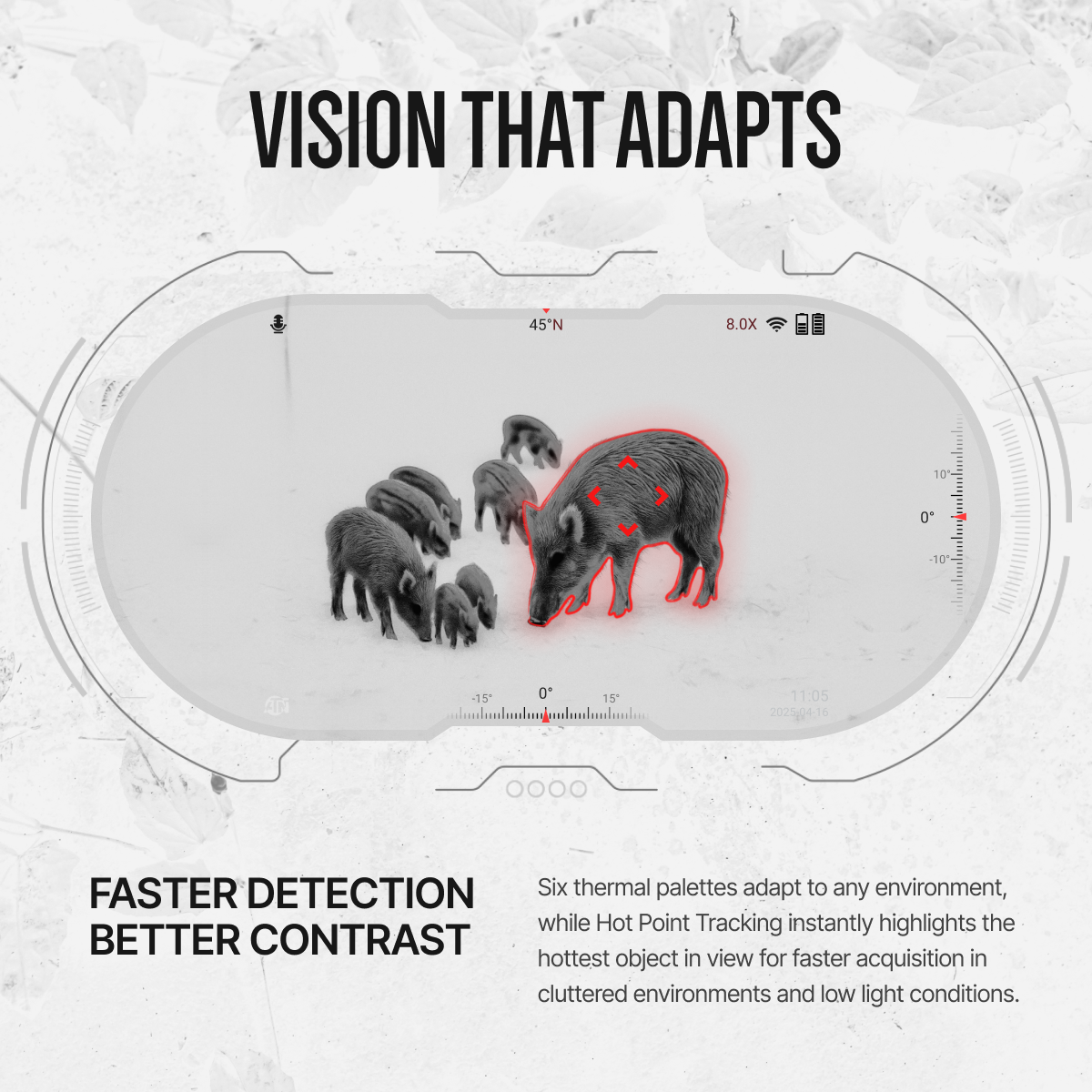

| Hot Point Tracking | Yes |
| POWER | |
| Battery | 2 × 18650 Rechargeable Replaceable Batteries |
| Battery Life | Approximately 8 Hours |
| External Power Supply | Yes — USB Type-C (5 VDC / 2A) |
| Standby / Sleep Mode | Yes |
| Startup Time | ≤7 Seconds; Instant from Standby |
| DESIGN & DURABILITY | |
| Material | Magnesium Alloy |
| Weight | 710 g / 1.56 lb |
| Dimensions (L × W × H) | 210 × 184.5 × 55 mm (8.27 × 7.26 × 2.17 in) |
| Mounting | Standard Tripod Mount |
| Operating Temperature | -30°C to 55°C (-22°F to 131°F) |
| Waterproof / IP Rating | IP67 |
What’s Included:
- Binox 6 Dual 256
- Portable Bag
- 2 × 18650 Batteries
- Data Cable
- Neck Strap
- Lens Cloth
- Quick Reference Guide
- Lens Caps
- Battery Charger
