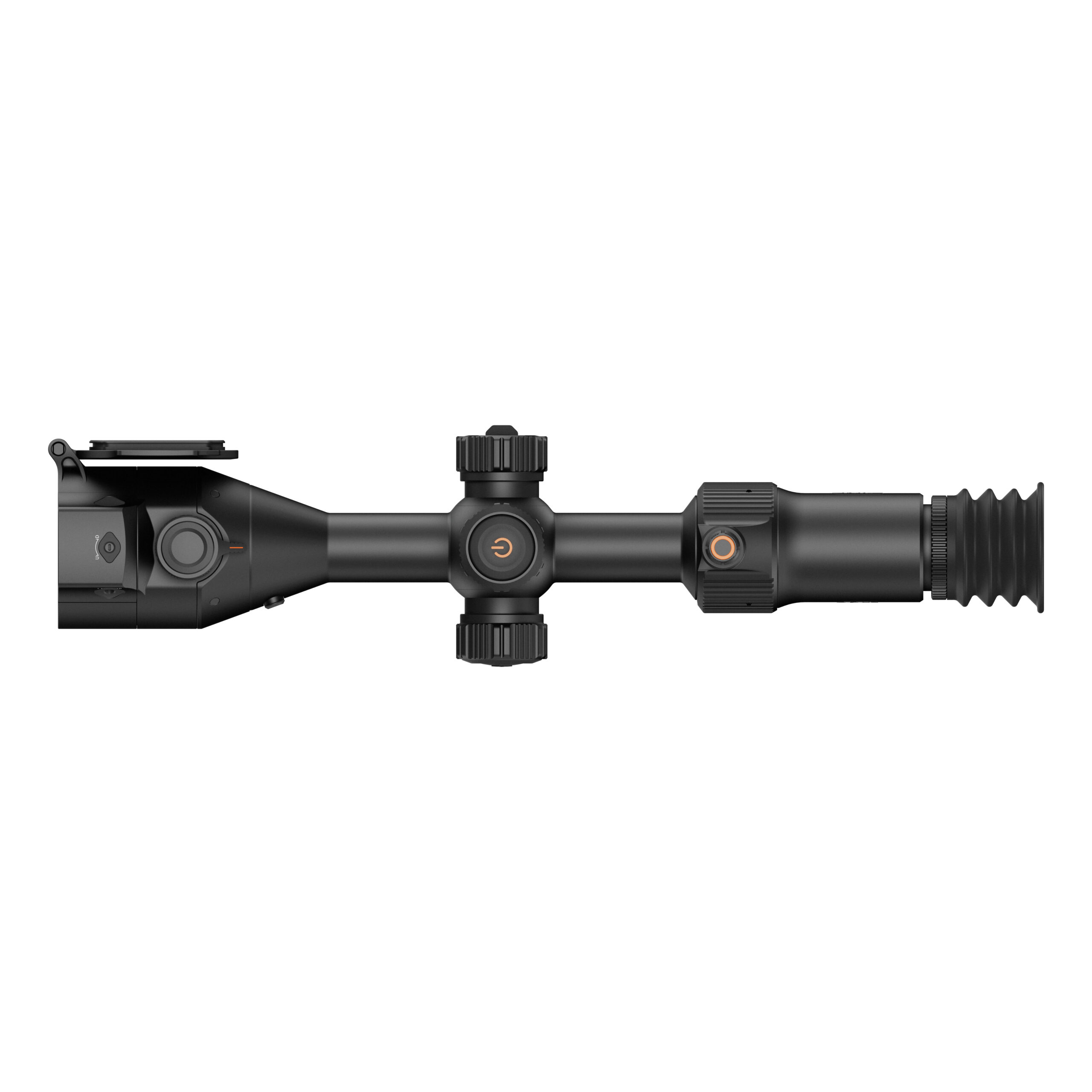

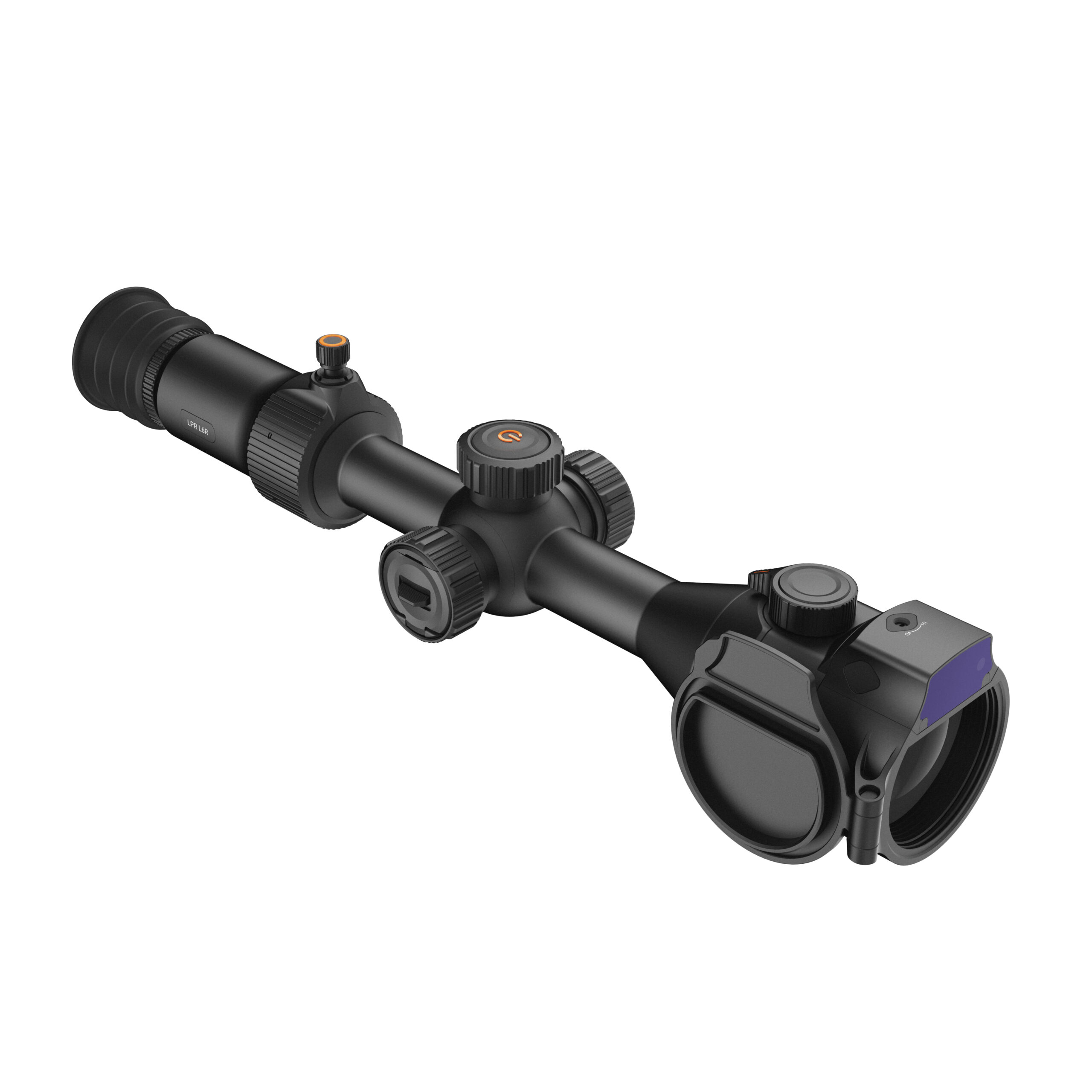

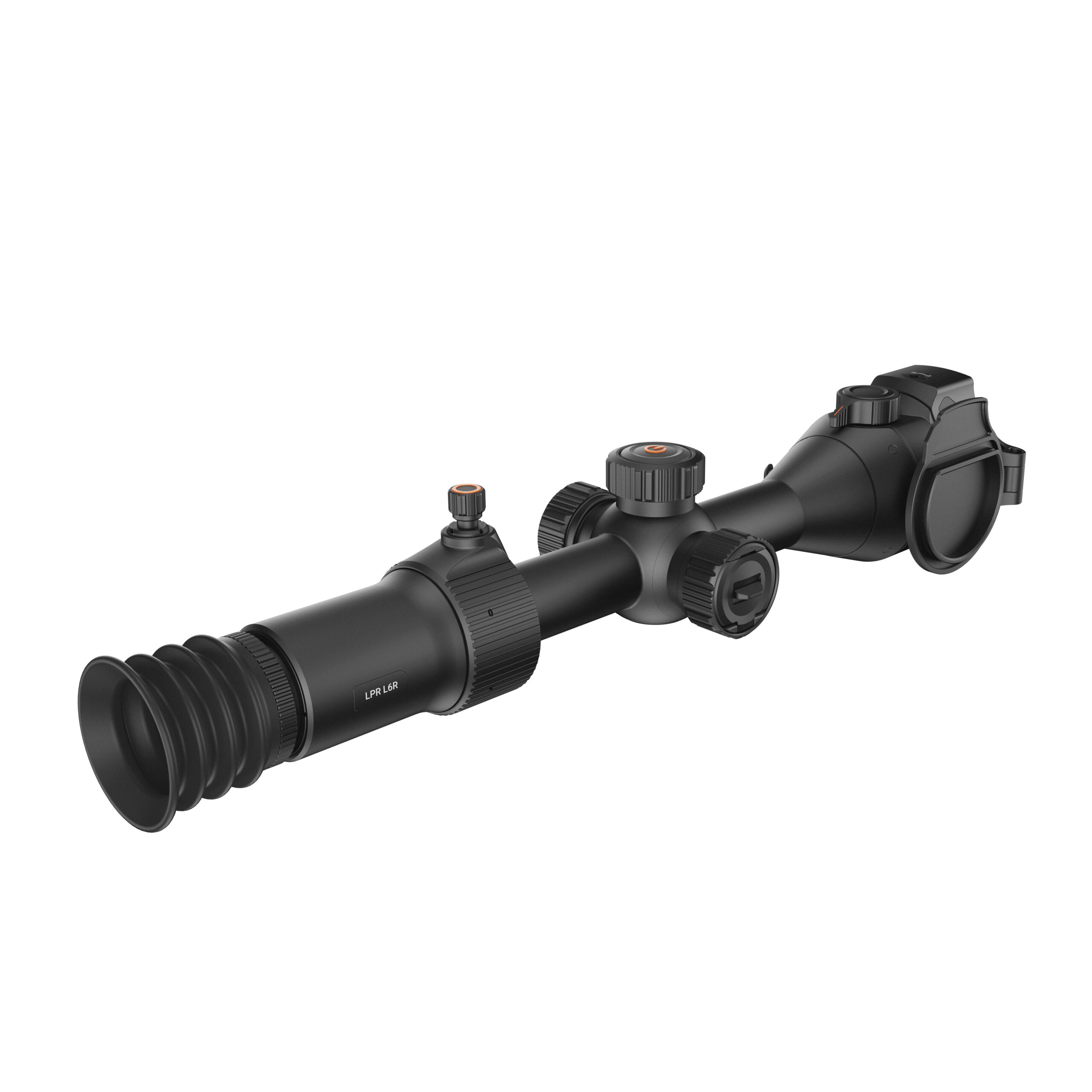

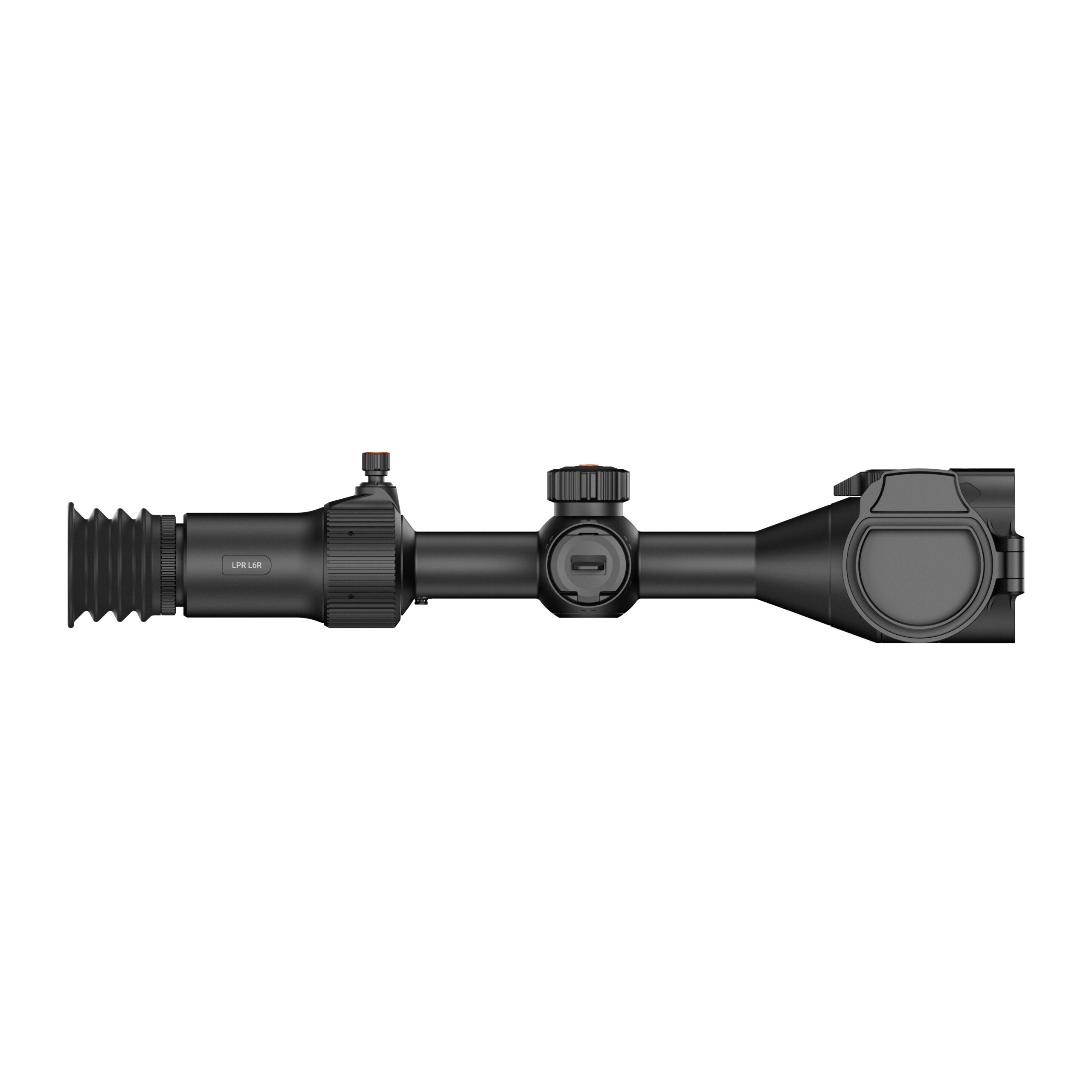

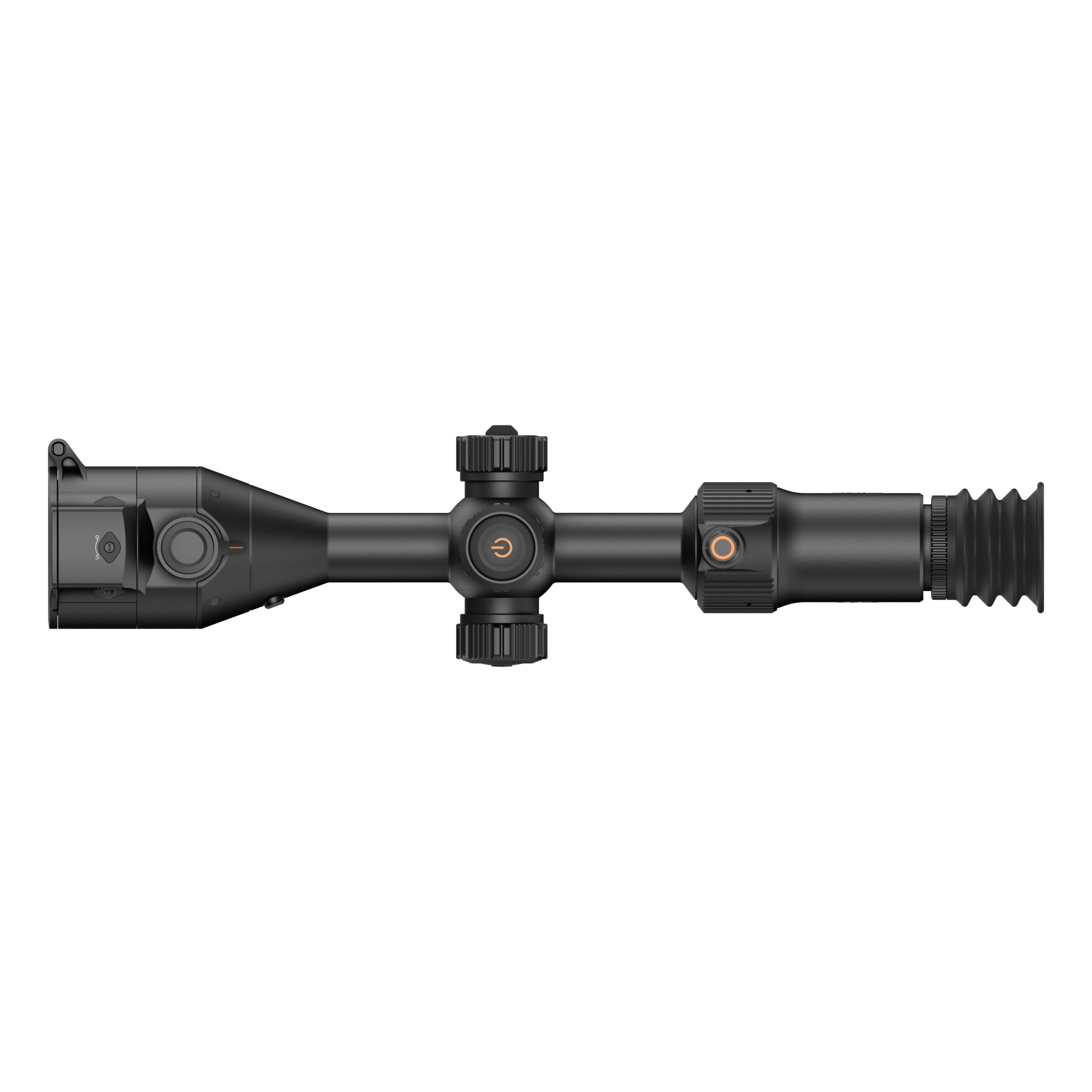

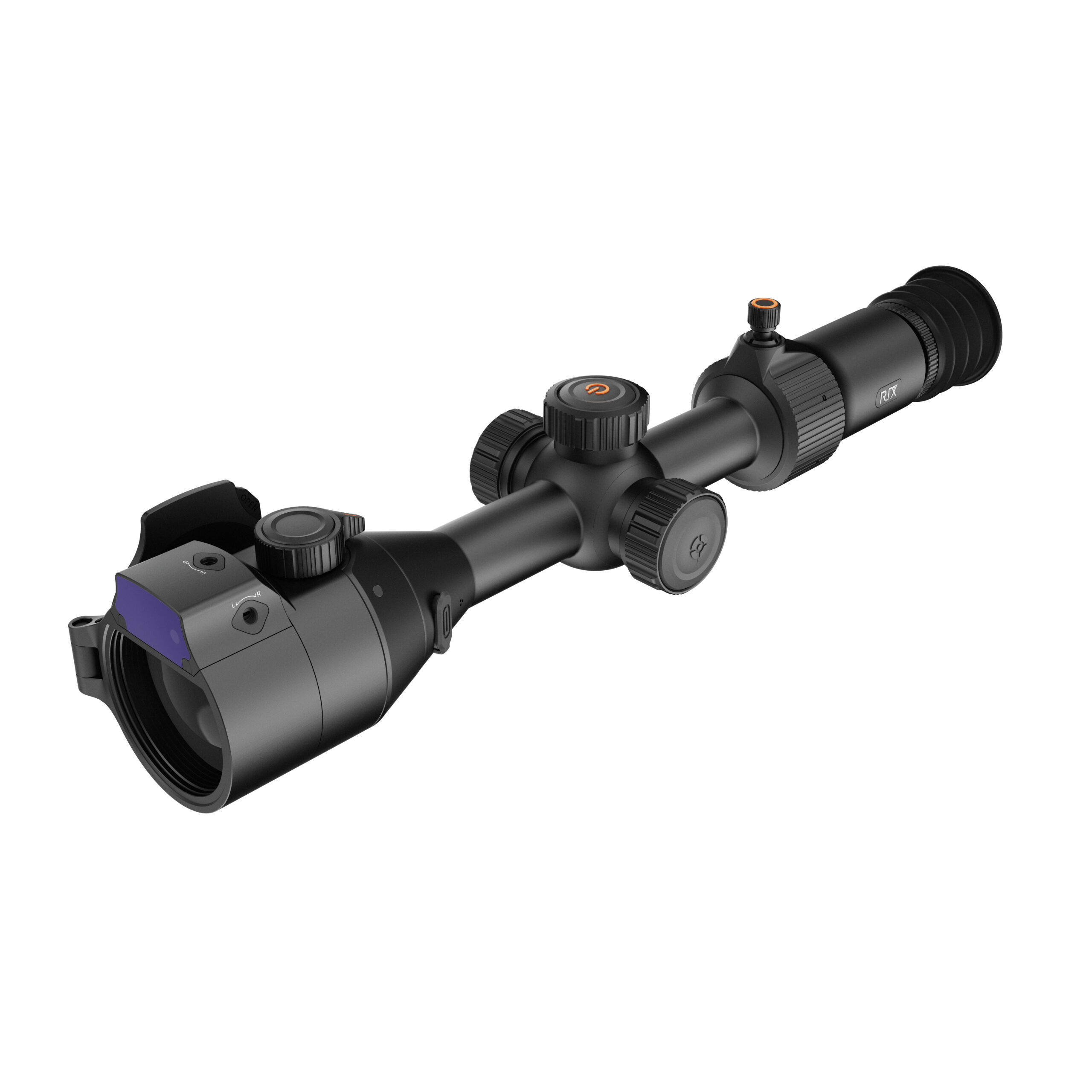

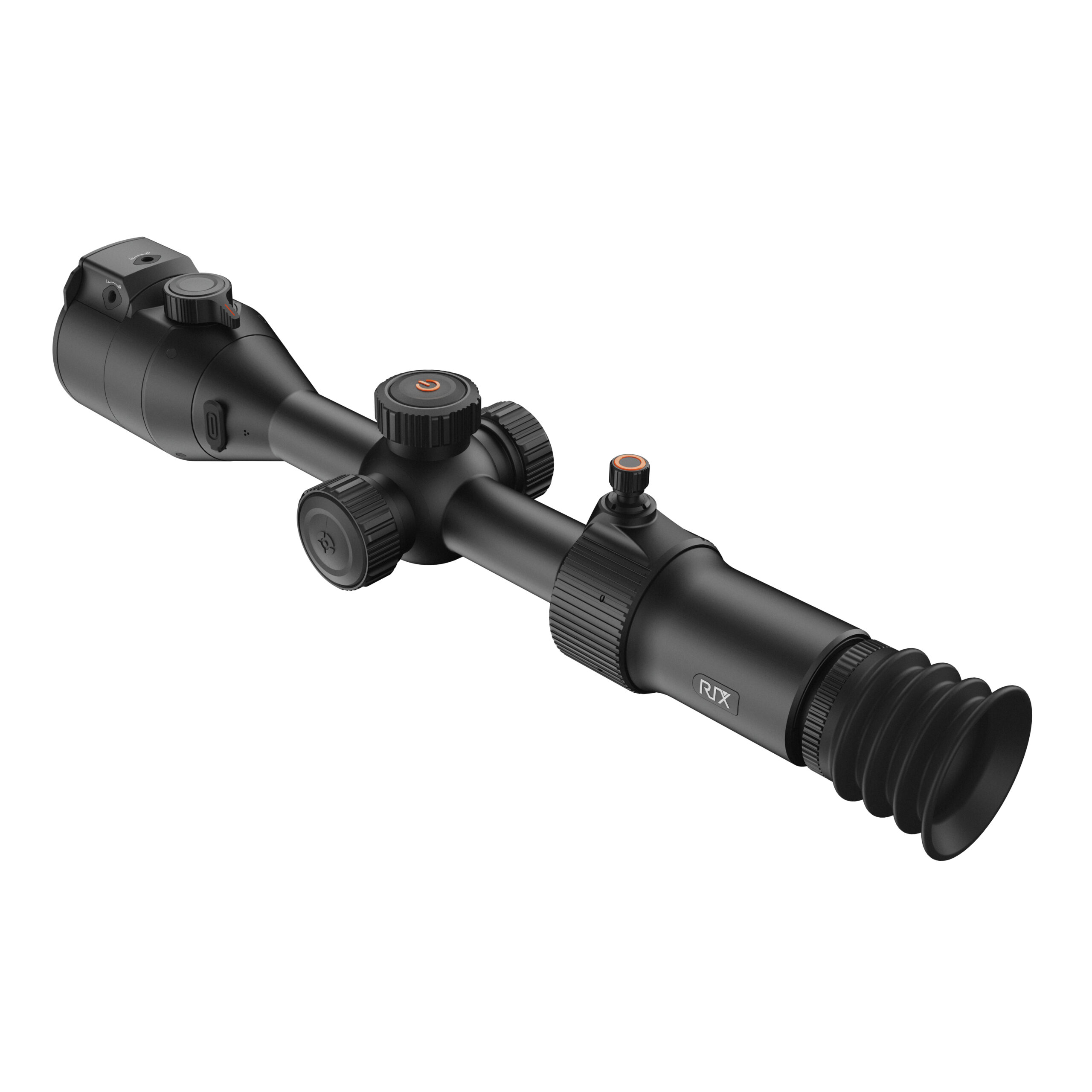

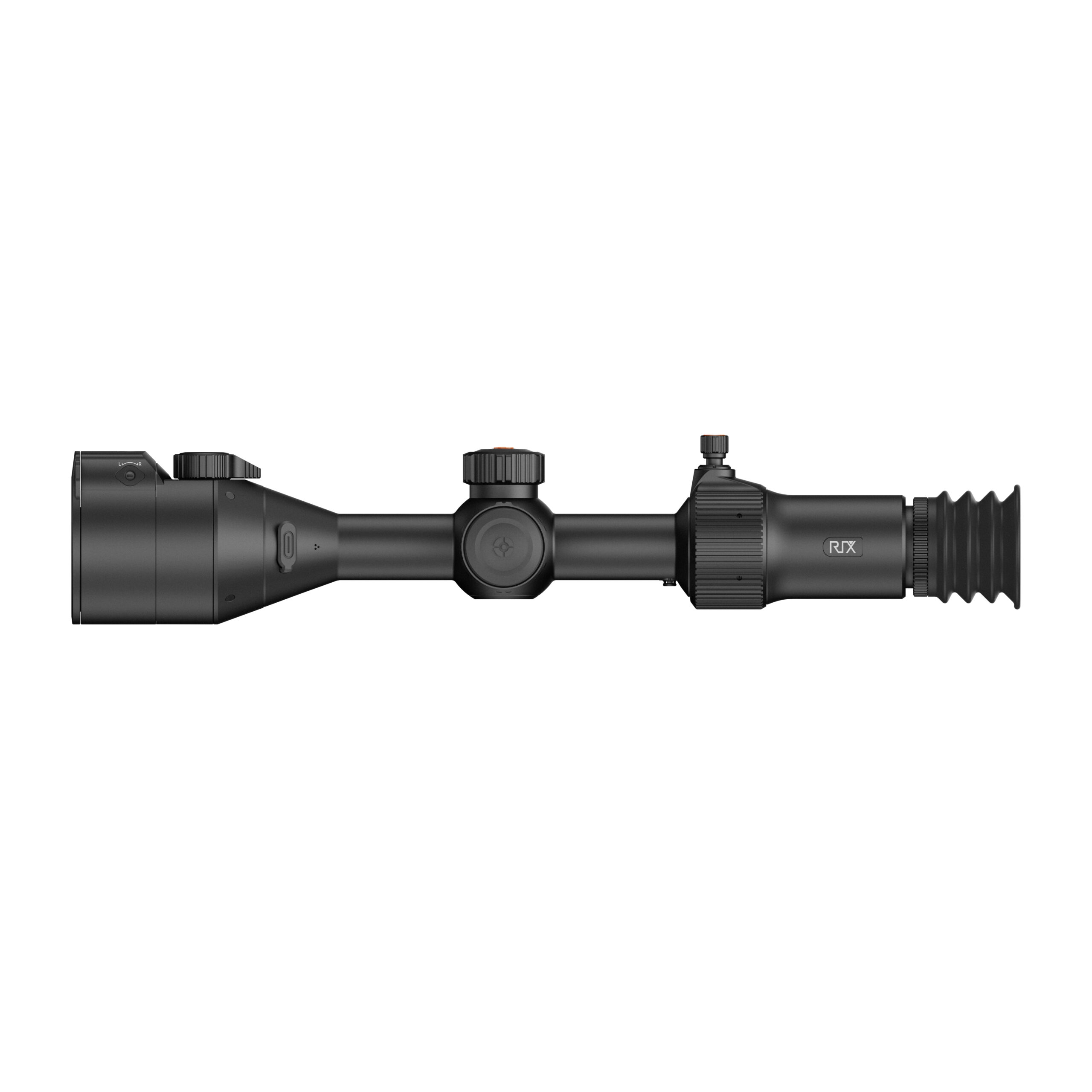

RIX Optics LPR L6R Thermal Riflescope

640×512, 50mm F0.9, 3–9× Optical Zoom & 2,187-Yard LRF

(3.0× Base Magnification, FlexZoom & 2,843 Yards of Detection)

The RIX Optics LPR L6R Thermal Riflescope introduces a professional-grade thermal imaging platform combining high-sensitivity detection, adjustable optical magnification, precision laser ranging, and advanced image processing. Built around a 640×512 VOx thermal sensor with 12 μm pixel pitch and <12 mK NETD, the LPR L6R pairs a 50mm F0.9 objective lens with 3.0× base magnification, 50 Hz refresh rate, an impressive 2,843-yard detection range, and an integrated 2,187-yard laser rangefinder.

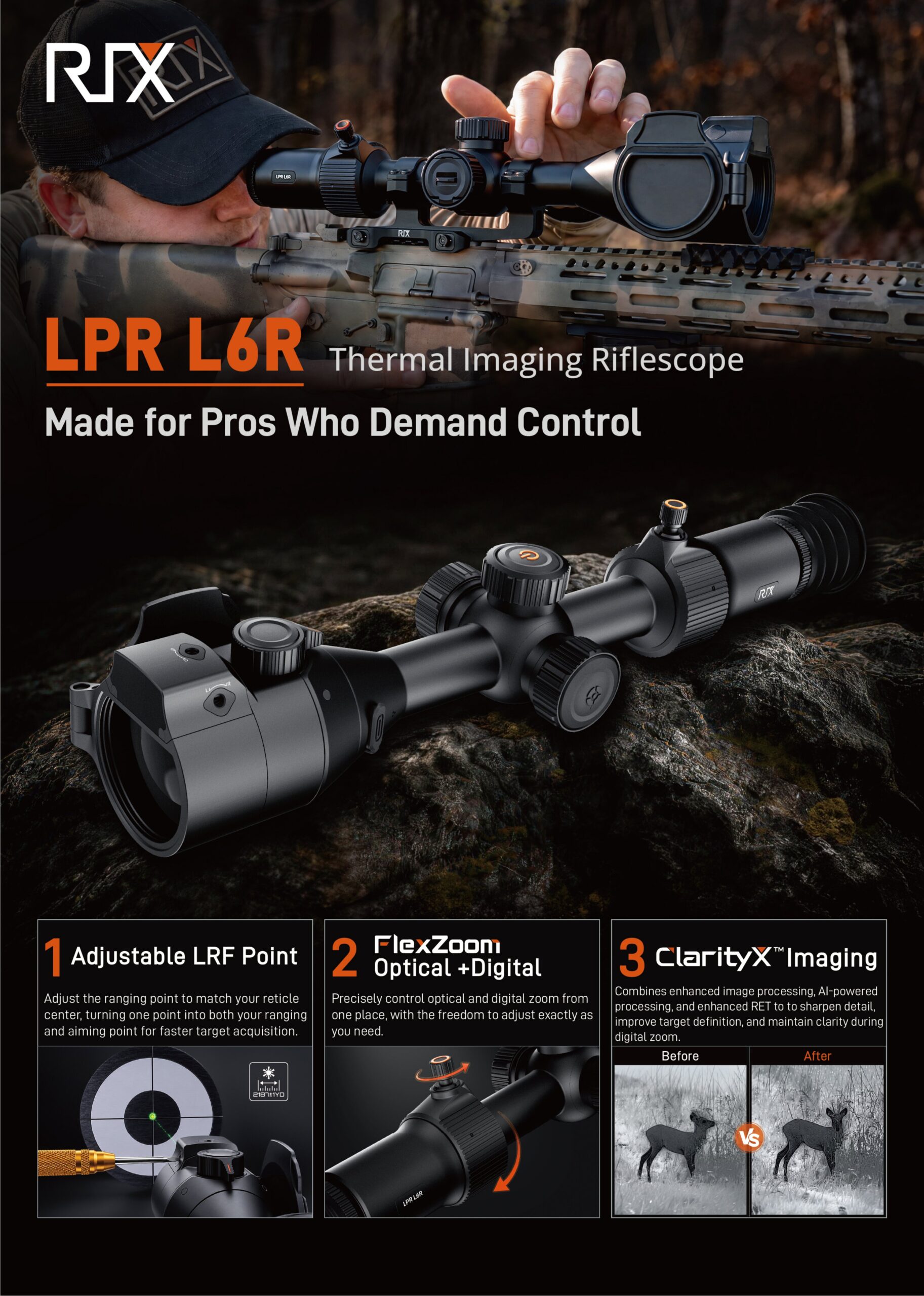

Designed for hunters who demand control over every aspect of their thermal imaging experience, the LPR L6R features RIX’s FlexZoom optical and digital magnification system, ClarityX image processing technology, and an adjustable LRF aiming point.

A high-resolution 2560×2560 AMOLED display, built-in ballistic calculation with five zeroing profiles, and 64GB of internal recording storage complete this advanced thermal riflescope.

RIX Optics LPR L6R Features:

640×512 Thermal Sensor with <12 mK NETD

At the heart of the RIX LPR L6R is a high-performance 640×512 VOx uncooled thermal sensor with 12 μm pixel pitch and an exceptionally sensitive <12 mK NETD rating.

NETD measures the smallest temperature differences a thermal imaging system can distinguish. A lower NETD value allows the sensor to detect subtle thermal variations, helping reveal additional detail in animals, vegetation, and surrounding terrain.

Operating at a 50 Hz refresh rate, the LPR L6R delivers smooth thermal imaging for tracking moving subjects and scanning large areas.

Combined with its advanced image processing system, the LPR L6R is designed to deliver detailed thermal images in challenging outdoor environments.

50mm F0.9 Objective Lens & 2,843-Yard Detection Range

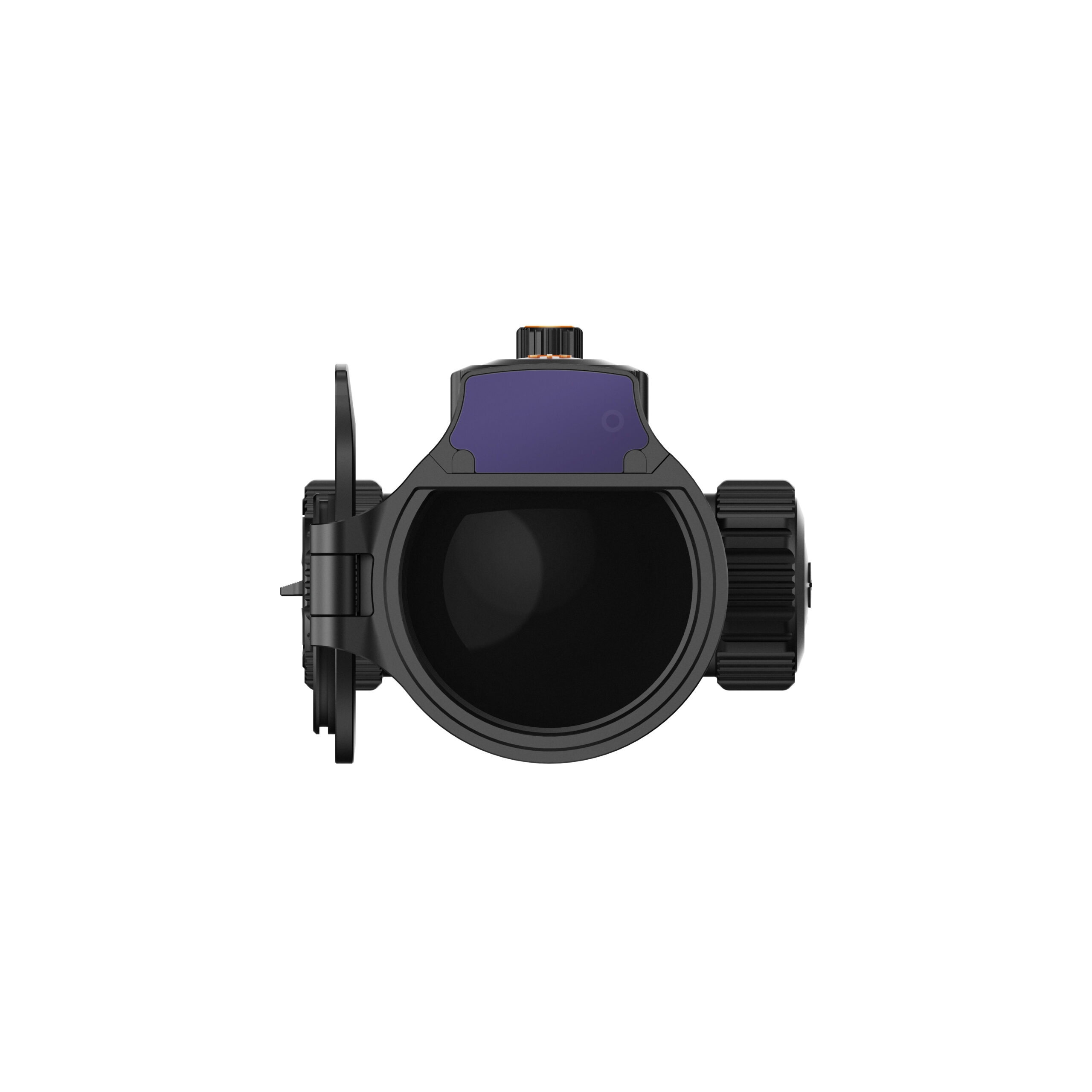

The LPR L6R features a large 50mm F0.9 objective lens engineered to gather thermal radiation efficiently while supporting high-resolution imaging at extended distances.

RIX rates the LPR L6R for a maximum thermal detection range of 2,600 meters / 2,843 yards, providing substantial long-range observation capability.

Its 3.0× base magnification offers a useful starting point for field observation and target evaluation.

The field of view measures 8.8° × 7.0°, equivalent to approximately 15.4 × 12.3 yards at 100 yards.

The combination of a 50mm objective lens, sensitive 640-resolution detector, and 3.0× base magnification makes the LPR L6R well suited for hunters seeking detailed long-range thermal observation.

RIX FlexZoom – 3–9× Optical Zoom & 1–4× Digital Zoom

One of the defining features of the RIX LPR L6R is its FlexZoom optical and digital magnification system.

Unlike thermal scopes that rely exclusively on digital magnification, the LPR L6R offers adjustable 3.0–9.0× optical zoom alongside 1–4× digital zoom.

RIX designed the FlexZoom system to provide precise control over optical and digital magnification from one convenient location, allowing users to fine-tune their viewing experience with one hand.

The optical adjustment provides additional flexibility when transitioning between broader observation and closer target inspection, while digital magnification offers further image enlargement when needed.

FlexZoom gives hunters more control over how they view and evaluate thermal targets at varying distances.

Integrated 2,187-Yard Laser Rangefinder with Adjustable LRF Point

The RIX LPR L6R incorporates a built-in laser rangefinder capable of measuring distances up to 2,000 meters / 2,187 yards, with a manufacturer-rated accuracy of ±1 meter / ±1.09 yards.

Its adjustable LRF point is a standout feature.

Rather than relying on a fixed ranging point that may not align perfectly with the aiming reticle, the LPR L6R allows users to adjust the ranging point to match the center of their reticle.

This alignment allows the laser ranging point and aiming point to be positioned together, simplifying the distance-measurement process.

By combining precise ranging with adjustable alignment, the LPR L6R delivers greater control during field use.

Built-In Ballistic Calculator with 5 Zeroing Profiles

The LPR L6R combines its integrated laser rangefinder with built-in ballistic calculation capabilities.

The system supports five zeroing profiles, allowing different zero configurations to be stored within the thermal riflescope.

This provides flexibility for users who maintain multiple sighting configurations and want convenient access to stored profiles.

Combined with the adjustable LRF point, the ballistic calculation system provides another layer of precision-oriented functionality.

ClarityX Thermal Imaging with AI-Powered Processing

RIX introduces its ClarityX imaging technology on the LPR L6R to deliver enhanced thermal image definition and improved visual detail.

According to RIX, the system combines enhanced image processing, AI-powered processing, and enhanced RET technology to sharpen thermal details and improve target definition.

The manufacturer highlights its ability to maintain clarity during digital magnification, an important consideration when viewing distant thermal subjects.

By combining ClarityX processing with the high-sensitivity 640×512 sensor, the LPR L6R is designed to provide greater image detail and confidence during observation.

1.03-Inch 2560×2560 AMOLED Display

The RIX LPR L6R features a large 1.03-inch round AMOLED display with 2560×2560 resolution, providing a high-resolution viewing interface for its thermal imaging system.

AMOLED technology delivers strong contrast and detailed image reproduction, helping users evaluate the thermal information captured by the scope.

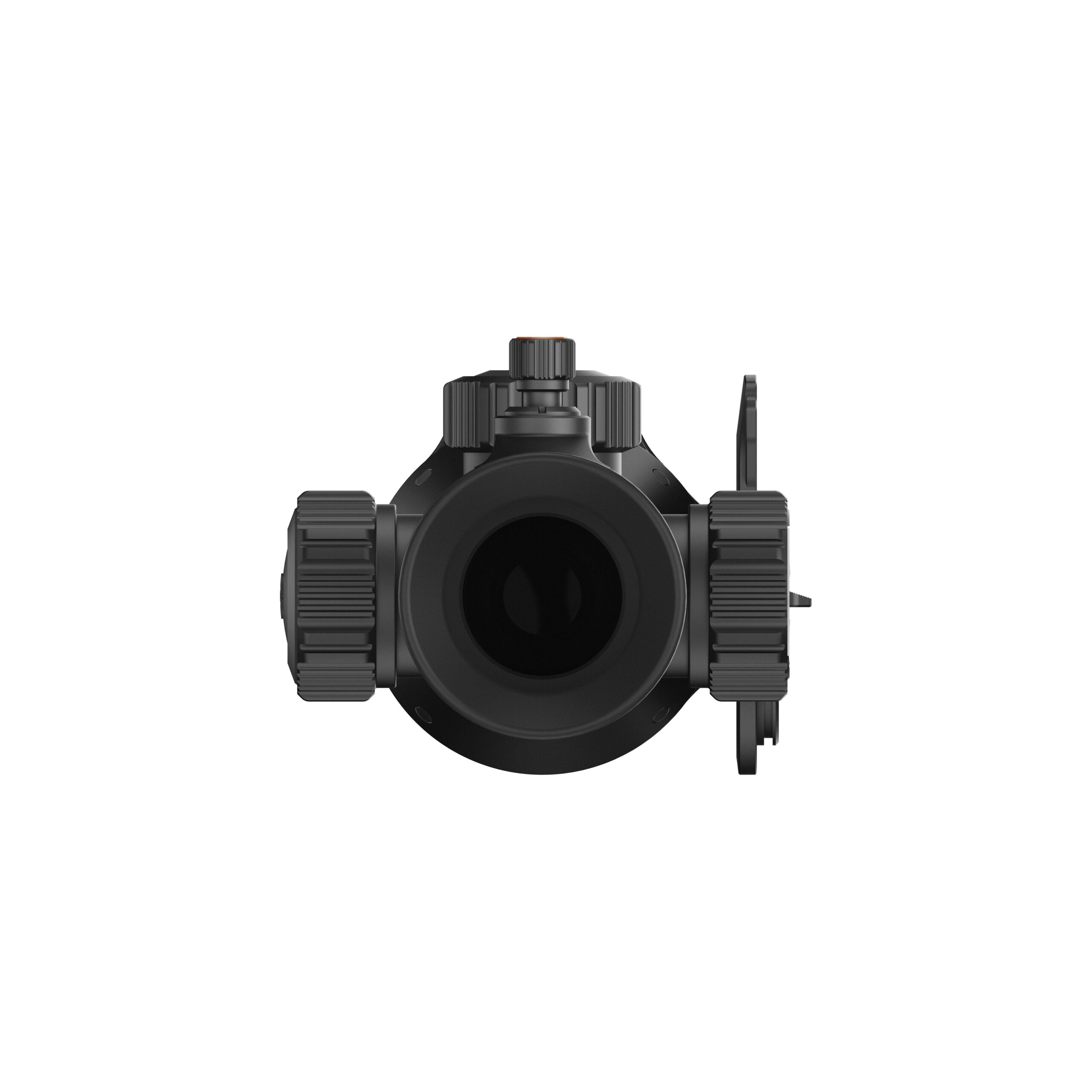

The LPR L6R also provides 50mm of eye relief and a diopter adjustment range of -5D to +5D for individual viewing preferences.

The combination of a high-resolution thermal sensor, ClarityX imaging, and 2560×2560 AMOLED display creates a viewing system designed for high-detail thermal observation.

Built-In MP4 Video Recording & 64GB Internal Memory

The RIX LPR L6R includes onboard video recording for capturing thermal footage directly through the riflescope.

Video is recorded at 1280×1280 resolution in MP4 format, with 64GB of built-in internal memory.

This integrated recording capability allows users to save thermal video without requiring a separate external recording device.

Whether documenting nighttime wildlife encounters, reviewing field observations, or saving thermal footage, the LPR L6R provides onboard storage for captured recordings.

Replaceable 21700 Battery System with 18650 Compatibility

The LPR L6R utilizes a replaceable 21700 battery system and is also compatible with 18650 batteries.

RIX rates battery operation at approximately 5.5 hours under its stated test conditions.

The replaceable battery design allows users to change power sources during extended outings.

For additional flexibility, the LPR L6R supports 5V external power through a USB Type-C connection.

This combination provides multiple power options for extended thermal observation and field use.

Professional-Grade Construction & IP67 Protection

The RIX LPR L6R is designed for demanding outdoor use with an IP67 environmental protection rating.

Its operating temperature range extends from -4°F to +122°F (-20°C to +50°C), providing usability across a wide range of weather conditions.

RIX rates the scope for recoil resistance up to 1,000 g / 6,000 J.

The LPR L6R measures approximately 15.3 × 4.1 × 3.4 inches and weighs 2.01 lb.

A 30mm tube design and Picatinny mounting compatibility provide flexible mounting options.

5-Year RIX Manufacturer Warranty

The RIX LPR L6R Thermal Riflescope is backed by a 5-year RIX manufacturer warranty, consistent with RIX’s warranty coverage for thermal devices with sensor resolutions of 384 and higher.

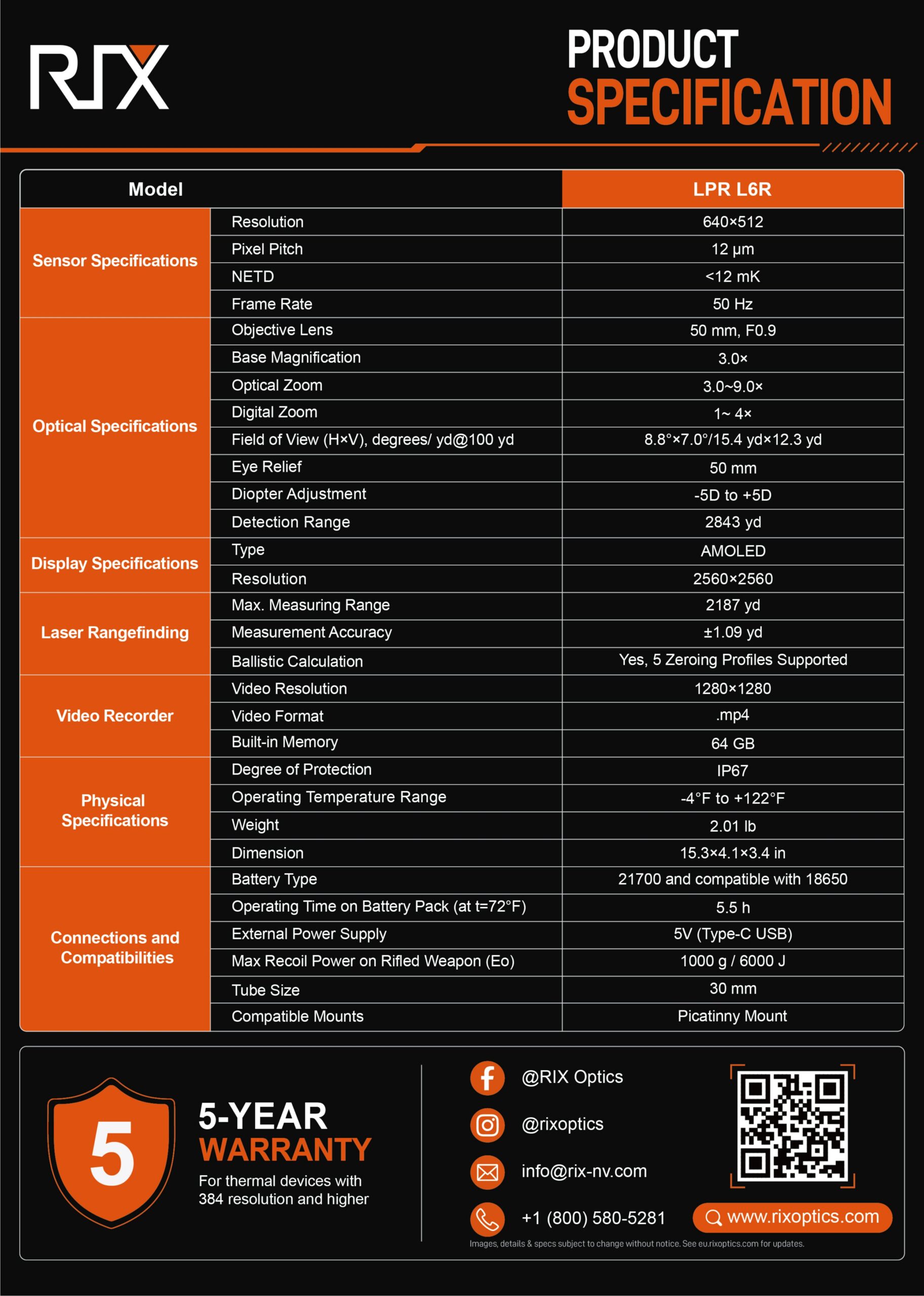

RIX Optics LPR L6R Specifications:

Specification	RIX LPR L6R
Thermal Sensor	VOx Uncooled
Sensor Resolution	640×512
Pixel Pitch	12 μm
Thermal Sensitivity (NETD)	<12 mK
Refresh Rate	50 Hz
Objective Lens	50mm F0.9
Base Magnification	3.0×
Optical Zoom	3.0–9.0×
Digital Zoom	1–4×
Field of View	8.8° × 7.0°
Field of View @ 100 yd	15.4 × 12.3 yd
Thermal Detection Range	2,843 yd / 2,600 m
Display Type	AMOLED
Display Size	1.03-inch round
Display Resolution	2560×2560
Eye Relief	50mm
Diopter Adjustment	-5D to +5D
Laser Rangefinder	Built-In
Maximum LRF Range	2,187 yd / 2,000 m
LRF Accuracy	±1.09 yd / ±1 m
Ballistic Calculator	Yes
Zeroing Profiles	5
Video Resolution	1280×1280
Video Format	MP4
Internal Storage	64GB
Image Enhancement	ClarityX with enhanced RET and AI-powered processing
Magnification System	FlexZoom Optical & Digital
Battery Compatibility	21700 / 18650
Approximate Battery Runtime	5.5 Hours
External Power	5V USB Type-C
Protection Rating	IP67
Operating Temperature	-4°F to +122°F
Maximum Recoil Rating	1,000 g / 6,000 J
Dimensions	15.3 × 4.1 × 3.4 in
Approximate Weight	2.01 lb
Tube Size	30mm
Mount Compatibility	Picatinny
Manufacturer Warranty	5 Years

Frequently Asked Questions (FAQ)

What is the detection range of the RIX LPR L6R?

The RIX LPR L6R has a manufacturer-rated thermal detection range of up to 2,843 yards (2,600 meters).

What is the thermal sensor resolution of the RIX LPR L6R?

The LPR L6R features a 640×512 VOx uncooled thermal sensor with 12 μm pixel pitch and <12 mK NETD thermal sensitivity.

Does the RIX LPR L6R have optical zoom?

Yes. The LPR L6R features RIX FlexZoom with adjustable 3–9× optical magnification and an additional 1–4× digital zoom system.

How far does the RIX LPR L6R laser rangefinder work?

The built-in laser rangefinder measures distances up to 2,187 yards (2,000 meters), with manufacturer-rated accuracy of ±1.09 yards.

Does the RIX LPR L6R have a ballistic calculator?

Yes. The LPR L6R includes built-in ballistic calculation and supports five zeroing profiles.

What is the adjustable LRF point on the RIX LPR L6R?

The adjustable LRF point allows the ranging point to be aligned with the center of the reticle so that the ranging and aiming points coincide.

What is ClarityX imaging?

ClarityX is RIX’s thermal image enhancement system combining improved image processing, AI-powered processing, and enhanced RET technology to improve thermal target detail and clarity.

What display does the RIX LPR L6R use?

The LPR L6R features a 1.03-inch round AMOLED display with 2560×2560 resolution.

What batteries does the RIX LPR L6R use?

The LPR L6R uses a replaceable 21700 battery system and is compatible with 18650 batteries. Manufacturer-rated operating time is approximately 5.5 hours.

Does the RIX LPR L6R record video?

Yes. The scope supports 1280×1280 MP4 video recording and includes 64GB of built-in storage.
