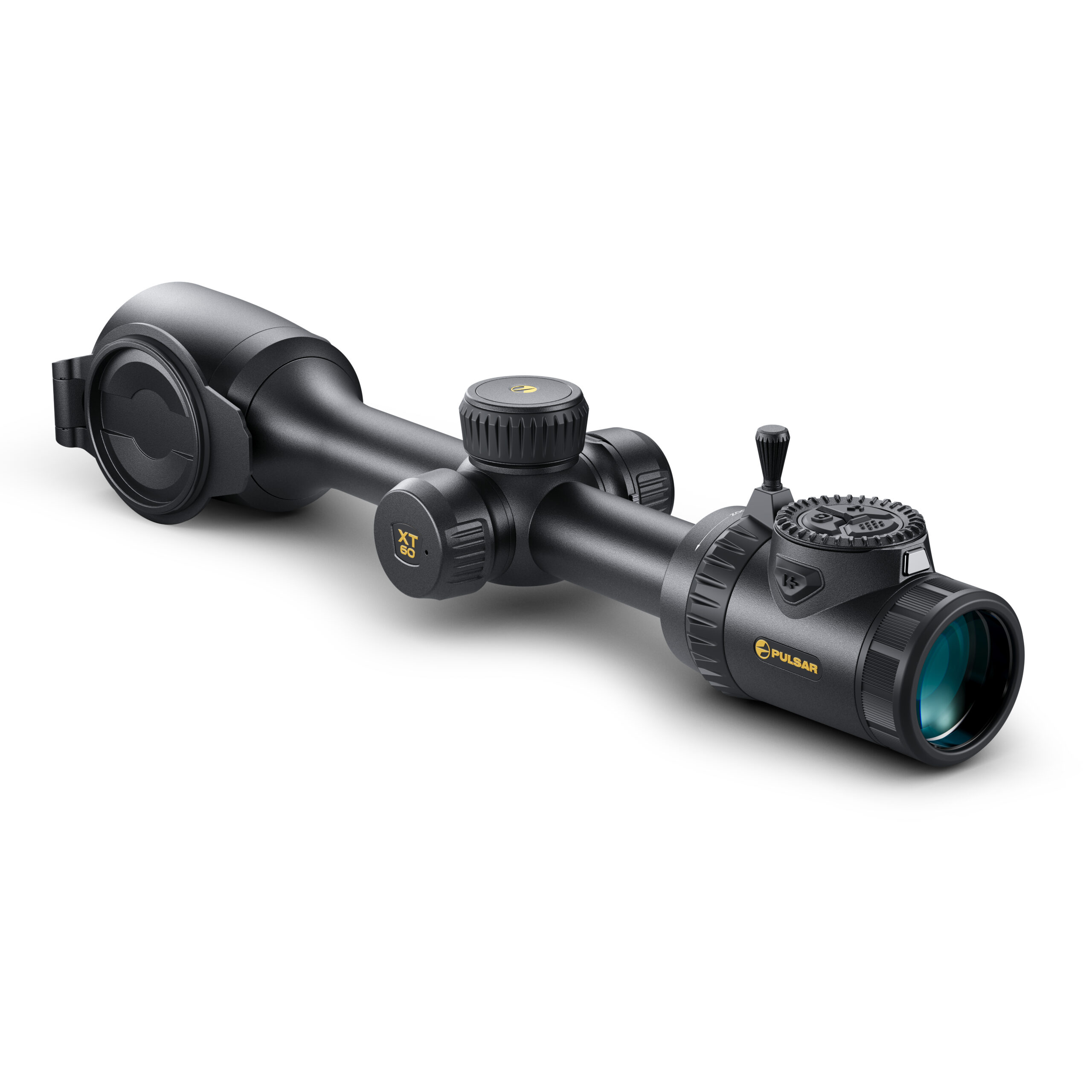

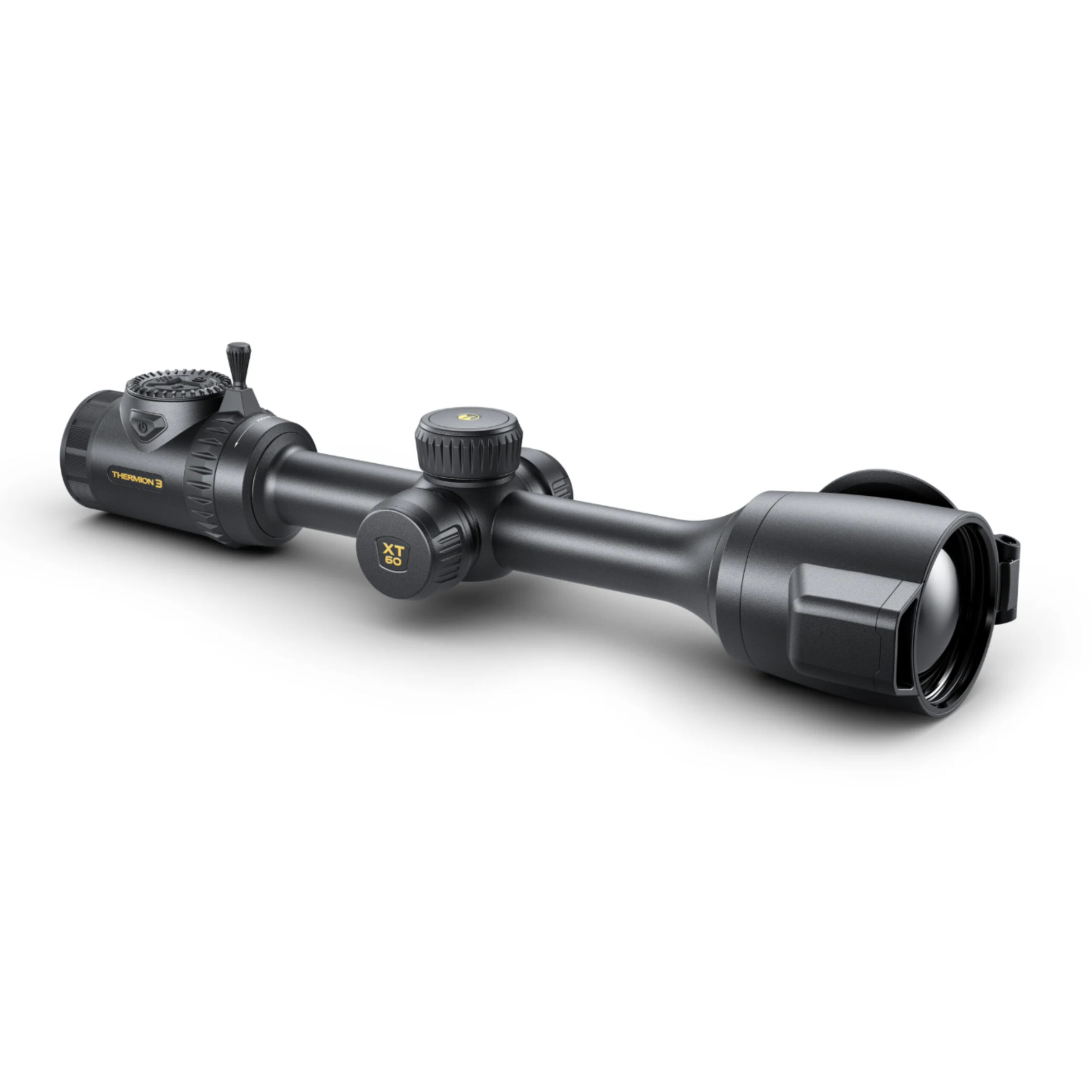

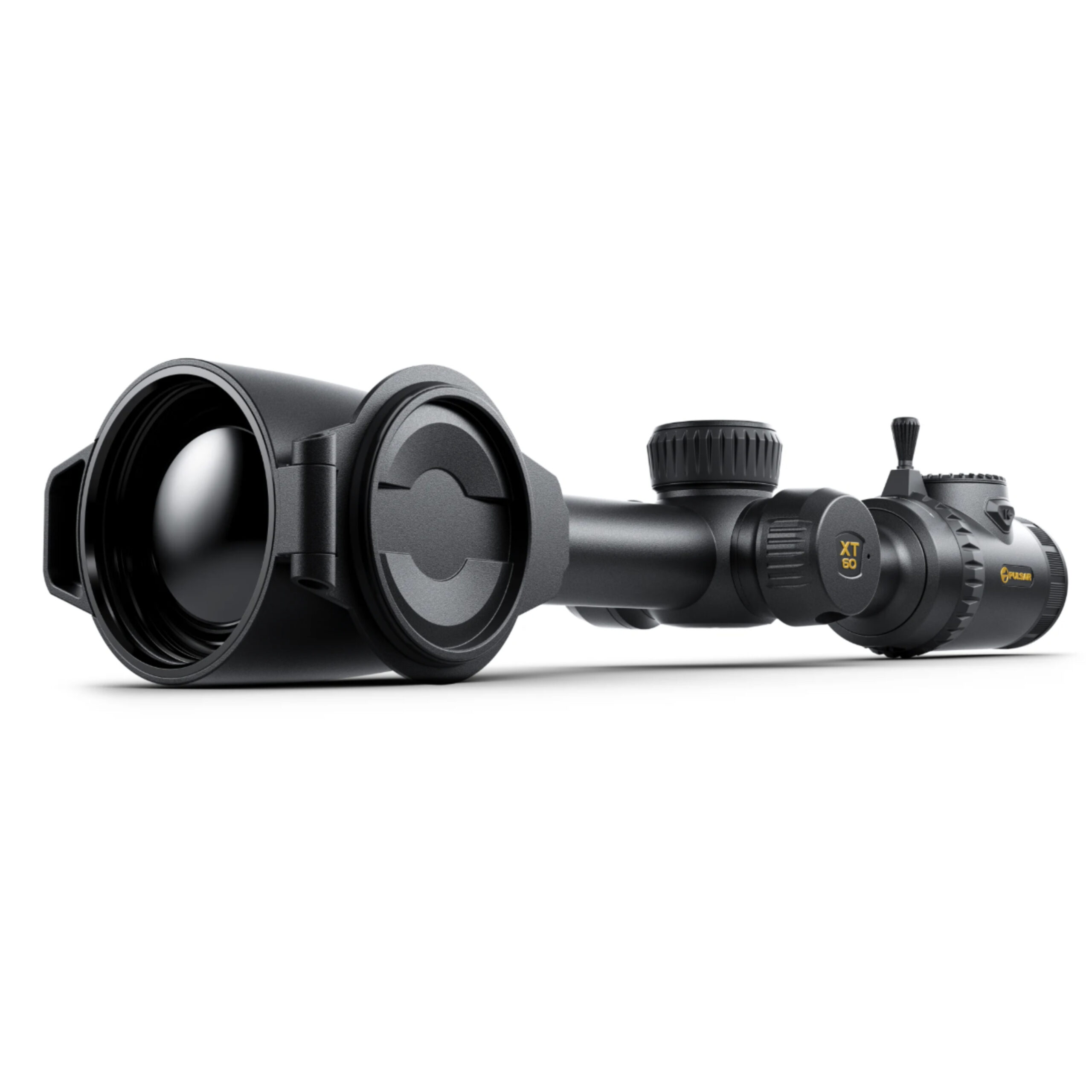

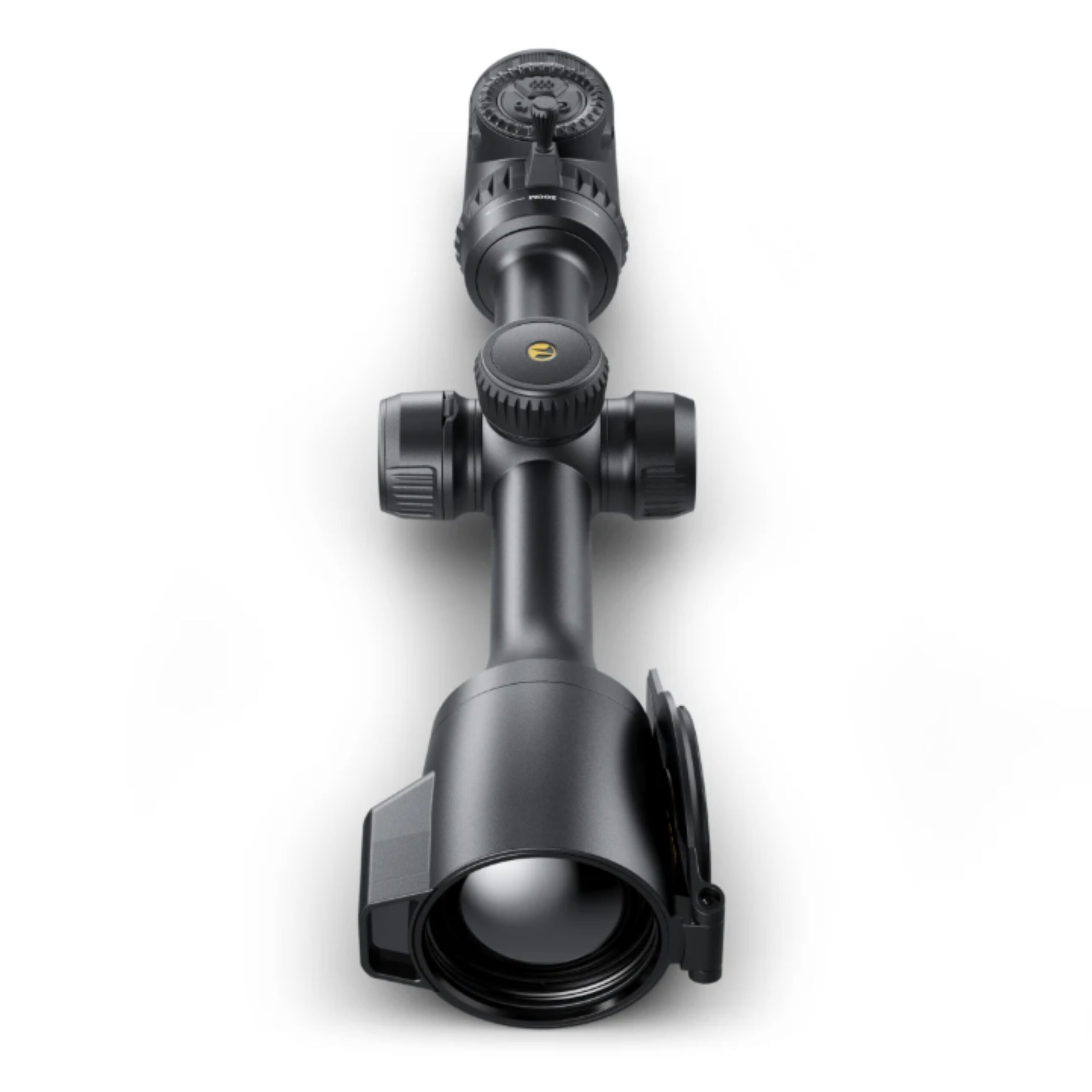

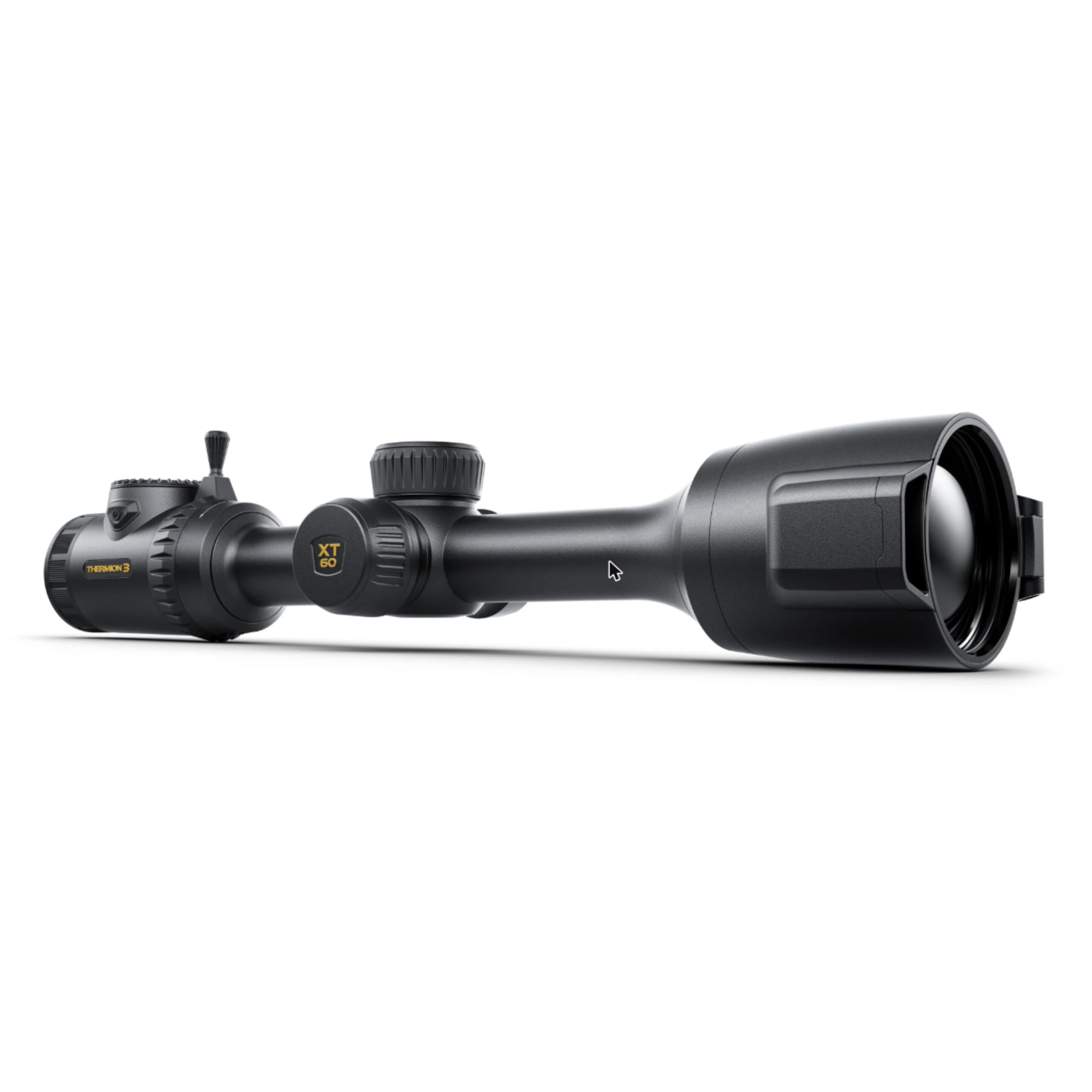

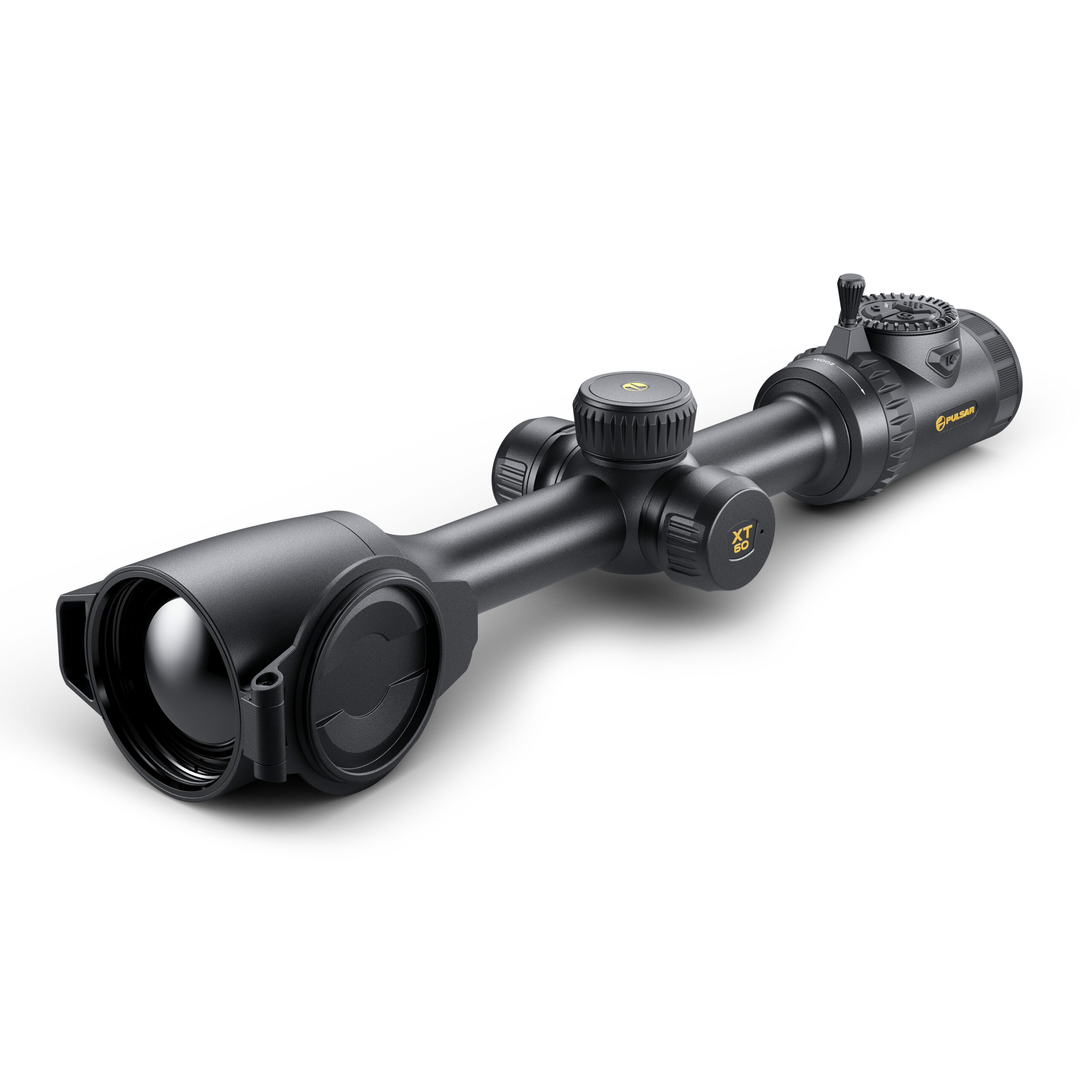

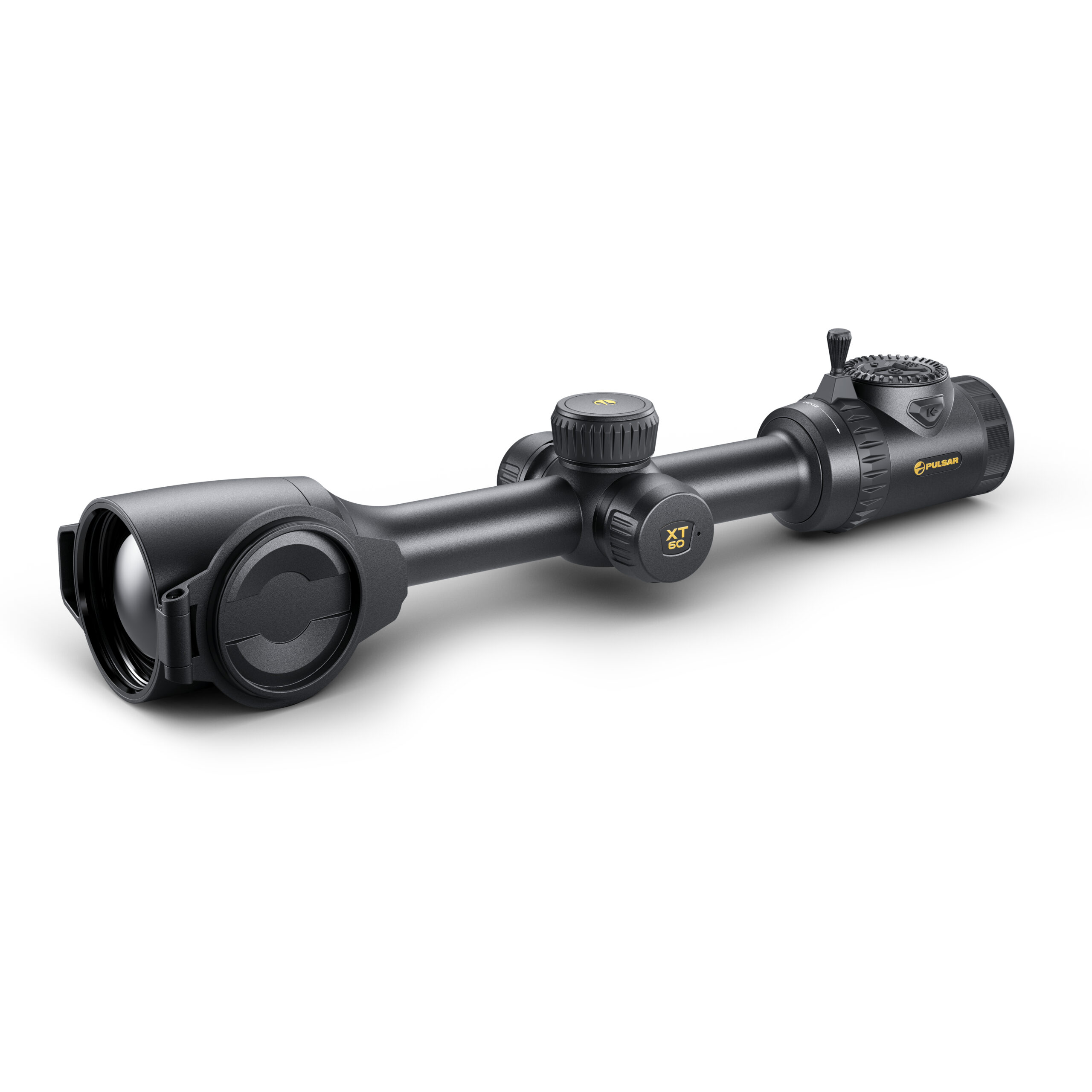

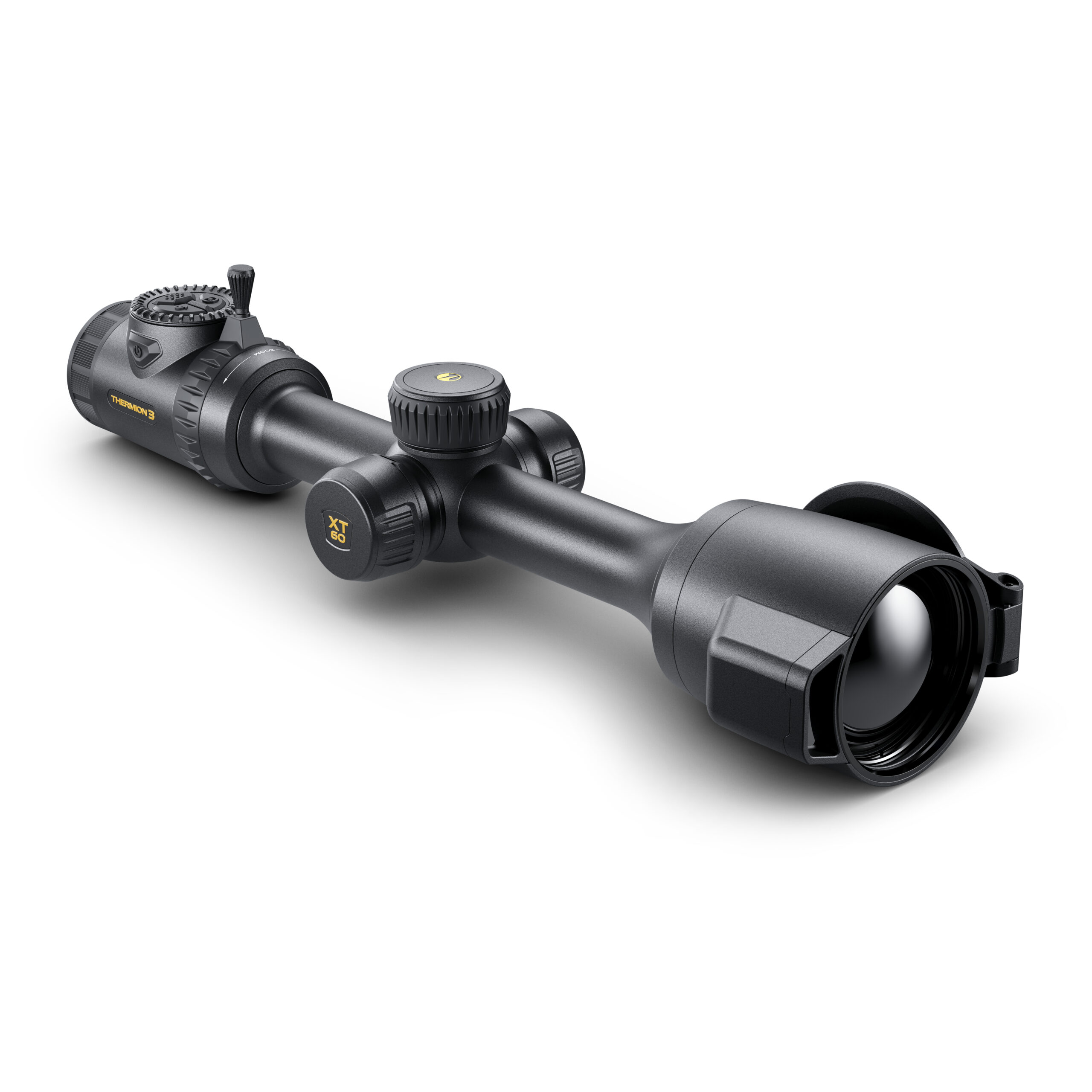

Pulsar Thermion 3 LRF XT60 Thermal Riflescope

1280×1024 HD Resolution Sensor, 60mm F1.0, 2–24× Magnification & Built-In Laser Rangefinder

(3,390-Yard Thermal Detection Range | 1,312-Yard LRF | 2560×2560 AMOLED Display)

The Pulsar Thermion 3 LRF XT60 Thermal Riflescope combines high-definition thermal imaging with the familiar design and handling of a traditional riflescope. Featuring a 1280×1024 thermal sensor, 60mm F1.0 objective lens, 2–24× magnification, and integrated laser rangefinder with ballistic calculator, the Thermion 3 LRF XT60 brings advanced thermal technology into Pulsar’s classic Thermion platform.

With more than 1.3 million thermal sensor pixels, a manufacturer-rated 3,390-yard heat-detection range, and a high-resolution 2560×2560 AMOLED display, the XT60 is designed to deliver detailed thermal imagery for nighttime hunting and observation.

An integrated laser rangefinder measures distances up to 1,312 yards, while the onboard ballistic calculator adds another level of functionality for hunters seeking both thermal detection and ranging capabilities in one optic.

The Thermion 3 LRF XT60 retains the traditional riflescope appearance with 30mm tube mounting, classic zoom and focus controls, top-turret wheel focusing, and extended 65mm eye relief.

Additional features include recoil-activated video recording, 128GB of onboard storage, nine thermal color palettes, three sensitivity amplification levels, Stream Vision app compatibility, and up to 8.5 hours of manufacturer-rated battery operation.

The original thermal scope. Perfected. Pulsar’s Thermion 3 LRF XT60 brings together high-resolution imaging, modern functionality, and familiar riflescope ergonomics in one advanced thermal optic.

Pulsar Thermion 3 LRF XT60 Features

1280×1024 HD Thermal Sensor – More Than 1.3 Million Thermal Pixels

At the center of the Pulsar Thermion 3 LRF XT60 is its high-definition 1280×1024 thermal microbolometer, offering 1,310,720 thermal sensor pixels.

The high pixel count provides a detailed thermal image from which users can observe heat signatures and their surrounding environments.

Combined with a 12μm pixel pitch, 50Hz frame rate, and system NETD below 20mK, the XT60 is designed to capture subtle thermal variations while providing smooth image updates.

The system NETD rating describes the thermal imaging system’s sensitivity to small temperature differences. This is particularly relevant when observing subjects against backgrounds with limited thermal contrast.

The XT60 combines its high-resolution sensor with Pulsar’s high-contrast AMOLED display to deliver an advanced thermal viewing experience.

For hunters looking specifically for a 1280-resolution Pulsar thermal riflescope, the Thermion 3 LRF XT60 places sensor resolution at the forefront of its design.

60mm F1.0 Objective Lens & 3,390-Yard Heat-Detection Range

The Thermion 3 LRF XT60 is equipped with a 60mm F1.0 objective lens, paired with its 1280×1024 thermal imaging system.

Pulsar specifies a maximum thermal detection range of 3,100 meters, equivalent to approximately 3,390 yards.

This extended detection capability is designed for locating distant heat signatures across open fields, agricultural properties, and expansive hunting terrain.

The combination of a large objective lens, high-resolution sensor, and long-range detection rating makes the XT60 a noteworthy option for hunters who prioritize thermal observation at extended distances.

The quoted detection range is a manufacturer-specified maximum and should not be confused with a guaranteed recognition or identification distance.

2–24× Magnification with Wide 14.6° Field of View

The Pulsar Thermion 3 LRF XT60 offers a 2–24× magnification range, providing flexibility for different observation distances.

At its lowest magnification, the XT60 provides a 14.6° horizontal field of view, equivalent to approximately 25.7 meters at 100 meters.

This wide viewing angle allows users to cover substantial areas while scanning for heat signatures.

When additional image magnification is desired, the scope provides adjustment through its specified magnification range.

The combination of a 1280×1024 sensor and 2–24× magnification gives the XT60 a versatile viewing configuration for users who want both wide-area observation and closer inspection of detected subjects.

Built-In 1,312-Yard Laser Rangefinder

The Thermion 3 LRF XT60 features a precision-oriented integrated laser rangefinder, allowing users to measure distances without relying on a separate handheld device.

Pulsar specifies a maximum measurement range of 1,200 meters / 1,312 yards.

This functionality is particularly useful during nighttime hunting, when estimating distances from visual observation alone can be challenging.

By incorporating laser ranging directly into the riflescope, the XT60 brings thermal observation and distance measurement together within one device.

The manufacturer specifies a Class 1 laser under the referenced laser safety standards.

Integrated Ballistic Calculator

In addition to its built-in laser rangefinder, the Pulsar Thermion 3 LRF XT60 features an integrated ballistic calculator.

This system adds ballistic functionality to a thermal riflescope already equipped with precise distance-measurement capability.

Pulsar also lists compatibility with its Stream Vision Ballistics application, providing a companion software platform for ballistic-related functionality.

The combination of a built-in LRF and ballistic calculator adds another layer of capability to the Thermion 3 LRF XT60.

2560×2560 High-Contrast AMOLED Display

The Thermion 3 LRF XT60 features a 2560×2560 AMOLED display, offering a high-resolution viewing interface for the thermal image and scope functions.

AMOLED display technology provides high contrast, allowing differences in the displayed image to remain visually distinct.

Combined with the XT60’s 1280×1024 sensor, the high-resolution display is an important component of the optic’s overall imaging system.

The screen also supports Pulsar’s advanced graphical user interface, through which users interact with the device’s settings and functions.

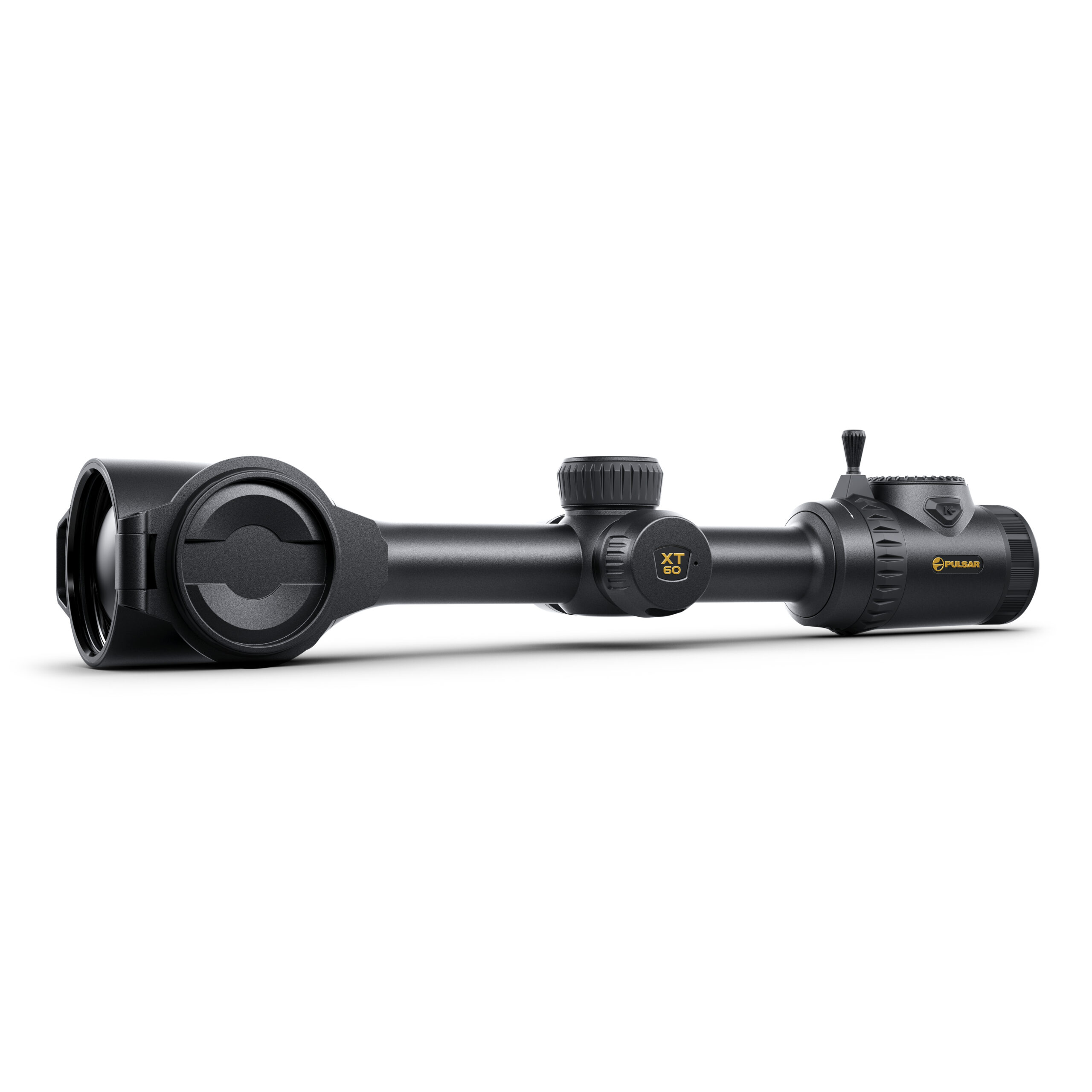

Classic Riflescope Design with 30mm Tube Mounting

Pulsar continues its traditional Thermion styling with the Thermion 3 LRF XT60.

Rather than using an unconventional thermal housing configuration, the XT60 features a classic riflescope appearance with a 30mm mounting tube.

This design allows the use of appropriately sized and compatible 30mm mounting hardware.

For hunters who appreciate traditional riflescope ergonomics, the Thermion 3 LRF XT60 combines a familiar exterior configuration with modern thermal imaging technology.

The result is a riflescope that emphasizes both recognizable handling and advanced electronic capabilities.

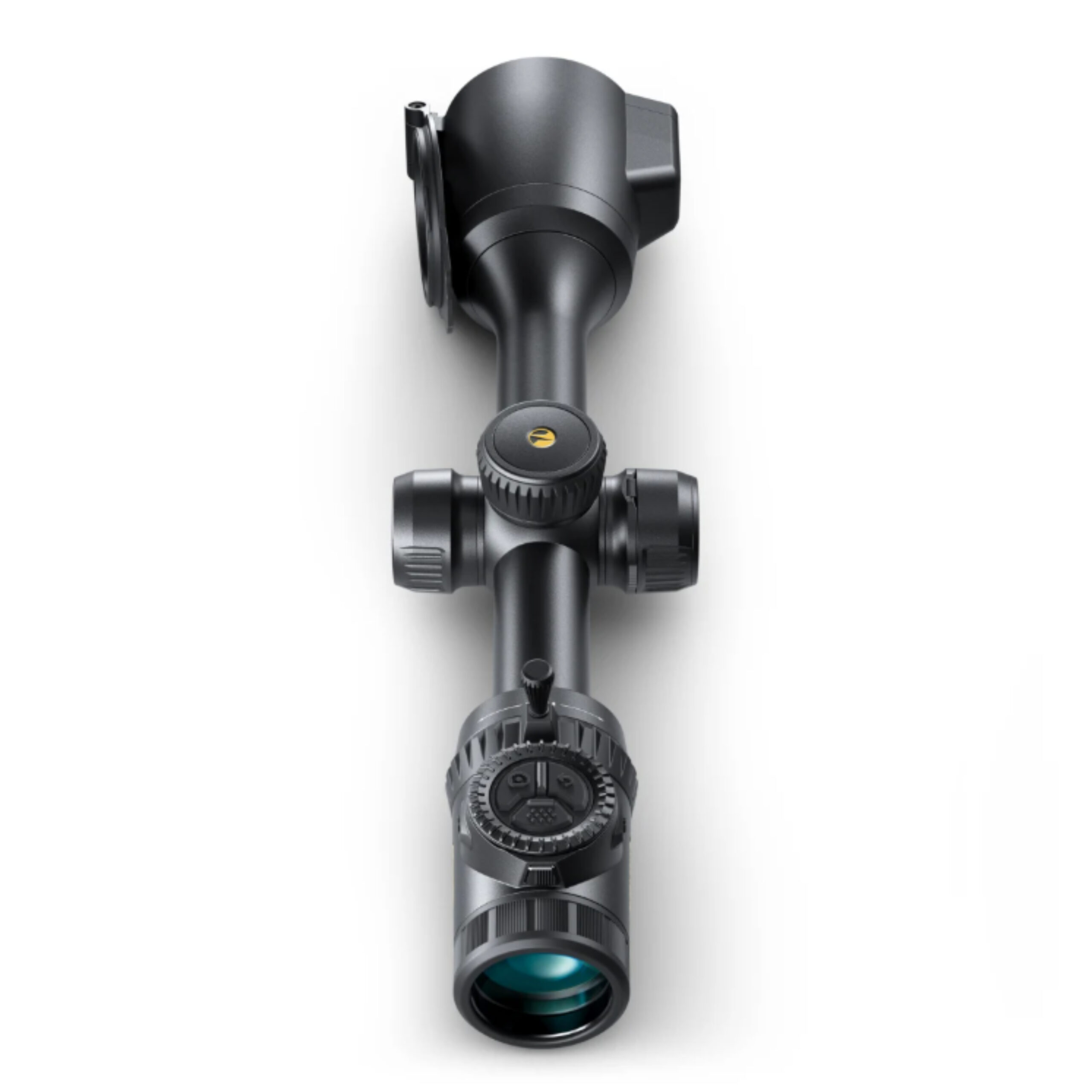

Classic Zoom & Focus Rings with Top-Turret Wheel Focusing

The Thermion 3 LRF XT60 emphasizes intuitive operation through its classic zoom and focus control layout.

Pulsar specifically highlights top-turret wheel focusing as a feature of the new Thermion 3 platform.

This arrangement brings focusing functionality into the riflescope’s turret-based control system.

The manufacturer also highlights ergonomic controls and an advanced graphical user interface, supporting convenient access to the scope’s electronic settings.

For hunters who prefer physical adjustments and familiar scope controls, these design elements are a central feature of the XT60.

Extended 65mm Eye Relief

The Thermion 3 LRF XT60 offers 65mm / approximately 2.6 inches of eye relief.

Eye relief is the distance between the eyepiece and the user’s eye at which the viewing image can be properly observed.

Pulsar identifies extended eye relief as an important design element of the Thermion 3 platform.

The XT60 also features a -5 to +5 diopter adjustment range, giving users additional flexibility to adjust the eyepiece to their individual visual requirements.

Three Sensitivity Amplification Levels

The Pulsar Thermion 3 LRF XT60 provides three selectable thermal sensitivity amplification levels:

Normal, High, and Ultra.

These settings provide options for adjusting the presentation of thermal image information in different viewing environments.

The scope also incorporates a smoothing filter as an image enhancement feature.

Together, these controls allow users to adapt the thermal viewing experience to their preferred image settings.

Nine Thermal Color Palettes

The Thermion 3 LRF XT60 provides nine selectable thermal color palettes.

Different color palettes change how thermal information is visually represented on the display, allowing users to select the presentation most suitable for their viewing preferences.

The manufacturer also lists three calibration options:

Manual, Automatic, and Semi-Automatic.

These features provide additional flexibility for managing the thermal viewing experience.

Recoil-Activated Video Recording & 128GB Internal Memory

The Pulsar Thermion 3 LRF XT60 includes built-in photo and video recording capabilities, allowing users to document thermal observations directly through the riflescope.

The XT60 features 128GB of internal memory, providing onboard space for recorded footage and images.

Pulsar also highlights recoil-activated video recording as part of the Thermion 3 platform.

This functionality adds convenience for hunters who want to document their field experiences using the optic’s integrated recording system.

Recording capabilities are built directly into the scope, avoiding the need for a separate recording device.

Stream Vision 2 & Stream Vision Ballistics Compatibility

The Thermion 3 LRF XT60 supports two Pulsar mobile applications:

Stream Vision 2 and Stream Vision Ballistics.

The XT60 includes Wi-Fi connectivity operating on both 2.4GHz and 5GHz bands, along with Bluetooth support.

These wireless capabilities allow the optic to participate in Pulsar’s supported connected-device environment.

Stream Vision Ballistics is specifically associated with the scope’s ballistic functionality, while Stream Vision 2 provides the companion application ecosystem for compatible Pulsar devices.

Up to 8.5 Hours of Battery Life

The Pulsar Thermion 3 LRF XT60 uses an APS5 battery system, with manufacturer specifications listing up to 8.5 hours of battery operation.

This runtime supports extended observation and hunting sessions.

The XT60 also supports external power through a USB Type-C PD connection, with 5V / 9V listed in the technical specifications.

External power compatibility provides an additional option when extended operation is required.

Actual battery runtime may vary depending on operating conditions and enabled features.

Aluminum Alloy Housing, IP67 Protection & High Recoil Resistance

The Thermion 3 LRF XT60 features a durable aluminum alloy housing and an IP67 protection rating.

The manufacturer specifies an operating temperature range of -13°F to +122°F, supporting use across a broad range of outdoor temperatures.

Pulsar also lists a maximum recoil-energy rating of 6,000 joules for rifled weapons.

The scope measures approximately 15.4 × 3.8 × 3.5 inches with the eyecup installed and weighs approximately 45.9 ounces with battery, without mount.

Its combination of metal construction, environmental protection, and high recoil resistance reflects Pulsar’s focus on a robust thermal riflescope platform.

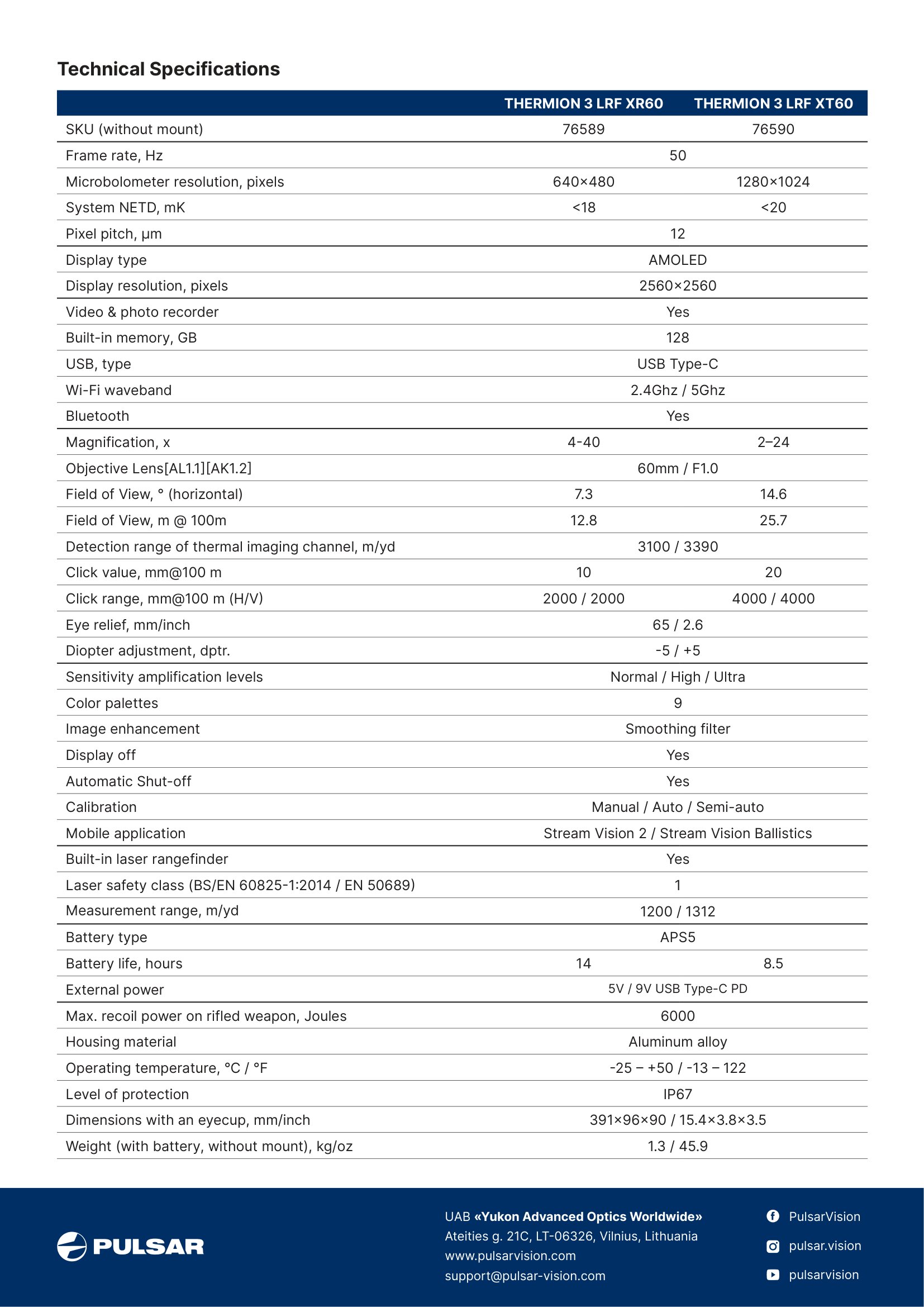

Pulsar Thermion 3 LRF XT60 Complete Specifications:

Specification	Pulsar Thermion 3 LRF XT60
Manufacturer	Pulsar
Model	Thermion 3 LRF XT60
U.S. Retail SKU	PL76590
Manufacturer Datasheet SKU	76590 (without mount)
UPC	840284905109
Thermal Sensor Resolution	1280×1024
Pixel Pitch	12μm
System NETD	<20mK
Frame Rate	50Hz
Objective Lens	60mm F1.0
Magnification	2–24×
Horizontal Field of View	14.6°
Field of View at 100m	25.7m
Thermal Detection Range	3,100m / 3,390 yd
Display Type	AMOLED
Display Resolution	2560×2560
Sensitivity Amplification	Normal / High / Ultra
Thermal Color Palettes	9
Image Enhancement	Smoothing Filter
Calibration Modes	Manual / Auto / Semi-Auto
Laser Rangefinder	Built-In
LRF Measurement Range	1,200m / 1,312 yd
Laser Safety Class	Class 1
Ballistic Calculator	Integrated
Click Value at 100m	20mm
Click Adjustment Range at 100m (H/V)	4,000mm / 4,000mm
Eye Relief	65mm / 2.6in
Diopter Adjustment	-5 / +5
Video Recording	Yes
Photo Recording	Yes
Recoil-Activated Video Recording	Yes
Internal Storage	128GB
Wi-Fi	2.4GHz / 5GHz
Bluetooth	Yes
Mobile Applications	Stream Vision 2 / Stream Vision Ballistics
USB Connection	USB Type-C
Battery Type	APS5
Rated Battery Life	8.5 Hours
External Power	5V / 9V USB Type-C PD
Mounting Tube Diameter	30mm
Housing Material	Aluminum Alloy
Maximum Recoil Energy	6,000 Joules
Protection Rating	IP67
Operating Temperature	-13°F to +122°F
Dimensions with Eyecup	15.4 × 3.8 × 3.5in
Weight (Battery Included, No Mount)	45.9 oz / Approx. 2.87 lb
Display-Off Function	Yes
Automatic Shut-Off	Yes
