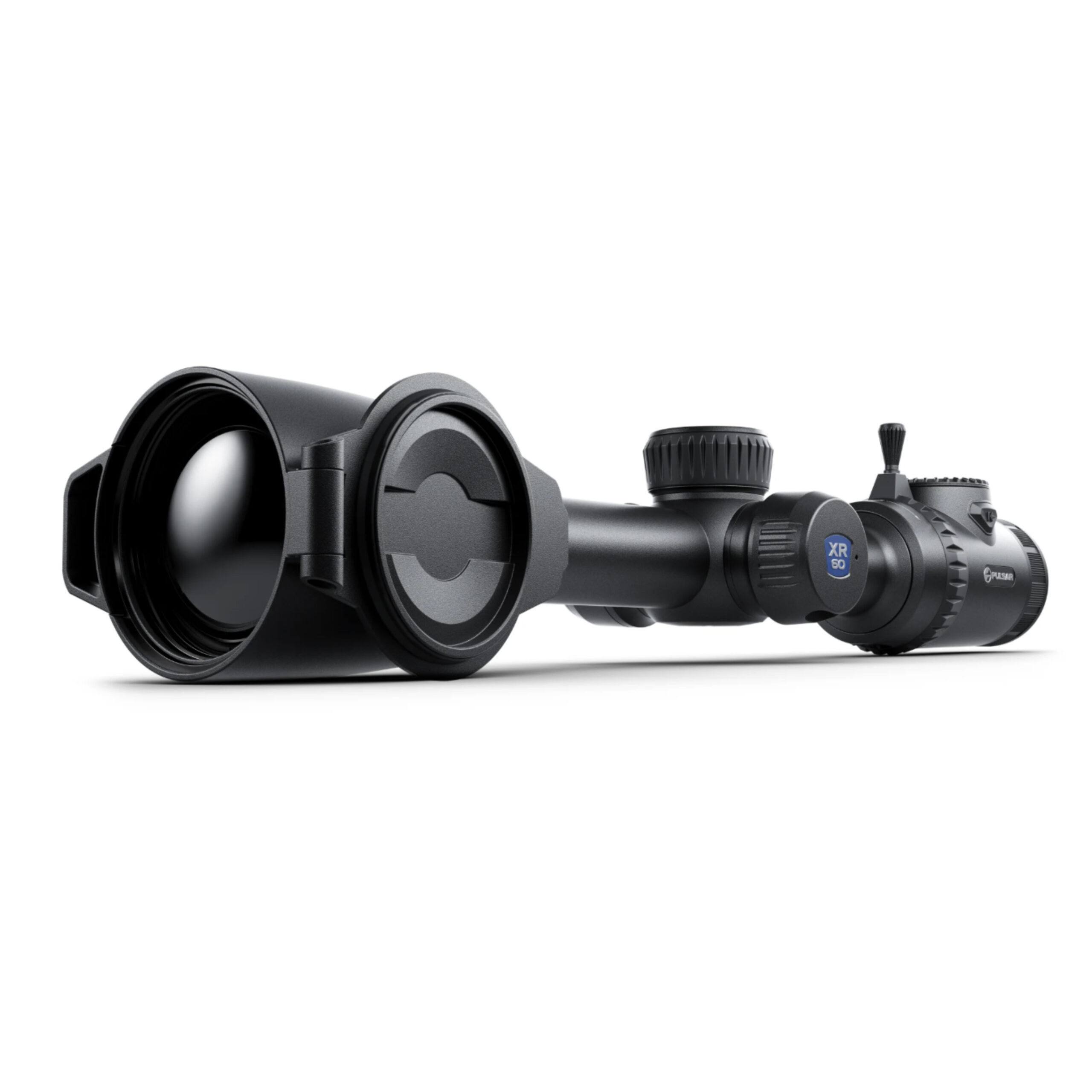

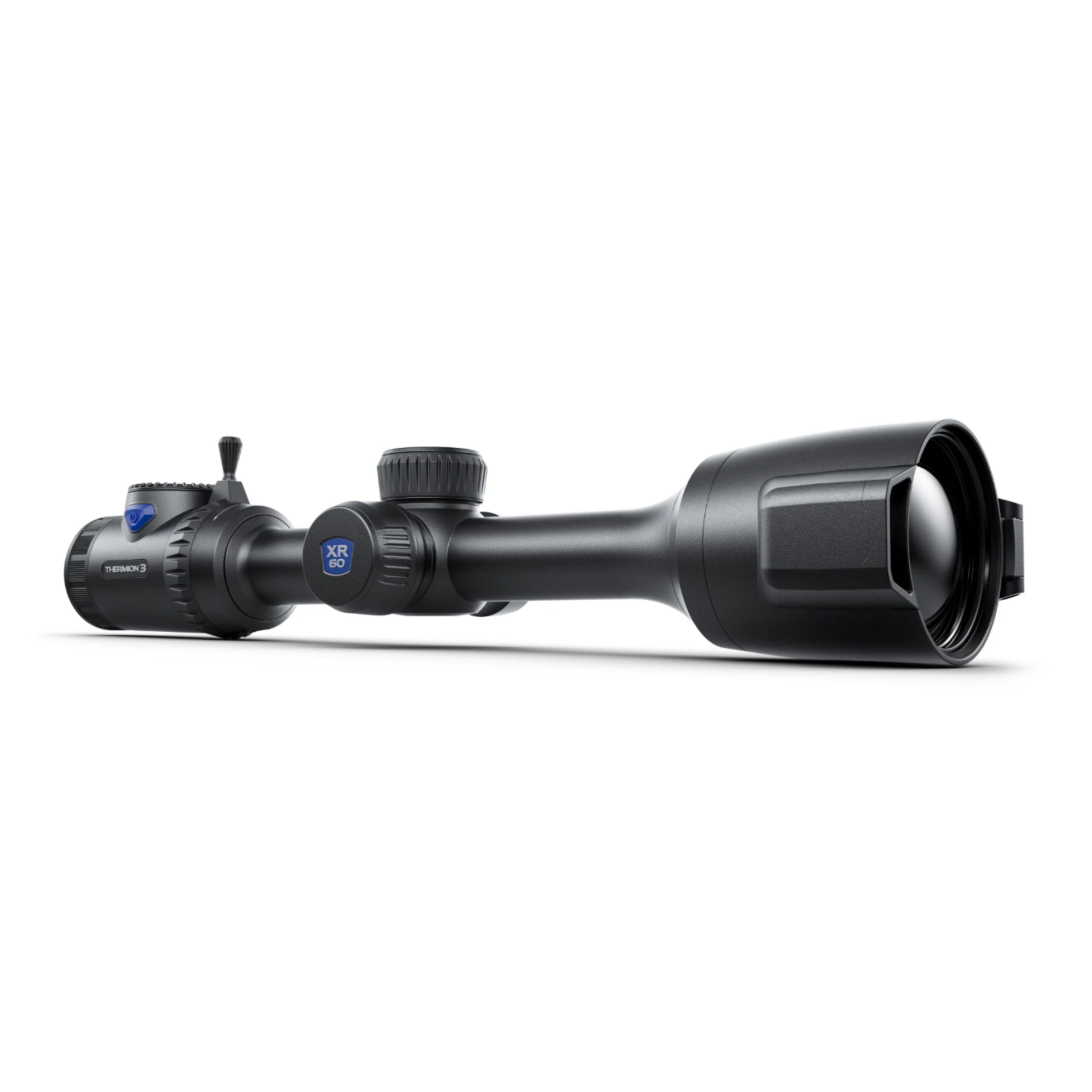

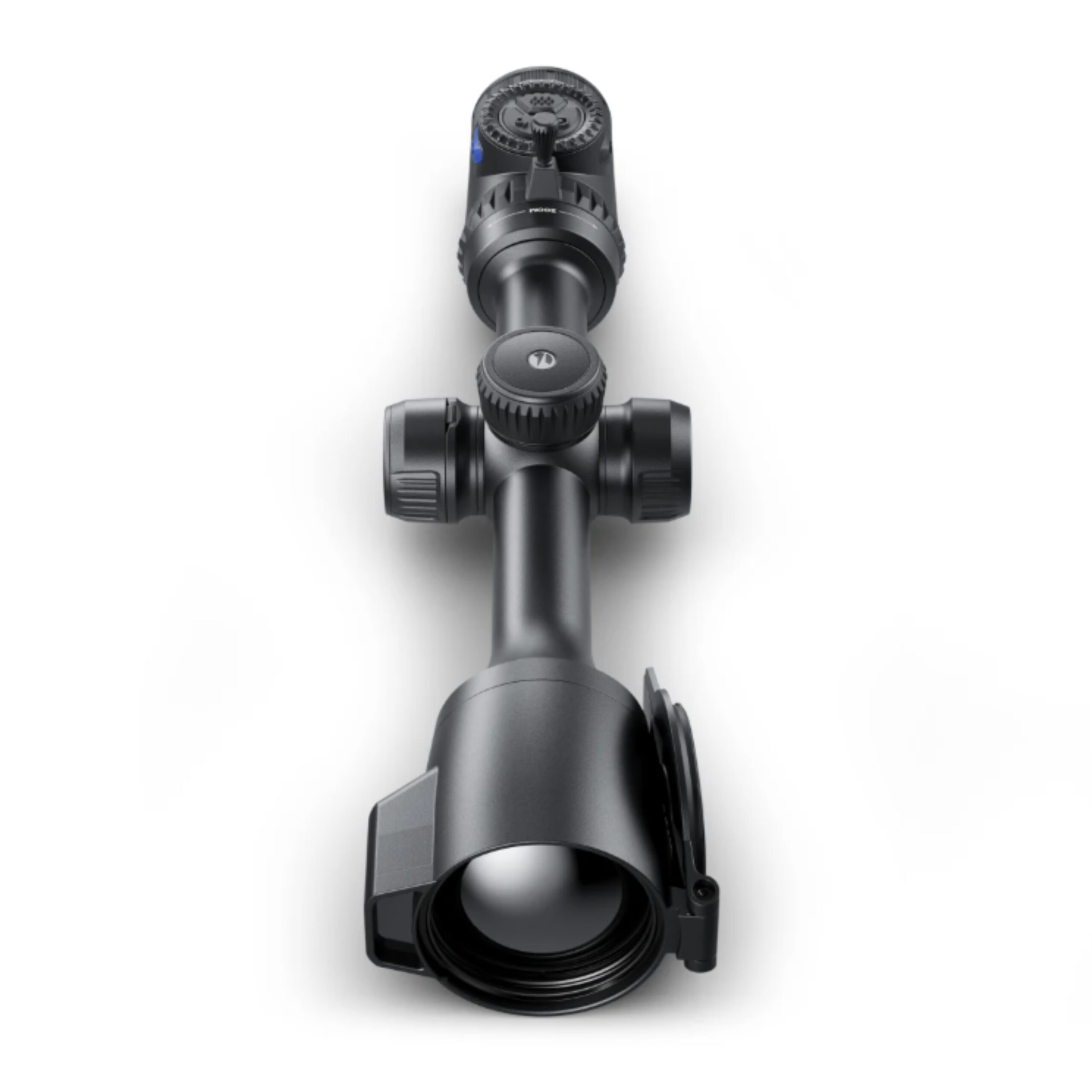

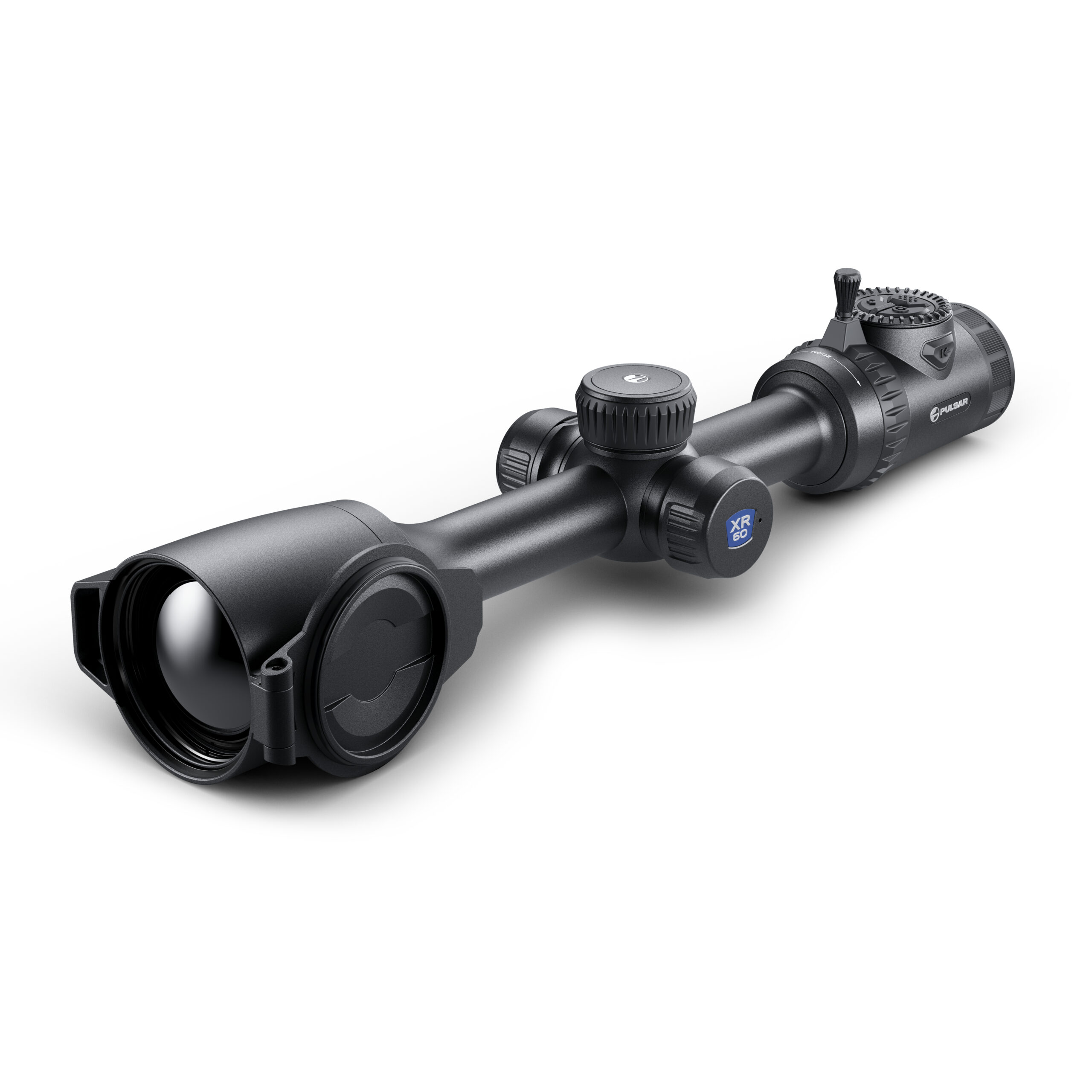

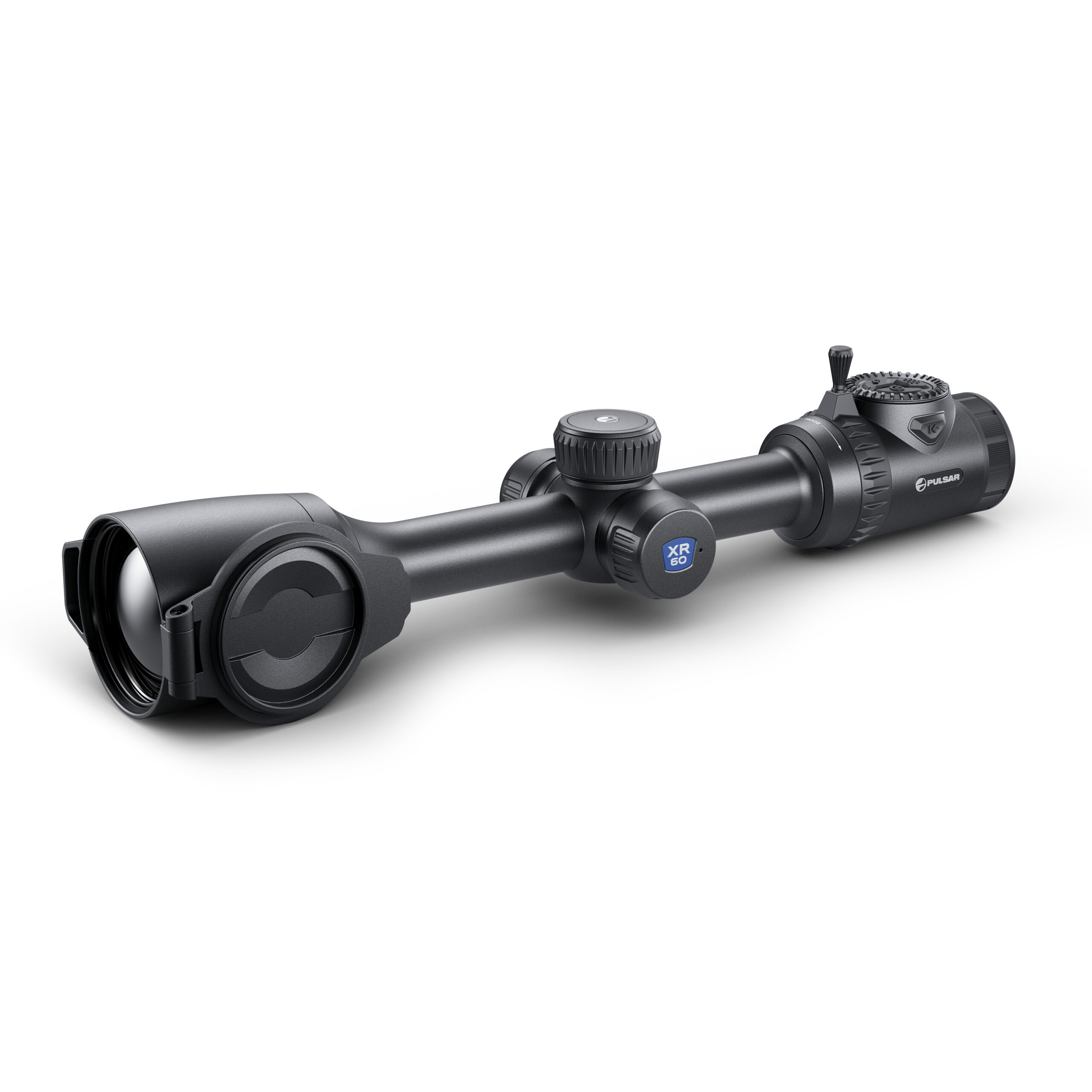

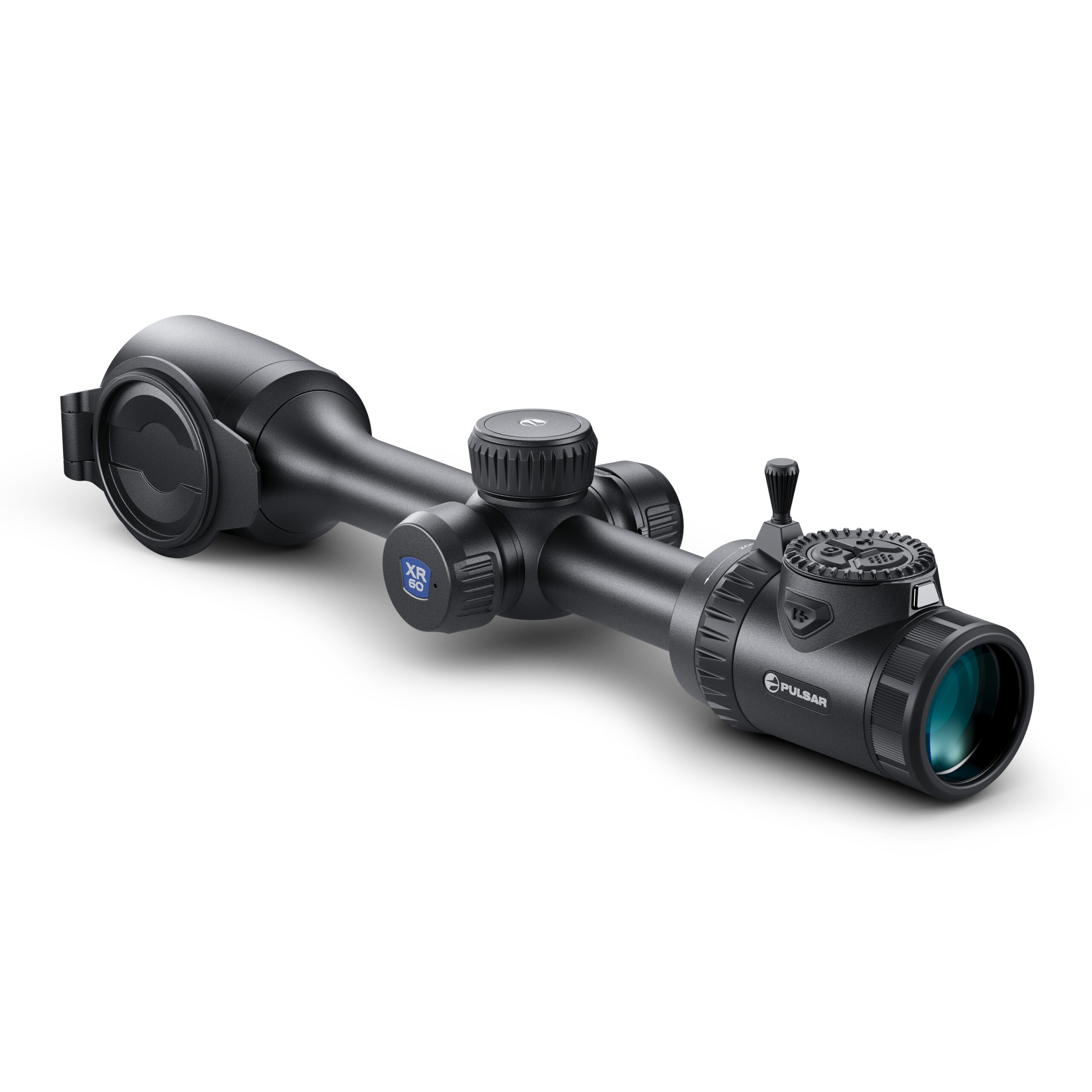

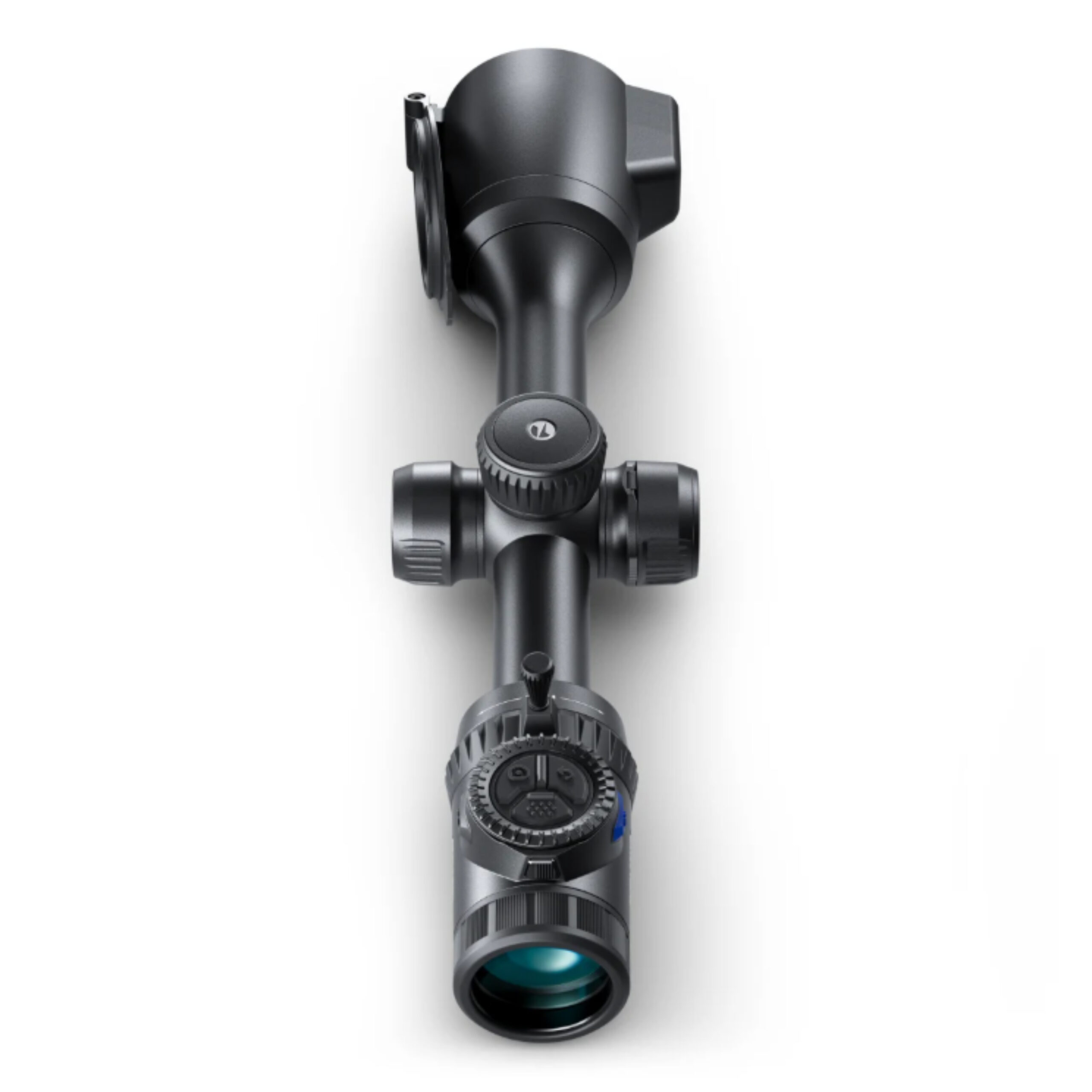

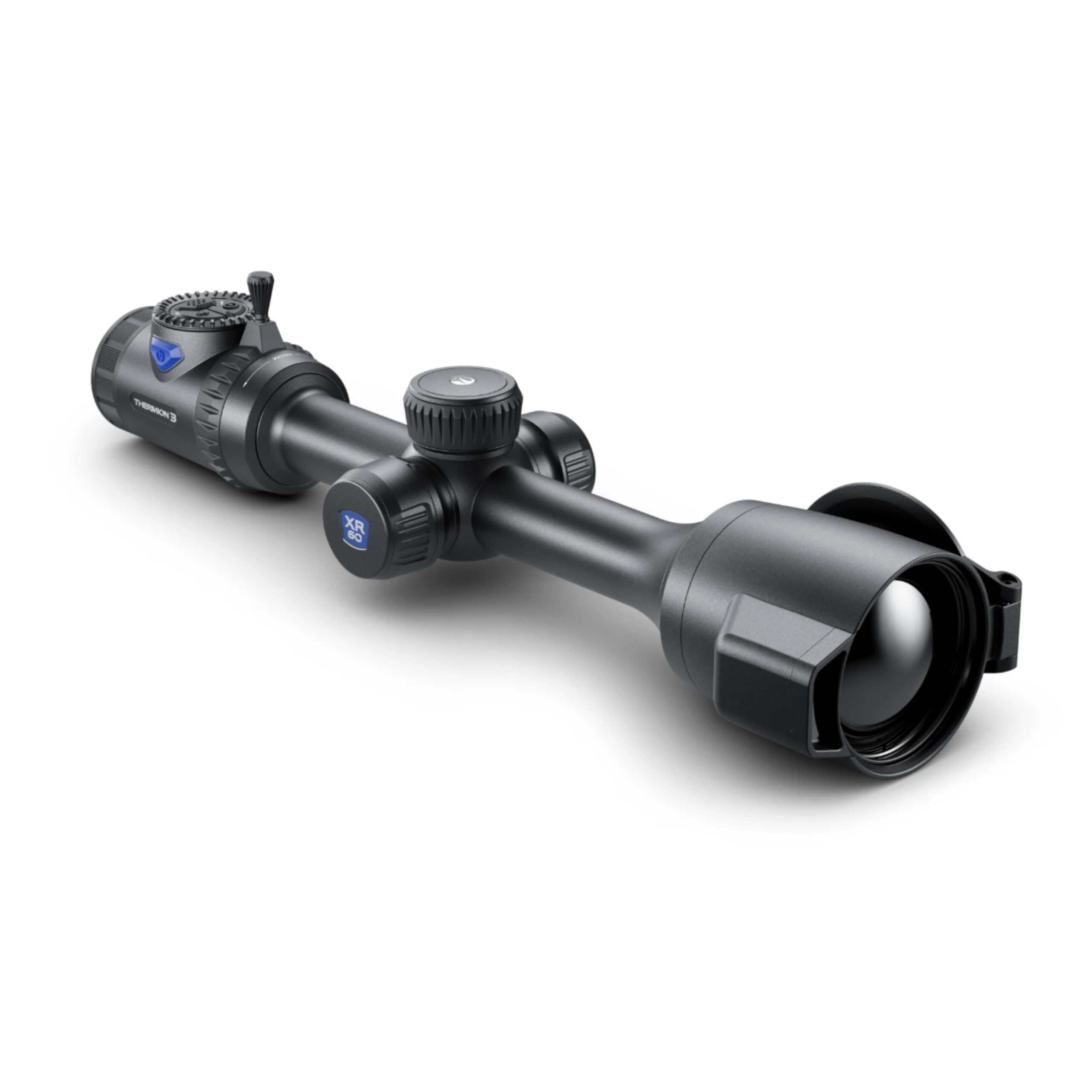

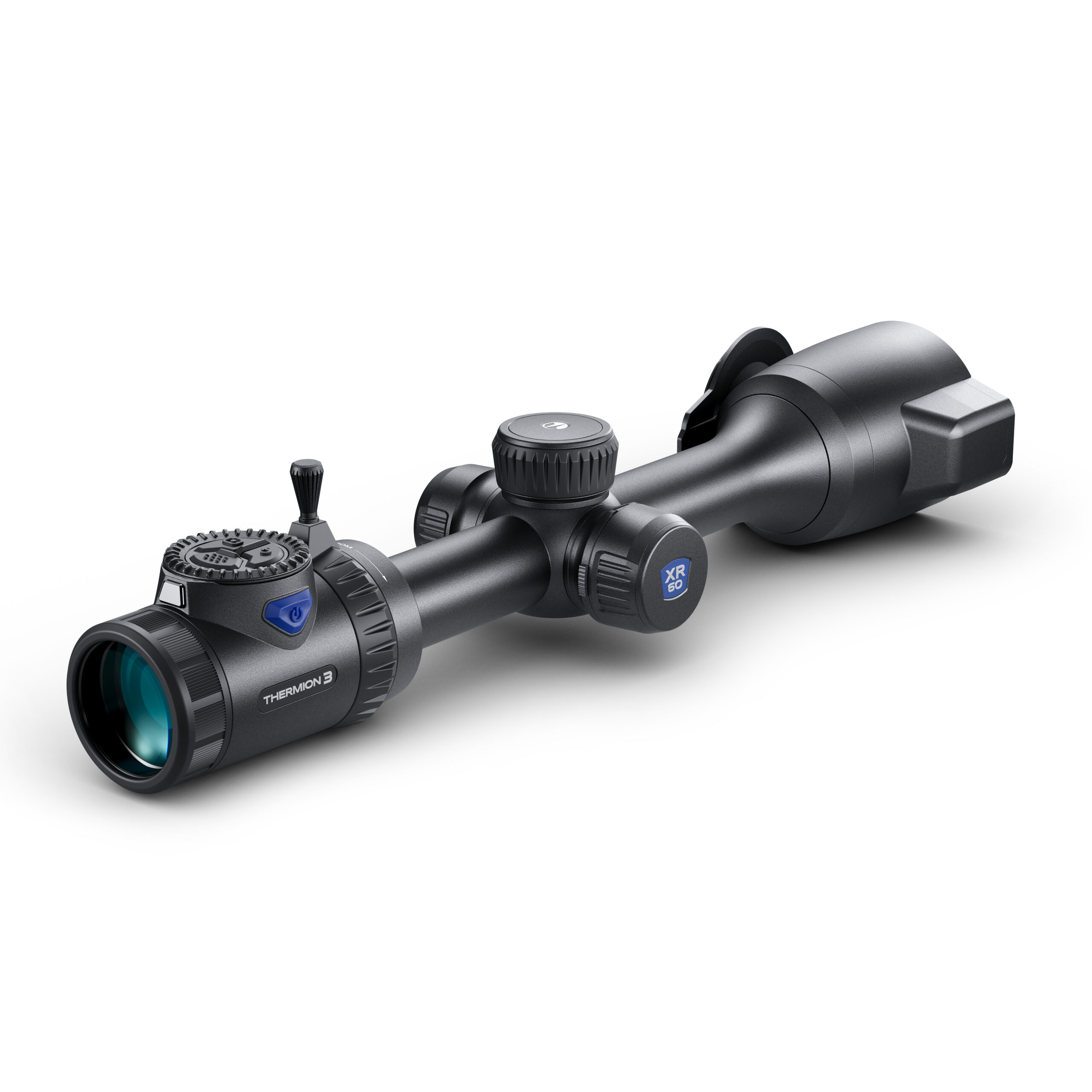

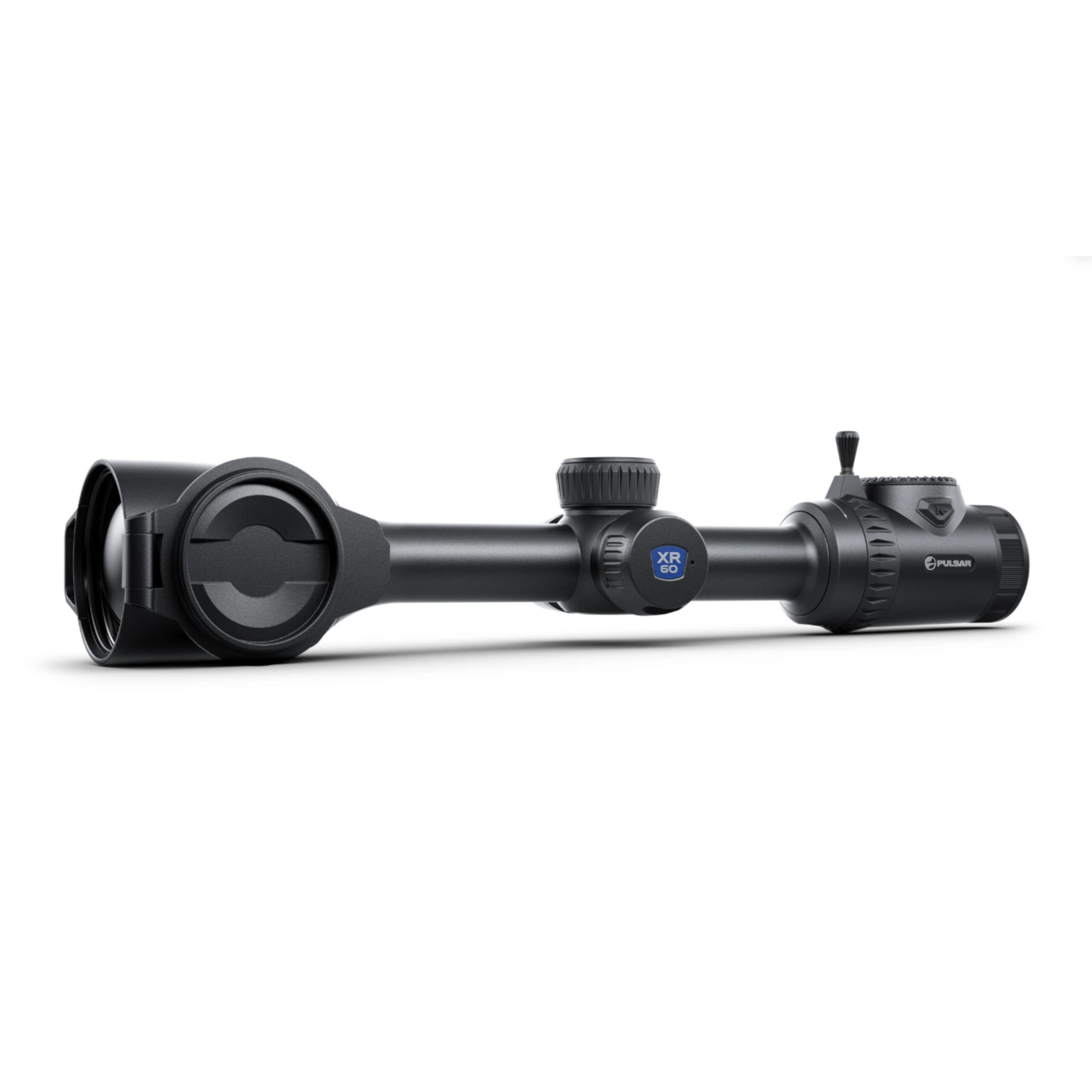

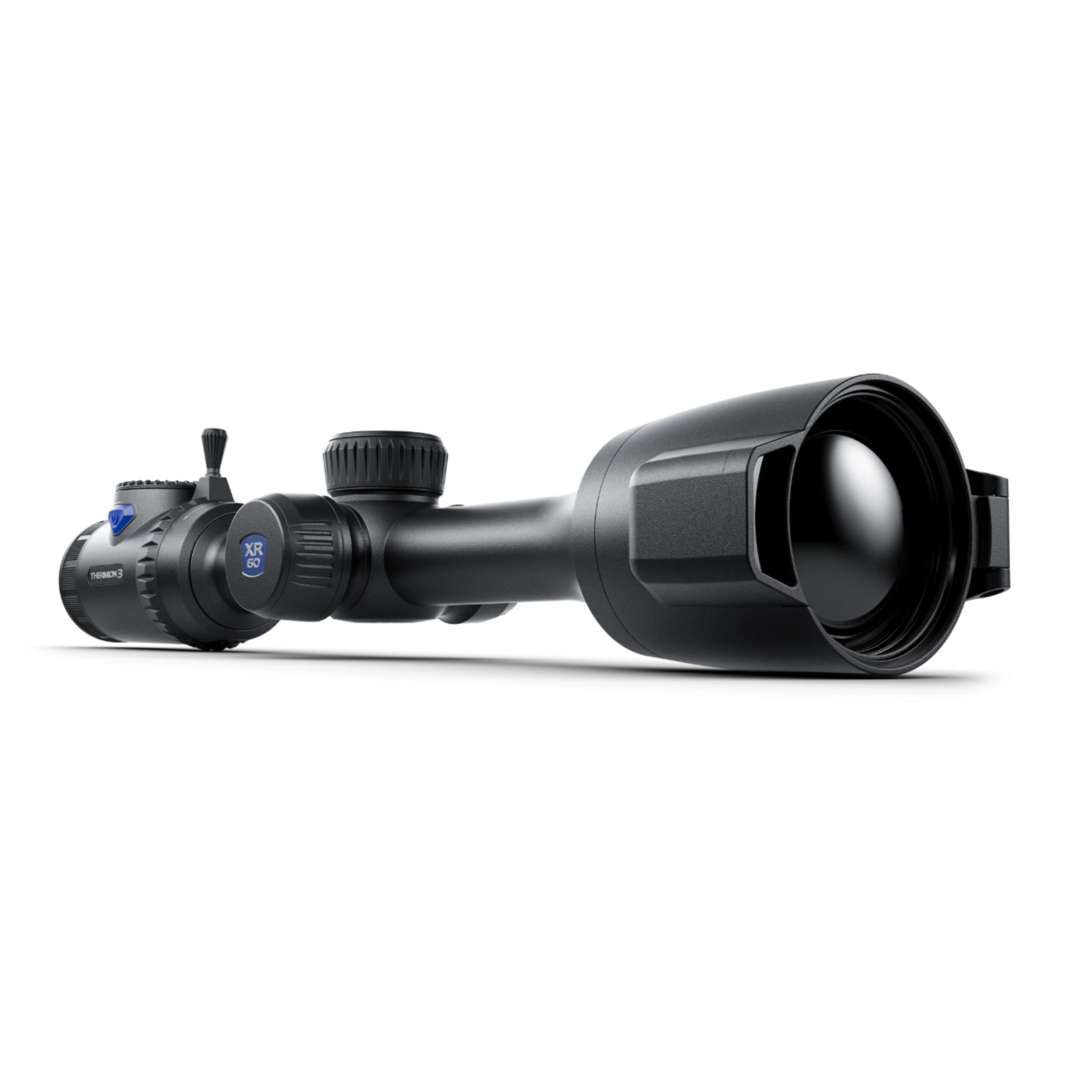

Pulsar Thermion 3 LRF XR60 Thermal Riflescope
640×480 Thermal Imaging, 60mm F1.0 Objective Lens, 4–40× Magnification
(3,390-Yard Thermal Detection Range | 1,312-Yard Laser Rangefinder | 2560×2560 AMOLED Display)
The Pulsar Thermion 3 LRF XR60 Thermal Riflescope combines long-range thermal detection, high thermal sensitivity, and traditional riflescope ergonomics in Pulsar’s next-generation Thermion 3 platform. Built around a 640×480 thermal sensor, 60mm F1.0 objective lens, 4–40× magnification, and integrated laser rangefinder with ballistic calculator, the XR60 is designed for hunters seeking detailed thermal observation and advanced functionality in a familiar scope-style configuration.
With a manufacturer-rated 3,390-yard thermal detection range, a <18mK system NETD rating, and a 2560×2560 AMOLED display, the Thermion 3 LRF XR60 delivers an advanced imaging platform for nighttime hunting and observation.
An integrated laser rangefinder measures distances up to 1,312 yards, providing precise distance information directly through the thermal riflescope. Combined with the integrated ballistic calculator, the XR60 brings ranging and ballistic capabilities together within a single optic.
The Thermion 3 LRF XR60 retains the classic appearance of a conventional riflescope, featuring a 30mm mounting tube, ergonomic controls, top-turret wheel focusing, and extended 65mm eye relief.
Additional features include recoil-activated video recording, 128GB of onboard memory, nine selectable thermal color palettes, three sensitivity amplification levels, Stream Vision connectivity, and up to 14 hours of manufacturer-rated battery operation.
The Thermion 3 LRF XR60 brings together powerful magnification, long-range detection, and familiar handling in a premium thermal riflescope designed for demanding field applications.
Pulsar Thermion 3 LRF XR60 Features:
640×480 Thermal Sensor with <18mK System NETD
At the heart of the Pulsar Thermion 3 LRF XR60 is a 640×480 thermal microbolometer with 12μm pixel pitch, a 50Hz refresh rate, and a manufacturer-rated system NETD below 18mK.
System NETD measures the thermal imaging system’s ability to distinguish small temperature differences. A lower system NETD indicates greater sensitivity to subtle thermal variations, which can be valuable when observing heat signatures in environments with limited temperature contrast.
The XR60’s <18mK system NETD, combined with its 60mm F1.0 objective lens and 2560×2560 AMOLED display, provides the foundation for a detailed and responsive thermal viewing experience.
Operating at 50Hz, the thermal imaging system delivers smooth image updates for scanning moving subjects and observing changing scenes.
60mm F1.0 Objective Lens & 3,390-Yard Detection Range
The Thermion 3 LRF XR60 features a large 60mm F1.0 objective lens, supporting its long-range thermal imaging capabilities.
Pulsar specifies a maximum thermal detection range of 3,100 meters / 3,390 yards.
This extended detection capability makes the XR60 suitable for locating heat signatures across open fields, agricultural land, and expansive hunting environments.
The combination of a 60mm objective lens, high-sensitivity thermal detector, and 4× base magnification creates a viewing system focused on extended-distance observation.
The manufacturer-rated detection range refers to detecting a heat source and does not establish a guaranteed recognition or identification distance.
4–40× Magnification for Long-Range Thermal Observation
One of the defining specifications of the Thermion 3 LRF XR60 is its 4–40× magnification range.
Beginning at 4× magnification, the XR60 provides a magnified viewing perspective suited to users who prefer additional image enlargement at the starting magnification.
The scope can increase magnification up to 40× for closer examination of displayed thermal details.
Pulsar specifies a 7.3° horizontal field of view, equivalent to approximately 12.8 meters at 100 meters.
This field of view complements the XR60’s emphasis on higher magnification and long-range observation.
The combination of 4–40× magnification and the 60mm F1.0 objective lens provides hunters with an alternative to wider-field, lower-starting-magnification thermal optics.
Built-In 1,312-Yard Laser Rangefinder
The Pulsar Thermion 3 LRF XR60 includes an integrated laser rangefinder with a manufacturer-specified measurement range of up to 1,200 meters / 1,312 yards.
This allows users to obtain distance measurements directly through the thermal riflescope without requiring a separate handheld rangefinding device.
Distance information can be particularly valuable during nighttime hunting, when visual distance estimation may be more challenging.
The laser rangefinder is specified as Class 1 under the manufacturer-referenced laser safety standards.
By integrating laser ranging into the Thermion 3 platform, Pulsar combines thermal detection and measured distance information within a single optic.
Integrated Ballistic Calculator
The Thermion 3 LRF XR60 features an integrated ballistic calculator, providing ballistic functionality alongside its built-in laser rangefinder.
Pulsar also lists compatibility with Stream Vision Ballistics, a companion mobile application associated with the scope’s ballistic capabilities.
This combination brings thermal observation, distance measurement, and ballistic calculation together in one riflescope platform.
2560×2560 High-Contrast AMOLED Display
The Thermion 3 LRF XR60 features a high-resolution 2560×2560 AMOLED display.
The high-contrast display provides the viewing interface for thermal imagery, ranging information, and the scope’s advanced graphical user interface.
AMOLED technology provides strong contrast, helping different areas of the displayed thermal image remain visually distinct.
Paired with the 640×480 sensor, the 2560×2560 AMOLED display forms part of Pulsar’s updated Thermion 3 imaging system.
Classic Riflescope Design with 30mm Tube Mounting
The Thermion 3 LRF XR60 retains Pulsar’s traditional riflescope-inspired exterior design.
Featuring a 30mm mounting tube, the XR60 is designed for use with suitable, compatible 30mm mounting solutions, subject to appropriate ring spacing and clearance.
This design preserves the recognizable appearance and handling of a traditional riflescope while incorporating thermal imaging technology and integrated electronic features.
The Thermion 3 platform emphasizes classic ergonomics and straightforward operation for hunters who prefer a familiar scope-style setup.
Classic Zoom & Focus Controls with Top-Turret Focusing
The Thermion 3 LRF XR60 combines familiar riflescope controls with Pulsar’s top-turret wheel focusing system.
The classic zoom and focus control layout, ergonomic operation, and advanced graphical user interface provide convenient access to the scope’s imaging and adjustment functions.
This combination maintains the traditional Thermion design while incorporating modern thermal technology.
Extended 65mm Eye Relief
The Thermion 3 LRF XR60 provides 65mm / approximately 2.6 inches of eye relief.
Eye relief refers to the distance between the eyepiece and the user’s eye required to properly view the displayed image.
Pulsar identifies safe eye relief as a key feature of the Thermion 3 platform.
The XR60 also provides -5 to +5 diopter adjustment, allowing users to adjust the viewing system to their individual visual requirements.
Three Thermal Sensitivity Amplification Levels
The Thermion 3 LRF XR60 provides three selectable thermal sensitivity amplification levels:
Normal, High, and Ultra.
These settings allow users to adjust how thermal image information is presented under different viewing conditions.
Pulsar also includes an image-smoothing filter as an image enhancement feature.
Together, these adjustments give users additional control over the displayed thermal image.
Nine Thermal Color Palettes & Adjustable Calibration
The Thermion 3 LRF XR60 provides nine selectable thermal color palettes, allowing users to choose different representations of thermal image information.
The manufacturer also lists three calibration modes:
Manual, Automatic, and Semi-Automatic.
These settings allow users to personalize the operation of the thermal imaging system.
Recoil-Activated Video Recording & 128GB Internal Storage
The Pulsar Thermion 3 LRF XR60 includes built-in video and photo recording, with 128GB of internal memory for saving captured media.
Pulsar also identifies recoil-activated video recording as a feature of the Thermion 3 platform.
These recording features provide a convenient way to document nighttime observations and hunting experiences using the riflescope itself.
With onboard media storage, an external recording device is not required for the scope’s built-in recording functions.
Stream Vision 2 & Stream Vision Ballistics Connectivity
The Thermion 3 LRF XR60 supports Pulsar’s Stream Vision 2 and Stream Vision Ballistics mobile applications.
The scope includes dual-band Wi-Fi connectivity operating on 2.4GHz and 5GHz, along with Bluetooth support.
These connectivity features support the manufacturer-listed companion applications and expand the optic’s electronic functionality.
Up to 14 Hours of Battery Life
The Thermion 3 LRF XR60 uses Pulsar’s APS5 battery system, providing a manufacturer-rated battery runtime of up to 14 hours.
This extended operating time is one of the XR60’s distinguishing specifications.
The scope also supports external power through a USB Type-C PD connection, with 5V / 9V compatibility specified by Pulsar.
Actual operating time may vary depending on settings, temperature, and other operating conditions.
Aluminum Alloy Housing, IP67 Protection & High Recoil Resistance
The Pulsar Thermion 3 LRF XR60 is built around an aluminum alloy housing, with IP67-rated environmental protection.
The manufacturer specifies a maximum recoil-energy rating of 6,000 joules for rifled weapons.
The XR60 is rated to operate in temperatures ranging from -13°F to +122°F.
Overall dimensions with the eyecup installed are approximately 15.4 × 3.8 × 3.5 inches, while the listed weight is 45.9 ounces with battery and without a mount.
Pulsar Thermion 3 LRF XR60 Complete Specifications:
| Specification | Pulsar Thermion 3 LRF XR60 |
|---|---|
| Manufacturer | Pulsar |
| Model | Thermion 3 LRF XR60 |
| Manufacturer Datasheet SKU | 76589 (without mount) |
| Thermal Sensor Resolution | 640×480 |
| Pixel Pitch | 12μm |
| System NETD | <18mK |
| Frame Rate | 50Hz |
| Objective Lens | 60mm F1.0 |
| Magnification | 4–40× |
| Horizontal Field of View | 7.3° |
| Field of View at 100m | 12.8m |
| Thermal Detection Range | 3,100m / 3,390 yd |
| Display Type | AMOLED |
| Display Resolution | 2560×2560 |
| Sensitivity Amplification | Normal / High / Ultra |
| Thermal Color Palettes | 9 |
| Image Enhancement | Smoothing Filter |
| Calibration Modes | Manual / Auto / Semi-Auto |
| Built-In Laser Rangefinder | Yes |
| LRF Measurement Range | 1,200m / 1,312 yd |
| Laser Safety Class | Class 1 |
| Integrated Ballistic Calculator | Yes |
| Click Value at 100m | 10mm |
| Click Adjustment Range at 100m (H/V) | 2,000mm / 2,000mm |
| Eye Relief | 65mm / 2.6in |
| Diopter Adjustment | -5 to +5 |
| Video Recording | Yes |
| Photo Recording | Yes |
| Recoil-Activated Video Recording | Yes |
| Internal Storage | 128GB |
| Wi-Fi | 2.4GHz / 5GHz |
| Bluetooth | Yes |
| Mobile Applications | Stream Vision 2 / Stream Vision Ballistics |
| USB Connection | USB Type-C |
| Battery Type | APS5 |
| Rated Battery Life | 14 Hours |
| External Power | 5V / 9V USB Type-C PD |
| Mounting Tube Diameter | 30mm |
| Housing Material | Aluminum Alloy |
| Maximum Recoil Energy | 6,000 Joules |
| Environmental Protection | IP67 |
| Operating Temperature | -13°F to +122°F |
| Dimensions with Eyecup | 15.4 × 3.8 × 3.5in |
| Weight (With Battery, Without Mount) | 45.9 oz / Approx. 2.87 lb |
| Display-Off Function | Yes |
| Automatic Shut-Off | Yes |
