Description

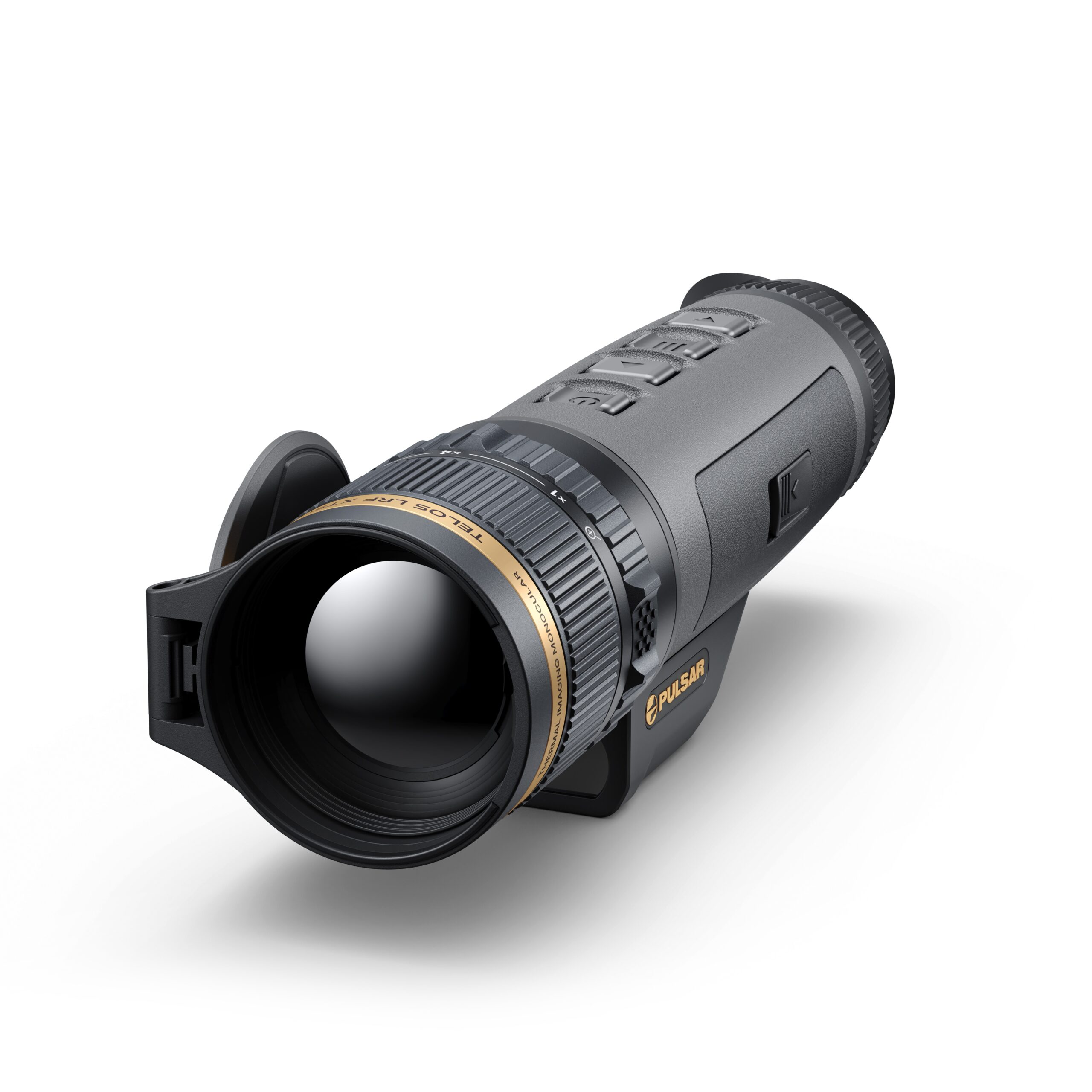

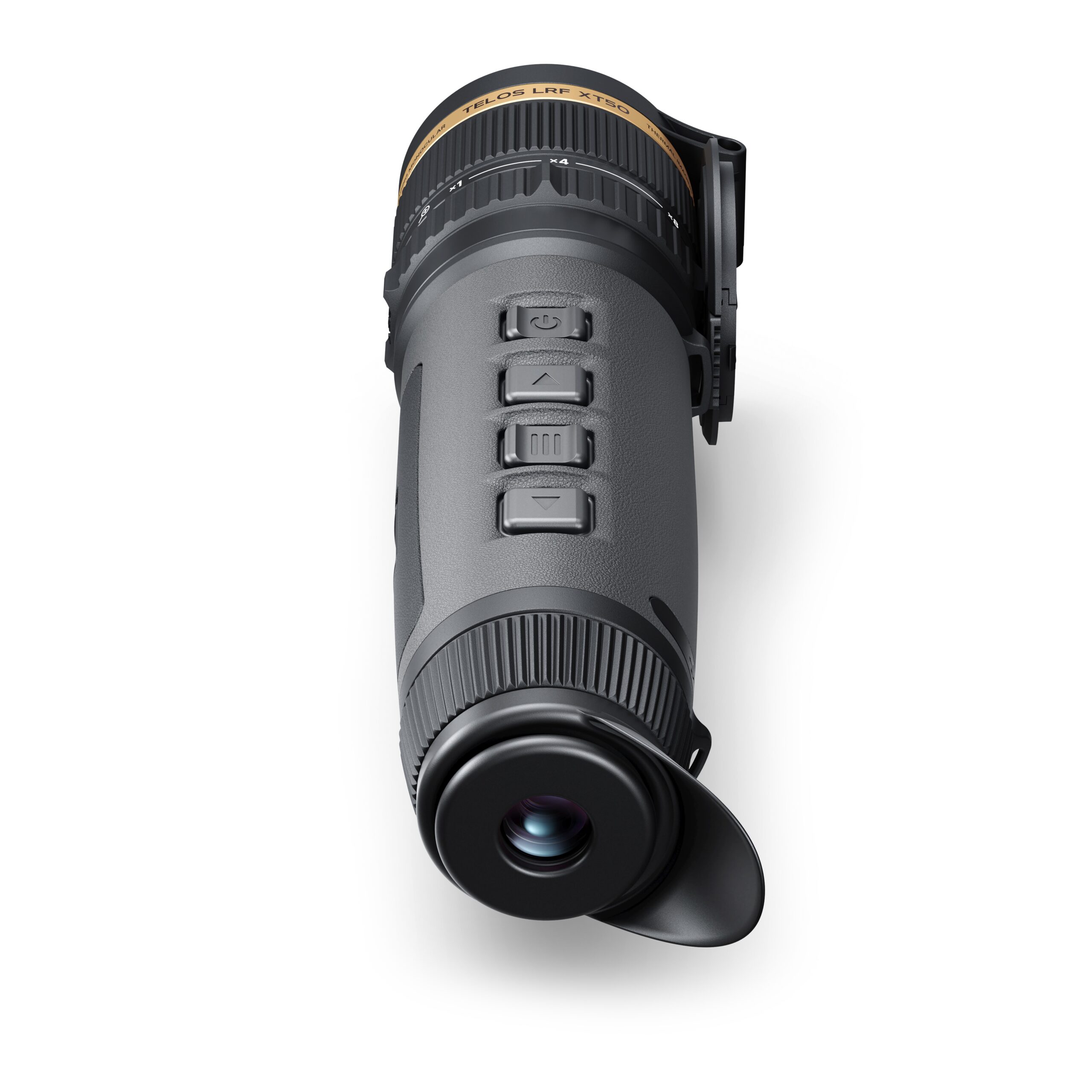

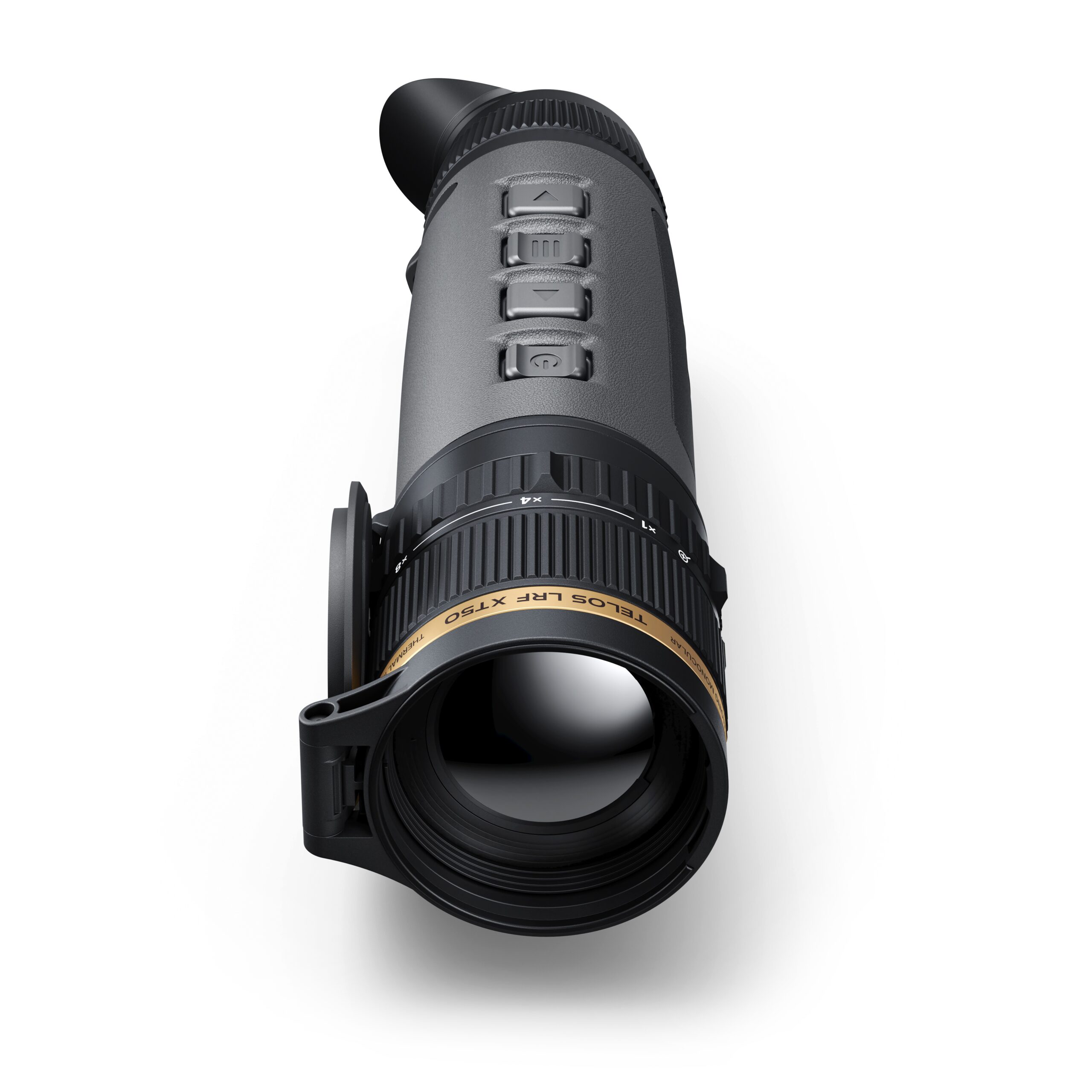

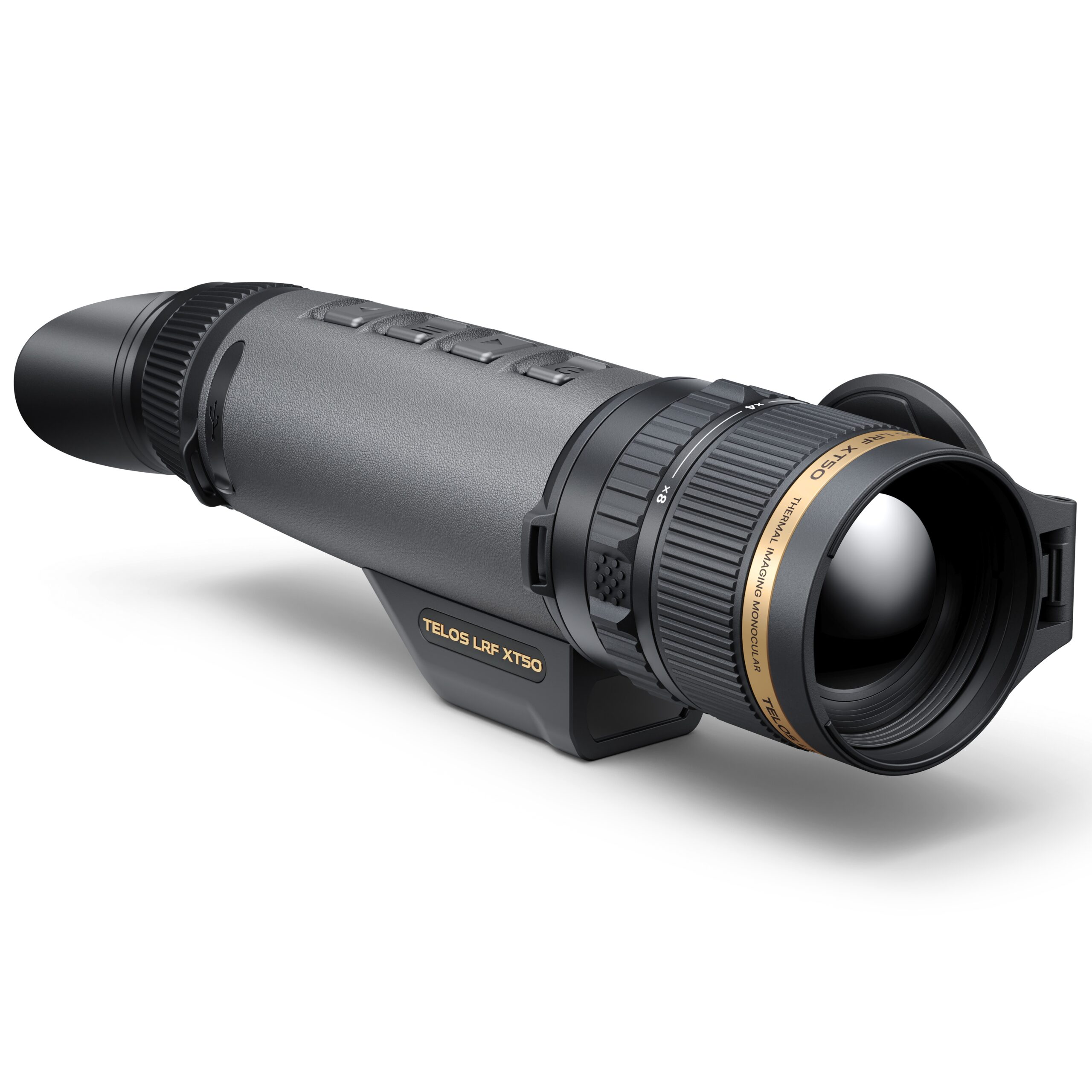

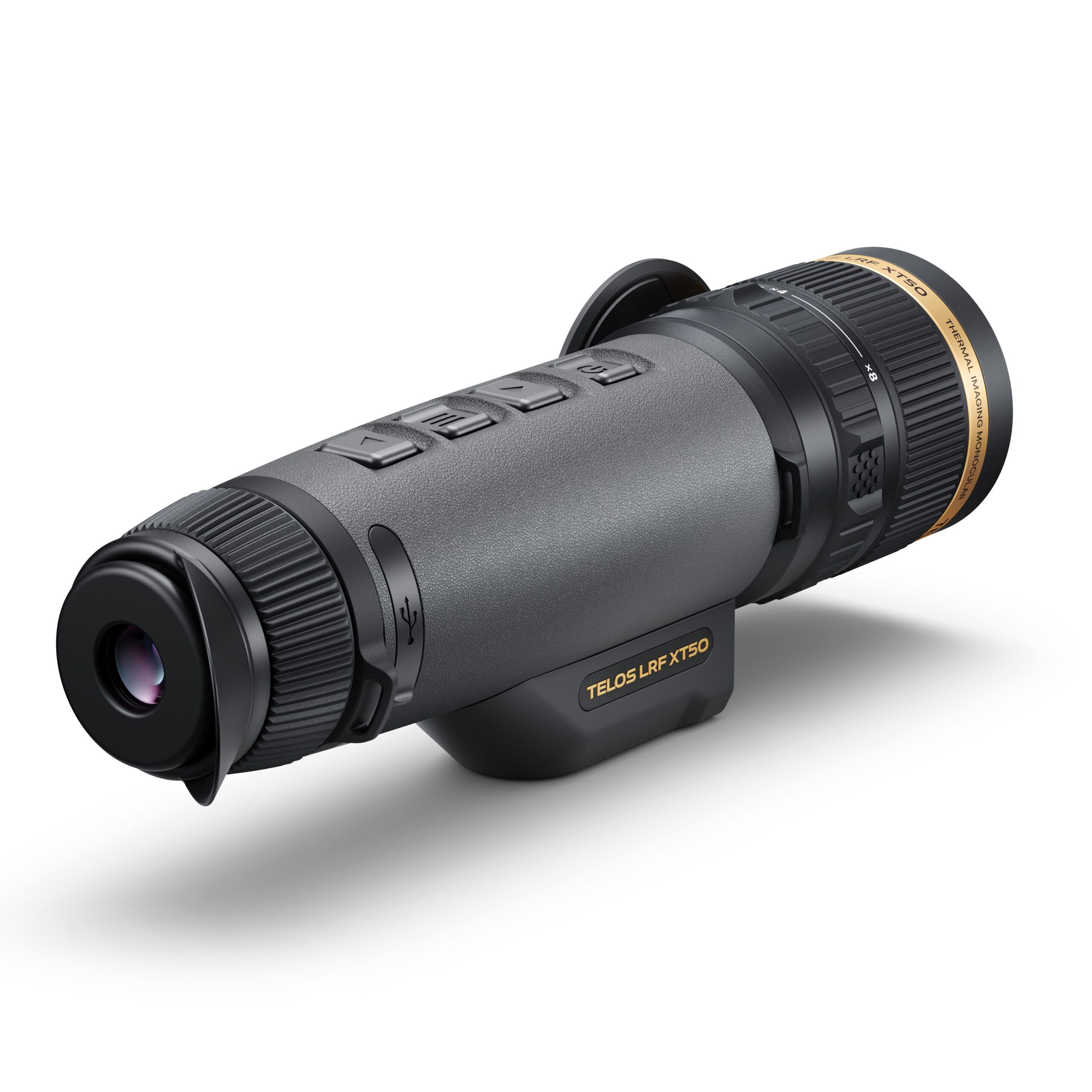

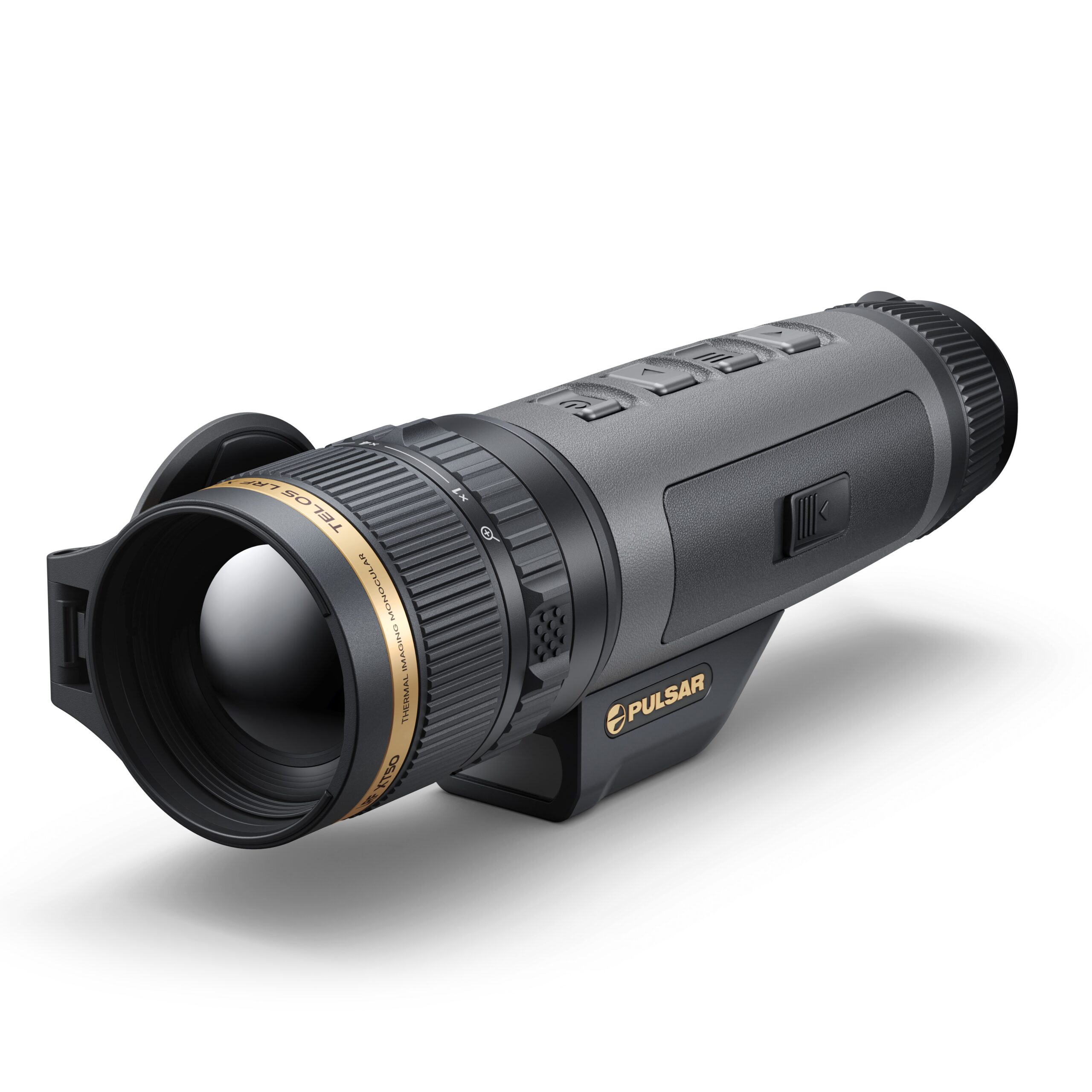

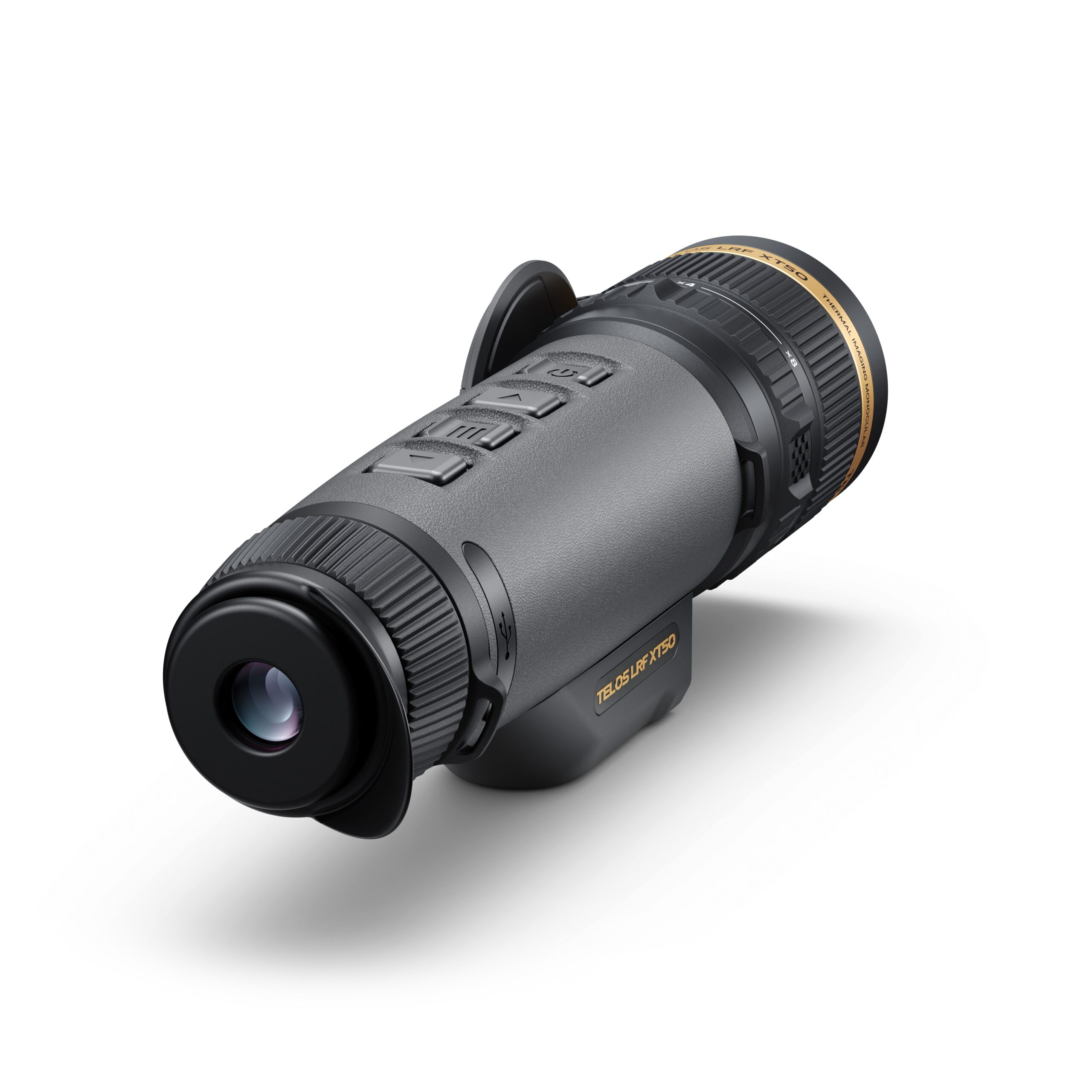

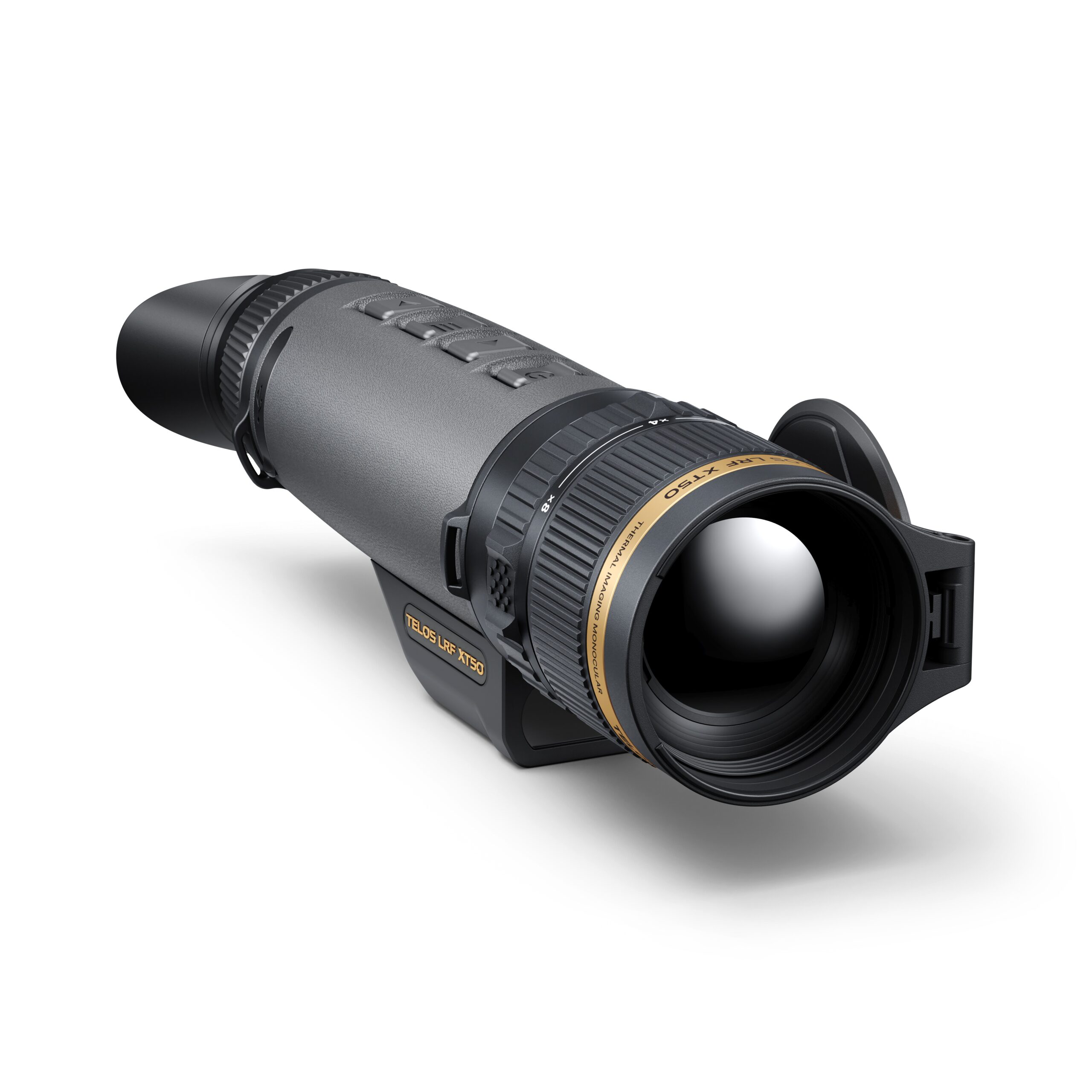

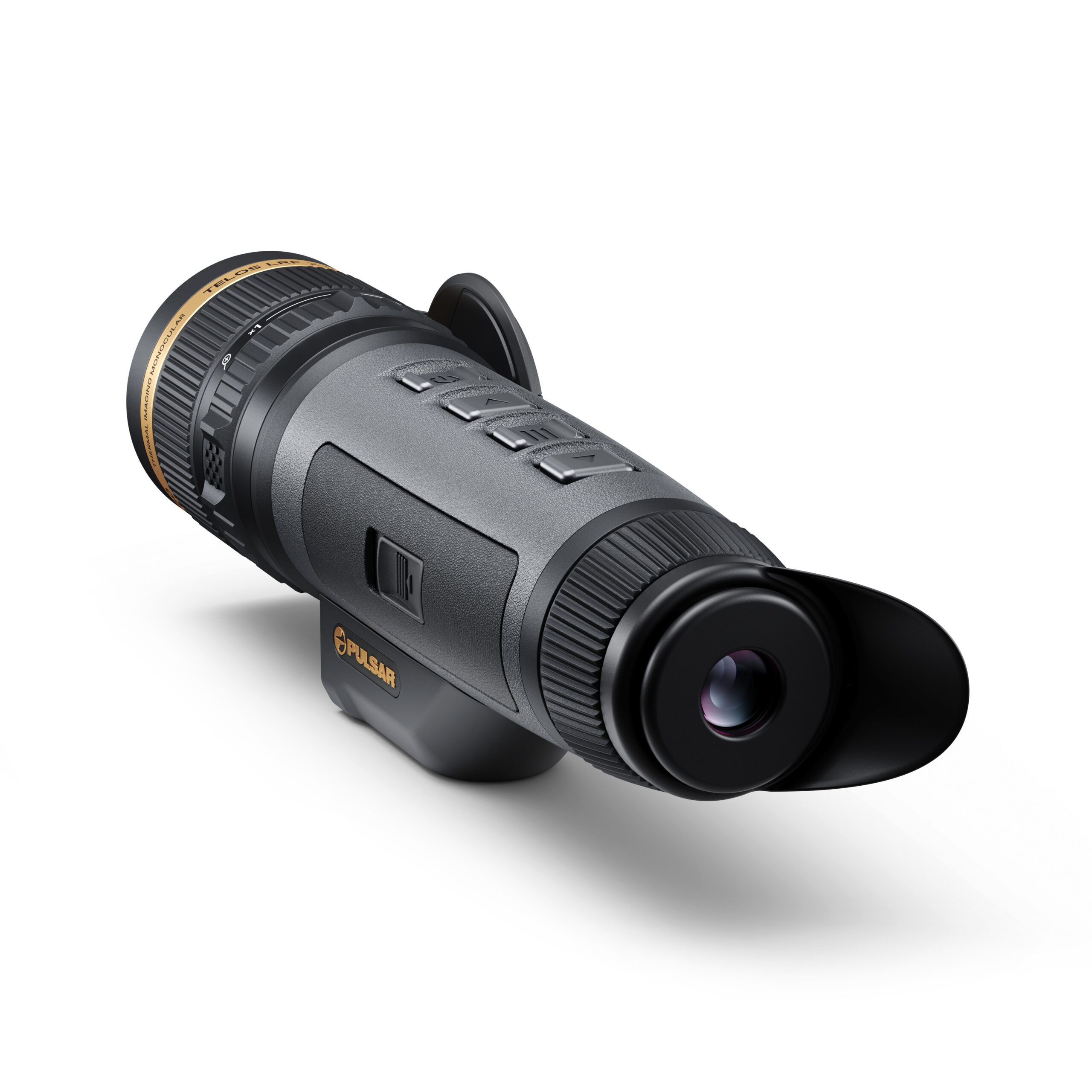

Pulsar Telos LRF XT50 Thermal Monocular

(2-16x Magnification and 2,515 yards of detection)

The Pulsar Telos LRF XT50 is the flagship thermal imaging monocular in the Telos lineup, combining an ultra-high-definition 1280×1024 thermal sensor, integrated laser rangefinder, wide field of view, and advanced digital imaging in a premium handheld thermal platform.

Built around a 1280×1024, 12 µm thermal sensor and fast F50/1.0 germanium objective lens, the Telos LRF XT50 delivers exceptional image detail and long-range thermal detection while retaining an impressively wide 17.5° field of view. Its 2× base magnification makes scanning large fields and open terrain easier, while magnification can be increased to 16×, with Pulsar’s Zoom Boost extending magnification up to 24× when additional detail is needed.

Pulsar Telos LRF XT50 Thermal Monocular Features:

1280×1024 HD Thermal Sensor

At the heart of the Telos LRF XT50 is Pulsar’s high-definition 1280×1024 thermal sensor with a 12 µm pixel pitch. The increased resolution provides outstanding thermal detail for identifying animals, terrain, vegetation and other objects across the entire image.

Combined with a 1920×1080 HD AMOLED display, the XT50 provides a highly detailed viewing experience whether scanning at its native 2× magnification or examining distant heat signatures at higher magnification.

Up to 2,515-Yard Thermal Detection

The powerful 50mm F1.0 objective and HD thermal sensor provide a thermal detection range of approximately 2,515 yards, giving hunters and outdoor users the ability to scan large fields, agricultural ground and open terrain from extended distances.

Its wide 17.5° field of view helps maintain situational awareness and makes the XT50 especially effective as a handheld thermal scanner.

Built-In 1,312-Yard Laser Rangefinder

The integrated laser rangefinder measures distances out to approximately 1,312 yards with accuracy of ±1 meter.

Single-measurement and continuous-scanning capabilities allow the user to quickly determine the distance to animals, landmarks and other objects without switching to a separate rangefinding device.

2×–16× Magnification with 24× Zoom Boost

The Telos LRF XT50 provides 2×–16× magnification, offering an excellent combination of wide-area scanning and long-range observation.

Pulsar’s Zoom Boost technology can extend magnification to 24×, providing additional magnification when examining distant objects and heat signatures.

128GB Internal Recording

Capture thermal footage directly through the monocular with built-in photo and video recording.

The Telos LRF XT50 includes a generous 128GB of internal storage, providing substantial capacity for saving thermal videos and images in the field.

Stream Vision 2 Connectivity

Dual-band 2.4 GHz / 5 GHz Wi-Fi, Bluetooth and NFC connectivity allow the Telos LRF XT50 to integrate with compatible Pulsar applications, including Stream Vision 2.

Users can connect compatible mobile devices for additional viewing, recording, firmware and connectivity functionality.

Future-Ready Telos Platform

The Telos series was designed around Pulsar’s upgradeable thermal platform concept. Eligible components can be upgraded as newer technology becomes available, helping extend the usable life of the device rather than requiring replacement of the entire monocular.

The Telos design also incorporates an ergonomic, ambidextrous layout, front-positioned focus and zoom controls, haptic feedback and a secure grip for comfortable operation in the field.

Pulsar Telos LRF XT50 Thermal Monocular Specifications:

Specification	Details
Thermal Sensor	1280×1024
Pixel Pitch	12 µm
System NETD	<20 mK
Frame Rate	50 Hz
Objective Lens	F50/1.0
Base Magnification	2×
Magnification Range	2×–16×
Zoom Boost	Up to 24×
Field of View	17.5°
Thermal Detection Range	Approx. 2,515 yards
Laser Rangefinder	Approx. 1,312 yards
LRF Accuracy	±1 meter
Display	1920×1080 AMOLED HD
Video / Photo Resolution	1440×1080
Internal Memory	128GB
Wi-Fi	2.4 / 5 GHz
Bluetooth	BLE 5.0
NFC	Yes
Waterproof Rating	IPX7

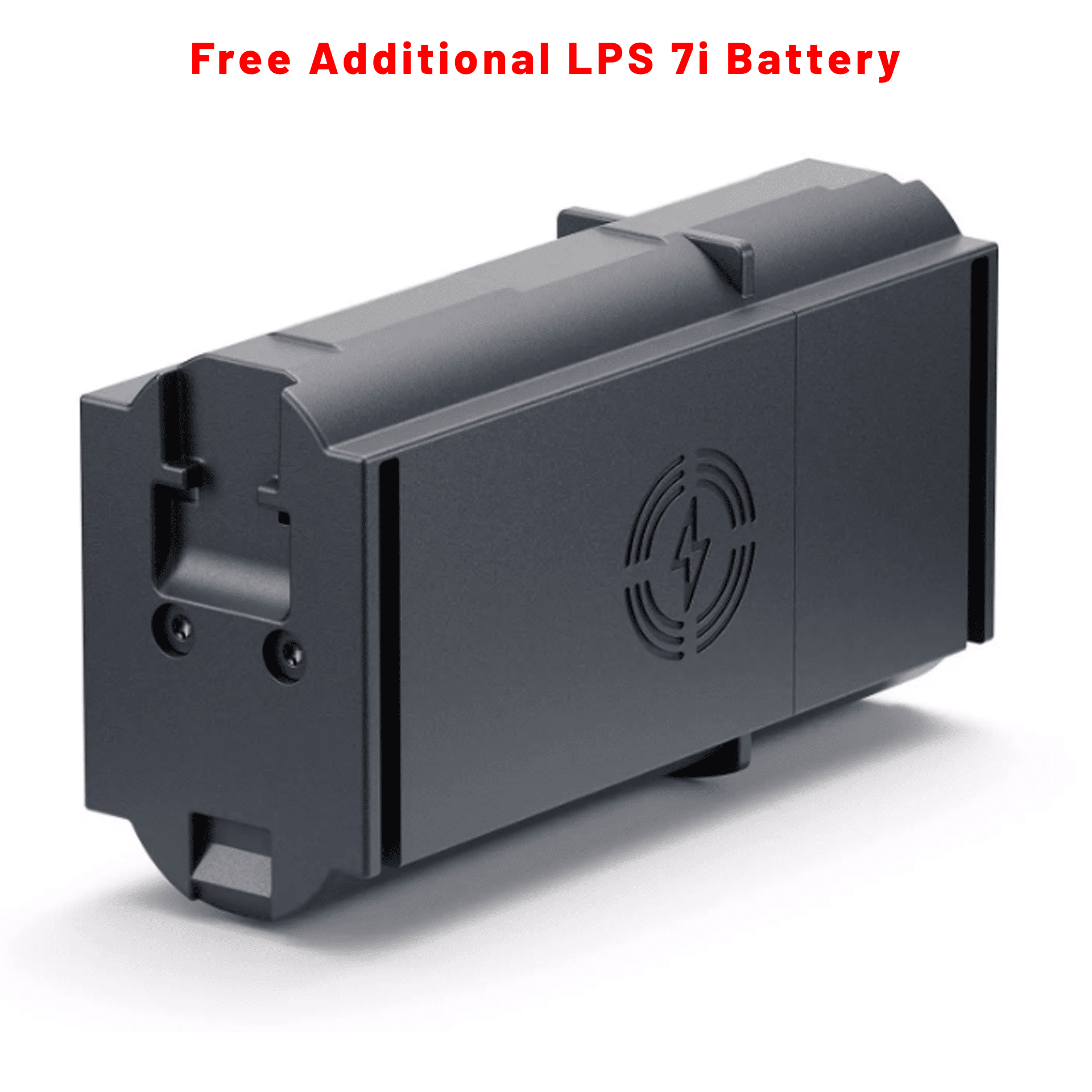

Battery	Pulsar LPS 7i
Battery Capacity	6400 mAh
Operating Time	Up to 8 hours
External Power	USB Type-C Power Delivery
Dimensions	242 × 72 × 77 mm
Weight with Battery	Approx. 1.61 lbs.
SKU	PL77524
