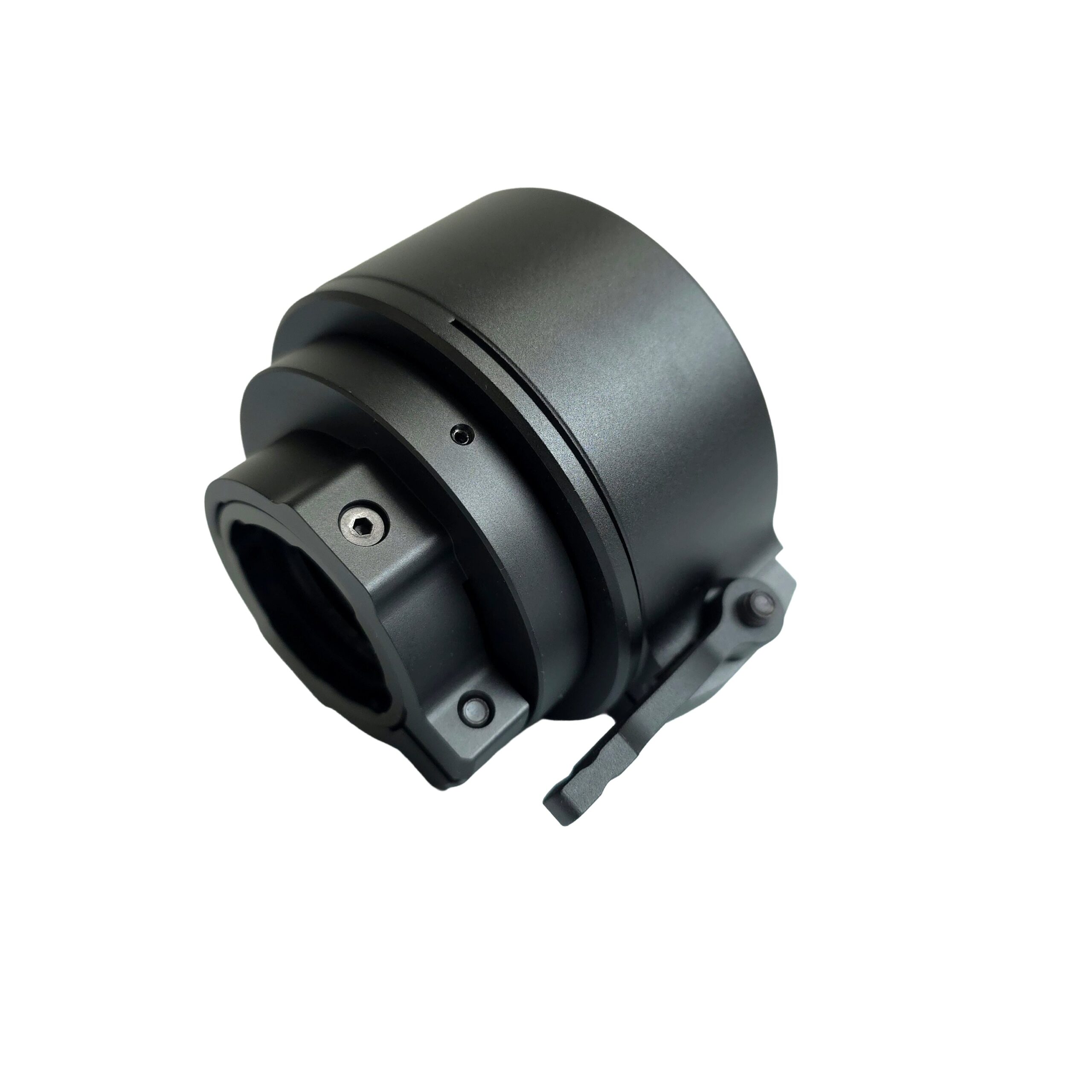

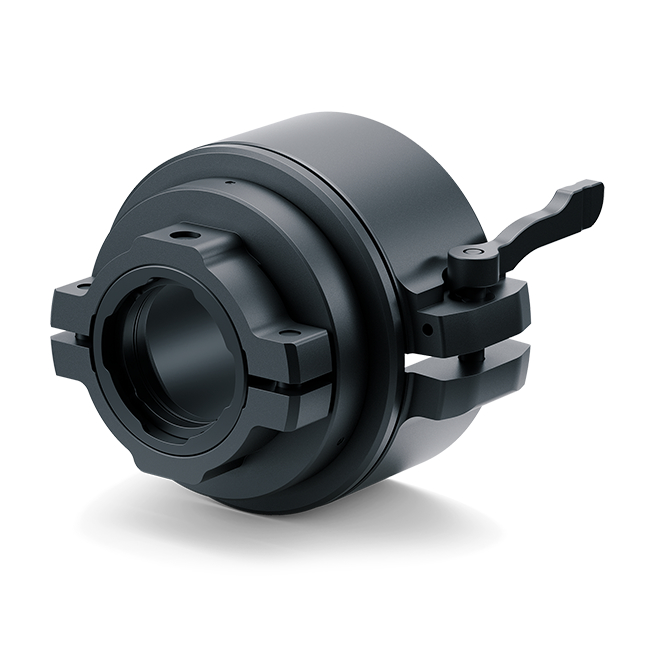

Pulsar PSP-56B Ring Adapter

(Compatible with Proton & Krypton Thermal Clip-On)

The Pulsar PSP-56B Ring Adapter provides a secure, precisely aligned connection between compatible Pulsar thermal imaging attachments and most daytime riflescopes featuring a 56mm objective lens.

Its quick-release bayonet connection makes it easy to install or remove your thermal attachment while maintaining proper screen positioning and a comfortable, centered image through the daytime optic. The included sizing inserts allow the adapter to fit a range of riflescope objective-bell diameters without damaging the scope’s exterior finish.

Secure and Precise Thermal Attachment Mounting

The PSP-56B features a precise screen-positioning mechanism that helps align the thermal image within the field of view of your daytime riflescope. Once properly installed, the adapter creates a stable connection suitable for quickly converting a compatible daytime optic into a thermal imaging system.

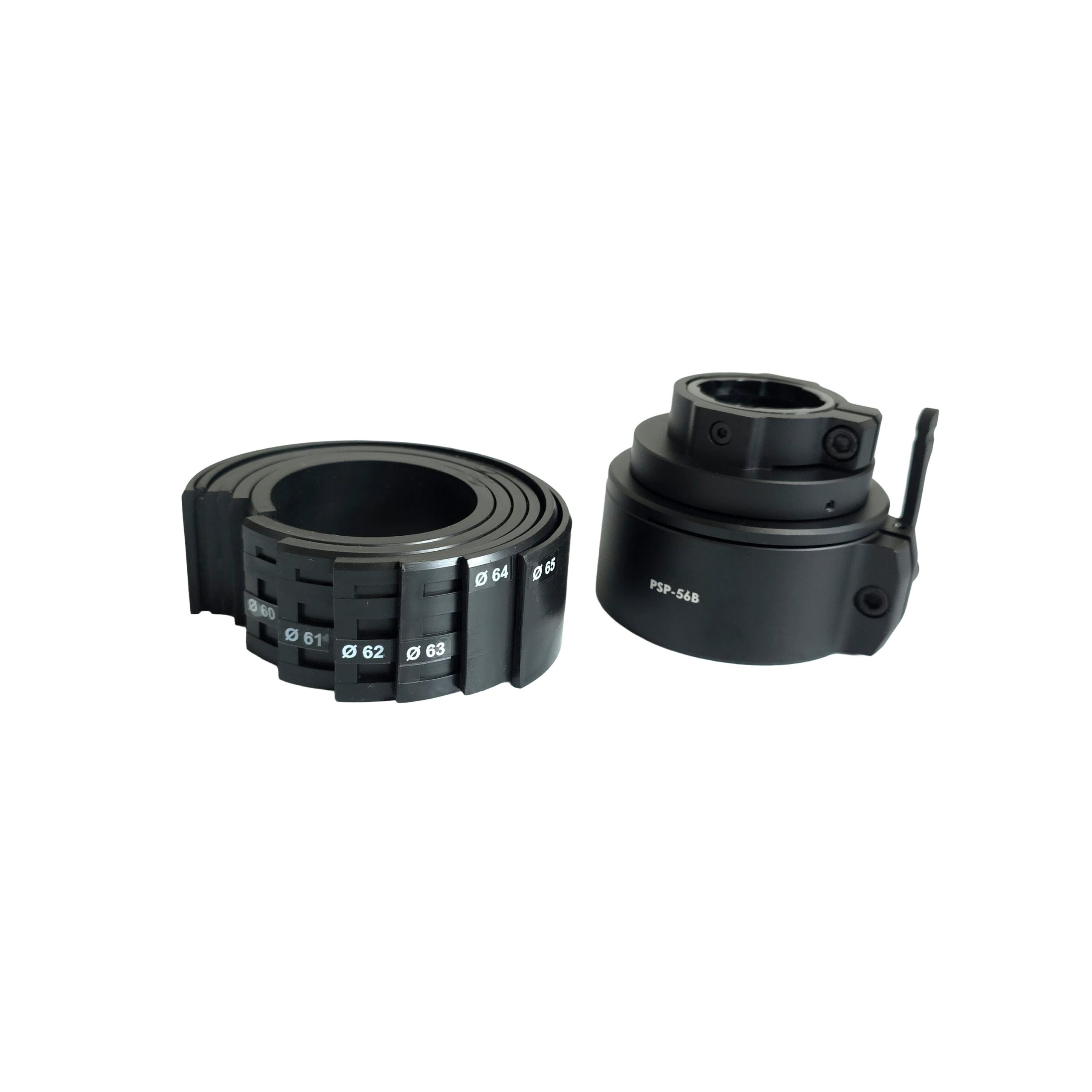

Six Sizing Inserts Included

The adapter includes six molded inserts for fitting daytime optics with the following measured outer objective-housing diameters:

• 60mm insert: Fits 59.7–60.6mm outer diameter
• 61mm insert: Fits 60.7–61.6mm outer diameter
• 62mm insert: Fits 61.7–62.6mm outer diameter
• 63mm insert: Fits 62.7–63.6mm outer diameter
• 64mm insert: Fits 63.7–64.6mm outer diameter
• 65mm insert: Fits 64.7–65.6mm outer diameter

The molded inserts provide smooth, gentle contact with the daytime optic while improving mounting stability and protecting the scope housing.

Key Features

• Designed for most riflescopes with a 56mm objective lens
• Quick-release bayonet attachment system
• Precise thermal screen-positioning mechanism
• Helps maintain proper thermal image alignment
• Six interchangeable sizing inserts included
• Fits objective housings measuring 59.7–65.6mm
• Molded inserts protect the daytime optic’s exterior
• Durable and easy-to-use design
• Pulsar model number: 79208

Compatibility

The Pulsar PSP-B adapter system is designed for compatible Pulsar Krypton, Krypton 2 and Proton thermal imaging attachments.

Important Fitment Information: The “56B” designation refers to the daytime riflescope’s objective-lens class—not necessarily the outside diameter of its objective bell. Measure the outside diameter of your riflescope’s objective housing before ordering. The measured diameter must fall between 59.7mm and 65.6mm for one of the included inserts to fit properly.

Thermal attachment and daytime riflescope are not included.
