Nocpix MICRO 2 ULTRA 1280 Multi-Purpose Thermal Monocular

1280×960, 25mm F1.0, 4-in-1 Multifunction Thermal Optic

(1,375-Yard Detection, 34.2° Ultra-Wide FOV, Dual-Link & 10× Clip-On Compatibility)

The Nocpix MICRO 2 ULTRA 1280 Thermal Weapon Sight introduces a new generation of high-resolution, multifunction thermal imaging technology. Featuring an advanced 1280×960 thermal sensor, 12μm pixel pitch, ≤15mK NETD, and 60Hz refresh rate, the MICRO 2 ULTRA delivers exceptional thermal image detail in a compact, versatile platform.

Designed as a 4-in-1 thermal optic, the MICRO 2 ULTRA functions as a helmet-mounted thermal monocular, thermal clip-on, handheld thermal scanner, or standalone thermal weapon sight. This flexibility allows hunters, predator control professionals, and nighttime observers to adapt one thermal device to multiple applications.

What distinguishes the MICRO 2 ULTRA is its combination of an ultra-high-resolution sensor with an expansive 34.2° × 25.9° field of view, delivering substantially more visual coverage than conventional helmet-mounted thermal monoculars.

The MICRO 2 ULTRA also incorporates Nocpix’s next-generation FastEngine image processing, 2560×2560 AMOLED display, Dual-Link thermal binocular functionality, enhanced night vision integration, and compatibility with daytime optics up to 10× magnification.

Whether scanning open terrain, building a dual-thermal helmet configuration, or adding thermal capability to a daytime optic, the Nocpix MICRO 2 ULTRA offers advanced imaging and multifunction flexibility.

Nocpix MICRO 2 ULTRA 1280 Features

Next-Generation 1280×960 Thermal Sensor with ≤15mK NETD

The defining feature of the Nocpix MICRO 2 ULTRA is its advanced 1280×960 Nocpix Gen II thermal sensor.

With 1,228,800 thermal pixels, the MICRO 2 ULTRA captures four times the thermal image data of the previous RH25 V2‘s 640×480 detector.

This substantial increase in sensor resolution allows the device to capture additional thermal detail, improve subject definition, and provide a more detailed image across its viewing area.

Its 12μm pixel pitch and ≤15mK thermal sensitivity allow the sensor to distinguish subtle temperature differences, helping reveal thermal details in animals, vegetation, and surrounding environments.

Operating at a 60Hz refresh rate, the MICRO 2 ULTRA delivers smooth thermal imaging during movement and continuous observation.

The combination of high sensor resolution, thermal sensitivity, and refresh rate makes the MICRO 2 ULTRA especially attractive for users seeking premium thermal image quality.

Ultra-Wide 34.2° × 25.9° Field of View

One of the most significant advantages of the MICRO 2 ULTRA is its exceptionally wide 34.2° horizontal × 25.9° vertical field of view.

Compared to the 17.5° × 13.1° field of view found on the MICRO 2 H25 and previous RH25 models, the ULTRA provides nearly twice the viewing angle in both dimensions.

This expanded viewing area allows users to observe substantially more terrain without continuously moving their head or repositioning the optic.

The wide field of view is especially beneficial during helmet-mounted operation, where situational awareness and comfortable navigation are important.

It also makes the MICRO 2 ULTRA an attractive option for dual-thermal binocular and thermal/night vision configurations.

The manufacturer compares the ULTRA’s 34.2° horizontal field of view to the approximately 40° field of view commonly associated with a PVS-14 night vision monocular.

This closer alignment can help produce a more natural viewing experience in combined thermal and night vision setups.

25mm F1.0 Objective Lens & 1,375-Yard Detection Range

The MICRO 2 ULTRA features a 25mm F1.0 objective lens designed to capture thermal information while supporting its ultra-wide field of view.

Nocpix rates the device for a maximum thermal detection range of 1,375 yards, providing long-distance heat detection alongside its broad viewing coverage.

The combination of a high-resolution 1280×960 thermal sensor and wide field of view allows users to cover extensive areas while retaining the ability to inspect detected heat signatures.

For predator hunting, wildlife observation, and property scanning, this provides a balance between coverage and detailed thermal imaging.

4-in-1 Thermal Optic – Four Operating Configurations

The Nocpix MICRO 2 ULTRA combines four different thermal imaging applications in one compact platform.

Helmet-Mounted Thermal Monocular

Use the MICRO 2 ULTRA as a helmet-mounted thermal monocular for hands-free nighttime observation. Its ultra-wide field of view helps users maintain awareness of surrounding terrain.

Thermal Clip-On

Configure the MICRO 2 ULTRA as a thermal clip-on with compatible daytime optics. The system supports day-optic magnification levels up to 10×.

Handheld Thermal Scanner

Use the device as a portable handheld thermal monocular for predator hunting, property scanning, wildlife observation, and locating heat signatures.

Standalone Thermal Weapon Sight

The MICRO 2 ULTRA also functions as a dedicated thermal weapon sight, offering adjustable reticles, multiple zeroing profiles, and Picture-in-Picture functionality.

This multifunction design allows the MICRO 2 ULTRA to transition between observation and weapon-mounted applications without requiring four separate thermal devices.

1–10× Day Scope Compatibility with Enhanced Thermal Clip-On Performance

The MICRO 2 ULTRA offers expanded thermal clip-on capability with support for compatible daytime optics from 1× to 10× magnification.

This represents an improvement over the RH25 V2‘s maximum 6× day-optic magnification.

The combination of a 1280×960 thermal sensor and 2560×2560 AMOLED display provides additional thermal image information and display resolution for use at higher optical magnification.

Nocpix has also redesigned the clip-on interface to keep important information, including zeroing values, battery status, and operating modes, visible without unnecessarily covering the target area.

Three independent zeroing profiles allow users to store separate configurations for different rifles or daytime optics.

Together, these features provide increased flexibility for hunters looking to add thermal imaging capability to existing daytime setups.

Nocpix FastEngine – Low-Latency Thermal Processing

The MICRO 2 ULTRA incorporates Nocpix’s proprietary FastEngine processing architecture, designed to deliver responsive thermal imaging despite the demanding processing requirements of a 1280-resolution sensor.

According to the manufacturer, the FastEngine system offers substantially reduced latency compared to conventional 1280 thermal imaging platforms.

Lower latency helps reduce the delay between physical movement and the thermal image displayed to the user.

This is particularly important for helmet-mounted applications where continuous movement, scanning, and head positioning require a responsive viewing experience.

Combined with the 60Hz refresh rate, FastEngine provides smoother image transitions and helps reduce visual interruptions during extended use.

0.1-Second Seamless Shutter

The MICRO 2 ULTRA features a 0.1-second seamless shutter designed to minimize interruptions and motion artifacts during thermal observation.

The fast shutter operation helps the device maintain a smoother viewing experience while moving, scanning, or tracking a heat signature.

This feature is especially beneficial during helmet-mounted use, where interruptions in the thermal image can affect the viewing experience.

1.03-Inch 2560×2560 AMOLED Display

The MICRO 2 ULTRA includes a high-resolution 1.03-inch circular AMOLED display with 2560×2560 resolution.

Compared to the RH25 V2‘s previous 1440×1080 display, the upgraded AMOLED panel contains approximately 4.2 times as many display pixels.

This increased display resolution helps users see more of the detail captured by the 1280×960 thermal sensor.

The high-resolution AMOLED display also plays an important role in maintaining image usability when the MICRO 2 ULTRA is paired with higher-magnification daytime optics.

The device provides 45mm of eye relief and a diopter adjustment range of -4 to +2 for individual viewing preferences.

Dual-Link Technology – Create a Thermal Binocular System

The Nocpix MICRO 2 ULTRA features Dual-Link technology, allowing two MICRO 2 ULTRA units to be paired into a coordinated thermal binocular configuration.

When connected, one unit functions as the master controller.

Menu navigation, thermal color palettes, image settings, and digital magnification can be managed from the master unit, simplifying operation of the paired devices.

This centralized control system reduces the need to independently adjust identical settings on both thermal monoculars.

Dual-Link makes the MICRO 2 ULTRA particularly well suited for users building a high-resolution, dual-thermal helmet-mounted system.

NV Highlight & NV Outline Modes for Dual-Band Setups

The MICRO 2 ULTRA includes specialized night vision compatibility features designed for combined thermal and traditional night vision configurations.

NV Highlight Mode reduces low-temperature environmental clutter, emphasizing thermal information that complements the surrounding scene viewed through night vision.

NV Outline Mode simplifies detected heat signatures into defined outlines, identifying the shape and location of warm objects while allowing the night vision device to provide more environmental detail.

These operating modes help reduce visual competition between thermal imagery and night vision.

Combined with the ULTRA’s wide field of view, these features make the device a strong choice for thermal/night vision dual-band applications.

Up to 8× Digital Zoom with Smooth Magnification Transitions

The MICRO 2 ULTRA provides up to 8× digital zoom, giving users additional control when examining distant heat signatures.

The high-resolution 1280×960 thermal sensor provides substantial image data for digital magnification.

Nocpix has incorporated smoothed zoom transitions, designed to provide a more natural viewing experience when increasing or decreasing magnification.

The combination of wide native viewing coverage and adjustable digital magnification makes the MICRO 2 ULTRA suitable for both broad-area scanning and closer examination of detected subjects.

Three Zeroing Profiles, Customizable Reticles & Picture-in-Picture

When used as a standalone weapon sight, the MICRO 2 ULTRA includes advanced aiming features designed for flexible operation.

The system supports three independent zeroing profiles, allowing separate zero configurations to be saved and selected.

Users can choose from eight reticle options, including seven static reticles and one customizable DIY reticle.

Available reticle colors include black, white, red, green, yellow, and blue.

The MICRO 2 ULTRA also supports app-based zeroing and adjustable reticle brightness.

A built-in Picture-in-Picture (PIP) feature opens a magnified aiming window while maintaining the surrounding field of view, helping users evaluate the aiming area without completely losing situational awareness.

Wireless Remote Control

The MICRO 2 ULTRA includes a wireless remote control for convenient access to frequently used functions.

The remote provides control over recording, brightness adjustments, and menu navigation.

An integrated scroll wheel allows users to adjust digital magnification and navigate menus without directly operating the optic’s onboard controls.

This functionality is especially convenient when the MICRO 2 ULTRA is installed on a rifle or tripod.

64GB Internal Storage & Video Recording

The MICRO 2 ULTRA features 64GB of onboard storage, allowing users to record thermal footage and save images directly to the device.

Supported recording features include video recording, image capture, and recoil-activated recording.

The manufacturer also lists wireless image and video connectivity through its compatible app.

These features allow users to document nighttime wildlife observations, field activity, and thermal encounters without requiring a separate recording system.

Intelligent Power Management & 18650 Battery Operation

The MICRO 2 ULTRA incorporates several power management features designed to help extend battery operation during nighttime use.

True Sleep places the unit into an ultra-low-power state when full operation is not required.

Flip-to-Standby automatically transitions the optic into standby when it is flipped out of its viewing position.

An additional Power-Saving Mode helps conserve battery power during extended outings.

The MICRO 2 ULTRA utilizes 18650 lithium-ion battery power and supports external USB-C power.

The manufacturer’s specification table lists 6+ hours of maximum operating time, although runtime may vary depending on settings and operating conditions.

Compact Magnesium Alloy Housing with IP67 Protection

Despite its advanced 1280×960 thermal imaging system, the MICRO 2 ULTRA remains compact and lightweight.

The unit measures 4.45 × 2.52 × 2.05 inches and weighs approximately 12.9 ounces.

Its magnesium alloy housing features a Cerakote TAN H-235 finish.

The MICRO 2 ULTRA carries an IP67 ingress protection rating, offering resistance to dust and water exposure.

The manufacturer lists an operating temperature range of -4°F to +122°F and recoil resistance specified for .300 Win. Mag. and 7mm Mag. applications.

5-Year Nocpix Manufacturer Warranty

The Nocpix MICRO 2 ULTRA 1280 Thermal Weapon Sight is backed by a 5-year Nocpix manufacturer warranty.

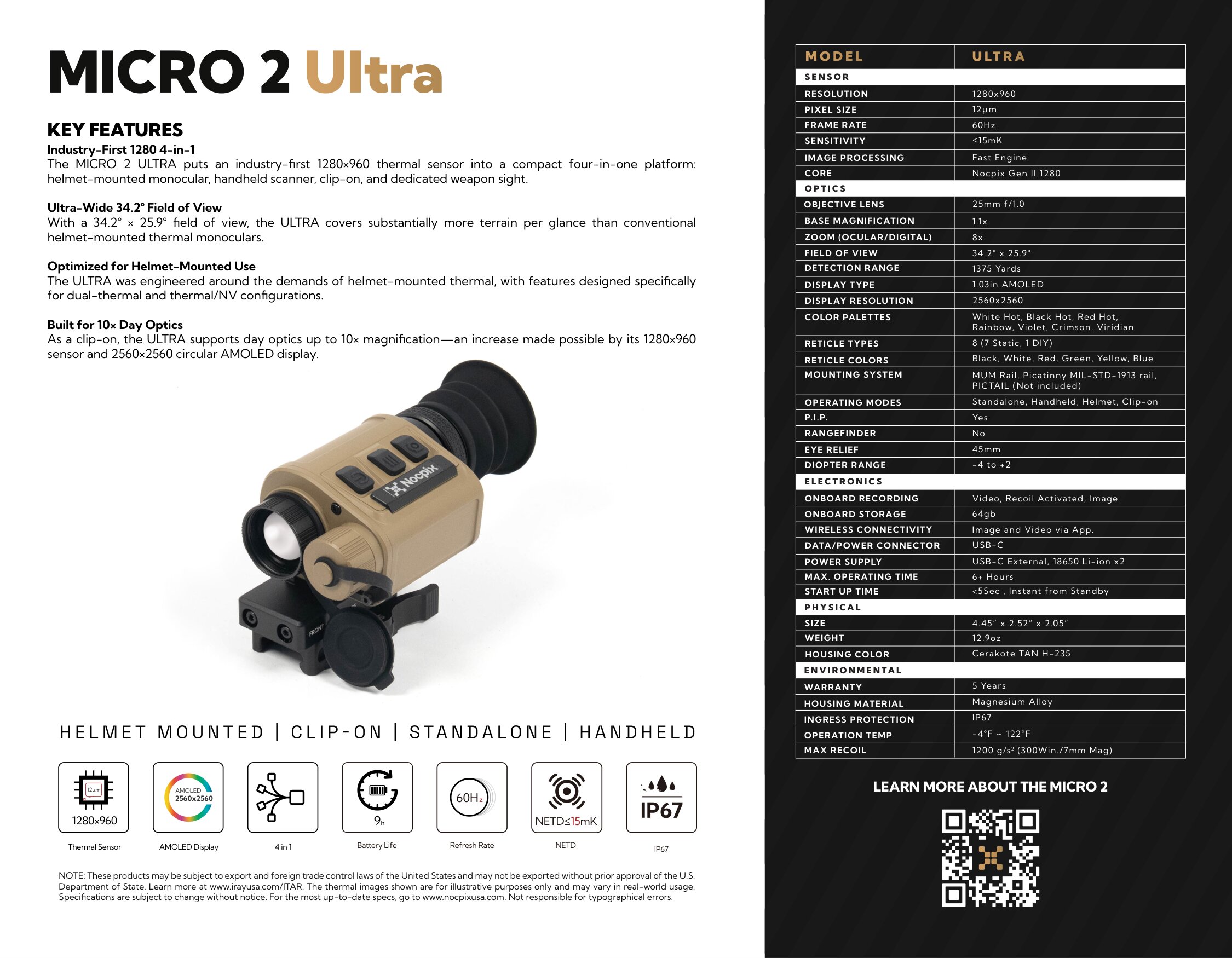

Nocpix MICRO 2 ULTRA 1280 Specifications:

Specification	Nocpix MICRO 2 ULTRA
Manufacturer	Nocpix
Model	MICRO 2 ULTRA
Thermal Sensor	Nocpix Gen II 1280
Sensor Resolution	1280×960
Pixel Pitch	12μm
Thermal Sensitivity (NETD)	≤15mK
Refresh Rate	60Hz
Image Processing	FastEngine
Objective Lens	25mm F1.0
Base Magnification	1.1× (Sell Sheet)
Digital Zoom	Up to 8×
Field of View	34.2° × 25.9°
Detection Range	1,375 Yards
Display Type	AMOLED
Display Size	1.03 Inches
Display Resolution	2560×2560
Thermal Color Palettes	White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
Operating Modes	Helmet-Mounted, Clip-On, Handheld, Standalone
Clip-On Day Optic Compatibility	1–10×
Dual-Link Technology	Yes
NV Highlight / Outline Modes	Yes
Picture-in-Picture (PIP)	Yes
Reticle Options	8 (7 Static, 1 DIY)
Reticle Colors	Black, White, Red, Green, Yellow, Blue
Zeroing Profiles	3
Laser Rangefinder	No
Eye Relief	45mm
Diopter Adjustment	-4 to +2
Video Recording	Yes
Image Capture	Yes
Recoil-Activated Recording	Yes
Internal Storage	64GB
Wireless Connectivity	Image & Video via App
Wireless Remote	Included
Data / Power Connection	USB-C
Battery Type	18650 Lithium-Ion
Maximum Operating Time	6+ Hours (Specification Table)
Startup Time	Under 5 Seconds; Instant from Standby
Dimensions	4.45 × 2.52 × 2.05 in
Weight	12.9 oz
Housing Material	Magnesium Alloy
Housing Finish	Cerakote TAN H-235
Ingress Protection	IP67
Operating Temperature	-4°F to +122°F
Mounting Compatibility	MUM Rail, MIL-STD-1913 Picatinny Rail, PICTAIL (Not Included)
Manufacturer Warranty	5 Years

Frequently Asked Questions (FAQ)

What is the Nocpix MICRO 2 ULTRA 1280?

The MICRO 2 ULTRA is a multifunction thermal imaging optic featuring a 1280×960 sensor and four operating modes: helmet-mounted thermal monocular, thermal clip-on, handheld scanner, and standalone thermal weapon sight.

What makes the MICRO 2 ULTRA different from the MICRO 2 H25?

The primary differences are thermal resolution, field of view, digital zoom, weight, and battery runtime. The ULTRA features a 1280×960 sensor compared to the H25’s 640×512 sensor, a wider 34.2° × 25.9° field of view, and up to 8× digital zoom.

What is the detection range of the Nocpix MICRO 2 ULTRA?

The MICRO 2 ULTRA has a manufacturer-rated thermal detection range of 1,375 yards.

Can the MICRO 2 ULTRA be helmet mounted?

Yes. The MICRO 2 ULTRA supports helmet-mounted operation and includes features designed for single-unit, dual-thermal, and combined thermal/night vision configurations.

Can the MICRO 2 ULTRA be used as a thermal clip-on?

Yes. The MICRO 2 ULTRA can be used as a thermal clip-on with compatible daytime optics offering magnification levels from 1× to 10×.

Can two MICRO 2 ULTRA devices be paired together?

Yes. Dual-Link technology allows two MICRO 2 ULTRA units to be paired into a coordinated thermal binocular system with settings controlled from one master device.

What is the field of view of the MICRO 2 ULTRA?

The MICRO 2 ULTRA features an ultra-wide 34.2° horizontal × 25.9° vertical field of view, providing substantially greater viewing coverage than conventional helmet-mounted thermal optics.

Does the MICRO 2 ULTRA work alongside night vision?

Yes. The MICRO 2 ULTRA features NV Highlight and NV Outline modes designed for combined thermal and night vision configurations.

Does the MICRO 2 ULTRA have Picture-in-Picture?

Yes. The MICRO 2 ULTRA supports Picture-in-Picture when used as a standalone thermal weapon sight.

What is the battery life of the MICRO 2 ULTRA?

The manufacturer’s specification table lists 6+ hours of operating time. Power management features include True Sleep, Flip-to-Standby, and Power-Saving Mode.

Does the MICRO 2 ULTRA record video?

Yes. The MICRO 2 ULTRA includes onboard video and image recording, recoil-activated recording, and 64GB of internal storage.

How much does the Nocpix MICRO 2 ULTRA weigh?

The MICRO 2 ULTRA weighs approximately 12.9 ounces and measures 4.45 × 2.52 × 2.05 inches.

Does the MICRO 2 ULTRA have a laser rangefinder?

No. The manufacturer’s specifications confirm that the MICRO 2 ULTRA does not include a built-in laser rangefinder.

What warranty comes with the Nocpix MICRO 2 ULTRA?

The Nocpix MICRO 2 ULTRA is backed by a 5-year manufacturer warranty.
