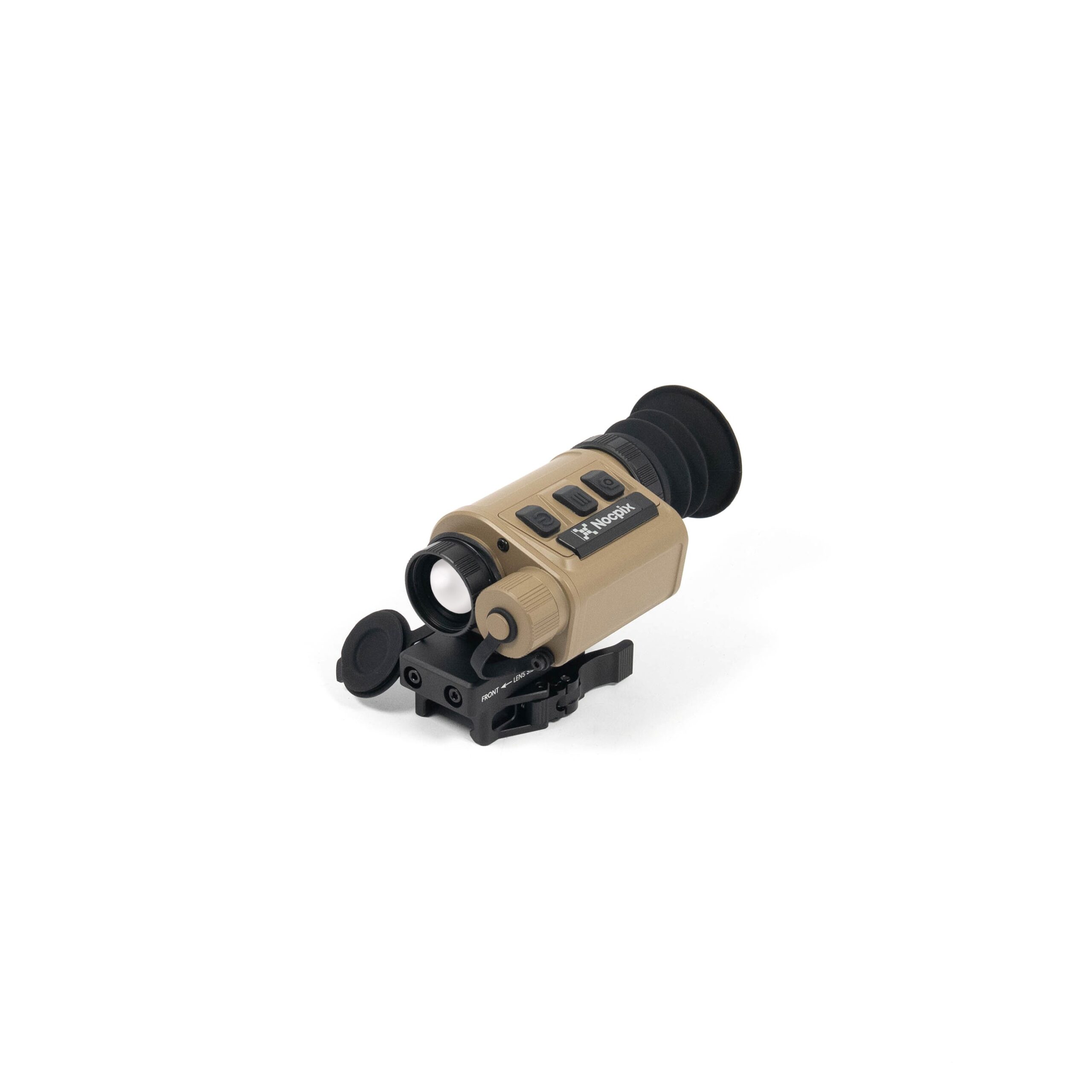

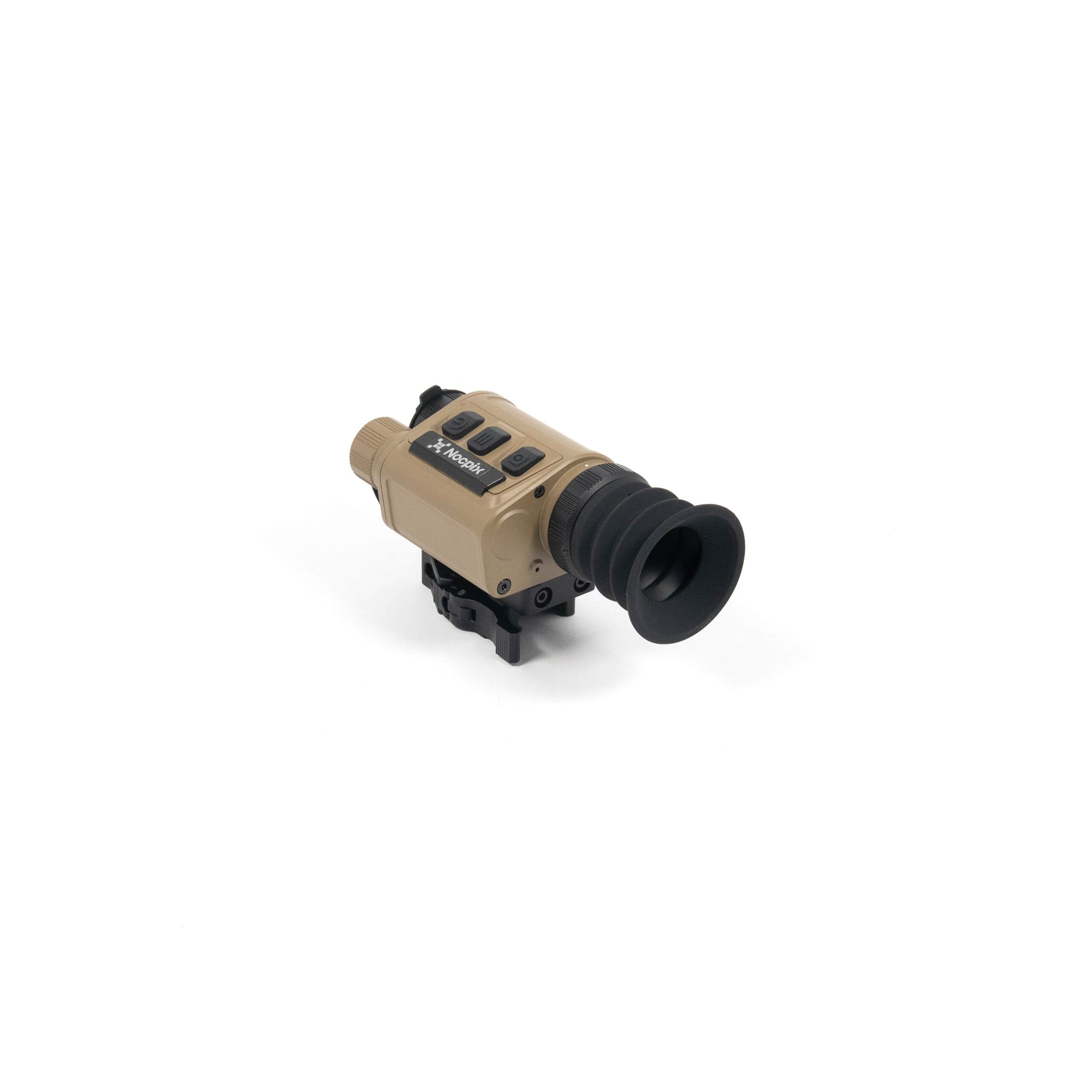

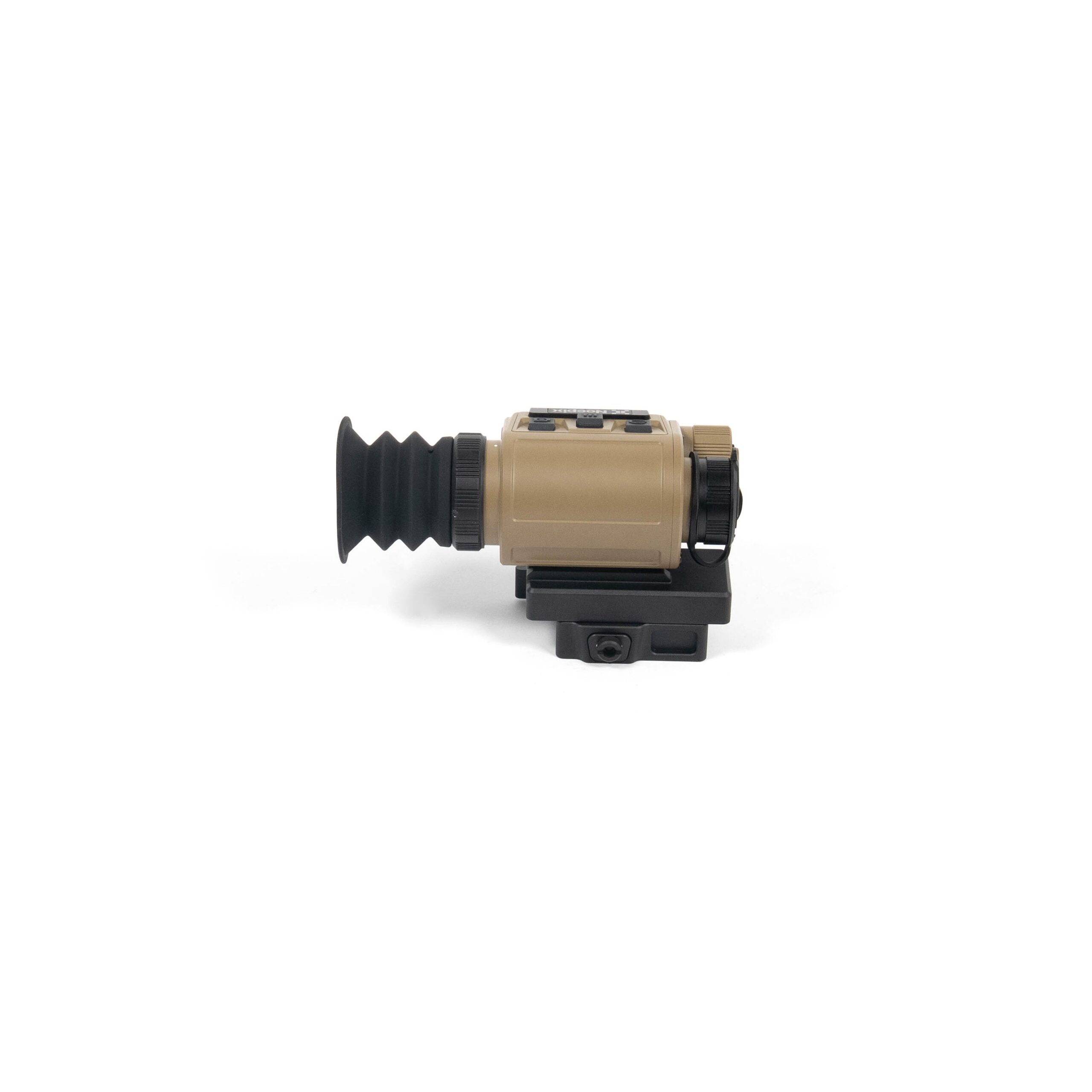

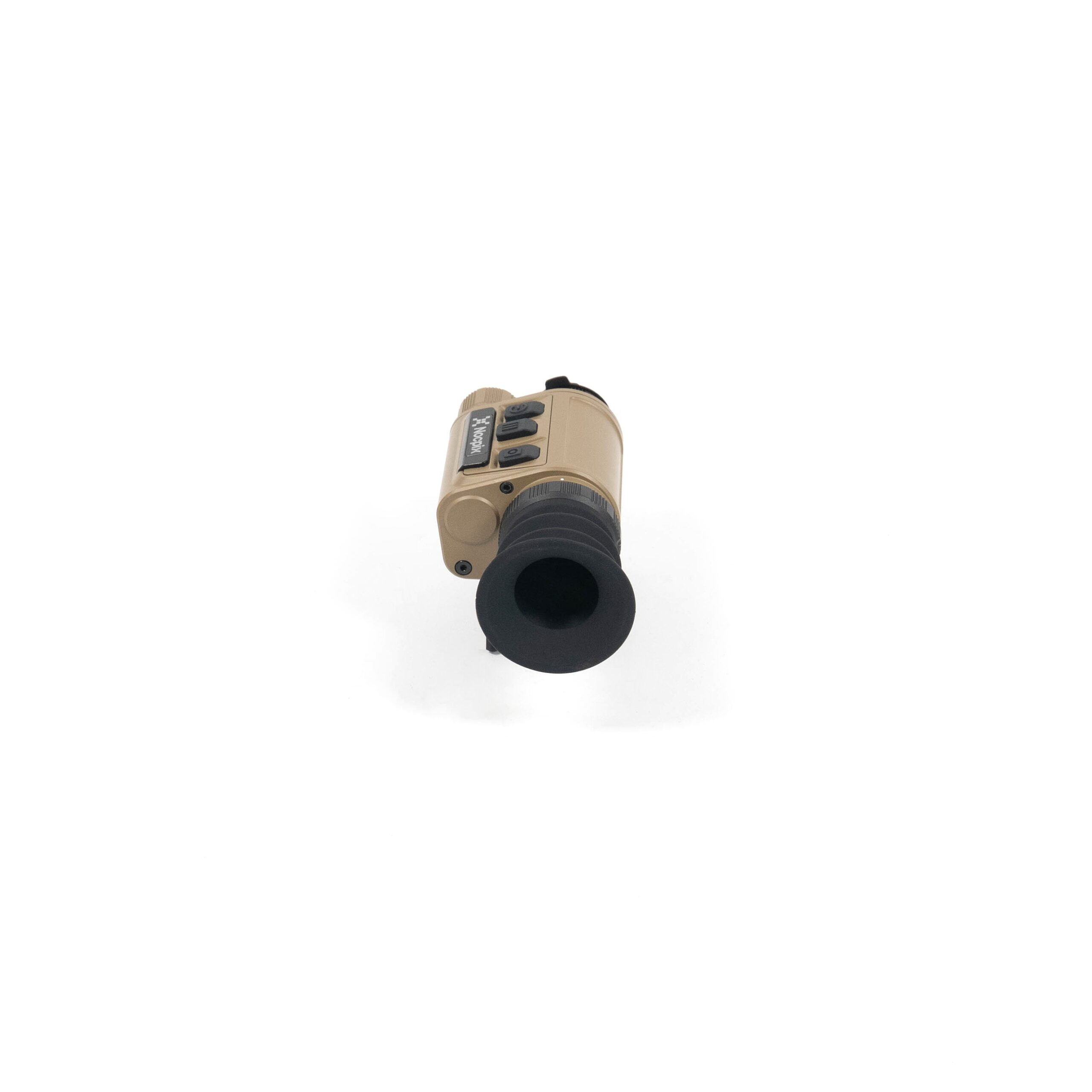

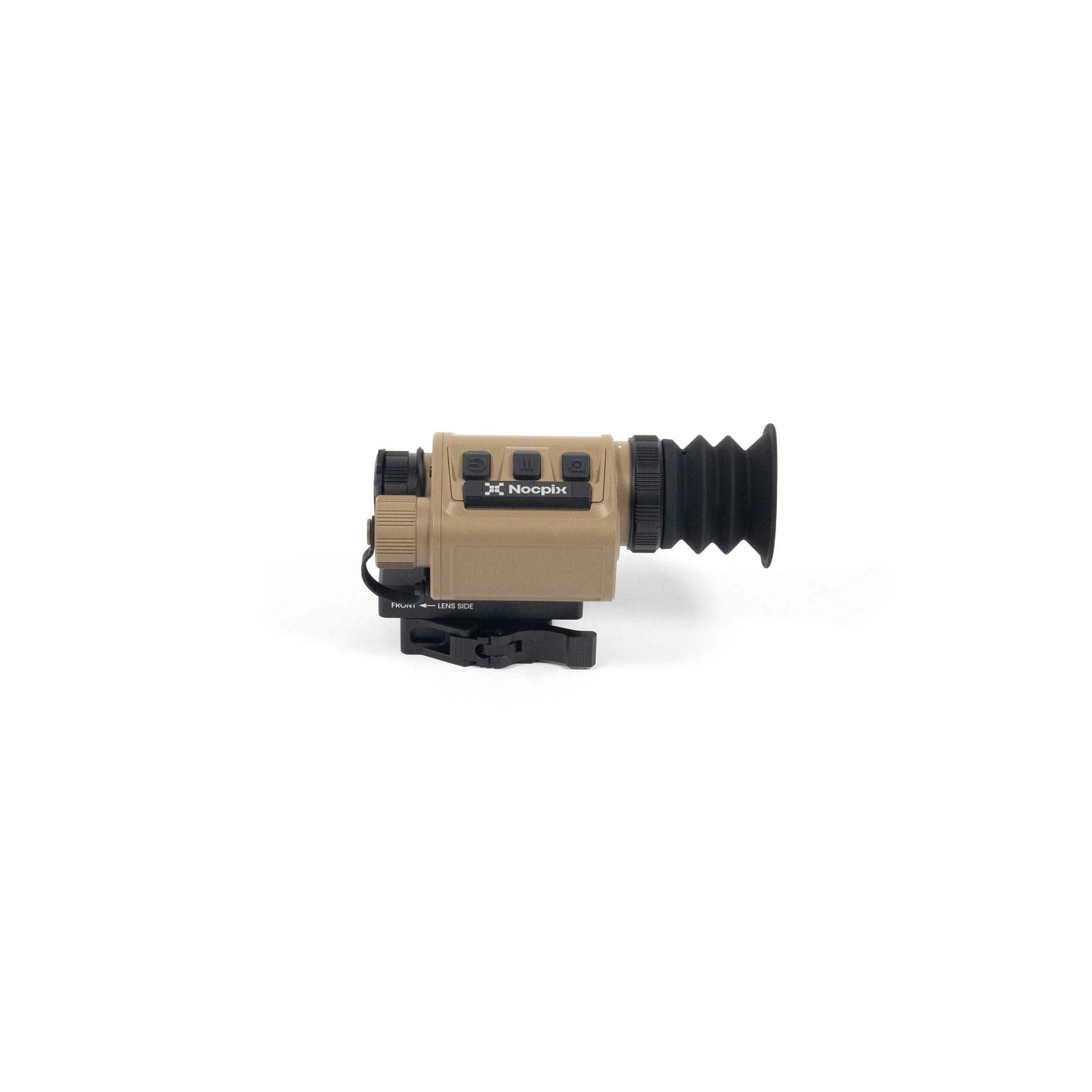

Nocpix MICRO 2 H25 640 Multi-Purpose Thermal Monocular

640×512, 25mm F1.0, 4-in-1 Thermal Optic

(1,375-Yard Detection, 10× Clip-On Compatibility, Dual-Link & FastEngine)

The Nocpix MICRO 2 H25 640 Thermal Weapon Sight represents the next generation of multifunction thermal imaging technology, building upon the proven RH25 V2 platform with significant upgrades to image quality, processing speed, display resolution, power management, and overall versatility. Designed for hunters, predator control, tactical applications, and nighttime observation, the MICRO 2 H25 combines four thermal optics into one compact, high-performance system.

Featuring a next-generation 640×512 thermal sensor with 12μm pixel pitch, ≤15mK NETD, and a 60Hz refresh rate, the MICRO 2 H25 delivers detailed thermal imaging with improved responsiveness. A 25mm F1.0 objective lens provides a wide 17.5° × 13.1° field of view and a manufacturer-rated 1,375-yard thermal detection range.

The MICRO 2 H25 retains the versatility that made the RH25 series popular, functioning as a helmet-mounted thermal monocular, thermal clip-on, handheld scanner, or standalone thermal weapon sight. The redesigned platform introduces Nocpix FastEngine image processing, a 2560×2560 AMOLED display, expanded 10× day-optic compatibility, Dual-Link thermal binocular technology, and improved battery management.

Whether mounted behind a traditional daytime optic, integrated into a helmet-mounted system, or used as a dedicated thermal weapon sight, the Nocpix MICRO 2 H25 is engineered to adapt to a wide range of nighttime applications.

Nocpix MICRO 2 H25 640 Features:

Next-Generation 640×512 Thermal Sensor with ≤15mK NETD

At the core of the Nocpix MICRO 2 H25 is a second-generation 640×512 thermal detector featuring 12μm pixel pitch and an exceptionally sensitive ≤15mK NETD rating.

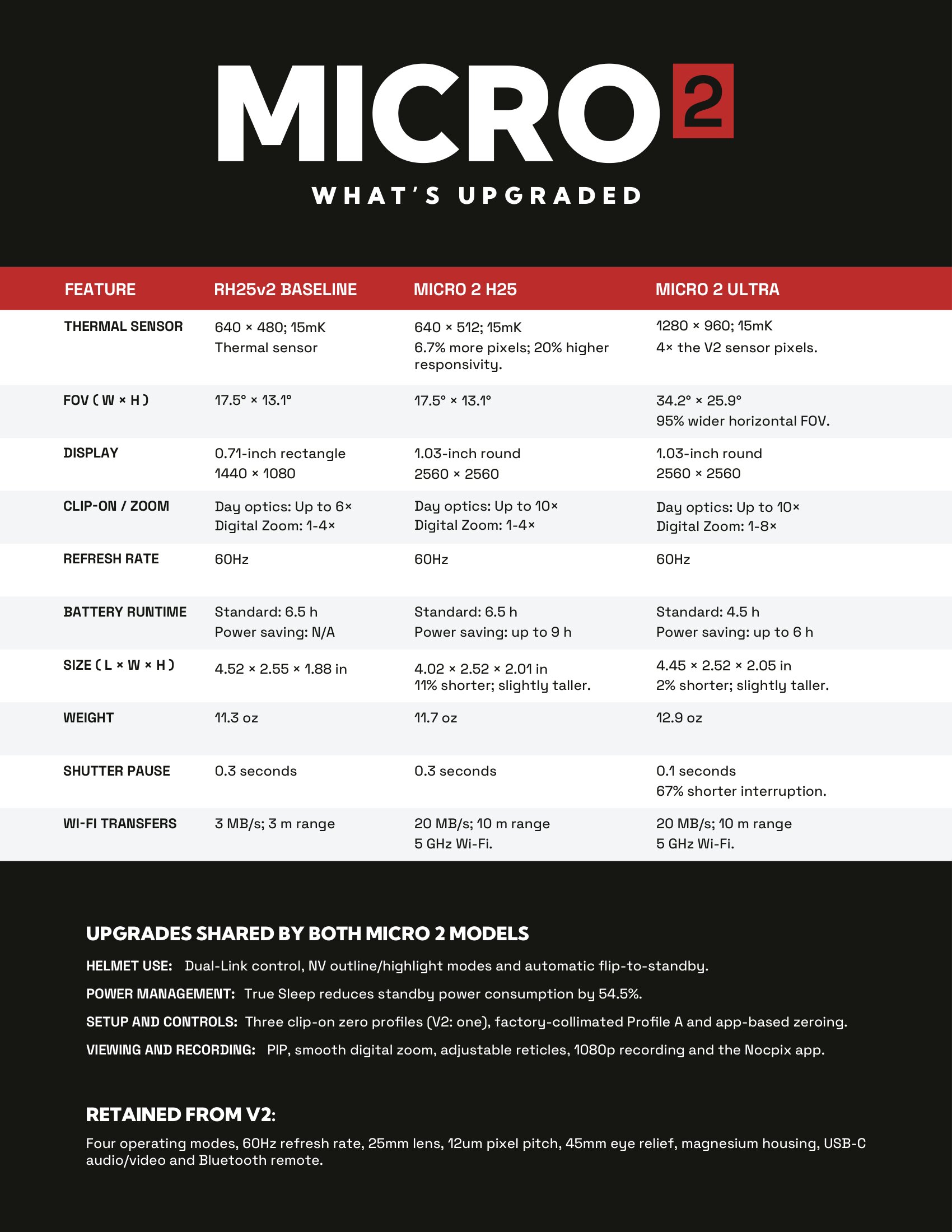

Compared to the RH25 V2’s 640×480 sensor, the upgraded 640×512 detector captures more thermal image information, helping provide improved definition and detail across the viewing area.

Nocpix reports a 20% increase in sensor responsivity, enhancing the system’s ability to capture subtle changes in thermal radiation.

A low ≤15mK NETD rating allows the optic to distinguish small temperature differences, helping separate heat signatures from their surrounding environments.

With a 60Hz refresh rate, the MICRO 2 H25 delivers smooth thermal imaging when scanning moving subjects, tracking wildlife, or navigating changing terrain.

25mm F1.0 Objective Lens with 1,375-Yard Detection Range

The MICRO 2 H25 utilizes a 25mm F1.0 objective lens, delivering a wide field of view while retaining the thermal detail needed to identify and evaluate detected heat signatures.

Nocpix rates the MICRO 2 H25 for a maximum thermal detection range of 1,375 yards, giving users the ability to detect distant heat sources while scanning open terrain.

Its 17.5° × 13.1° field of view is carried over from the RH25 series, providing a familiar viewing experience for existing users.

This wide field of view is especially useful during helmet-mounted operation, handheld scanning, and situations where maintaining awareness of the surrounding environment is important.

Digital magnification of up to 4× allows the image to be enlarged for closer evaluation of detected heat signatures.

4-in-1 Multifunction Thermal Optic

One of the defining advantages of the Nocpix MICRO 2 H25 is its ability to operate in four distinct configurations.

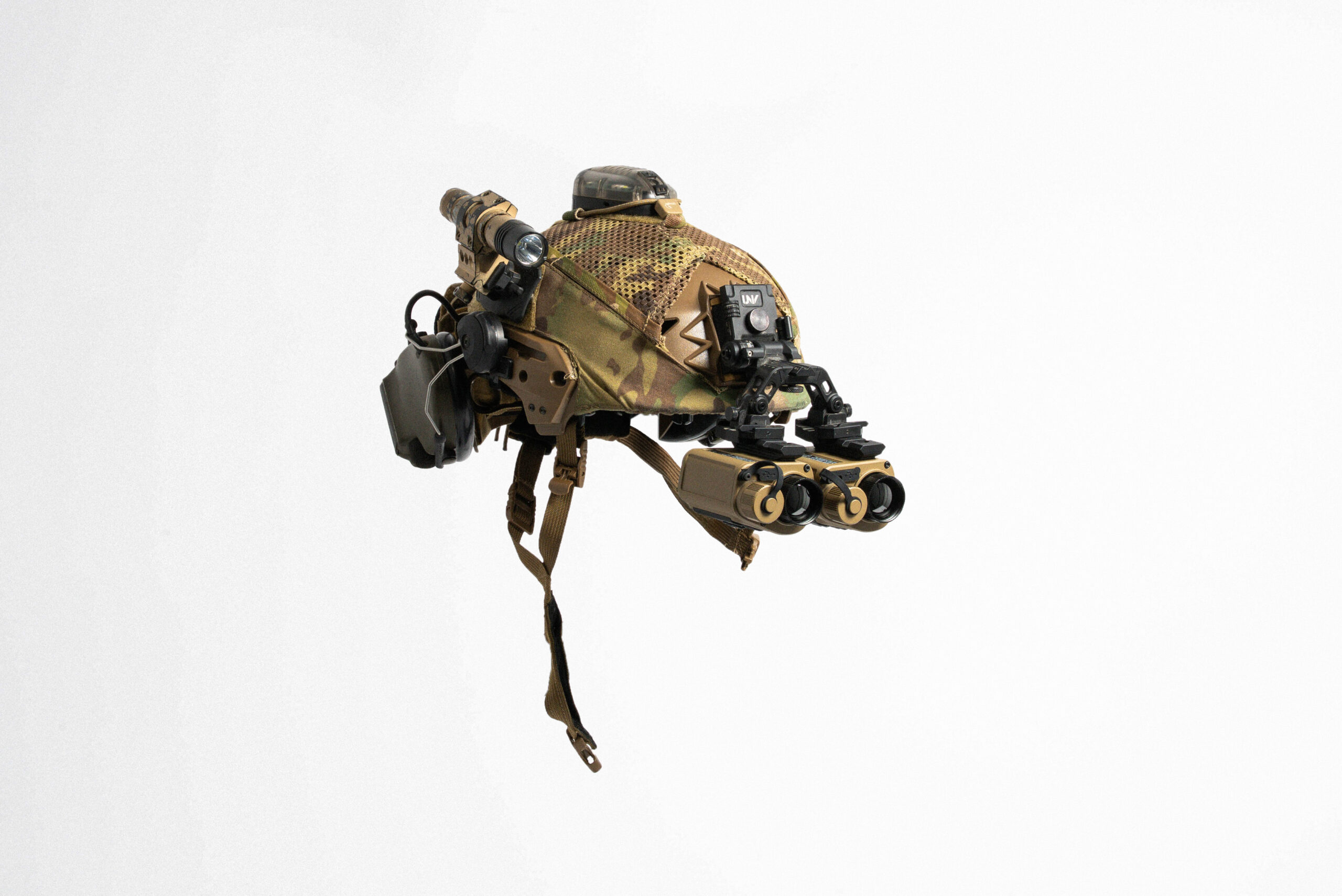

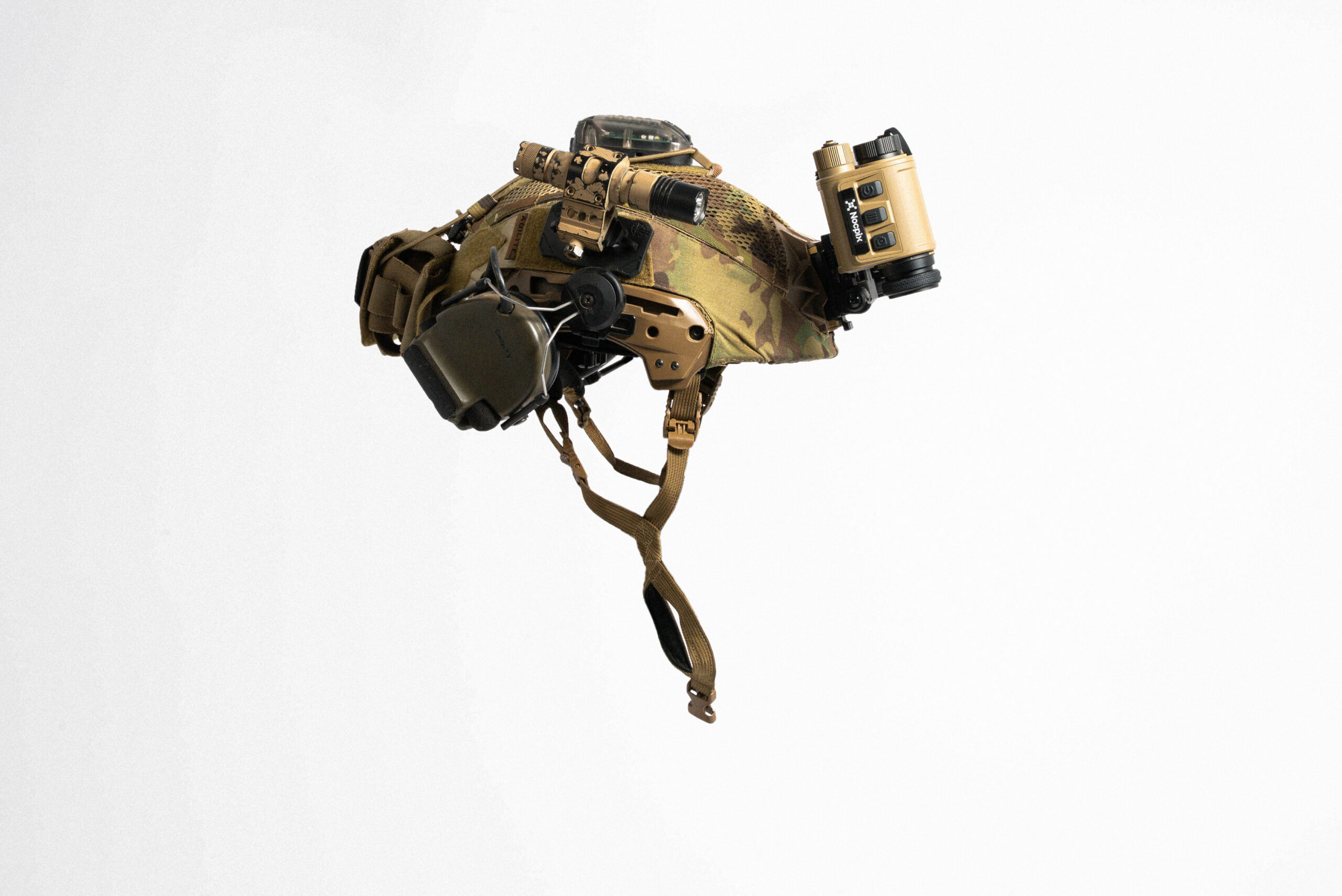

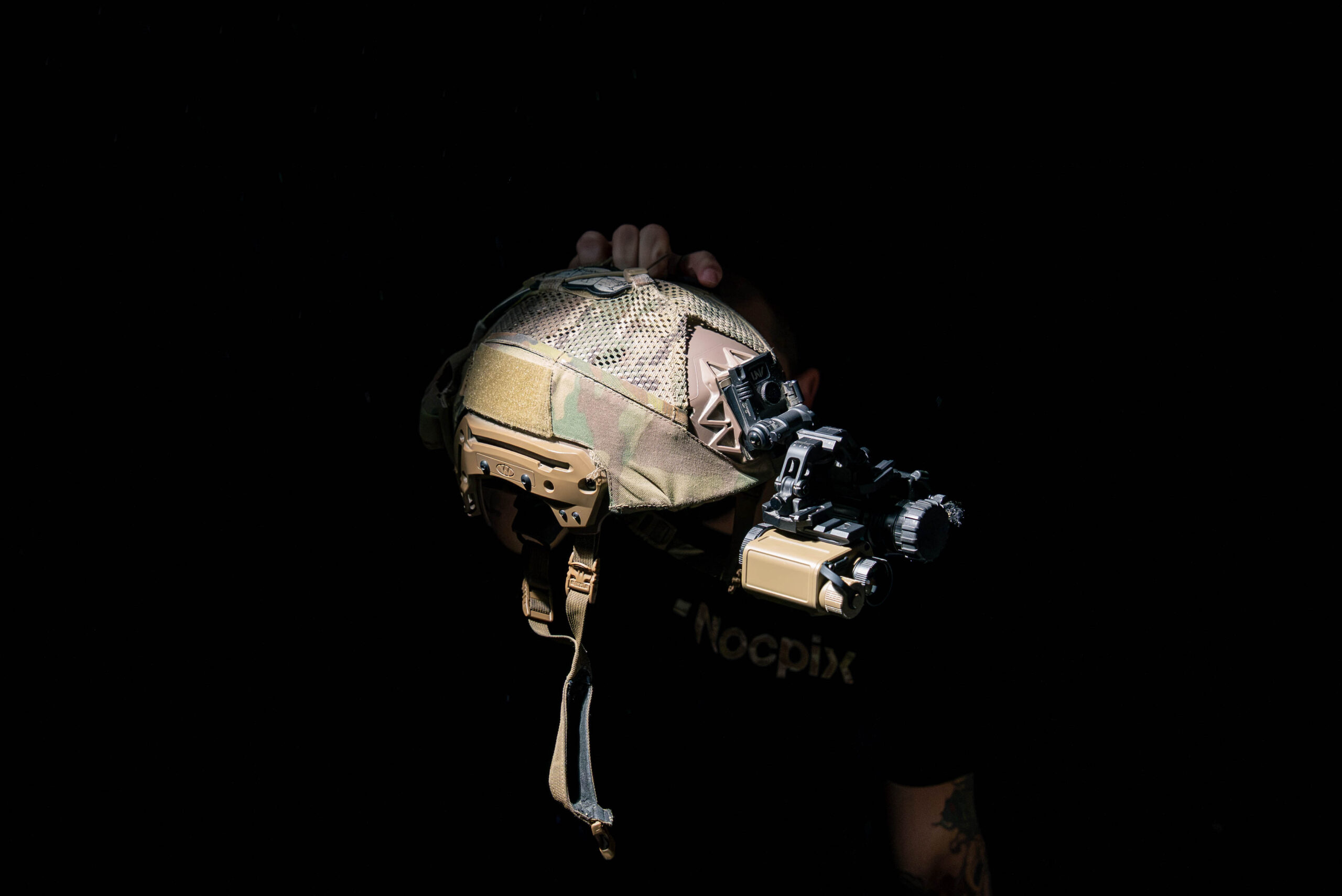

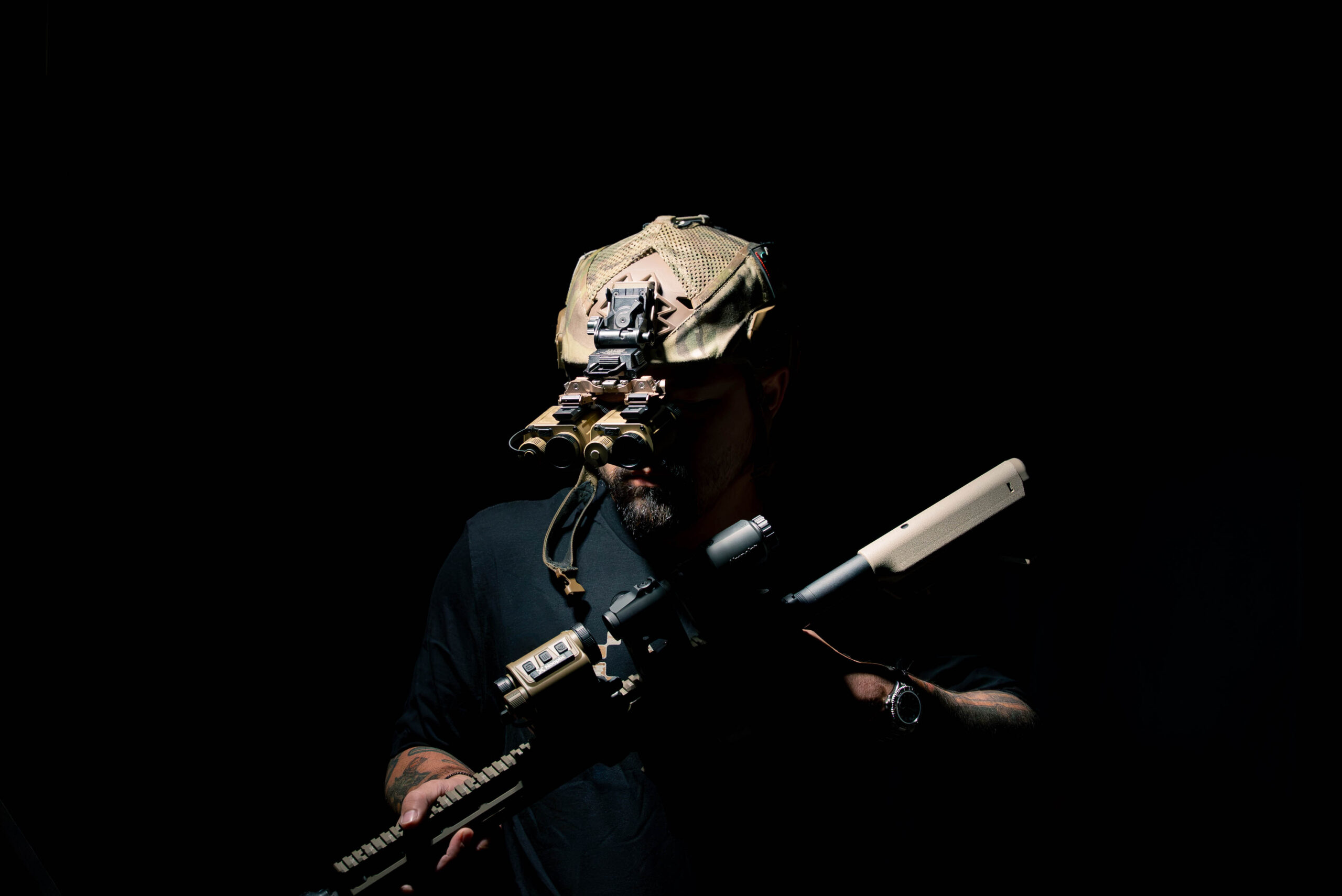

Helmet-Mounted Thermal Monocular

When configured for helmet use, the MICRO 2 H25 provides hands-free thermal observation. Its compact dimensions, lightweight design, and wide field of view make it suitable for scanning and navigating at night.

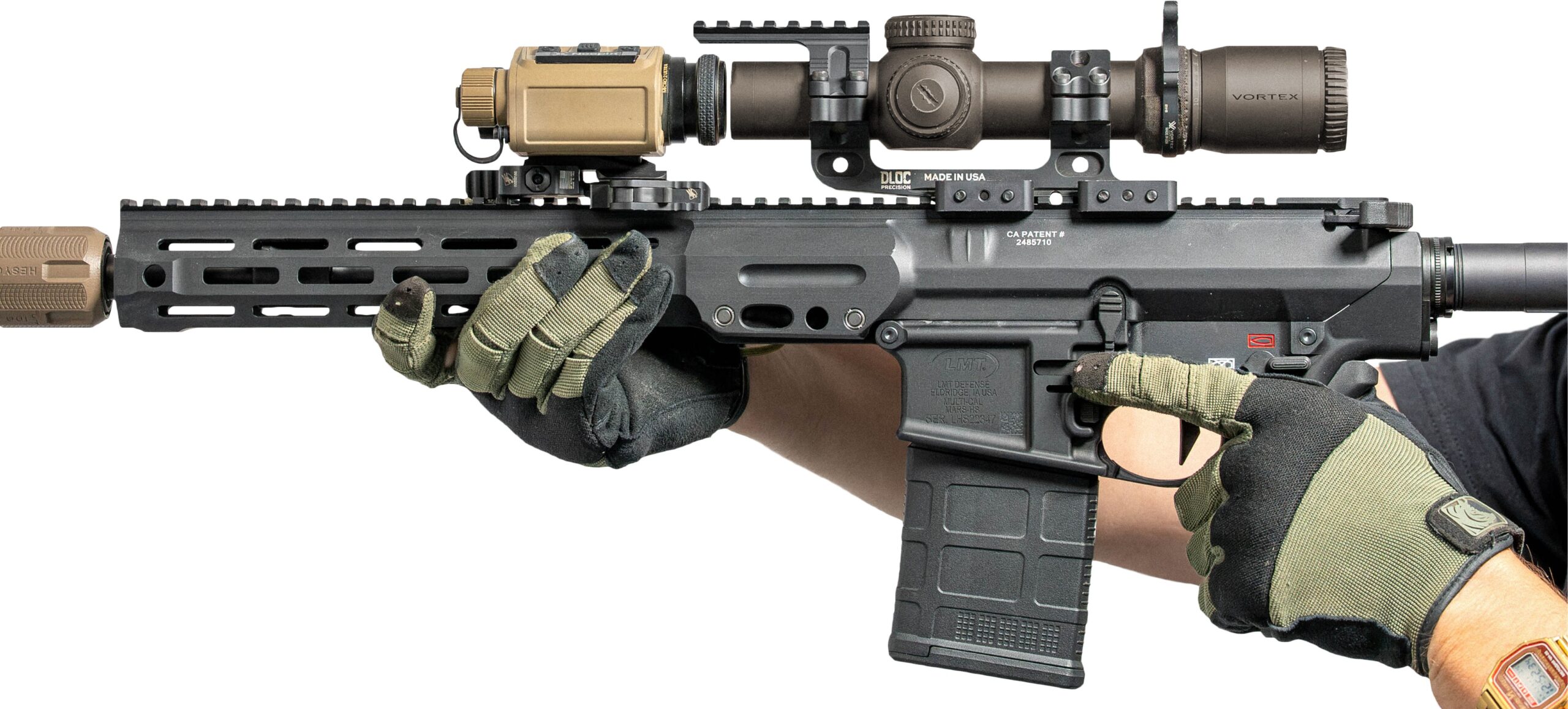

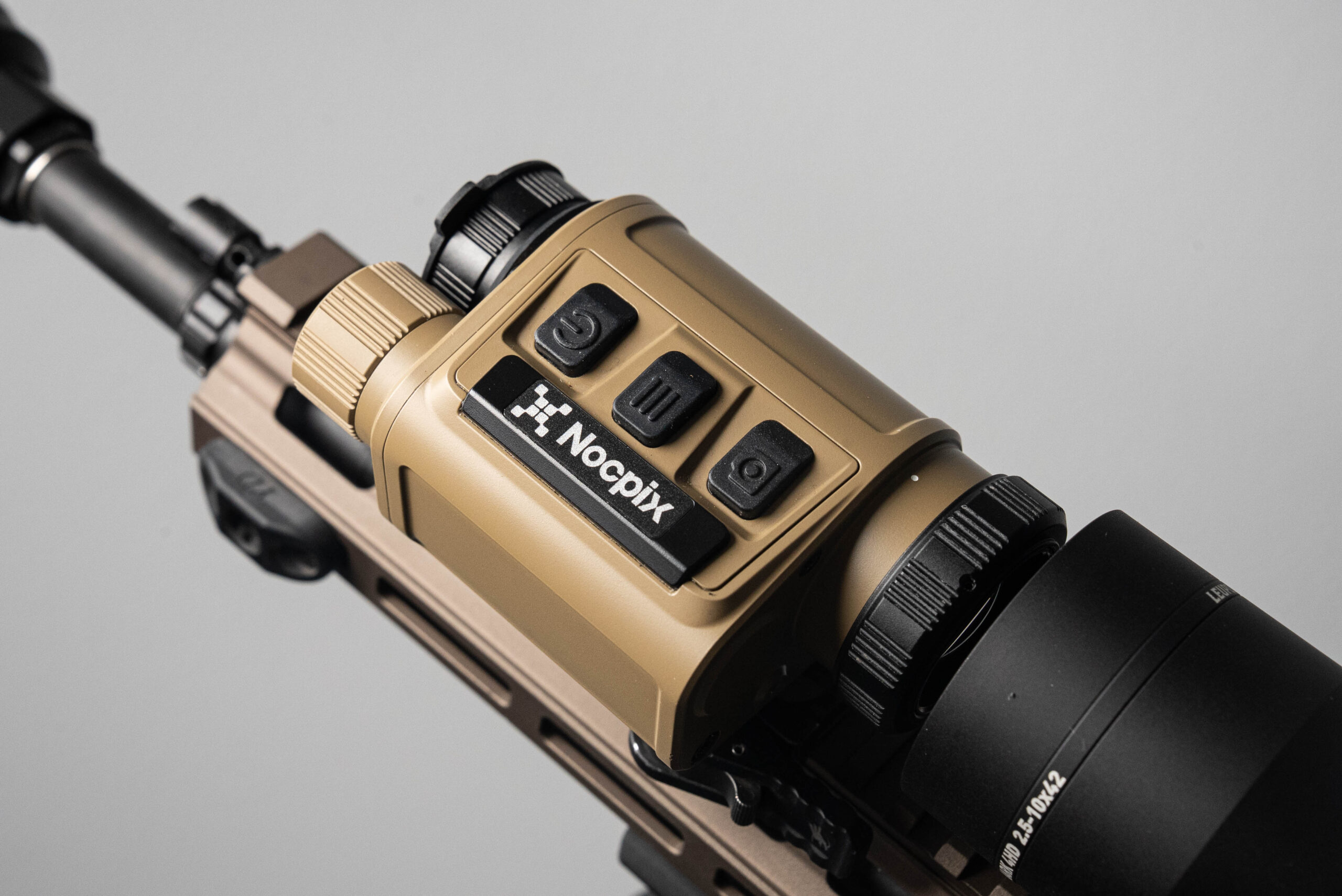

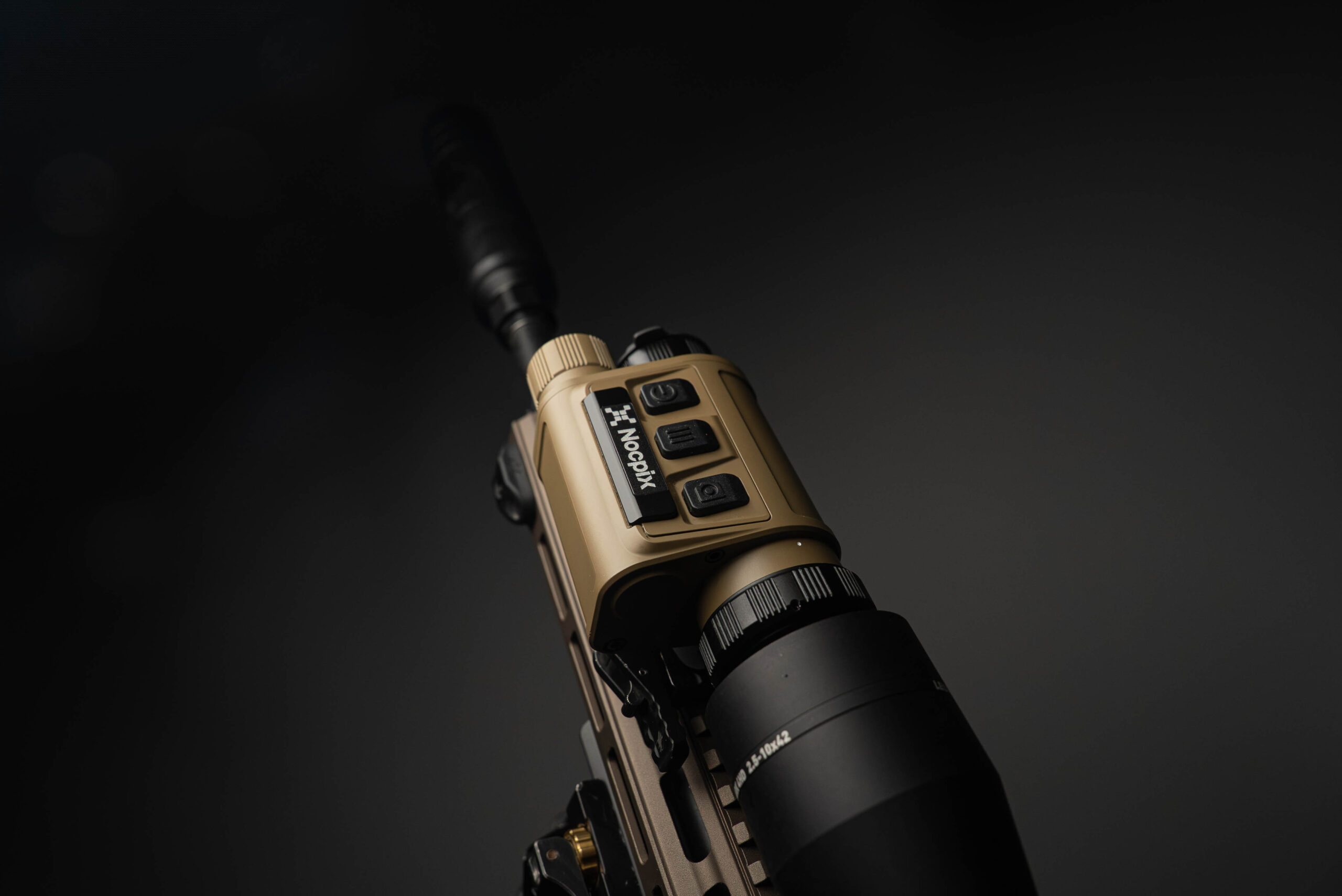

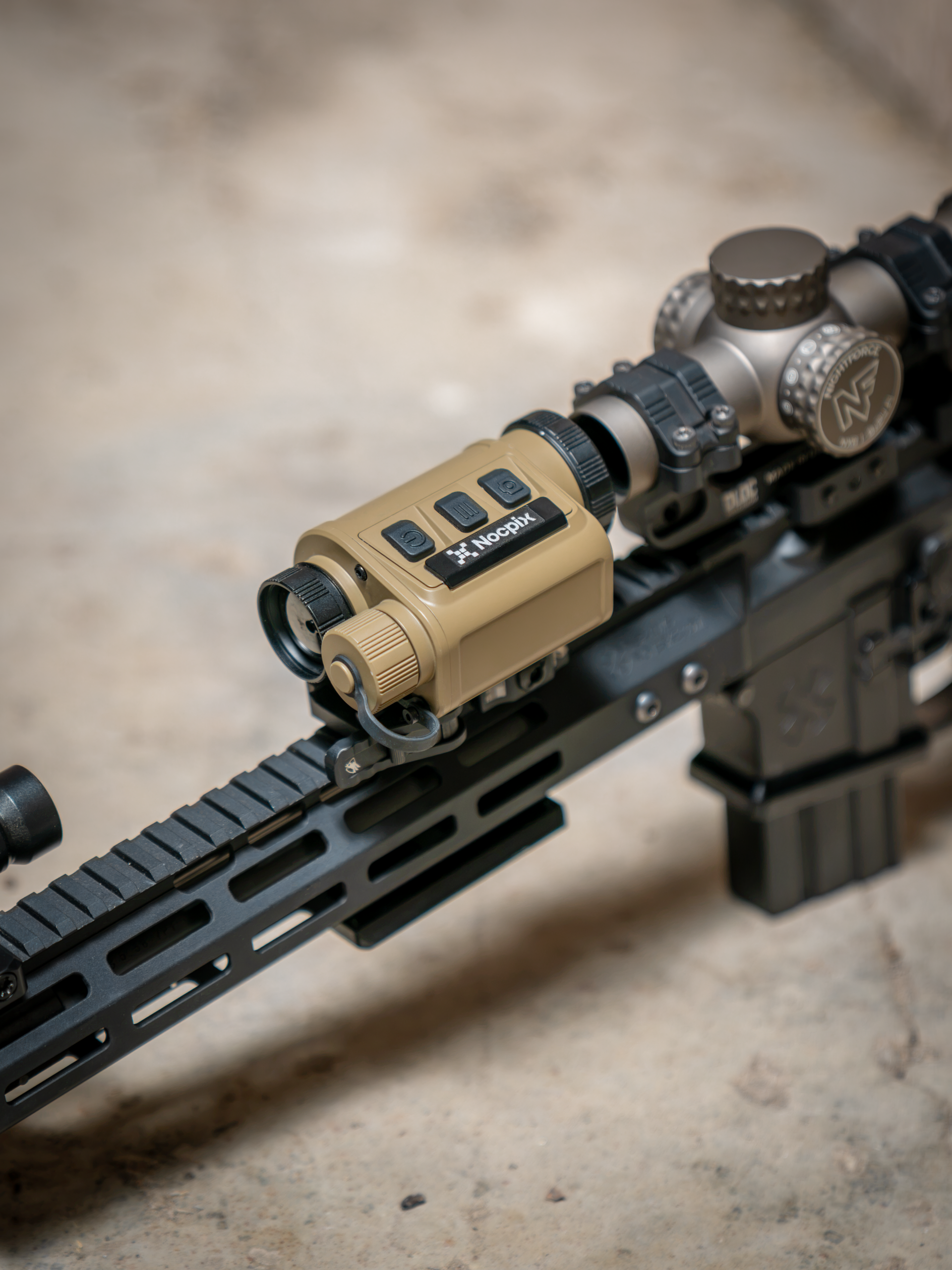

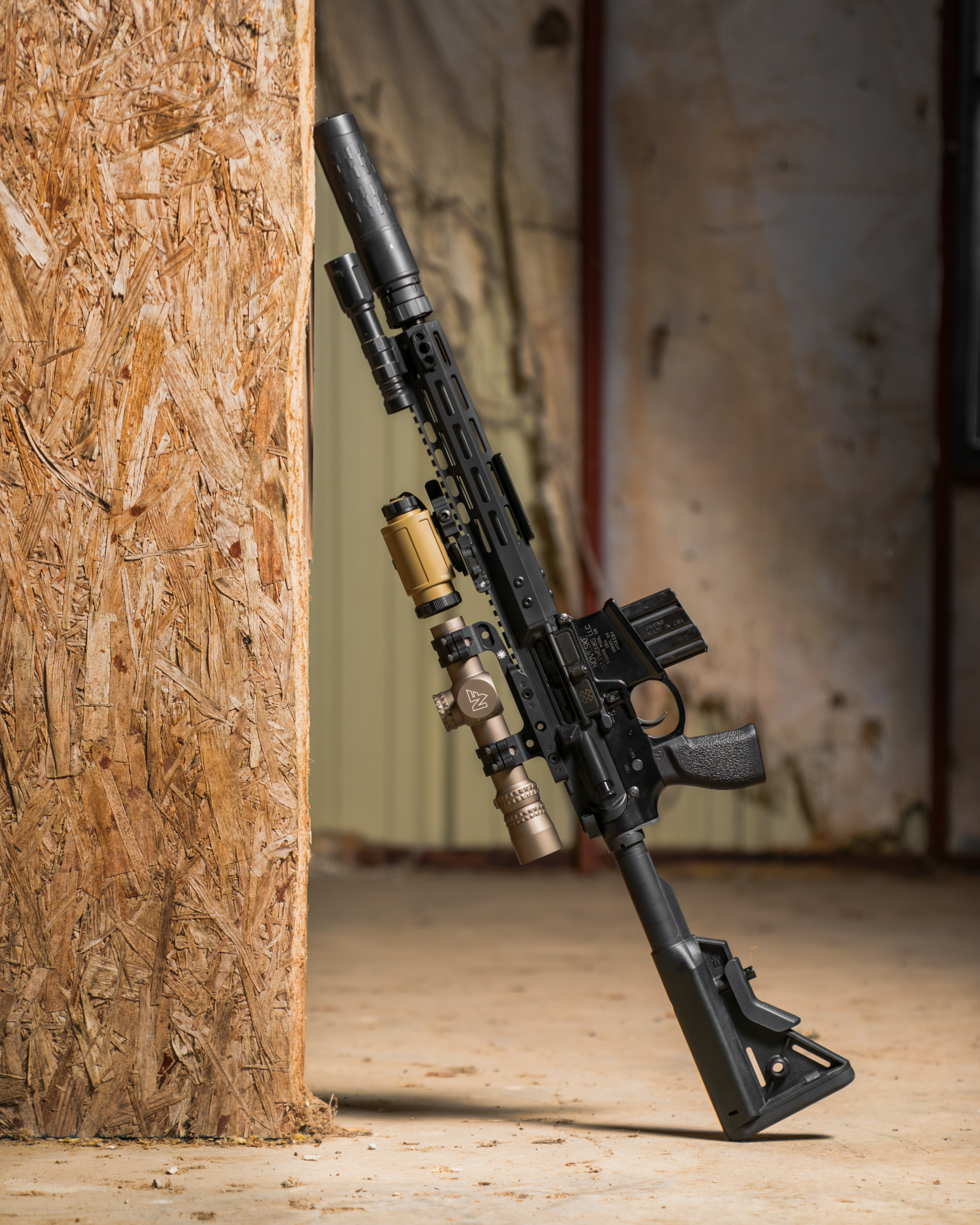

Thermal Clip-On

The MICRO 2 H25 can function as a thermal clip-on system paired with compatible daytime optics. Its updated display and redesigned body support day scopes with magnification levels up to 10×.

Handheld Thermal Scanner

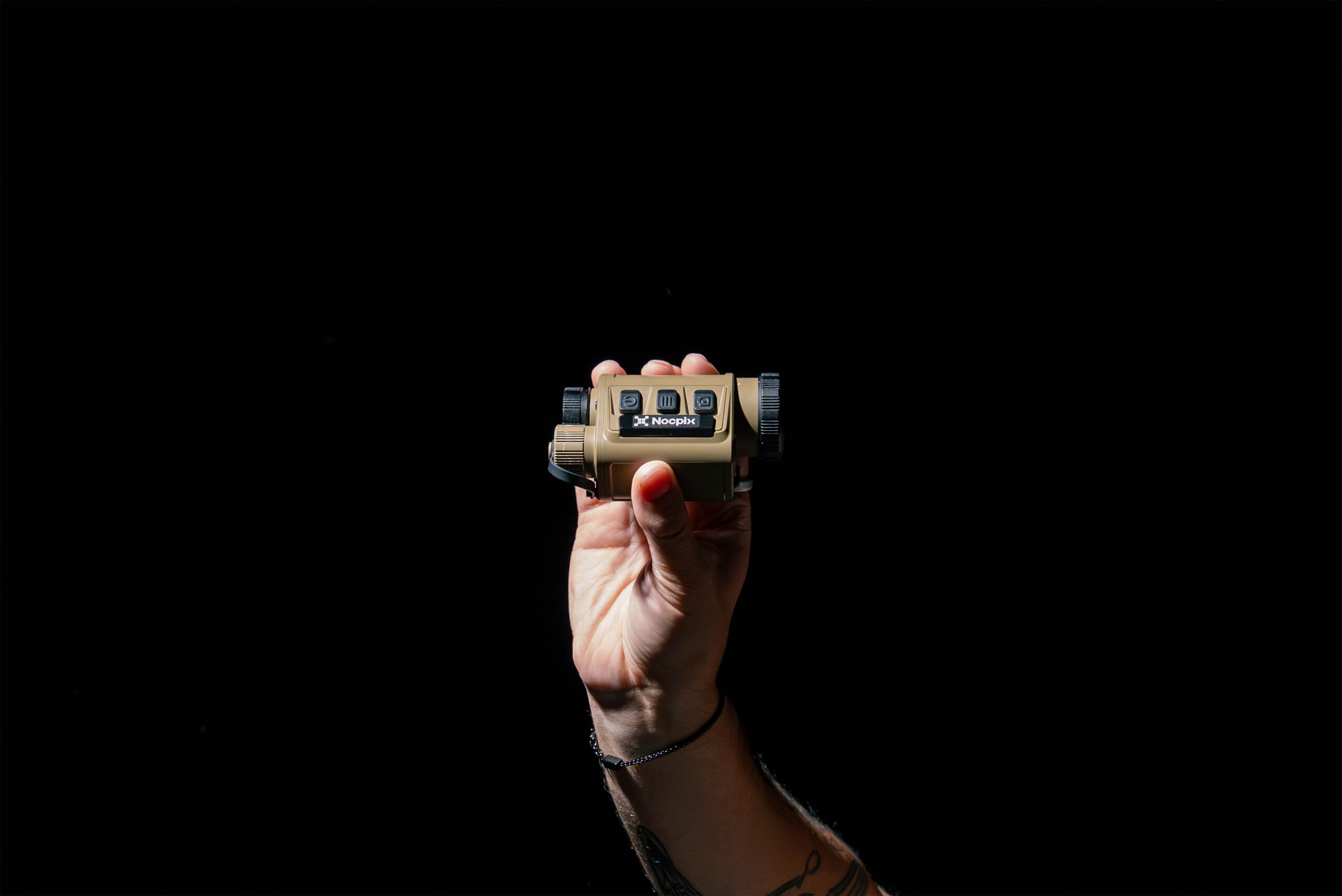

Used as a handheld monocular, the MICRO 2 H25 provides portable thermal detection for predator hunting, property observation, wildlife monitoring, and general outdoor scanning.

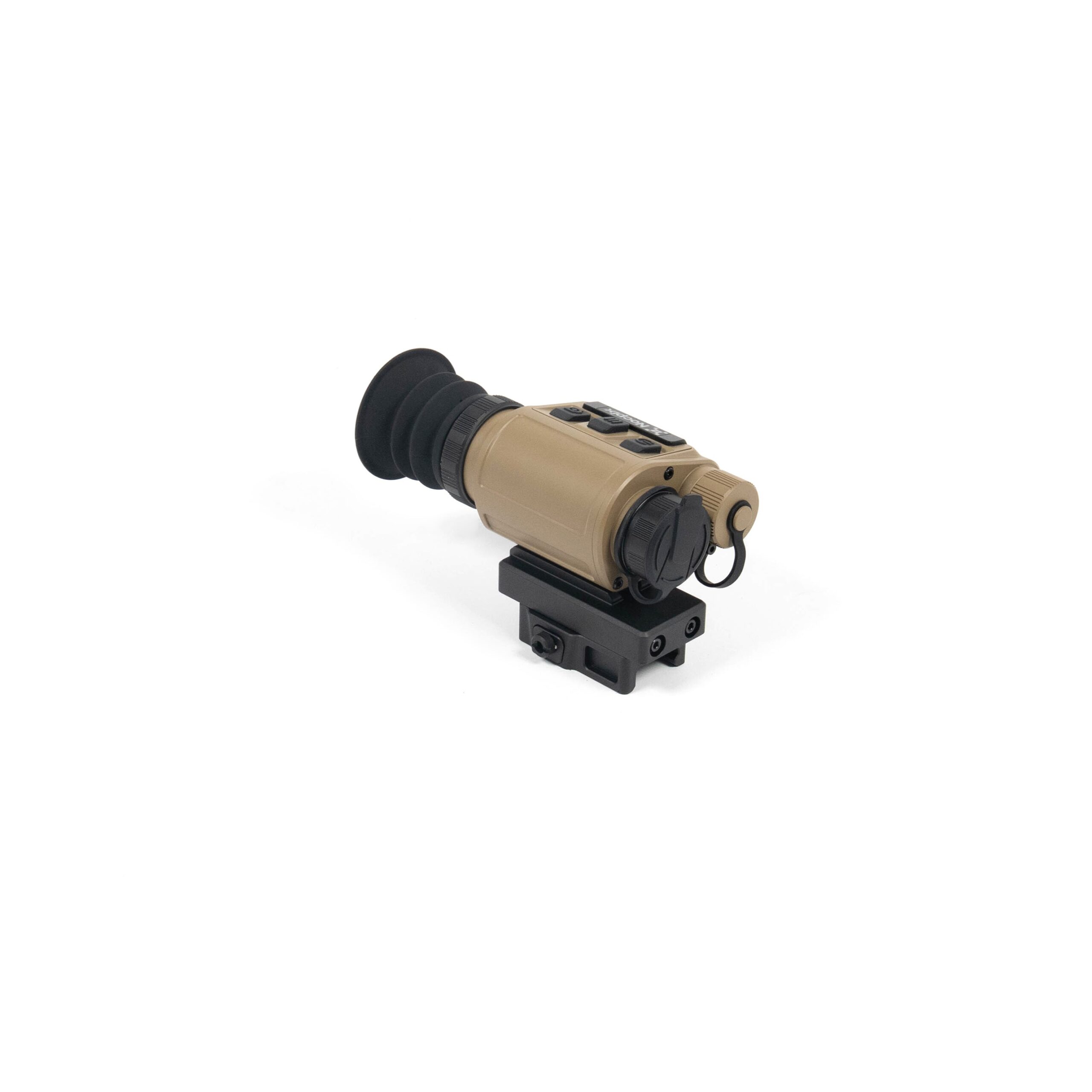

Standalone Thermal Weapon Sight

When used as a dedicated thermal weapon sight, the MICRO 2 H25 offers customizable reticles, Picture-in-Picture, adjustable reticle brightness, and multiple zeroing profiles.

By combining four operating configurations into a single device, the MICRO 2 H25 offers flexibility for users who want one thermal optic capable of handling multiple applications.

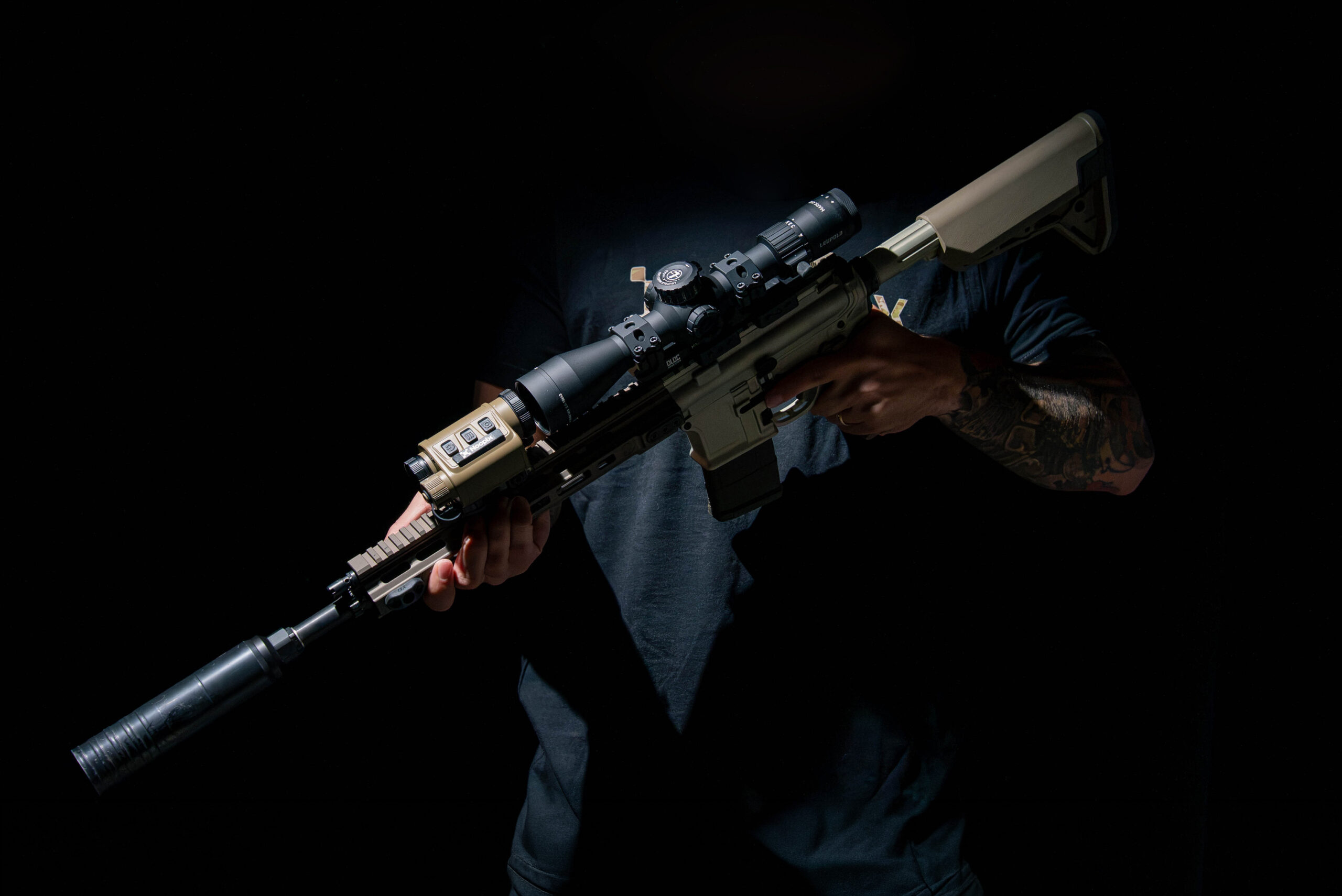

Enhanced Thermal Clip-On Performance with Up to 10× Day-Optic Compatibility

The Nocpix MICRO 2 H25 significantly expands its thermal clip-on capabilities, supporting daytime scopes with magnification levels from 1× up to 10×.

This represents a substantial improvement over the RH25 V2’s 6× clip-on support.

The upgrade is made possible in part by the MICRO 2 H25’s high-resolution 1.03-inch AMOLED display, which features an impressive 2560×2560 resolution.

The additional display resolution helps preserve usable thermal image detail as magnification increases through the daytime optic.

The MICRO 2 H25 also features an improved clip-on interface designed to keep important information, including zeroing, battery status, and operating mode indicators, visible without unnecessarily obstructing the target area.

For hunters seeking to add thermal imaging capability to an existing day-optic setup, the MICRO 2 H25 offers greater magnification flexibility than its predecessor.

Three Independent Zeroing Profiles with App-Based Zeroing

The MICRO 2 H25 supports three independent zeroing profiles, allowing users to save different zero configurations for multiple rifles or daytime optic setups.

Each profile includes numerical zero values, simplifying the process of maintaining and recalling saved configurations.

The system also supports app-based zeroing for convenient adjustments.

This added flexibility is especially valuable for users who intend to move their MICRO 2 H25 between compatible mounting configurations.

Rather than maintaining only one zero configuration, users can store and select the appropriate profile for their setup.

Nocpix FastEngine – Faster Thermal Image Processing

Nocpix introduces its in-house FastEngine image processing architecture to the MICRO 2 H25, delivering a more responsive thermal imaging experience.

According to the manufacturer, FastEngine reduces system latency by approximately 21% compared to the previous generation, decreasing the delay between real-world movement and the displayed thermal image.

Reduced latency is particularly beneficial during helmet-mounted use, where quick head movements and continuous scanning demand responsive image processing.

By improving the connection between thermal sensor input and display output, FastEngine helps deliver smoother viewing and may reduce visual fatigue during extended nighttime use.

Combined with the 60Hz refresh rate and second-generation thermal sensor, FastEngine represents a significant upgrade to the MICRO platform.

1.03-Inch 2560×2560 AMOLED Display

The MICRO 2 H25 features a high-resolution 1.03-inch AMOLED display with 2560×2560 resolution, delivering detailed thermal imagery across its supported operating modes.

The enhanced display provides the resolution necessary for improved clip-on compatibility at higher daytime scope magnifications.

It also helps users evaluate thermal details when scanning or using the MICRO 2 H25 as a standalone weapon sight.

The optic provides 45mm of eye relief and a diopter adjustment range of -4 to +2 for individual viewing preferences.

With improved display resolution and optimized image processing, the MICRO 2 H25 is designed to provide a cleaner, more detailed viewing experience than the preceding generation.

Dual-Link Technology – Pair Two MICRO 2 H25 Units

The Nocpix MICRO 2 H25 introduces Dual-Link technology, allowing two H25 units to operate together as a coordinated thermal binocular system.

When paired, one MICRO 2 H25 functions as the master control unit.

Users can adjust important settings, including menus, thermal color palettes, image settings, and digital magnification, directly from the master unit.

This streamlined control system simplifies operation when using two thermal devices simultaneously.

Dual-Link provides a more integrated solution for users building a dual-thermal helmet-mounted binocular configuration.

Dedicated NV Modes & Thermal Outline Mode

The MICRO 2 H25 includes dedicated night vision compatibility modes designed for dual-band setups combining thermal imaging with traditional night vision.

These specialized NV modes help reduce low-temperature environmental clutter in the thermal image, making it easier to combine thermal detection with the surrounding environmental detail provided by night vision.

An additional thermal outline mode reduces heat signatures to distinct outlines, highlighting the location and general shape of detected heat sources.

This allows the thermal device to emphasize heat-source identification while the night vision device provides more of the surrounding environmental picture.

These features make the MICRO 2 H25 especially versatile for users integrating thermal and night vision into a combined helmet-mounted system.

Picture-in-Picture (PIP) & Customizable Reticles

When configured as a standalone thermal weapon sight, the MICRO 2 H25 offers a Picture-in-Picture feature that provides a magnified aiming window while retaining the wider field of view.

This allows users to inspect the aiming area without completely sacrificing awareness of the surrounding environment.

The MICRO 2 H25 also features eight reticle options, including seven static reticles and one DIY reticle, along with multiple reticle color selections.

Available reticle colors include black, white, red, green, yellow, and blue.

Adjustable reticle brightness and app-based zeroing provide additional control over the standalone weapon sight experience.

Wireless Remote Control for Convenient Operation

The MICRO 2 H25 includes a wireless remote designed to simplify operation across supported configurations.

The remote provides access to recording, display brightness, and menu functions.

An integrated scroll wheel allows users to adjust digital magnification and navigate menu selections without needing to reach directly for the optic.

This is especially convenient when the MICRO 2 H25 is mounted on a rifle or tripod, where changing settings directly on the device may be less convenient.

Advanced Power Management with Up to 9+ Hours of Runtime

The Nocpix MICRO 2 H25 introduces an improved power management system designed to maximize operating time during extended outings.

Its True Sleep feature places the optic into an ultra-low-power state during periods of inactivity.

Flip-to-Standby automatically transitions the system into standby when the optic is flipped out of its operating position.

An additional Power-Saving Mode helps extend battery runtime.

Nocpix rates the MICRO 2 H25 for up to 9+ hours of operation under its stated power-management conditions.

The optic utilizes 18650 lithium-ion battery power and supports external USB-C power for additional flexibility.

64GB Internal Storage with Video, Photo & Recoil-Activated Recording

The MICRO 2 H25 includes 64GB of onboard storage, allowing users to record and save thermal footage without an external recording device.

The optic supports video recording, image capture, and recoil-activated recording.

Compared to the RH25 V2, recorded video resolution has been upgraded from 768×576 to 1280×960, providing approximately 2.8 times as many recorded pixels.

This increased recording resolution captures more image detail for reviewing nighttime observations, wildlife encounters, and field activity.

Wireless connectivity also allows users to access images and videos through the compatible app.

Compact Magnesium Alloy Housing & IP67 Protection

The MICRO 2 H25 features a redesigned housing that is both shorter and narrower than the preceding RH25 V2.

Its width has been reduced from 65.8mm to 63.4mm, providing additional clearance for interpupillary adjustment when used in a dual-unit thermal binocular configuration.

The overall clip-on length has been reduced by approximately 12% to 101mm, helping free up valuable rail space for additional accessories.

Weighing approximately 11.2 ounces, the MICRO 2 H25 features a durable magnesium alloy housing with Cerakote TAN H-235 finish.

An IP67 ingress protection rating provides resistance to dust and water exposure.

The manufacturer lists an operating temperature range of -4°F to +122°F and recoil resistance up to 1200 g/s², with .300 Win. Mag. and 7mm Mag. noted in its recoil specifications.

5-Year Nocpix Manufacturer Warranty

The Nocpix MICRO 2 H25 640 Thermal Weapon Sight is backed by a 5-year Nocpix manufacturer warranty, providing warranty coverage consistent with the supplied manufacturer’s specifications.

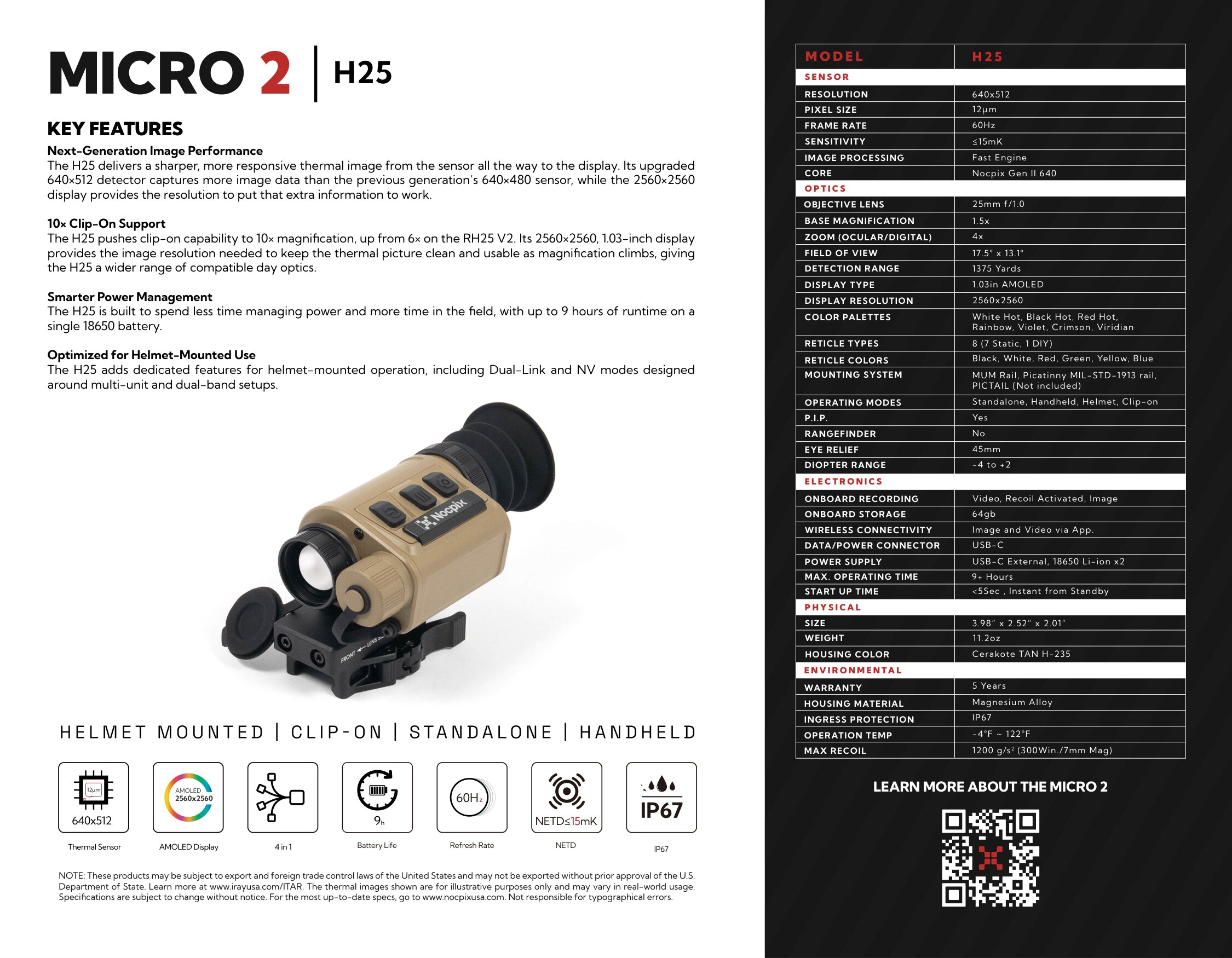

Nocpix MICRO 2 H25 640 Specifications:

Specification	Nocpix MICRO 2 H25
Manufacturer	Nocpix
Model	MICRO 2 H25
Thermal Sensor	Nocpix Gen II 640
Sensor Resolution	640×512
Pixel Pitch	12μm
Thermal Sensitivity (NETD)	≤15mK
Refresh Rate	60Hz
Image Processing	FastEngine
Objective Lens	25mm F1.0
Digital Zoom	Up to 4×
Field of View	17.5° × 13.1°
Thermal Detection Range	1,375 Yards
Display Type	AMOLED
Display Size	1.03 Inches
Display Resolution	2560×2560
Thermal Palettes	White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
Operating Modes	Helmet-Mounted, Clip-On, Handheld, Standalone
Clip-On Day Optic Compatibility	1–10×
Dual-Link Technology	Yes
NV & Outline Modes	Yes
Picture-in-Picture (PIP)	Yes
Reticle Options	8 (7 Static, 1 DIY)
Reticle Colors	Black, White, Red, Green, Yellow, Blue
Zeroing Profiles	3
Laser Rangefinder	No
Eye Relief	45mm
Diopter Adjustment	-4 to +2
Video Recording	Yes
Photo Capture	Yes
Recoil-Activated Recording	Yes
Video Recording Resolution	1280×960
Internal Memory	64GB
Wireless Connectivity	Image & Video via App
Wireless Remote	Included
Data / Power Connection	USB-C
Battery Type	18650 Lithium-Ion
Maximum Operating Time	9+ Hours
Startup Time	<5 Seconds; Instant from Standby
Dimensions	3.98 × 2.52 × 2.01 Inches
Weight	11.2 oz
Housing Material	Magnesium Alloy
Housing Finish	Cerakote TAN H-235
Ingress Protection	IP67
Operating Temperature	-4°F to +122°F
Mounting Compatibility	MUM Rail, MIL-STD-1913 Picatinny Rail, PICTAIL (Not Included)
Manufacturer Warranty	5 Years

Frequently Asked Questions (FAQ)

What is the Nocpix MICRO 2 H25?

The Nocpix MICRO 2 H25 is a multifunction thermal optic that can be used as a helmet-mounted thermal monocular, thermal clip-on, handheld scanner, or standalone thermal weapon sight.

What thermal sensor does the Nocpix MICRO 2 H25 use?

The MICRO 2 H25 features a second-generation Nocpix 640×512 thermal detector with 12μm pixel pitch, ≤15mK thermal sensitivity, and a 60Hz refresh rate.

What is the detection range of the Nocpix MICRO 2 H25?

The manufacturer rates the MICRO 2 H25 for a maximum thermal detection range of 1,375 yards.

Can the Nocpix MICRO 2 H25 be used as a thermal clip-on?

Yes. The MICRO 2 H25 supports thermal clip-on operation with compatible daytime optics offering magnification levels from 1× to 10×.

Can two Nocpix MICRO 2 H25 units be paired together?

Yes. The MICRO 2 H25 features Dual-Link technology, allowing two units to operate as a coordinated thermal binocular system with settings controlled from a master unit.

Does the MICRO 2 H25 work with night vision?

Yes. The MICRO 2 H25 includes dedicated NV modes and a thermal outline mode designed to improve usability in combined thermal and night vision configurations.

Does the Nocpix MICRO 2 H25 have Picture-in-Picture?

Yes. Picture-in-Picture is available during standalone weapon sight operation, providing a magnified aiming window while retaining the wider viewing area.

Does the MICRO 2 H25 have multiple zeroing profiles?

Yes. The MICRO 2 H25 supports three independent zeroing profiles with numerical zero values for different rifle or day-optic configurations.

How long does the Nocpix MICRO 2 H25 battery last?

Nocpix lists a maximum operating time of 9+ hours, with power-saving features including True Sleep, Flip-to-Standby, and Power-Saving Mode. Actual runtime depends on the operating configuration and settings.

Does the Nocpix MICRO 2 H25 record video?

Yes. The MICRO 2 H25 supports video, still images, and recoil-activated recording. Video recording resolution is 1280×960, and the optic includes 64GB of internal storage.

How much does the Nocpix MICRO 2 H25 weigh?

The MICRO 2 H25 weighs approximately 11.2 ounces and measures 3.98 × 2.52 × 2.01 inches.

Does the Nocpix MICRO 2 H25 have a laser rangefinder?

No. The supplied manufacturer specifications confirm that the MICRO 2 H25 does not include a laser rangefinder.

What warranty does the Nocpix MICRO 2 H25 include?

The Nocpix MICRO 2 H25 includes a 5-year manufacturer warranty.
