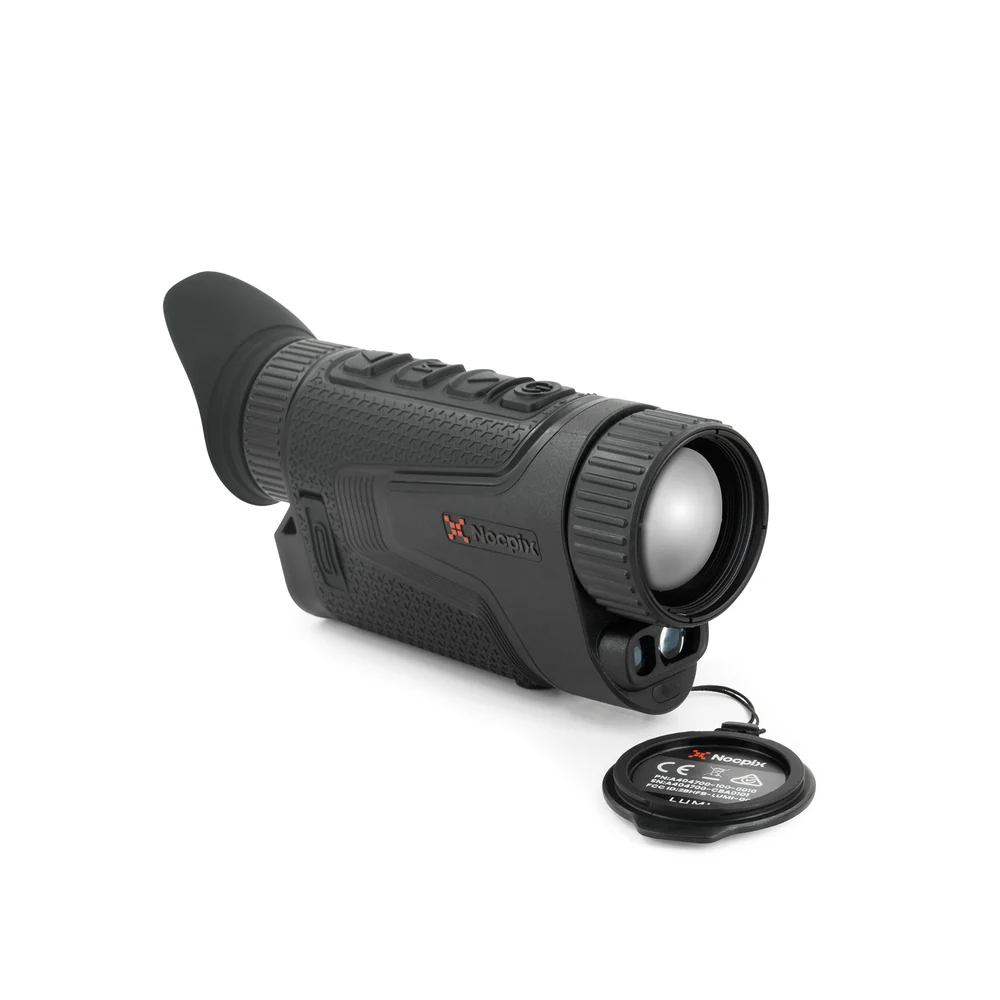

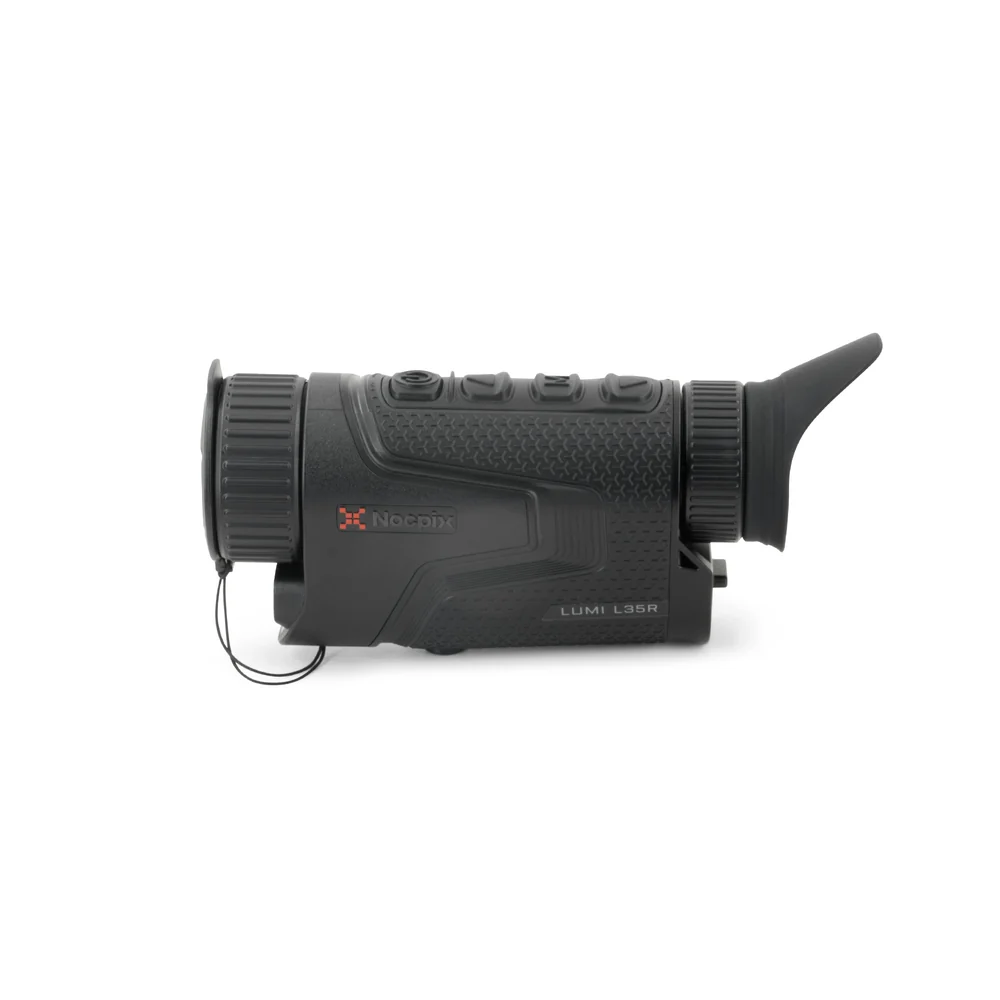

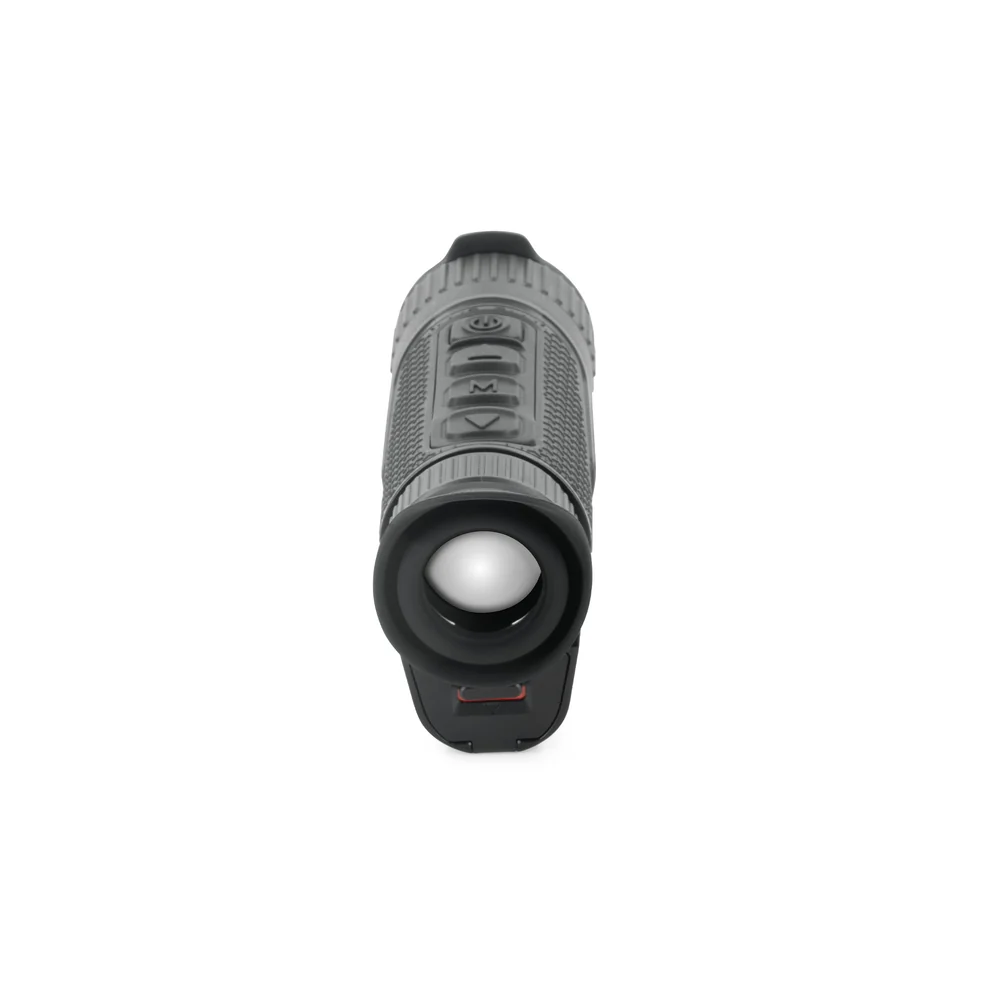

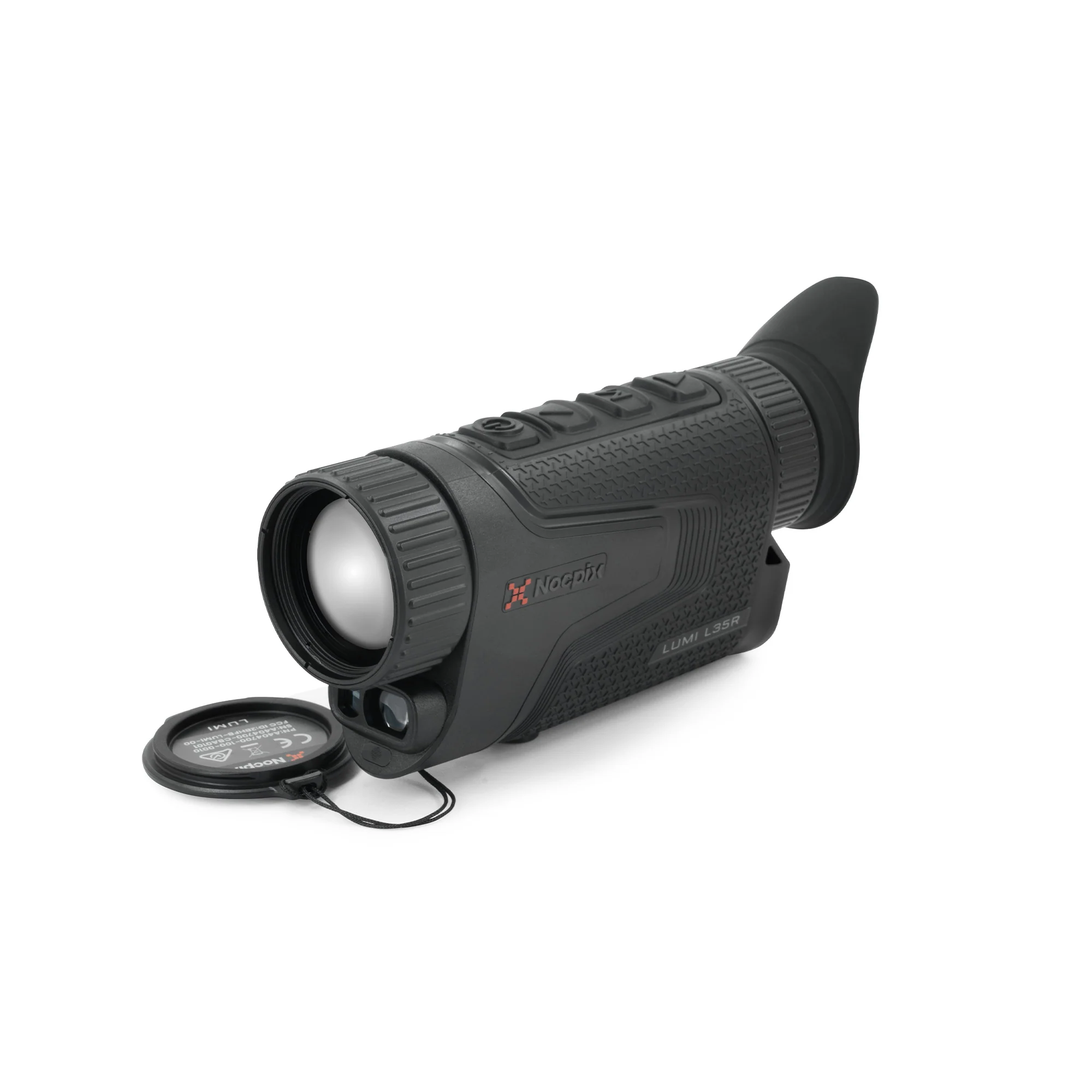

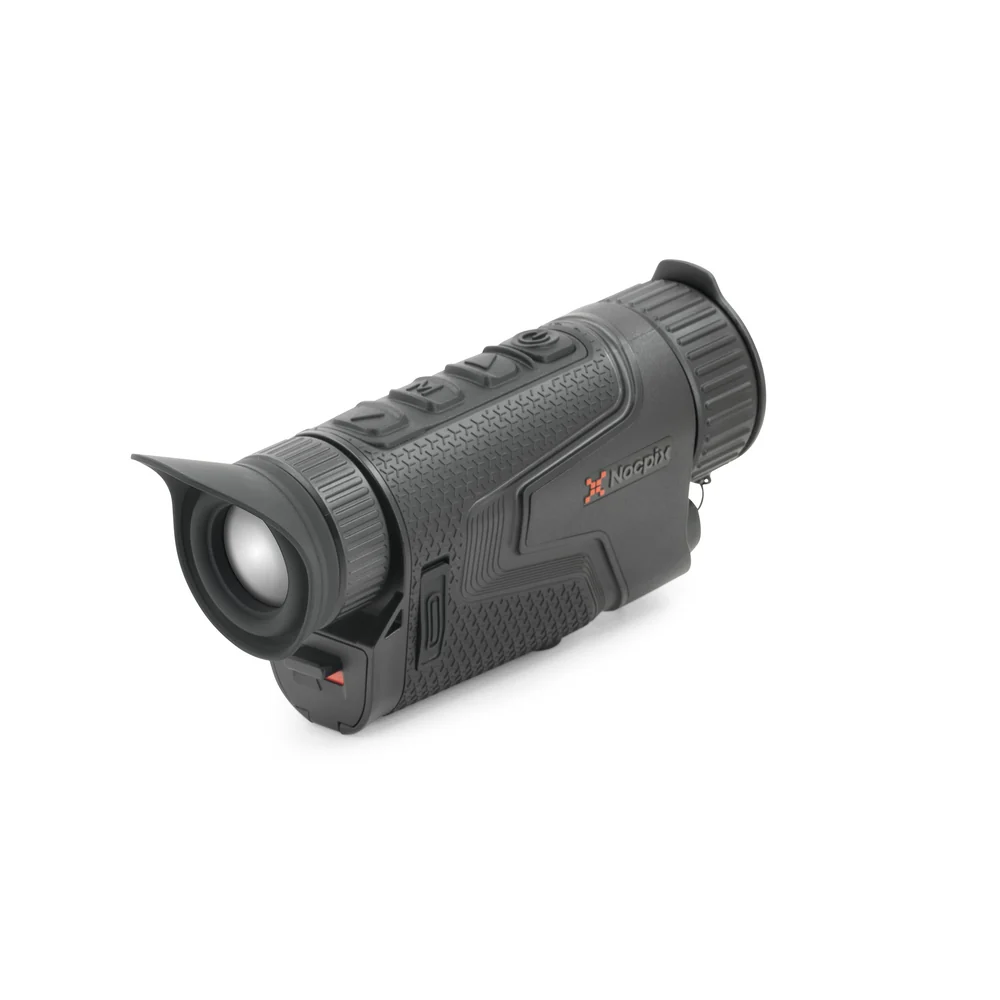

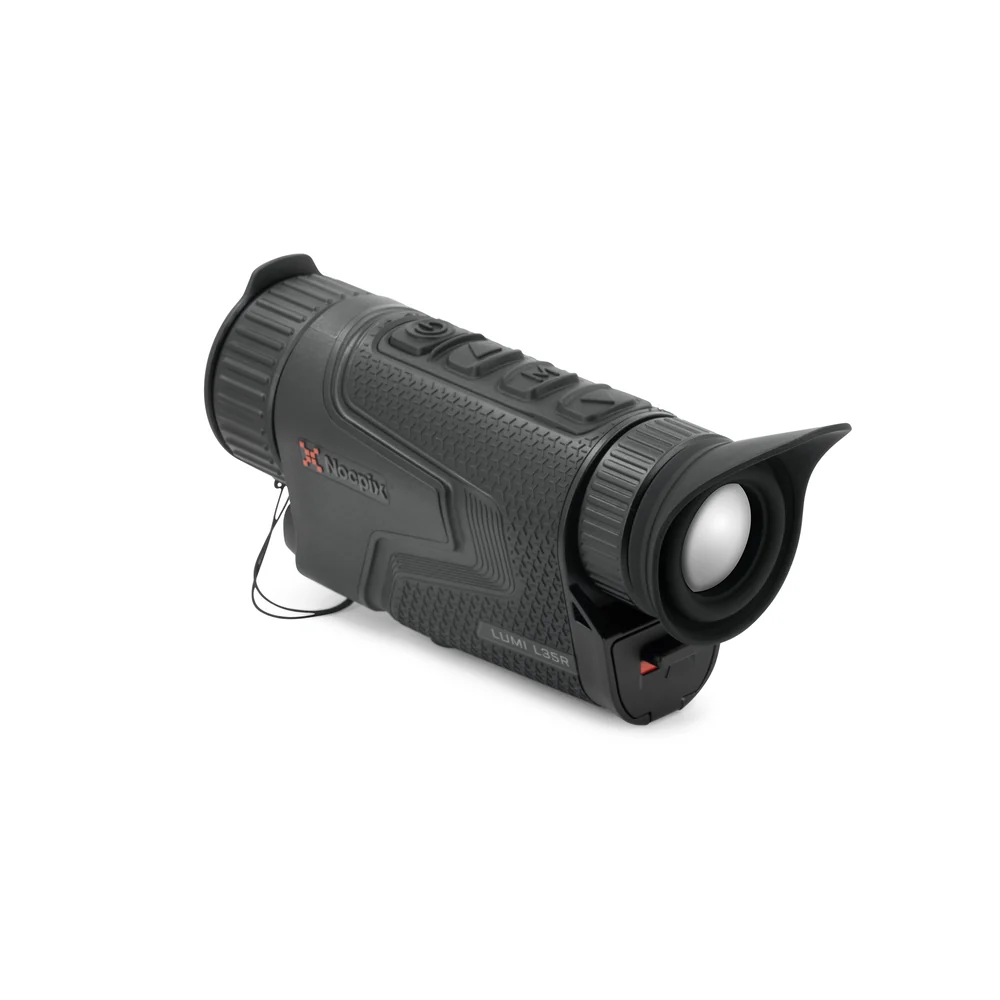

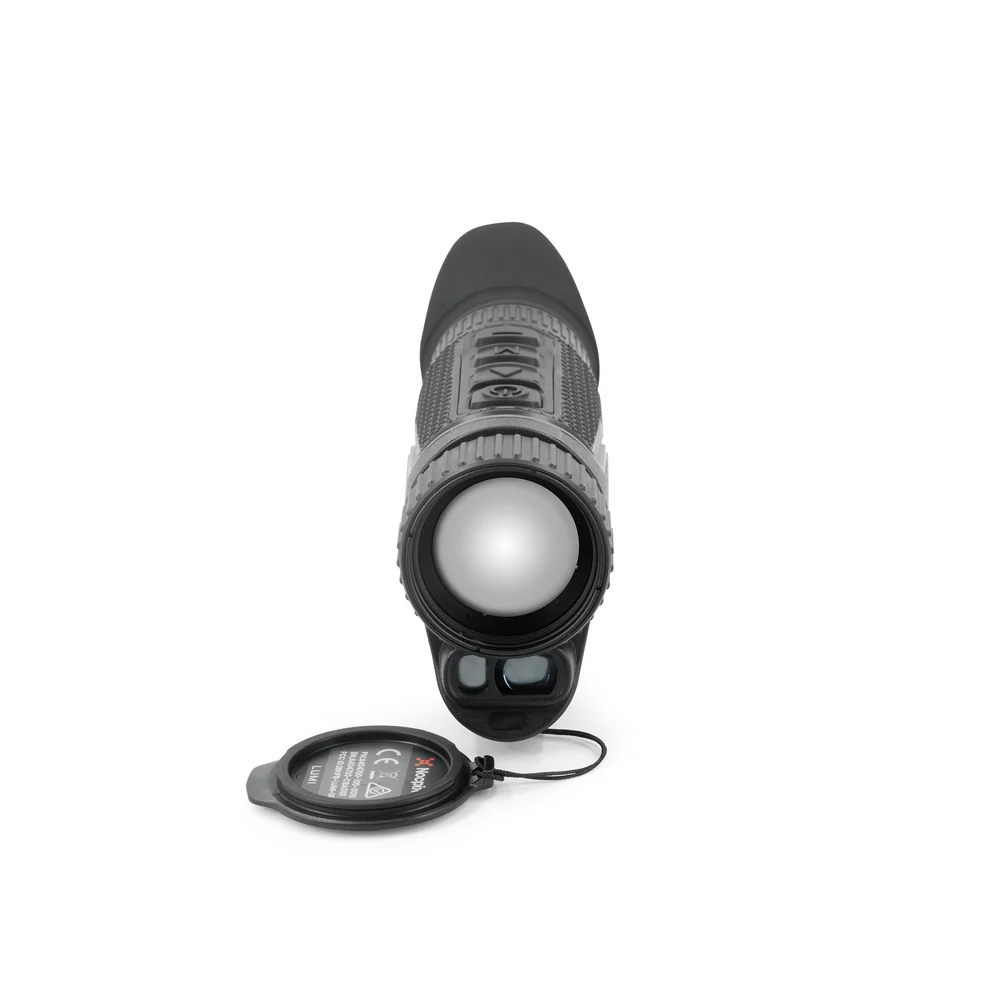

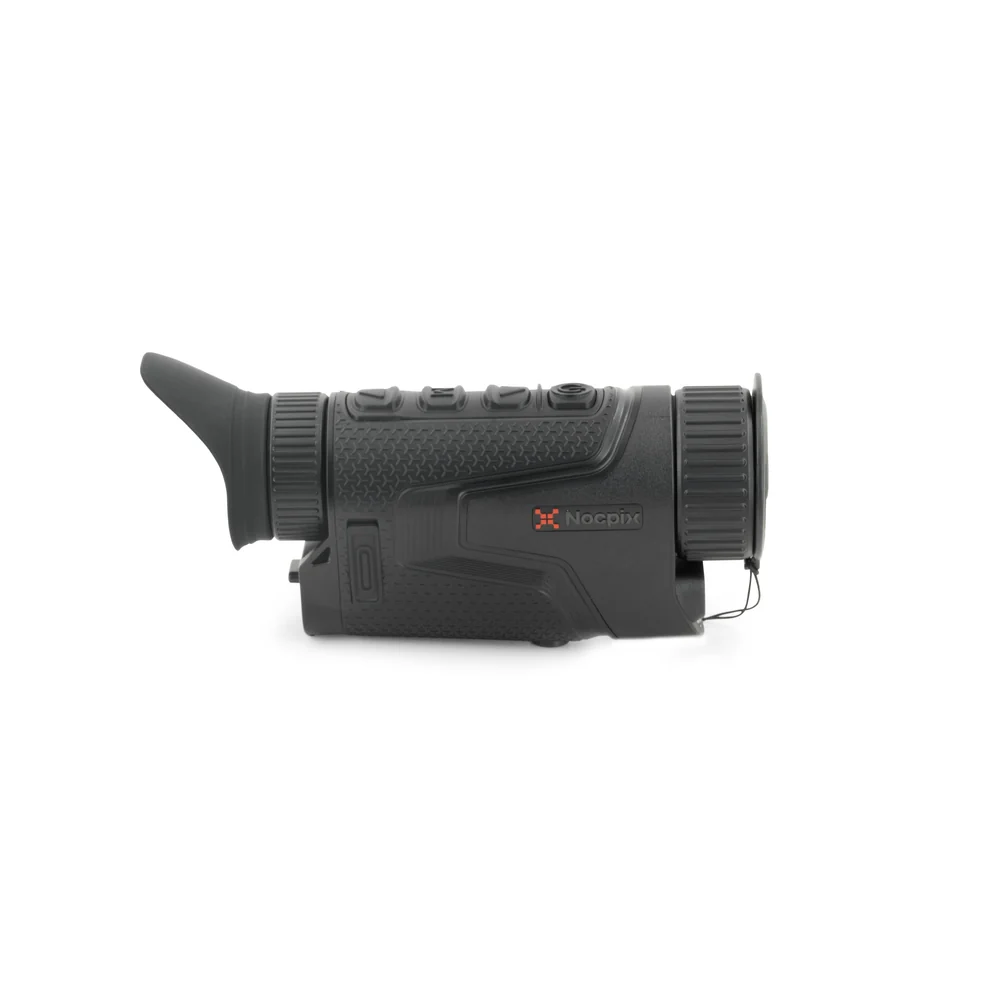

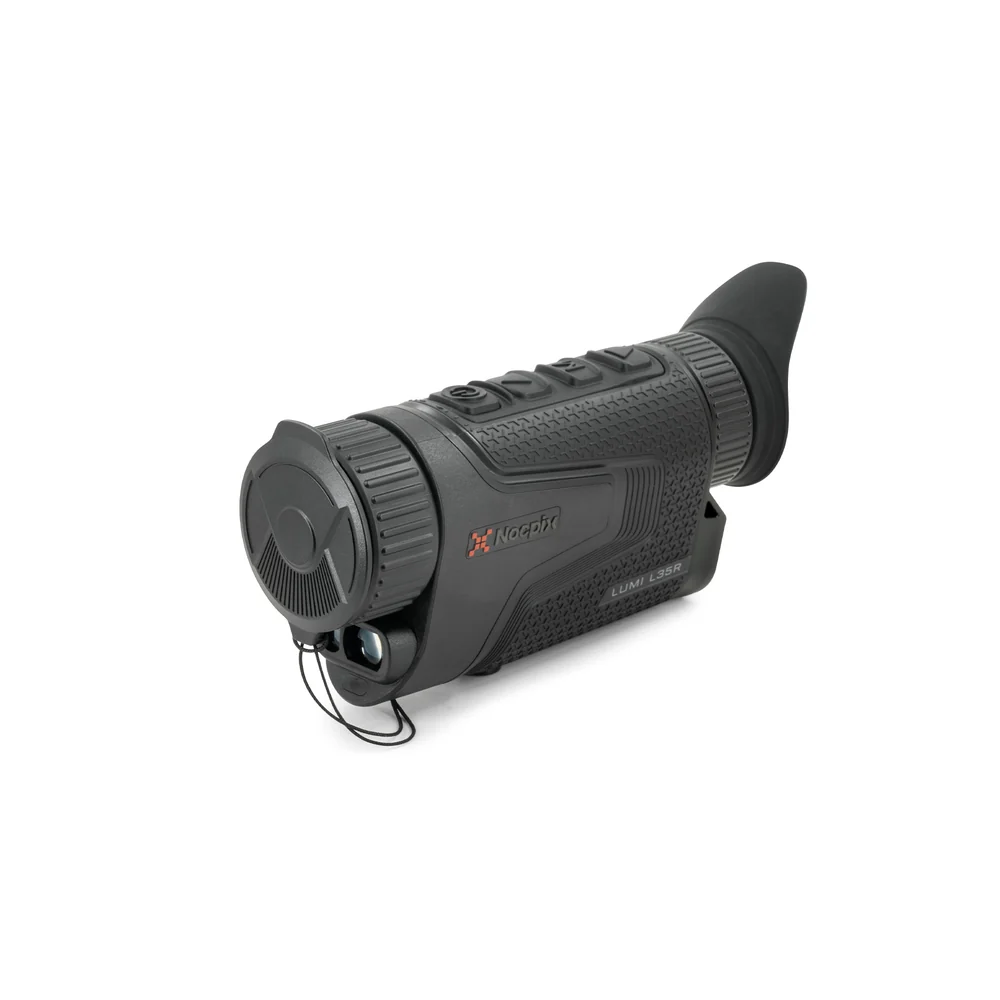

Nocpix LUMI L35R Thermal Monocular

(4–16x magnification and 1,970 yards of detection!)

The Nocpix LUMI L35R thermal monocular combines long-range thermal detection, an integrated laser rangefinder, and a compact handheld design in one lightweight unit. Built around a 384×288 Nocpix thermal sensor, the LUMI L35R features a fast 35 mm f/0.9 objective lens, 4× native magnification, and a 1,970-yard detection range.

A built-in 875-yard laser rangefinder provides accurate ranging without increasing the overall size of the LUMI platform, making the L35R an excellent option for hunters who want thermal observation and ranging capability in one compact monocular.

384×288 Thermal Sensor with ≤18 mK Sensitivity

The LUMI L35R uses a 384×288 thermal sensor with a 12 μm pixel pitch, 50 Hz frame rate, and ≤18 mK sensor sensitivity. Nocpix Reality+ image processing further enhances image quality, including when digital magnification is being used.

35 mm f/0.9 Lens & 1,970-Yard Detection Range

A manual-focus 35 mm f/0.9 germanium objective lens provides 4× native magnification with up to 4× digital zoom. The optic offers a 7.5° × 5.7° field of view and a listed thermal detection range of up to 1,970 yards.

The fast f/0.9 lens and 384×288 sensor provide a practical combination of magnification, field of view, and long-distance thermal observation.

Integrated 875-Yard Laser Rangefinder

The Nocpix LUMI L35R adds an integrated laser rangefinder directly into the compact LUMI housing.

The LRF provides ranging out to 875 yards with ±1-yard accuracy and can display real-time range information using either single-fire or continuous ranging modes.

Nocpix designed the rangefinder into the housing without increasing the overall dimensions of the LUMI platform.

1024×768 AMOLED Display

Thermal imagery is displayed through a high-resolution 1024×768 AMOLED display, providing increased clarity and detail during observation.

The L35R also includes Picture-in-Picture functionality and seven available thermal color palettes:

• White Hot
• Black Hot
• Red Hot
• Color
• Crimson
• Viridian
• Violet

Compact & Lightweight Design

The LUMI L35R is designed to remain easy to carry during extended hunts. It measures just 5.63″ × 1.85″ × 2.91″ and weighs only 11.82 oz.

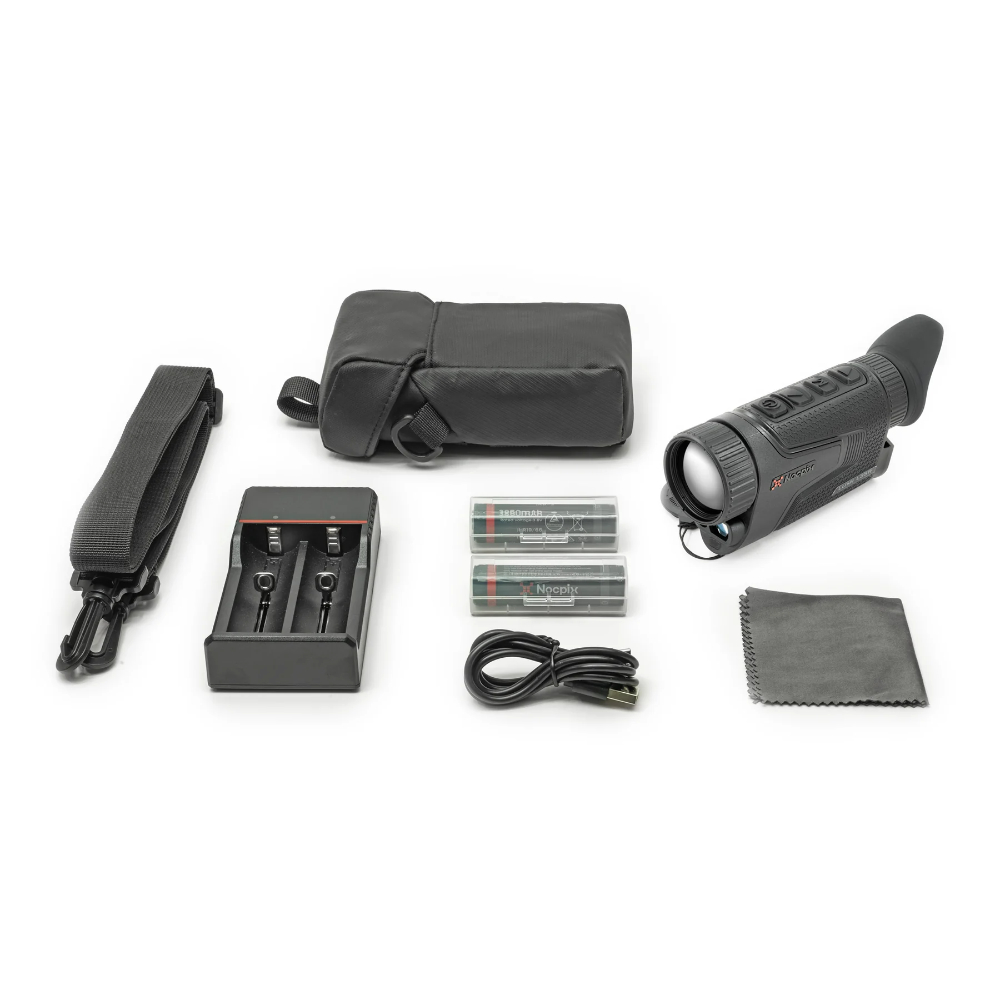

Its compact dimensions allow it to fit easily into a pocket or the included MOLLE-compatible pouch. A polymer housing with rubber overmold adds durability and provides a surface that is not cold to the touch.

Removable 18650-Style Battery

The LUMI L35R uses common 18650-style rechargeable batteries, making field battery changes simple.

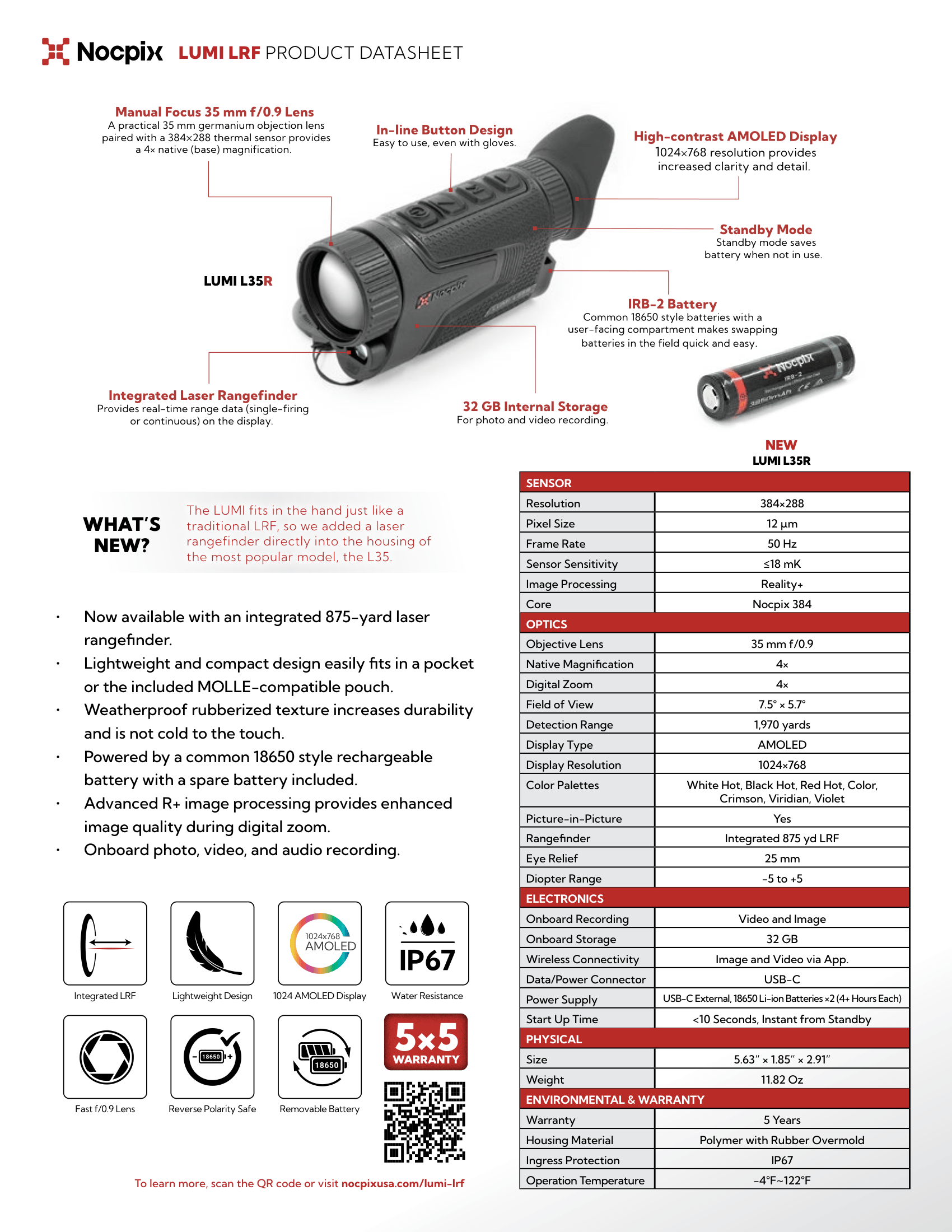

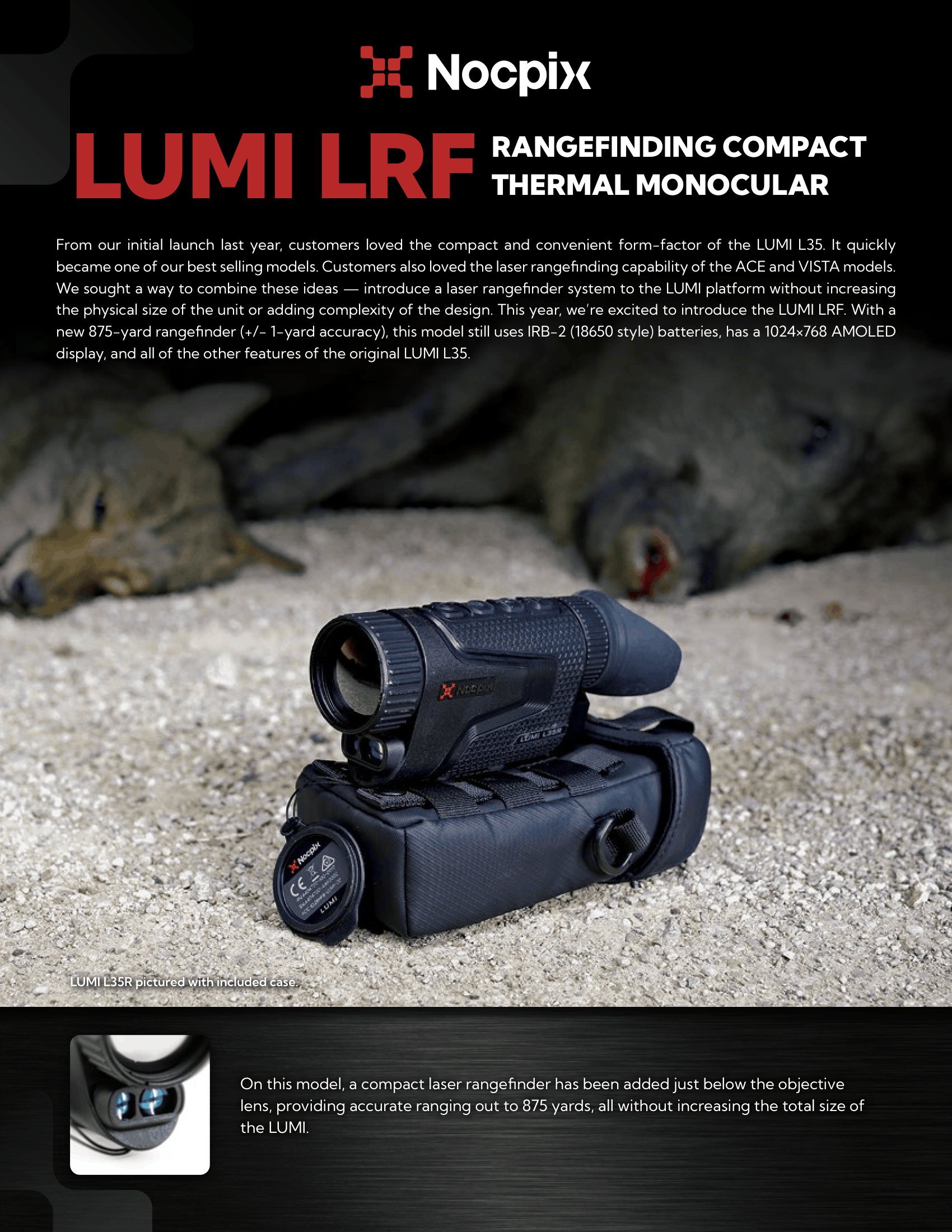

The datasheet lists two 18650 Li-ion batteries with 4+ hours of operation per battery, along with USB-C external power capability. A spare battery is included.

A user-facing battery compartment makes swapping batteries in the field quick and convenient.

32 GB Internal Storage & Wireless Connectivity

With 32 GB of onboard storage, the LUMI L35R can capture thermal images and video directly through the monocular.

Wireless connectivity allows images and videos to be accessed through the app, while a USB-C connection supports data transfer and external power.

IP67 Protection & 5-Year Warranty

The LUMI L35R features an IP67 ingress-protection rating and is designed to operate in temperatures ranging from -4°F to 122°F.

Nocpix LUMI L35R Specifications:

Specification	LUMI L35R
Sensor Resolution	384×288
Pixel Size	12 μm
Frame Rate	50 Hz
Thermal Sensitivity	≤18 mK
Image Processing	Reality+
Core	Nocpix 384
Objective Lens	35 mm f/0.9
Native Magnification	4×
Digital Zoom	4×
Field of View	7.5° × 5.7°
Detection Range	1,970 yards
Display Type	AMOLED
Display Resolution	1024×768
Picture-in-Picture	Yes
Laser Rangefinder	Integrated 875-yard LRF
LRF Accuracy	±1 yard
Eye Relief	25 mm
Diopter Range	-5 to +5
Onboard Recording	Video & image
Internal Storage	32 GB
Wireless Connectivity	Image & video via app
Data / Power Connection	USB-C
Battery	18650 Li-ion batteries ×2
Battery Runtime	4+ hours each
Start-Up Time	<10 seconds; instant from standby
Dimensions	5.63″ × 1.85″ × 2.91″
Weight	11.82 oz
Housing	Polymer with rubber overmold
Ingress Protection	IP67
Operating Temperature	-4°F to 122°F
Warranty	5 Years
