Description

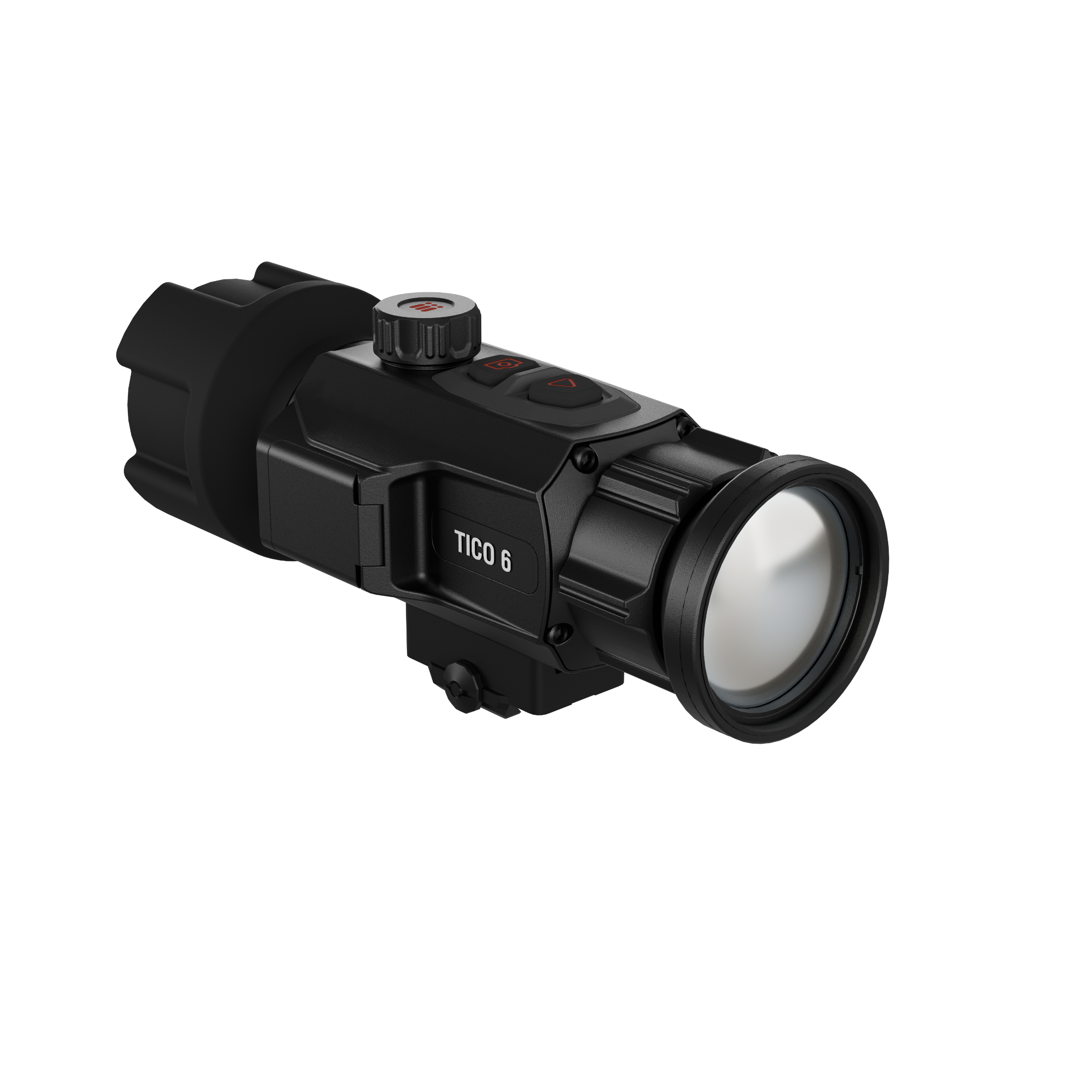

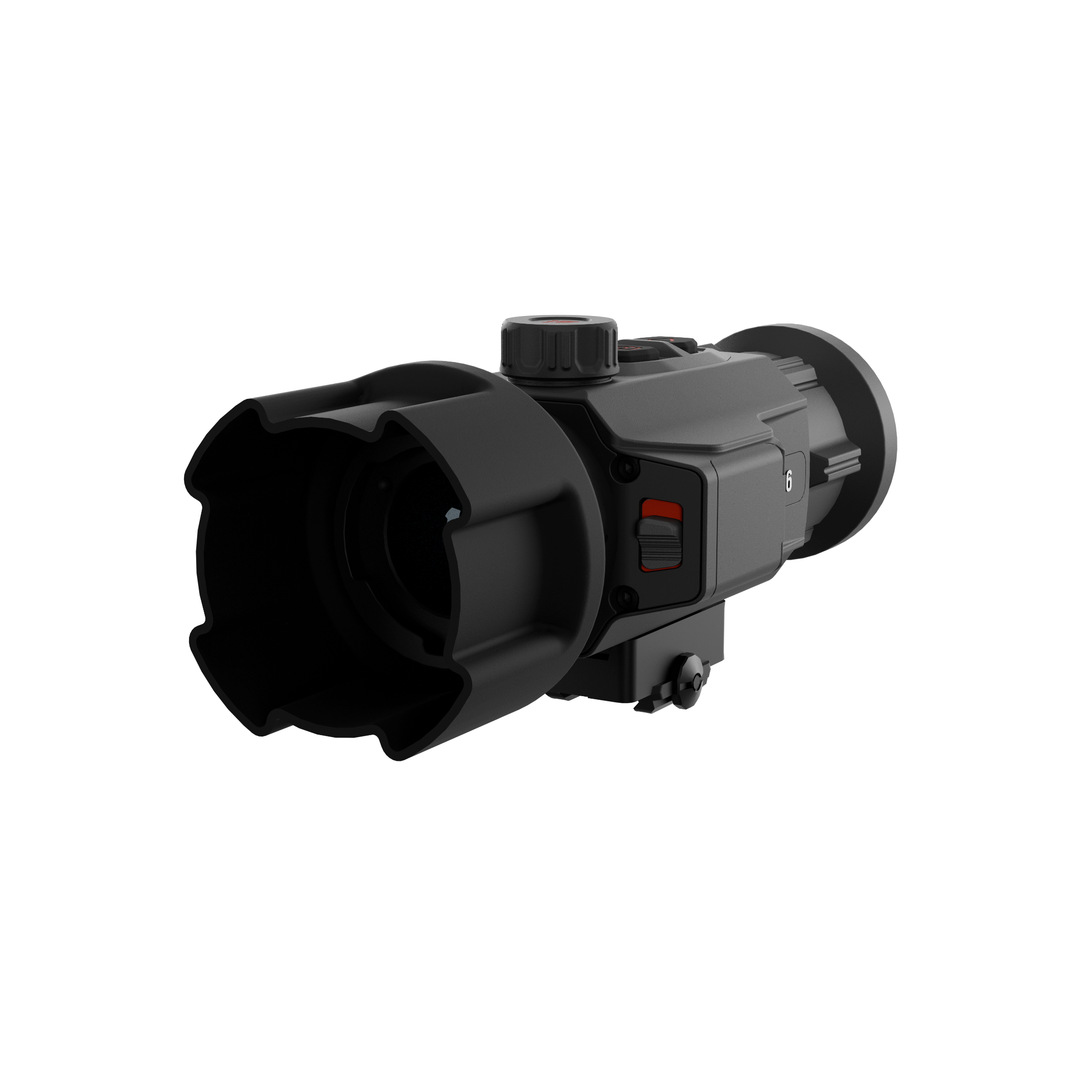

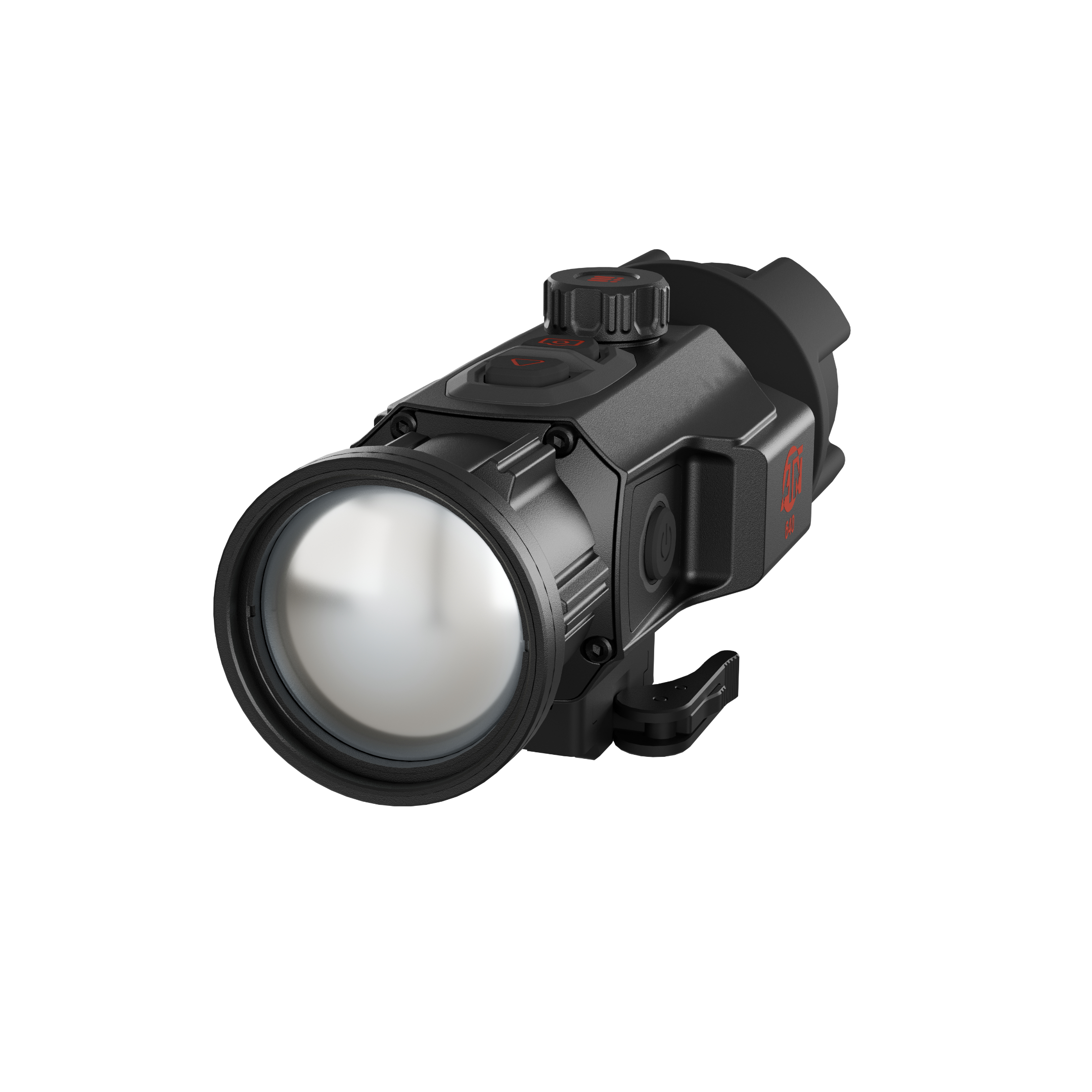

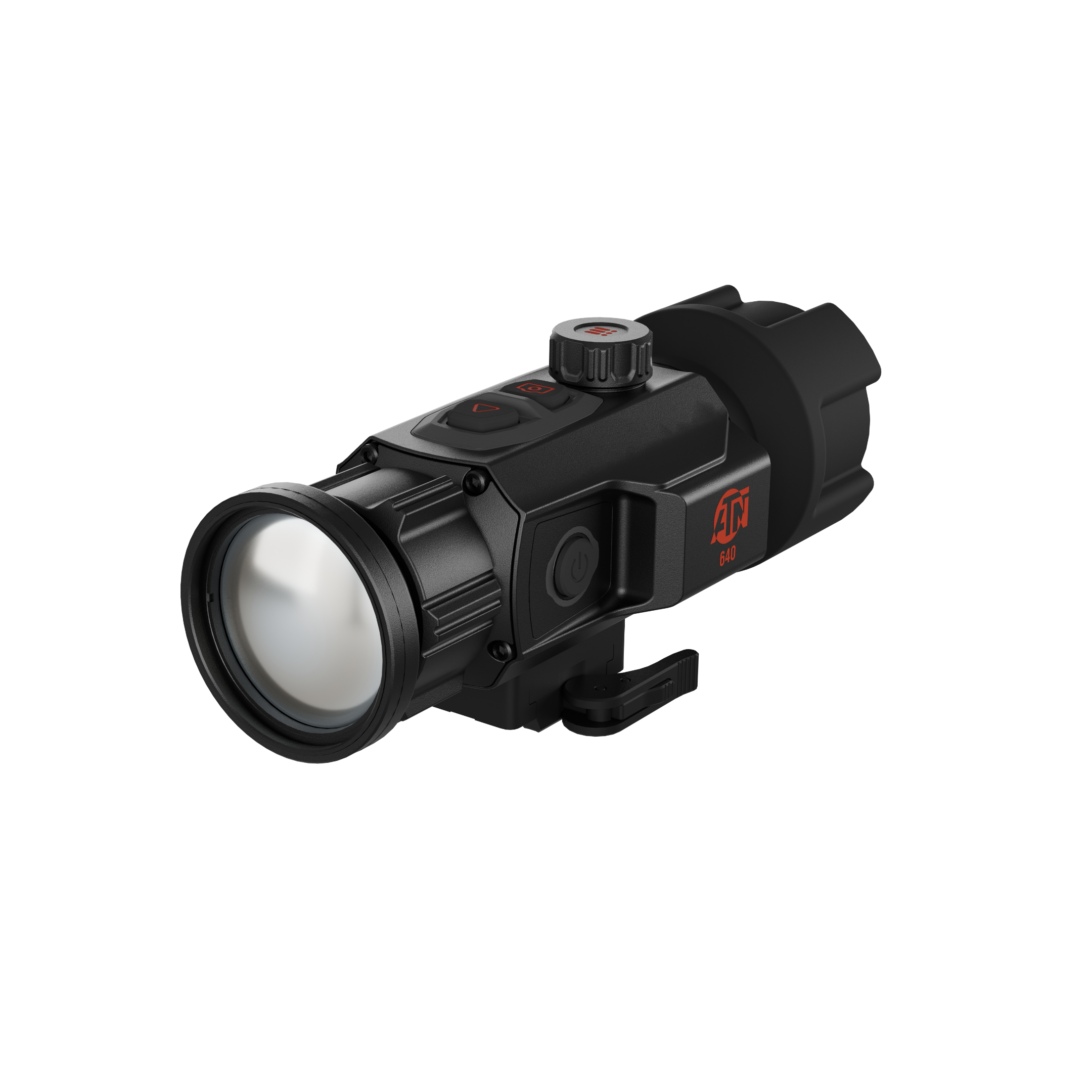

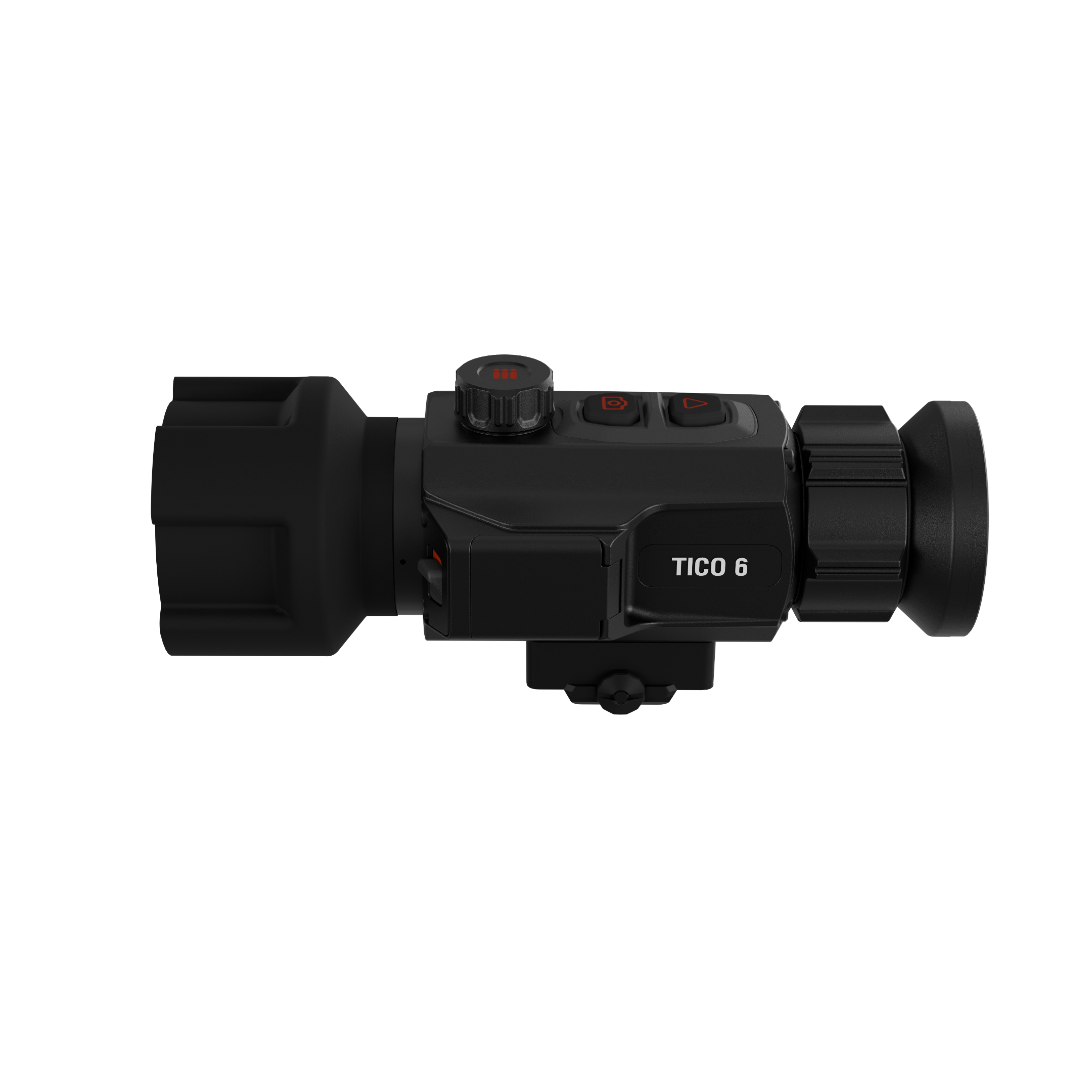

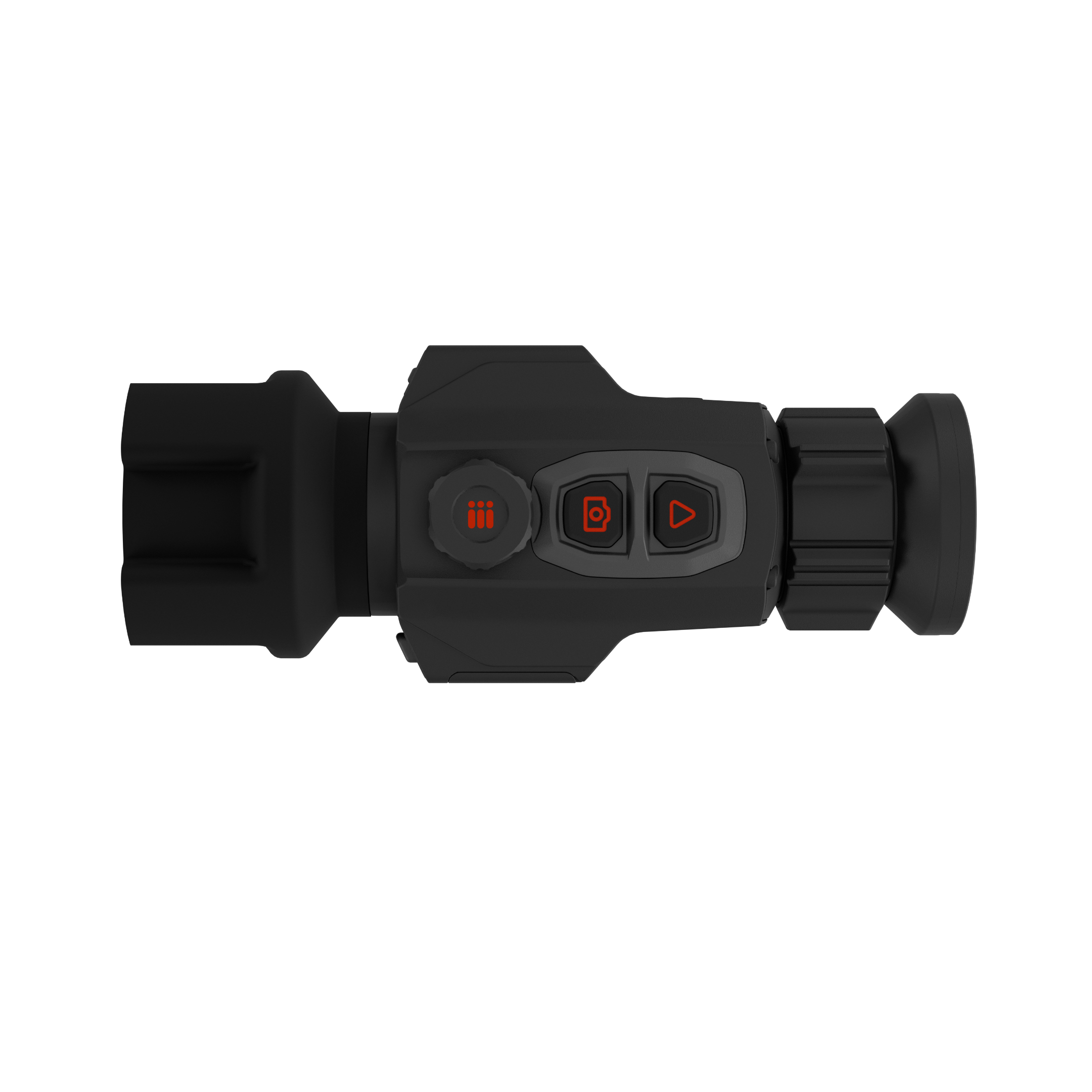

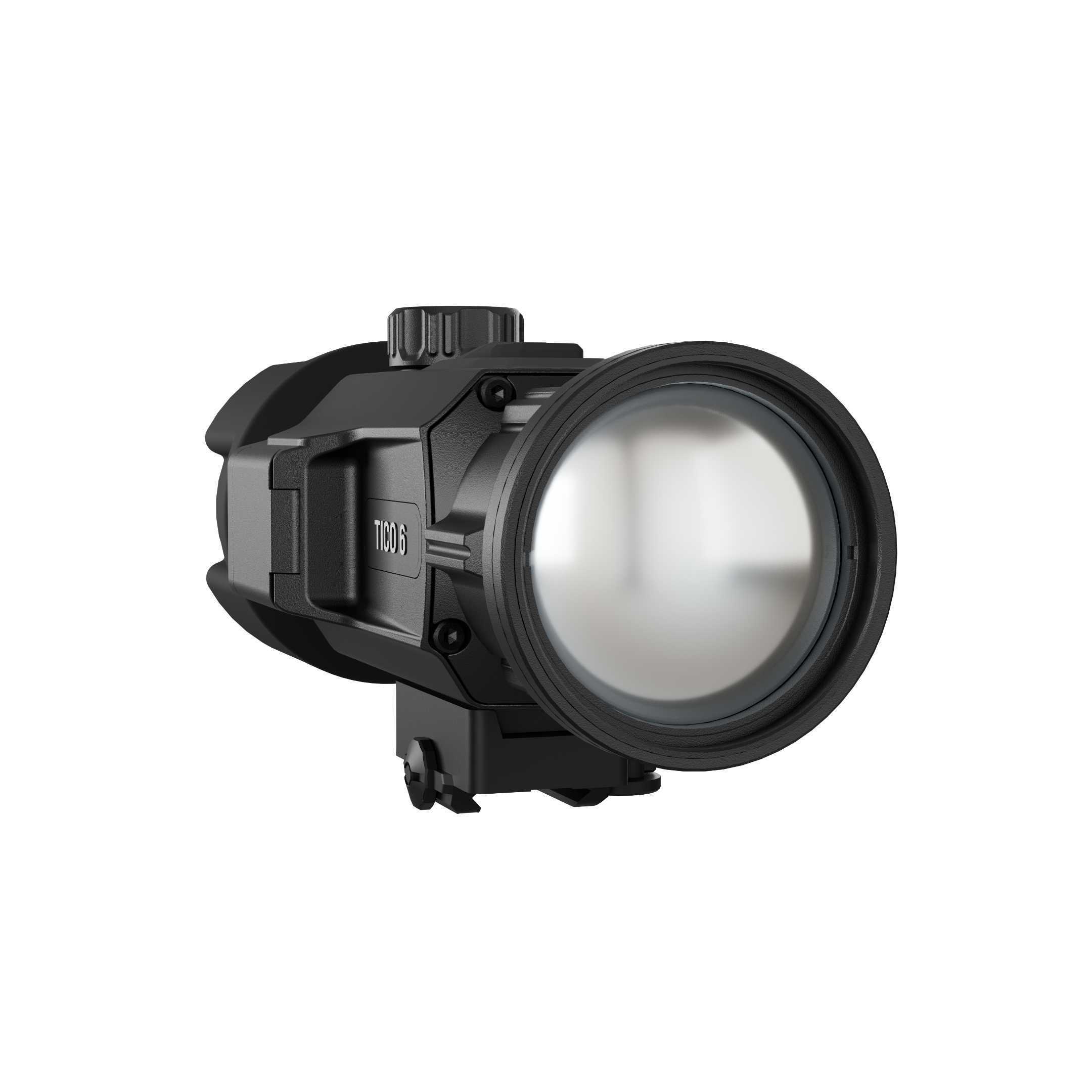

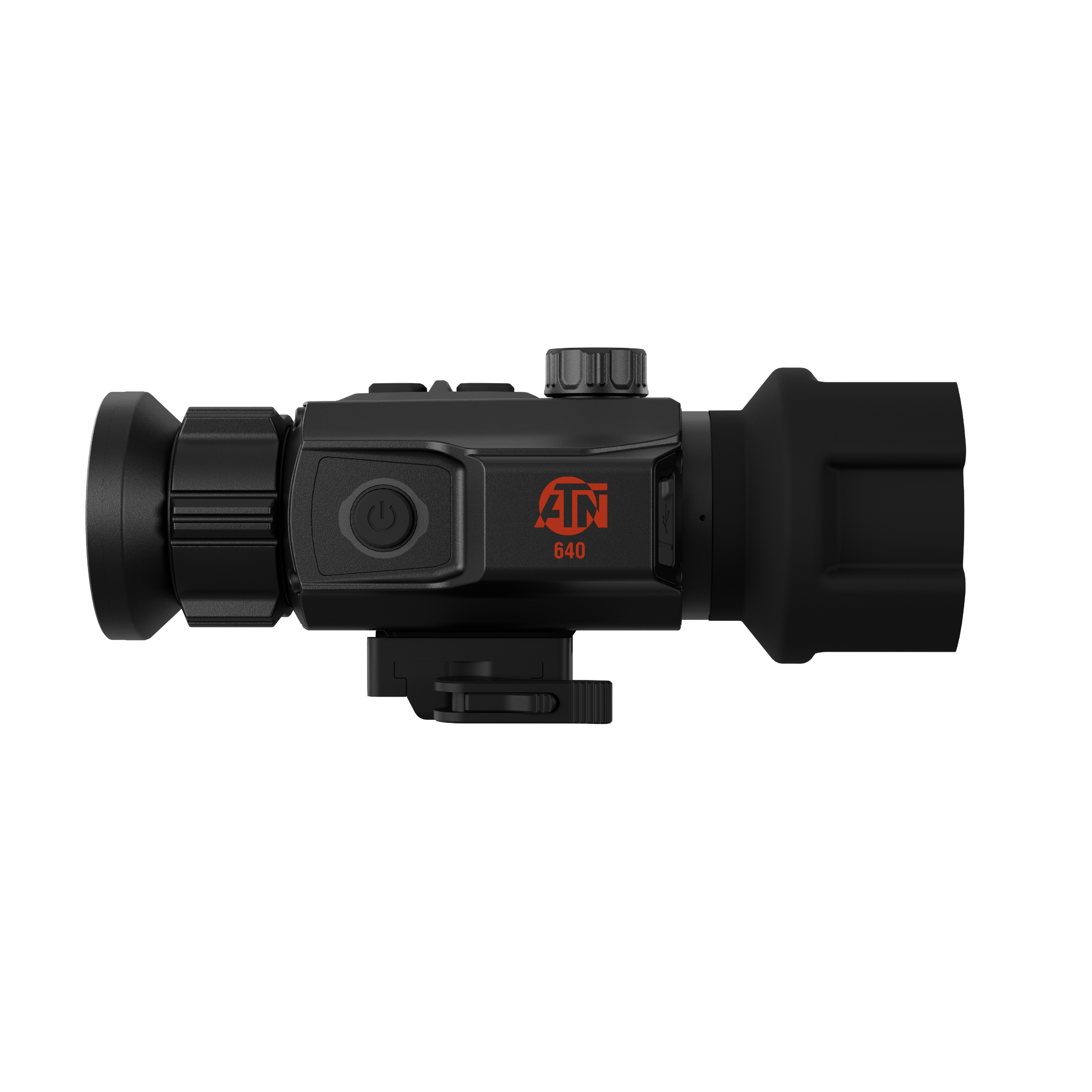

ATN TICO 6 640×512 Thermal Clip-On

Clip-On Precision with 6th Generation Thermal Performance

The ATN TICO 6 640 Thermal Clip-On delivers top-tier thermal performance for shooters who want to maintain their daytime optic while adding advanced thermal capability. Built on ATN’s 6th Generation thermal platform, this model offers the highest resolution and detection range in the TICO 6 lineup while preserving accuracy and zero when mounted in front of your scope.

At its core is a 640×512 thermal sensor with a 12µm pixel pitch and ≤18 mK NETD sensitivity, providing exceptional thermal detail, improved contrast, and superior target identification in challenging environments such as fog, brush, or complete darkness.

The system utilizes a 50 mm germanium lens with true 1× optical magnification, ensuring proper alignment and seamless integration with a wide range of daytime optics. With a detection range of 3500 meters (3,828 yards), the TICO 6 640 is optimized for long-range detection across open terrain.

ATN SharpIR technology enhances image clarity in real time by refining edges and boosting contrast, delivering a sharper and more defined thermal image. The high-resolution 1920×1080 OLED display provides smooth motion and detailed viewing during extended use.

Designed for versatility, the TICO 6 can convert into a handheld thermal monocular with an optional eyepiece. A Quick-Detach Picatinny mount and Light Shield enable rapid installation, while the included Tactical Remote Control allows for quick adjustments without breaking position.

With onboard video and audio recording, Recoil Activated Video (RAV), 64 GB internal storage, and built-in Wi-Fi connectivity, users can capture and share footage directly from the device.

Constructed with a rugged magnesium alloy housing and powered by a replaceable 18650 battery, the TICO 6 640 is built for demanding environments with IP67 protection and up to 7 hours of runtime.

ATN TICO 6 640 Features:

• 640×512 thermal sensor
• ≤18 mK NETD sensitivity
• 1× optical magnification
• Detection range 3500 m / 3,828 yd
• 50 mm germanium lens
• 1920×1080 OLED display
• ATN SharpIR image enhancement
• 64 GB internal storage
• Video and audio recording
• Recoil Activated Video (RAV)
• Quick-Detach Picatinny mount
• Tactical remote control included

Built For:

• Predator and hog hunting
• Night shooting with daytime optics
• Tactical and law enforcement use
• Search and rescue operations
• Thermal observation and scanning

ATN TICO 6 640 Specifications:

TICO 6 640 — TICO6650A	Specifications
Quick Specs	Sensor: 640 × 512 • NETD: ≤18 mK • Display: 1920 × 1080 • Detection: 3500 m • Objective: 50 mm • Storage: 64 GB Internal • Weight: 1.24 lb
OPTICS & SENSOR
Model	TICO6650A
Detector Type	12 μm VOx Uncooled Focal Plane Array
Sensor Resolution	640 × 512
Thermal Sensitivity (NETD)	≤18 mK
Refresh Rate	50 Hz
SharpIR©	Yes
Non-Uniformity Correction (NUC)	Auto / Semi Auto / Manual
Lens	50 mm Germanium; F/1.0
Field of View (H × V)	8.8° × 7.0°
Focus Mechanism	Manual, Front Lens Adjustment
Optical Magnification	1×
Detection Range	3500 m
Optimal Day Scope Magnification	1–15×
DISPLAY & VIEWING
Display Type	0.49″ OLED
Display Resolution	1920 × 1080
Color Palettes	White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
Monocular Mode	Yes
Hot Point Tracking	Yes
Geomagnetic Sensor + Gyroscope	Yes
RECORDING & CONNECTIVITY
Internal Storage Capacity	64 GB
Video / Audio Recording	Yes
Internal Gallery	Yes
Recoil Activated Video (RAV)	Yes
Built-in Wi-Fi (Hotspot)	Yes
Wireless Remote Control	Yes — Included
Mobile App	ATN Connect 6 — iOS & Android
Media Output	USB Type-C
POWER
Battery Type	1 × 18650 Rechargeable Replaceable Battery
Battery Life	Approximately 7 Hours
External Power Supply	Yes — USB Type-C (5 VDC / 2A)
Standby / Sleep Mode	Yes
Startup Time	≤7 Seconds; Instant from Standby
DESIGN & DURABILITY
Material	Magnesium Alloy
Mounting	Quick Detach — Included / Scope Mounting — Add-On
Weight	564 g / 1.24 lb
Dimensions (L × W × H)	175 × 85 × 74 mm (6.88 × 3.34 × 2.91 in)
Max Recoil Rating	6000 J / 1000g Over 0.4 ms
Operating Temperature	-30°C to 55°C (-22°F to 131°F)
Waterproof / IP Rating	IP67



IN THE BOX:

• Thermal Clip-On
• Spacer
• Rubber Shield
• Lens Cloth
• 1 × 18650 Battery
• USB Type-C Cable
• Quick Reference Guide
• Battery Charger
• Portable Bag
