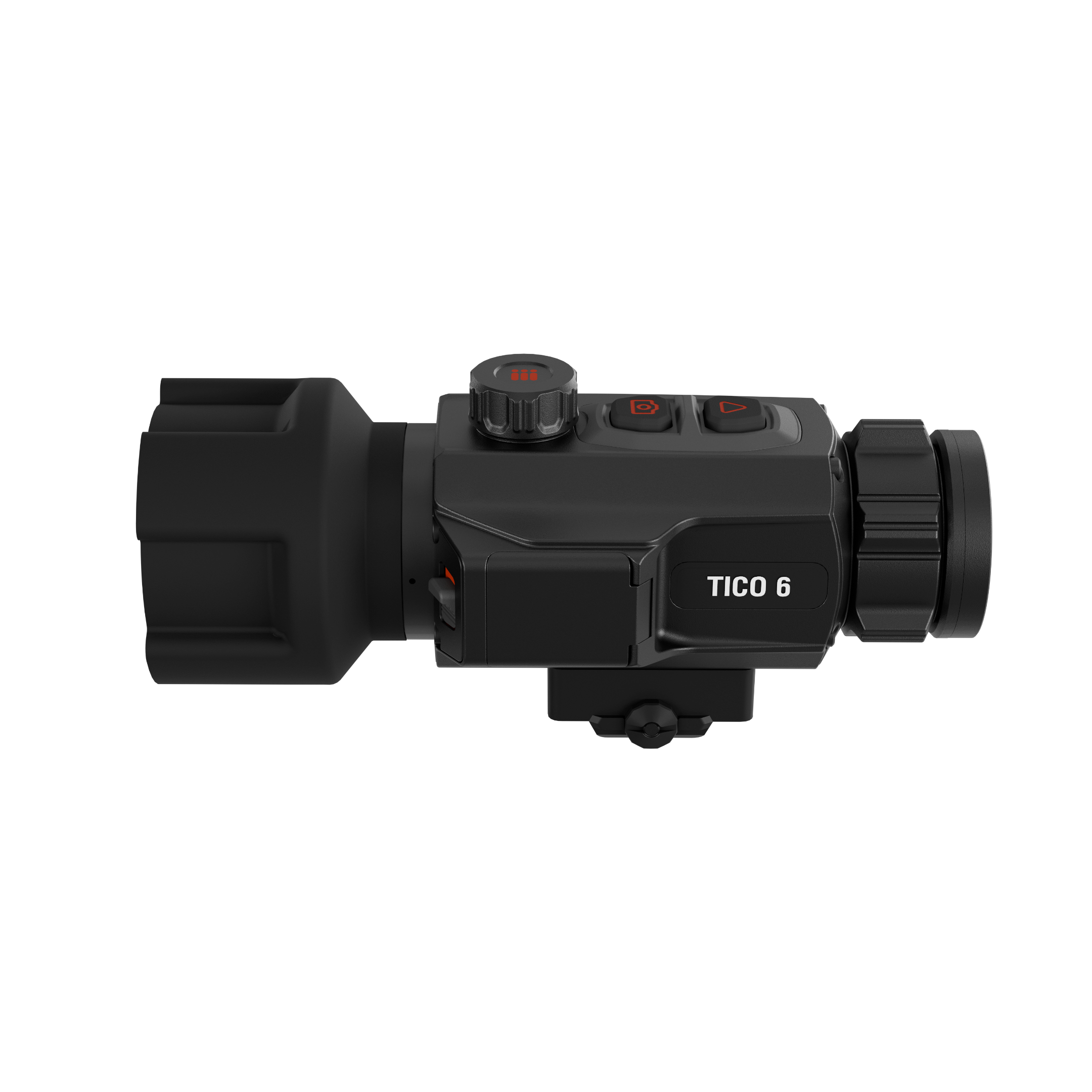

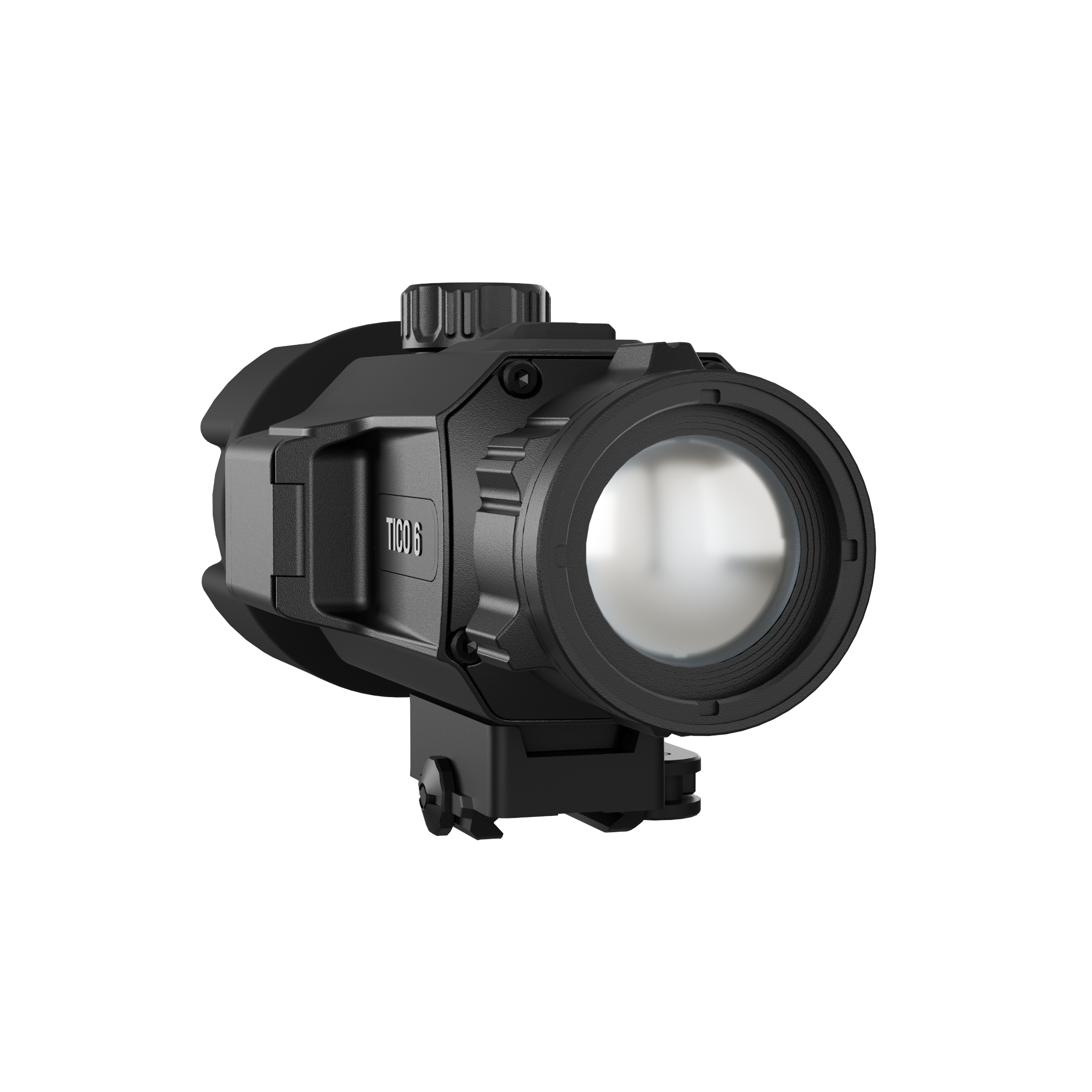

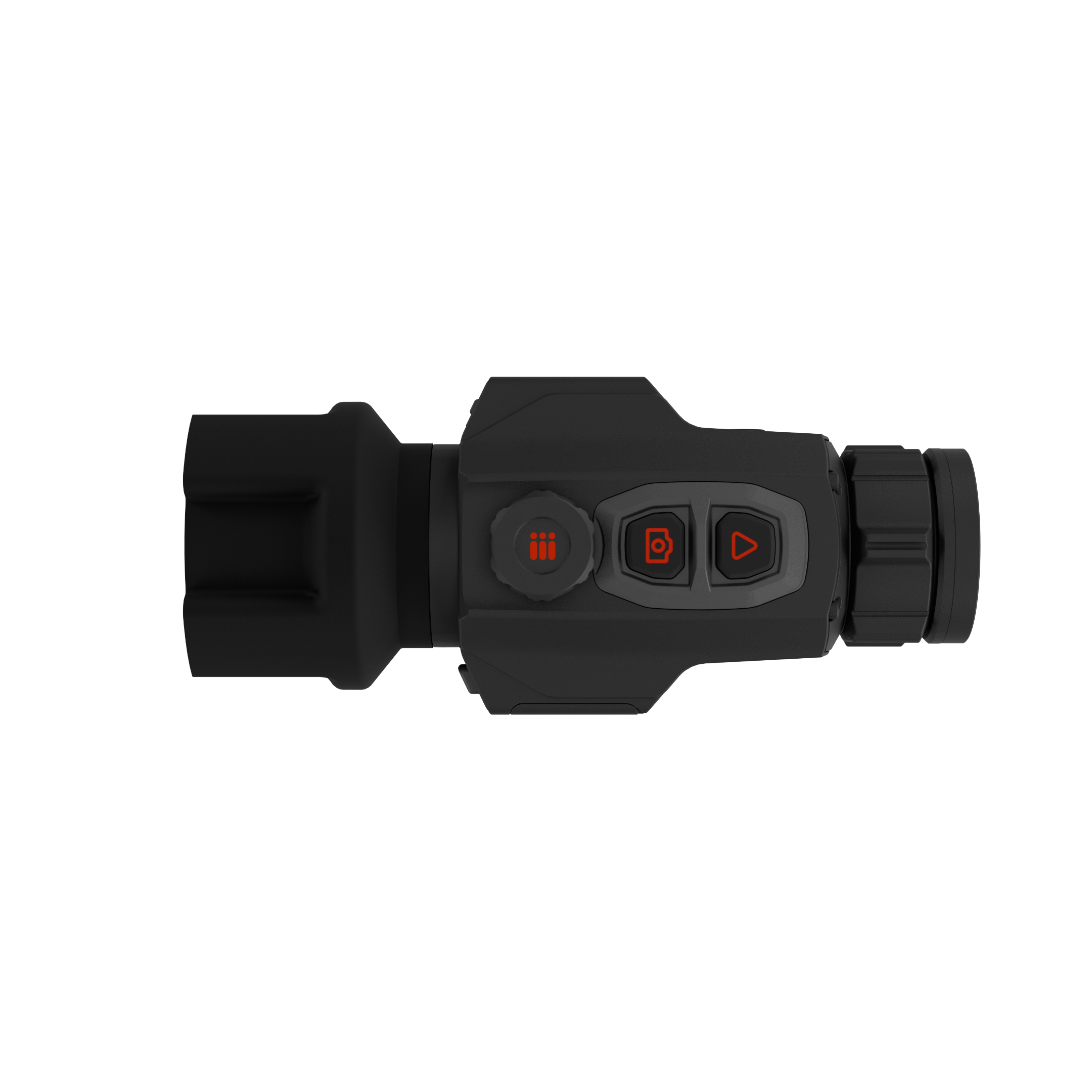

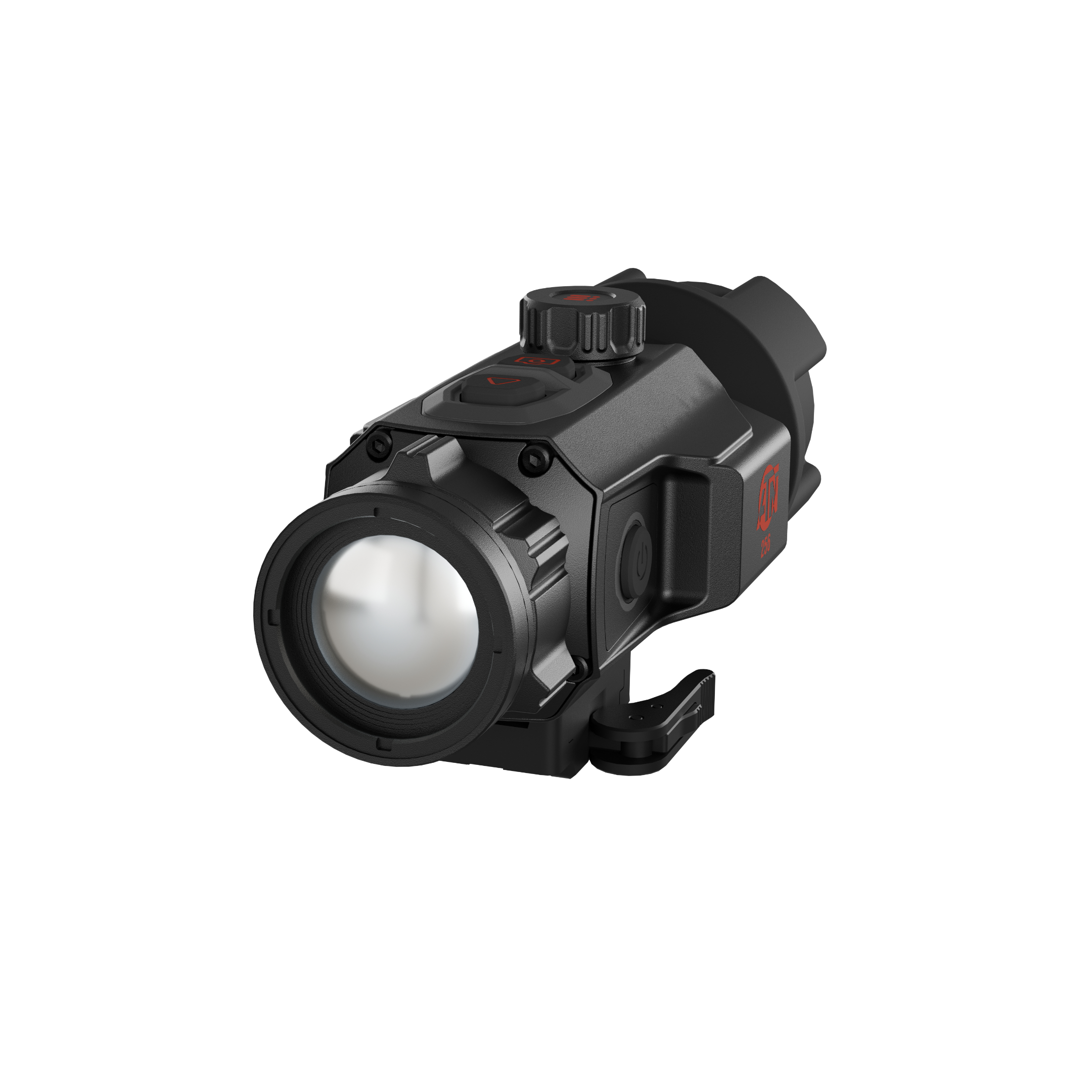

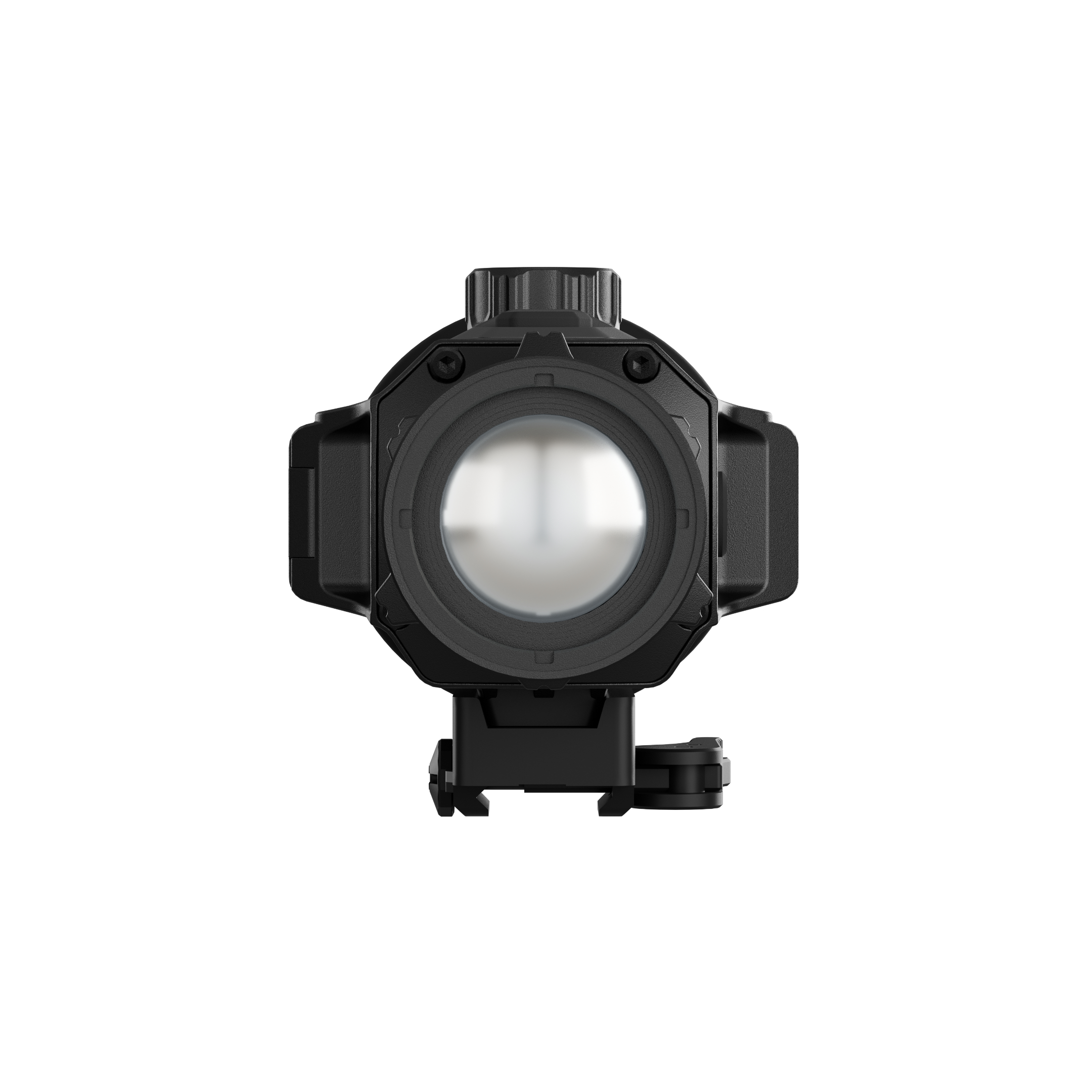

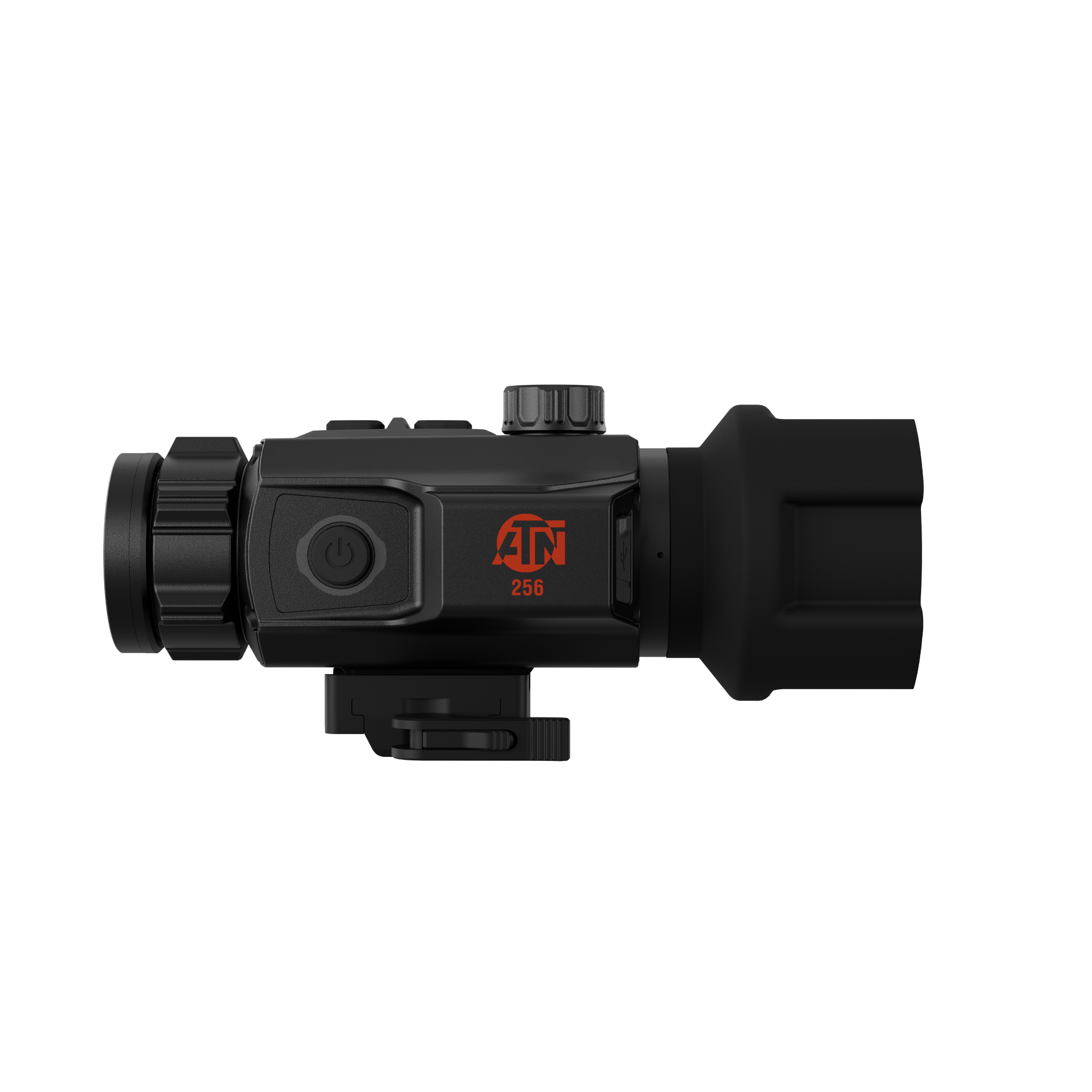

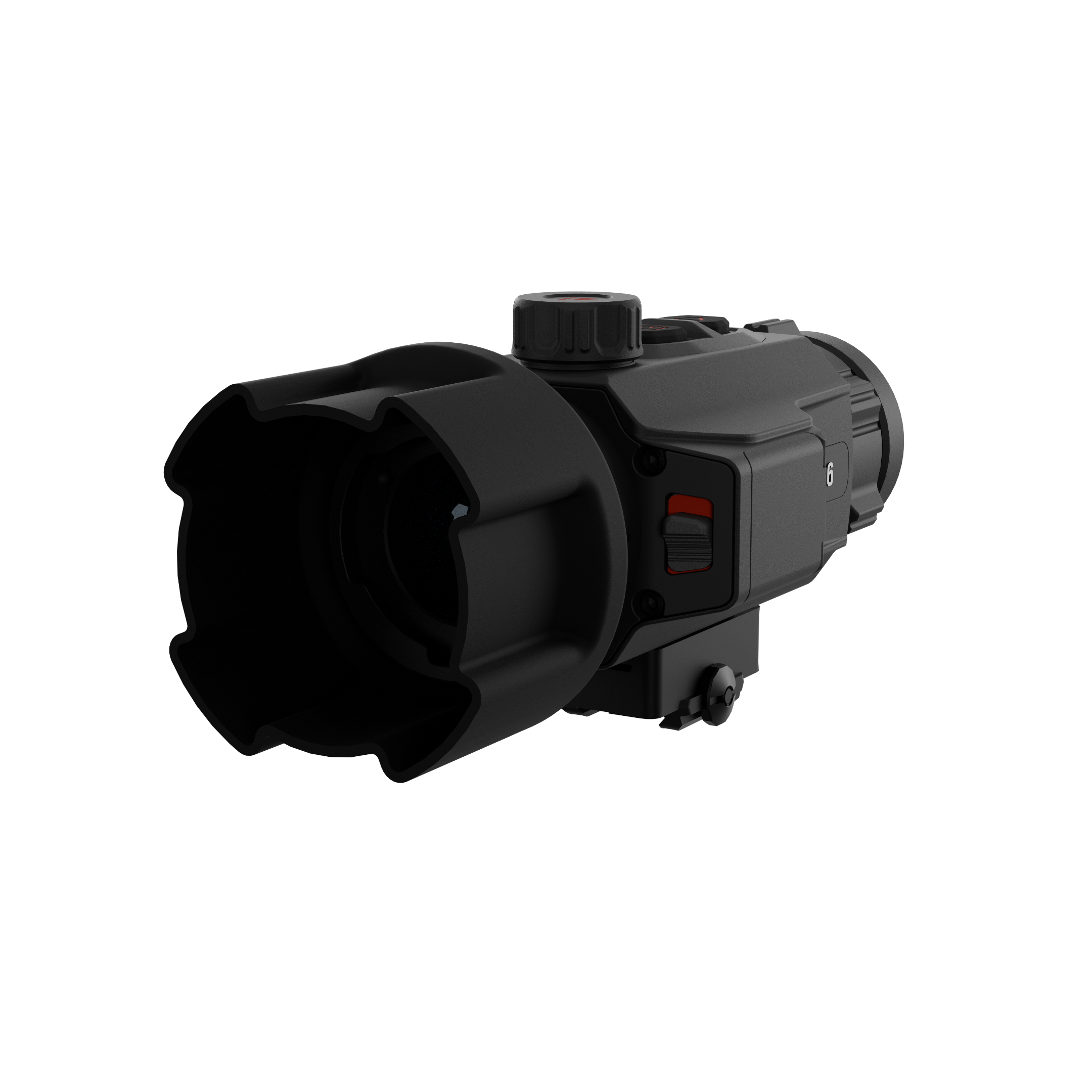

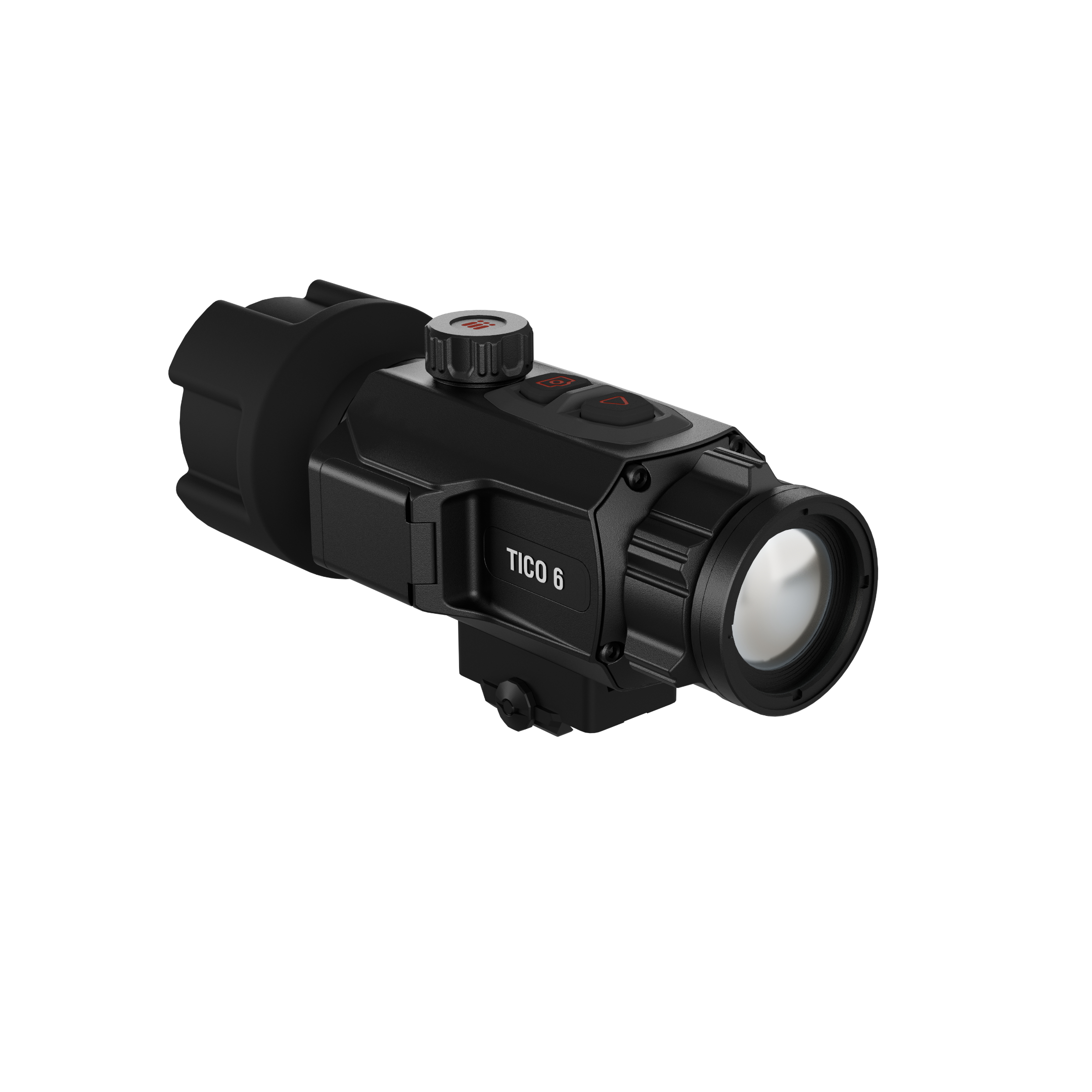

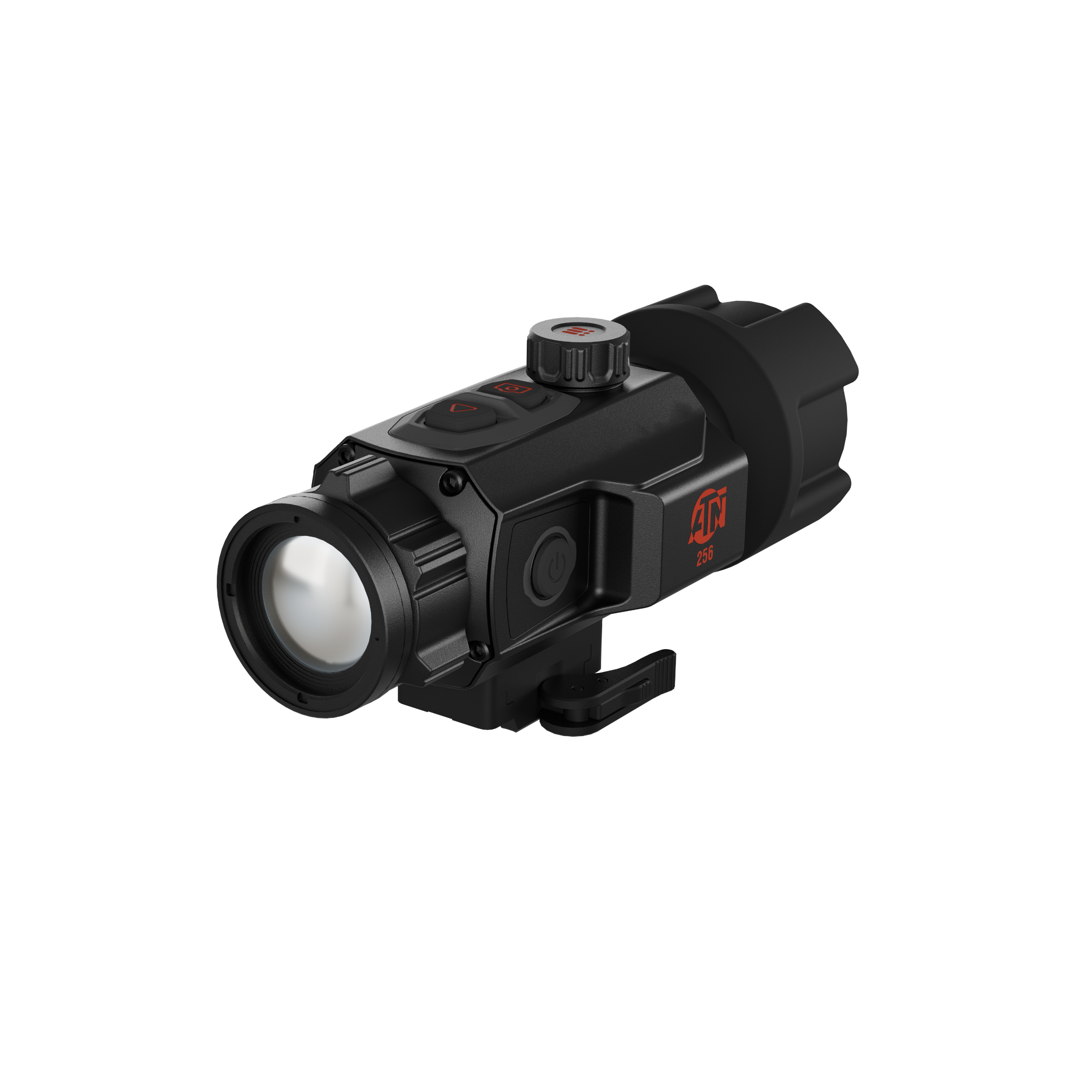

ATN TICO 6 256×192 Thermal Clip-On

Clip-On Precision with 6th Generation Thermal Performance

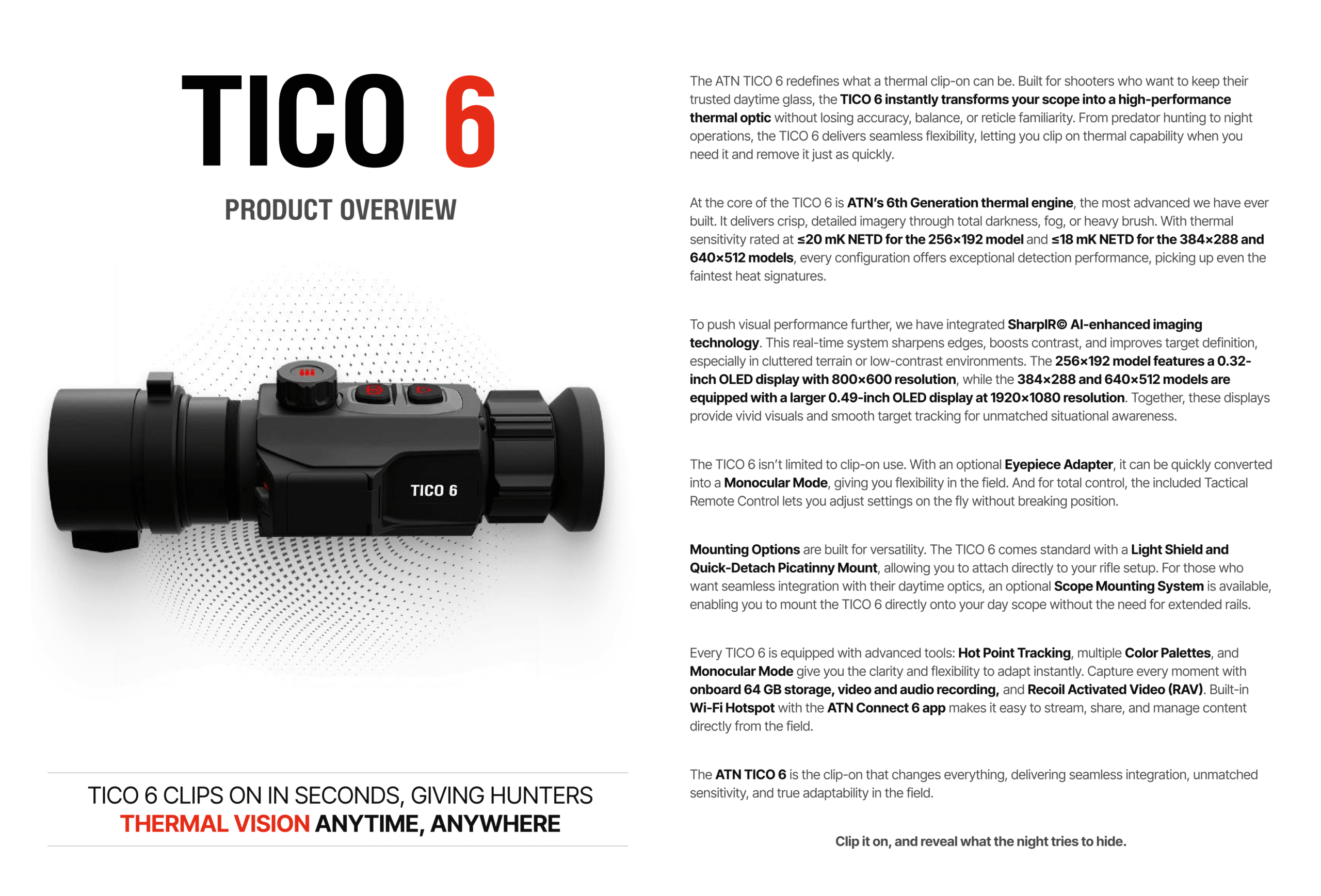

The ATN TICO 6 256 Thermal Clip-On is designed for shooters who want to retain their trusted daytime optic while adding high-performance thermal capability. Built on ATN’s 6th Generation thermal platform, the TICO 6 delivers reliable detection, clear imaging, and seamless integration without affecting zero, magnification, or reticle performance.

At its core is a 256×192 thermal sensor with a 12µm pixel pitch and ≤20 mK NETD sensitivity, allowing the system to detect subtle temperature differences and produce clear thermal imagery in total darkness, fog, or dense terrain.

The system features a 25 mm germanium lens paired with a true 1× optical magnification, ensuring proper alignment and compatibility when mounted in front of a daytime scope. With a detection range of 1500 meters (1,640 yards), the TICO 6 256 is well-suited for mid-range detection and target identification.

ATN’s SharpIR technology enhances image clarity in real time by refining edges, improving contrast, and increasing target separation. The 800×600 OLED display provides smooth and comfortable viewing during extended use.

Designed for versatility, the TICO 6 can also convert into a handheld thermal monocular with an optional eyepiece. A Quick-Detach Picatinny mount and included Light Shield allow for fast installation, while the included Tactical Remote Control enables quick adjustments without breaking position.

With onboard video and audio recording, Recoil Activated Video (RAV), 64 GB internal storage, and built-in Wi-Fi connectivity, users can capture and share every moment directly from the field.

Constructed with a rugged magnesium alloy housing and powered by a replaceable 18650 battery, the TICO 6 is built for real-world conditions with IP67 weather resistance and up to 8 hours of runtime.

ATN TICO 6 256 Features:

• 256×192 thermal sensor
• ≤20 mK NETD sensitivity
• 1× optical magnification
• Detection range 1500 m / 1,640 yd
• 25 mm germanium lens
• 800×600 OLED display
• ATN SharpIR image enhancement
• Clip-on design (no re-zero required)
• 64 GB internal storage
• Video and audio recording
• Recoil Activated Video (RAV)
• Built-in Wi-Fi hotspot
• Quick-Detach Picatinny mount
• Tactical remote control included

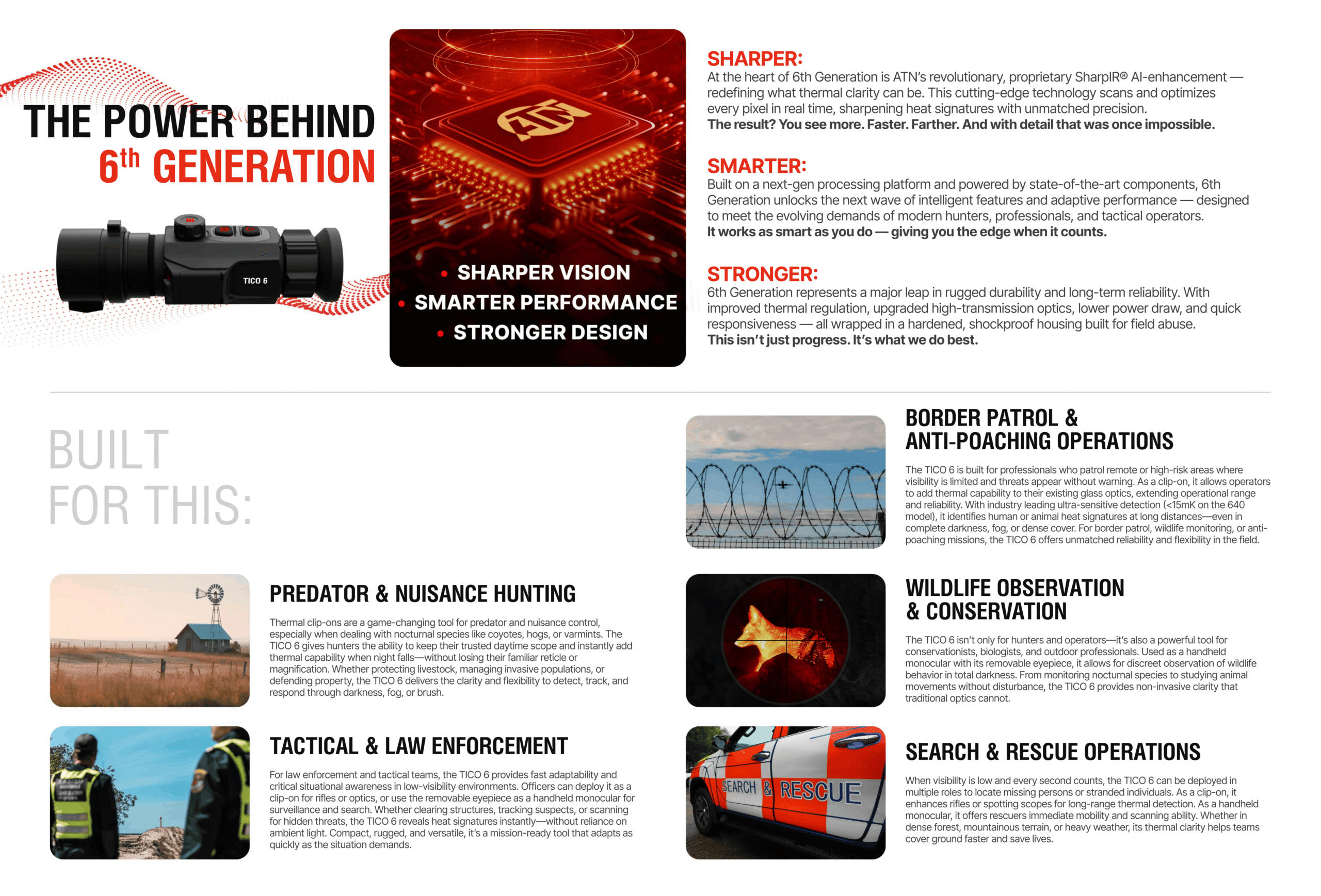

Built For:

• Predator and hog hunting
• Night shooting with daytime optics
• Tactical and law enforcement use
• Search and rescue operations
• Thermal observation and scanning

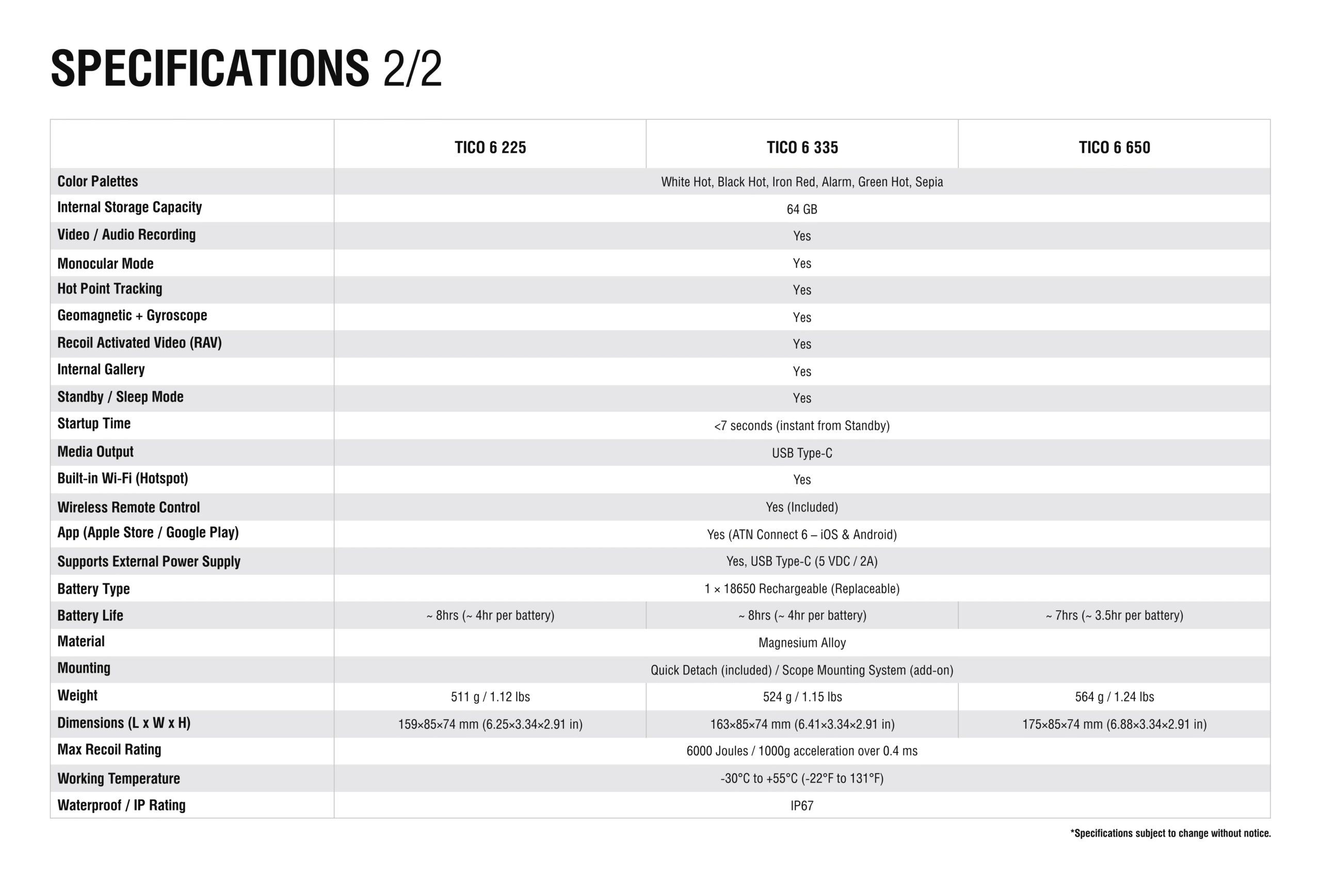

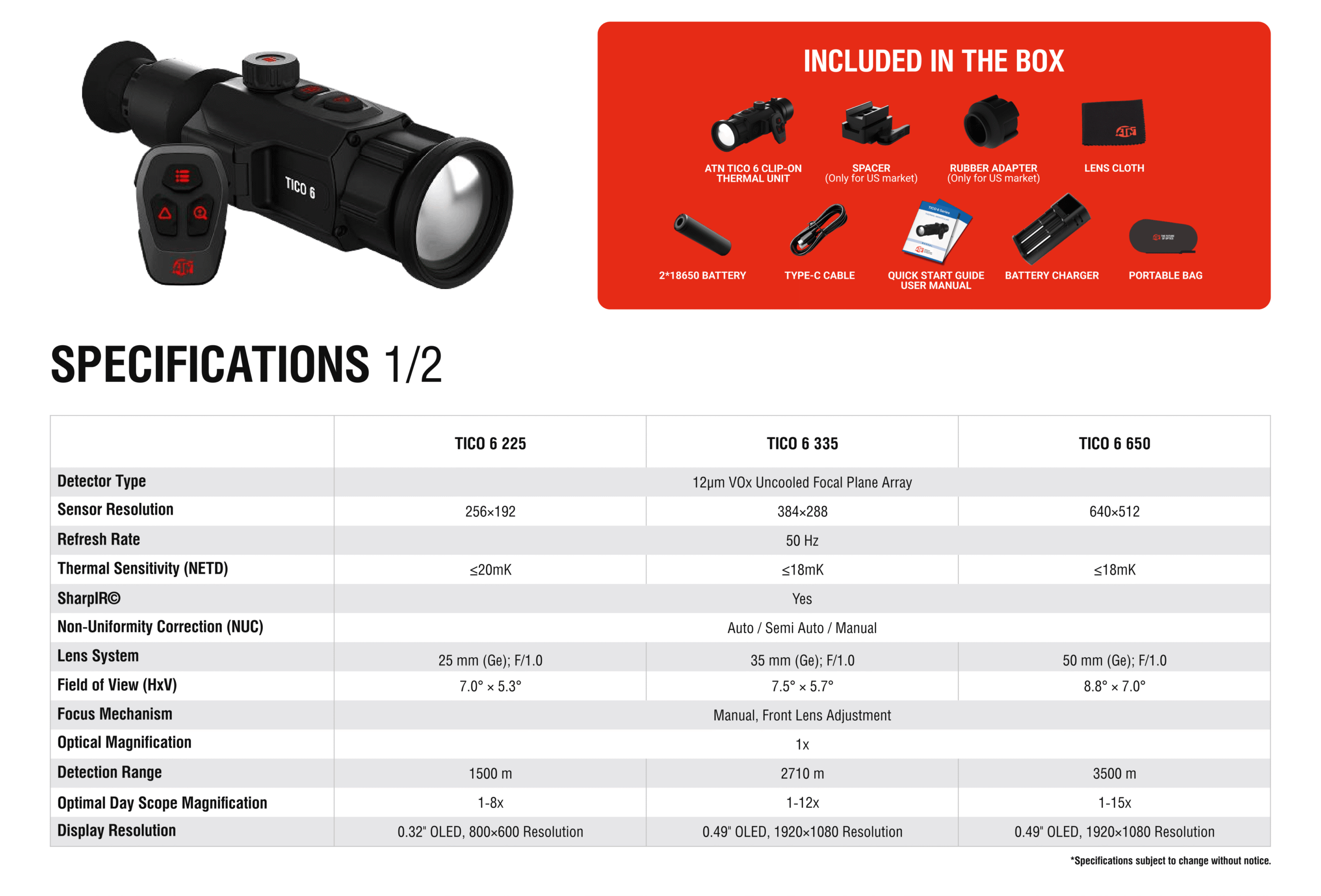

ATN TICO 6 256 Specifications:

TICO 6 256 — TICO6225A	Specifications
Quick Specs	Sensor: 256 × 192 • NETD: ≤20 mK • Display: 800 × 600 • Detection: 1500 m • Objective: 25 mm • Storage: 64 GB Internal • Weight: 1.12 lb
OPTICS & SENSOR
Model	TICO6225A
Detector Type	12 μm VOx Uncooled Focal Plane Array
Sensor Resolution	256 × 192
Thermal Sensitivity (NETD)	≤20 mK
Refresh Rate	50 Hz
SharpIR©	Yes
Non-Uniformity Correction (NUC)	Auto / Semi Auto / Manual
Lens	25 mm Germanium; F/1.0
Field of View (H × V)	7.0° × 5.3°
Focus Mechanism	Manual, Front Lens Adjustment
Optical Magnification	1×
Detection Range	1500 m
Optimal Day Scope Magnification	1–8×
DISPLAY & VIEWING
Display Type	0.32″ OLED
Display Resolution	800 × 600
Color Palettes	White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
Monocular Mode	Yes
Hot Point Tracking	Yes
Geomagnetic Sensor + Gyroscope	Yes
RECORDING & CONNECTIVITY
Internal Storage Capacity	64 GB
Video / Audio Recording	Yes
Internal Gallery	Yes
Recoil Activated Video (RAV)	Yes
Built-in Wi-Fi (Hotspot)	Yes
Wireless Remote Control	Yes — Included
Mobile App	ATN Connect 6 — iOS & Android
Media Output	USB Type-C
POWER
Battery Type	1 × 18650 Rechargeable Replaceable Battery
Battery Life	Approximately 8 Hours
External Power Supply	Yes — USB Type-C (5 VDC / 2A)
Standby / Sleep Mode	Yes
Startup Time	≤7 Seconds; Instant from Standby
DESIGN & DURABILITY
Material	Magnesium Alloy
Mounting	Quick Detach — Included / Scope Mounting — Add-On
Weight	511 g / 1.12 lb
Dimensions (L × W × H)	159 × 85 × 74 mm (6.25 × 3.34 × 2.91 in)
Max Recoil Rating	6000 J / 1000g Over 0.4 ms
Operating Temperature	-30°C to 55°C (-22°F to 131°F)
Waterproof / IP Rating	IP67





IN THE BOX:

• Thermal Clip-On
• Spacer
• Rubber Shield
• Lens Cloth
• 1 × 18650 Battery
• USB Type-C Cable
• Quick Reference Guide
• Battery Charger
• Portable Bag
