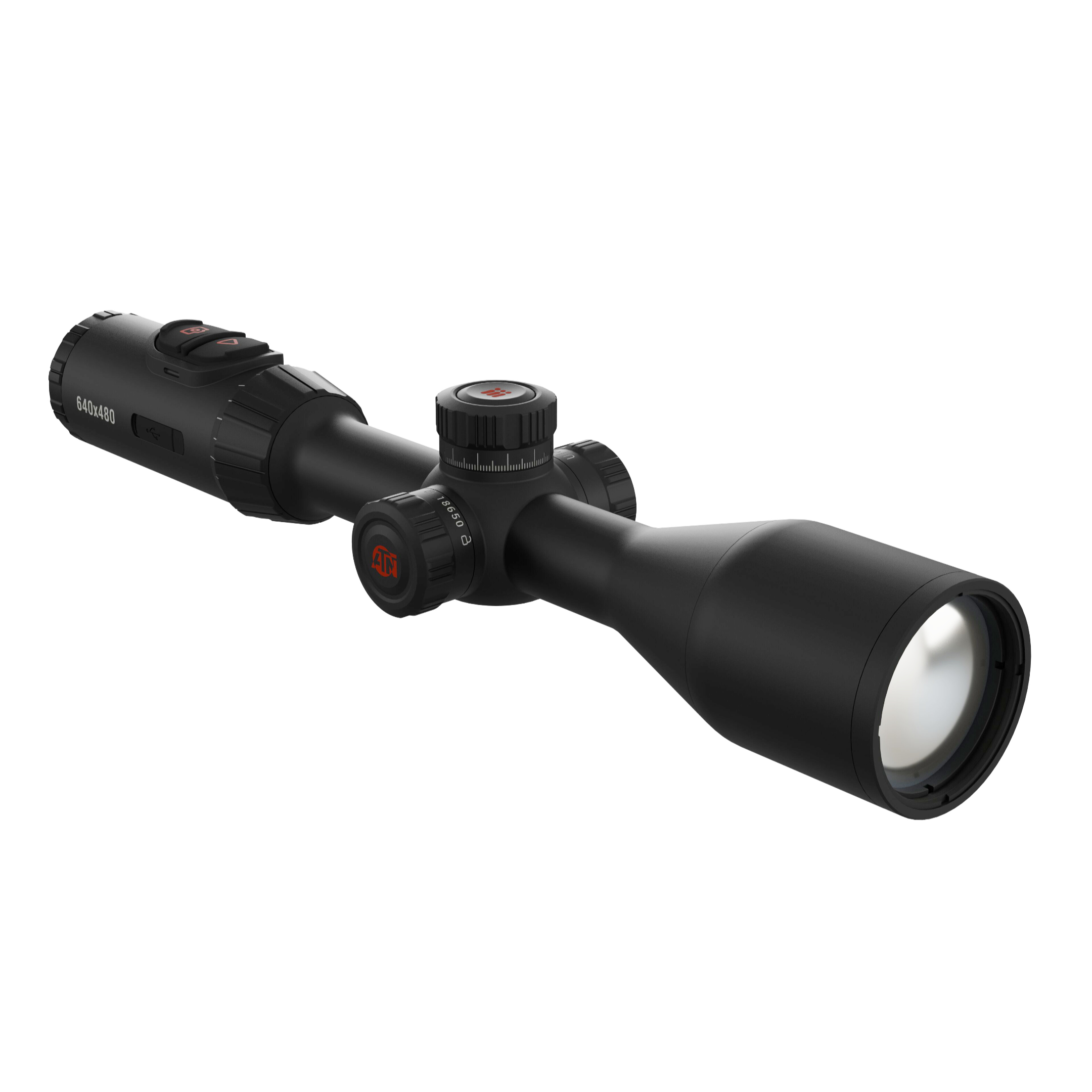

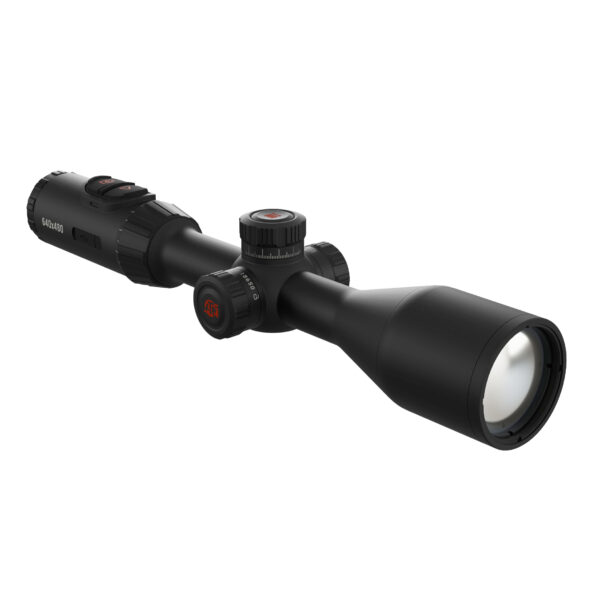

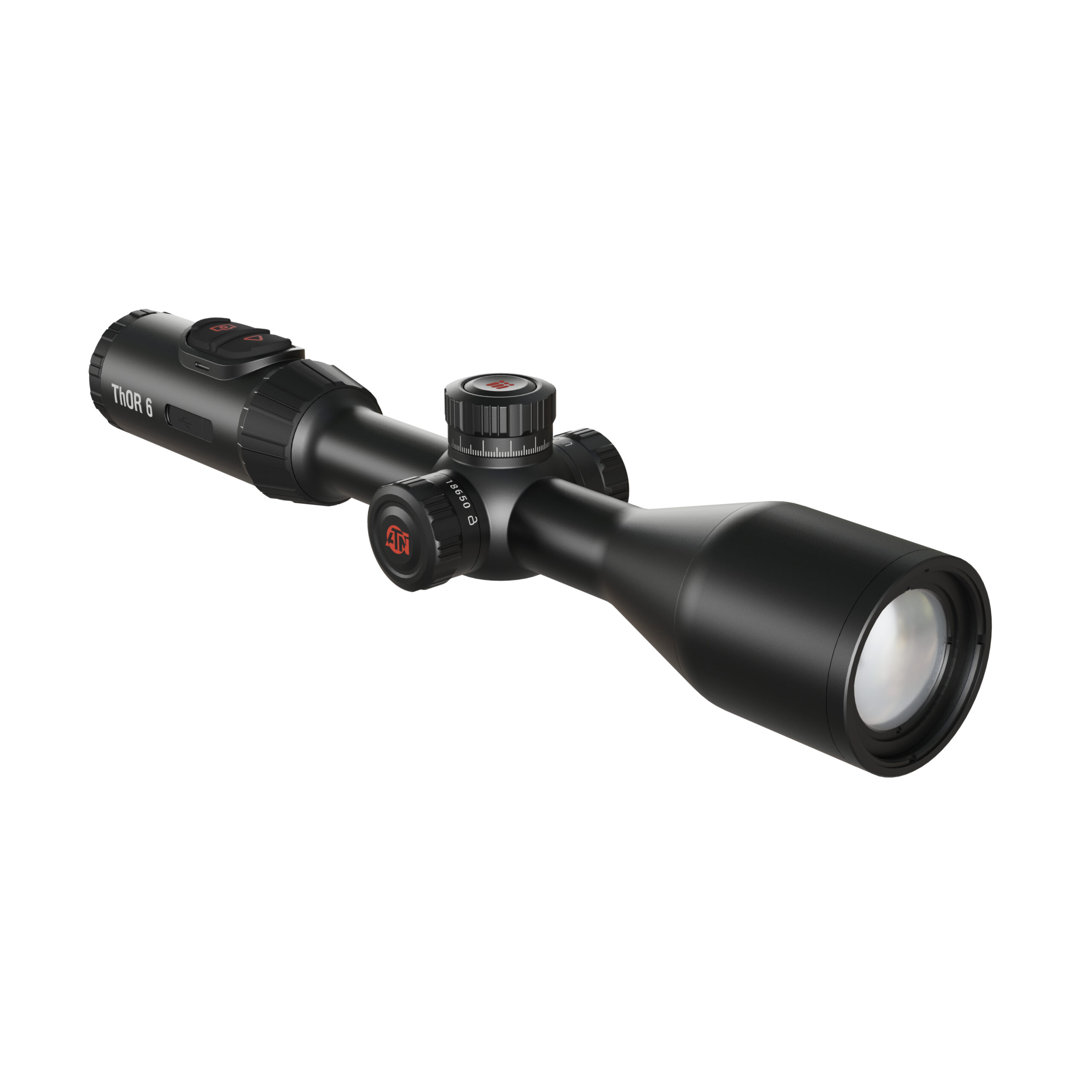

ATN ThOR 6 Elite 640×512 Thermal Rifle Scope
The ATN ThOR 6 Elite 640 Thermal Rifle Scope represents the highest performance tier of the Elite lineup, delivering superior thermal resolution, ultra-sensitive detection, and advanced image processing for serious night hunters and professionals.
Built around a 640×512 thermal sensor with ≤15mK NETD sensitivity, the ThOR 6 Elite 640 detects extremely small temperature differences, producing sharper target separation and clearer heat signatures in fog, humidity, rain, and low-contrast terrain.
ATN’s 6th Generation Thermal Engine, paired with SharpIR AI image processing, automatically enhances edges, contrast, and target detail in real time, providing faster target recognition and more confident shot placement.
A large 0.49″ 1920×1080 OLED display delivers smooth, high-definition visuals that reduce eye fatigue during long scanning sessions while maintaining the natural feel of a traditional riflescope.
ATN ThOR 6 Elite 640 Features:
- 640×512 thermal sensor
- ≤15mK ultra-sensitive NETD performance
- ATN 6th Generation Thermal Engine
- SharpIR AI image enhancement
- Large 1920×1080 OLED display
- Magnesium alloy housing for durability
- Integrated ballistic calculator
- Picture-in-Picture precision zoom
- One Shot Zero & Zeroing Freeze
- Video & audio recording with Recoil Activated Video (RAV)
- Built-in Wi-Fi hotspot for streaming and sharing
- Multiple color palettes and reticle customization
Built For:
- Predator and coyote hunters
- Hog and nuisance wildlife control
- Long-range night shooting
- Professional land management
- Hunters wanting maximum thermal resolution
WHAT’S INCLUDED
- ATN ThOR 6 Elite Thermal Rifle Scope
- Picatinny Mount
- Rechargeable Battery System
- USB-C Charging Cable
- Lens Cover
- Eyecup
- Cleaning Cloth
- Quick Start Guide
ATN ThOR 6 Elite 640 Specifications:

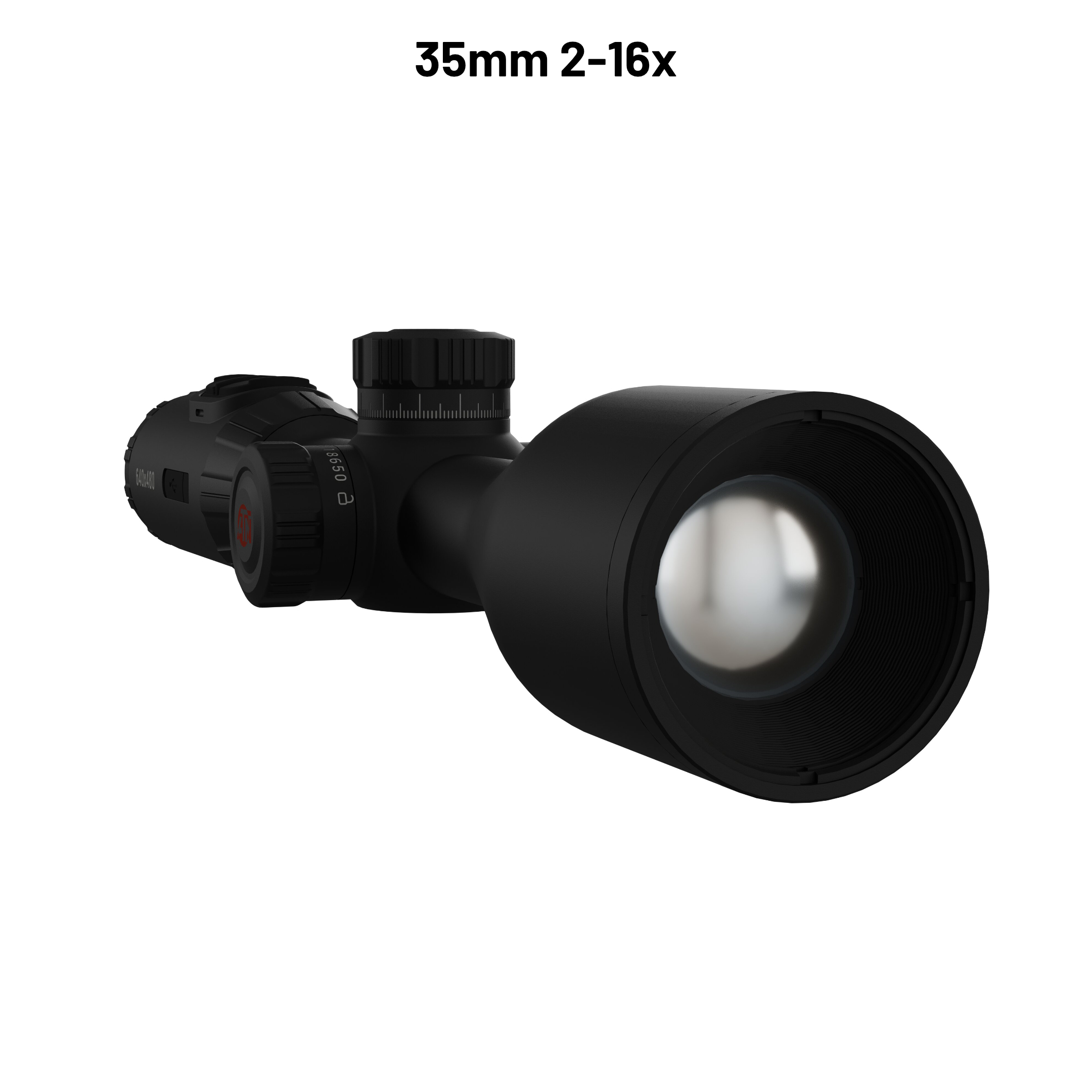

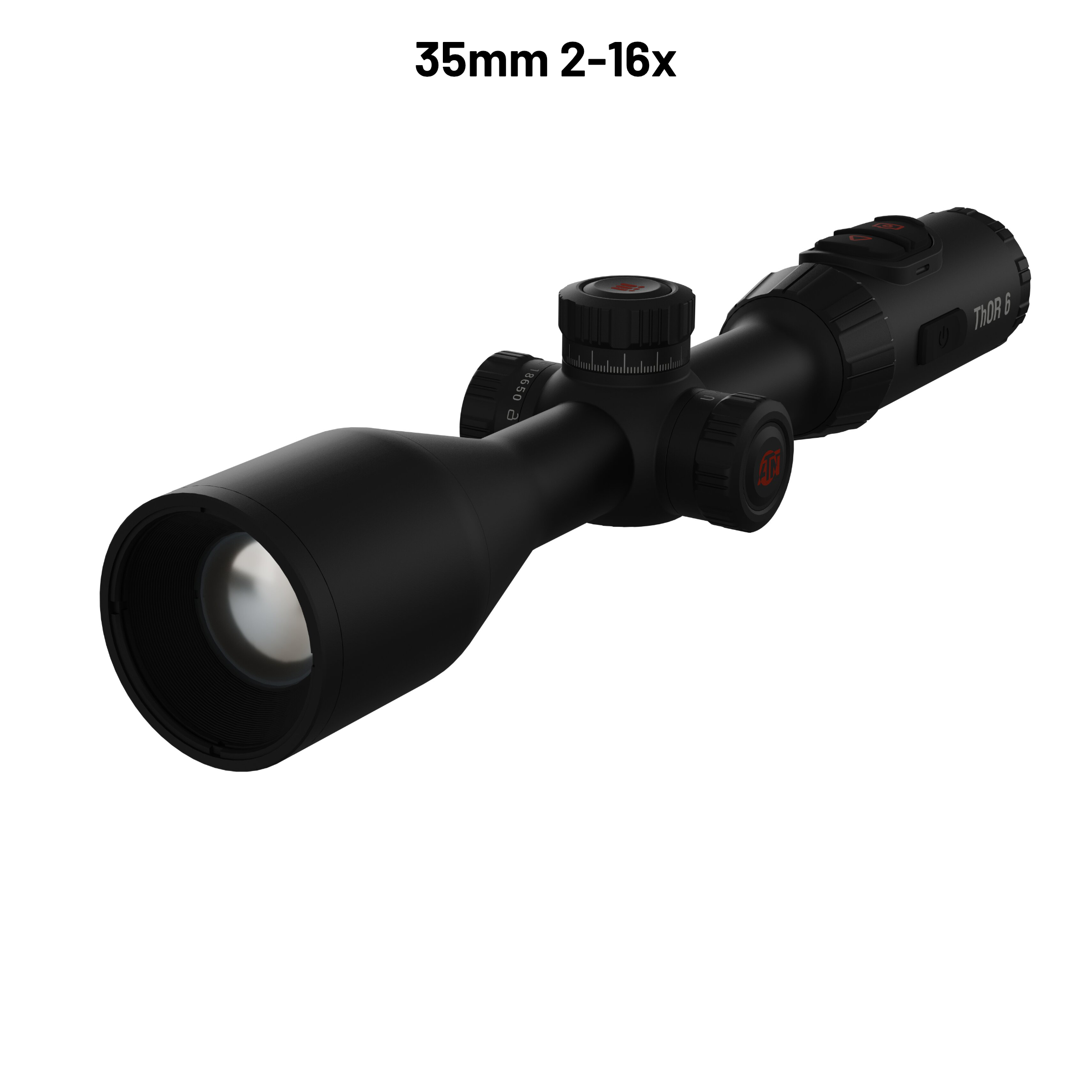

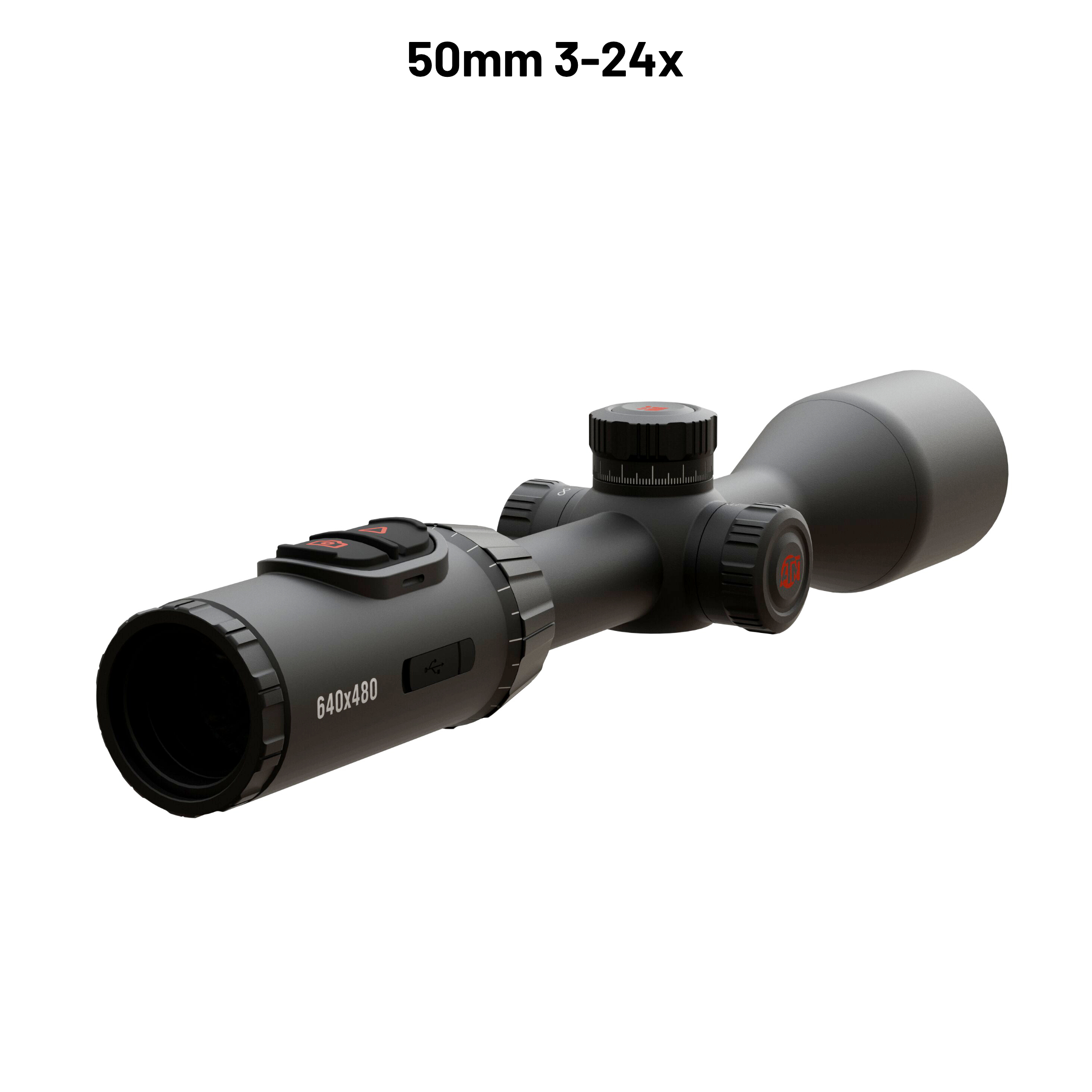

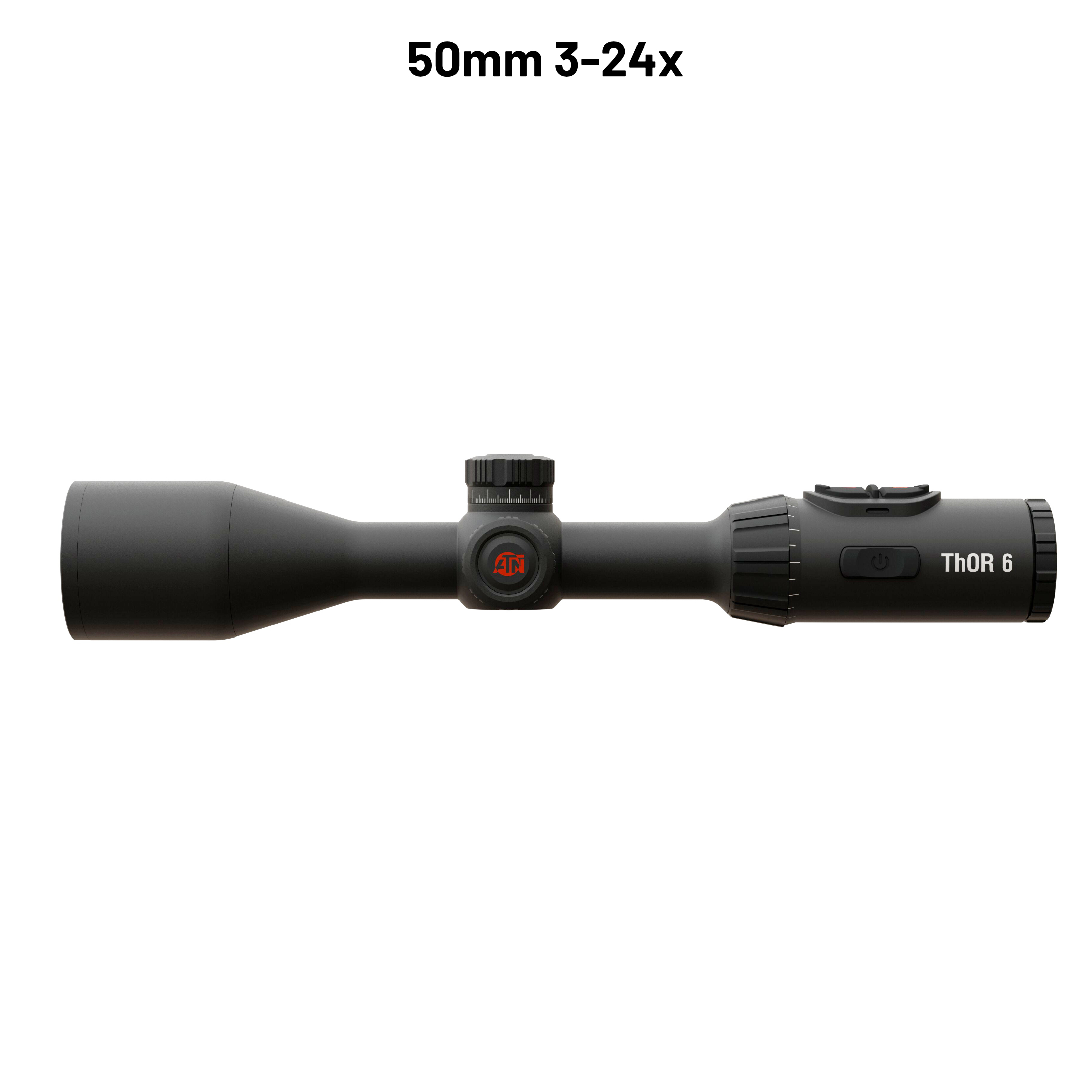

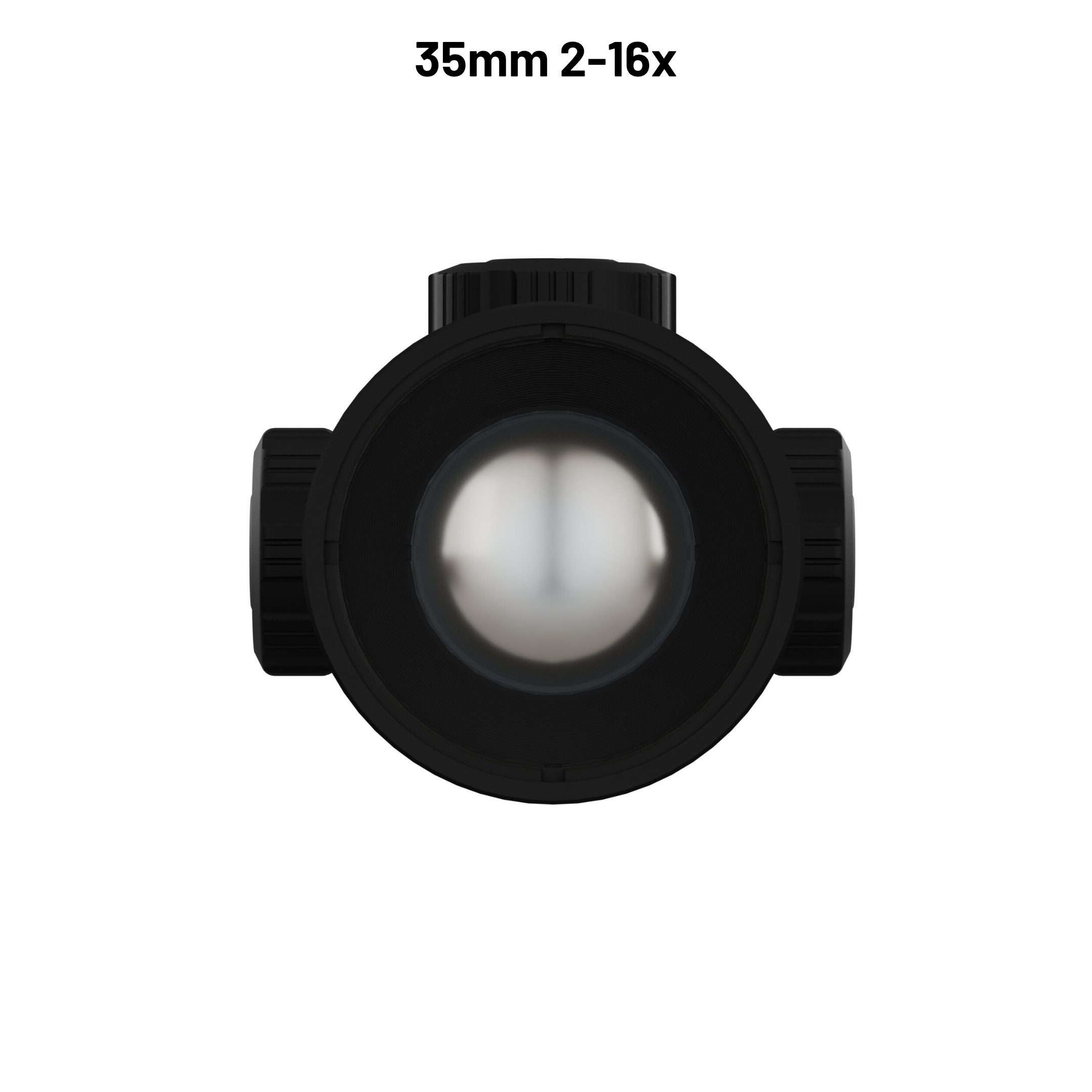

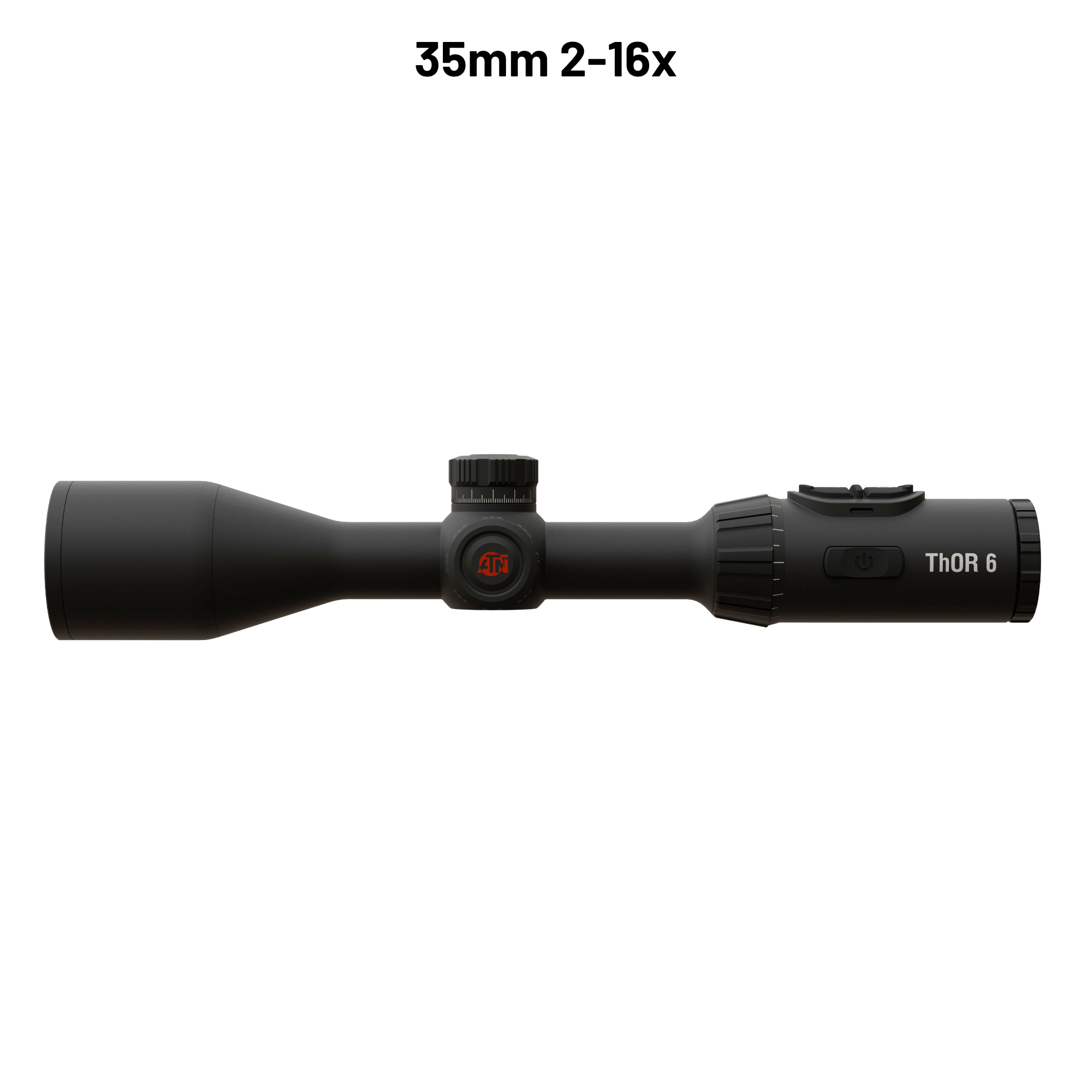

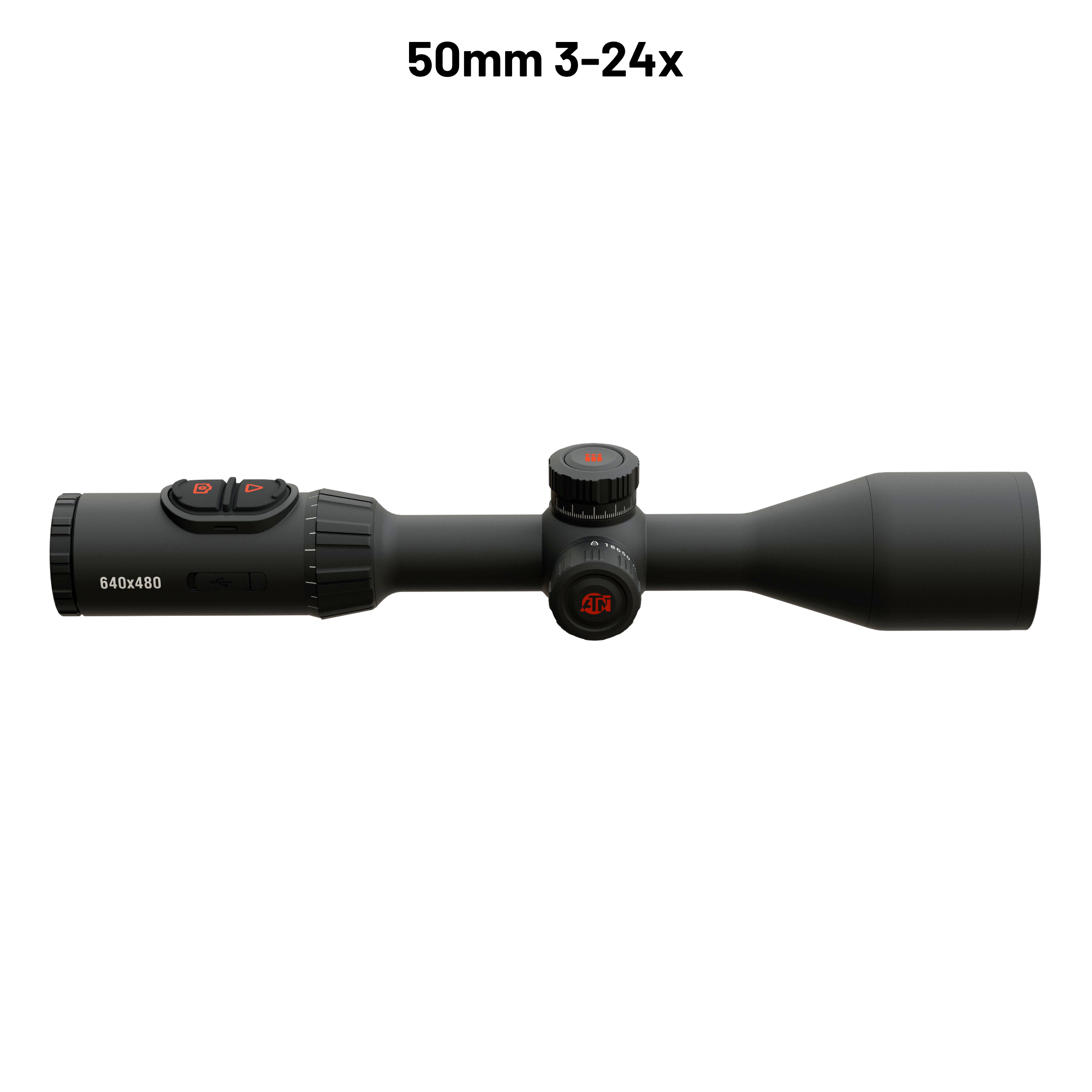

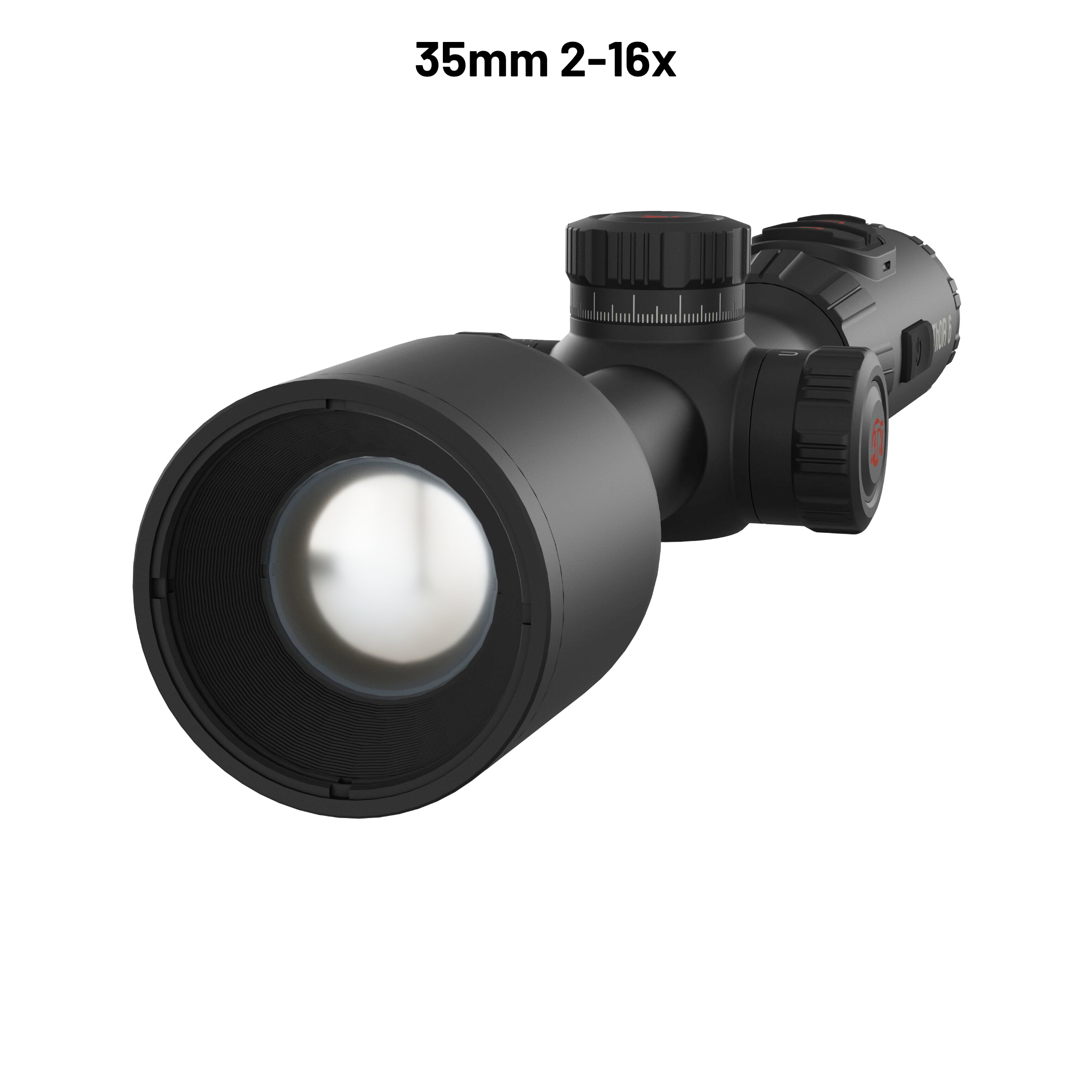

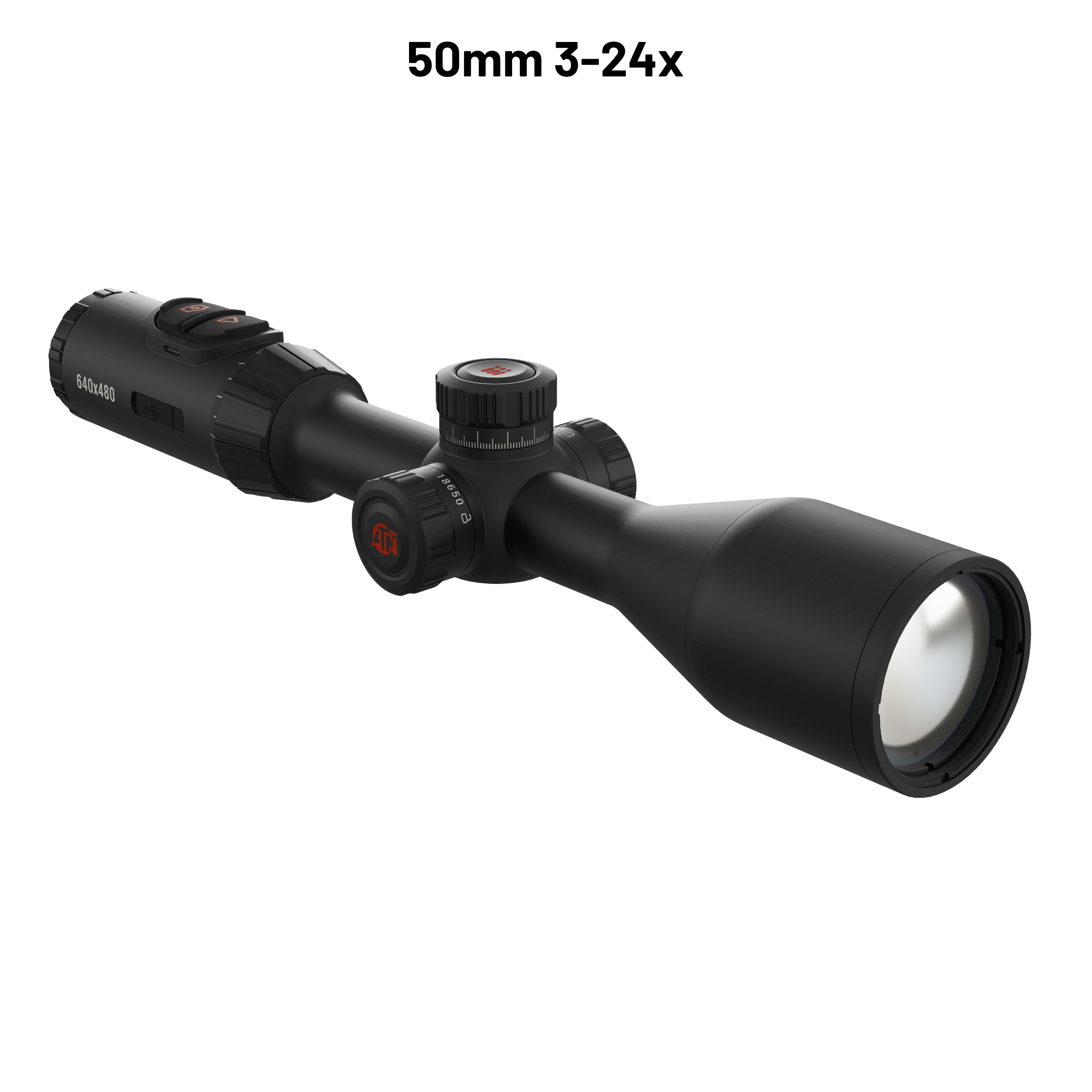

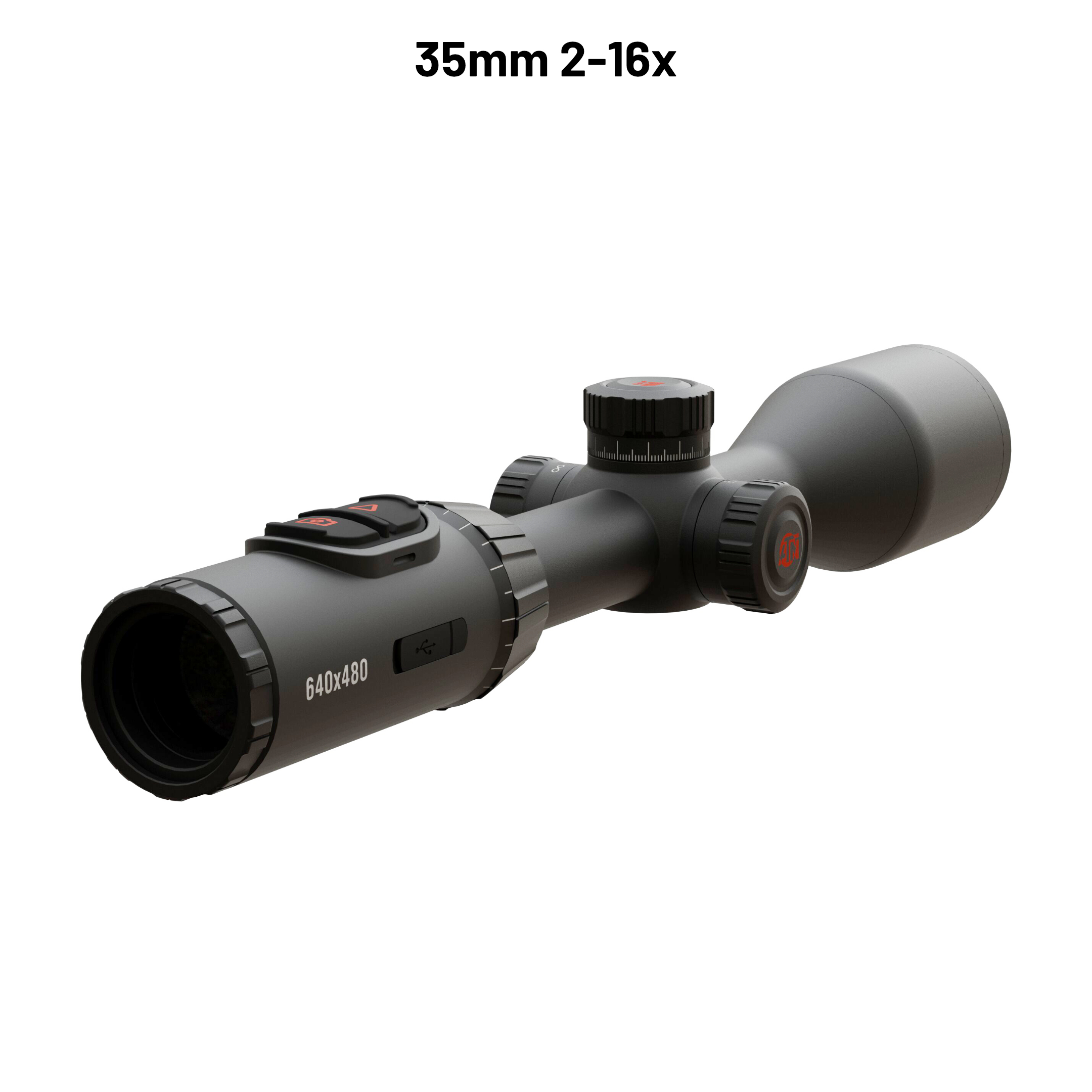

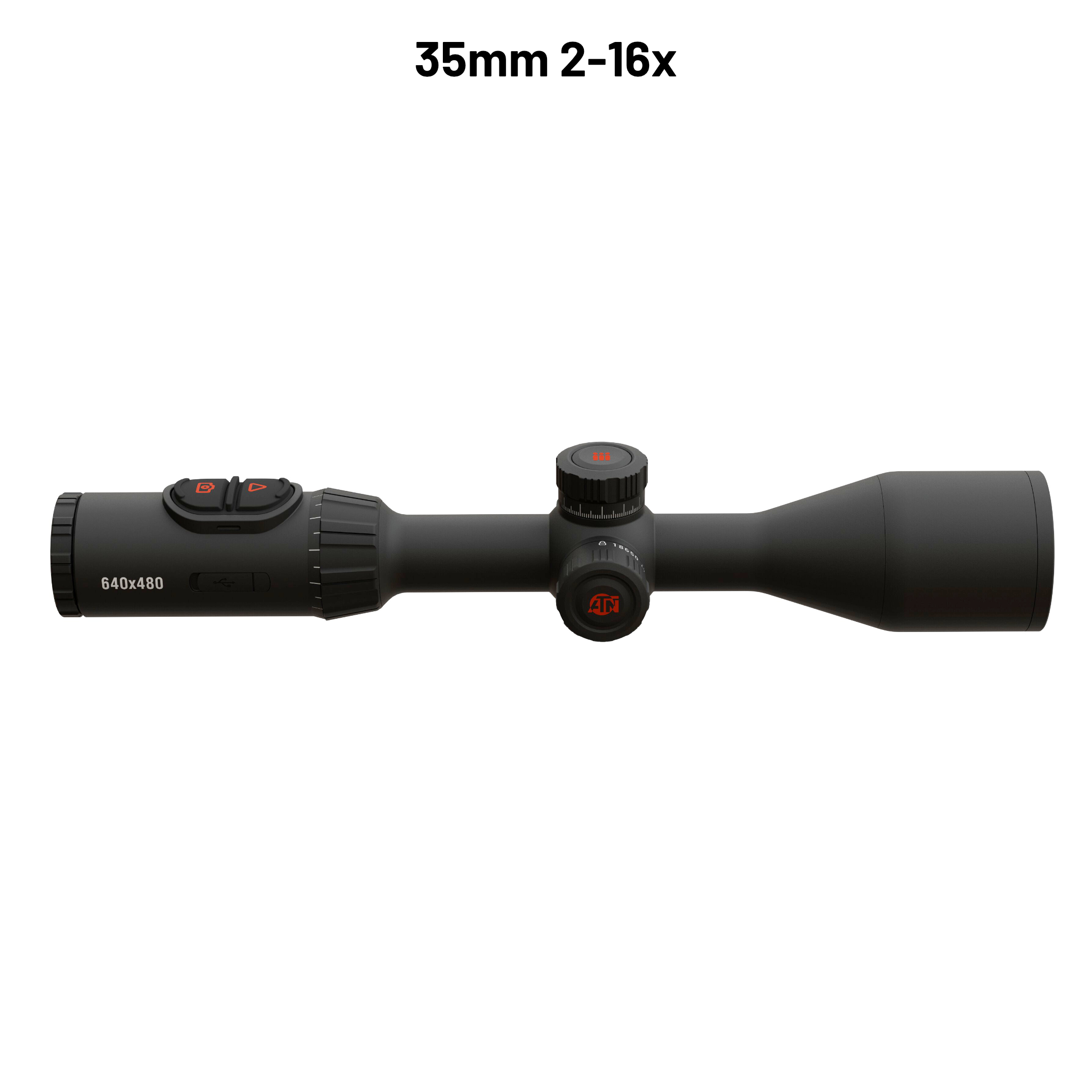

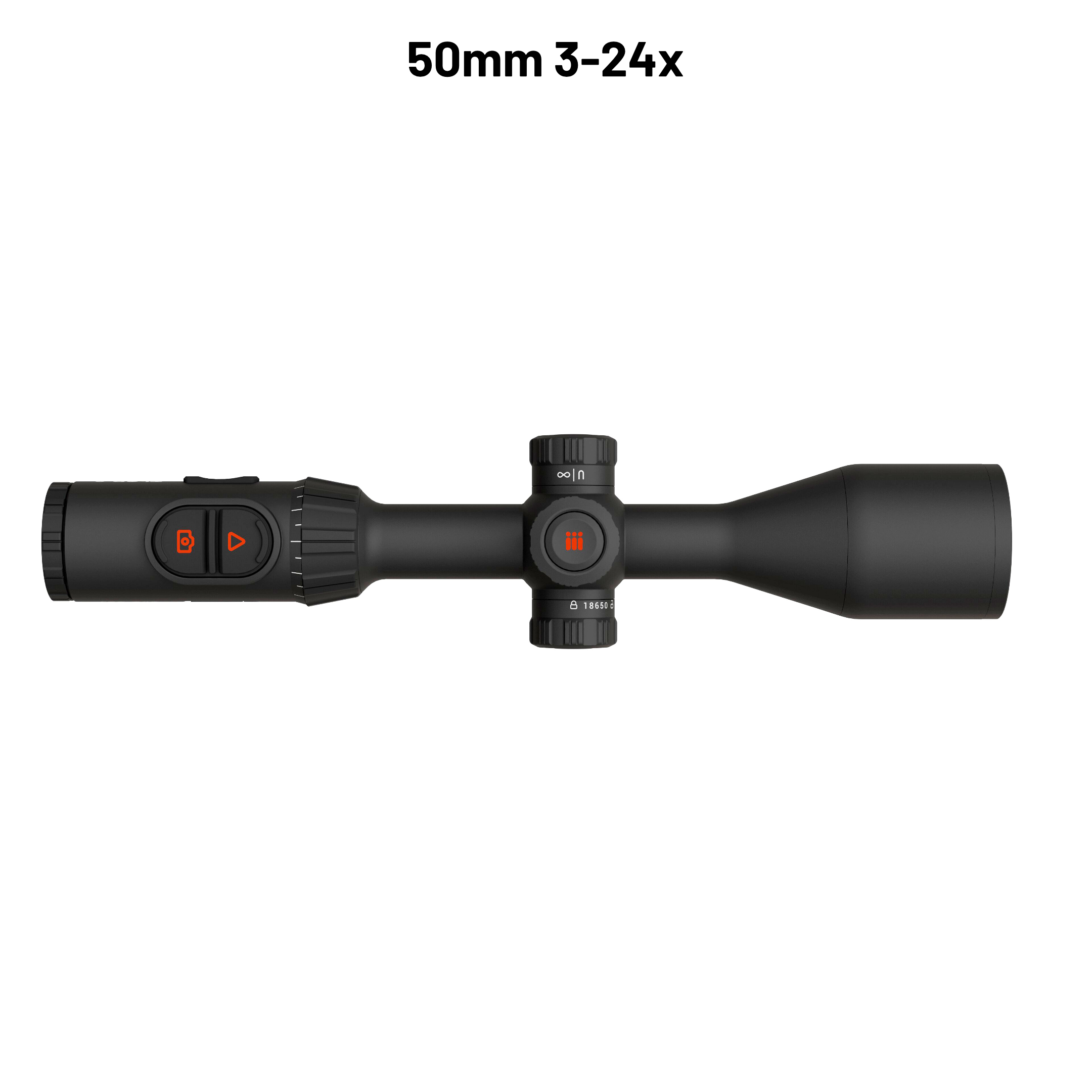

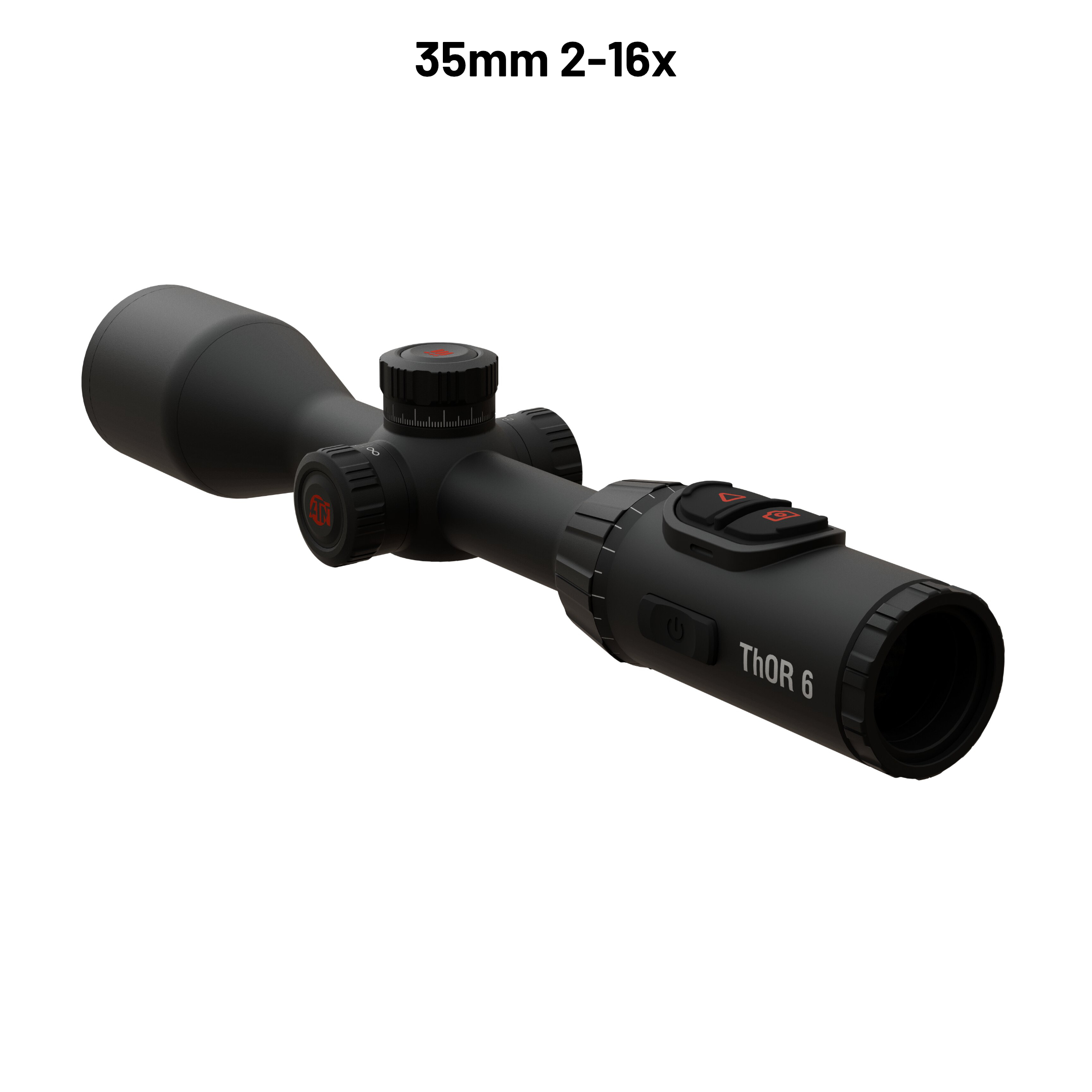

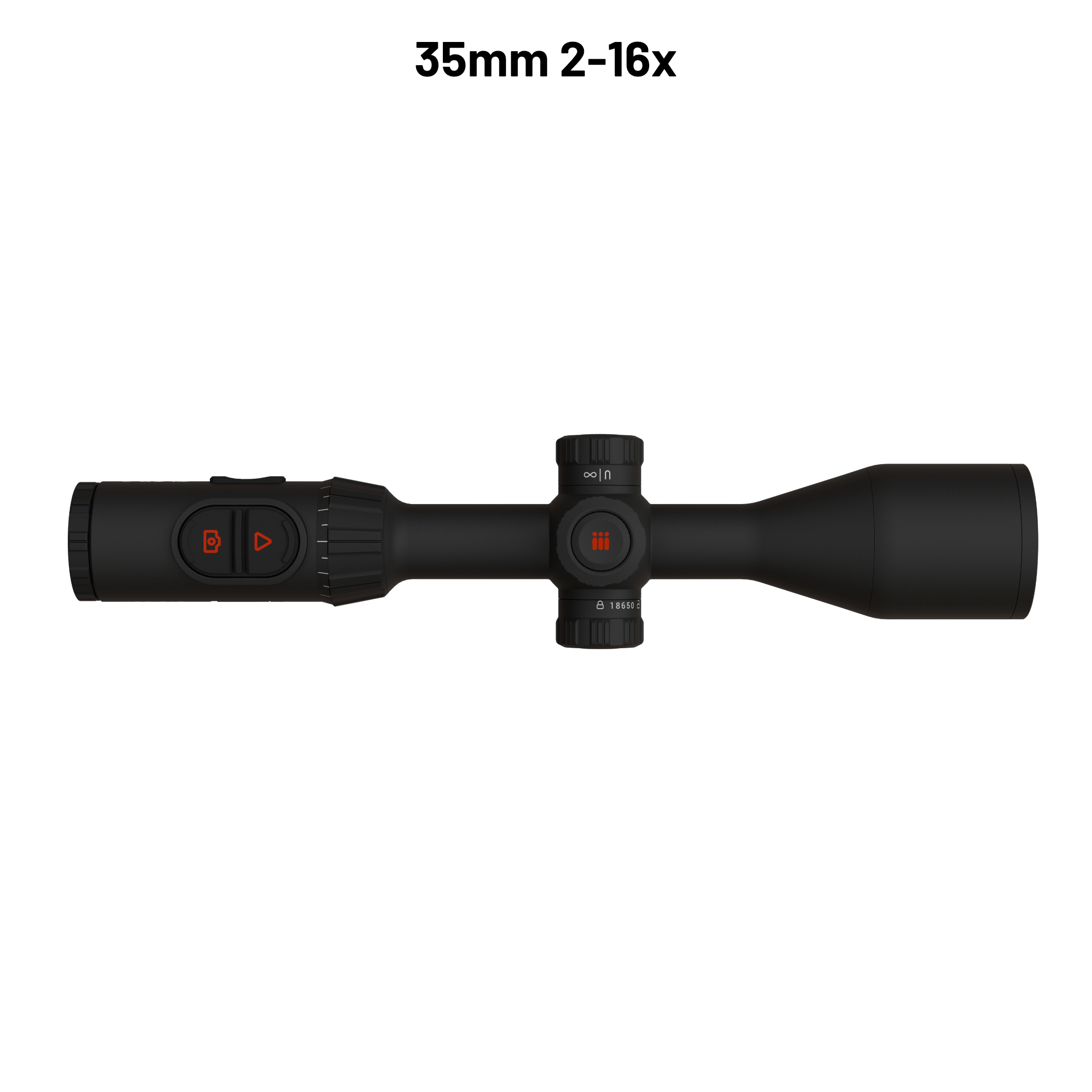

| ThOR 6 Elite 640 — TIWST6635A — 2–16× | ThOR 6 Elite 640 — TIWST6650A — 3–24× | |
|---|---|---|
| Quick Specs | 640 × 512 • ≤15 mK • 1920 × 1080 • 3100 m • 35 mm • 64 GB • 1.83 lb | 640 × 512 • ≤15 mK • 1920 × 1080 • 3650 m • 50 mm • 64 GB • 1.83 lb |
| OPTICS & SENSOR | ||
| Model | TIWST6635A | TIWST6650A |
| Detector Type | 12 μm VOx Uncooled Focal Plane Array | 12 μm VOx Uncooled Focal Plane Array |
| Sensor Resolution | 640 × 512 | 640 × 512 |
| Thermal Sensitivity (NETD) | ≤15 mK | ≤15 mK |
| Refresh Rate | 50 Hz | 50 Hz |
| SharpIR© | Yes | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi Auto / Manual | Auto / Semi Auto / Manual |
| Lens | 35 mm Germanium; F/1.0 | 50 mm Germanium; F/1.0 |
| Field of View (H × V) | 12.52° × 9.41° | 8.78° × 6.59° |
| Focus Mechanism | Manual, Central Knob Control | Manual, Central Knob Control |
| Detection Range | 3100 m | 3650 m |
| High-Transmission Germanium Lens | Yes | Yes |
| MAGNIFICATION & DISPLAY | ||
| Magnification | 2–16× | 3–24× |
| Digital Zoom | 1×, 2×, 4×, 8× | 1×, 2×, 4×, 8× |
| Zoom Type | Step & Smooth Zoom | Step & Smooth Zoom |
| Display Type | 0.49″ OLED | 0.49″ OLED |
| Display Resolution | 1920 × 1080 | 1920 × 1080 |
| Eye Relief | 50 mm | 50 mm |
| Diopter Range | -5 to +5 D | -5 to +5 D |
| Picture-in-Picture (PIP) | Yes | Yes |
| RETICLE & TARGETING | ||
| Reticle Types | 10 Styles | 10 Styles |
| Reticle Transparency Control | Yes | Yes |
| Zeroing Freeze | Yes | Yes |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Hot Point Tracking | Yes | Yes |
| Ballistic Calculator | Not Available | Not Available |
| Built-in Laser Rangefinder (LRF) | Not Available | Not Available |
| RECORDING & CONNECTIVITY | ||
| Video / Audio Recording | Yes | Yes |
| Internal Gallery | Yes | Yes |
| Recoil Activated Video (RAV) | Yes | Yes |
| Internal Storage Capacity | 64 GB | 64 GB |
| Media Output | USB Type-C | USB Type-C |
| Built-in Wi-Fi (Hotspot) | Yes | Yes |
| Mobile App | ATN Connect 6 — iOS & Android | ATN Connect 6 — iOS & Android |
| POWER & CONTROLS | ||
| Battery Type | 1 × 18650 Internal + 1 × 18650 Rechargeable Replaceable Battery | 1 × 18650 Internal + 1 × 18650 Rechargeable Replaceable Battery |
| Battery Life | Approximately 9 Hours | Approximately 9 Hours |
| External Power Supply | Yes — USB Type-C (5 VDC / 2A) | Yes — USB Type-C (5 VDC / 2A) |
| Standby / Sleep Mode | Yes | Yes |
| Startup Time | ≤7 Seconds; Instant from Standby | ≤7 Seconds; Instant from Standby |
| Geomagnetic Sensor + Gyroscope | Yes | Yes |
| MECHANICAL & ENVIRONMENTAL | ||
| Material | Magnesium Alloy | Magnesium Alloy |
| Mounting | 30 mm Rings — Not Included | 30 mm Rings — Not Included |
| Weight | 830 g / 1.83 lb | 830 g / 1.83 lb |
| Dimensions (L × W × H) | 430 × 85 × 72 mm (16.93 × 3.35 × 2.83 in) | 430 × 85 × 72 mm (16.93 × 3.35 × 2.83 in) |
| Max Recoil Rating | 6000 Joules / 1000g Acceleration Over 0.4 ms | 6000 Joules / 1000g Acceleration Over 0.4 ms |
| Operating Temperature | -30°C to 55°C (-22°F to 131°F) | -30°C to 55°C (-22°F to 131°F) |
| Waterproof / IP Rating | IP67 | IP67 |
