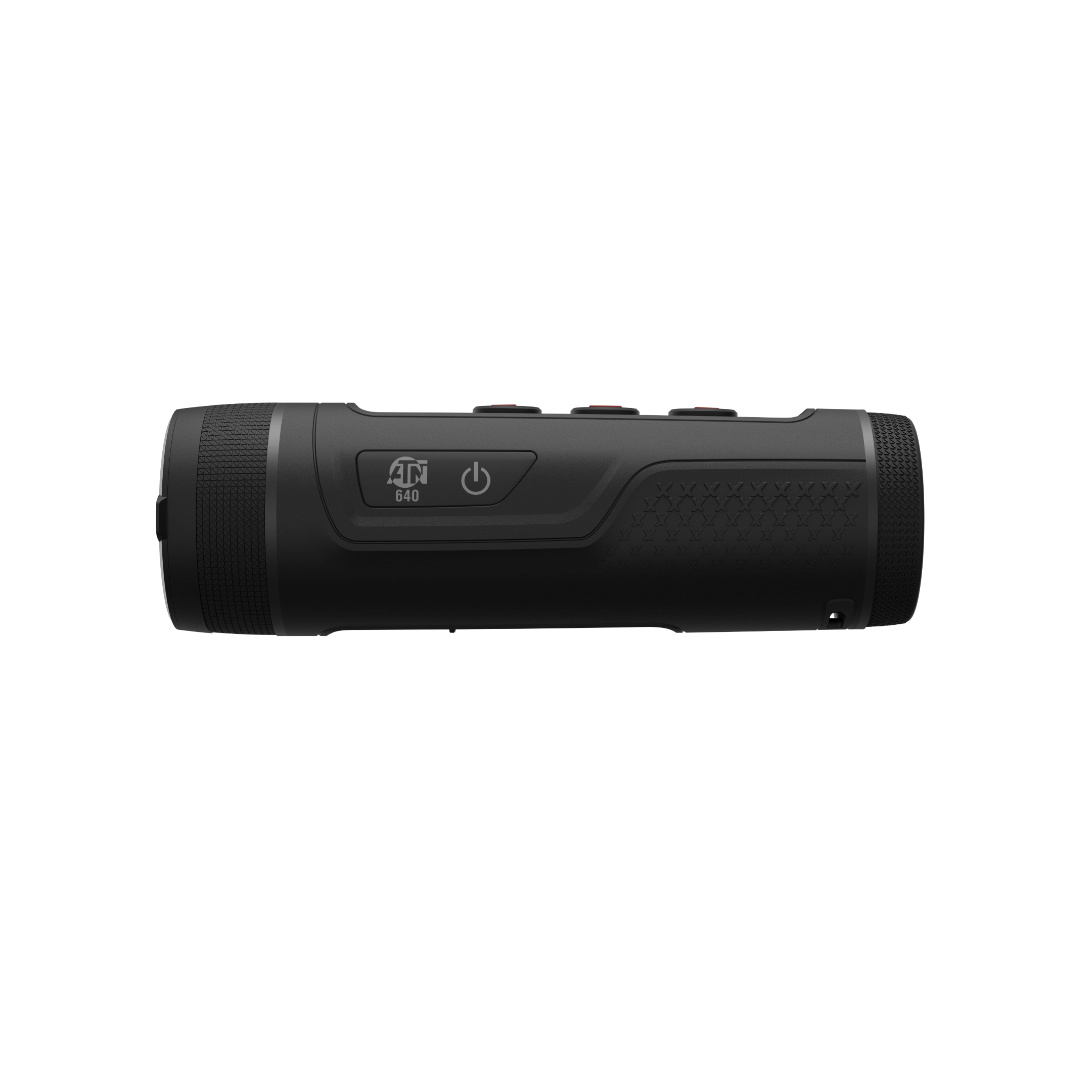

ATN BlazeTrek 6 625 640×512 Thermal Monocular
(1.75-14x Magnification & 1,090+ Yards of Detection)
The ATN BlazeTrek 6 625 Thermal Monocular delivers high-performance thermal detection in a compact handheld platform built for hunters and nighttime observers. As part of ATN’s 6th Generation thermal lineup, the BlazeTrek 6 series is designed to provide strong thermal sensitivity and reliable performance across a wide range of environmental conditions.
The BlazeTrek 6 625 is built around a 640×512 thermal sensor with a 12µm pixel pitch and ≤18 mK NETD sensitivity, allowing it to detect subtle temperature differences and deliver clear thermal imagery even in challenging terrain, fog, or complete darkness.
With a magnification range of 1.75–14× and detection capability reaching approximately 1300 meters (1,421 yards), users can scan large areas while maintaining strong image clarity and target identification at extended distances.
The 800×600 OLED display provides smooth, high-contrast thermal imagery for extended viewing sessions. Built-in video recording, image capture, and Wi-Fi connectivity allow users to capture and share footage directly from the device.
With internal storage, USB-C charging capability, IP67 weather resistance, and a rechargeable battery system designed for extended use, the BlazeTrek 6 625 is built for dependable field performance.
ATN BlazeTrek 6 625 Features:
- 640×512 thermal sensor
- 12µm pixel pitch
- ≤18 mK NETD sensitivity
- 1.75–14× magnification
- Detection range 1300 m / 1,421 yd
- 800×600 OLED display
- Digital zoom up to 8×
- Video recording capability
- Image capture capability
- Built-in Wi-Fi hotspot
- Internal storage (32 GB)
- Compact handheld monocular design
Built For:
- Predator and coyote hunters
- Hog and nuisance wildlife detection
- Scouting terrain before nighttime hunts
- Property and livestock monitoring
- Outdoor and nighttime observation
ATN BlazeTrek 6 625 Specifications:
| BlazeTrek 6 625 — TIMNBLT625G6 — 1.75–14× | Specifications |
|---|---|
| Quick Specs | Sensor: 640 × 512 • NETD: ≤18 mK • Display: 800 × 600 • Detection: 1300 m • Objective: 25 mm • Storage: 32 GB Internal • Weight: 0.7 lb |
| OPTICS & SENSOR | |
| Detector Type | 12 μm VOx Uncooled Focal Plane Array |
| Sensor Resolution | 640 × 512 |
| Thermal Sensitivity (NETD) | ≤18 mK |
| Refresh Rate | 50 Hz |
| SharpIR© | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi Auto / Manual |
| Lens | 25 mm Germanium; F/1.0 |
| Field of View (H × V) | 17.5° × 14° |
| Focus Mechanism | Manual Focus (1 m to Infinity) |
| Magnification | 1.75–14× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Detection Range | 1300 m |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| DISPLAY & VIEWING | |
| Display Type | OLED |
| Display Resolution | 800 × 600 |
| Diopter Range | -5 to +5 D |
| Scene Modes | Yes |
| Hot Point Tracking | Yes |
| RECORDING & CONNECTIVITY | |
| Video / Audio Recording | Yes |
| Image Capture | Yes |
| Internal Storage Capacity | 32 GB |
| Built-in Wi-Fi (Hotspot) | Yes |
| Media Output | USB Type-C |
| Mobile App | ATN Connect 6 — iOS & Android |
| POWER | |
| Battery Type | Internal Rechargeable Battery |
| Battery Life | Approximately 6.5 Hours |
| External Power Supply | Yes — USB Type-C (5 VDC / 2A) |
| Standby / Sleep Mode | Yes |
| DESIGN & DURABILITY | |
| Weight (with Battery) | 320 g / 0.7 lb |
| Dimensions (L × W × H) | 158 × 57 × 50 mm (6.20 × 2.23 × 1.98 in) |
| Operating Temperature | -30°C to 55°C (-22°F to 131°F) |
| Waterproof / IP Rating | IP67 |
What’s Included:
- ATN BlazeTrek 6 625 Thermal Monocular
- Case
- Cable
- Eyecup
- Lens tissue
- Lanyard
- Manual
