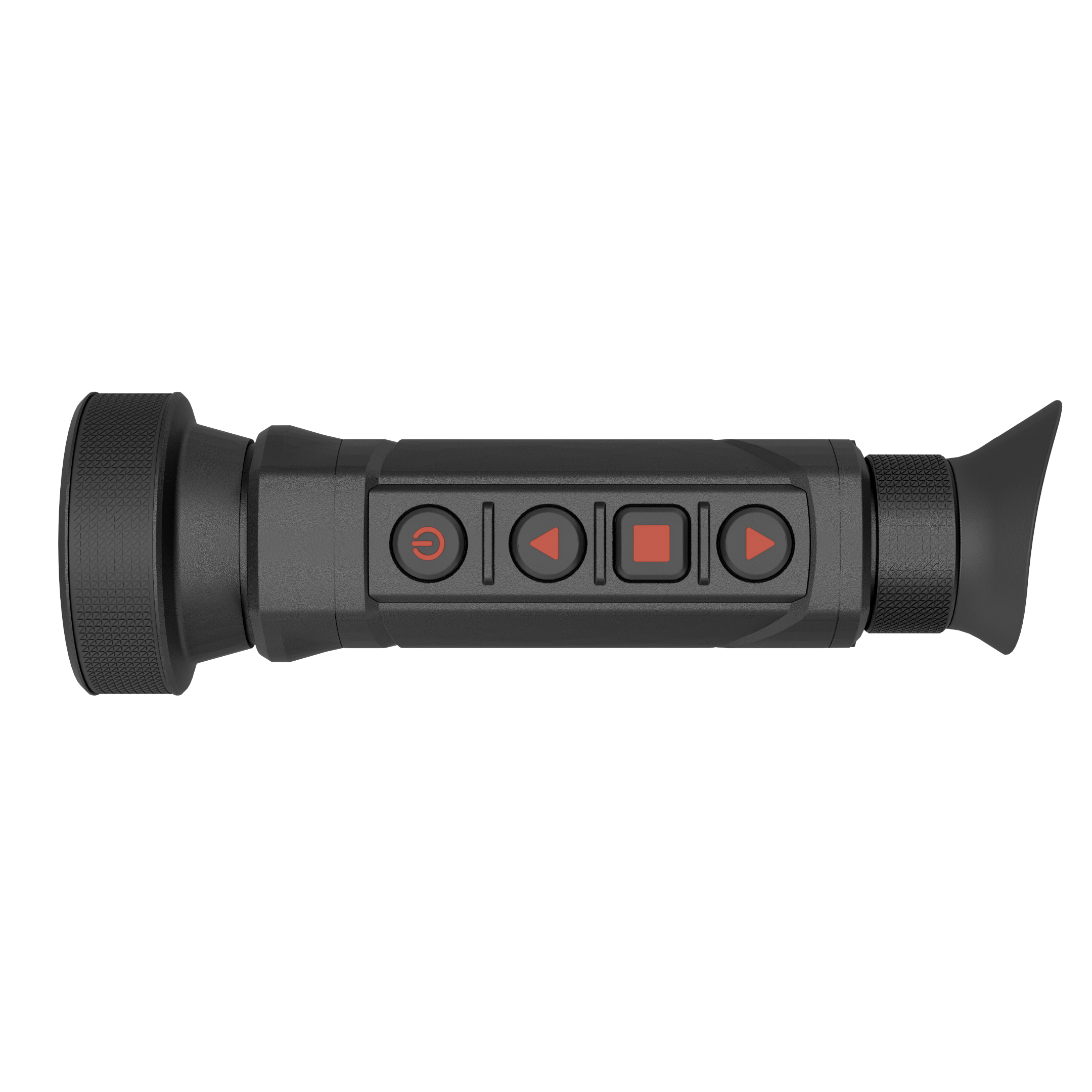

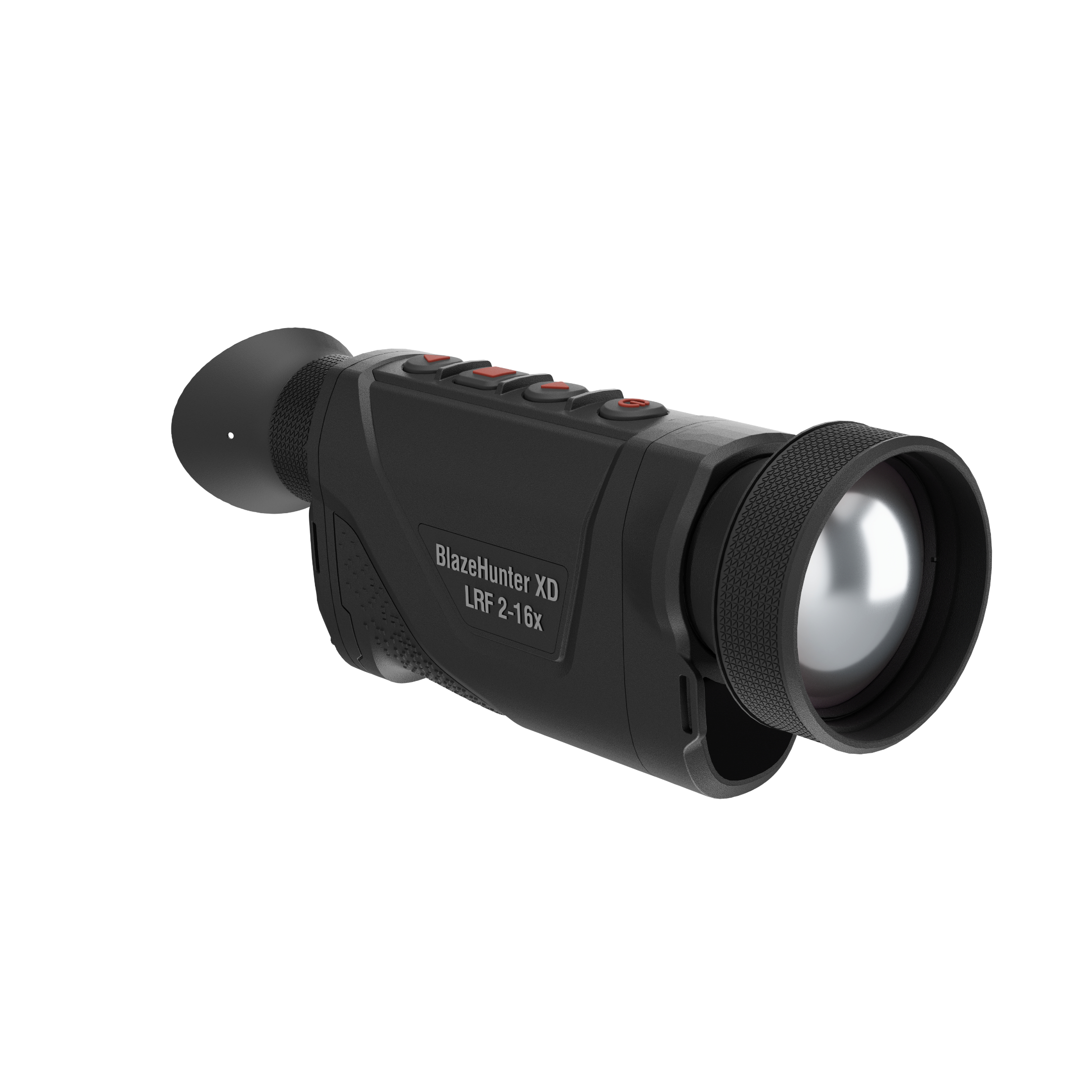

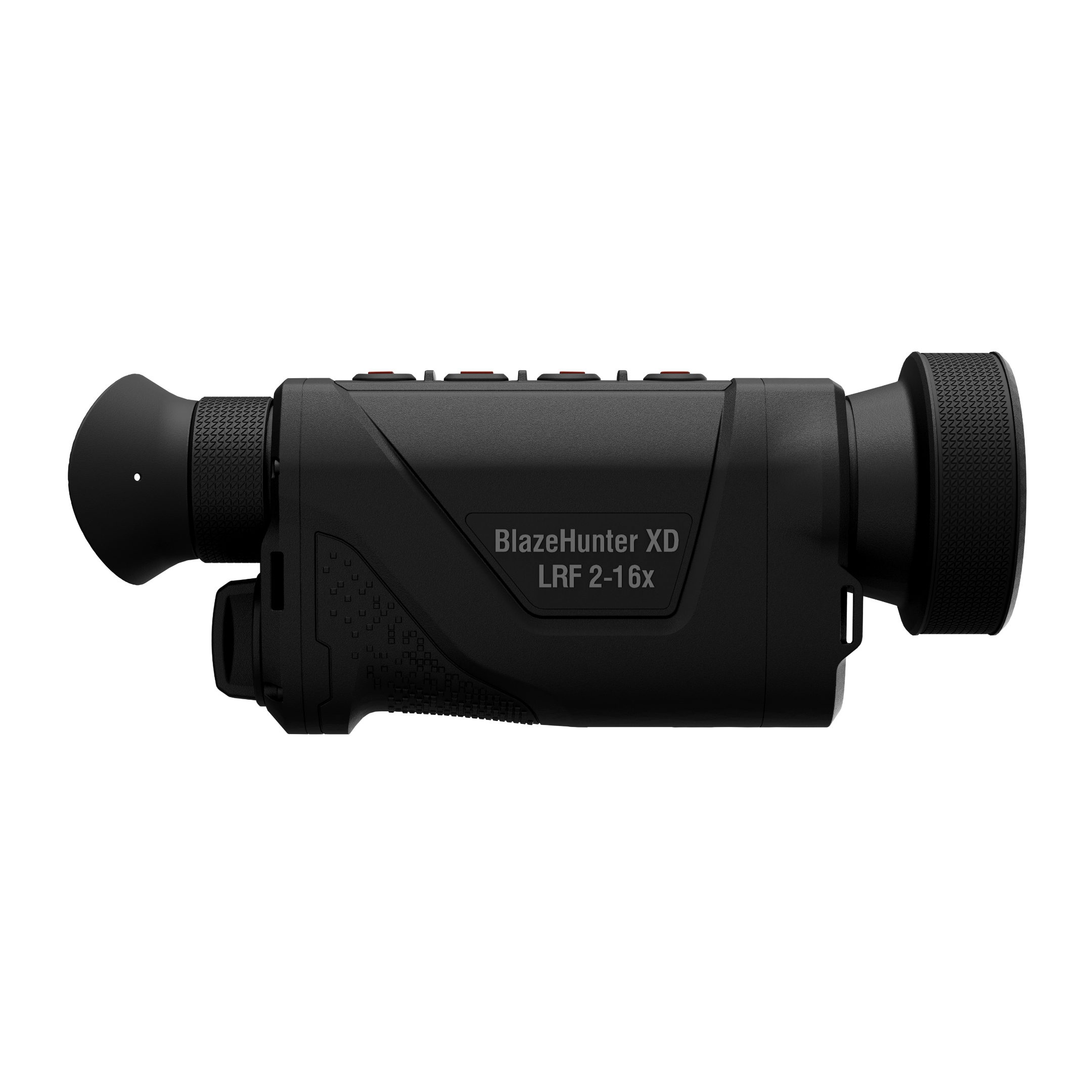

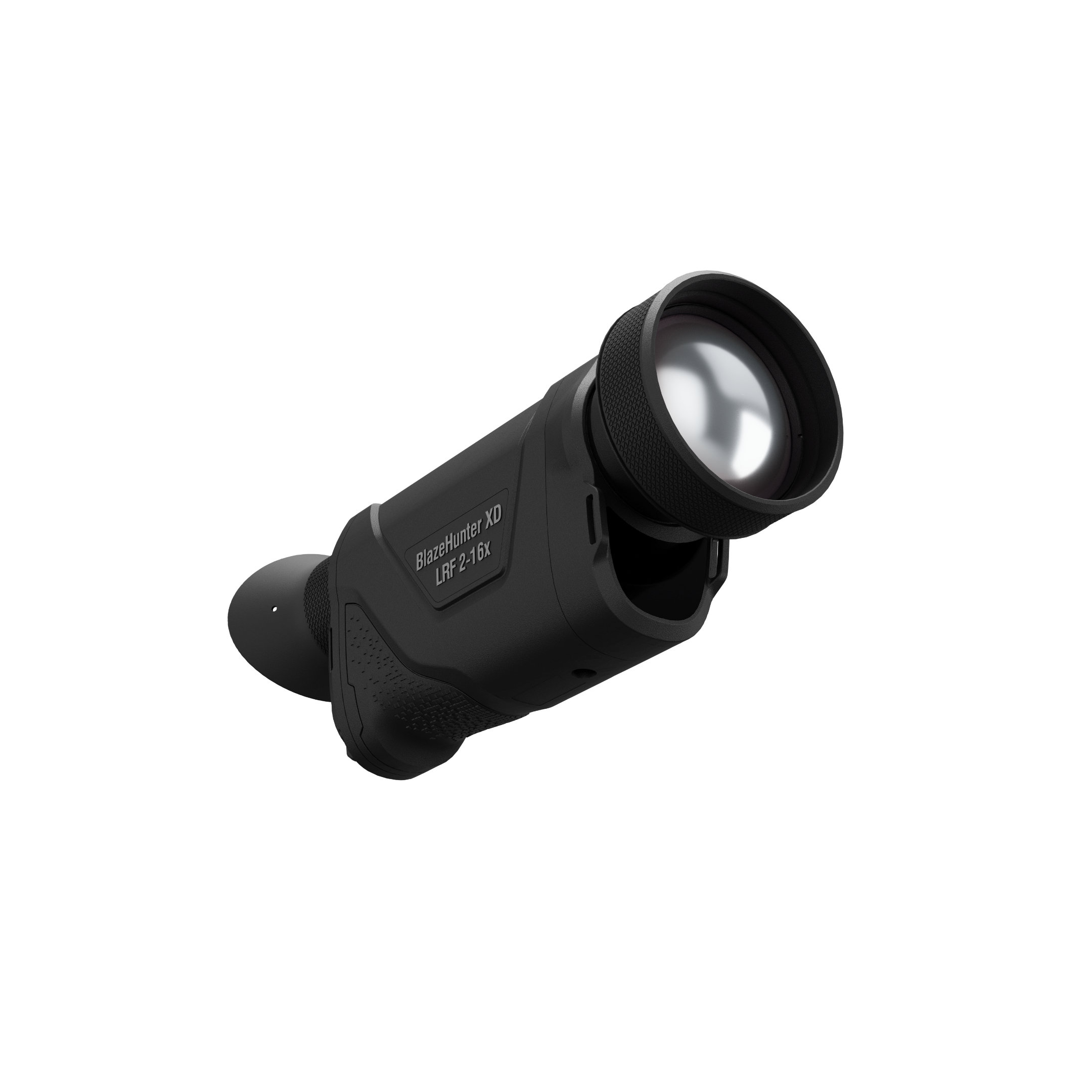

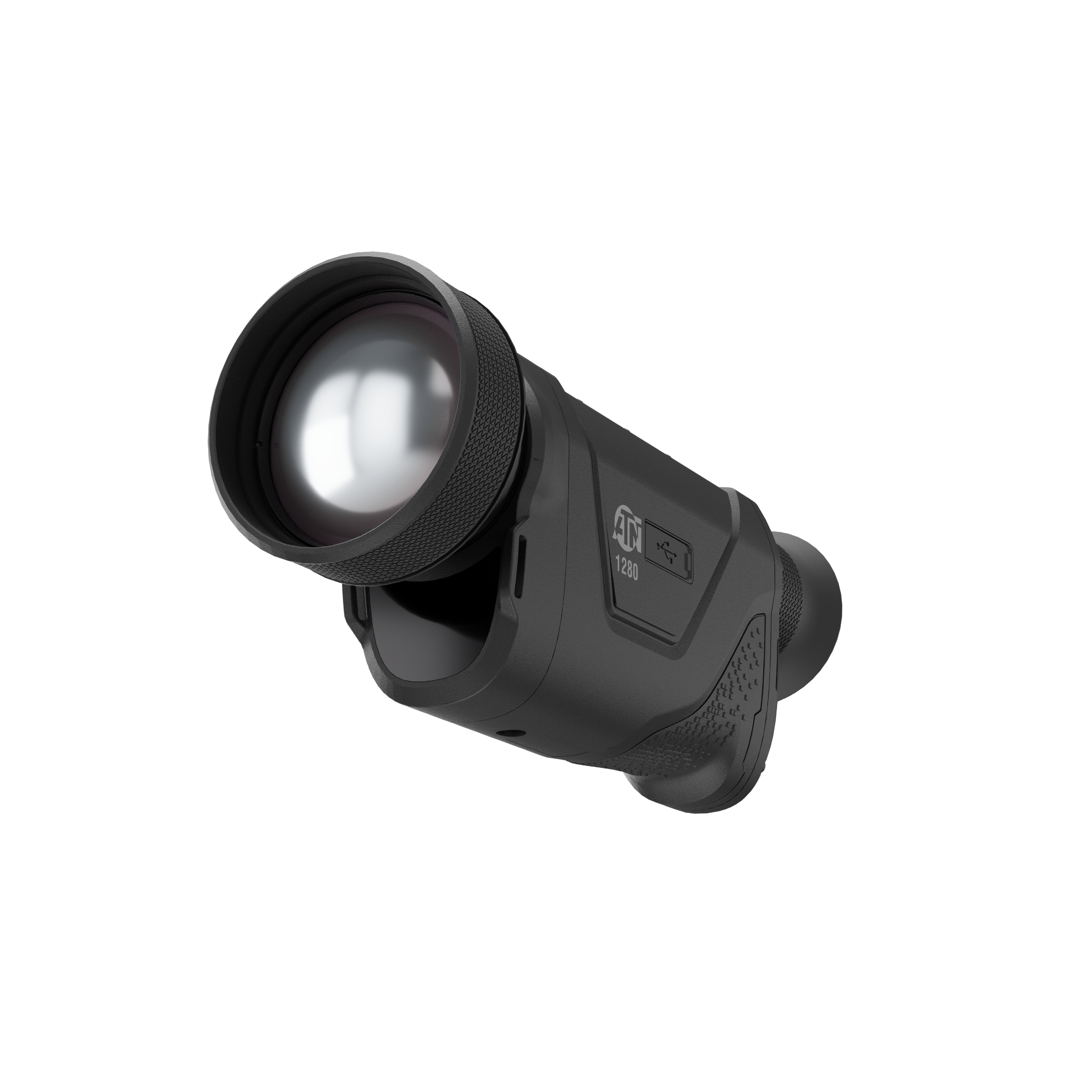

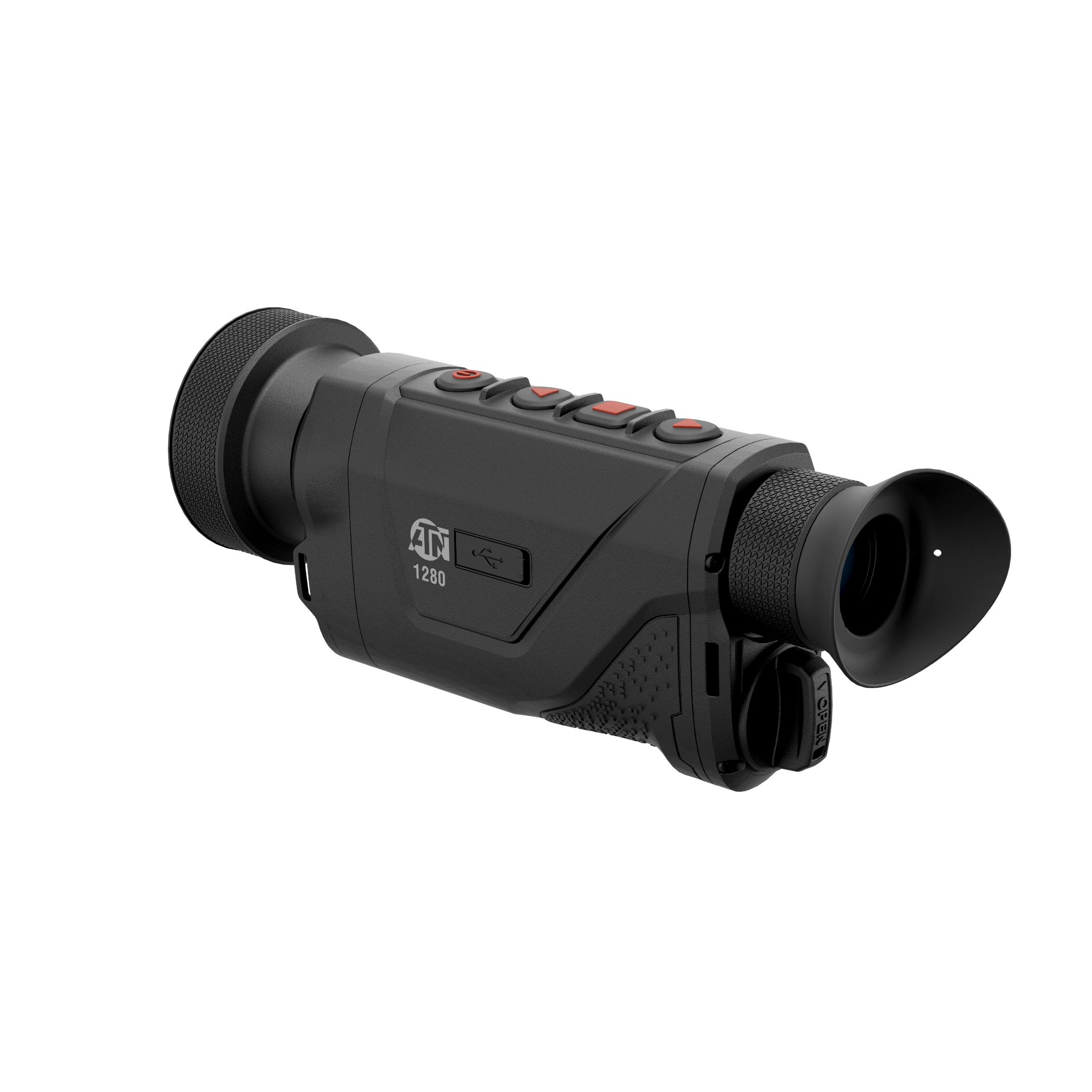

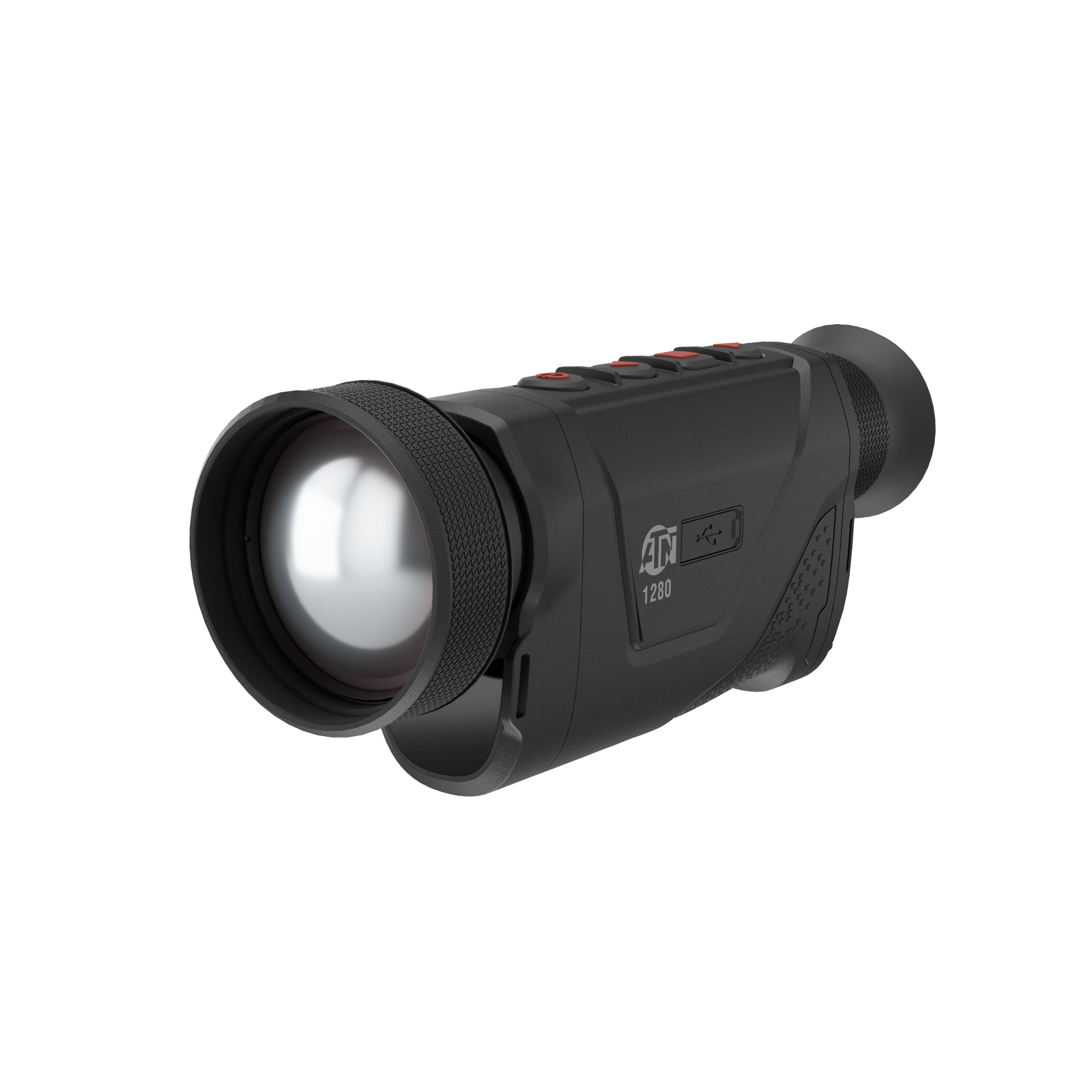

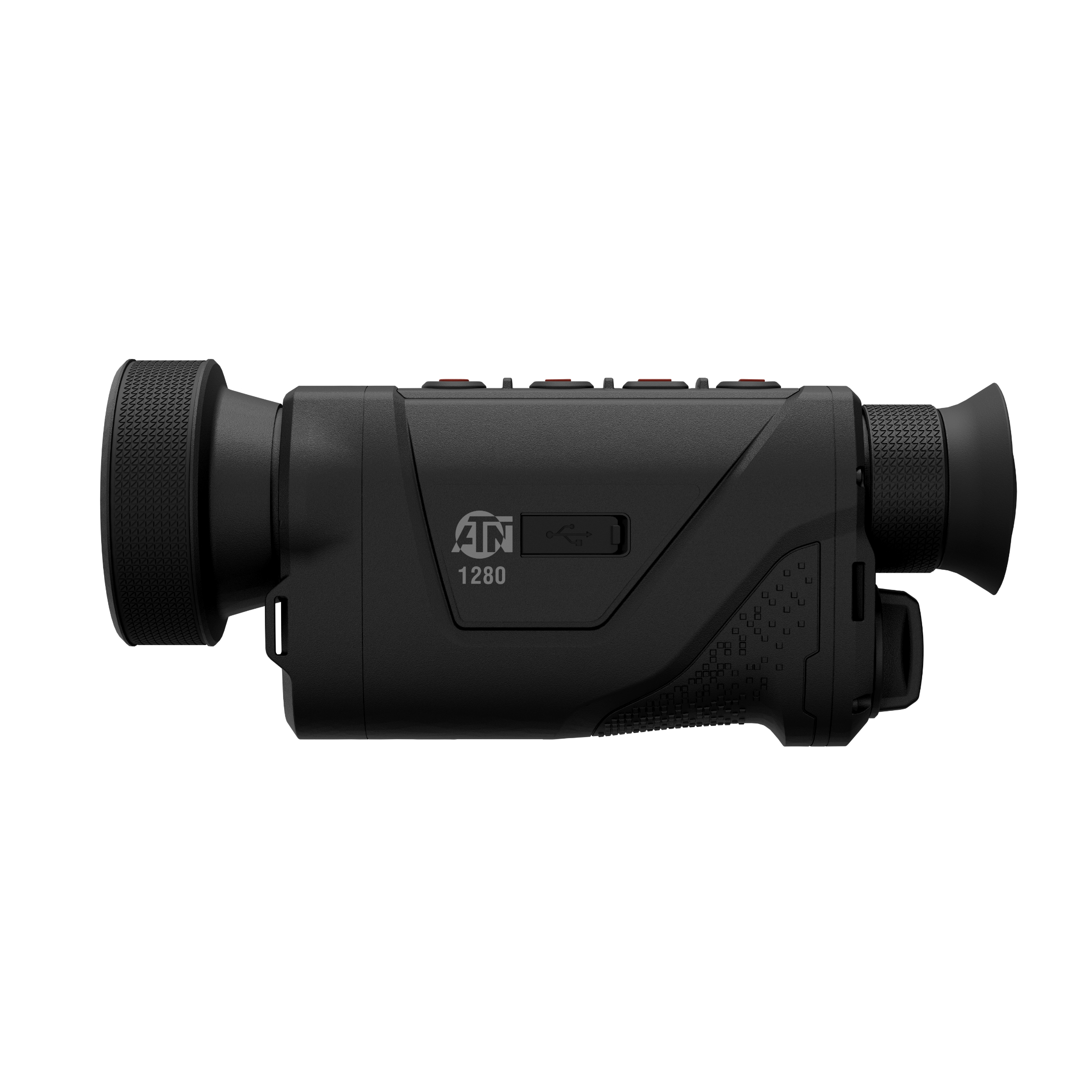

ATN BlazeHunter XD 1280×1024 Thermal Monocular with Laser Rangefinder
(2-16x Magnification & 3,700+ Yards of Detection)
The ATN BlazeHunter XD LRF 1280 Thermal Monocular delivers one of the highest-resolution thermal sensors available in a handheld optic, providing exceptional image clarity and long-range detection performance. Built around an advanced 1280×1024 thermal sensor, the BlazeHunter XD LRF captures significantly more thermal detail than traditional sensors, allowing users to detect, identify, and track heat signatures at extended distances. This higher resolution helps distinguish animals from background terrain more easily, even in challenging weather conditions such as fog, humidity, or dense vegetation.
Paired with ATN’s advanced image processing and a high-definition 1920×1080 OLED display, the BlazeHunter XD LRF provides crisp visuals and smooth image rendering during extended observation sessions.
Compact, rugged, and designed for serious nighttime use, this handheld thermal monocular is ideal for hunters, land managers, and professionals who require maximum thermal detection performance in a portable platform.
ATN BlazeHunter XD LRF Features
- 1280×1024 ultra-high-resolution thermal sensor
- High-definition 1920×1080 OLED display
- 3,700+ yard long range heat detection capability
- 2–16× digital magnification
- Advanced thermal image processing
- Multiple thermal color palettes
- Compact handheld monocular design
- Rugged construction for field use
- Long battery life for extended nighttime observation
- Ideal for scanning large areas quickly
Built For
- Predator and coyote hunters
- Hog and nuisance wildlife detection
- Scouting before nighttime hunts
- Property and livestock monitoring
- Professional thermal observation
ATN BlazeHunter XD LRF Specifications:
| BlazeHunter XD 1280 — TIMNBLHXD50LRF — 2–16× | Specifications |
|---|---|
| Quick Specs | Sensor: 1280 × 1024 • NETD: ≤15 mK • Display: 1920 × 1080 • Detection: 3400 m • Objective: 50 mm • Storage: 32 GB Internal • Weight: 1.1 lb |
| OPTICS & SENSOR | |
| Detector Type | 12 μm VOx Uncooled Focal Plane Array |
| Sensor Resolution | 1280 × 1024 — Full High Definition |
| Thermal Sensitivity (NETD) | ≤15 mK |
| Refresh Rate | 50 Hz |
| SharpIR© | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi Auto / Manual |

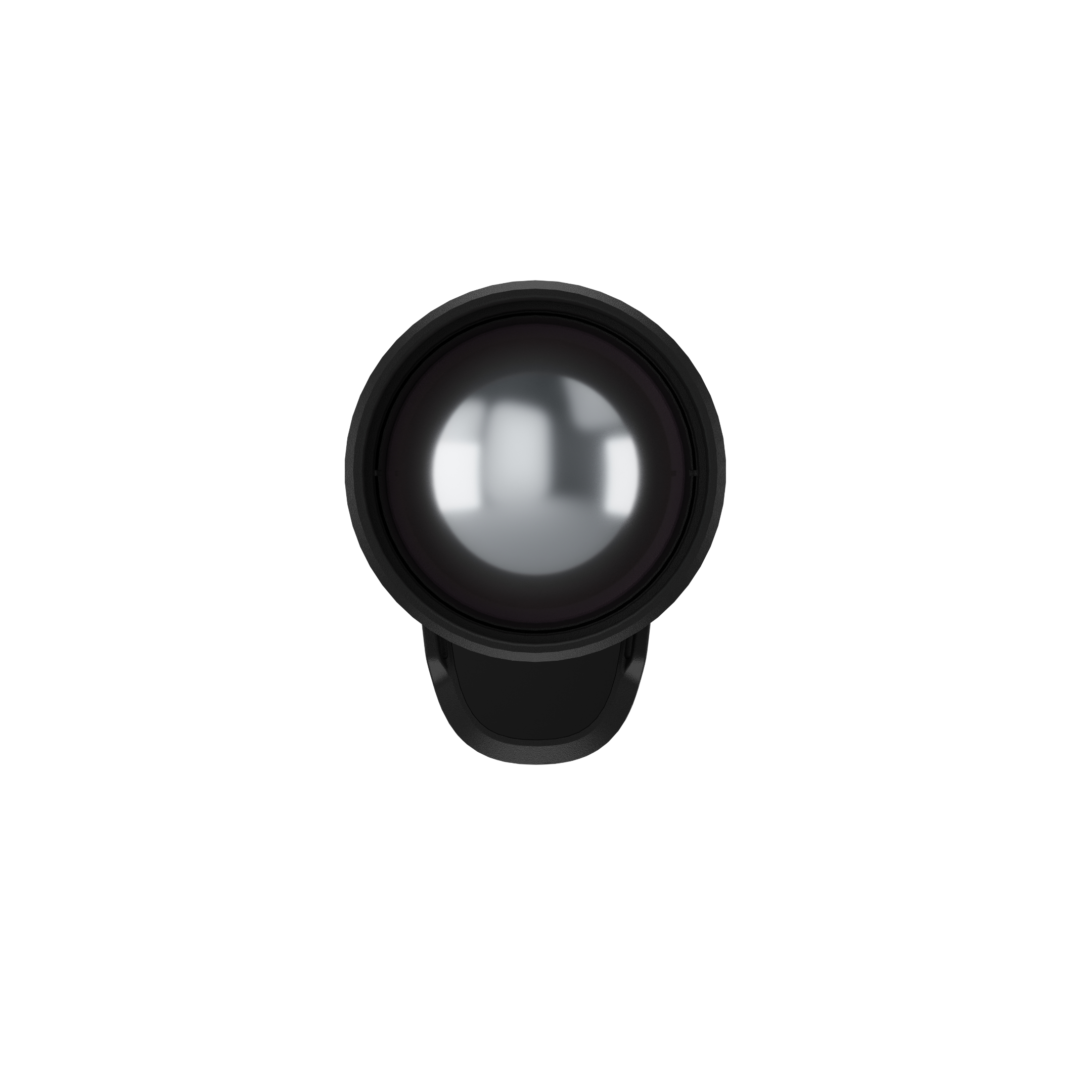

| Lens | 50 mm Germanium; F/1.0 |
| Field of View (H × V) | 17.46° × 14.01° |
| Focus Mechanism | Manual Focus |
| Magnification | 2–16× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Detection Range | 3400 m |
| Color Palettes | White Hot, Black Hot, Ironbow, High Red, Green Hot, Sepia |
| DISPLAY & VIEWING | |
| Display Type | 0.49″ OLED |
| Display Resolution | 1920 × 1080 |
| Eye Relief | 50 mm |
| Diopter Range | -5 to +5 D |
| Scene Modes | Yes |
| Hot Point Tracking | Yes |
| LASER RANGEFINDER | |
| Built-in Laser Rangefinder (LRF) | Yes |
| LRF Range | 1000 m |
| LRF Accuracy | ±1 m |
| LRF Laser Specs | 905 nm, Class 1 (Eye Safe) |
| RECORDING & CONNECTIVITY | |
| Video / Audio Recording | Yes |
| Image Capture | Yes |
| Internal Storage Capacity | 32 GB |

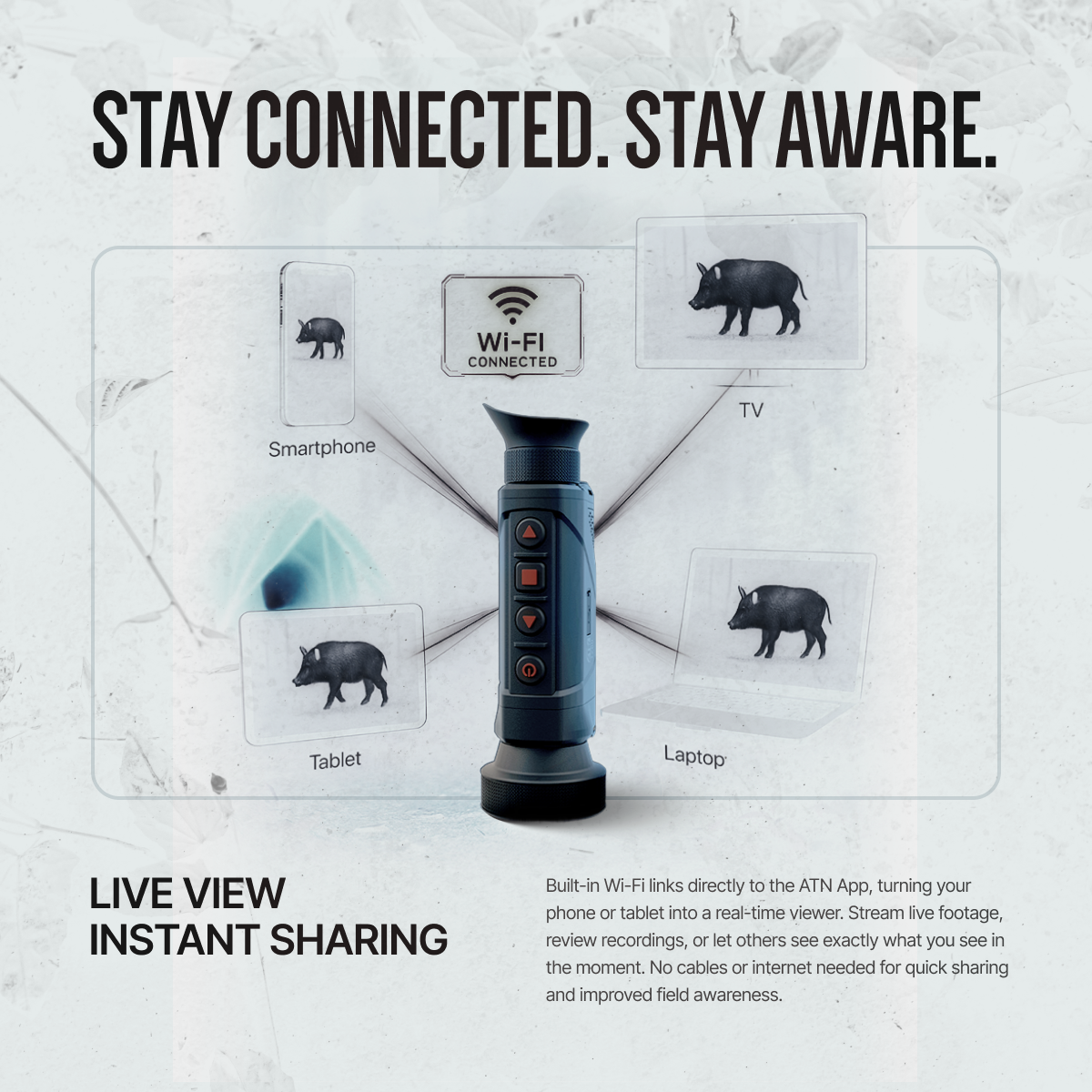

| Built-in Wi-Fi (Hotspot) | Yes |
| Media Output | USB Type-C |
| Mobile App | ATN Connect 6 — iOS & Android |
| POWER | |
| Battery Type | Removable 18650 Rechargeable Battery |
| Batteries Included | Yes — 2 × 18650 |
| Battery Life | 5+ Hours Per Battery / 10+ Hours Total |
| External Power Supply | Yes — USB Type-C (5 VDC / 2A) |
| Standby / Sleep Mode | Yes |
| DESIGN & DURABILITY | |
| Material | Magnesium Alloy |
| Weight (without Battery) | 495 g / 1.1 lb |
| Dimensions (L × W × H) | 202 × 81 × 61 mm (7.95 × 3.19 × 2.40 in) |
| Operating Temperature | -30°C to 55°C (-22°F to 131°F) |
| Waterproof / IP Rating | IP67 |
What’s Included:
- ATN BlazeHunter XD Thermal Monocular
- Rechargeable Battery System
- USB Charging Cable
- Lens Cover
- Wrist Strap
- Cleaning Cloth
- Quick Start Guide
