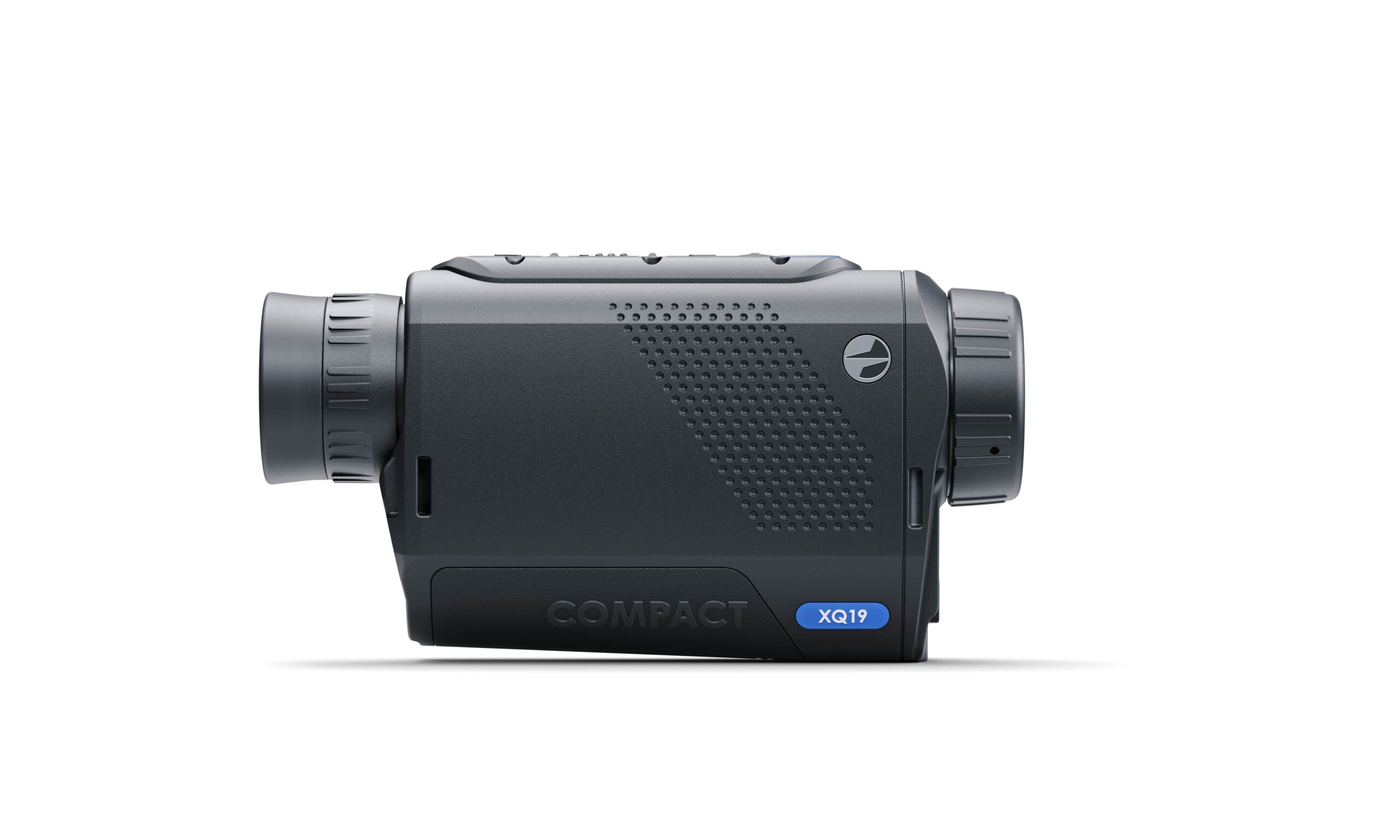

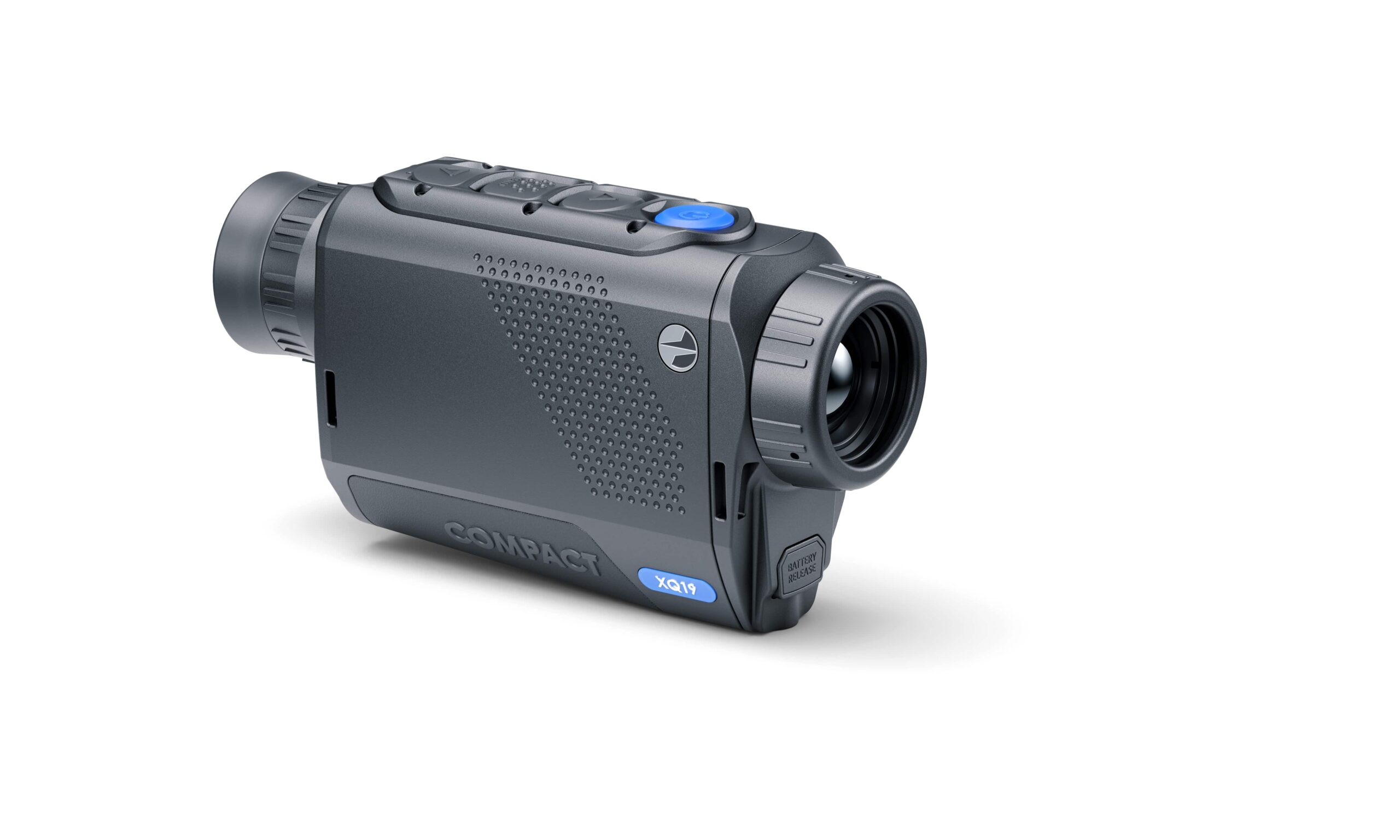

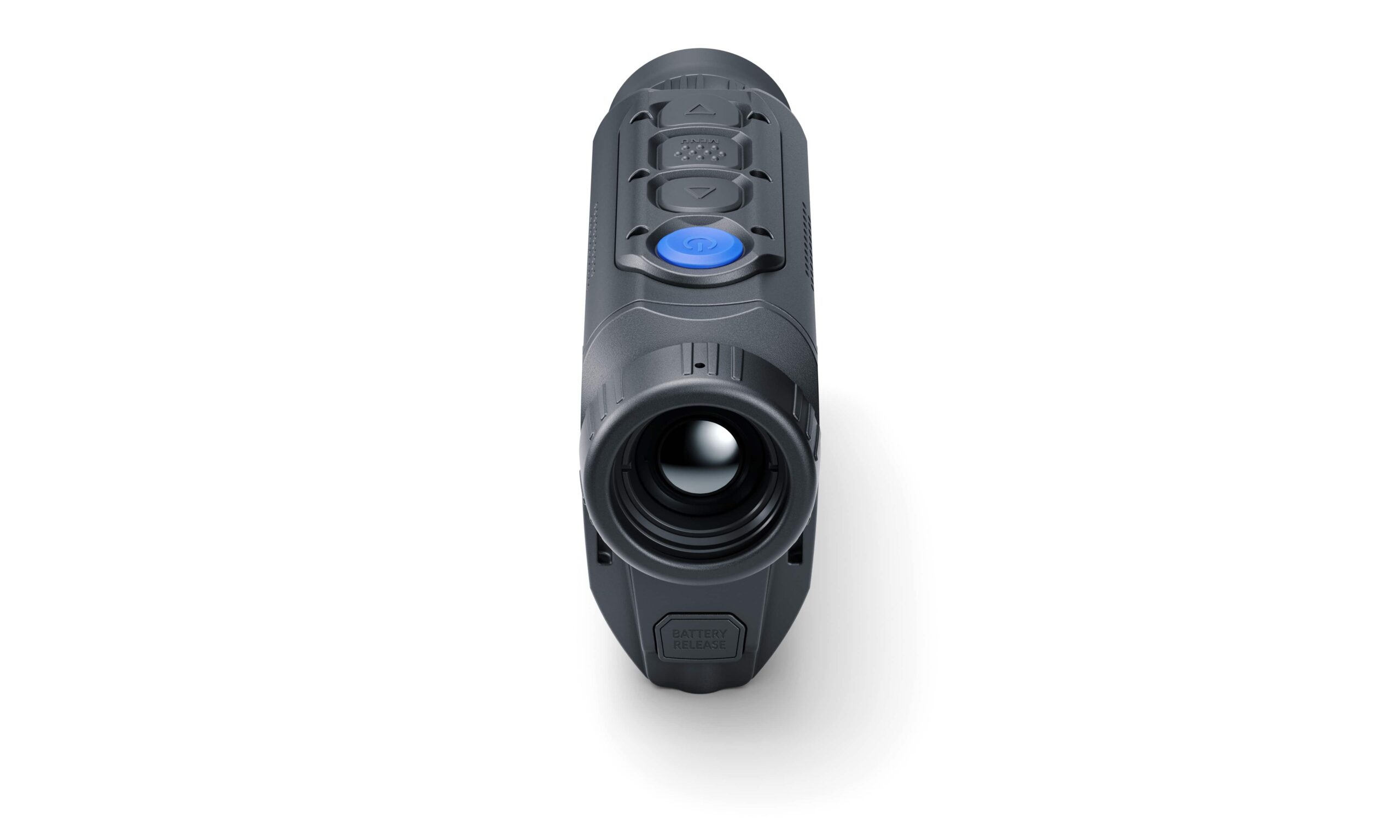

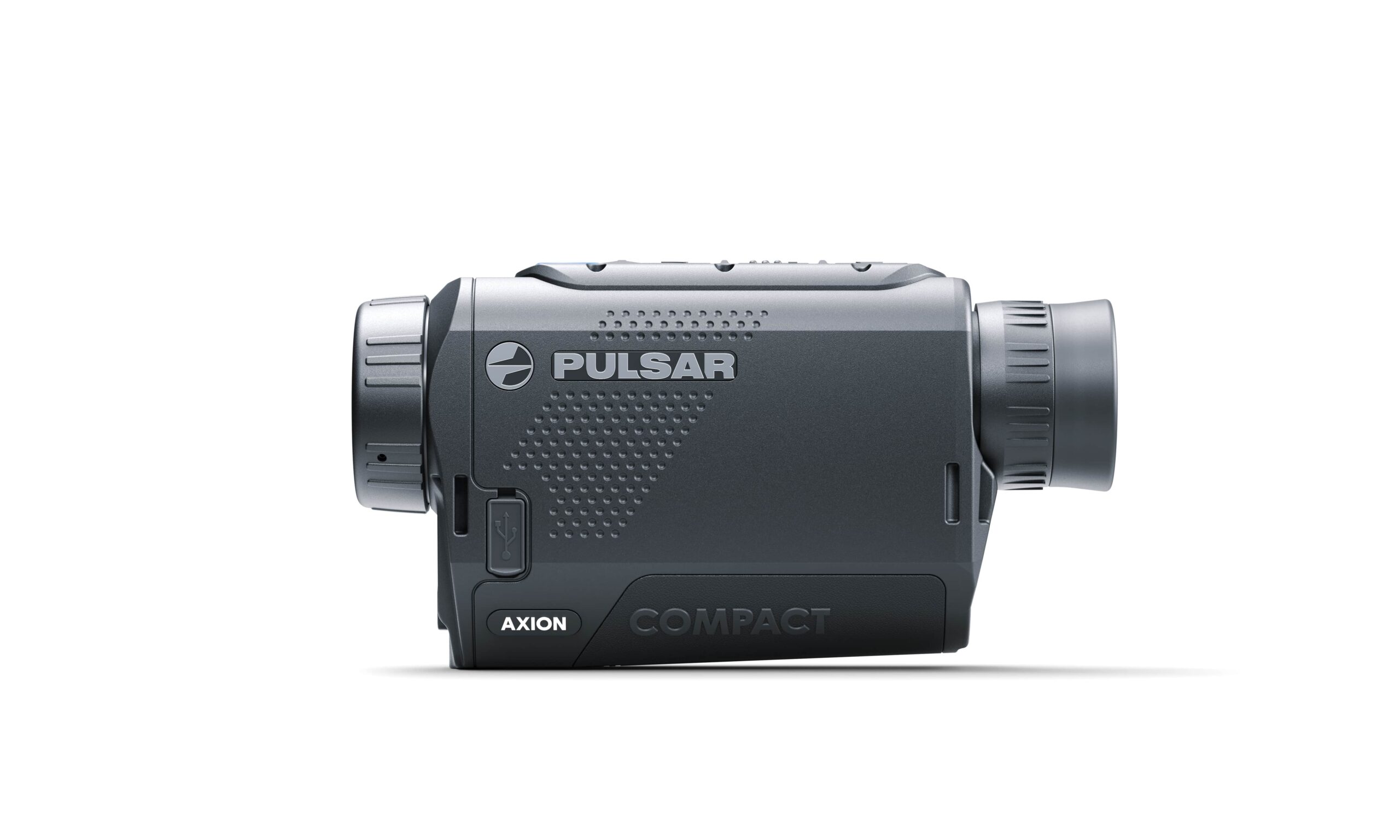

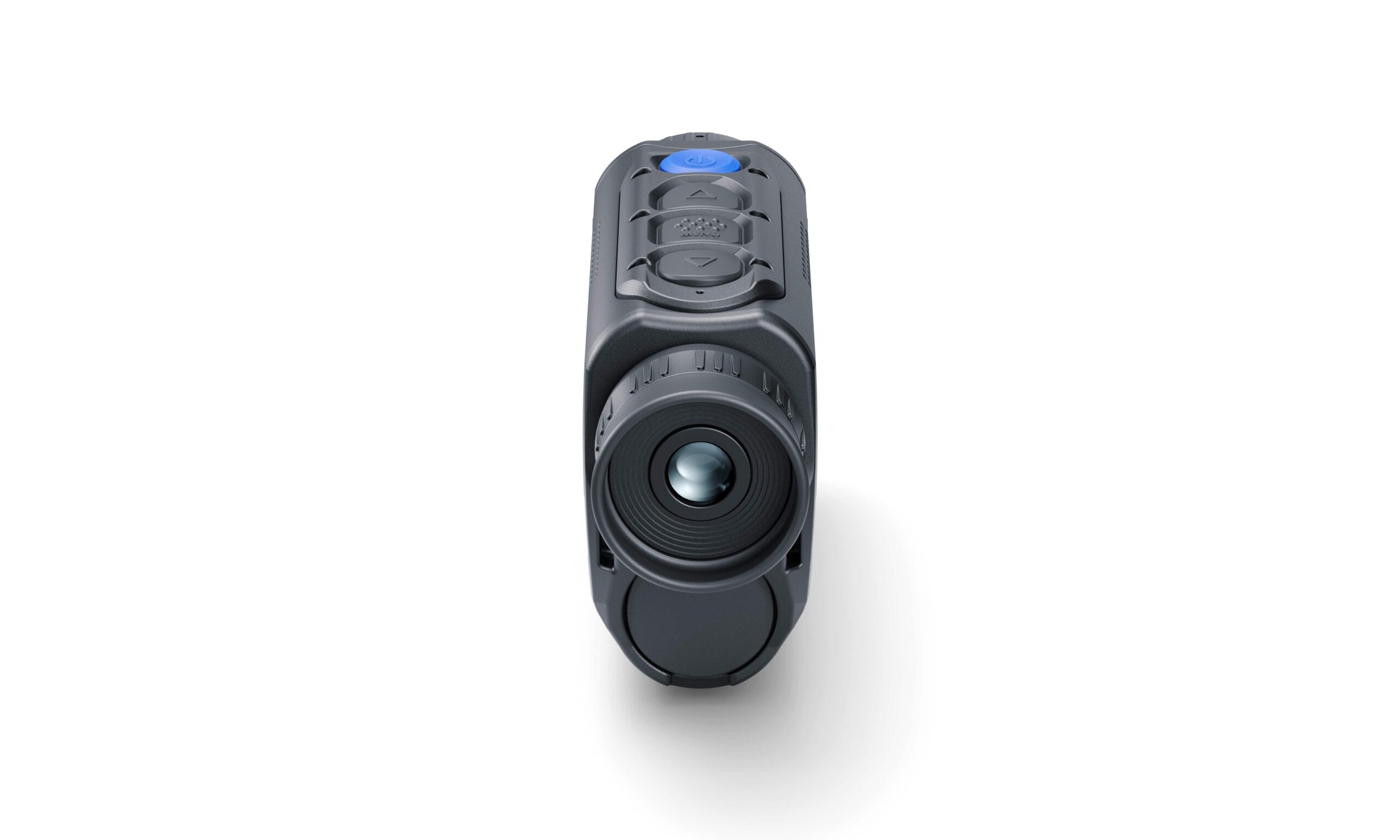

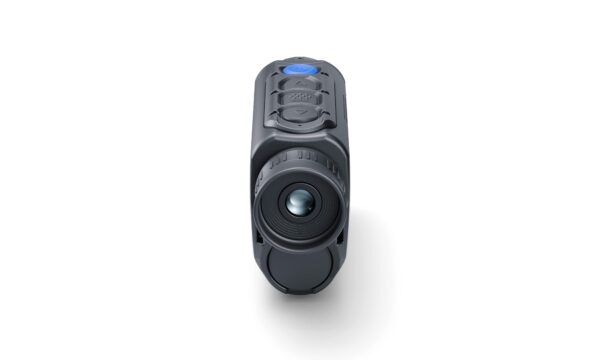

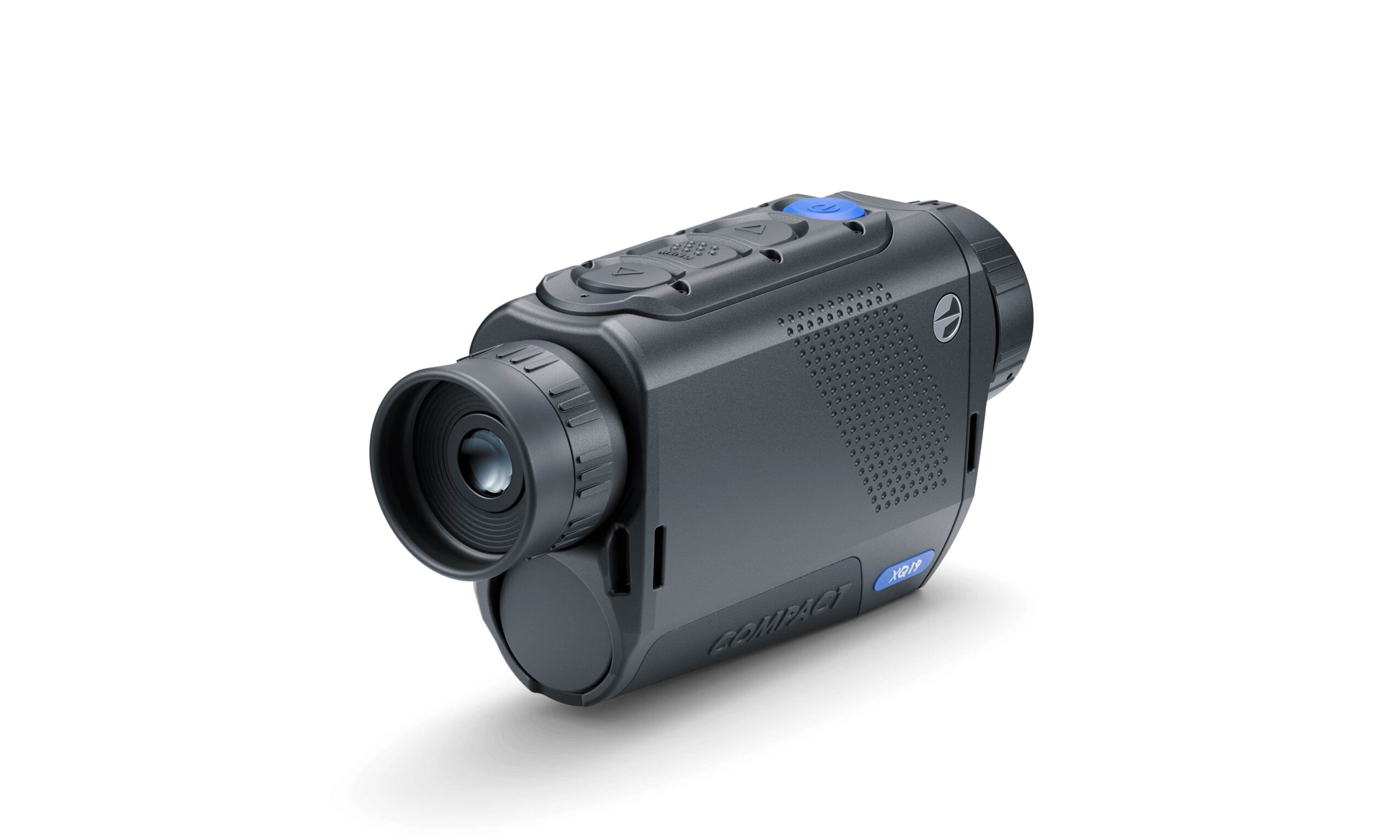

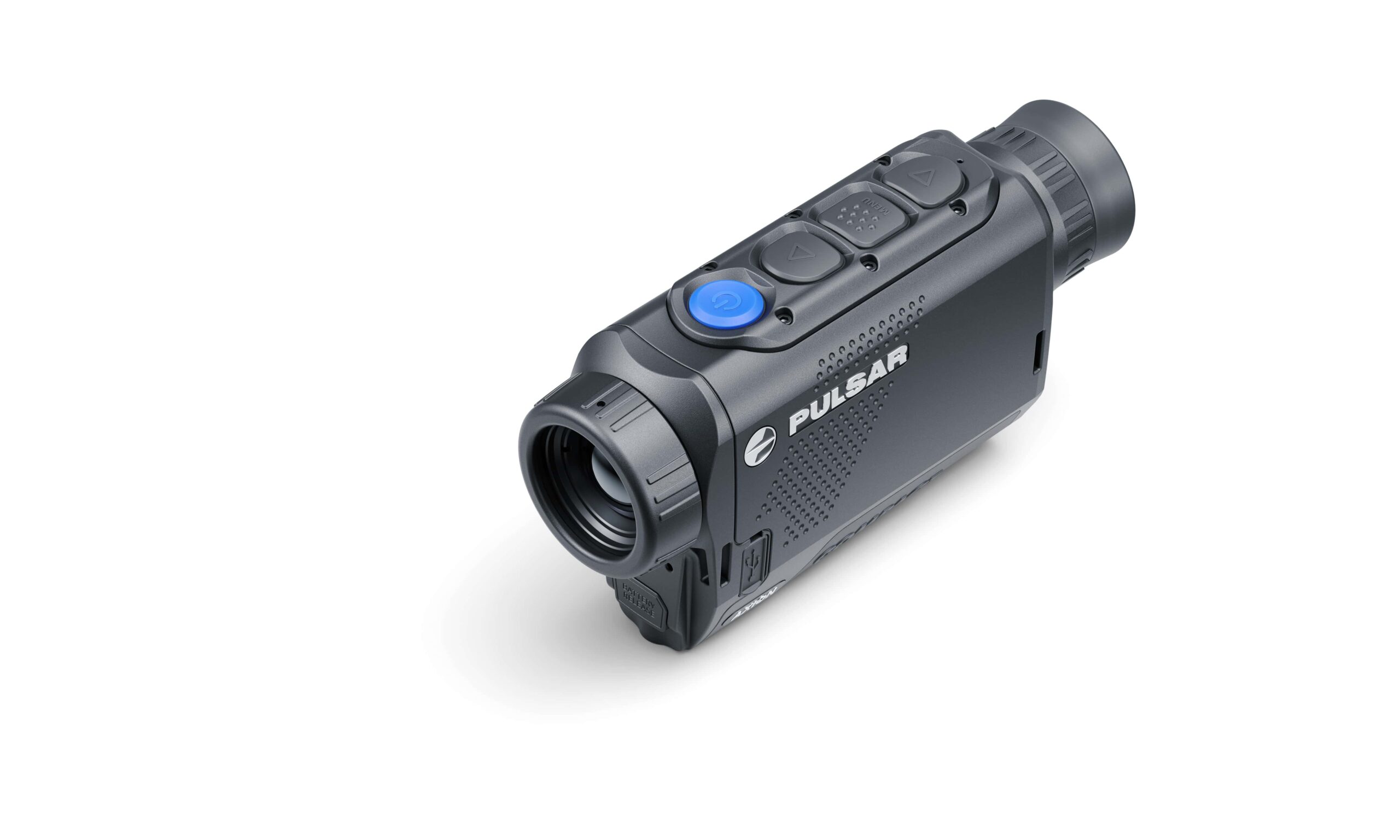

Pulsar Axion XQ19 Compact Thermal Monocular
(1.5-6x magnification and 800+ yards of detection!)
The Pulsar Axion XQ19 Compact is an entry-level thermal monocular offering reliable thermal performance and advanced features at an unbeatable price point. Designed for compactness and portability, it provides superior value for hunters.

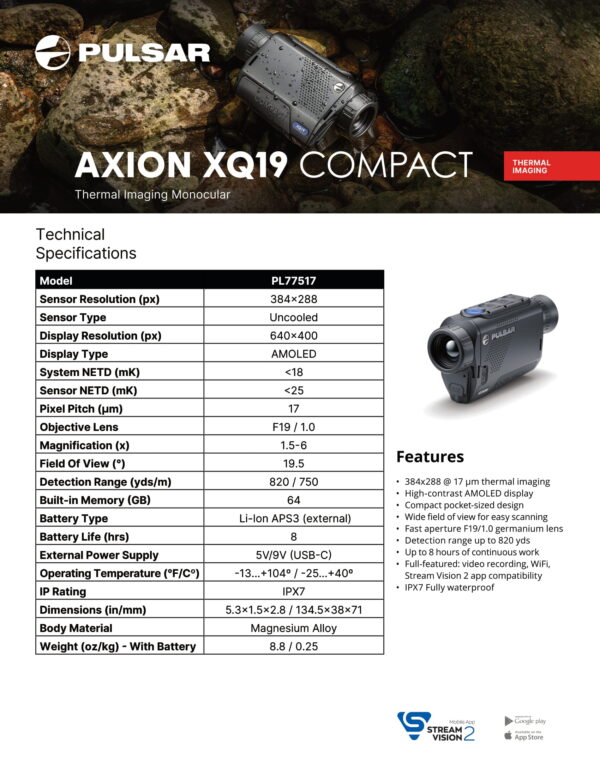

Axion XQ19 Compact Thermal Monocular Main specifications:
- Sensor: @ 17 µm 384×288
- Objective lens: F19 / 1.0
- Magnification, x: 1.5 – 6 (x4 digital zoom)
- FOV (HxV), degrees: 19.5 x 12.3
- FOV (HxV), m@100m: 34.7 x 21.5
- Diopter Adjustment, D: +4/-5
-
Eye relief, mm: 14
- Detection range: 800+ yards
Sensor
- Type: uncooled
- Resolution, pixels: 384×288
- Pixel pitch, µm: 17
- Sensor NETD, mK: <25
- System NETD, mK: <18
- Frame rate, Hz: 50
Display
- Type: AMOLED
- Resolution, pixels: 640×400
Video recorder
- Video/photo resolution, pixel: 960х600
- Video/photo format: .mp4 / .jpg
- Built-in memory, GB: 64
WI-FI
- Wireless protocol: Wi-Fi
- Wireless standard: IEEE 802.11 b/g/n/ac
Environmental characteristics
- Degree of protection IP code (IEC60529): IPX7 (waterproof)
- Operating temperature range, °F: -13…+104
Connections and compatibilities
- Mount type: 1/4″ socket
Supported application
- Stream Vision 2
Power supply
- Output voltage, V: 3.0 – 4.2
- Battery type: APS 3 Li-ion Battery Pack
- Capacity, mAh: 3200
- Operating time on battery pack, hat t=22°С: 8
- External power supply, V: 5 (USB Type C)
Weight & size
- Body material: Aluminum alloy
- Dimensions, in: 5.3×1.5×2.8
- Weight, Oz: 8.8 (without battery)
