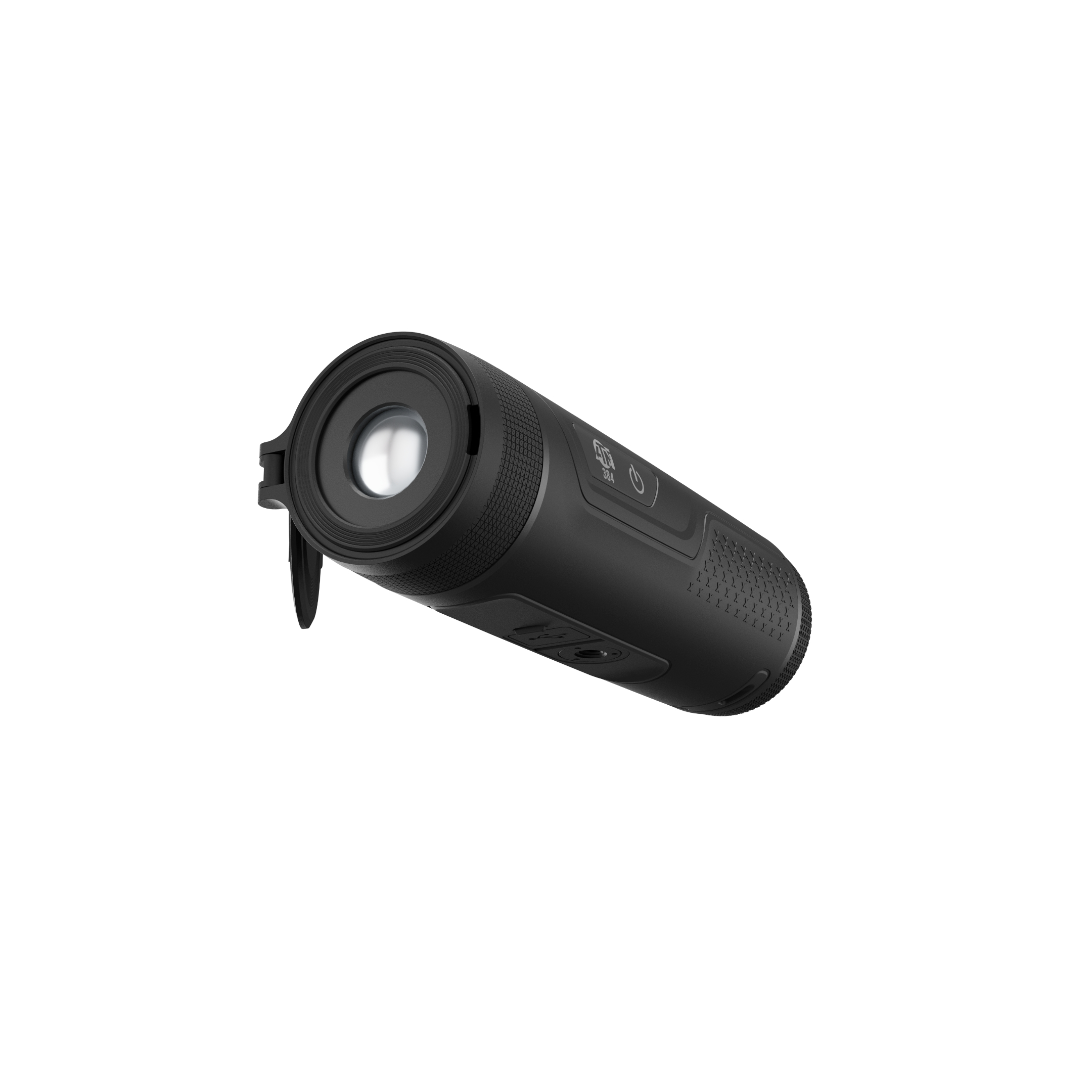

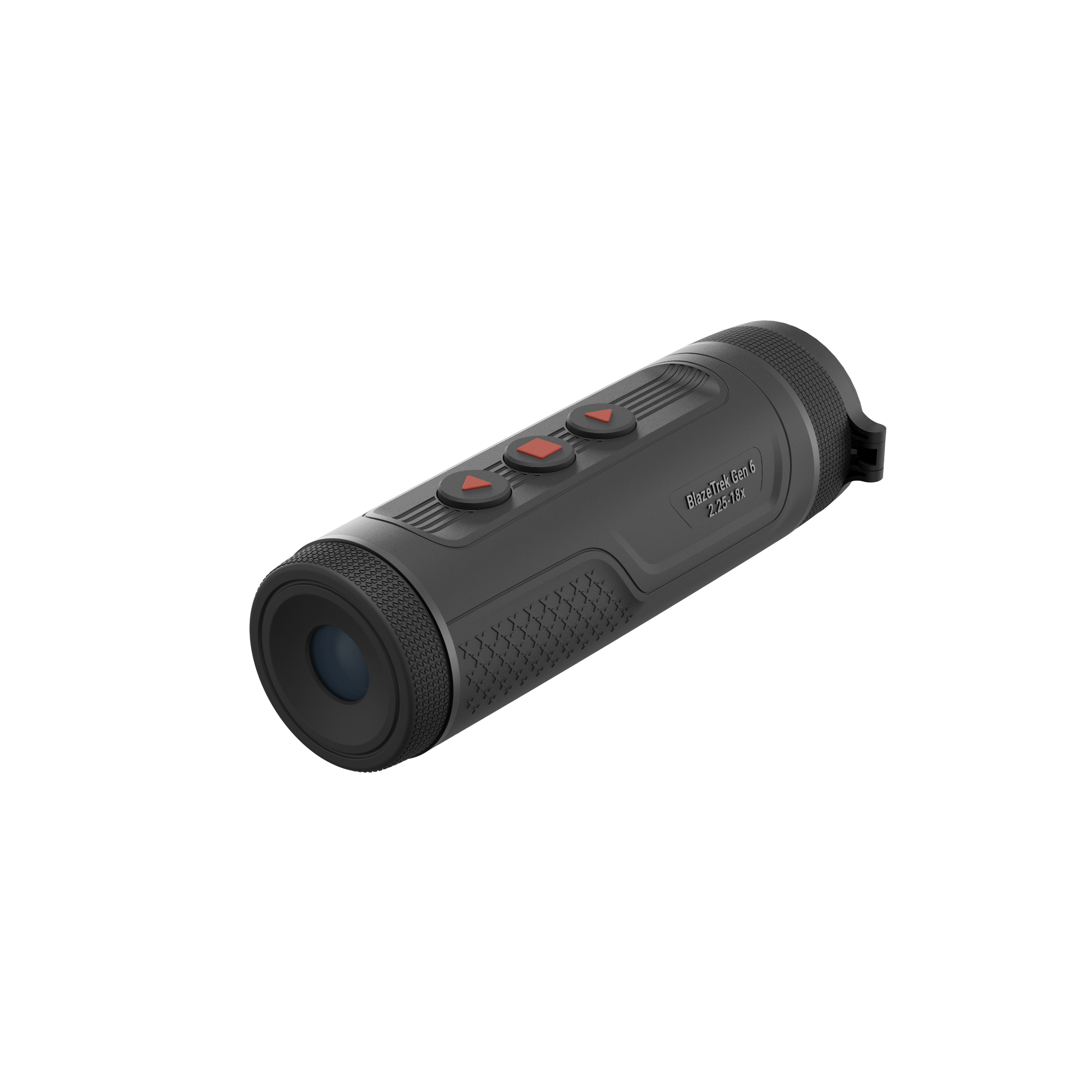

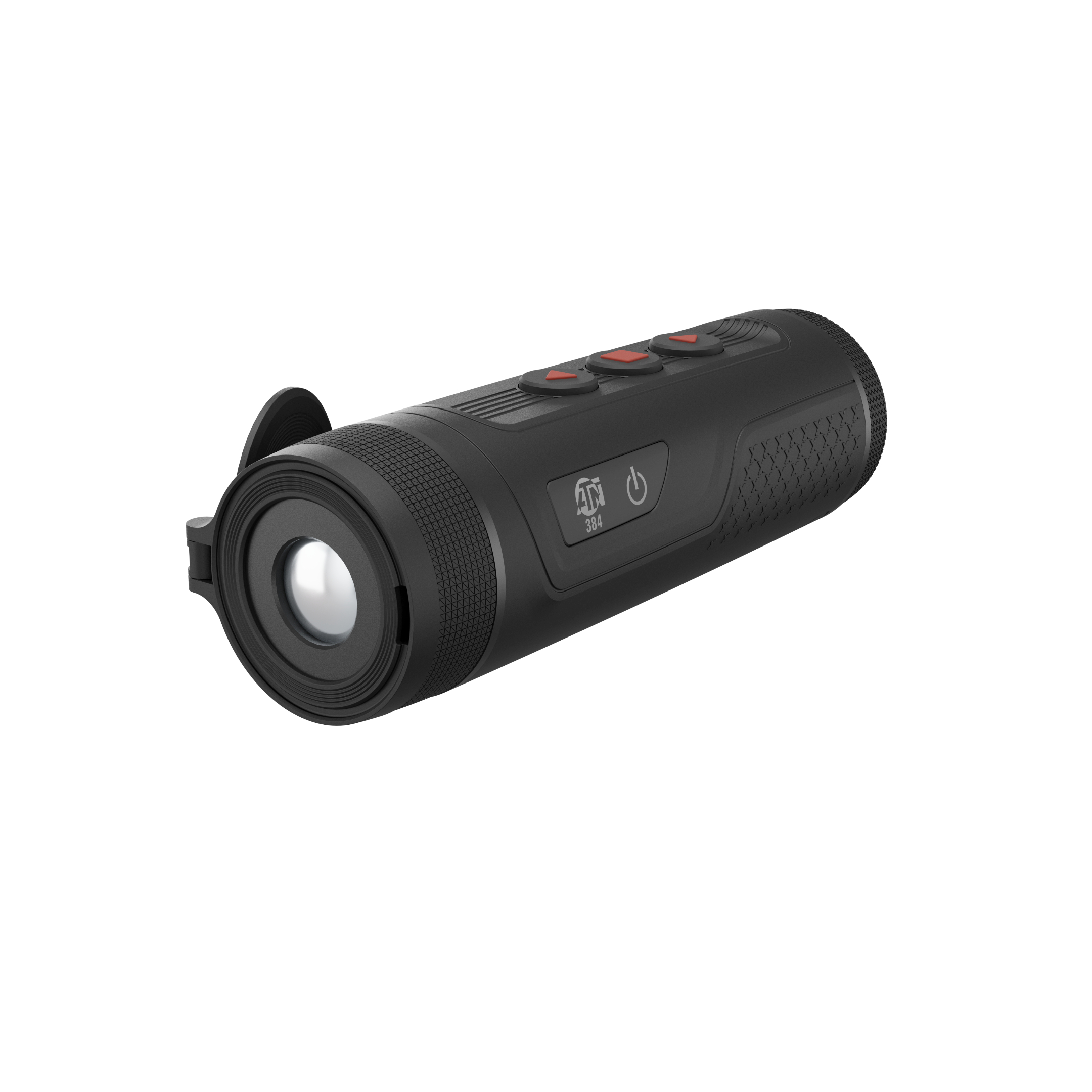

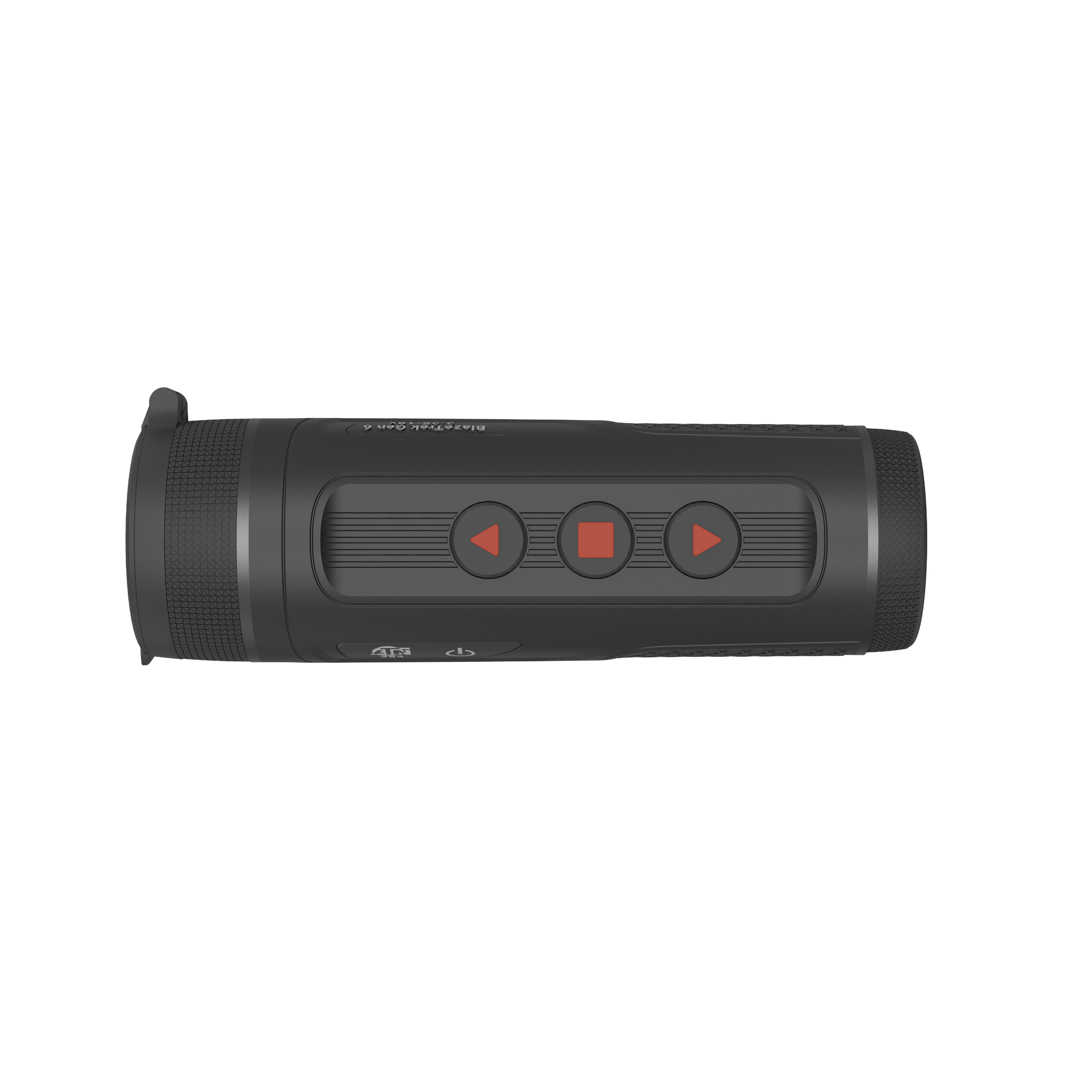

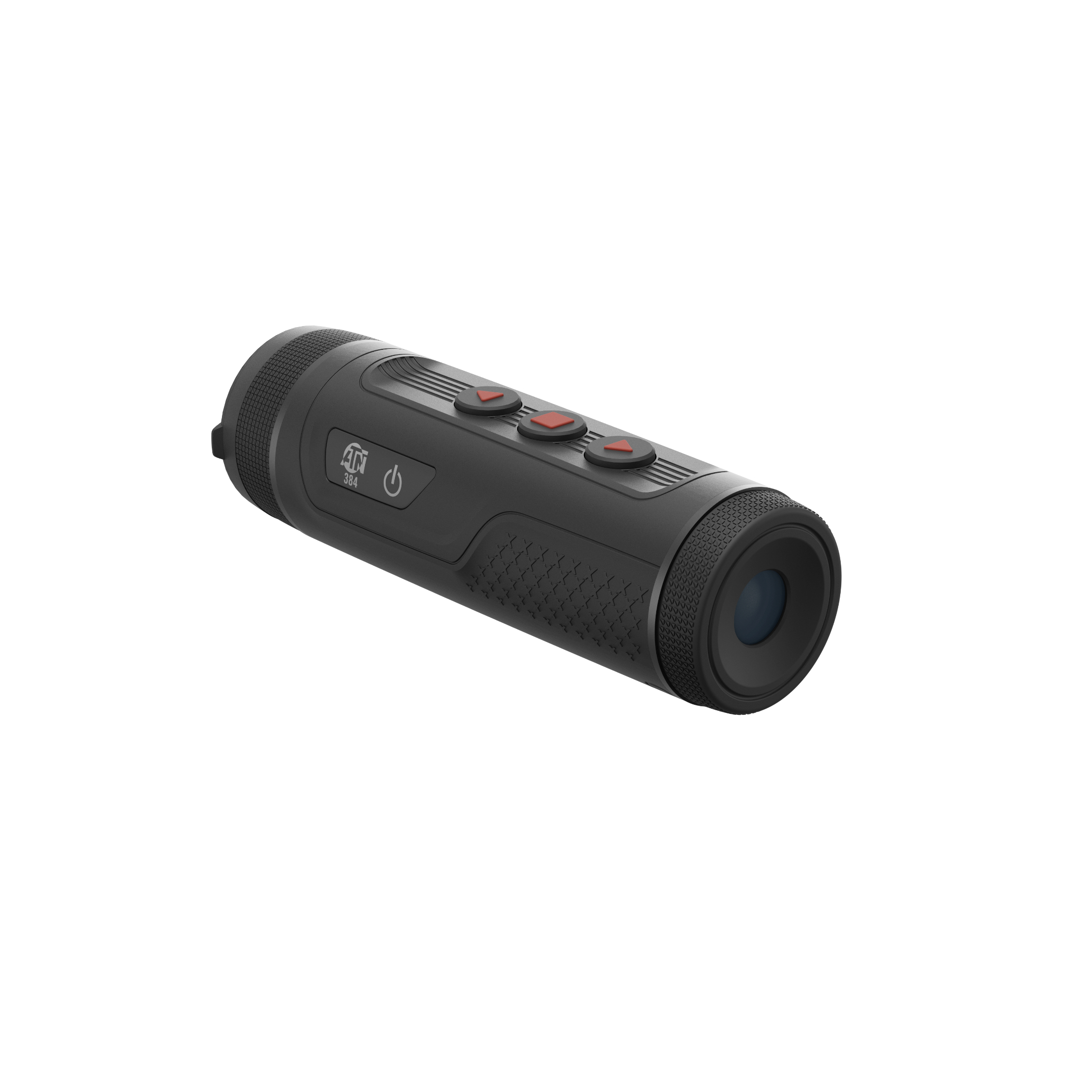

ATN BlazeTrek 319 Thermal Monocular

(2.25-18x Magnification & 1,000+ Yards of Detection)

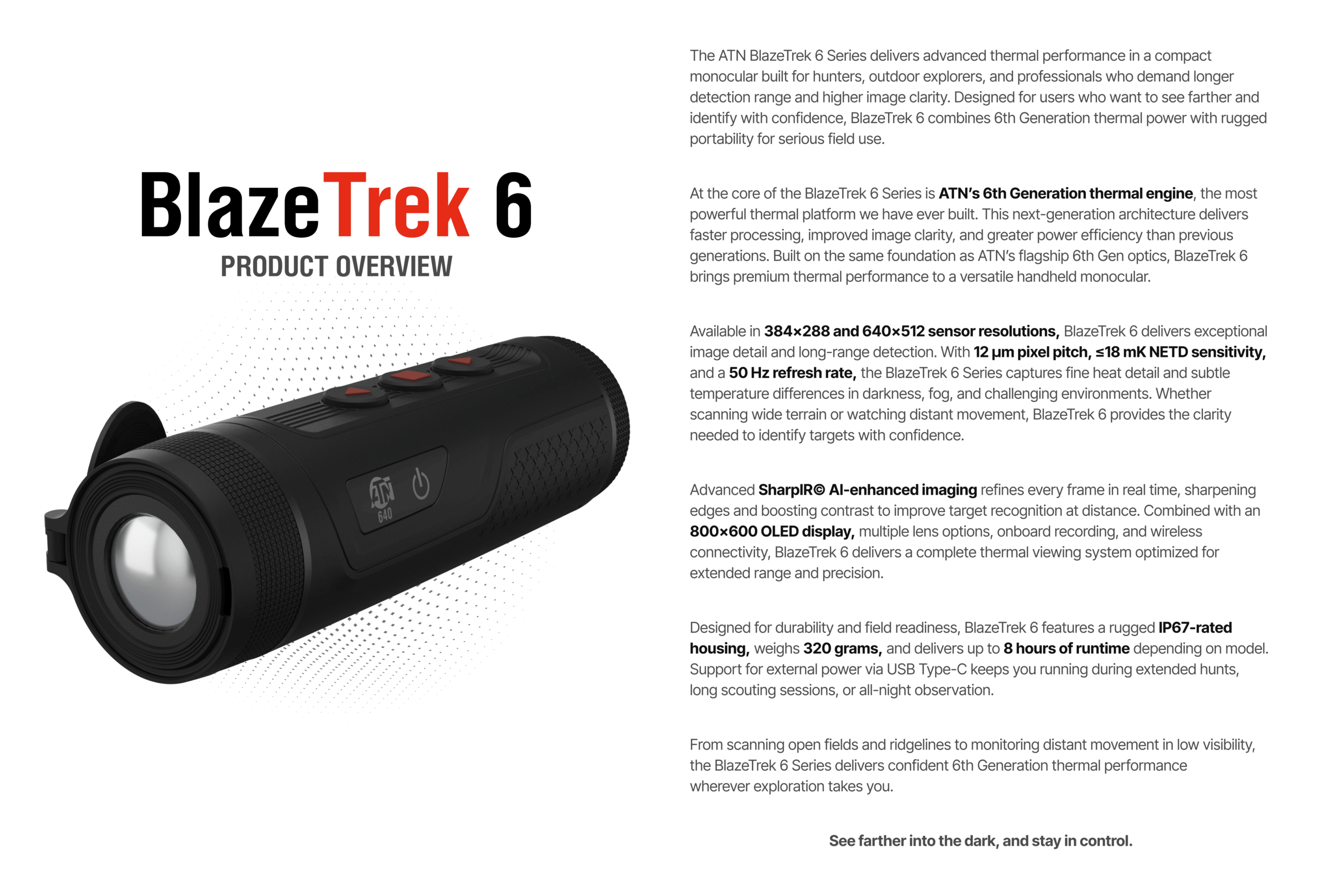

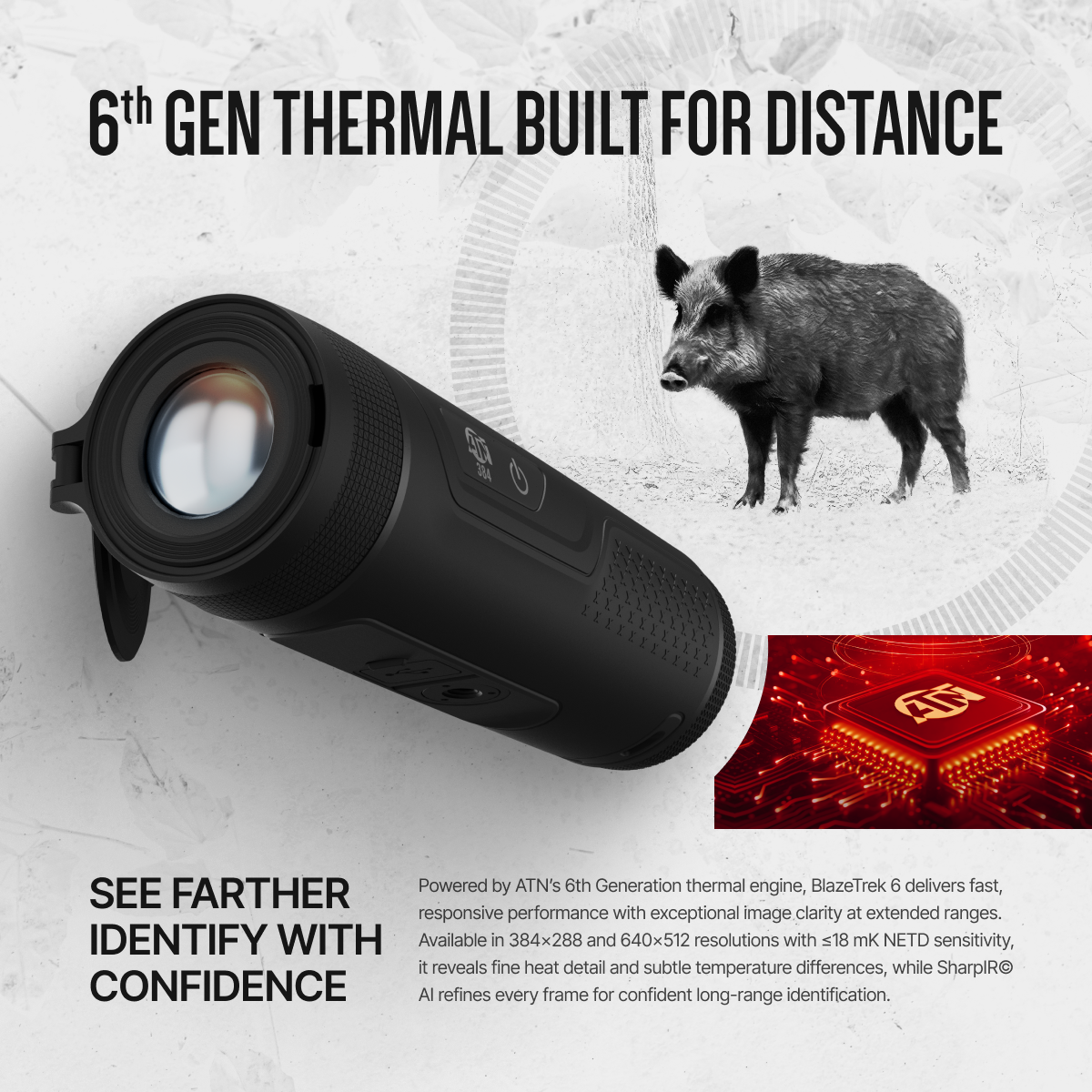

The ATN BlazeTrek 319 Thermal Monocular delivers compact thermal detection powered by ATN’s 6th Generation thermal platform. Designed for hunters, outdoor explorers, and professionals who need reliable thermal visibility, the BlazeTrek series provides strong detection capability in a lightweight handheld monocular.

Built around a 384×288 thermal sensor with a 50 Hz refresh rate, 12 µm pixel pitch, and ≤18 mK NETD sensitivity, the BlazeTrek 319 is designed to detect subtle temperature differences and produce clear thermal imagery in challenging environments such as fog, vegetation, or total darkness.

With a magnification range of 2.25–18× and detection capability reaching up to 1000 meters, users can scan terrain efficiently and identify heat signatures at significant distances while maintaining portability and ease of use.

The BlazeTrek 6 series also includes multiple color viewing modes, video and photo recording capability, and built-in Wi-Fi connectivity for sharing images or streaming to connected devices.

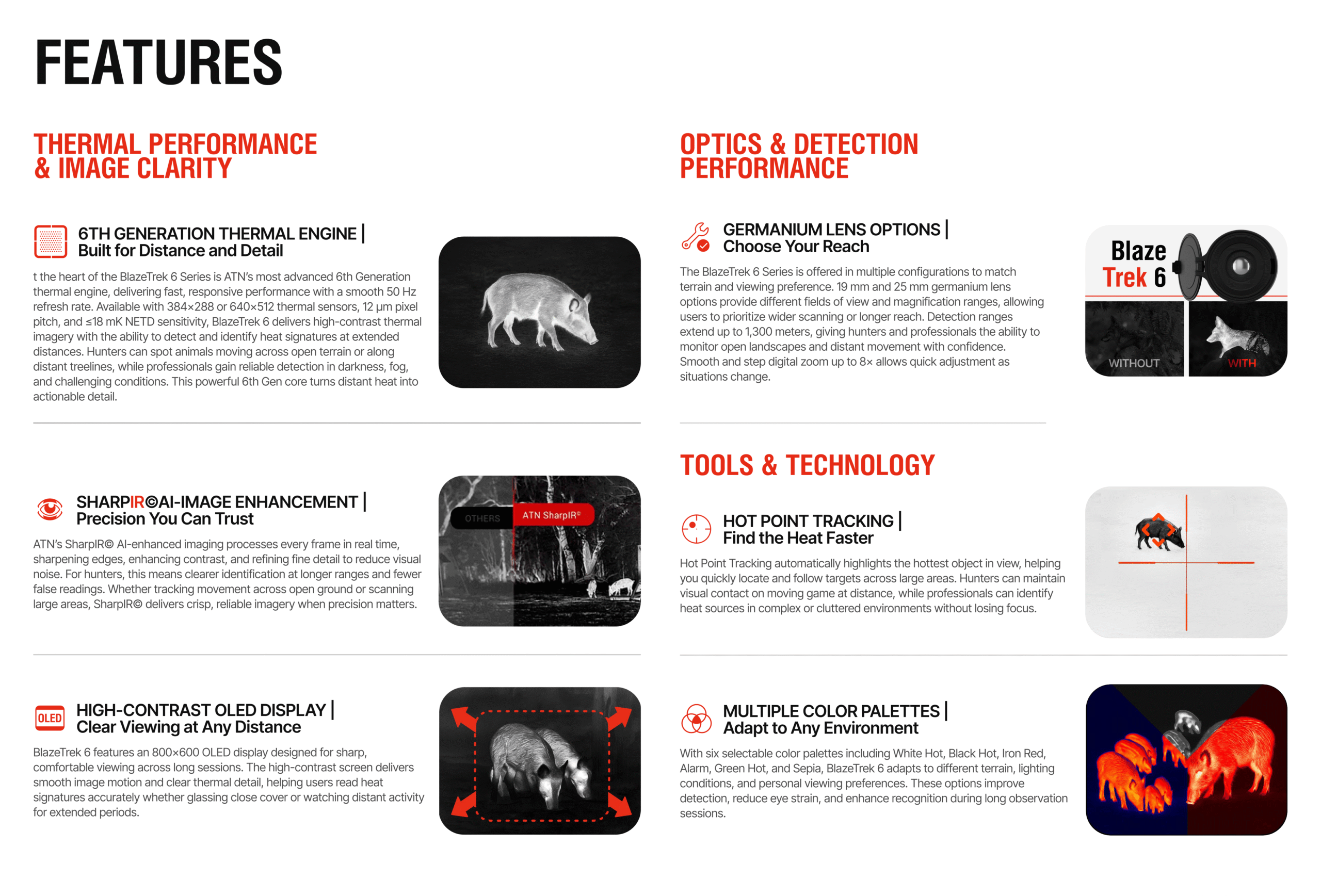

ATN BlazeTrek 319 Features:

• 384×288 thermal sensor
• 12 µm pixel pitch
• ≤18 mK NETD sensitivity
• 2.25–18× magnification
• Detection range up to 1000+ yards
• Multiple thermal viewing modes
• Video and photo recording capability
• Built-in Wi-Fi connectivity
• Compact and lightweight handheld design

Built For:

• Predator and coyote hunters
• Hog and nuisance wildlife detection
• Scouting terrain before nighttime hunts
• Property and livestock monitoring
• Outdoor and nighttime observation

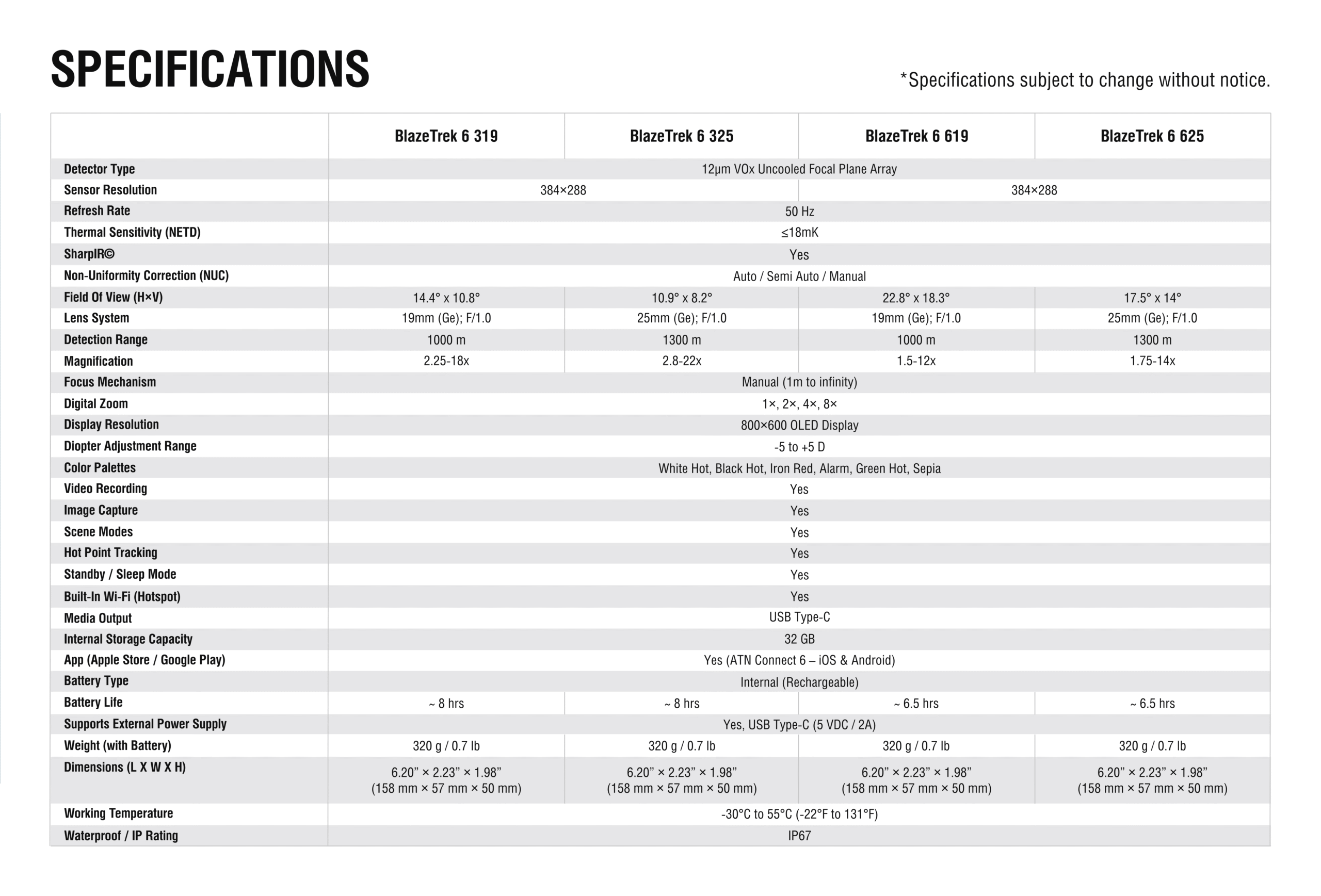

ATN BlazeTrek 319 Specifications:

Specification	Details
SKU	TIMNBLT319G6
Detector Type	12μm VOx Uncooled Focal Plane Array
Sensor Resolution	384 × 288
Refresh Rate	50 Hz
Thermal Sensitivity (NETD)	≤18 mK
SharpIR©	Yes
Field of View (HxV)	14.4° × 10.8°
Lens System	19 mm (Ge); F/1.0
Detection Range	1000 m
Magnification	2.25–18×
Focus	Manual (1 m to infinity)
Digital Zoom	1×, 2×, 4×, 8×
Display	800 × 600 OLED
Diopter Adjustment Range	-5 to +5 D

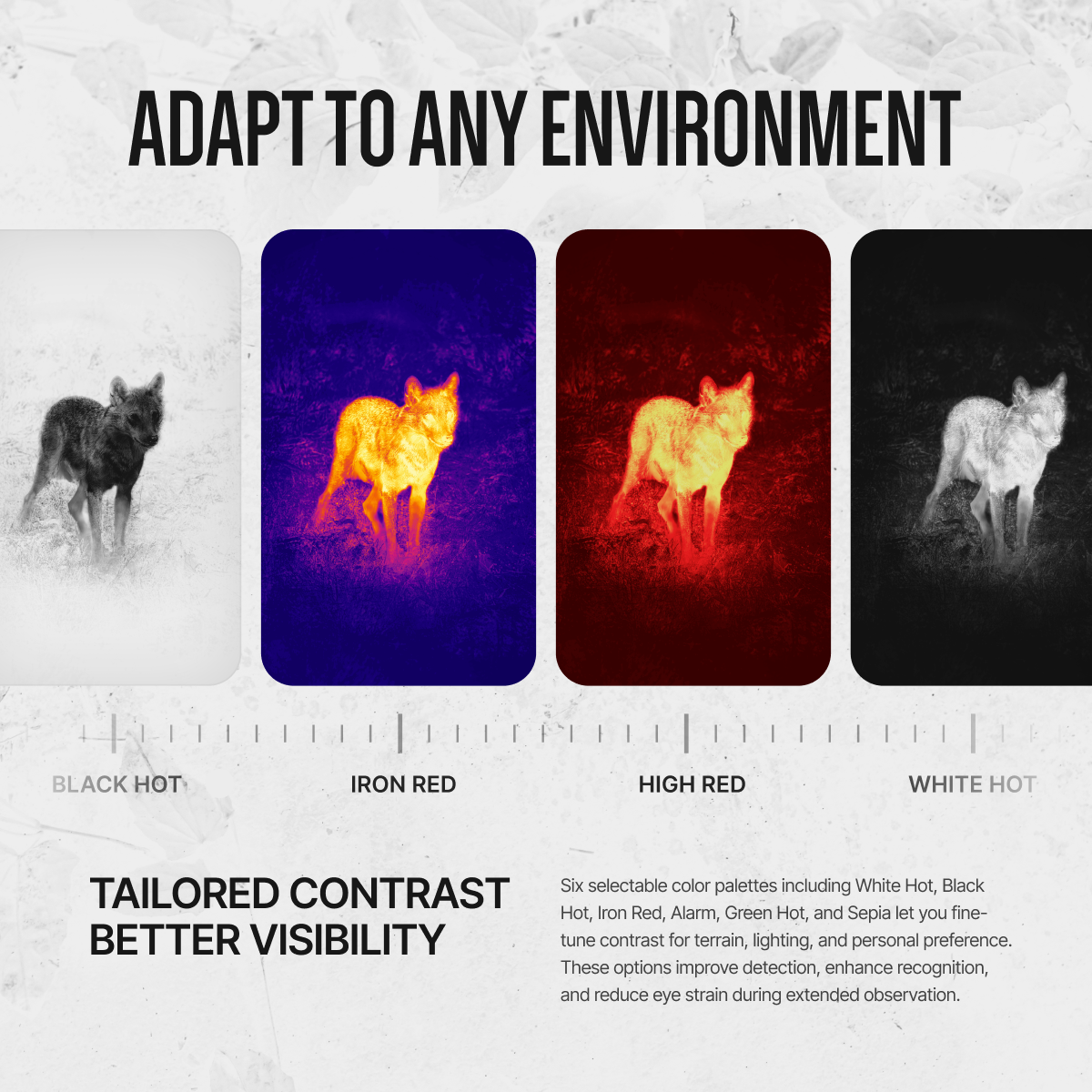

Color Palettes	White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
Video Recording	Yes
Image Capture	Yes
Scene Modes	Yes
Hot Point Tracking	Yes
Standby / Sleep Mode	Yes
Built-in Wi-Fi Hotspot	Yes
Media Output	USB Type-C
Internal Storage Capacity	32 GB
Non-Uniformity Correction (NUC)	Auto, Semi, Manual
App (App Store / Google Play)	Yes (ATN Connect 6 – iOS & Android)

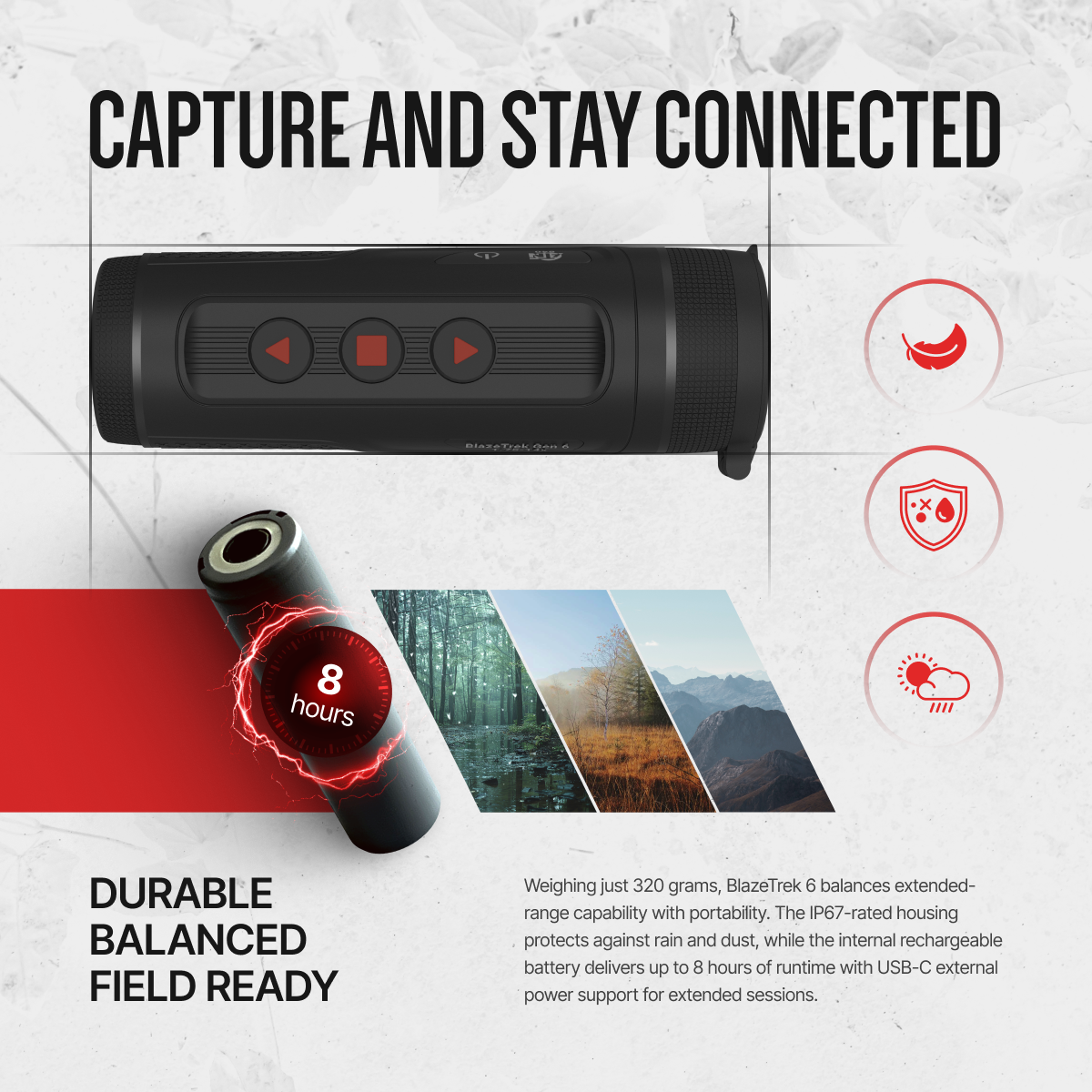

Battery Type	Internal (Rechargeable)
Battery Life	~ 8 hrs
Supports External Power Supply	Yes, USB Type-C (5 VDC / 2A)
Waterproof / IP Rating	IP67
Working Temperature	-30°C to 55°C (-22°F to 131°F)
Dimensions (L × W × H)	6.20″ × 2.23″ × 1.98″ (158 mm × 57 mm × 50 mm)
Weight (with Battery)	320 g / 0.7 lb
Warranty	5 years

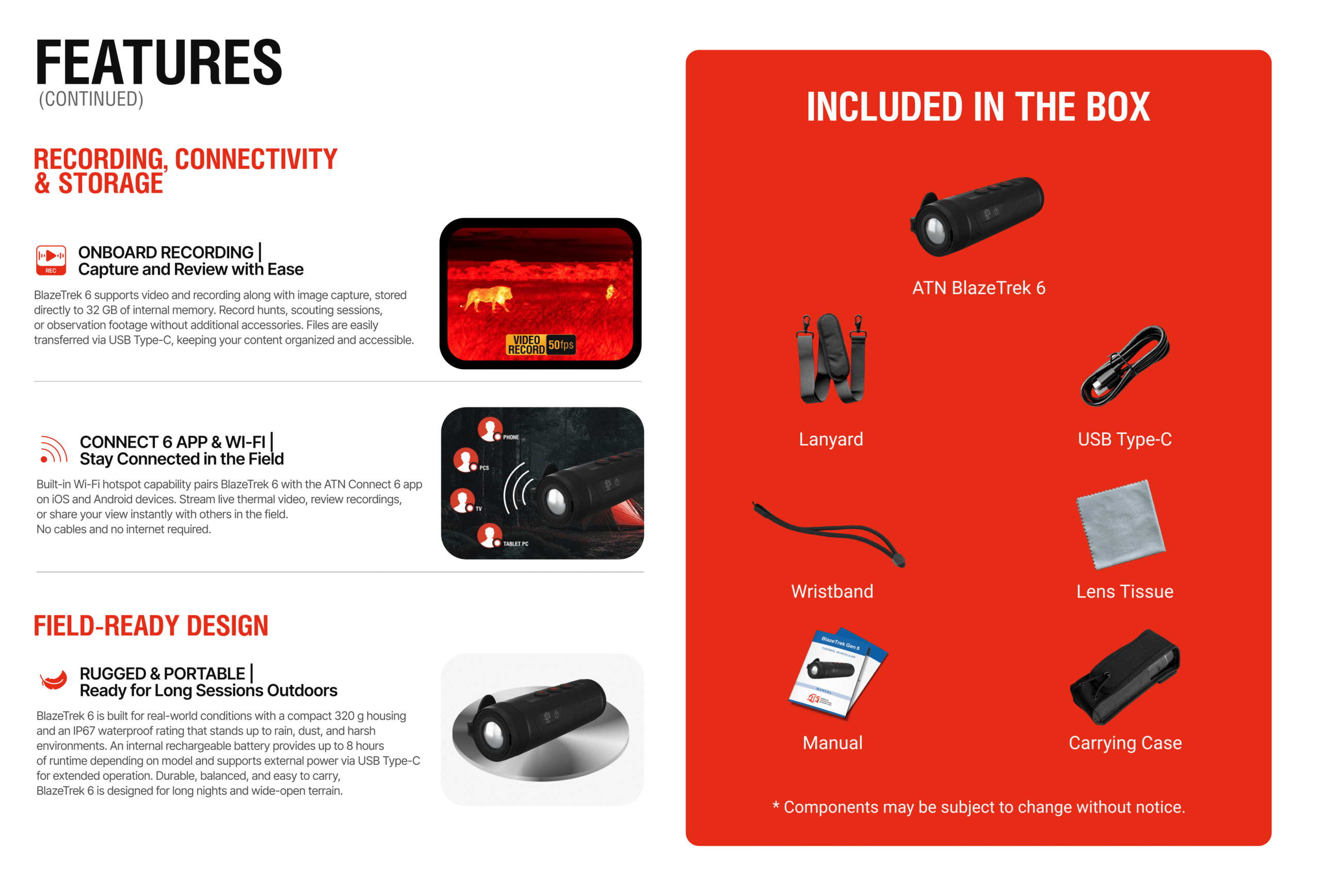

What’s Included:

• ATN BlazeTrek 319 Thermal Monocular
• Case
• Cable
• Eyecup
• Lens tissue
• Lanyard
• Manual
