Description

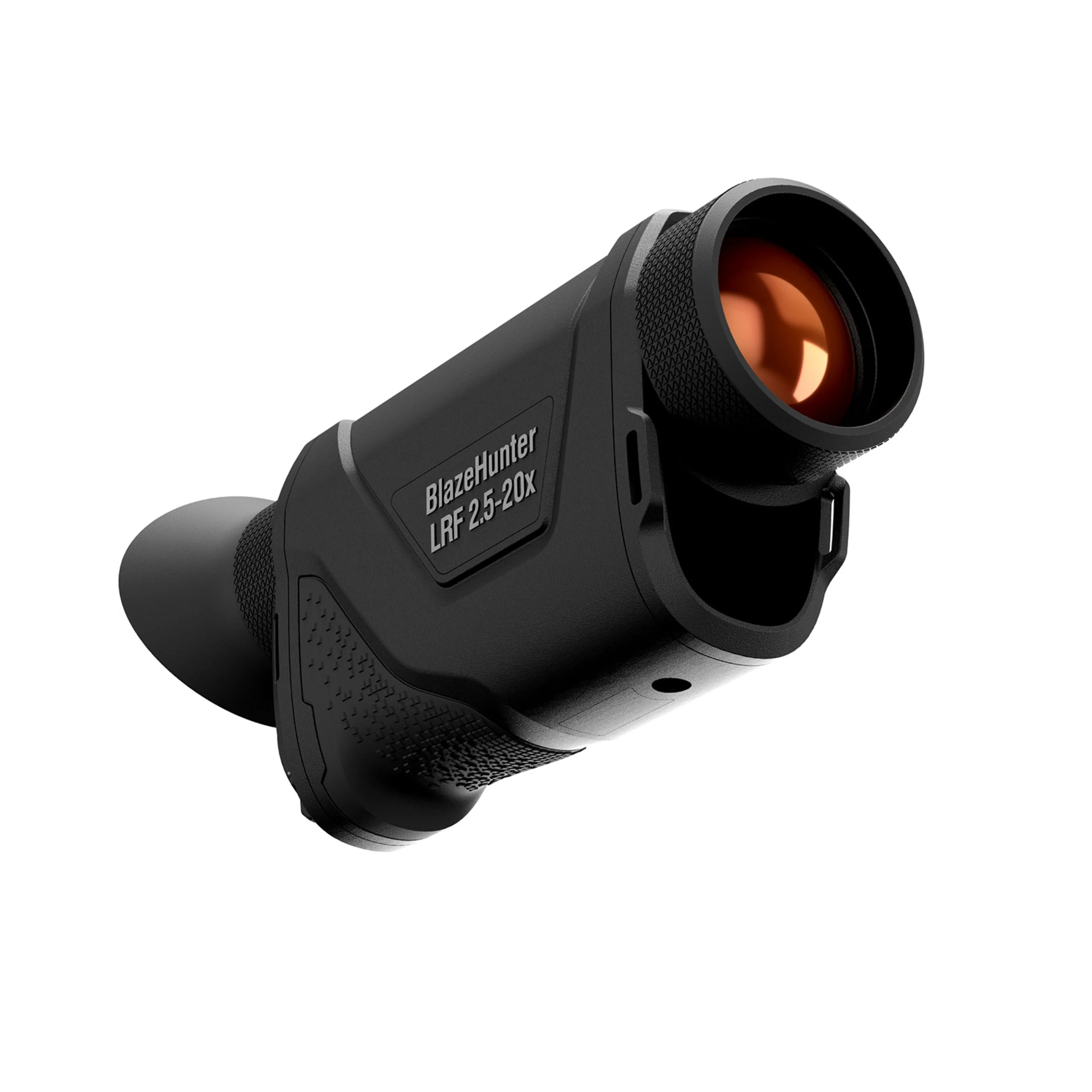

ATN BlazeHunter 635 LRF Thermal Monocular
(2.5–20× magnification & 2,000-yd Detection Range)
The ATN BlazeHunter 635 LRF Thermal Monocular combines high-resolution thermal imaging with an integrated laser range finder for hunters and nighttime observers who need both detection capability and accurate distance measurement in the field.
Built around a 640×512 thermal sensor with a 50 Hz refresh rate and 12 µm pixel pitch, the BlazeHunter 635 LRF detects heat signatures clearly and separates animals from surrounding terrain even in complete darkness, fog, rain, or dense vegetation. The increased resolution allows users to see greater thermal detail compared to lower-resolution sensors when scanning large areas.
With up to 2,000 yards of heat detection range, users can locate animals or heat sources at extended distances while maintaining clear target recognition.
The built-in Laser Range Finder provides fast distance readings to help hunters judge terrain, estimate target distance, and plan their approach more effectively during nighttime operations.
A crisp 1440×1080 OLED display provides smooth thermal imagery with strong contrast for comfortable long-term viewing. Combined with a rugged handheld design and rechargeable battery system delivering up to 14 hours of runtime, the BlazeHunter 635 LRF is built for dependable field performance.
ATN BlazeHunter 635 LRF Features:
- 640×512 thermal sensor
- Integrated Laser Range Finder (LRF)
- Up to 2,000-yard heat detection range
- 2.5–20× magnification
- 1440×1080 OLED display
- 50 Hz refresh rate
- 12 µm pixel pitch
- NETD <18mK sensitivity
- Multiple thermal color palettes
- Compact handheld monocular design
- Up to 14 hours of battery life
Built For:
- Predator and coyote hunters
- Hog and nuisance wildlife detection
- Scouting before nighttime hunts
- Property and livestock monitoring
- Professional nighttime observation
ATN BlazeHunter 635 LRF Specifications:
| Specification | Details |
|---|---|
| SKU | TIMNBLH635LRF |
| Sensor | 640×512, 50 Hz, 12 µm, <18mK |
| Lens | 35 mm |
| Magnification | 2.5–20× |
| Field of view, degrees | 12.5 × 10.0 |
| Display Resolution | OLED 1440×1080 |
| Eye relief | 15 mm |
| Color modes | White hot, Black hot, White hot + red, Green hot, Sepia, Ironbow |
| Battery type | 18650 rechargeable (qty 2 included) |
| Battery life (Li-ion) | 14 hrs (7 hr per battery) |
| Charging | Rechargeable, Charger included |
| Waterproof rating / IP rating | IP67 |
| Detection Range, yd | 2000 |
| LRF Range | 1000 yd |
| Operating Temperature | −30 °C to +50 °C / −22 °F to +122 °F |
| Dimensions | 5.98″ × 1.67″ × 2.93″ / 152 mm × 42 mm × 74 mm |
| Weight | 0.7 lb / 320 g (without battery) |
| Warranty | 3 years |
What’s Included:
- ATN BlazeHunter 635 LRF Thermal Monocular
- Rechargeable Battery System
- USB Charging Cable
- Lens Cover
- Wrist Strap
- Cleaning Cloth
- Quick Start Guide
