Description
Sightmark Wraith Bolt Action Mount

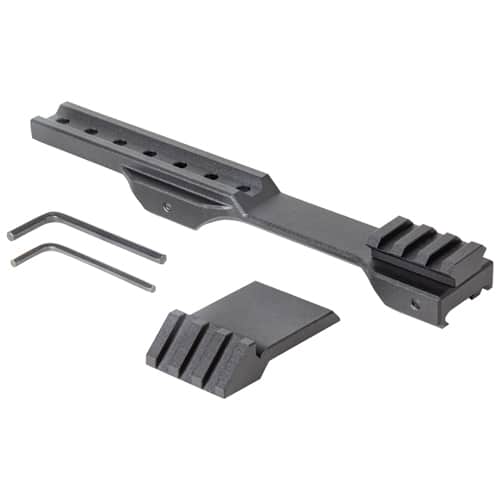

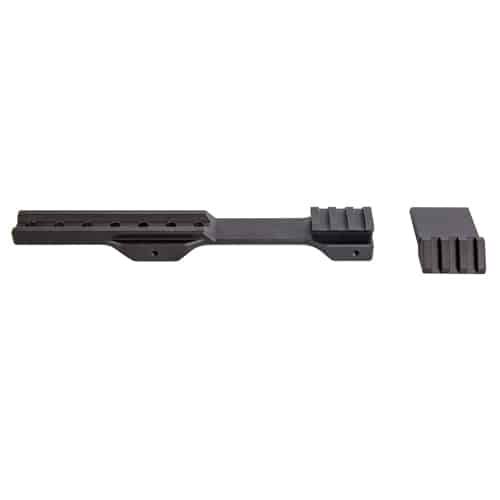

Hunt with your bolt-action gun in high definition using the Wraith Mini Long Mount cantilever mount specifically designed for the Wraith Mini digital day/night riflescope. This mount offers multiple mounting positions, while still leaving plenty of rail space behind your scope for iron sights, magnifier or other optics. The Wraith Mini Long Mount positions your scope forward for proper eye relief and a wider field of view. Constructed of matte black durable aluminum, the one-piece design of the Wraith Mini Long Mount measures 8” x 1.26” x 0.92” and weighs only 4.9 ounces.
Wraith Bolt Action Mount Features:
- Weaver/Picatinny cantilever scope mount designed for bolt-action rifles
- Designed for use with the Wraith digital day/night riflescope
- Gives more rail space for additional accessories
- Provides proper eye relief
- Lightweight and durable one-piece aluminum construction
- Matte black, non-glare finish
- Measures 8” x 1.26” x 0.787”
- Weighs 4.9 ounces
To install the Wraith 4k Mini Long Mount bolt-action mount:
- Remove any other mount by removing the two bolts that hold it on to the Wraith.

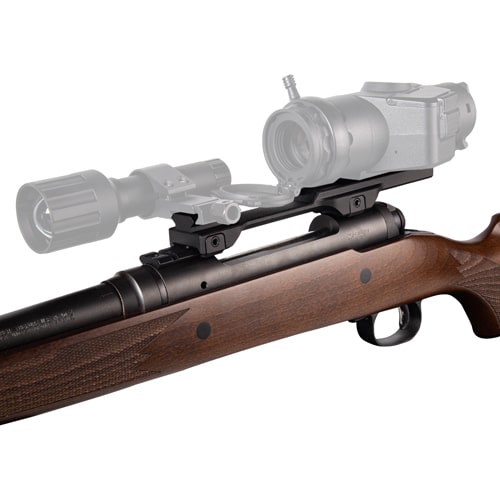

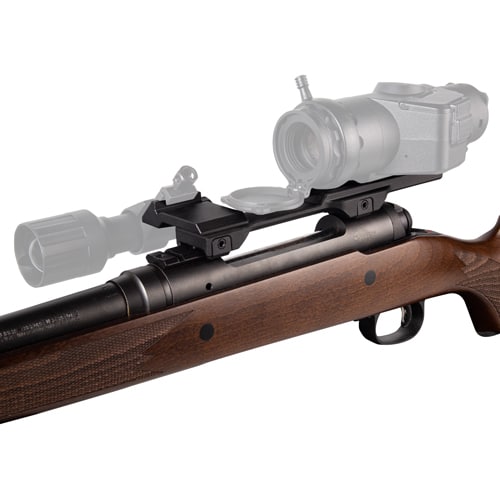

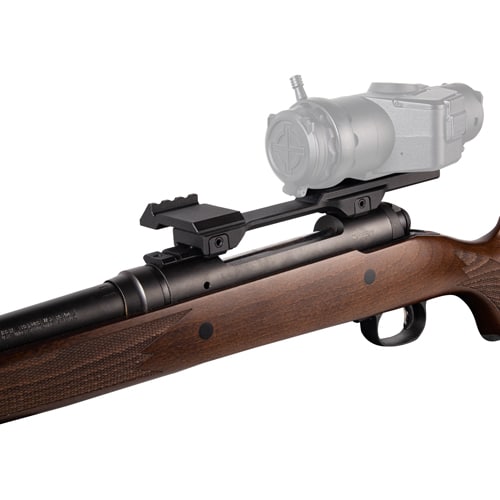

- Align the Long Mount to the bottom of the Wraith. The mount should be cantilevered to the back so Picatinny mount is towards the front. There are multiple holes to allow adjustments forward or back for comfortable eye relief.
- Install the included two screws into the Wraith through the mount. Tighten to 40-inch pounds.
Warning: Over tightening may cause damage to the unit.
| GENERAL DESCRIPTION | ||||||
| Brand Name | Sightmark | |||||
| Model Name | Sightmark Wraith Mini Long Mount | |||||
| Category Name | accessory | |||||
| SKU Number | SM18041.01 | |||||
| UPC Number | 812495029974 | |||||
| TECHNICAL SPECIFICATIONS: | ||||||
| Mount type | Weaver / Picatinny | |||||
| Material | Aluminum | |||||
| Finish/color | Matte black | |||||
| Dimensions, in/mm | 8 x 1.26 x .92 / 203.2 x 32 x 23 | |||||
| Weight (oz) | 4.9 | |||||
| Related Product: | ||||||
| Wraith 4k Mini | ||||||
| Included Accessories: | ||||||
| mount, 45 Degree Picatinny Attachment | ||||||
| Related Accessories | ||||||
| NA | ||||||
| Features: | ||||||
| Ideal for use on most bolt action firearms | ||||||
| Cantilever design | ||||||
| Multiple mounting position | ||||||
Andrew Scheib (verified owner) –
Good quality part, works great on my weatherby vanguard 22-250. Being able to close up the eye relief gap with the wraith 4k max was a huge benefit of this mount as well.
