Description

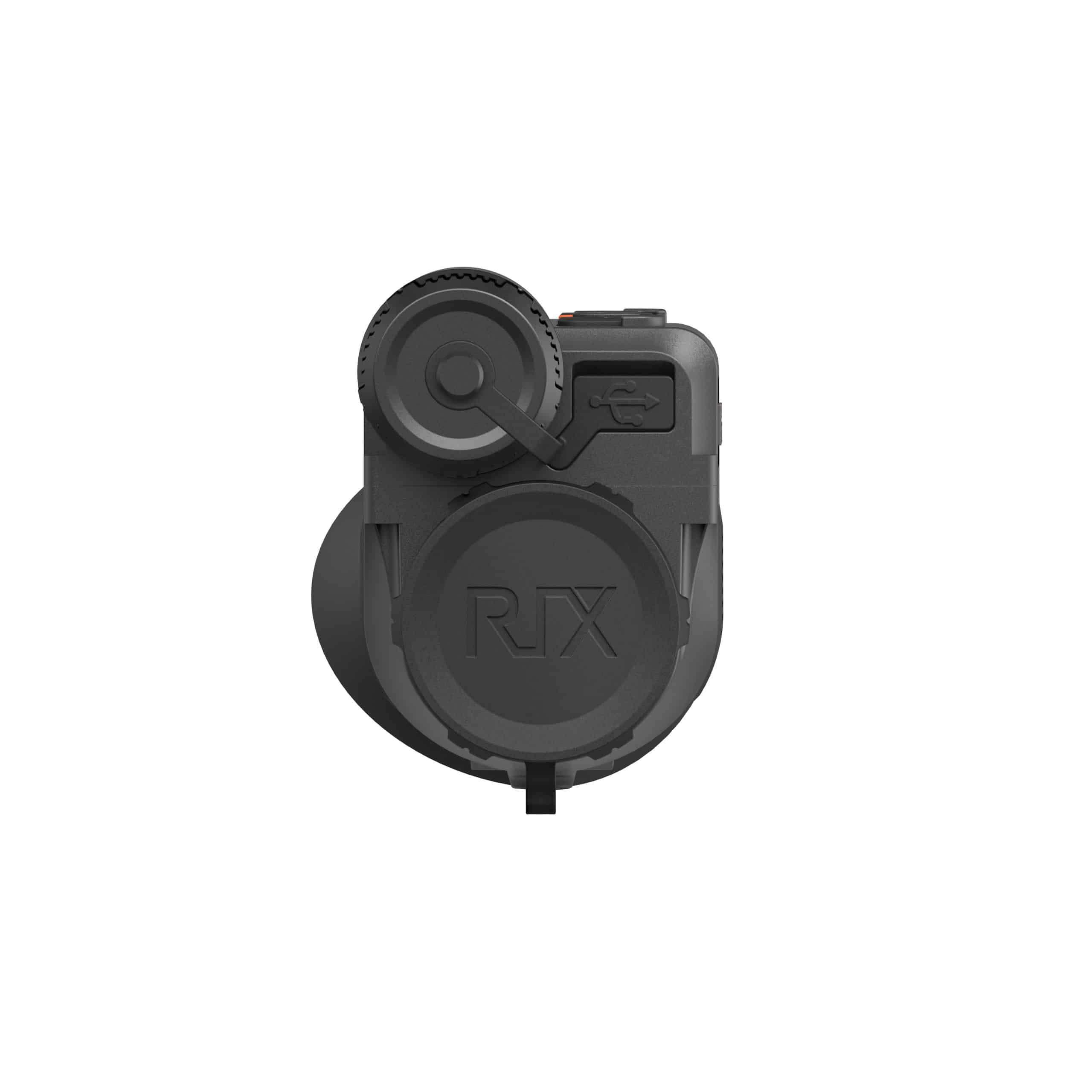

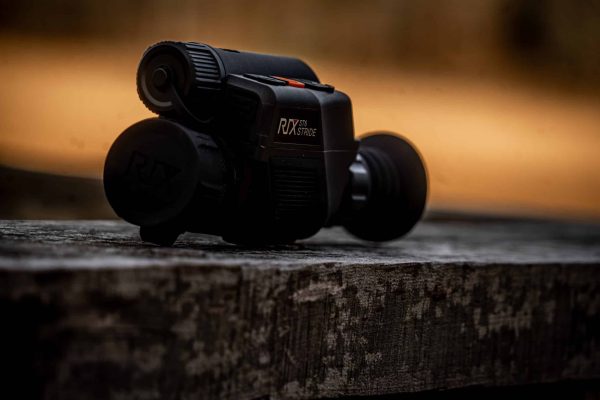

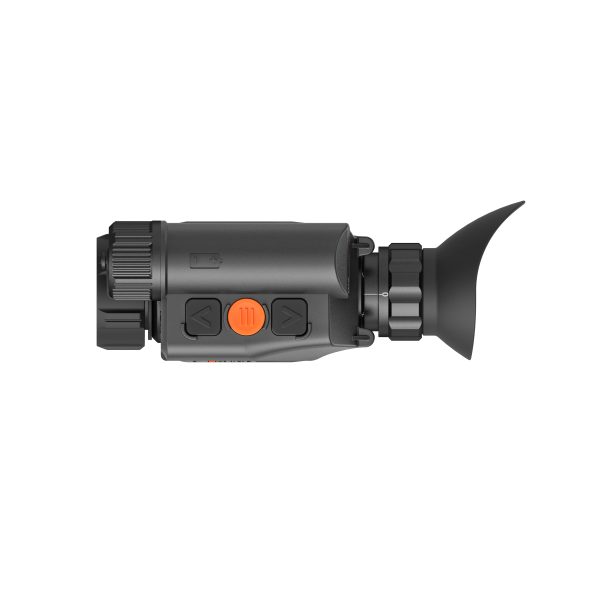

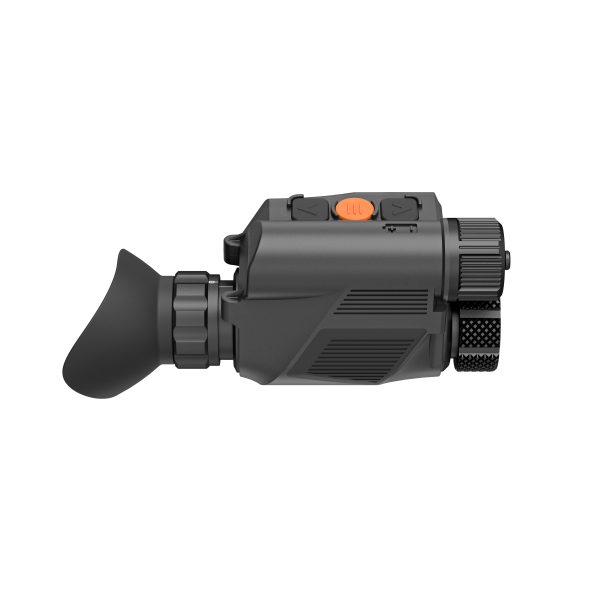

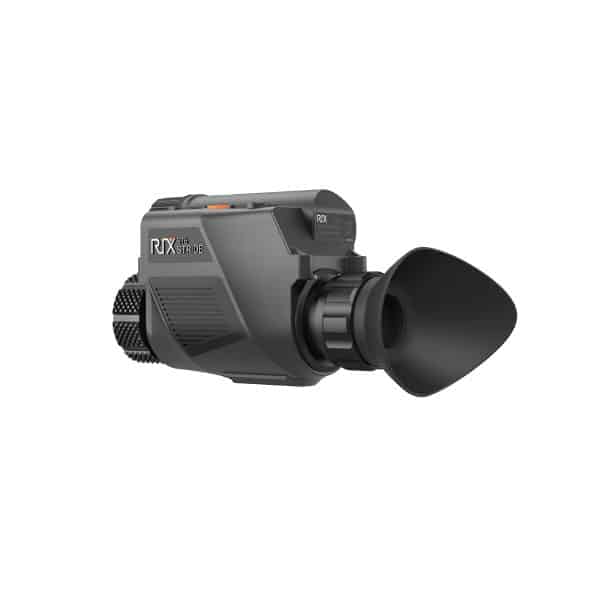

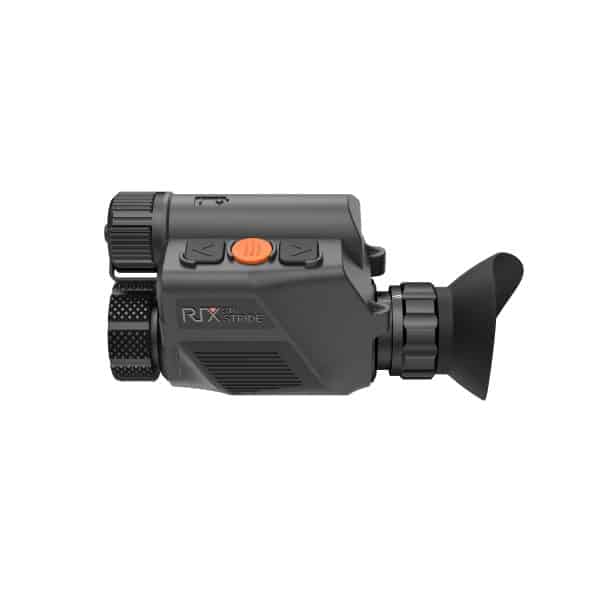

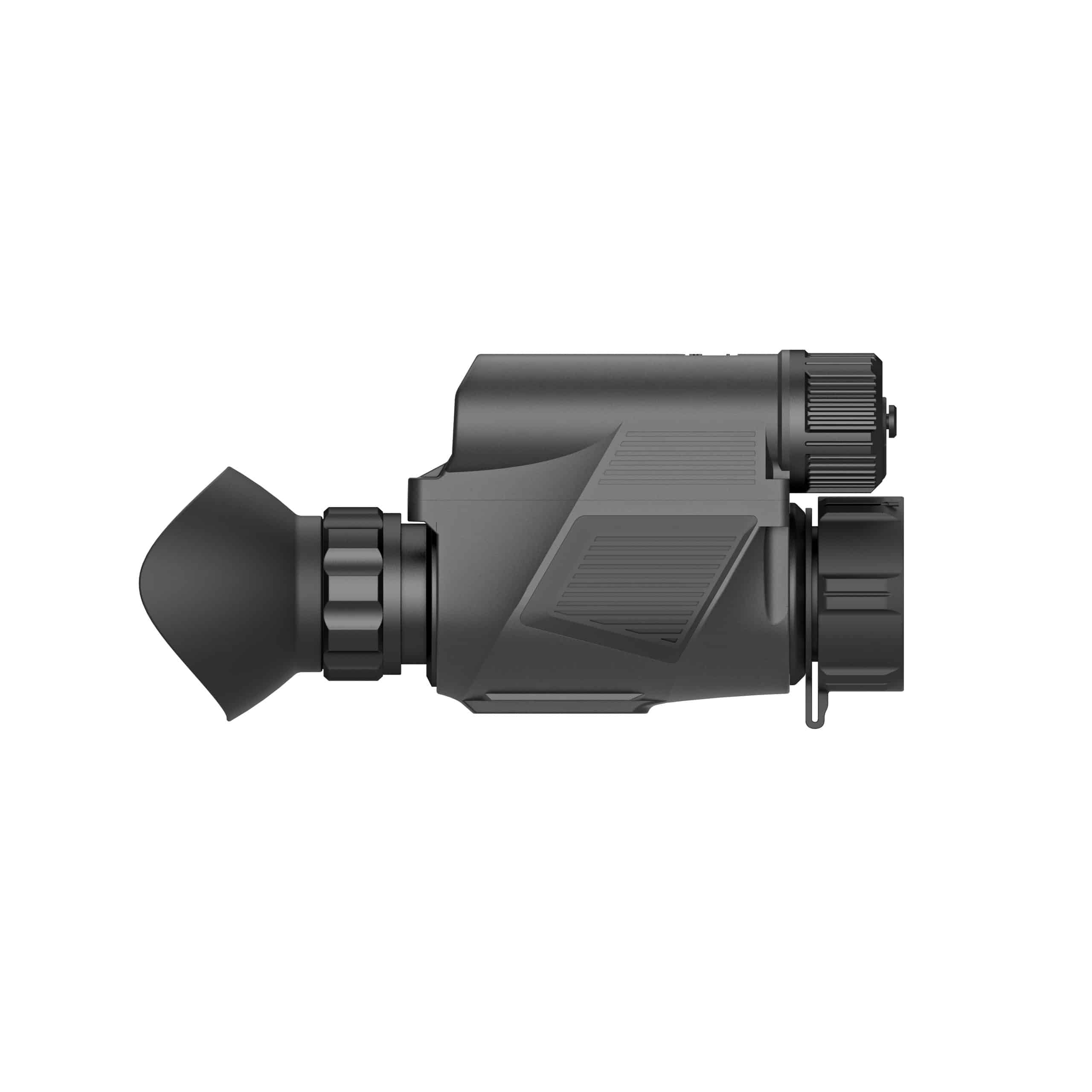

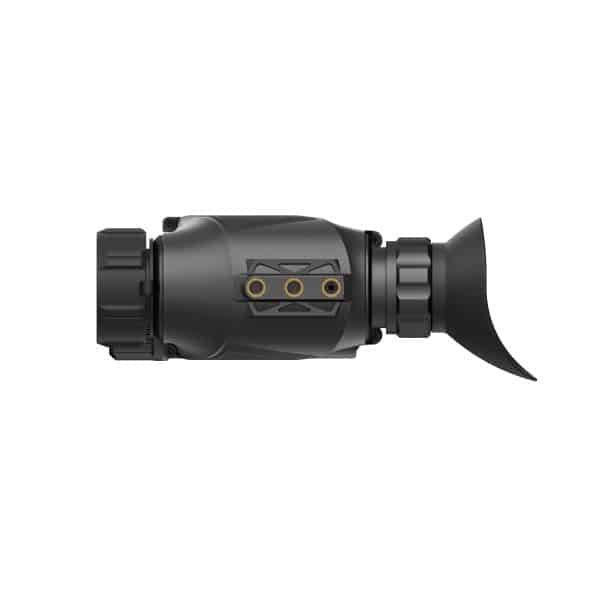

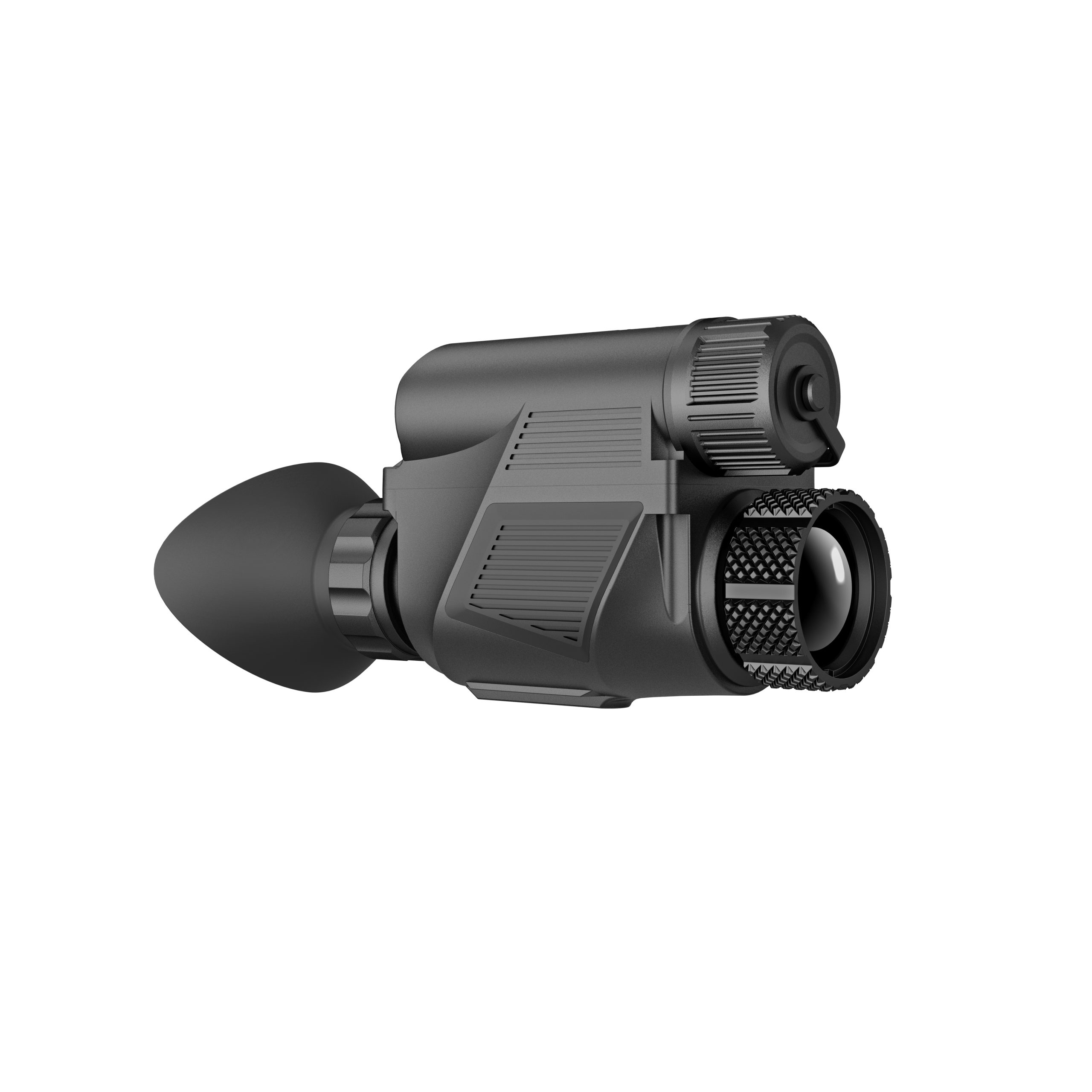

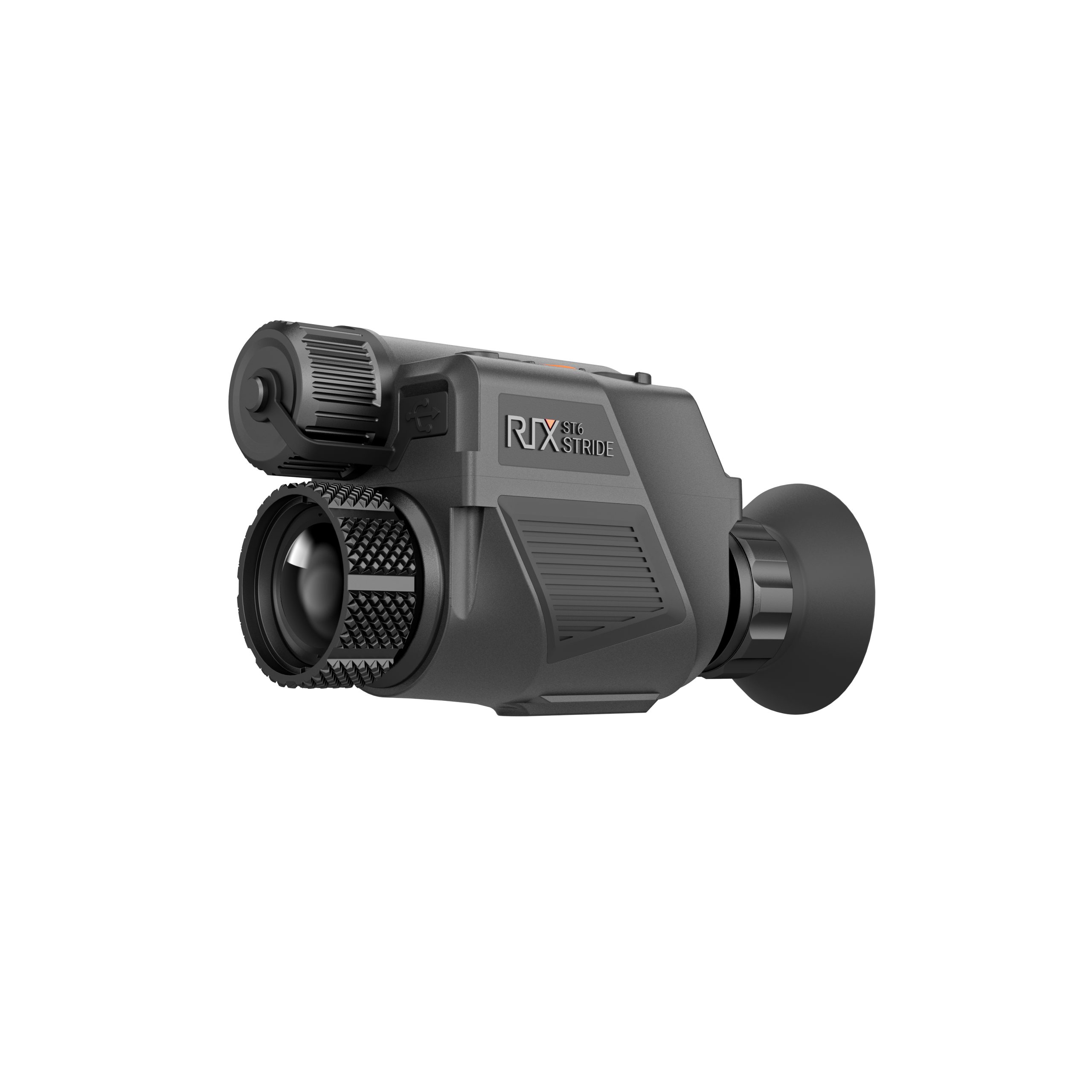

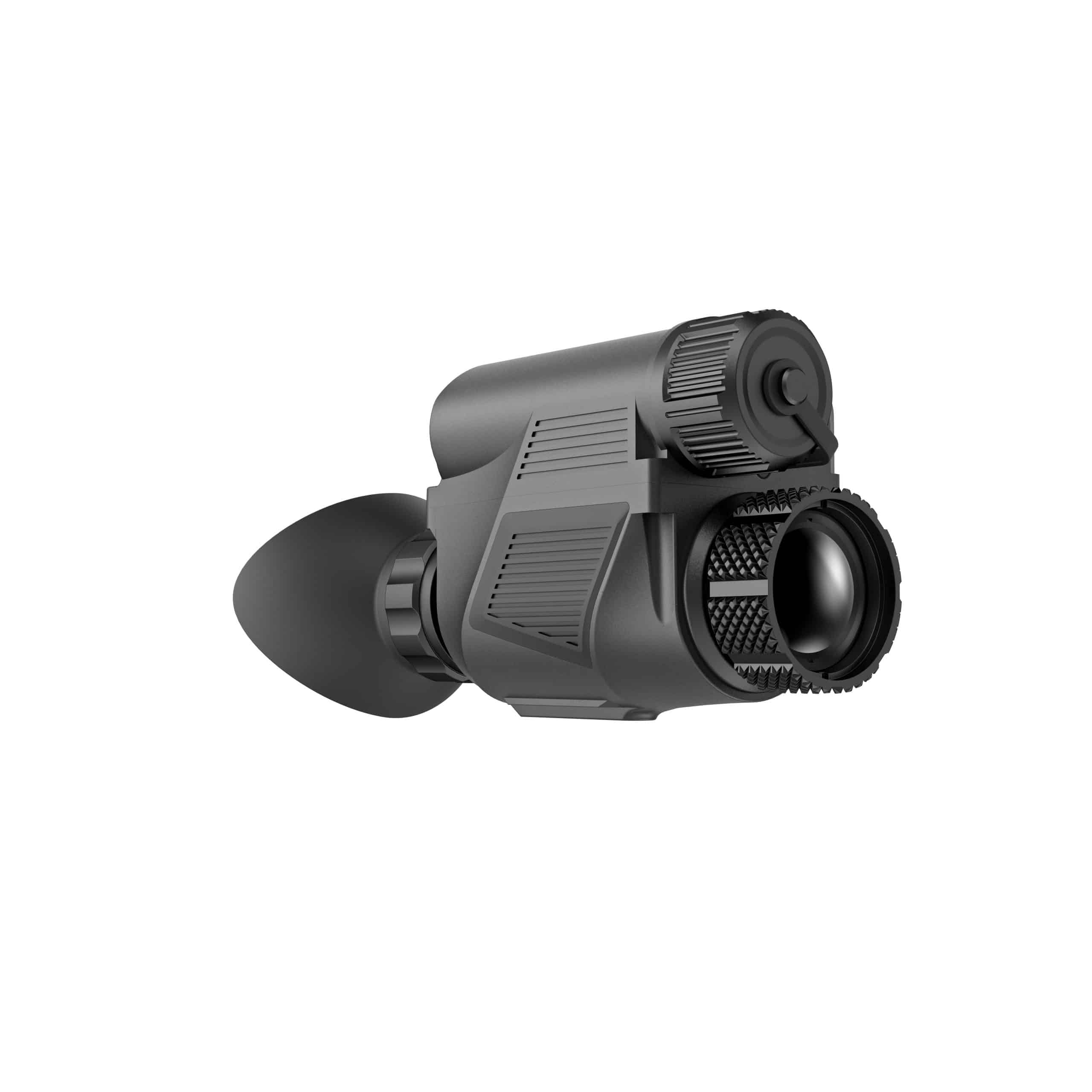

RIX Stride ST6 Thermal Imaging Monocular
(1-6x magnification and 2,000 yards of detection!)

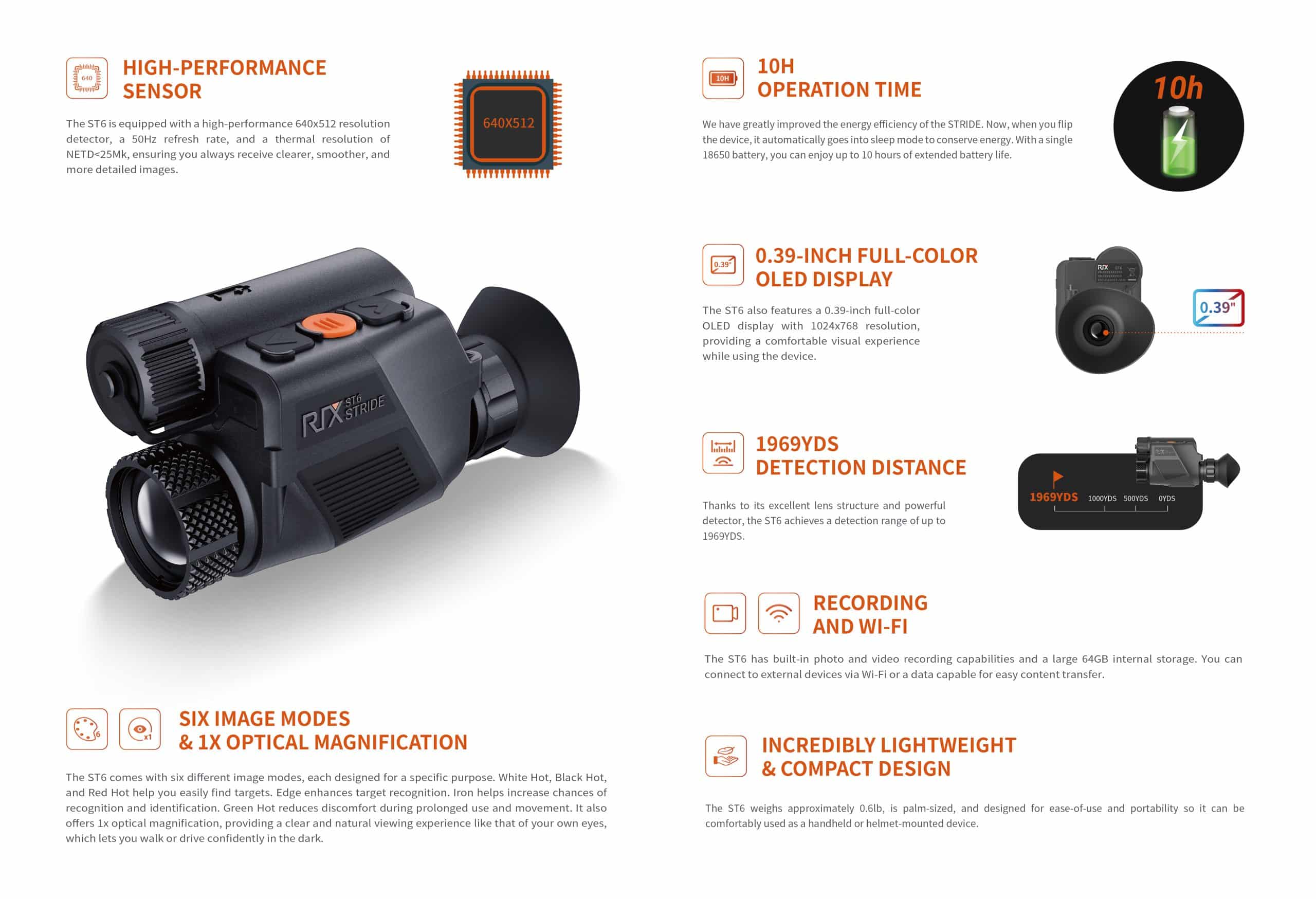

The RIX Stride ST6 Thermal Imaging Monocular is equipped with a high-performance 640×512 resolution detector, a 50Hz refresh rate, and a thermal resolution of NETD<25Mk, ensuring you always receive clearer, smoother, and more detailed images.
The ST6 features a 0.39-inch full-color OLED display with 1024×768 resolution, providing a stunning visual experience while observing with the device. The ST6 comes with six different image modes, each designed for a specific purpose. White Hot, Black Hot, and Red Hot help you easily find targets. Edge enhances target recognition. Iron helps increase the chances of recognition and identification. Green Hot reduces discomfort during prolonged use and movement. It also offers 1x optical magnification, providing a clear and natural viewing experience like that of your own eyes, which lets you walk or drive confidently in the dark.

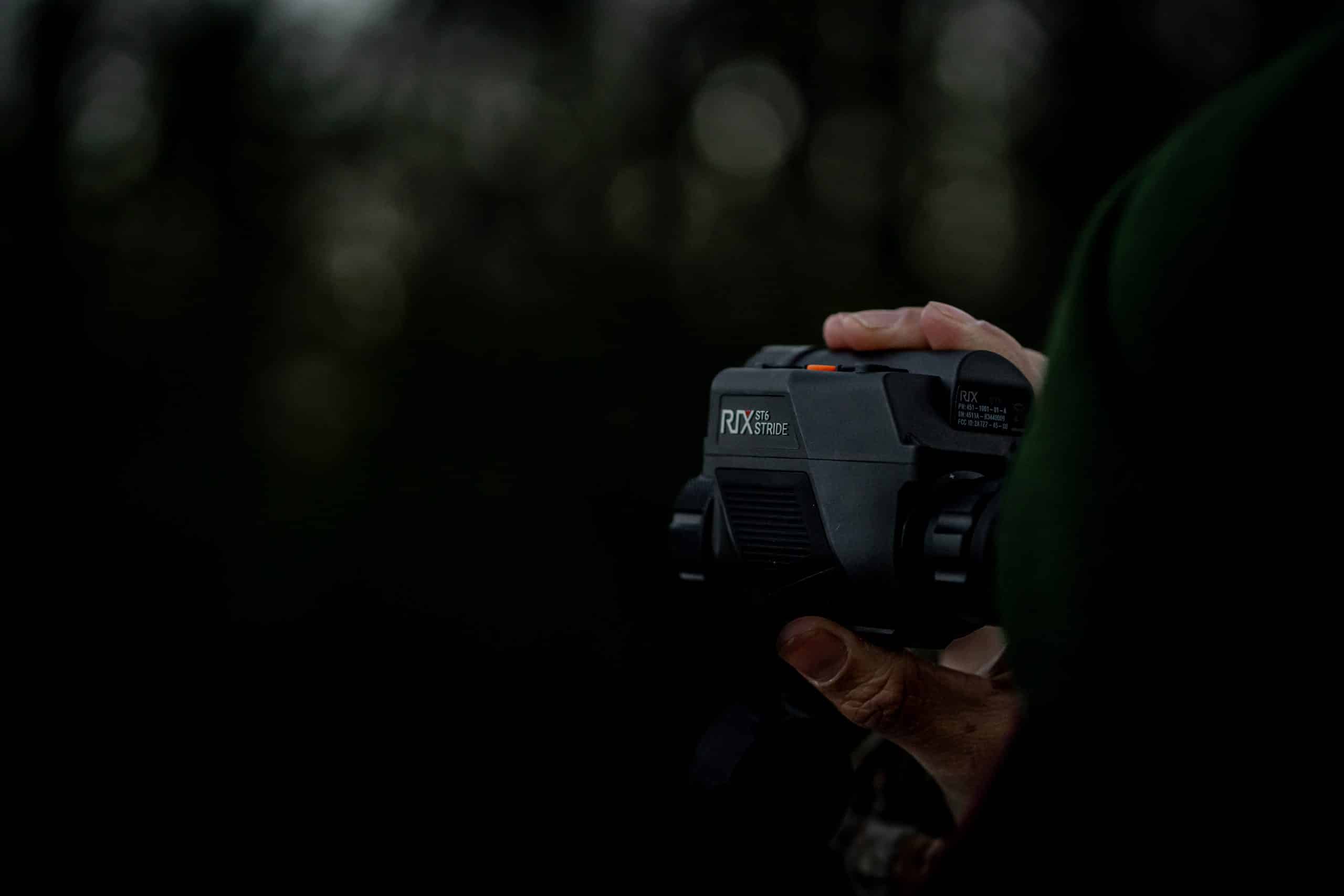

We have greatly improved the energy efficiency of the STRIDE. Now, when you flip the device, it automatically goes into sleep mode to conserve energy. With a single 18650 battery, you can enjoy up to 10 hours of extended battery life. The ST6 weighs approximately 0.6lb, is palm-sized, and is designed for ease of use and portability so it can be comfortably used as a handheld or helmet-mounted device. The ST6 has built-in photo and video recording capabilities and a large 64GB internal storage. You can connect to external devices via Wi-Fi or data capable for easy content transfer.

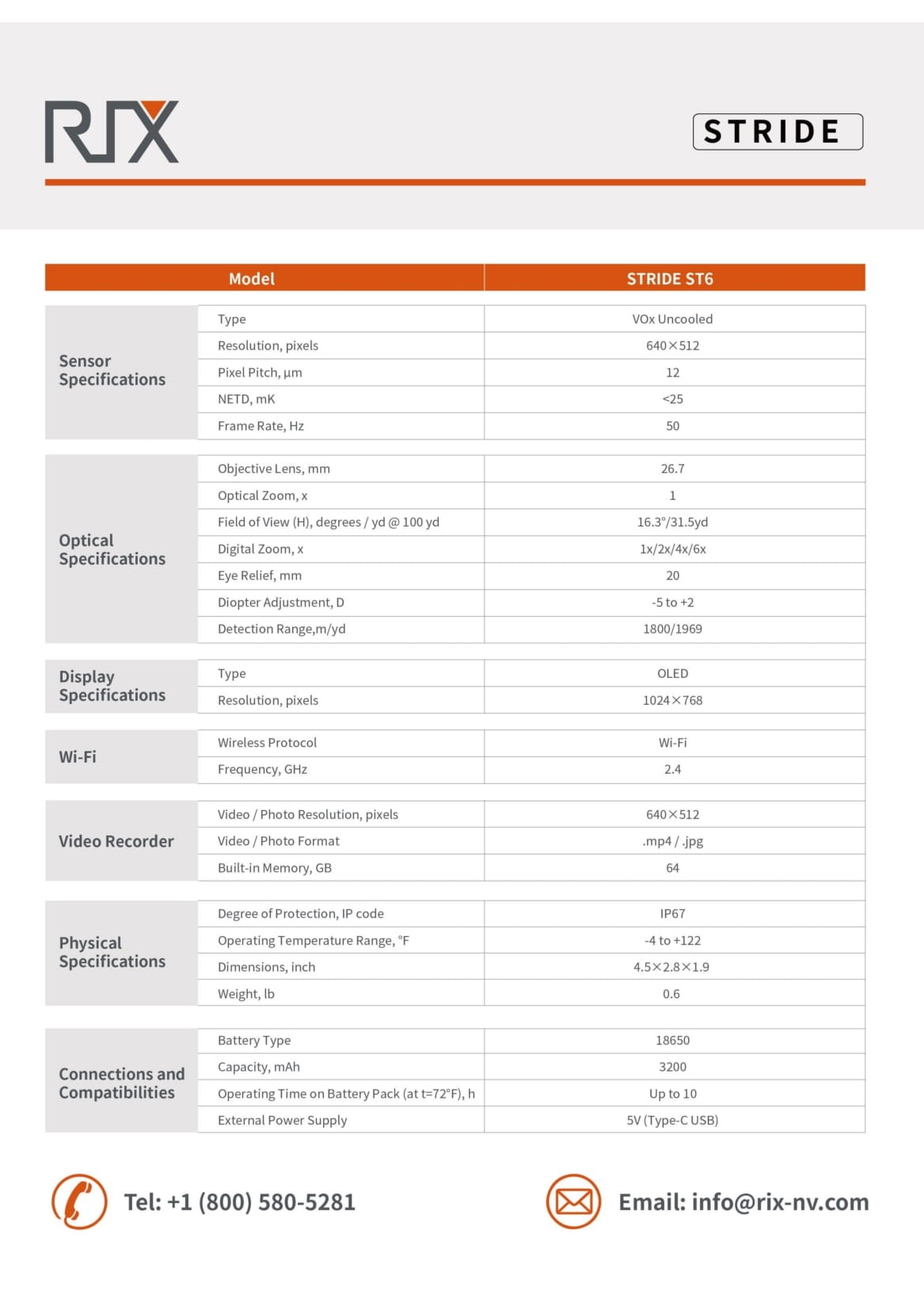

RIX Stride ST6 Thermal Imaging Monocular Specifications:
| Model | STRIDE ST6 | |
|
Sensor Specifications
|
Type | VOx Uncooled |
| Resolution, pixels | 640×512 | |
| Pixel Pitch, µm | 12 | |
| NETD, mK | <25 | |
| Frame Rate, Hz | 50 | |
|
Optical Specifications
|
Objective Lens, mm | 26.7 |
| Optic Zoom, x | 1 | |
| Field of View (H), degrees/yd @ 100 yd | 16.3°/31.5yd | |
| Digital Zoom, x | 1x/2x/4x/6x | |
| Eye Relief, mm | 20 | |
| Diopter Adjustment, D | -5 to +2 | |
| Detection Range,m/yd | 1800/1969 | |
|
Display Specifications
|
Type | OLED |
| Resolution, pixels | 1024×768 | |
|
Wi-Fi
|
Wireless Protocol | Wi-Fi |
| Frequency, GHz | 2.4 | |
|
Video Recorder
|
Video / Photo Resolution, pixels | 640×512 |
| Video / Photo Format | .mp4 / .jpg | |
| Built-in Memory, GB | 64 | |
|
Physical Specifications
|
Degree of Protection, IP code | IP67 |
| Operating Temperature Range, °F | -4 to +122 | |
| Dimensions, inch | 4.5×2.8×1.9 | |
| Weight, lb | 0.6 | |
|
Connections and Compatibilities
|
Battery Type | 18650 |
| Capacity, mAh | 3200 | |
| Operating Time on Battery Pack (at t=72°F), h | Up to 10 | |
| External Power Supply | 5V (Type-C USB) | |
WARRANTY POLICY
DURATION: 5-YEAR
Coverage: All products from RIX Optics are guaranteed to be free from manufacturing defects or breakage associated with the intended normal use of the product during the periods as stated above from the date of purchase.
Return, Repair, or Replacement: We strive to ensure that your experience with us is effortless and trouble-free. If you are not entirely satisfied with your purchase, you have the option to return most items within 30 days of receiving them for exchange or a full refund. In case you have return inquiries beyond the 30-day window, kindly reach out to our support@rix-nv.com for repair or replacement.
