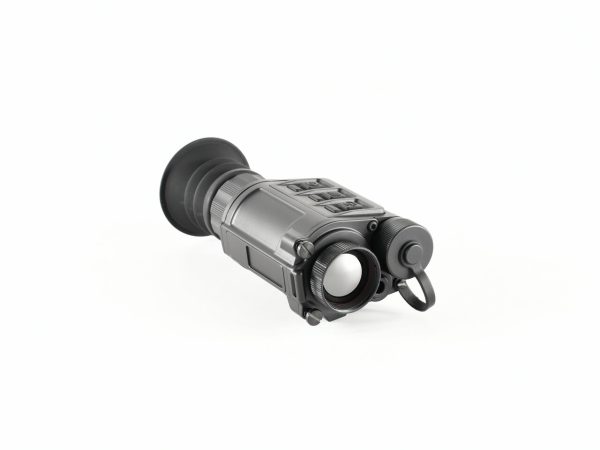

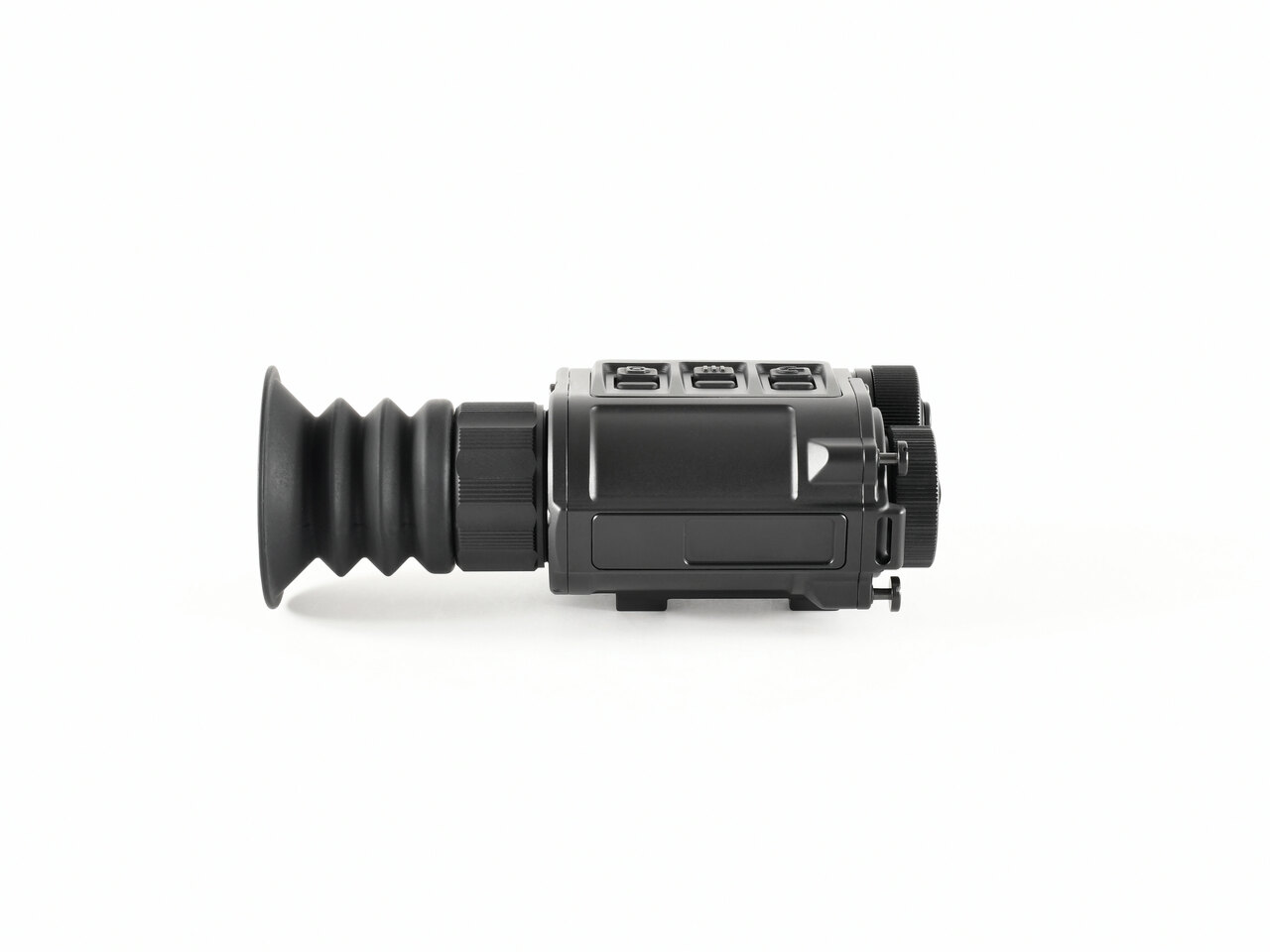

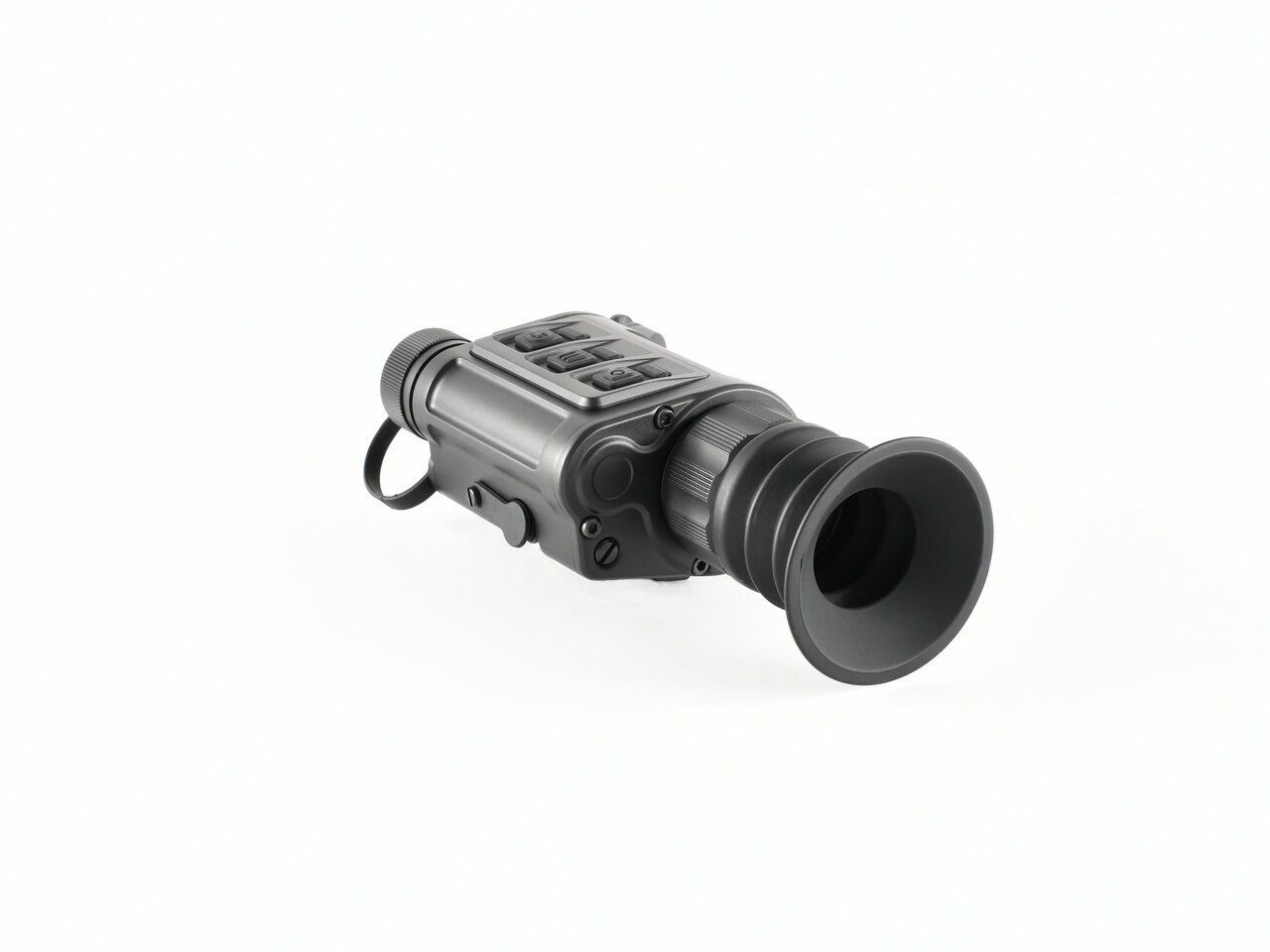

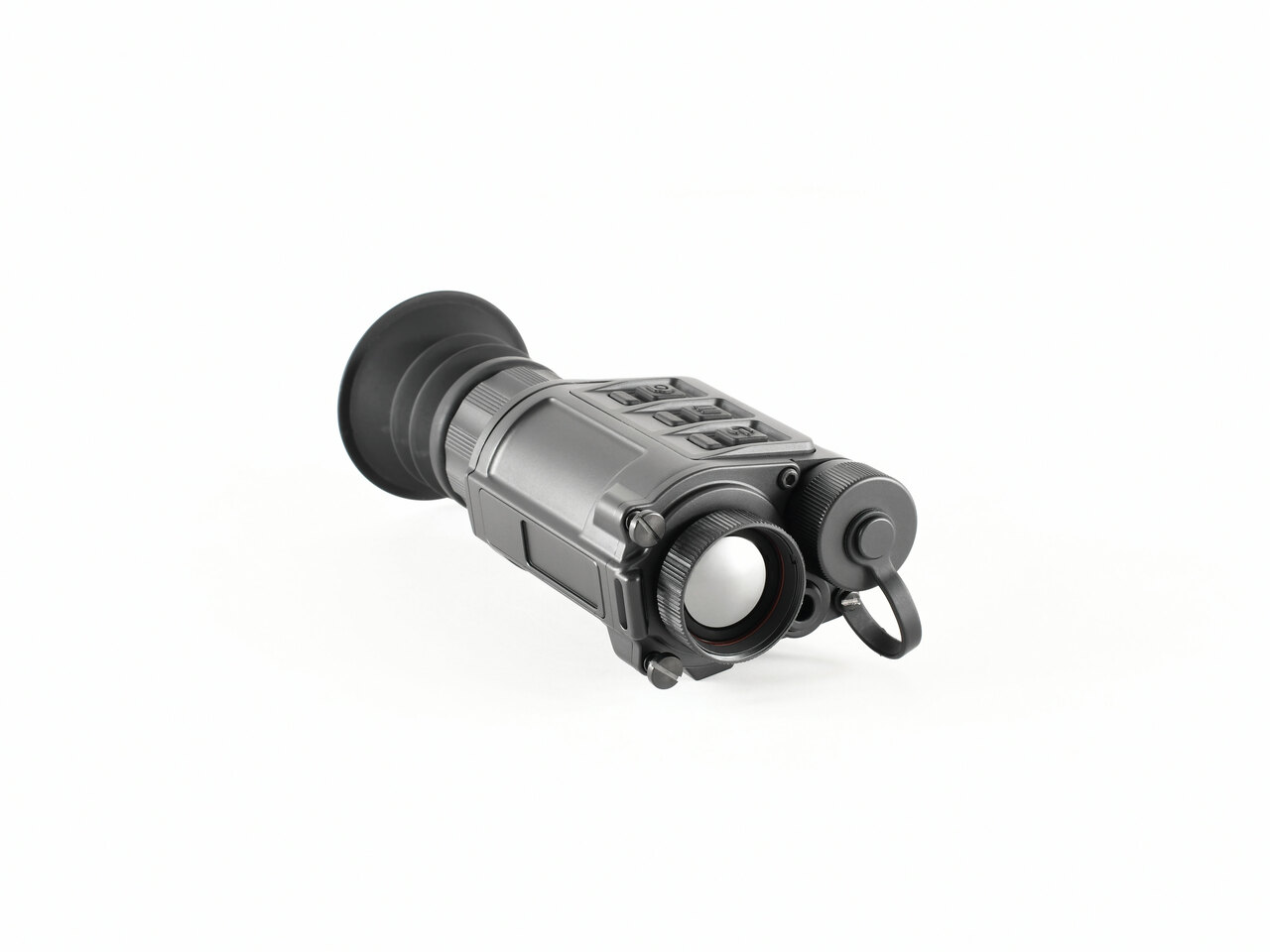

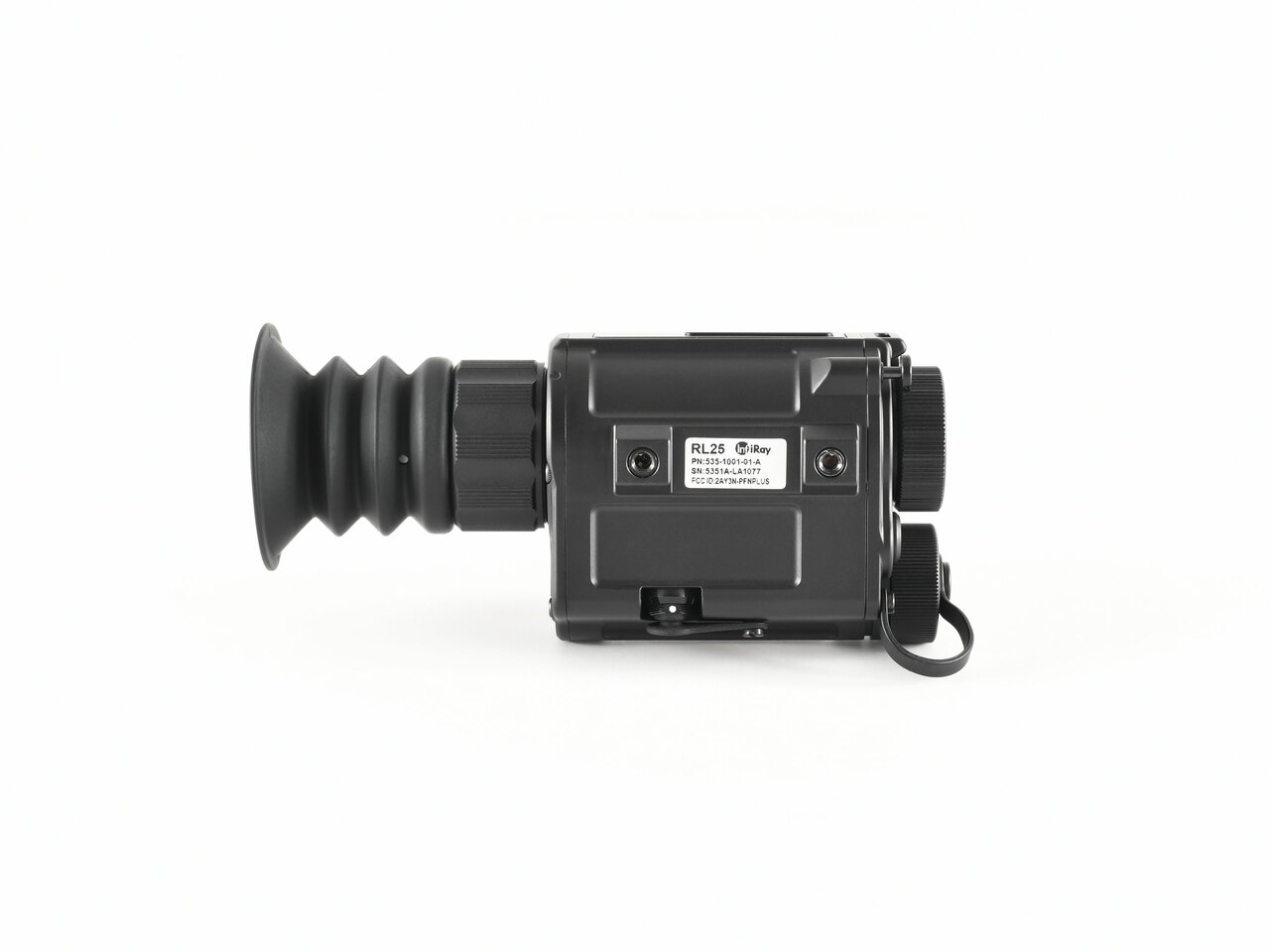

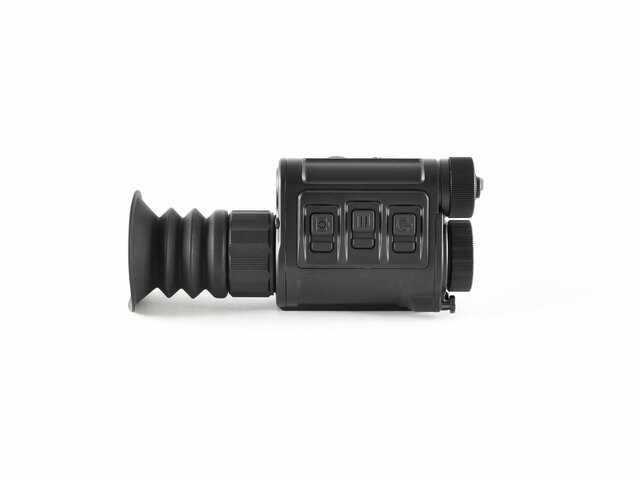

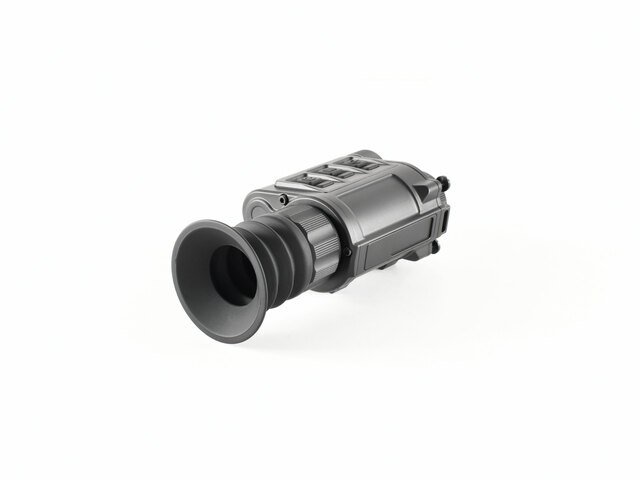

InfiRay Outdoor RICO MICRO RL25 Multi-Purpose Thermal Monocular
(2-8x magnification and 1,420 yards of detection!)
Michigan residents please call and we will pay your sales tax! (No tax charged for other states if placing an order on the website.) (855) 766-4364
The RICO MICRO Series is an advanced electro-optic device miniaturized to deliver remarkably versatile functionality: Handheld, helmet mount, and weapon mount. Weighing less than a pound, the MICRO will fit in the palm of your hand and can be used with standard dovetail helmet mounts or rifle-mounted as a stand-alone weapon sight. InfiRay Outdoor is blazing a new trail with features never before seen in a helmet-mounted thermal, such as onboard recording, onboard video playback, and a high-definition AMOLED display. The RL25 also features InfiRay’s latest high-performance 384×288, 12 μm sensor technology, MATRIX III processing, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class.
RICO MICRO RL25 Features & Performance:
- Reticle: 7 Types
- Connector Type: “Data Cable with USB, BNC, and 7-Pin Connectors”
- Color Palettes: White Hot, Black Hot, Red Hot, Color
- User-Updatable Firmware: Yes
- Mobile App: Yes
- Storage Capacity: 64 GB
- Connector Output: Analog
- Picture-in-Picture: No
- One-Shot Zero: No
- Stand-by Mode: Yes
- Rangefinder: No
- Run Time: 4 Hours
- Power Source: 18650 Rechargeable
- Wifi: Yes
- Onboard Recording: Photo and Video
- Image Capture: Yes
- Video Output: Analog RS-170/NTSC
- Startup Time: <10 Seconds, Instant from Standby
- External Power Source: Yes, 7-Pin to USB 5V
- Warranty: 5-Years
- Country of Manufacture: China
Optics:
- Optical Magnification: 2X
- Digital Magnification: 4X
- Objective Lens Material: Germanium
- Horizontal Angular Field of View: 10.5°
- Vertical Angular Field of View: 7.9°
- Detection Range: 1420 Yards
- Objective Focal Length: 25mm
- Objective Diameter: 25mm
- Objective F#: 1.0
- Focusing Mechanism: Manual Focus
- Eye Relief: 35mm
- Display Type: AMOLED
- Diopter Range: -4 to +4
- Display Resolution: 1024×768
RICO MICRO RL25 Sensor Specifications:
- Device Technology: Thermal Imaging
- Sensor Type: InfiRay MICRO II
- Sensor Resolution: 384×288
- Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
- Spectral Response: 8-12 Microns
- Sensor Frame Rate: 50hz
- Sensor Pixel Size: 12μm
- Thermal Sensitivity: <50mk
Physical:
- Mounting Interface: Picatinny
- Housing Material: Aluminum
- Length: 4.52 in
- Height: 2.55 in
- Width: 1.88 in
Environmental Specifications:
- Operating Temperature Range: -4°F to 122°F
- Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
- Ingress Protection: IP67
