Description

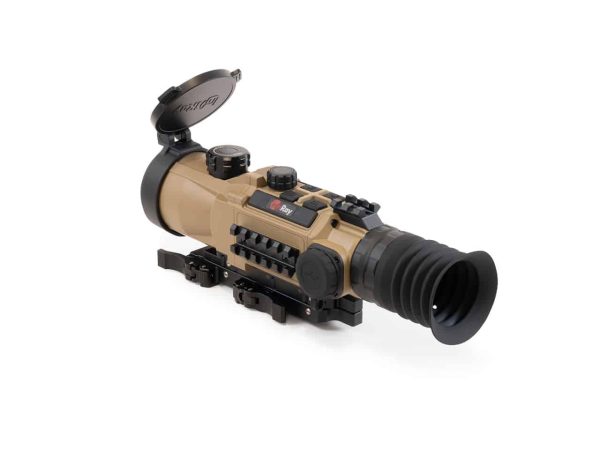

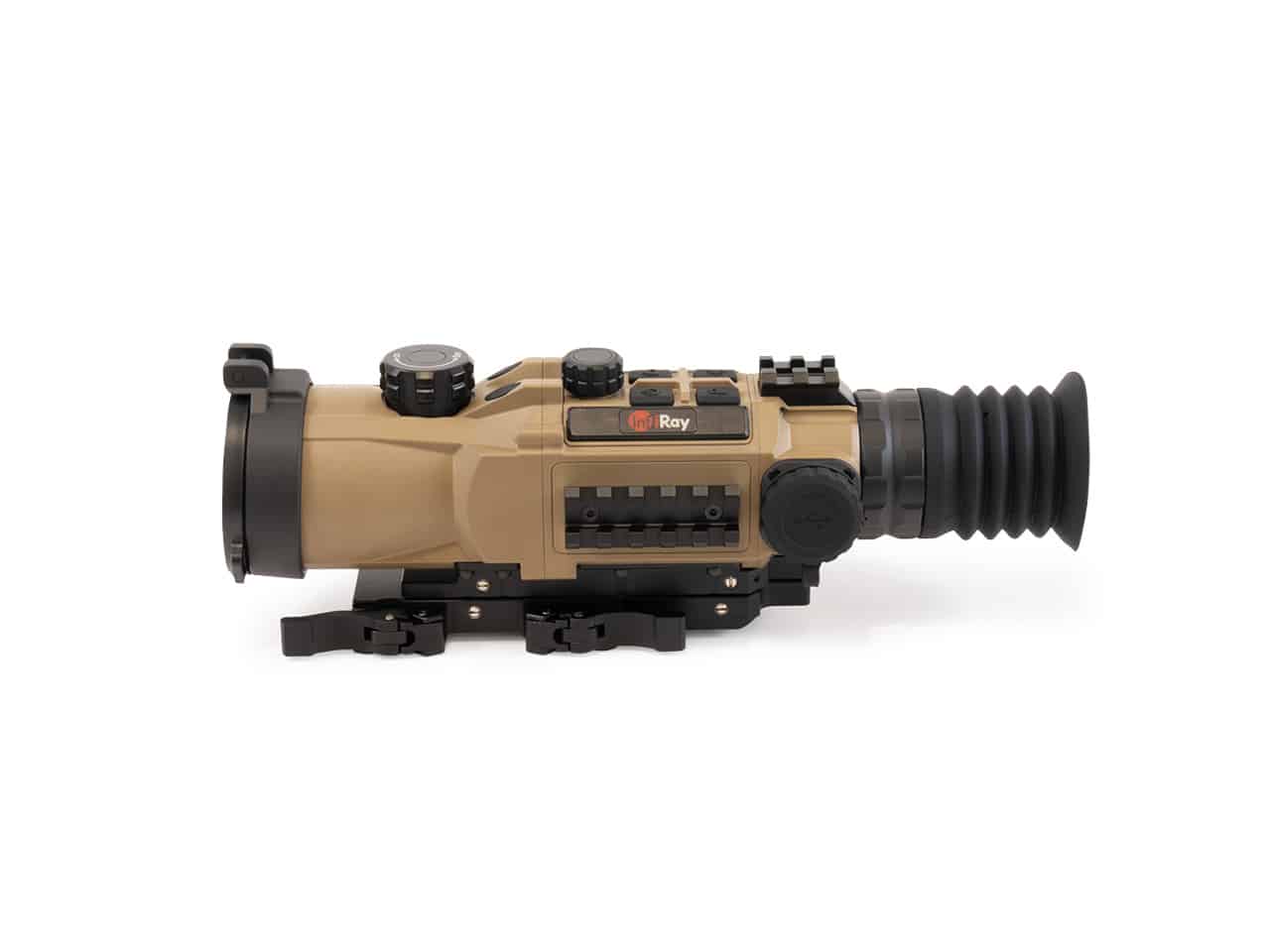

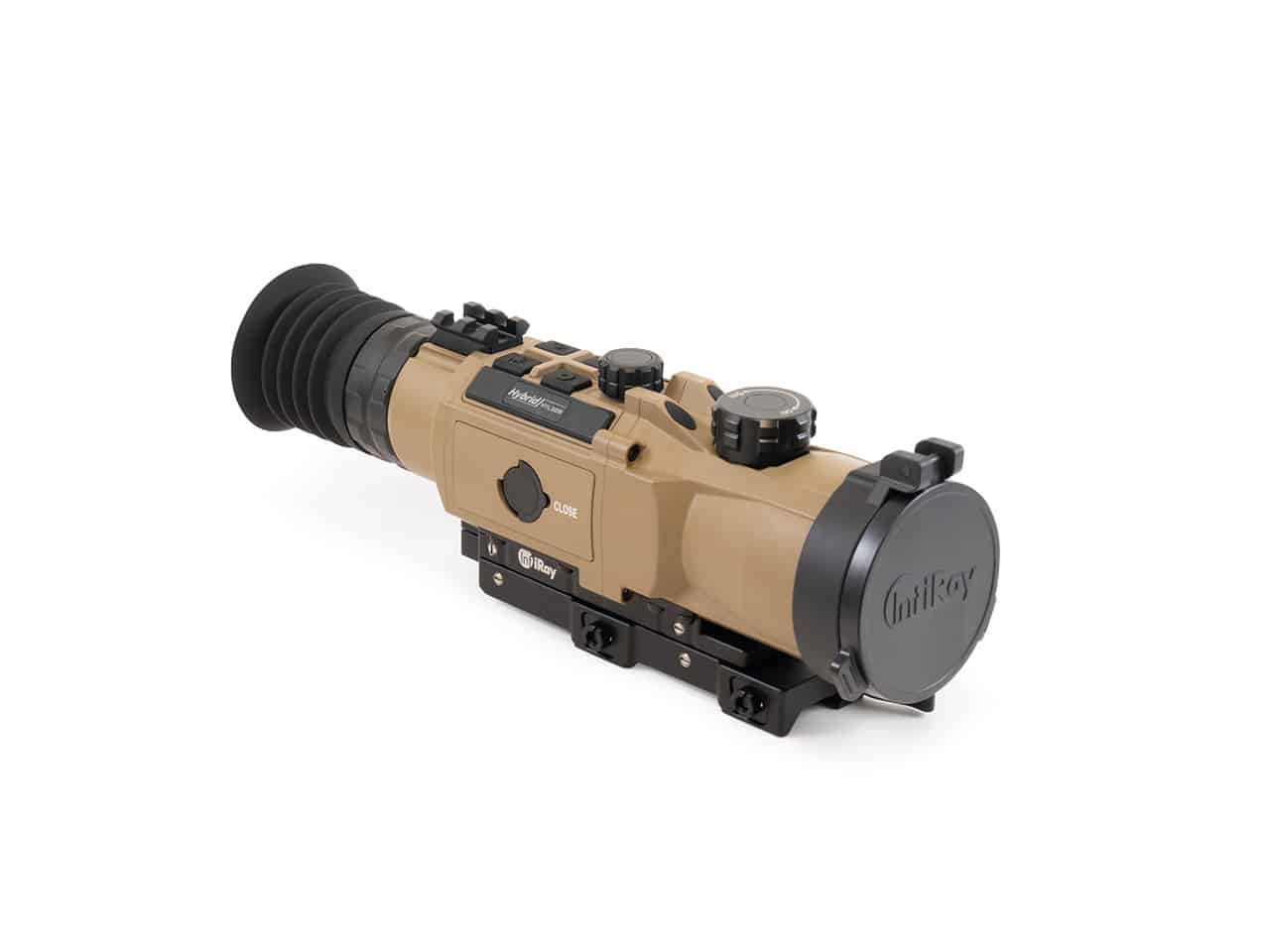

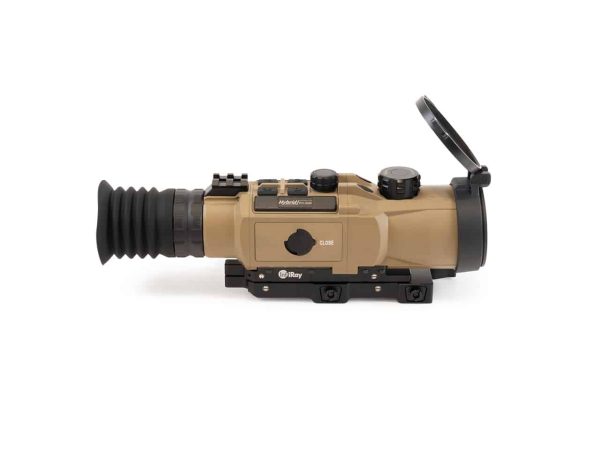

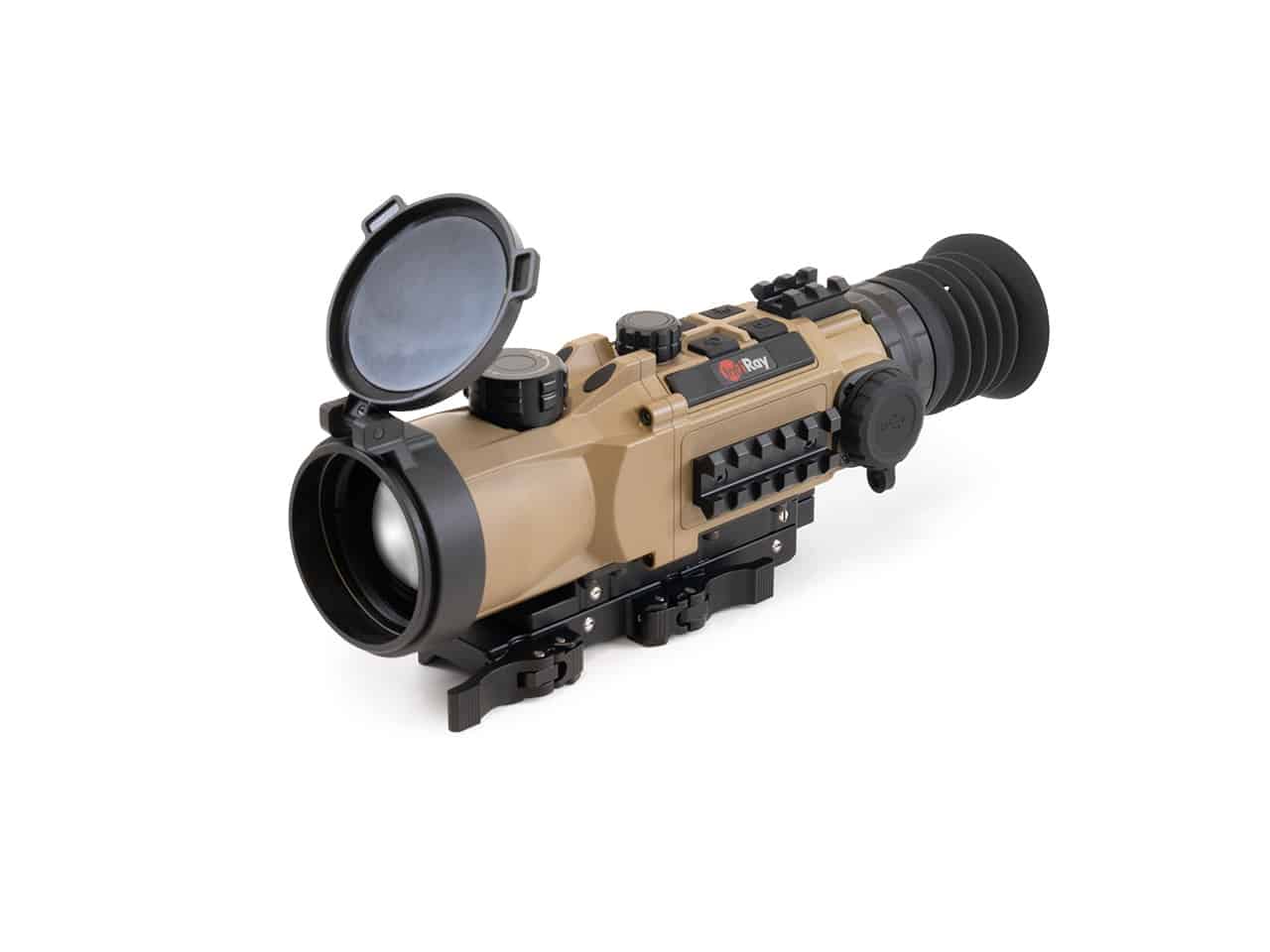

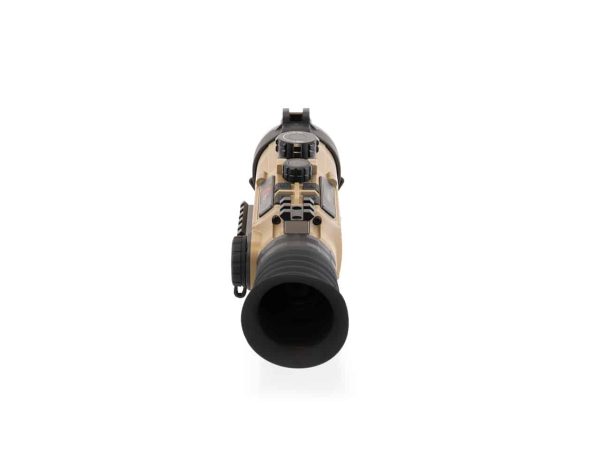

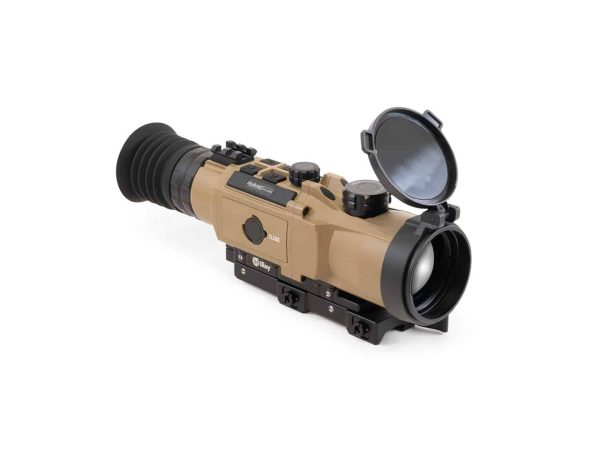

InfiRay Outdoor RICO HYBRID HYL50W 384/90Hz Multi-function Thermal Weapon Sight
(3-24x magnification and 2,000 yards of detection!)
First introduced as the powerful combination of a thermal weapon sight and a thermal clip-on unit, the HYBRID line-up continues to evolve with specialized models, top-performing sensors, and an advanced feature set designed for technical shooters. The combination of the HYBRID’s low-distortion orthoscopic eyepiece and a 1.03-inch large-format 2560×1920 display provides comfortable viewing, a sharp image, and massive eye relief. The HYBRID also unlocks advanced features such as compatibility with a 1,000-yard laser rangefinder, a custom ballistic reticle generator, a wireless remote, and an onboard ballistic solver. This year, the HYBRID family expands with the addition of the InfiRay Outdoor RICO HYBRID HYL50W, 50mm/90Hz model, optimized for smooth motion and fast-moving targets.
InfiRay Outdoor RICO HYBRID HYL50W Features:
| Sensor Pixel Size: | 17μm |
| Objective Focal Length: | 50mm |
| Digital Magnification: | 8X |
| Objective F#: | 1.0 |
| Objective Diameter: | 50mm |
| Sensor Frame Rate: | 50hz / 90hz |
| Detection Range: | 2000 Yards |
| Optical Magnification: | 3X |
| Device Technology: | Thermal Imaging |
| Onboard Recording: | Yes |
| Sensor Resolution: | 384×288 |
Optics
- Display Type: AMOLED
- Eye Relief: 60mm
- Objective Focal Length: 50mm
- Digital Magnification: 8X
- Diopter Range: -4 to +2
- Vertical Angular Field of View: 5.6°
- Horizontal Angular Field of View: 7.5°
- Focusing Mechanism: Manual Focus
- Objective F#: 1.0
- Objective Diameter: 50mm
- Objective Lens Material: Germanium
- Display Resolution: 2560×1920
- Detection Range: 2000 Yards
- Optical Magnification: 3X
InfiRay Outdoor RICO HYBRID HYL50W More Features & Performance
- Warranty: 5 Years
- Startup Time: <10 Seconds, Instant from Standby

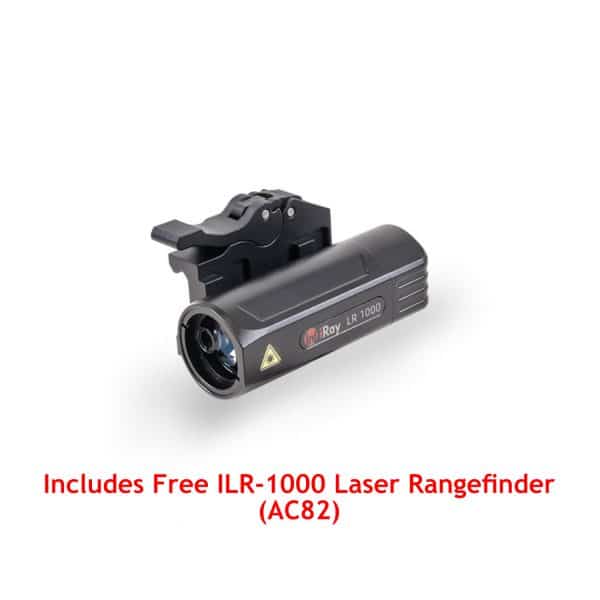

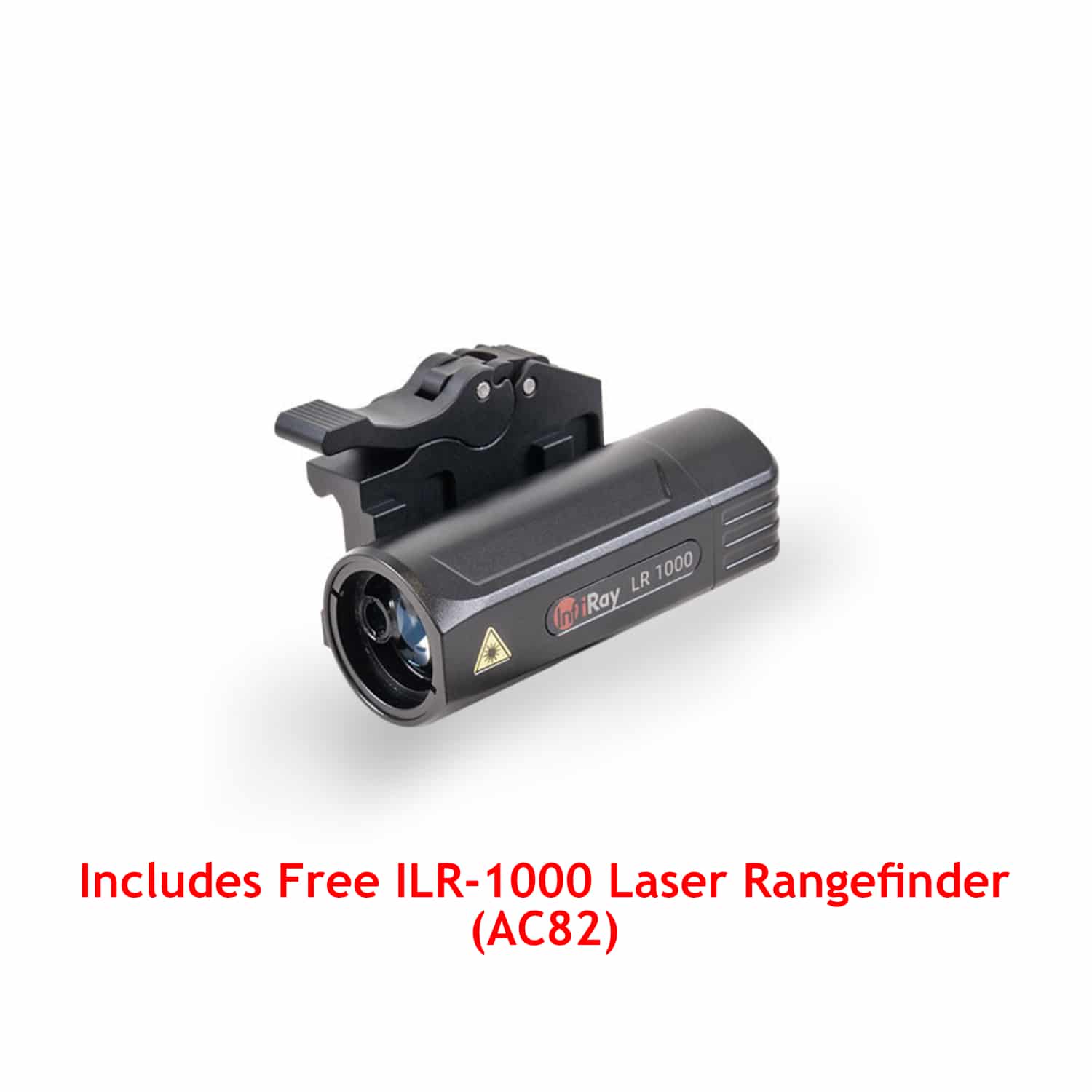

- Rangefinder: ILR-1000-2 LRF (Optional/Not Included)
- Color Palettes: White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline
- Picture-in-Picture: Yes
- Storage Capacity: 64GB
- Connector Output: Power/Data
- User-Updatable Firmware: Yes
- Mobile App: Yes
- Run Time: 6+
- Power Source: USB-C External, IBP-1H Li-ion Battery Pack
- Stand-by Mode: Yes
- Reticle: 9 (7 Static, 1 DIY, 1 BDC)
- Connector Type: USB-C
- External Power Source: USB-C
- Wifi: Yes
- Onboard Recording: Yes
- Image Capture: Yes
- Country of Manufacture: China
Environmental Specifications
- Operating Temperature Range: -4°F~122°F
- Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
- Ingress Protection: IP67
Physical
- Mounting Interface: Picatinny MIL-STD 1913 Rail
- Housing Material: Magnesium Alloy
- Weight: 30.01 Oz.
- Height: 2.99
- Width: 3.03
- Length: 11.02
InfiRay Outdoor RICO HYBRID HYL50W Sensor Specifications
- Sensor Type: InfiRay MICRO II
- Sensor Pixel Size: 17μm
- Thermal Sensitivity: <25mk
- Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
- Sensor Frame Rate: 50hz / 90hz
- Device Technology: Thermal Imaging
- Sensor Resolution: 384×288

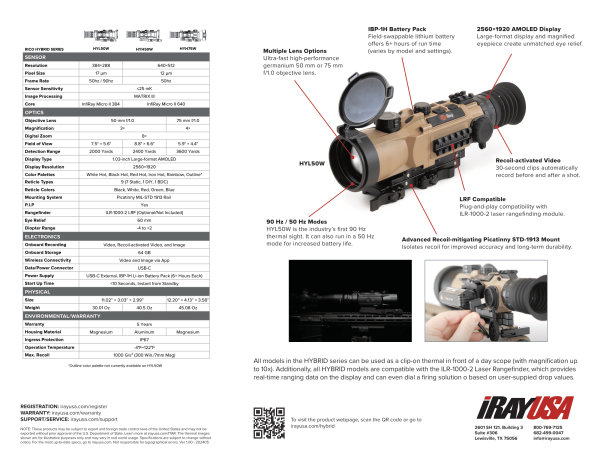

InfiRay Outdoor – IRAYUSA RICO HYBRID HYL50W Manual
