InfiRay Outdoor MINI MH25 V2 640 25mm Thermal Monocular
(1-8x magnification and 1,375 yards of detection!)
Michigan residents please call and we will pay your sales tax! (No tax charged for other states if placing an order on the website.) (855) 766-4364
5-Year Full Manufacturers Warranty!

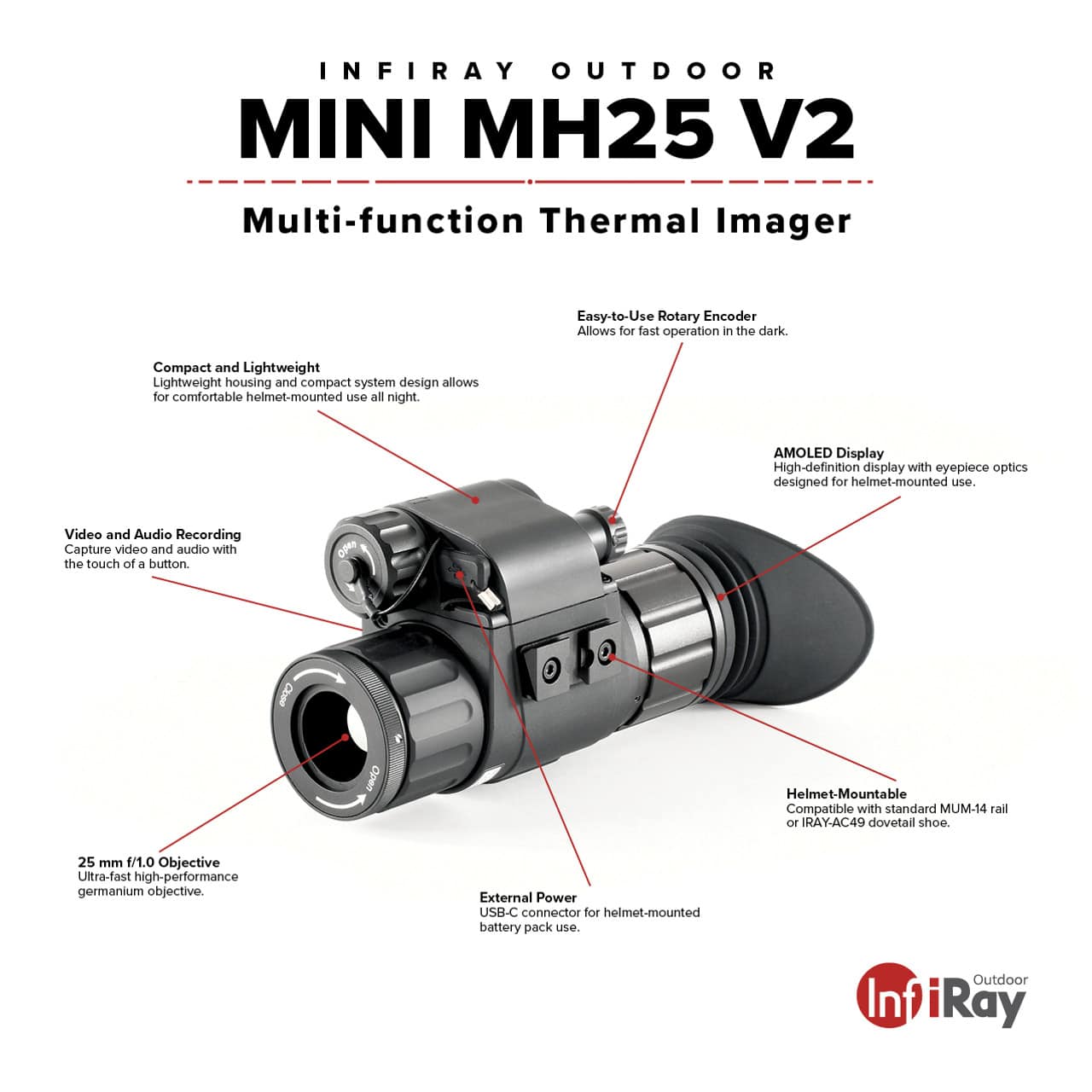

The InfiRay Outdoor MINI MH25 V2 is a compact, lightweight thermal imager designed for handheld or helmet-mounted use. Its unique design allows for seamless operation as a handheld monocular, and it can easily transition to a helmet mount for hands-free use. The MH25 V2 is powered by a 50hz 12 μm sensor and features next-generation MATRIX III processing for an unmatched viewing experience. In addition to the features found on the original MH25, the MH25 V2 adds several highly requested features including an upgraded AMOLED display, an upgraded eyepiece, and onboard video and audio recording.
Flexible Mounting Options and Friendly Operation!

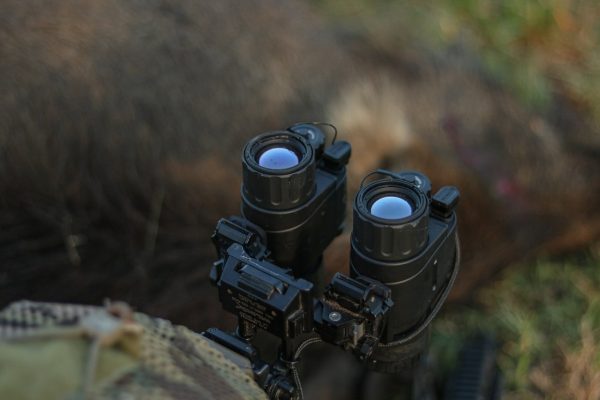

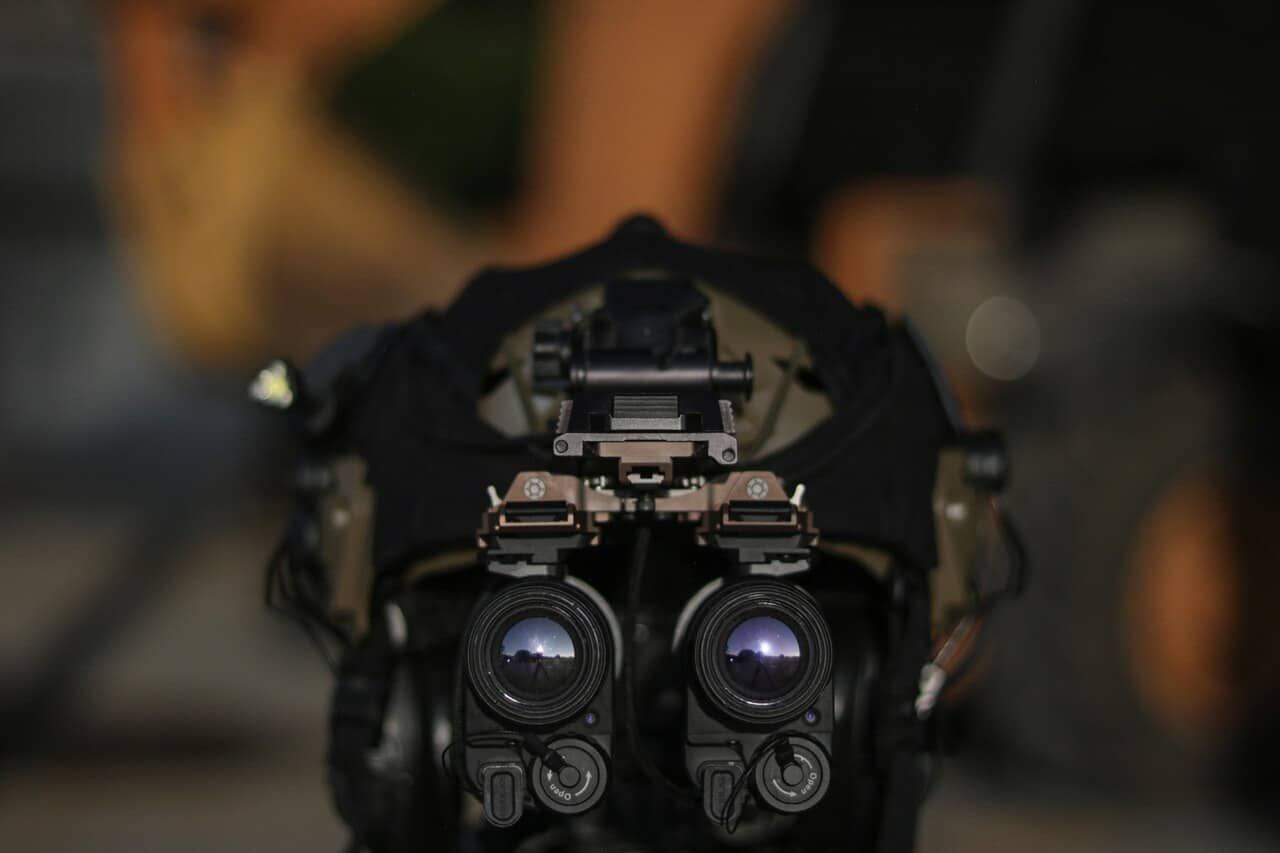

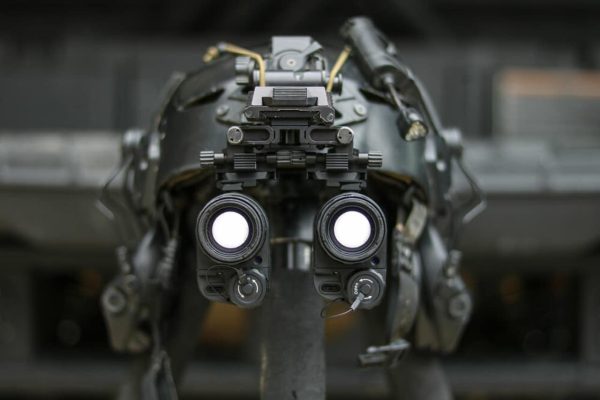

For hands-free operation, there are 2 mounting points designed to allow for a wide variety of dovetail helmet mounts. The Mini’s display icons flip automatically when orientation is flipped.
The MH25 is operated by an intuitive clearly labeled menu and user-friendly rotary button. This one-button operation has positive clicks with each selection and allows for quick and easy operation without having to search for any buttons in the dark.
MINI MH25 V2 Power Supply Options:
The Mini is compatible with CR123A, CR123, 16340, and 16650 batteries. Using 1 x 16650 the Mini will run for 3 hours, and using the included power cable with a 10,000 mah USB battery the Mini will run for 18 hours. DO NOT USE 2 x CR123A batteries with the 16650 adapter, it will permanently disable your device.

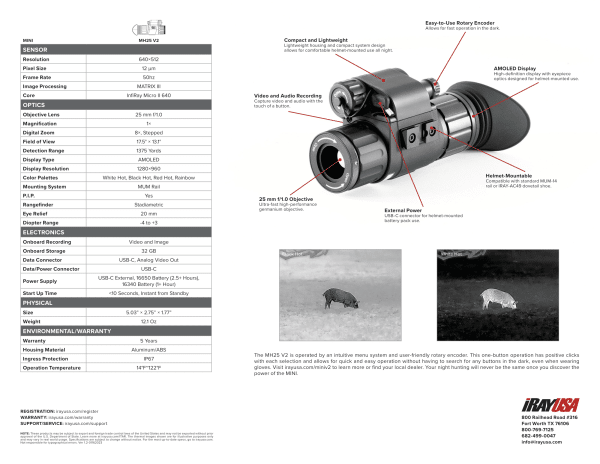

MINI MH25 Optics:
- Optical Magnification: 1X
- Digital Magnification: 8X, stepped
- Objective Focal Length: 25mm
- Objective Diameter: 25mm
- Objective F#: 1.0
- Objective Focusing Range: 2 meters to infinity
- Horizontal Angular Field of View: 17.5
- Vertical Angular Field of View: 13.1
- Detection Range: 1375 Yards
- Eyepiece Focal Length: 27mm
- Eye Relief: 20mm
- Exit Pupil: 14mm
- Diopter Range: -4 – +3
- Display Type: AMOLED
- Objective Lens Material: Germanium
- Focusing Mechanism: Manual Focus
- Display Resolution: 1280×960
Features & Performance:
- Power Source: 16650 Battery
- Video Output: Analog RS-170/NTSC
- Image Capture: Yes
- Onboard Recording: Yes
- Bluetooth: Yes
- Wifi: Yes
- Country of Manufacture: China
- Connector Output: Power/Data
- Startup Time: Under 10 Seconds
- Warranty: 5 Years
- Run Time: 2.5+
- Connector Type: USB-C
- Mobile App: Yes
- Color Palettes: White Hot, Black Hot, Red Hot, Rainbow
- User-Updatable Firmware: Yes
- Storage Capacity: 32GB
- External Power Source: USB-C
MINI MH25 Sensor Specifications:
- Device Technology: Thermal Imaging
- Sensor Resolution: 640×512
- Sensor Pixel Size: 12μm
- Sensor Frame Rate: 12μm
- Thermal Sensitivity: <50mk
- Spectral Response: 8-12 Microns
- Sensor Type: InfiRay MICRO II
- Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Physical:
- Housing Material: Aluminum/ABS
- Mounting Interface: MUM Rail
- Weight: 12.1
- Height: 1.77
- Width: 2.75
- Length: 5.30
Environmental Specifications:
- Ingress Protection: IP67
- Recoil Rating: None
- Operating Temperature Range: -4°F~122°F
About InfiRay Sensors:
IRAY technology has been developing and producing infrared FPA detectors, thermal cores, and other thermal products outside of the US for more than a decade. IRay has completely independent intellectual property rights and is committed to providing professional thermal imaging solutions across the globe. More than 50% of IRay’s employees are R&D engineers and IRay has been awarded 219 technical patents.
