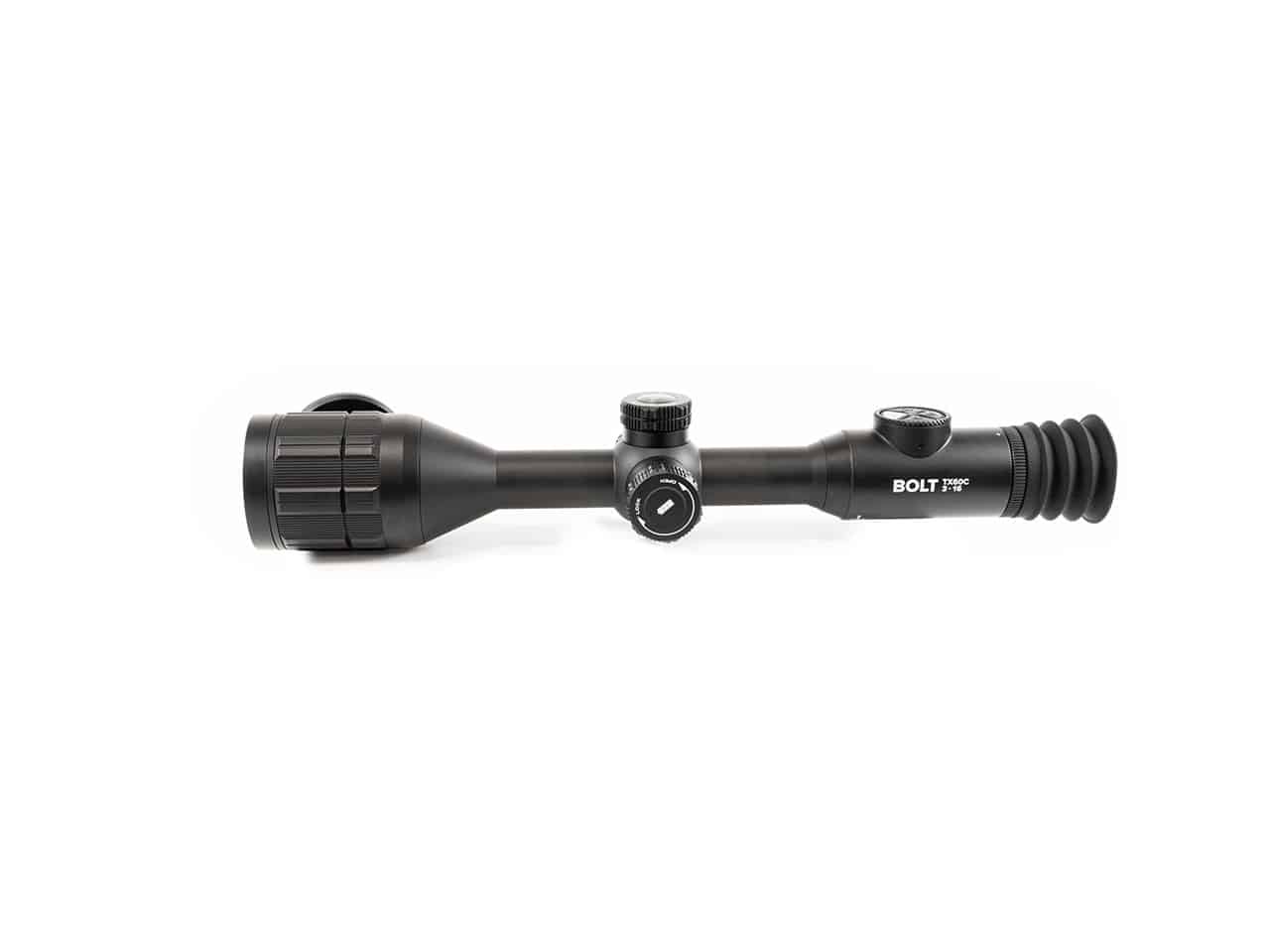

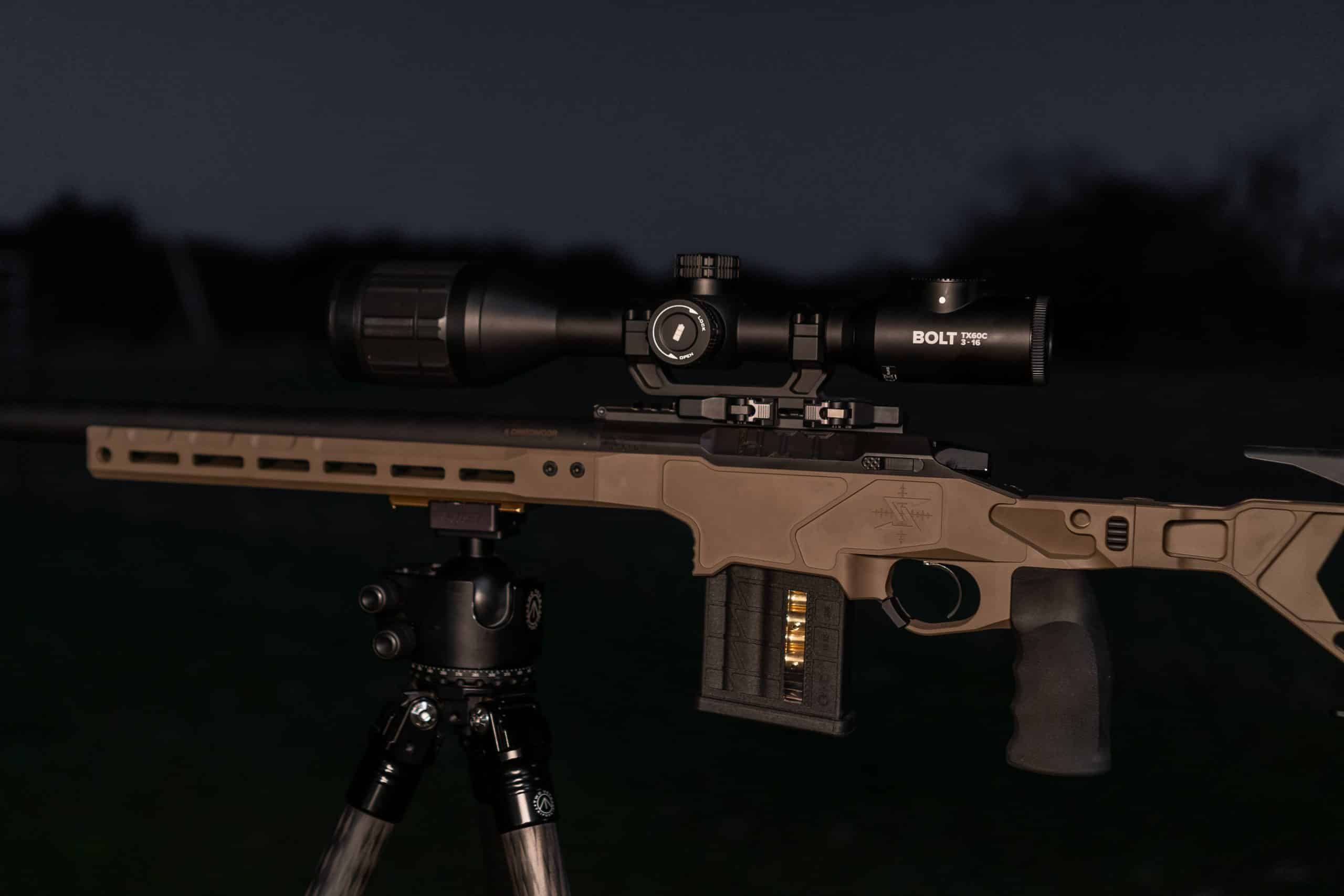

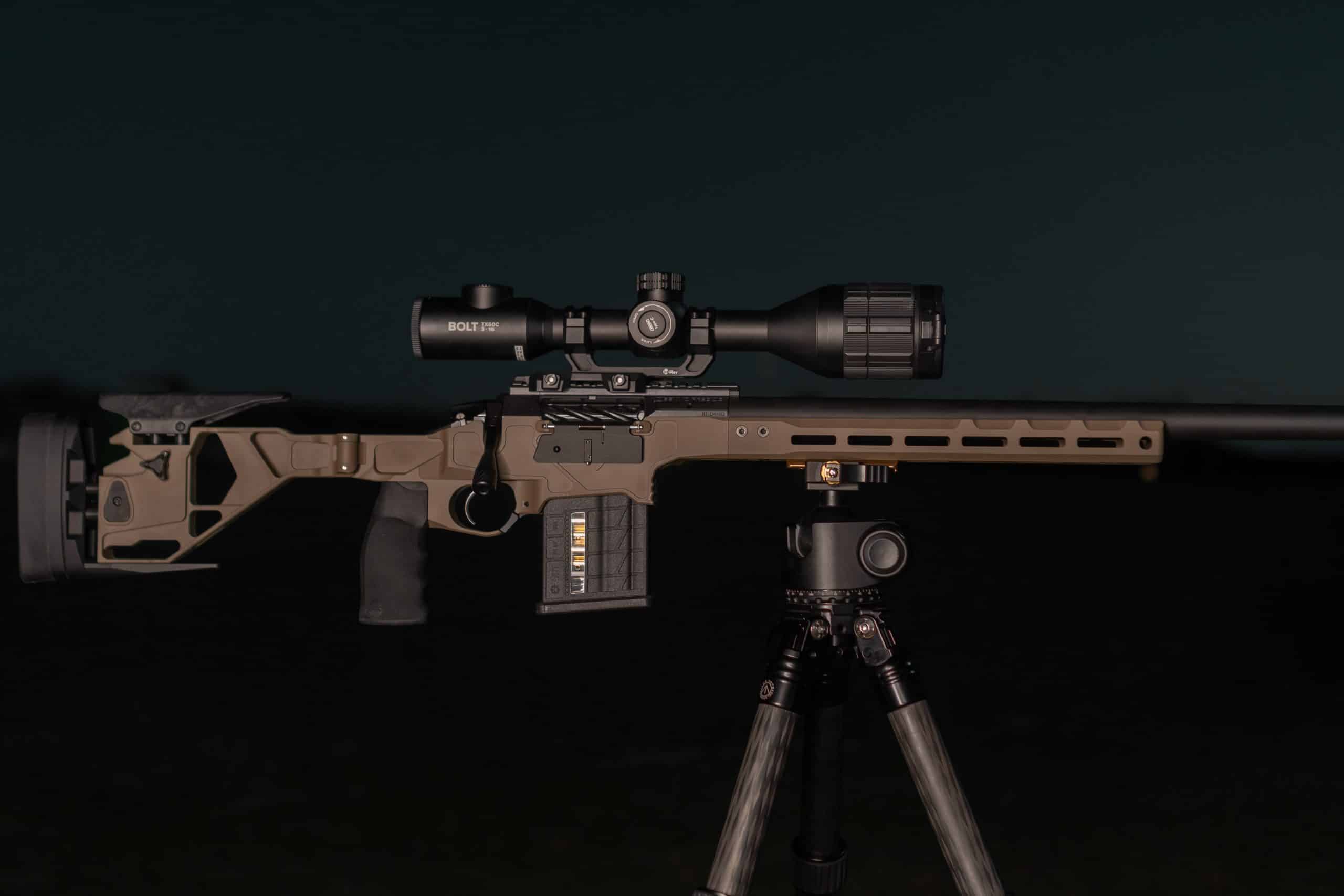

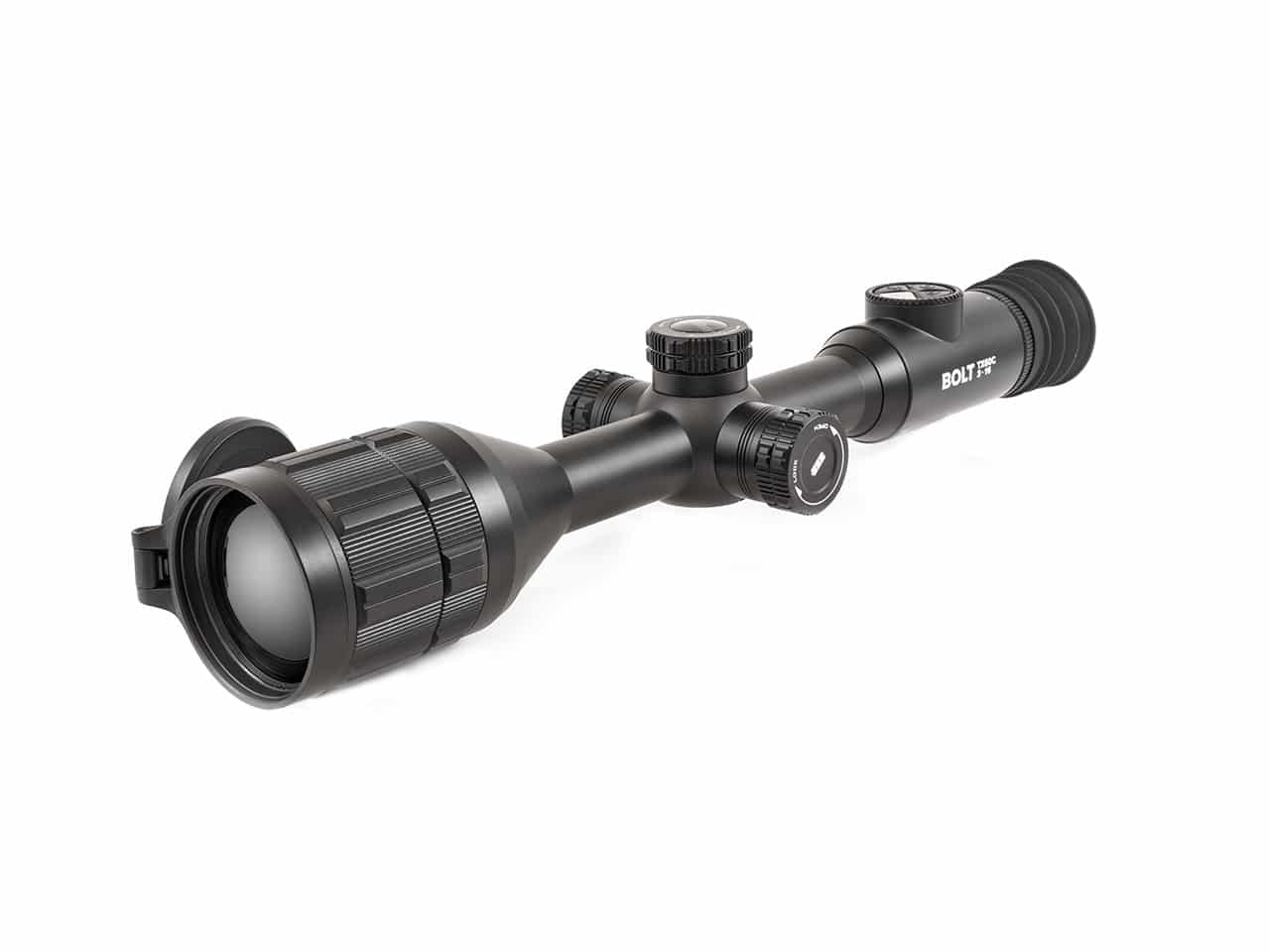

InfiRay Outdoor BOLT TX60C Thermal Riflescope
(3-16x magnification and 2,700 yards of detection!)

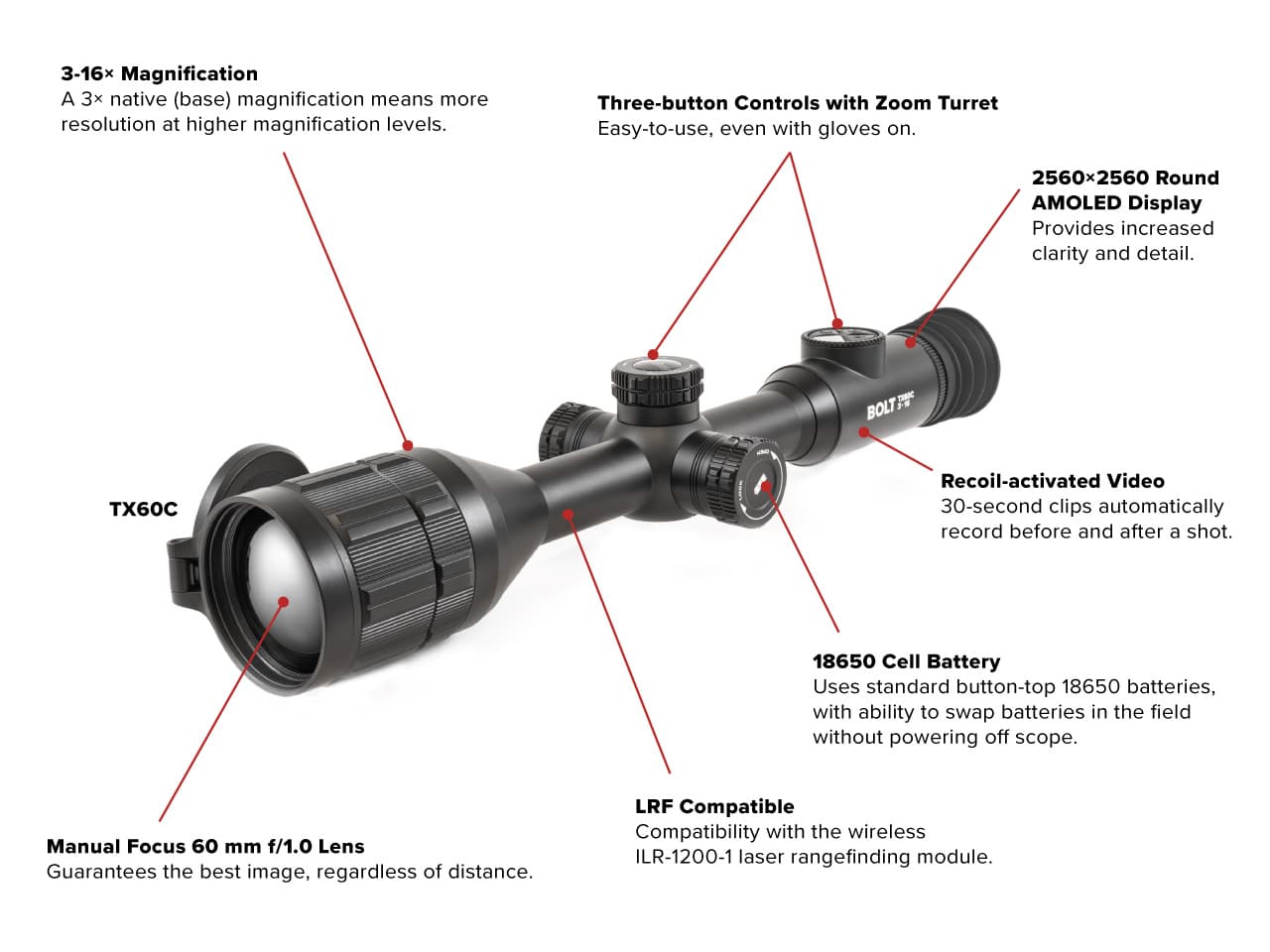

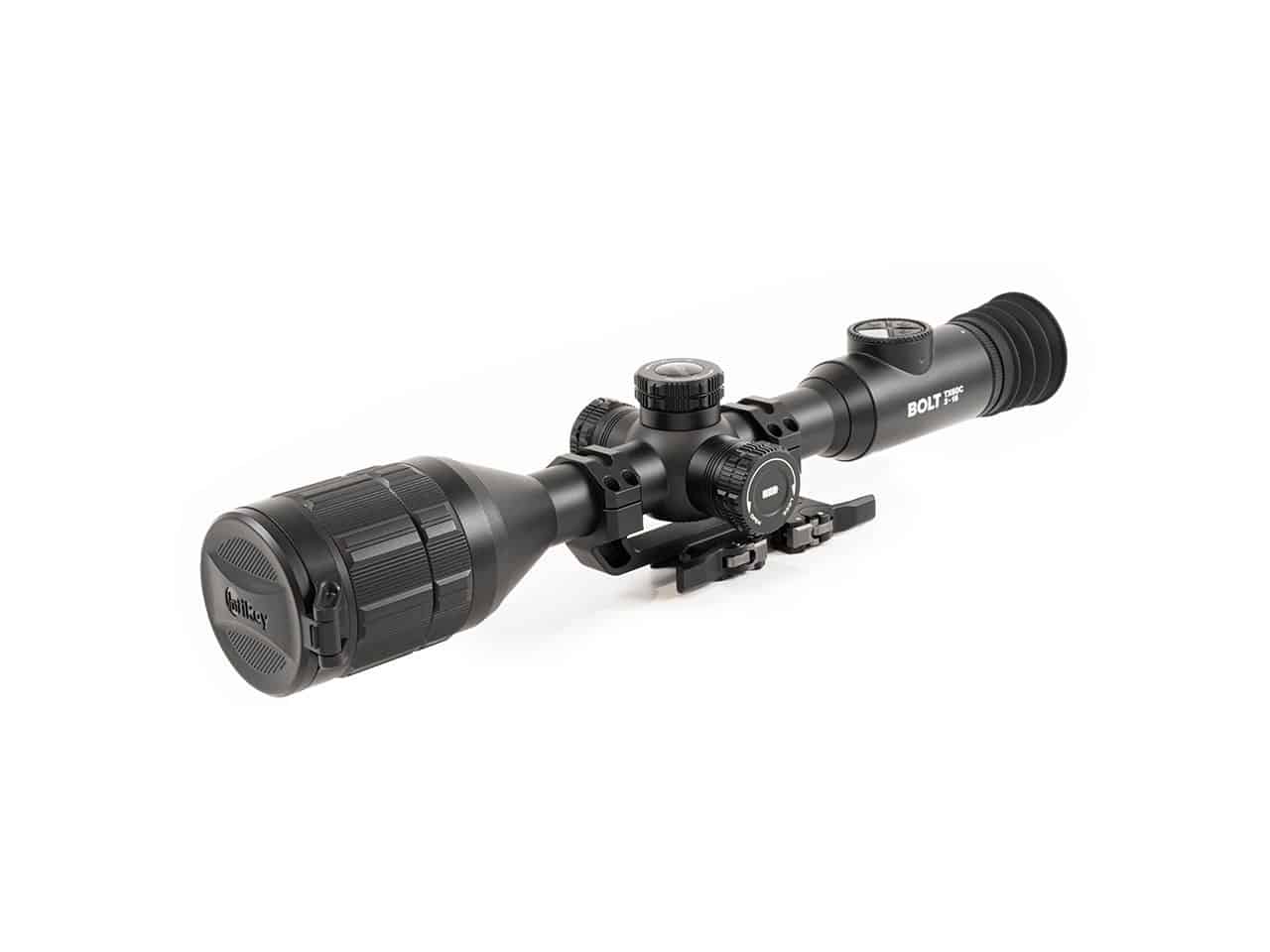

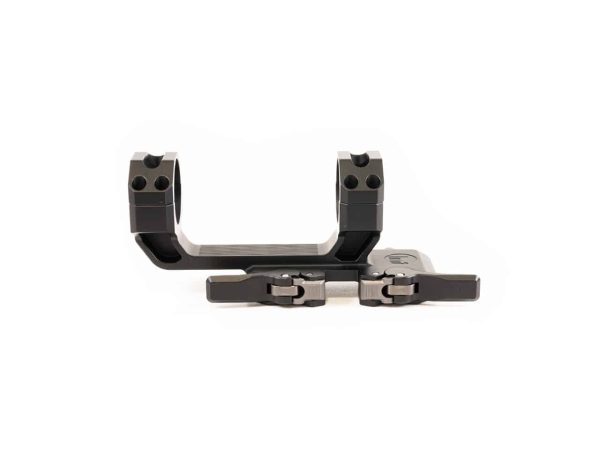

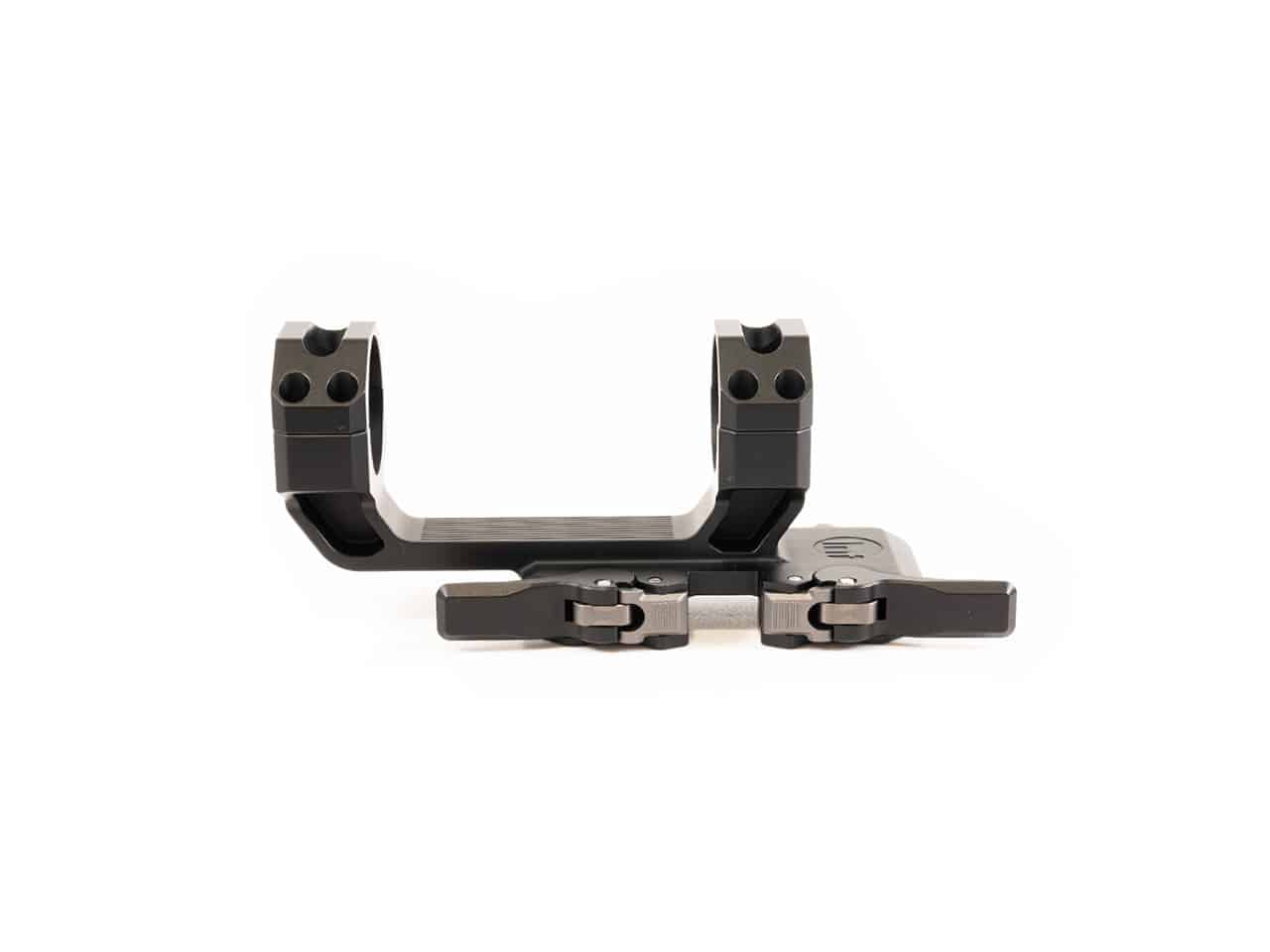

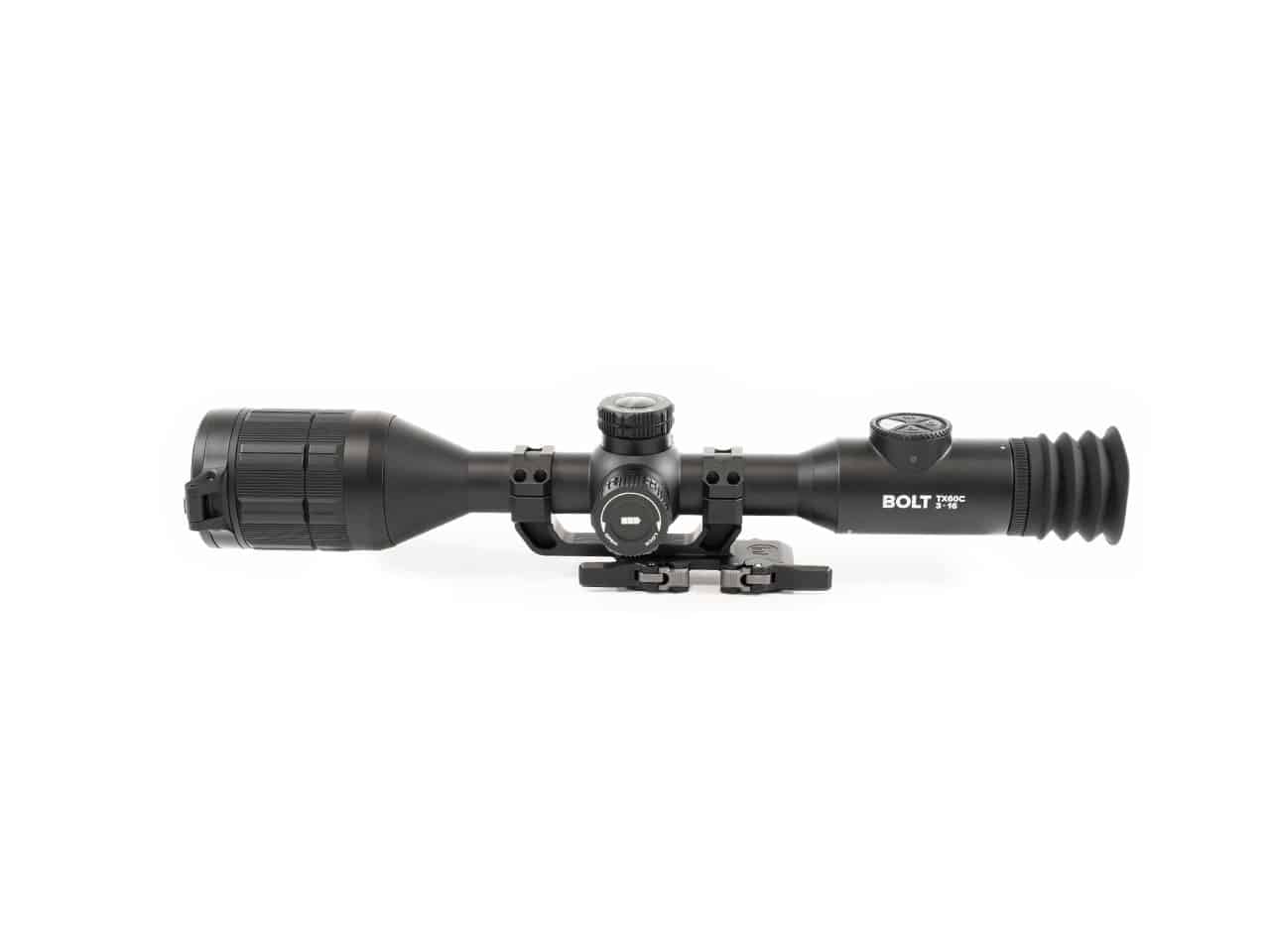

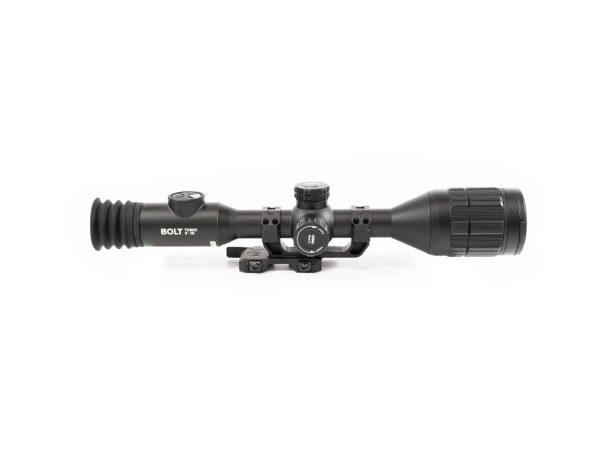

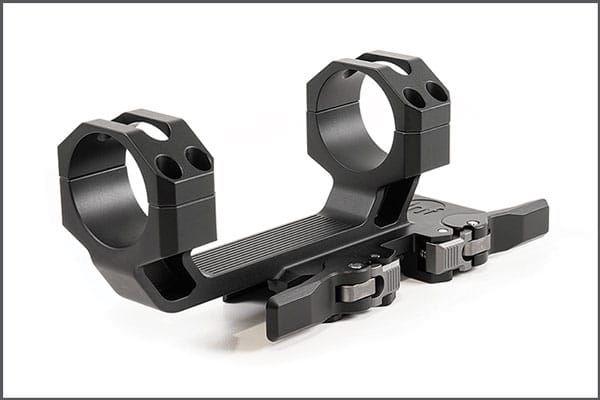

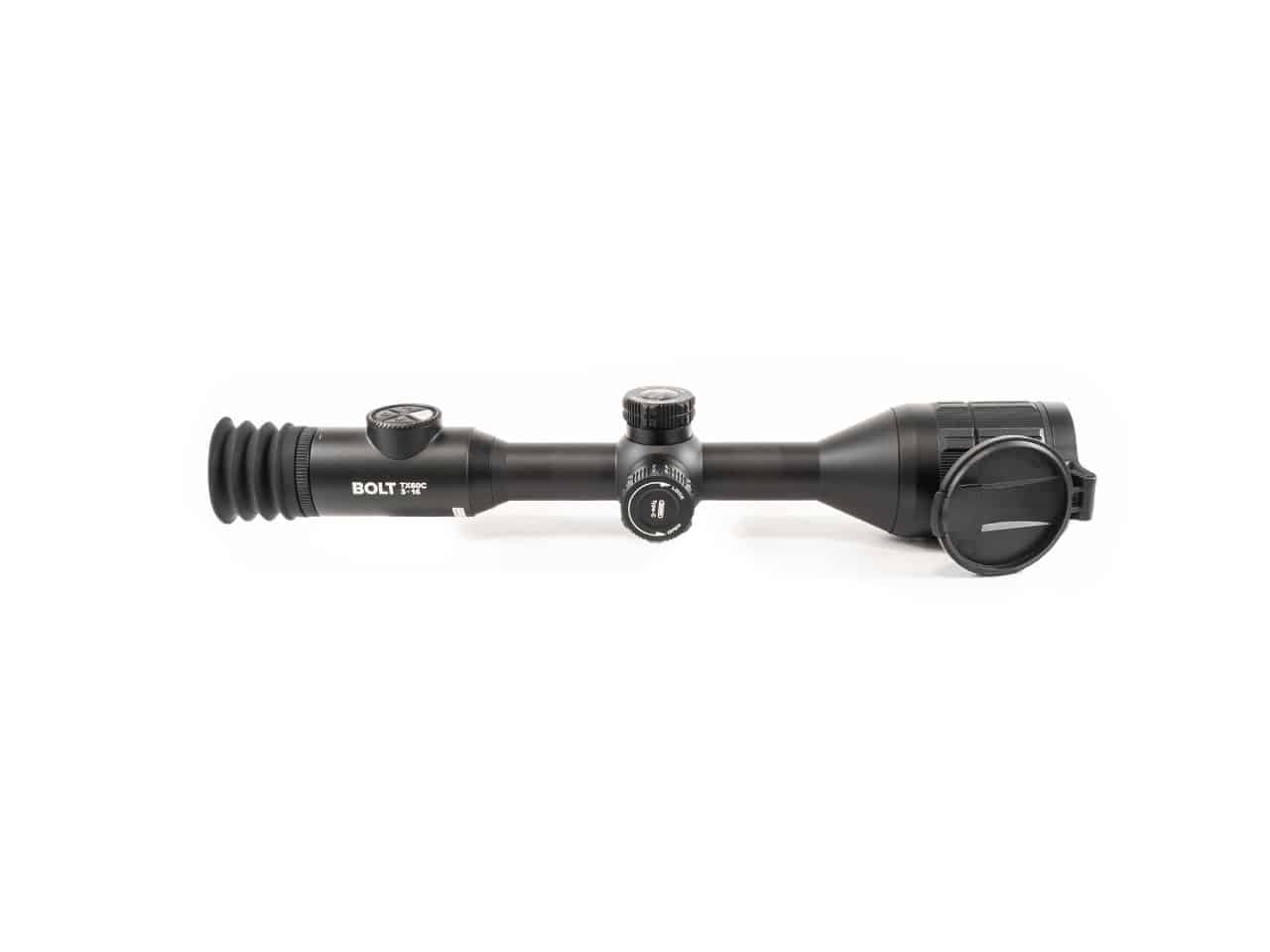

The InfiRay Outdoor BOLT TX60C Thermal Riflescope provides hunters with a high-resolution 1024×1024 InfiRay Micro II thermal sensor at a native 3× magnification and digital zoom up to 16×, ideal for predator hunting and longer-range shots. Increased resolution paired with a higher base magnification means less resolution is lost at higher zoom levels. A fast f/1.0 germanium objective lens, a sensitivity rating of ≤18mK, and a round 2560×2560 AMOLED display provide exceptional detail and precision. The round 30mm body design allows for easy mounting with the included one-piece cantilever mount or standard scope rings. Wirelessly paired with the ILR-1200-1 Laser Range finding module, the TX60C is capable of displaying real-time ranges on-screen and even calculating a firing solution using customizable projectile data and the onboard ballistic calculator.
InfiRay Outdoor BOLT TX60C Thermal Riflescope Features:
| Device Technology: | Thermal Imaging |
| Objective Focal Length: | 60mm |
| Sensor Resolution: | 1024×1024 |
| Detection Range: | 2700 Yards |
| Sensor Pixel Size: | 12μm |
| Sensor Frame Rate: | 50hz |
| Optical Magnification: | 3X |
| Digital Magnification: | 4X, stepped |
| Objective Diameter: | 60mm |
| Objective F#: | 1.0 |
| Onboard Recording: | Yes |
Optics
- Objective Focal Length: 60mm
- Detection Range: 2700 Yards
- Optical Magnification: 3X
- Digital Magnification: 4X, stepped
- Horizontal Angular Field of View: 11.7°
- Objective Lens Material: Germanium
- Vertical Angular Field of View: 11.7°
- Objective Diameter: 60mm
- Objective F#: 1.0
- Focusing Mechanism: Manual Focus
- Eye Relief: 50mm
- Diopter Range: -5 – +3.5
- Display Type: AMOLED
- Display Resolution: 2560×2560
More Features & Performance
- Reticle: 7 (1 Dynamic, 5 Static, 1 DIY)
- Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

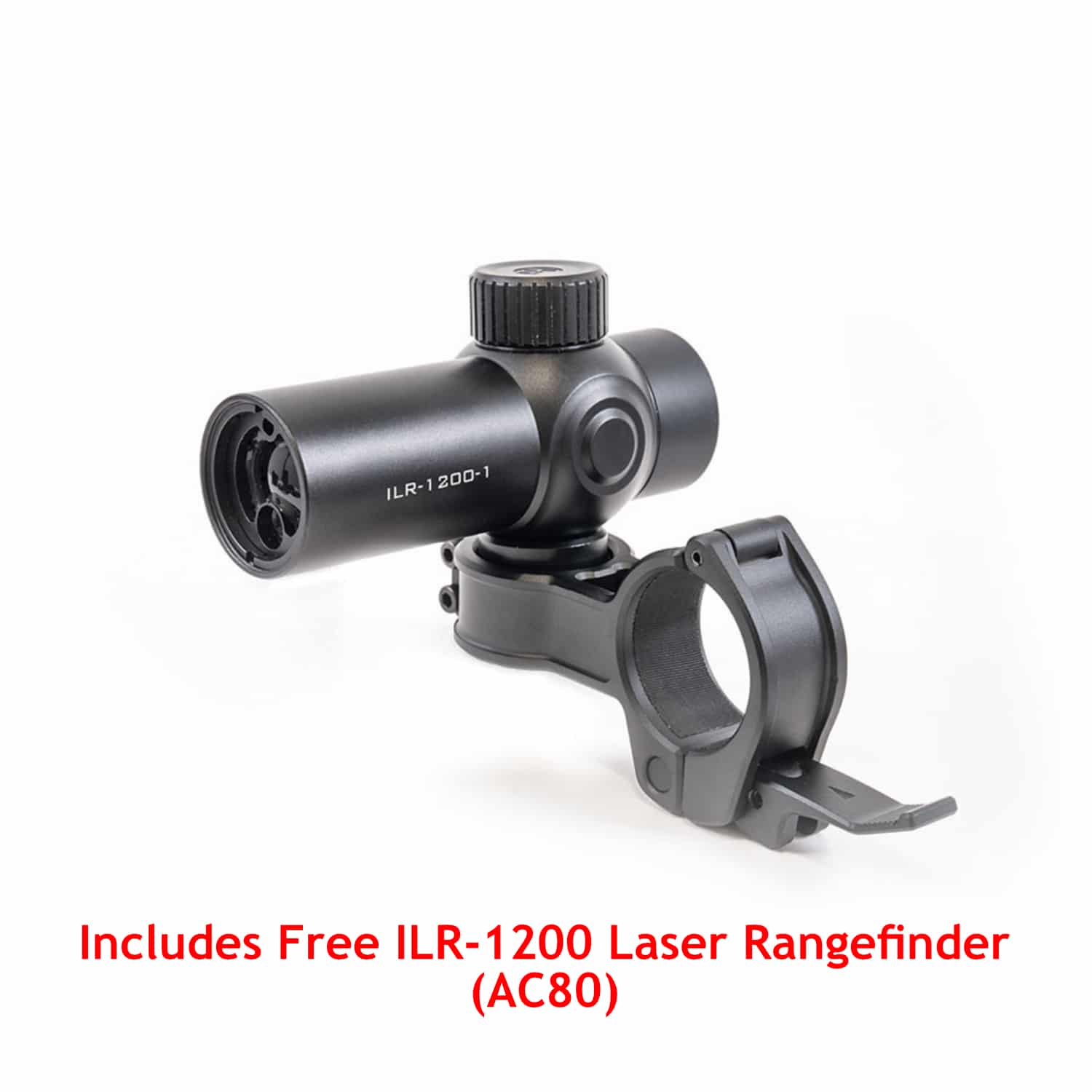

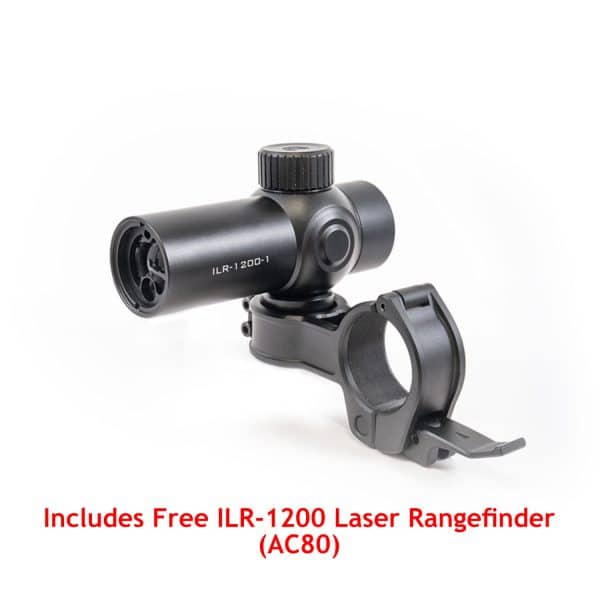

- Rangefinder: Bluetooth ILR-1200-1 LRF – AC80 (Optional)
- Stand-by Mode: Yes
- Picture-in-Picture: Yes
- Image Capture: Yes
- Wifi: Yes
- Mobile App: Yes
- User-Updatable Firmware: Yes
- Connector Type: USB-C
- Connector Output: Power/Data
- Storage Capacity: 128GB
- Onboard Recording: Yes

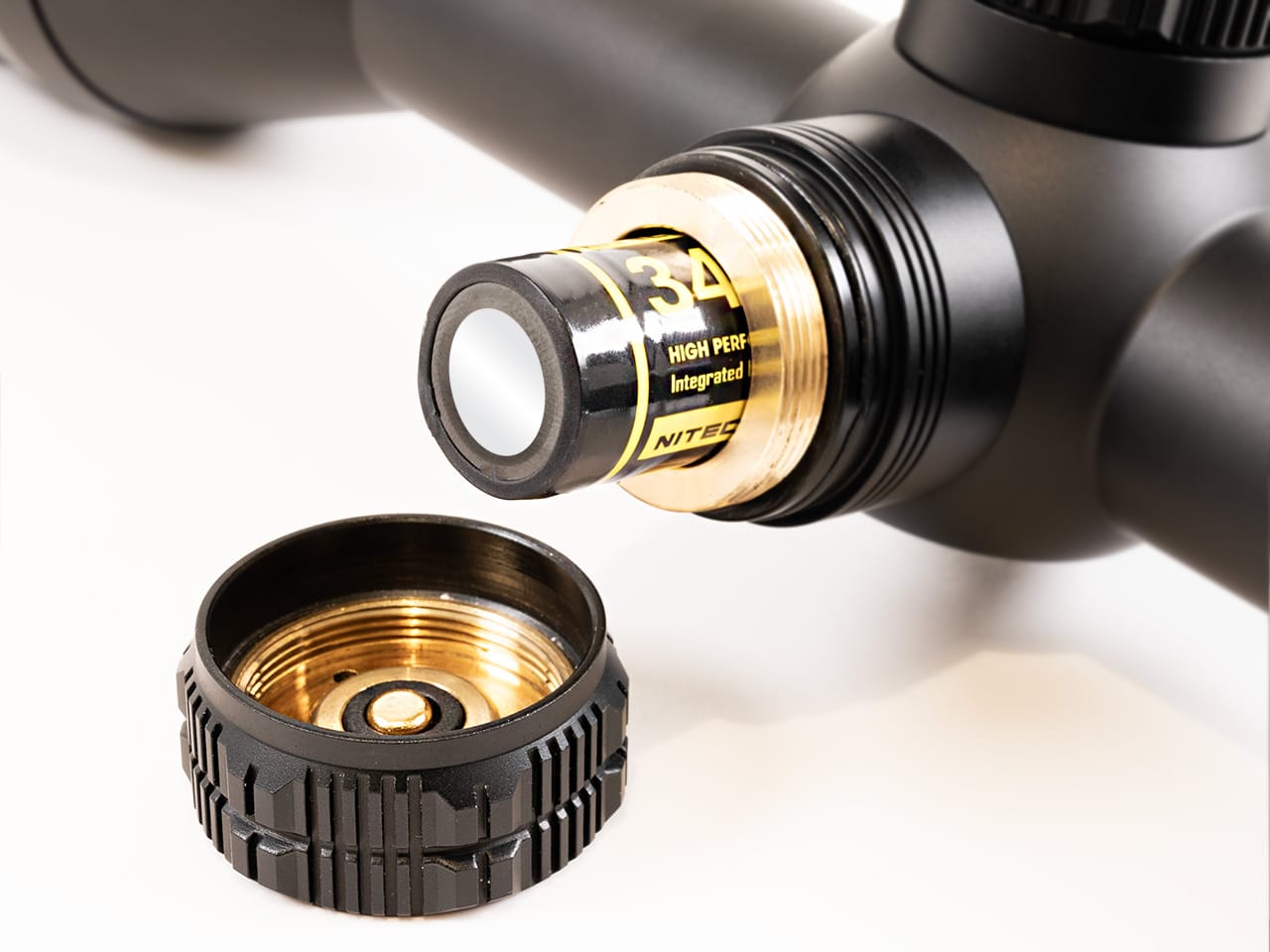

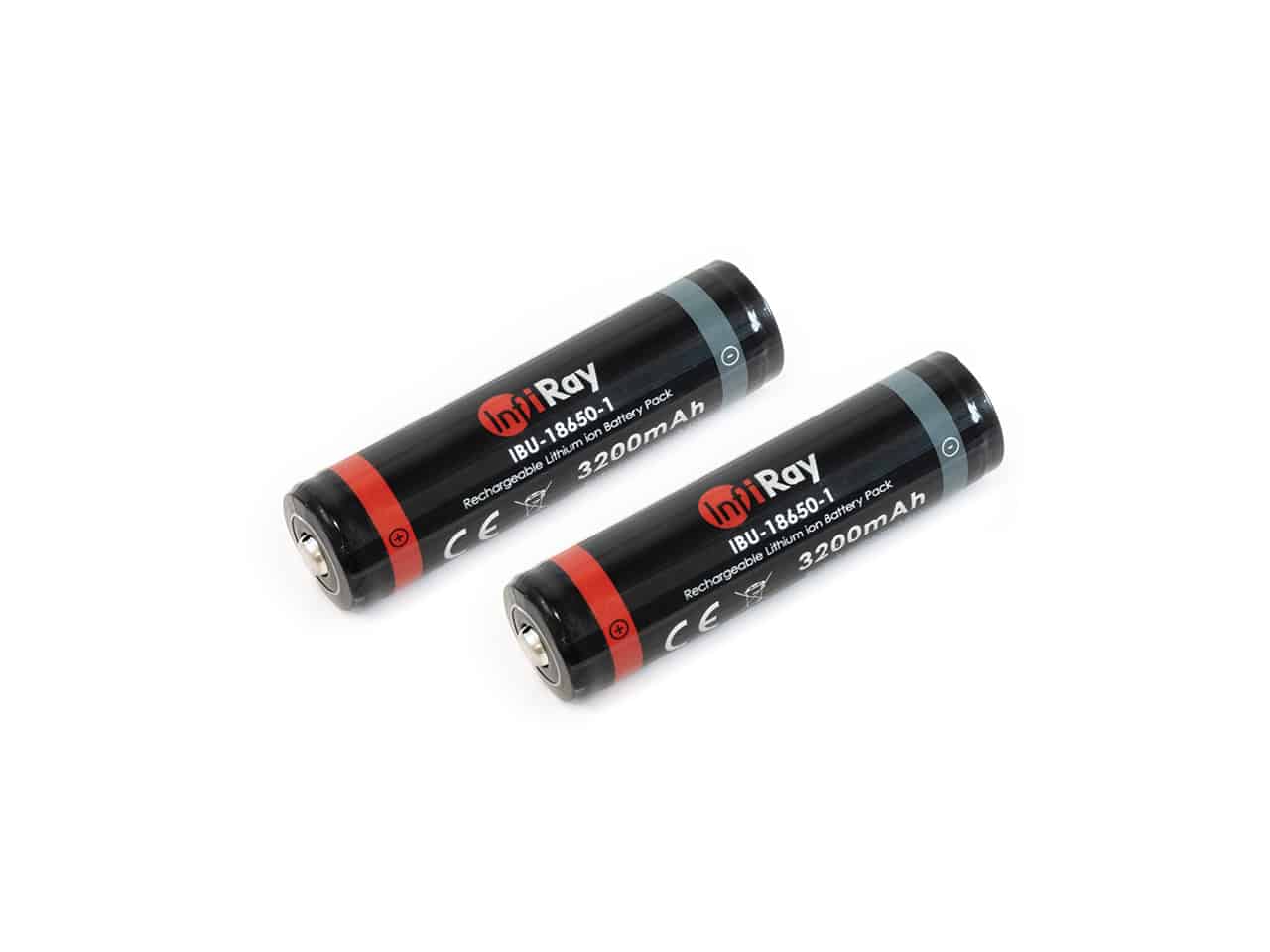

- Power Source: USB-C External, 18650 Battery
- Run Time: 8+
- External Power Source: USB-C
- Warranty: 5 Years
- Startup Time: <10 Seconds, Instant from Standby
- Country of Manufacture: China
Environmental Specifications
- Operating Temperature Range: -4°F~122°F
- Ingress Protection: IP67
- Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Physical
- Length: 15.12
- Weight: 35.27 Oz
- Height: 3.03
- Width: 4.09
- Mounting Interface: Picatinny MIL-STD 1913 Rail
- Housing Material: Aluminum
InfiRay Outdoor BOLT TX60C Thermal Riflescope – Sensor Specifications
- Device Technology: Thermal Imaging
- Sensor Type: InfiRay MICRO II
- Sensor Resolution: 1024×1024
- Sensor Pixel Size: 12μm
- Sensor Frame Rate: 50hz
- Thermal Sensitivity: <18mk
- Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
InfiRay Outdoor – IRAYUSA BOLT TX60C Manual
