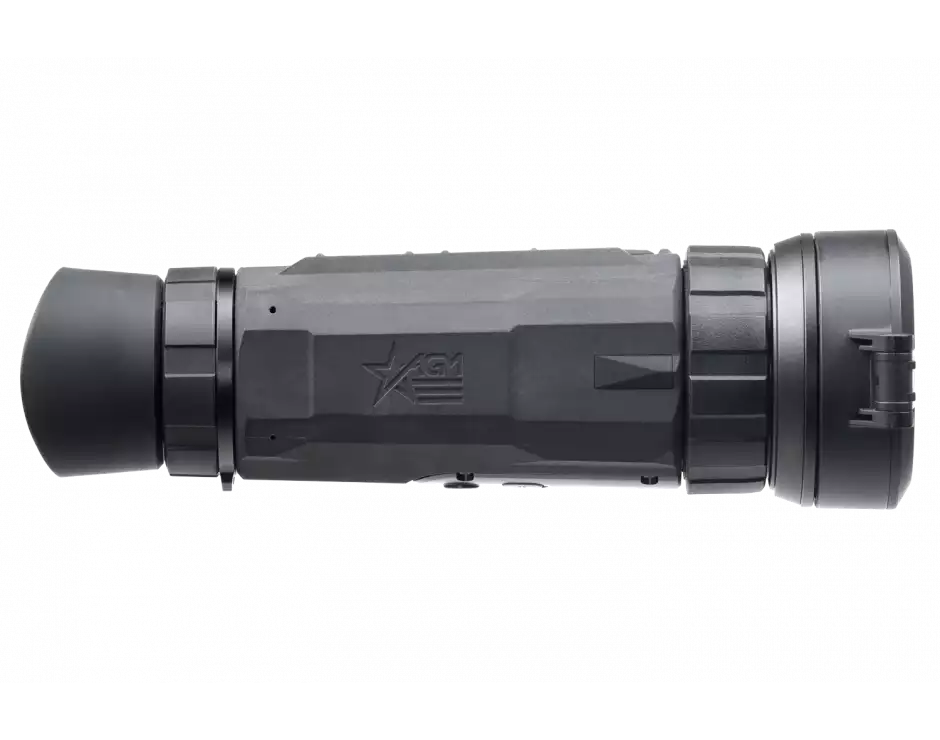

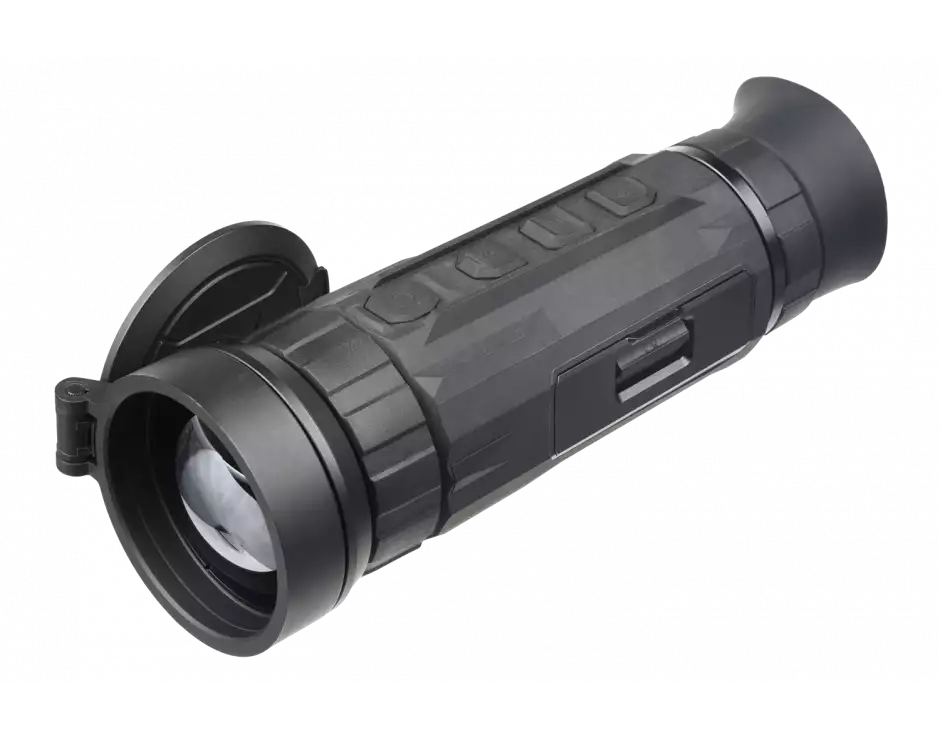

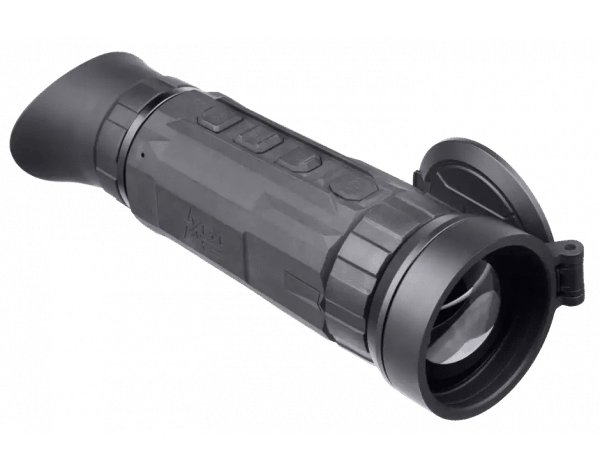

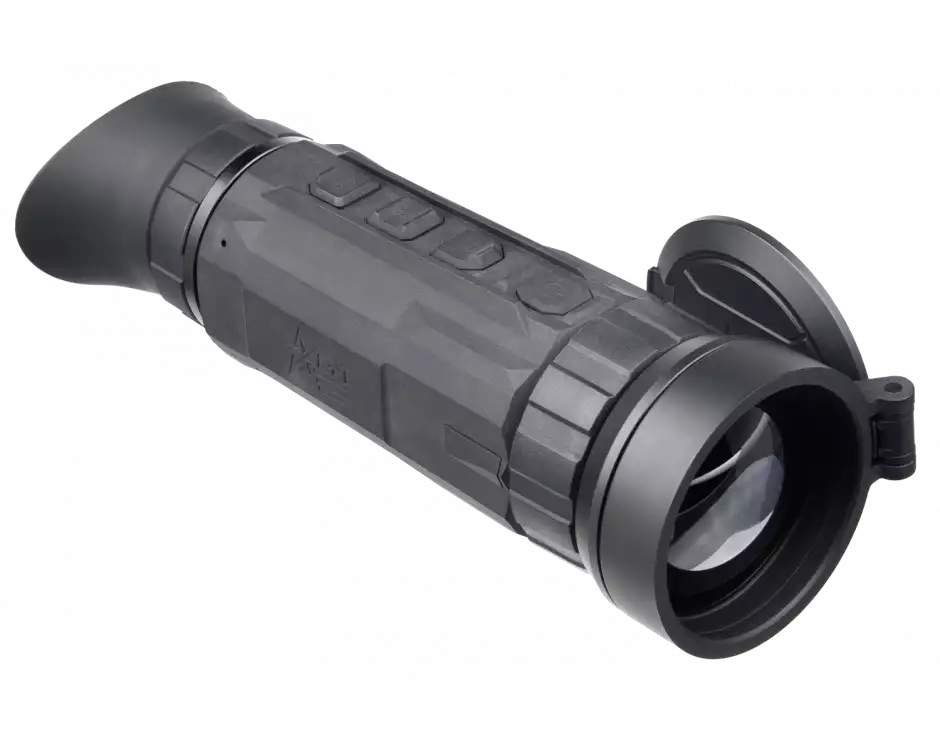

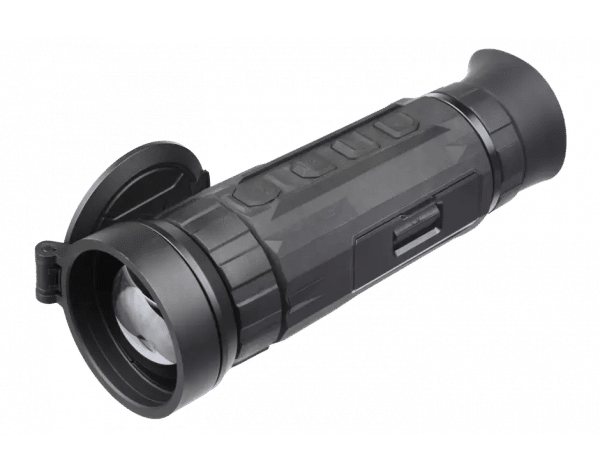

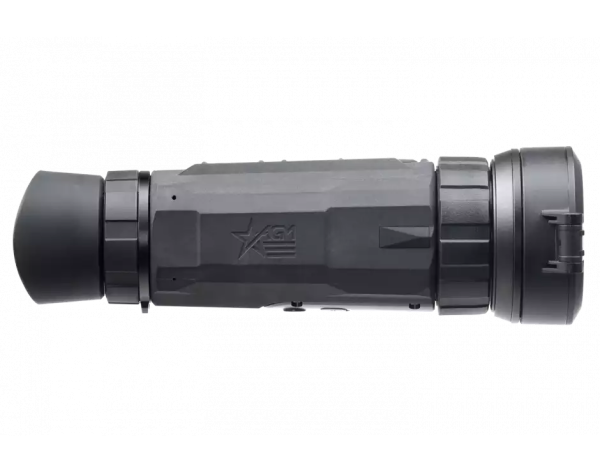

AGM SIDEWINDER TM50-640 Thermal Monocular
(2.5-20x magnification and 2,800 yards of detection!)
The Sidewinder™ is our premium handheld observational thermal monocular series. All 640 models come equipped with a 640×512 twelve-micron infrared detector and a 1024×768 OLED display, for improved color rendering. The Sidewinder thermal sensors also come equipped with the most sensitive temperature ratings in its class, coming in at sub-20 millikelvin across the entire product family. Other improvements over the Taipan monoculars include a more robust body/housing and a removable, rechargeable 18650 battery. These units also boast an impressive waterproof rating, which ensures users have peace of mind while utilizing these under the vast majority of weather conditions. The Sidewinder’s built-in 64 GB memory also sits at the top of its class on the market, with advanced software supporting both video recording and image capturing. The primary uses for these thermal monoculars include but are not limited to hunting, law enforcement, search-and-rescue, personal security, conservation, anti-poaching, camping, hiking, and different marine applications.
AGM SIDEWINDER TM50-640 Features:
- 12μm, 384×288 resolution detector
- Highest thermal sensitivity (NETD <20mK)
- Advanced image processing (Digital Detail Enhancement,
- Digital Noise Reduction and (NLM algorithm)
- 50 Hz image frame rate
- 1024×768 resolution OLED display
- Built-in memory supports video/audio recording and
- Snapshot capturing
- 64 GB memory module
- Wi-Fi hotspot
- 1×, 2×, 4× and 8× digital zoom
- Replaceable and rechargeable Li-Ion battery
- Up to 7 hours of continuous running (External power supply capability)
- Waterproof
- 5-Year warranty
SIDEWINDER TM50-640 Specifications:
- Palettes: Black Hot, White Hot, Red Hot, Fusion
- Dimensions: 200 × 78× 68mm (7.9 × 3.0 × 2.7 in)
- Interface: USB Type-C
- Pixel Interval: 12 μm
- Detector type: Vanadium Oxide Uncooled Focal Plane Array
- Response Waveband: 8μm to 14μm
- FFC (Flat Field Correction): Auto, Manual, External Correction
- Highest Temperature Spot Tracking: Yes
- Standby Mode: Yes
- Refresh rate: 50 Hz
- Aperture: F0.9
- Detection Range (6′ object): 2600 m
- NETD: ≤ 20 mk (@25°C), F#=0.9
- Optical magnification: 2.5× – 20×
- Lens (focal length): 50 mm
- Power: 5 VDC/2 A, 1.75 W
- Field of view (H × X): 8.7° × 7°
- Digital zoom: 1×, 2×, 4×, 8×
- Diopter adjustment range: -5 to +3 dpt
- Monitor: 1024×768, OLED
- Storage: Built-in memory (64 GB)
- Record Video: Yes (on-board)
- Capture Snapshot: Yes
- Battery Type: One 18650 Replaceable rechargeable Lithium battery
- Wi-Fi: Yes
- Battery Operating Time: Up to 5 hours
- Weight: 636 g (1.4 lb)
- Working Temperature/ Humidity: -30°C to 55°C (-22°F to 131°F)
- Protection Level: IP67

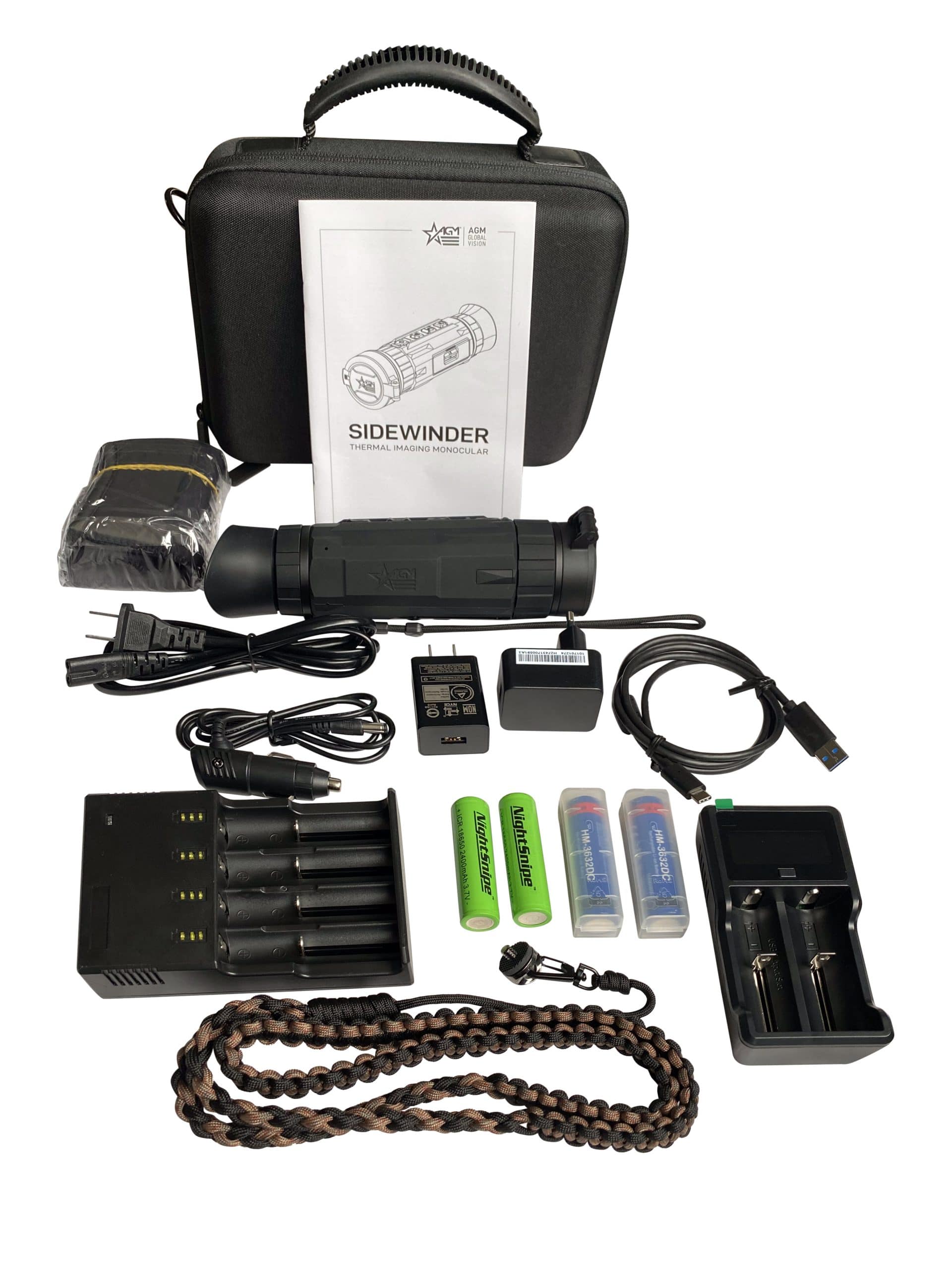

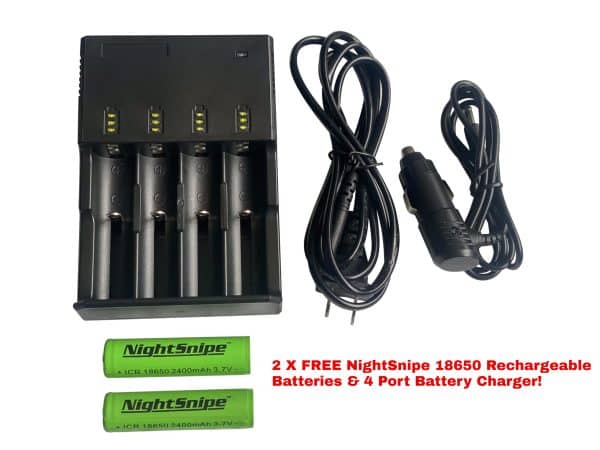

- Battery Charger
- USB Cable
- Power Adapter (US and EU plugs included)
- 18650 Rechargeable Battery
- Lens Cloth

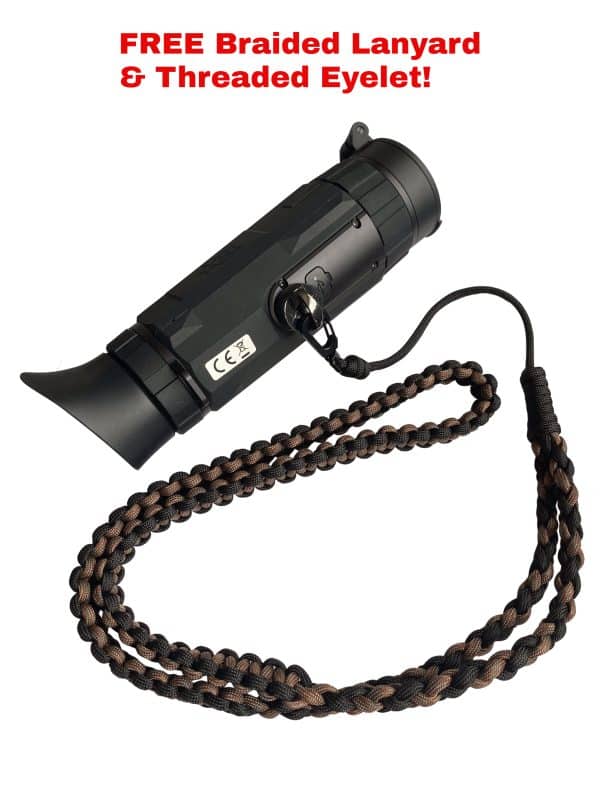

- Wrist Strap
- Carrying Case
- User Manual
- Protective Bag
